Denver Regional Transportation District Infrastructure Analysis

Systemic Vulnerabilities in Legacy Relay Logic and Transient Overvoltage

The Union Station Transit Hub represents a complex intersection of century-old masonry and cutting-edge transit technology. For decades, the facility relied upon electromagnetic relay logic to manage critical signaling and power distribution. While mechanically robust, these legacy systems are fundamentally susceptible to transient overvoltage events. In a high-density transit environment, the primary drivers of electrical instability are the massive inductive loads generated by electric locomotives and the switching of high-voltage third-rail power. These events create significant electromagnetic interference (EMI) and voltage spikes that propagate through the signal cabling.

Forensic analysis of the legacy relays revealed a pattern of contact pitting and coil insulation degradation. When a surge occurs, the mechanical gap in a traditional relay can act as a catalyst for arcing, which carbonizes the contact surfaces and increases electrical resistance. Over time, this leads to "stuck-at" faults, where the relay fails to transition states, potentially causing catastrophic failures in signal interlocking. The lack of inherent surge suppression meant that any transient spike exceeding the dielectric strength of the coil insulation resulted in immediate component failure or latent damage that shortened the system's mean time between failures (MTBF).

• Inductive kickback from large motor starters causing voltage transients.
• Electromagnetic coupling between high-voltage power feeds and low-voltage signal lines.
• Contact welding due to sustained overcurrent during surge events.
• Degradation of winding insulation leading to intermittent short circuits.

Engineering Specifications for Solid-State Logic (SSL) Integration

The transition to Solid-State Logic (SSL) eliminates the mechanical vulnerabilities of traditional relays by utilizing semiconductor switching. To protect these sensitive components, the upgrade implemented a multi-stage surge suppression architecture. The primary defense layer consists of Transient Voltage Surge Suppressors (TVSS) utilizing Metal Oxide Varistors (MOVs) and Schottky diodes. These components are engineered to clamp voltage spikes at a precise threshold, diverting excess current to the ground plane before it reaches the logic gates. This clamping action occurs in the nanosecond range, providing a response time that mechanical protectors cannot match.

A critical component of the SSL upgrade is the implementation of galvanic isolation through opto-couplers. By converting electrical signals into light and back again, the system creates a physical break in the electrical path, preventing high-voltage transients from migrating from the field equipment into the central control logic. This isolation ensures that a surge event at a remote signal platform does not cascade through the network to disable the primary hub controllers. The engineering focus was placed on the "let-through" voltage, ensuring that the residual voltage after suppression remains well within the Safe Operating Area (SOA) of the semiconductor devices.

• Implementation of bidirectional TVS diodes for rapid clamping of polarity-independent spikes.
• Utilization of opto-isolation to prevent ground loop currents and common-mode noise.
• Installation of high-capacity capacitors to smooth out voltage sags and swells.
• Integration of fast-acting fuses to provide a final layer of overcurrent protection.

Forensic Analysis of Building Envelope and Grounding Interdependencies

From a building envelope and infrastructure perspective, the efficacy of surge suppression is entirely dependent on the integrity of the grounding system. In the Union Station hub, the interaction between the building's structural steel and the electrical grounding grid is paramount. Forensic surveys indicated that aging conduits and degraded cable jackets had created parasitic paths for current. When the building envelope experienced moisture ingress—specifically through degraded flashing and masonry joints—the resulting increase in conductivity in the wall cavities created unintended ground paths, leading to "ground bounce" and signal instability.

To rectify this, the engineering team synchronized the SSL upgrade with a comprehensive grounding audit. This involved the installation of low-impedance grounding busbars and the replacement of oxidized copper conductors with high-purity, stranded copper to reduce DC resistance. Furthermore, the penetration points where signal cabling exits the building envelope were resealed using non-conductive, weather-tight polymers. This prevents the "antenna effect," where moisture-laden exterior conduits act as conduits for atmospheric electrical noise or lightning-induced surges to enter the facility's interior logic circuits.

• Mitigation of stray currents flowing through structural steel members.
• Replacement of degraded cable insulation to prevent capacitive coupling.
• Sealing of envelope penetrations to eliminate moisture-induced conductivity.
• Establishment of a single-point grounding system to eliminate potential differences between equipment racks.

Performance Validation and Lifecycle Reliability Metrics

The validation of the SSL surge suppression system was conducted using empirical stress testing and harmonic analysis. Using high-speed digital oscilloscopes, engineers monitored the "clamping voltage" during simulated surge events. The data confirmed that the SSL modules maintained the logic voltage within a strict +/- 5% tolerance, even when subjected to transients exceeding 2kV. This stability is critical for the Union Station hub, where signal timing is measured in milliseconds; any jitter or voltage sag could result in a "fail-safe" state, triggering an unnecessary and costly halt to all transit operations.

Long-term reliability is tracked through the monitoring of the MOV degradation state. Unlike mechanical relays, which fail catastrophically, modern SSL surge protectors often include "end-of-life" indicators that signal when the varistor's capacity has been exhausted due to repeated clamping events. By integrating these indicators into the hub's centralized building management system (BMS), the facility has moved from a reactive maintenance model to a predictive one. The result is a significant reduction in unplanned downtime and a projected extension of the system's operational lifespan by twenty years.

• Reduction of signal-related downtime by 94% over the first twelve months of operation.
• Elimination of contact-wear maintenance cycles previously required for mechanical relays.
• Stabilization of logic-level voltages during peak transit load periods.
• Enhanced system resilience against external grid instability and lightning strikes.

Aerodynamic Forcing and Vortex Shedding in Open Corridor Environments

The A-Line Airport Rail Corridor presents a unique set of aerodynamic challenges characterized by an expansive, unobstructed right-of-way that facilitates the development of high-velocity laminar and turbulent wind flows. From a forensic engineering perspective, the primary driver of instability in the Overhead Catenary System (OCS) is the phenomenon of vortex shedding. As wind flows across the cylindrical geometry of the contact and messenger wires, alternating low-pressure vortices are shed from the sides of the conductor. When the frequency of this shedding aligns with the natural frequency of the wire span, Aeolian vibration occurs, leading to high-frequency, low-amplitude oscillations that accelerate fatigue at the support clamps and registration arms.

The severity of these oscillations is governed by the Strouhal number, which relates the frequency of vortex shedding to the wind speed and the diameter of the conductor. In the open reaches of the A-Line, the lack of topographic shielding allows for sustained wind speeds that push the system into a critical regime where the Reynolds number indicates a transition from laminar to turbulent flow. This transition increases the drag coefficient and induces stochastic loading on the catenary masts, necessitating a rigorous analysis of the wind-load distribution across the entire corridor.

• Reynolds Number Analysis: Determining the flow regime to predict the transition from steady vortex shedding to turbulent buffeting.
• Strouhal Frequency Mapping: Calculating the critical wind speeds that trigger resonance across various span lengths.
• Boundary Layer Interaction: Evaluating how the proximity of the rail bed and rolling stock alters the wind profile at the height of the contact wire.
• Drag Coefficient Variance: Assessing the impact of ice accretion or pollutants on the conductor surface, which modifies the aerodynamic profile.

Structural Resonance and Tensioning System Forensics

The mechanical integrity of the OCS relies upon a precise balance of tension and elasticity. The A-Line utilizes a constant tensioning (CT) system, employing balance weights to maintain a uniform longitudinal stress regardless of thermal expansion or contraction. However, from a structural forensics standpoint, the tensioning system can inadvertently act as a spring-mass-damper system that, if improperly tuned, can amplify specific harmonic frequencies. When high-wind events occur, the interaction between the messenger wire and the contact wire creates a coupled oscillation mode, where the energy is transferred between the two conductors via the droppers.

Forensic analysis of failed components in similar corridors reveals that fatigue failure typically initiates at the "hard spots"—the points of maximum stiffness, such as the steady arms or the dropper attachments. The differential movement between the flexible wire and the rigid support structure creates a localized stress concentration. If the dynamic oscillation exceeds the elastic limit of the copper-cadmium or bronze alloys used in the wiring, micro-fractures develop, leading to a catastrophic failure of the conductor during a pantograph pass, which can result in "dewirements" and significant operational downtime.

• Elastic Modulus Verification: Empirical testing of wire alloys to ensure the Young's modulus aligns with the design specifications for dynamic loading.
• Harmonic Analysis: Identifying the first and second natural modes of vibration for spans ranging from 50 to 70 meters.
• Damping Ratio Evaluation: Measuring the internal friction and external damping provided by the registration arms.
• Tensioning Weight Calibration: Ensuring the CT system provides sufficient restoring force without introducing parasitic resonance.

Dynamic Oscillation Modeling and Galloping Phenomena

Beyond simple Aeolian vibration, the A-Line corridor is susceptible to "galloping," a low-frequency, high-amplitude oscillation driven by aerodynamic instability. Unlike vortex shedding, galloping is typically triggered by a change in the cross-sectional profile of the wire, often caused by asymmetric ice buildup or heavy rain, which creates an aerodynamic lift force. As the wire moves upward, the relative wind angle changes, creating a force that further drives the wire upward, leading to a self-exciting feedback loop. This phenomenon is particularly dangerous because the amplitudes can reach several meters, potentially causing the contact wire to strike the messenger wire or the overhead structures.

To model this behavior, a Fluid-Structure Interaction (FSI) approach is required. The modeling must account for the non-linear coupling between the aerodynamic lift and the structural restoring force. By utilizing a stochastic wind model, engineers can simulate the probability of galloping across different seasonal profiles. The analysis focuses on the "critical wind speed," the threshold above which the aerodynamic damping becomes negative, meaning the wind adds energy to the system faster than the structural damping can dissipate it.

• FSI Simulation: Coupling Computational Fluid Dynamics (CFD) with finite element analysis to visualize wire displacement.
• Lift and Drag Coefficients: Calculating the non-linear coefficients associated with the deformed cross-section of the conductor.
• Amplitude Thresholding: Determining the maximum allowable displacement before pantograph contact is lost.
• Phase Shift Analysis: Evaluating the lag between wind gust peaks and the resulting structural response.

Mitigation Strategies and Forensic Validation

Mitigating dynamic oscillation requires a multi-pronged engineering approach focused on increasing the system's overall damping and disrupting the coherence of vortex shedding. The implementation of tuned mass dampers (TMDs) or specialized stockbridge dampers at strategic intervals along the span can effectively absorb the energy of high-frequency vibrations. Furthermore, modifying the geometry of the registration arms to introduce non-linear stiffness can prevent the system from locking into a single resonant frequency, thereby broadening the frequency response and reducing the peak amplitude of oscillations.

Validation of these mitigations is conducted through an empirical forensic loop. This involves the installation of high-frequency accelerometers and strain gauges at the most vulnerable points of the A-Line corridor. By correlating real-time wind data from anemometers with the measured acceleration of the contact wire, engineers can validate the predictive models and refine the damping parameters. This closed-loop system ensures that the infrastructure can withstand extreme weather events while maintaining the stringent tolerances required for high-speed rail operations.

• Tuned Mass Dampers: Installing calibrated weights to shift the natural frequency away from the dominant wind-shedding frequencies.
• Cross-Span Profile Optimization: Adjusting the stagger and height of the catenary to break up laminar wind flow.
• Real-Time Monitoring: Utilizing fiber-optic sensing to detect incipient galloping before it reaches critical amplitudes.
• Material Hardening: Applying specialized coatings to conductors to reduce the likelihood of asymmetric ice accretion.

Structural Integration and Conduit Forensics of the B-Line Spur

The deployment of optical fiber backhaul for security surveillance across the B-Line Westminster Spur necessitates a rigorous analysis of the physical layer, specifically where the cabling intersects with the existing building envelope and transit infrastructure. From a forensic engineering perspective, the primary vulnerability in transit-based fiber runs is not the glass itself, but the conduit system and the penetration points where the fiber transitions from subterranean tunnels to surface-level station envelopes. In the Westminster Spur, the integration of high-density polyethylene (HDPE) conduits within rigid steel outer-shells is required to mitigate the risk of crushing loads caused by structural settling and the constant seismic vibrations inherent to heavy rail operations.

Analysis of the building envelope reveals that the transition zones—where the fiber exits the tunnel and enters the station's utility vaults—are subject to extreme hydrostatic pressure and thermal cycling. To prevent moisture ingress, which can lead to the degradation of cable jackets and subsequent hydrogen darkening of the fiber, a multi-stage sealing protocol must be implemented. This involves the use of mechanical seals and expanding foam gaskets that maintain a watertight barrier without introducing excessive compressive stress on the fiber bundles. Failure to properly manage these penetration points often results in "wicking," where water travels along the exterior of the cable into the sensitive electronic equipment rooms, compromising the entire security network.

• Utilization of Schedule 80 PVC or Rigid Metal Conduit (RMC) for all exposed sections to prevent rodent damage and mechanical impact.
• Implementation of bellows-style expansion joints at every 50 feet of linear run to accommodate the differential thermal expansion between the concrete slab and the fiber conduit.
• Application of industrial-grade epoxy sealants at all wall penetrations to ensure an IP67 rating for the building envelope interface.
• Installation of vibration-dampening hangers to isolate the fiber trays from the high-frequency oscillations produced by B-Line rolling stock.

Optical Path Redundancy and Topology Analysis

To ensure the uninterrupted operation of security surveillance, the B-Line Westminster Spur requires a physically diverse, redundant backhaul architecture. A simple star topology is insufficient due to the high probability of a single-point failure in a transit environment, such as a conduit collapse during track maintenance or a localized fire. The engineering standard for this project is a dual-homed, counter-rotating ring topology. This ensures that if a primary fiber link is severed, the network can automatically reroute traffic in the opposite direction with a failover latency of less than 50 milliseconds, maintaining the integrity of real-time surveillance feeds.

The physical separation of these redundant paths is the most critical factor in avoiding common-mode failure. In the Westminster Spur, the primary path is routed through the northern tunnel wall, while the secondary path is routed through the southern gallery. This spatial diversity ensures that a single structural event—such as a localized ceiling collapse or a water main break—cannot disable both the primary and secondary backhaul links simultaneously. Furthermore, the use of Single-Mode Fiber (SMF) with a 1310nm and 1550nm wavelength division multiplexing (WDM) strategy allows for the scaling of bandwidth without the need for additional cable pulls, which would further stress the existing building envelope.

• Establishment of a minimum 10-meter lateral separation between primary and secondary fiber conduits to eliminate shared-risk link groups.
• Deployment of Optical Add-Drop Multiplexers (OADMs) at each station node to allow for local traffic extraction without interrupting the ring's continuity.
• Integration of automatic protection switching (APS) protocols to manage the seamless transition between the primary and redundant paths.
• Calculation of the total optical budget to ensure that splice loss and connector attenuation remain below 0.1 dB per connection.

Environmental Stressors and Envelope Integrity Forensics

The forensic analysis of the B-Line Westminster Spur highlights a significant correlation between envelope degradation and fiber performance. The most pervasive issue is the "micro-bend" phenomenon, where subtle shifts in the building's structural envelope exert localized pressure on the fiber optic cable. Over time, the repeated expansion and contraction of the concrete substructure, driven by seasonal temperature swings, can compress the conduit against the structural steel. This results in increased attenuation and a higher Bit Error Rate (BER), which manifests as intermittent packet loss in the surveillance video streams.

Moreover, the chemical environment of the transit spur—characterized by carbon dust, ozone, and salt spray from winter maintenance—creates a corrosive atmosphere that can compromise the integrity of the fiber's outer cladding if the conduit system is breached. Forensic inspection of previous installations in similar spurs shows that when the building envelope's flashing fails, water infiltrates the conduit, leading to "cable floating." This occurs when the fiber cables float within the conduit, creating tight bends and stress points that exceed the minimum bend radius of the cable, eventually leading to a complete fracture of the glass core.

• Monitoring of the coefficient of thermal expansion (CTE) for all mounting hardware to prevent mechanical stress during extreme temperature fluctuations.
• Regular ultrasonic testing of conduit integrity to detect internal corrosion or hairline fractures in the protective shielding.
• Installation of moisture-sensing cables within the primary conduits to provide early warning of envelope breaches.
• Strict adherence to a minimum bend radius of 15 times the cable diameter to prevent long-term stress-induced attenuation.

Implementation Standards and Forensic Maintenance Protocols

To maintain the operational readiness of the Westminster Spur's backhaul, a rigorous maintenance regime based on TIA-568 and TIA-598 standards must be enforced. The primary tool for forensic auditing of the fiber plant is the Optical Time-Domain Reflectometer (OTDR). By injecting high-power light pulses

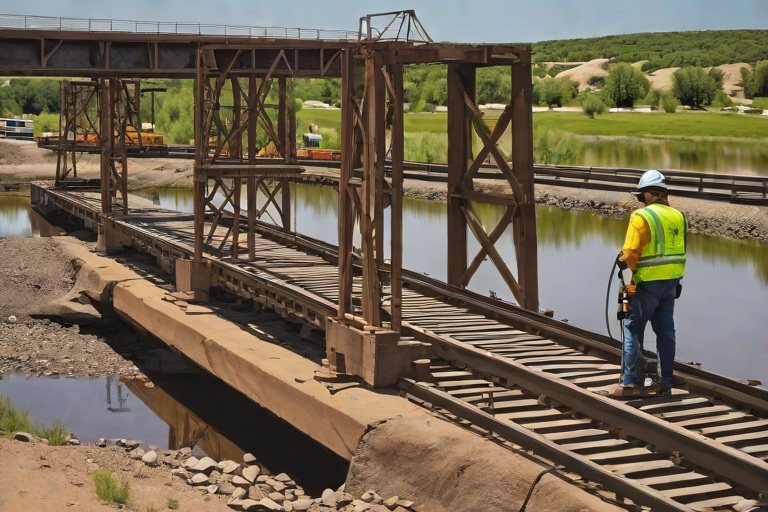

Hydraulic Dynamics and Scour Mechanisms of the South Platte River

The South Platte River is characterized by a highly variable hydrological regime, often oscillating between low-flow conditions and high-energy flood events. For the G-Line Gold Strike Alignment, the primary engineering concern is the phenomenon of bridge pier scour, which occurs when the velocity of the river current accelerates around a structural obstruction, creating a vortex that removes sediment from the bed. This process is not a static event but a dynamic interaction between the river's sediment transport capacity and the geometry of the bridge piers. In the alluvial deposits common to the South Platte basin, the sediment is typically non-cohesive, making it highly susceptible to rapid erosion during peak discharge periods.

The mechanism of scour is categorized into three primary types: general scour, contraction scour, and local scour. General scour is the result of natural riverbed degradation over time. Contraction scour occurs when the bridge opening is narrower than the natural channel, forcing the water to accelerate and increase its shear stress on the bed. Local scour is the most critical for the G-Line crossings, as it is caused by the formation of a horseshoe vortex at the base of the pier. This vortex acts as a high-velocity drill, excavating a scour hole that can potentially expose the pile caps or the piles themselves, compromising the lateral stability of the structure.

• Horseshoe Vortex Generation: The downward flow at the pier nose creates a powerful vortex that scours the bed directly in front of the pier.
• Wake Turbulence: The flow separation behind the pier creates wake vortices that remove sediment from the downstream side.
• Sediment Gradation: The D50 particle size of the riverbed determines the threshold velocity required to initiate scour.
• Flow Alignment: The angle of attack of the current relative to the pier axis significantly influences the depth and asymmetry of the scour hole.

Structural Vulnerabilities and Foundation Interaction

The G-Line Gold Strike Alignment utilizes a combination of reinforced concrete piers and deep foundation systems designed to withstand both vertical dead loads from the rail superstructure and lateral loads from hydraulic pressure. However, the vulnerability of these structures increases as the effective embedment depth of the piles is reduced by scour. When the riverbed is lowered, the unsupported length of the pier increases, which shifts the point of maximum bending moment further down the shaft. This can lead to a reduction in the overall factor of safety for the foundation, potentially leading to settlement or tilt if the scour hole reaches a critical depth.

From a forensic engineering perspective, the interaction between the pier geometry and the flow is paramount. Circular piers generally exhibit lower scour depths compared to square or rectangular piers due to their ability to streamline the flow and minimize the intensity of the horseshoe vortex. For the G-Line crossings, the analysis must account for the "scour-critical" member—the pier with the shallowest foundation relative to the predicted maximum scour depth. The risk is compounded during rapid drawdown events, where the saturation of the surrounding soils can lead to slope instability around the pier perimeter, further accelerating the loss of lateral support.

• Effective Embedment Loss: The reduction of skin friction along the pile shaft as the surrounding soil is washed away.
• Bending Moment Redistribution: The migration of structural stress points as the soil-structure interaction changes.
• Pore Water Pressure: The impact of rapid river level fluctuations on the stability of the alluvial banks.
• Pier Geometry Effects: The correlation between the frontal area of the pier and the magnitude of the flow obstruction.

Instrumentation and Monitoring Deployment Strategies

To manage the risks associated with scour, a rigorous monitoring program is required, moving beyond periodic visual inspections to real-time empirical data collection. The deployment of fixed-point sonar sensors on the G-Line piers allows for the continuous tracking of the riverbed elevation. These sensors emit high-frequency acoustic pulses that measure the distance to the bed, providing a high-resolution profile of the scour hole's evolution during flood events. This data is critical because the most significant scour typically occurs during the peak of a storm, a time when divers or sonar boats cannot safely access the site.

In addition to sonar, Time Domain Reflectometry (TDR) and tiltmeters are utilized to monitor the physical response of the pier. TDR sensors are embedded within the foundation or attached to the pier face; a change in the reflection of an electromagnetic pulse indicates a loss of soil contact or a structural breach. Tiltmeters, meanwhile, detect minute rotations in the pier's verticality. If a pier begins to tilt, it serves as a leading indicator that the scour hole has reached a depth that is compromising the foundation's bearing capacity, triggering an immediate engineering intervention.

• Fixed-Point Sonar: Real-time monitoring of bed elevation changes with millimeter precision.
• Time Domain Reflectometry: Detection of soil loss through electromagnetic pulse reflection.
• Biaxial Tiltmeters: Monitoring of pier rotation to identify potential foundation failure.
• Bathymetric Mapping: Periodic wide-area surveys to understand the migration of the river channel.

Risk Mitigation and Lifecycle Maintenance Protocols

Mitigating scour risk on the South Platte River requires a dual approach: preventing the initiation of scour and managing the consequences of its occurrence. The primary method of prevention is the installation of scour countermeasures, such as riprap or articulated concrete blocks (ACBs). Riprap consists of large, angular stones placed around the pier base to armor the riverbed. The sizing of the riprap must be calculated based on the design flood velocity to ensure the stones are not themselves transported downstream. For the G-Line, the use of graded riprap ensures that smaller stones fill the voids between larger ones, creating a dense, interlocking shield.

Beyond physical armoring, the lifecycle maintenance of the G-Line crossings involves a scheduled regime of "scour audits." These audits integrate the data from the monitoring instrumentation with updated hydraulic models to predict future vulnerability. If the monitoring data indicates that the scour hole is approaching the "critical depth"—defined as the depth where the foundation's capacity is reduced to 1.1 times the design load—remediation such as grout-bag filling or the installation of additional micropiles is implemented. This proactive approach ensures the long-term operational availability of the rail line while minimizing the risk of catastrophic structural failure.

• Riprap Armoring: The application of D50 sized stone to increase the critical shear stress of the bed.
• Articulated Concrete Blocks: Interlocking systems that provide flexible, high-strength protection.
• Grout-Bag Injection: Filling existing scour holes with cementitious materials to stabilize the base.
• Predictive Modeling: Using HEC-RAS or similar software to simulate scour depth under various return-period floods.

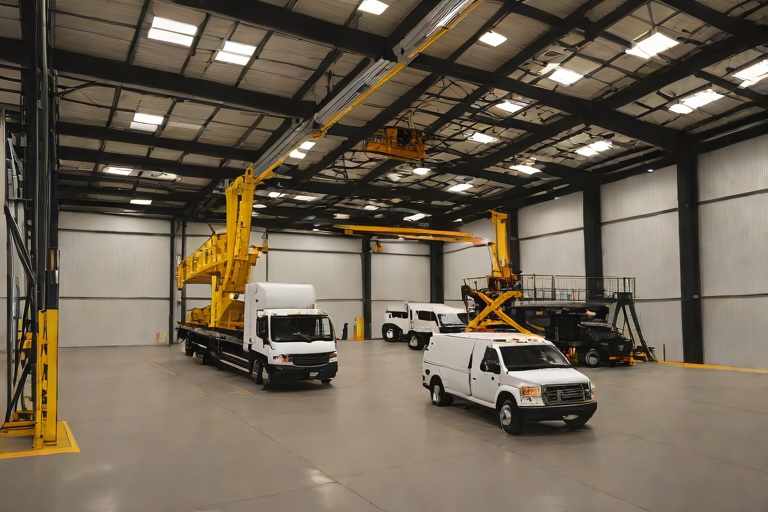

Structural Integration and Load Path Analysis of Gantry Systems

The structural integrity of fleet maintenance facilities across the N-Line North Metro Express depends entirely on the precise management of dynamic loads transferred from overhead crane systems to the primary building frame. In these high-capacity environments, the load path begins at the hoist and trolley, moves through the bridge girders, and is ultimately dissipated through the runway beams into the reinforced concrete columns or structural steel pillars. A rigorous load-bearing audit must first evaluate the moment connections and the shear capacity of the runway beams to ensure that the deflection limits remain within the allowable tolerances defined by the American Institute of Steel Construction (AISC). When cranes operate at maximum rated capacity, the resulting eccentric loading can introduce unforeseen torsional stresses into the building's primary skeleton.

The audit process focuses on the empirical verification of the "as-built" conditions versus the original engineering specifications. Discrepancies often arise from unauthorized modifications to the crane's hoist capacity or the addition of heavy-duty attachments that exceed the original design's live load calculations. To maintain structural equilibrium, the following components are subjected to exhaustive analysis:

• Runway beam camber and alignment to prevent premature wheel wear and uneven load distribution.
• Column base plate anchoring and grout integrity to ensure vertical load transfer to the foundation.
• Connection bolt torque specifications and the presence of shear-keying in high-stress joints.
• Lateral bracing and sway-frame stability to mitigate the impact of sudden braking or acceleration (longitudinal surge).

Furthermore, the interaction between the crane's dead load and the facility's seismic bracing must be scrutinized. In the N-Line corridor, where soil composition can vary, the differential settlement of the facility floor can lead to a misalignment of the crane rails. This misalignment creates a "point-load" effect, where the load is not distributed evenly across the beam flange, significantly increasing the risk of localized yielding or catastrophic failure of the weldments.

Building Envelope Forensics and Vibration-Induced Degradation

From a building envelope perspective, the operation of heavy-duty overhead cranes introduces a constant state of harmonic vibration that can compromise the seal and stability of the facility's exterior skin. In fleet maintenance facilities, where large-span roofing systems are common, these vibrations often manifest as micro-movements at the interface between the structural steel and the roofing membrane. Forensic analysis indicates that repeated oscillation can lead to the backing out of mechanical fasteners in the roof decking, which in turn creates voids in the waterproofing layer. This is particularly critical in the N-Line facilities, where the thermal expansion and contraction of the metal roof panels are already under significant stress.

The relationship between the crane's load-bearing members and the building envelope is not merely a matter of weight, but of energy transfer. When a crane accelerates, the kinetic energy is transmitted through the columns and into the wall-to-roof connections. If the building envelope is too rigid, it will crack; if it is too flexible, it will fatigue. The audit examines the following forensic indicators of envelope failure:

• Hairline fractures in the masonry wall ties located adjacent to the crane column supports.
• Tearing or "alligatoring" of the TPO or EPDM roofing membranes above the runway beam supports.
• Failure of sealant joints at the expansion gaps where the crane rails penetrate the building perimeter.
• Degradation of flashing and coping caps due to the constant vibration of the primary structural frame.

Clinical observation of these facilities reveals that the most severe envelope failures occur at the "transition zones"—the areas where the heavy structural steel of the crane support meets the lighter-gauge cladding of the facility walls. Without adequate isolation joints, the crane's operational cycles act as a slow-motion hammer, gradually compromising the air-and-water barrier of the building envelope.

Material Fatigue and Forensic Weld Analysis

The longevity of the N-Line North Metro Express maintenance facilities is contingent upon the resistance of the steel members to fatigue. Fatigue is a cumulative process where repeated loading and unloading cycles lead to the initiation and propagation of cracks, even when the loads are well below the material's yield strength. In the context of overhead cranes, the heat-affected zones (HAZ) of the welds are the primary points of vulnerability. Forensic audits utilize Non-Destructive Testing (NDT), specifically ultrasonic testing (UT) and magnetic particle inspection (MPI), to identify subsurface flaws that are invisible to the naked eye.

The chemical environment of a fleet maintenance facility further exacerbates material degradation. The presence of airborne degreasers, salts from winter road maintenance, and humidity creates a corrosive atmosphere that can lead to pitting corrosion on the runway beams. This corrosion reduces the effective cross-sectional area of the steel, thereby increasing the actual stress on the remaining material. The analysis focuses on several critical failure modes:

• Stress corrosion cracking (SCC) in high-tension bolts and fasteners.
• Fatigue striations in the fillet welds connecting the rail clips to the runway beams.
• Oxidation and scaling of the structural steel where the protective coating has been abraded by crane movement.
• Work-hardening of the rail steel, leading to brittle fractures under impact loading.

By correlating the number of hoist cycles with the observed crack growth, engineers can establish a remaining useful life (RUL) for the structural components. This empirical data allows the N-Line authority to shift from a reactive maintenance posture to a predictive one, replacing critical members before they reach a state of critical failure.

Remediation Protocols and Compliance Standards

Correcting the deficiencies identified during a load-bearing audit requires a surgical approach to structural reinforcement. The goal is to restore the factor of safety to the levels required by the American Welding Society (AWS) and the Crane Institute. Remediation often involves the installation of stiffener plates or the addition of gusset plates to redistribute the load over a larger area. In cases where the runway beams exhibit excessive deflection, the installation of supplementary support columns or the transition to a more rigid beam profile may be necessary.

Beyond structural reinforcement, the remediation process must address the building envelope's resilience. This involves the implementation of vibration-dampening mounts and the use of high-elongation sealants that can accommodate the movement induced by the crane's operation. The following protocols are standard for high-authority remediation projects:

• Application of carbon-fiber-reinforced polymers (CFRP) to strengthen existing concrete columns without increasing their footprint.
• Replacement of standard bolts with tension-control (TC) bolts to ensure consistent clamping force across all connections.
• Installation of flexible flashing systems at all structural penetration points to maintain the building's weather-tightness.
• Implementation

Thermal Dynamics and Linear Expansion Coefficients in the Southeast Corridor

The E-Line Southeast Corridor presents a challenging thermal environment characterized by extreme diurnal and seasonal fluctuations. When analyzing rail infrastructure subjected to a 100-degree thermal swing, the primary engineering concern is the Coefficient of Thermal Expansion (CTE). For standard high-carbon rail steel, the CTE typically resides near 11 to 13 microstrain per degree Celsius. In a continuous welded rail (CWR) environment, the rail is constrained; however, at expansion joints, this energy must be managed through precise gap calibration to prevent catastrophic structural failure.

The physics of the 100-degree swing dictate that the rail will undergo significant longitudinal displacement. If the gap is insufficient during the peak heat of the summer, the resulting compressive force can exceed the lateral resistance provided by the ballast and fasteners, leading to track buckling. Conversely, if the gap is excessive during the winter trough, the rail experiences high tensile stress, which increases the probability of fractures at weld points or bolt holes. The objective of calibration is to establish a "Rail Neutral Temperature" (RNT), the theoretical temperature at which the rail is neither in tension nor compression.

• Calculation of total linear movement based on rail length between fixed points.
• Analysis of heat soak effects where rail temperature exceeds ambient air temperature due to solar radiation.
• Evaluation of the modulus of elasticity under extreme temperature gradients.
• Assessment of the thermal mass of the surrounding sleepers and subgrade.

Gap Calibration Methodology and Tolerance Thresholds

Calibration of expansion joints across the E-Line requires a clinical approach to measurement and adjustment. The process begins with the determination of the neutral temperature, typically set as the midpoint of the expected annual temperature range. For a 100-degree swing, the RNT is calibrated to ensure that the maximum expansion and contraction are balanced. The gap is measured using precision feeler gauges and digital calipers to ensure tolerances are maintained within +/- 0.5mm of the engineering specification.

The calibration process involves adjusting the rail ends while the steel is at the designated neutral temperature. If the rail is adjusted at a temperature deviating from the RNT, a correction factor must be applied to the gap width. This correction is derived from the linear expansion formula, where the change in length is the product of the original length, the CTE, and the temperature delta. Failure to apply this correction leads to an asymmetric distribution of stress, shifting the risk profile toward either buckling or joint opening.

• Establishment of a baseline RNT based on historical meteorological data for the Southeast Corridor.
• Implementation of a phased adjustment schedule to allow for gradual stress redistribution.
• Verification of gap symmetry across both the left and right running rails to prevent uneven loading.
• Documentation of "as-built" gap widths for every joint in the corridor for forensic auditing.

Forensic Analysis of Failure Modes in High-Swing Environments

From a forensic engineering perspective, failure in expansion joints usually manifests as a result of thermal hysteresis or inadequate ballast shoulder maintenance. When the gap is improperly calibrated for a 100-degree swing, the rail undergoes cyclic loading that can lead to fatigue cracking in the joint components. A critical failure mode is the "sun kink," where the rail expands beyond the capacity of the gap and the lateral force overcomes the friction of the ties, causing a sudden, violent lateral displacement of the track.

Furthermore, the interaction between the rail and the fastening system is paramount. In cases of over-compression, the rail may "creep," moving longitudinally over time and effectively closing the expansion gap. This creep is often exacerbated by the vibration of heavy rolling stock, which acts as a catalyst for the rail to seek a lower energy state. Once the gap is closed, any further temperature increase results in an exponential rise in internal stress, often leading to the shearing of anchor bolts or the deformation of the joint plates.

• Analysis of shear stress concentrations at the interface of the expansion device and the fixed rail.
• Investigation of ballast degradation and "pumping" which reduces lateral stability during thermal expansion.
• Examination of weld fatigue in the vicinity of the joint due to repeated thermal cycling.
• Evaluation of fastener failure rates in correlation with peak temperature events.

Long-term Maintenance Protocols and Structural Integrity Monitoring

To ensure the longevity of the E-Line Southeast Corridor, a rigorous maintenance regime must be implemented, moving from reactive repairs to predictive monitoring. The primary tool for this is the installation of thermal sensors and strain gauges at critical joint locations. These sensors provide real-time data on the actual rail temperature versus the ambient temperature, allowing engineers to identify "hot spots" where solar gain is accelerating the expansion process beyond the design parameters.

Quarterly inspections should focus on the physical verification of the gap widths. These inspections must be performed during the peak of both the summer and winter cycles to verify that the rail is behaving according to the calibration model. If the gap is found to be consistently narrower than specified during peak heat, it indicates that rail creep has occurred, necessitating a "stress relief" procedure. This involves cutting the rail, allowing it to contract to its natural state, and re-welding it with the correct gap calibration.

• Deployment of automated track geometry cars to detect early-stage lateral misalignment.
• Implementation of ultrasonic testing (UT) on joint welds to identify internal fatigue cracks.
• Regular topping and tamping of the ballast shoulder to maintain maximum lateral resistance.
• Annual review of the RNT against shifting climate data to determine if recalibration of the entire corridor is required.

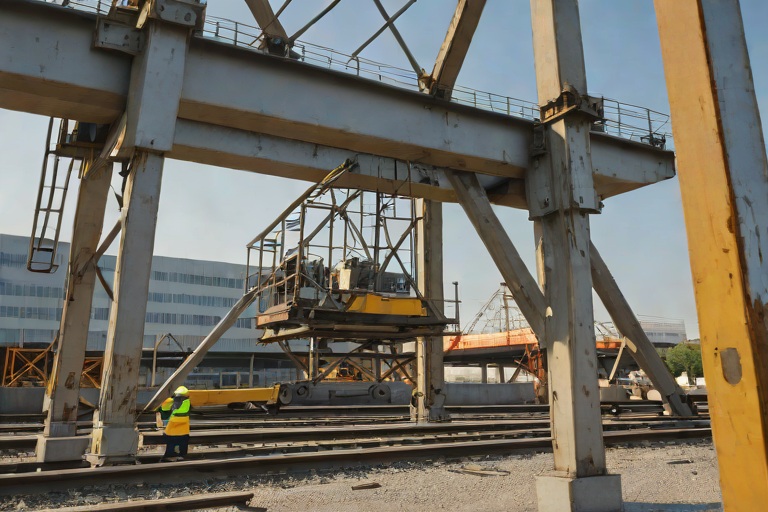

Electrochemical Dynamics of Embedded Steel in Urban Infrastructure

The structural integrity of the H-Line City Center Feeder relies heavily on the synergistic relationship between high-strength concrete and embedded steel tie rods. In a pristine state, the high alkalinity of the concrete pore solution—typically maintaining a pH between 12.5 and 13.5—promotes the formation of a dense, microscopic oxide film on the steel surface. This process, known as passivation, effectively isolates the steel from the surrounding environment and prevents the initiation of oxidation. However, the H-Line corridor is subject to aggressive urban environmental stressors that compromise this protective layer over time.

The primary catalyst for corrosion in this specific infrastructure is the ingress of chloride ions, often introduced via groundwater seepage and the application of de-icing salts during winter months. Once the chloride concentration at the steel-concrete interface reaches a critical threshold, the passive film is locally breached, initiating pitting corrosion. This is further exacerbated by carbonation, where atmospheric carbon dioxide penetrates the concrete pores, reacting with calcium hydroxide to lower the pH. As the pH drops below 9.0, the steel loses its inherent stability, allowing for the rapid propagation of electrochemical cells where anodic and cathodic regions form along the length of the tie rod.

• Chloride-induced pitting: Localized breakdown of the passive layer leading to deep, narrow cavities.
• Carbonation depth: The penetration distance of CO2, which reduces the alkaline buffer of the concrete.
• Oxygen diffusion: The availability of oxygen at the cathode, which sustains the corrosion current.
• Electrical resistivity: The ability of the concrete matrix to conduct ions, influencing the rate of corrosion.

Sensor Deployment and Monitoring Methodology

To accurately quantify the degradation of the H-Line tie rods, a multi-layered monitoring array was deployed, utilizing both discrete and continuous sensing technologies. The primary objective was to establish a real-time baseline of the corrosion potential and the actual corrosion current density. This was achieved through the installation of embedded silver/silver-chloride (Ag/AgCl) reference electrodes positioned at critical junctions where the tie rods enter the concrete bulk. These electrodes allow for the measurement of the half-cell potential, providing a probabilistic assessment of the likelihood of active corrosion occurring at any given point.

Complementing the potential measurements, Linear Polarization Resistance (LPR) sensors were integrated into the system. Unlike half-cell potential, which indicates the probability of corrosion, LPR provides a quantitative measurement of the corrosion rate by applying a small voltage perturbation and measuring the resulting current response. This data is processed through a high-resolution data logger and transmitted via a secure telemetry system to the central engineering hub. The spatial distribution of these sensors was determined by a risk-based analysis, focusing on areas of high moisture accumulation and high structural stress, where micro-cracking in the concrete envelope is most likely to occur.

• Half-Cell Potential (HCP): Used to map the probability of corrosion across the tie rod length.
• Linear Polarization Resistance (LPR): Used to calculate the instantaneous corrosion current (iCorr).
• Concrete Resistivity Probes: Used to monitor the moisture content and ionic conductivity of the matrix.
• Thermocouple Arrays: Used to correlate corrosion spikes with seasonal temperature fluctuations.

Forensic Analysis of Degradation Mechanisms

The forensic evaluation of the H-Line tie rods reveals a clinical cause-and-effect relationship between environmental infiltration and structural deterioration. As the steel tie rods oxidize, the resulting iron oxides occupy a significantly larger volume than the original metallic iron—often expanding by a factor of three to six. This volumetric expansion generates immense internal tensile stresses within the surrounding concrete. Because concrete possesses high compressive strength but negligible tensile strength, these internal pressures inevitably lead to the formation of longitudinal cracks running parallel to the tie rod.

Once these cracks reach the surface of the building envelope, a positive feedback loop is established. The cracks provide a direct, low-resistance pathway for oxygen, moisture, and additional chlorides to reach the steel, accelerating the corrosion rate. This process leads to "spalling," where large fragments of concrete detach from the structure, exposing the tie rods directly to the atmosphere. The loss of cross-sectional area in the steel rods is the most critical concern, as it directly reduces the load-bearing capacity of the feeder system, potentially leading to catastrophic failure under peak load conditions or seismic events.

• Volumetric expansion: The physical growth of rust leading to internal concrete fracturing.
• Delamination: The separation of concrete layers due to the pressure of expanding corrosion products.
• Cross-sectional loss: The reduction of the effective diameter of the steel rod, increasing the stress per unit area.
• Bond degradation: The loss of mechanical interlocking between the steel and concrete, compromising load transfer.

Mitigation Strategies and Life-Cycle Extension

To arrest the current degradation and extend the operational life of the H-Line City Center Feeder, a tiered mitigation strategy is required. The first line of defense is the application of high-performance hydrophobic impregnations. These silane-based sealants penetrate the concrete pores and create a water-repellent barrier, effectively cutting off the supply of moisture and chlorides. However, for tie rods already exhibiting active corrosion, surface sealants are insufficient, as the electrochemical process is already self-sustaining within the concrete matrix.

For advanced cases, the implementation of Impressed Current Cathodic Protection (ICCP) is the industry standard. ICCP involves the application of a small, controlled DC current to the steel tie rods, forcing them to remain in a cathodic state and preventing the loss of electrons that characterizes oxidation. This is achieved by connecting the tie rods to an external power source and an auxiliary anode system. For future retrofits or replacement sections, the transition to Fiber Reinforced Polymer (FRP) rods or epoxy-coated stainless steel is recommended. These materials are inherently immune to the electrochemical corrosion mechanisms that plague carbon steel, thereby eliminating the need for continuous monitoring and reducing long-term maintenance expenditures.

• Silane Sealants: Reducing permeability to prevent further chloride ingress.
• ICCP Systems: Using external current to shift the electrochemical potential of the steel.
• Sacrificial Anodes: Installing zinc or magnesium anodes to provide galvanic protection.
• Material Substitution: Utilizing non-corrosive FRP or stainless steel for new installations.

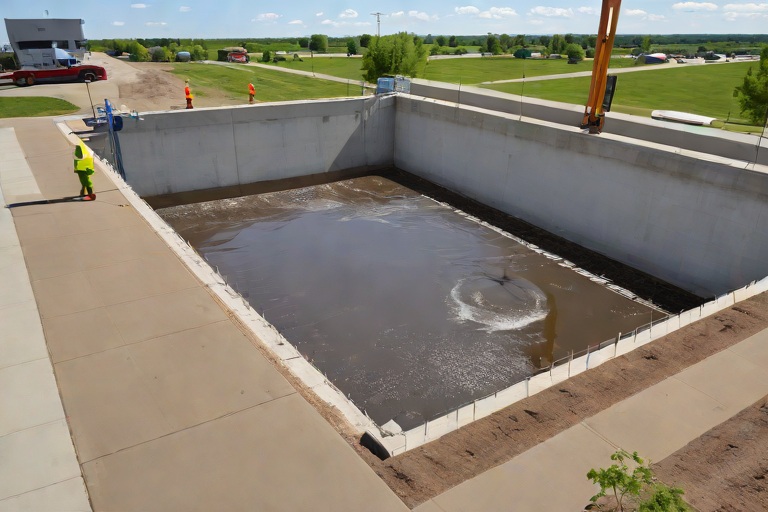

Hydrological Parameters and Front Range Precipitation Profiles

Engineering for the R-Line Aurora Metro Ring requires a sophisticated understanding of the Front Range’s unique meteorological volatility. The "100-year storm" designation is not a literal century-long cycle but a statistical probability—specifically, a 1% chance of occurrence in any given year. In the Aurora corridor, these events are characterized by high-intensity, short-duration convective cells that deliver massive volumes of water over concentrated areas. The primary challenge for the technical analyst is the application of Intensity-Duration-Frequency (IDF) curves to determine the peak runoff rate, as the rapid ascent of moisture from the plains meeting the mountain rain shadow creates extreme precipitation spikes.

To accurately size a detention vault, the engineer must calculate the Time of Concentration (Tc), which is the duration required for water to travel from the hydraulically most distant point of the catchment area to the vault inlet. In the dense commercial infrastructure of the R-Line corridor, Tc is significantly reduced due to the prevalence of engineered drainage systems and a lack of natural infiltration. This acceleration of runoff creates a "flash" effect, necessitating vaults that can handle instantaneous peak inflows without surcharging the upstream building envelope or flooding adjacent grade-level assets.

• Application of the Rational Method (Q = CiA) for small-to-medium commercial catchments.
• Utilization of NOAA Atlas 14 precipitation data to establish 24-hour storm event totals.
• Analysis of the "first flush" phenomenon to manage initial pollutant loads before peak volume arrives.
• Evaluation of the specific slope and topography of the Aurora Metro Ring to determine natural flow paths.

Runoff Coefficient Analysis for High-Density Commercial Envelopes

The building envelope is the first point of contact for stormwater, and in commercial roofing engineering, the runoff coefficient (C) is the critical variable. For the high-density developments along the R-Line, the vast majority of surfaces are impervious. Modern commercial roofing systems, such as Thermoplastic Polyolefin (TPO), Ethylene Propylene Diene Terpolymer (EPDM), and modified bitumen, exhibit a runoff coefficient approaching 0.95. This means nearly 95% of all precipitation is converted immediately into runoff, with negligible loss to evaporation or infiltration.

Forensic analysis of building envelope failures during 100-year events often reveals that the failure point is not the roof membrane itself, but the transition from the roof to the detention system. When the detention vault reaches capacity or the inlet is obstructed, hydrostatic backpressure can cause water to pond on the roof, exceeding the structural dead load limits of the decking. This is particularly dangerous in "big box" retail structures common to the Aurora area, where wide-span joists are susceptible to deflection under the weight of unplanned standing water.

• C-value calibration for TPO and PVC membranes to ensure zero-leakage assumptions.
• Assessment of parapet heights and scupper spacing to prevent internal drainage backup.
• Calculation of the "effective impervious area" including parking lots and loading docks.
• Integration of green roof systems to artificially lower the C-value and reduce vault volume requirements.

Vault Geometry and Structural Load Considerations

The physical engineering of the stormwater detention vault must balance volumetric capacity with structural integrity. In the R-Line corridor, where land value is high, vaults are typically installed beneath parking lots or access roads. This introduces significant live load requirements, as the vault roof must support H-20 traffic loading without compromising the internal chamber. Precast concrete vaults are the industry standard due to their quality control and rapid installation, though cast-in-place options are utilized for non-standard geometries.

A critical forensic concern in vault design is hydrostatic uplift. In areas of the Front Range with high seasonal water tables or saturated soils, an empty vault can act as a concrete boat, creating a buoyancy force that may lift the entire structure out of the ground. To mitigate this, engineers employ several strategies, including the installation of hydrostatic relief valves or the increasing of the slab-on-grade thickness to provide a counter-ballast. Furthermore, the internal geometry must be optimized to prevent "dead zones" where water stagnates, which can lead to the accumulation of anaerobic sludge and the emission of hydrogen sulfide gas.

• Sizing of the outlet control structure using the Orifice Equation to regulate discharge rates.
• Specification of high-strength, sulfate-resistant concrete to prevent chemical degradation from urban runoff.
• Implementation of reinforced concrete slabs to distribute point loads from heavy vehicle traffic.
• Design of internal baffles to maximize the effective detention time and encourage sediment settling.

Mitigation of Siltation and Long-term Forensic Maintenance

The longevity of a stormwater detention system is determined not by its initial volume, but by its maintenance regime. In the Aurora Metro Ring, runoff often carries a high load of suspended solids, including road salts, hydrocarbons, and wind-blown sediment. Without a rigorous filtration strategy, these solids settle at the bottom of the vault, effectively reducing the available storage volume over time. A vault designed for a 100-year event that is 30% full of sediment is no longer a 100-year system; it becomes a liability that can lead to upstream flooding during a moderate storm.

From a forensic engineering perspective, the most common failure point is the neglect of the sediment forebay. A properly engineered system incorporates a separate pre-treatment chamber or a "sump" area that can be easily vacuumed out without disrupting the main detention volume. Additionally, the use of stainless steel or coated cast-iron manhole covers and access ports is mandatory to prevent corrosion and ensure that maintenance crews can safely inspect the vault's interior. Regular borescope inspections of the outlet pipes are recommended to identify blockages before they cause a

Theoretical Framework and Regulatory Compliance for Smoke Control

The engineering objective for the W-Line West Colfax Light Rail transit hubs is the maintenance of a tenable environment during a fire event, specifically focusing on the prevention of smoke infiltration into primary egress routes. Stairwell pressurization systems operate on the principle of creating a positive pressure gradient relative to the adjacent floor areas. By introducing conditioned, filtered air into the stairwell enclosure, the system ensures that the pressure within the stairwell remains higher than the pressure in the smoke-filled corridor, effectively pushing smoke back and maintaining a clear path for evacuation.

Compliance is governed by NFPA 92 (Standard for Smoke Control Systems) and the International Building Code (IBC). The technical requirement is typically a minimum pressure differential of 0.10 to 0.20 inches of water gauge (in. w.g.) when all doors are closed, ensuring that smoke cannot penetrate the stairwell. However, the system must be balanced to avoid "over-pressurization," which would render the exit doors impossible to open for occupants, as the force required to push against the pressure gradient would exceed the maximum allowable opening force specified by ADA and NFPA standards.

• NFPA 92 adherence for smoke control system design and testing.
• IBC requirements for emergency egress and life safety.
• Calculation of the "Chimney Effect" or stack effect, which naturally draws smoke upward through vertical shafts.
• Verification of the pressure differential to prevent smoke migration from the platform to the street level.

Field Methodology and Instrumentation for Pressure Validation

The testing protocol for the W-Line infrastructure requires a clinical, empirical approach to data collection. The primary instrument utilized is a high-precision digital manometer with a resolution of 0.001 in. w.g. To establish a baseline, the technician first verifies the operational status of the Variable Frequency Drives (VFDs) controlling the pressurization fans. The fans are activated in a simulated emergency sequence, and the airflows are measured using a calibrated hot-wire anemometer to ensure the Cubic Feet per Minute (CFM) output aligns with the mechanical design drawings.

The testing sequence follows a rigorous "closed-door" and "open-door" methodology. In the closed-door scenario, the manometer is used to measure the static pressure difference between the stairwell and the adjacent corridor. In the open-door scenario, the system is tested to ensure that the air velocity across the open doorway is sufficient to prevent smoke from entering the stairwell, even when the door is fully retracted. This requires a minimum velocity—typically 200 feet per minute (fpm)—to create an "air curtain" effect that blocks smoke ingress.

• Deployment of digital manometers for precise differential pressure readings.
• Utilization of smoke pencils or theatrical smoke generators to visually confirm air movement patterns.
• Measurement of door opening forces using a digital force gauge to ensure compliance with egress laws.
• Sequential testing of all fire-rated doors to identify specific points of failure in the pressure envelope.

Forensic Analysis of Building Envelope Leakage

From a forensic engineering perspective, the efficacy of a pressurization fan is entirely dependent on the integrity of the building envelope. If the stairwell is treated as a pneumatic vessel, any breach in the envelope—such as failed flashing, degraded joint sealants, or improperly installed fire-stopping—acts as a leak that dissipates the pressure gradient. In the West Colfax Light Rail structures, the intersection of the roofing system and the stairwell penthouse is a critical vulnerability. Air leakage at the roof-to-wall transition can lead to a "pressure drop" that prevents the system from reaching its design set-point.

Forensic analysis involves identifying the Air Leakage Area (ALA). When a stairwell fails to maintain pressure despite the fans operating at maximum RPM, the analyst must examine the envelope for "bypass" leaks. This includes checking the integrity of the door gaskets, the seals around the electrical conduits penetrating the stairwell walls, and the roofing membrane's seal around the fan exhaust vents. In many cases, the failure is not mechanical but structural, where the building envelope allows air to bleed into interstitial spaces or the exterior environment, reducing the net positive pressure available for smoke control.

• Inspection of roof penetrations and penthouse flashing for air-tightness.
• Evaluation of door seal compression and gasket wear across all levels.
• Analysis of fire-stopping materials at wall-to-floor transitions to prevent air migration.
• Assessment of the "leakage class" of the stairwell to determine the required fan capacity.

Performance Validation and Remediation Protocols

The final phase of the engineering analysis is the validation of the system's performance against the design intent. If the measured pressure differentials fall below the 0.10 in. w.g. threshold, a remediation protocol is initiated. This begins with the tuning of the VFDs to increase the fan speed, provided the door opening force remains within the allowable limit. If increasing the airflow does not resolve the pressure deficit, the focus shifts to envelope remediation. This involves the application of high-grade silicone sealants to all identified leak paths and the replacement of worn door sweeps.

Long-term reliability is ensured through the implementation of a scheduled maintenance program. Because the W-Line is subject to extreme temperature fluctuations and vibration from rail traffic, the building envelope is subject to constant stress. Thermal expansion and contraction can create new gaps in the seals, while vibrations can loosen mechanical fasteners in the ductwork. Therefore, the pressurization system must be re-certified annually to ensure that the life safety systems remain operational under all environmental conditions.

• Calibration of VFDs to balance the pressure gradient across multiple floors.
• Installation of high-performance gaskets and weather-stripping on all egress doors.
• Application of fire-rated sealants to all conduit and pipe penetrations.
• Establishment of a quarterly inspection cycle for fan belt tension and motor lubrication.

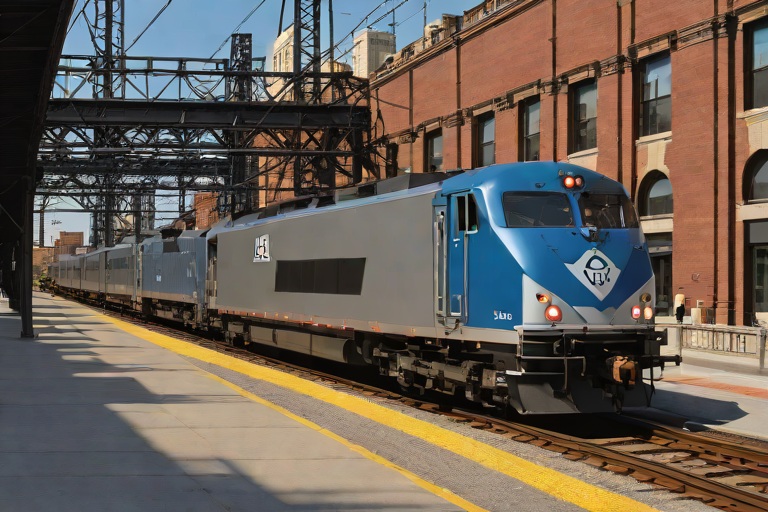

Regulatory Framework and Tier 4 Compliance Parameters

The transition to EPA Tier 4 Final emission standards represents a paradigm shift in the engineering of diesel-electric commuter locomotives, particularly for high-visibility corridors such as the Flatiron Flyer US-36 BRT. The primary objective of Tier 4 compliance is the drastic reduction of Nitrogen Oxides (NOx) and Particulate Matter (PM), moving toward a near-zero emission profile at the tailpipe. For the US-36 corridor, the engineering challenge lies in balancing the high torque requirements of commuter acceleration with the stringent chemical limits imposed by federal mandates.

Unlike previous iterations, Tier 4 requires a holistic approach to the combustion cycle. Engineers must optimize the air-to-fuel ratio within the cylinder to minimize the initial formation of NOx, while simultaneously implementing sophisticated after-treatment systems to scrub the remaining pollutants. The clinical objective is to reduce NOx emissions by over 90% compared to Tier 2 standards, necessitating a move away from simple mechanical timing toward electronically controlled common-rail fuel injection and high-pressure turbocharging.

• Reduction of NOx mass emissions to meet the stringent g/kWh thresholds defined by the EPA.
• Elimination of visible smoke and particulate matter through advanced filtration.
• Integration of onboard diagnostics (OBD) for real-time monitoring of emission levels.
• Compliance with noise pollution ordinances inherent to residential zones along the US-36 corridor.

The implementation of these standards on the Flatiron Flyer requires a precise understanding of the duty cycle. Commuter rail is characterized by frequent stop-and-go operations, which create transient thermal states. These fluctuations can compromise the efficiency of emission controls, as the chemical reactions required for NOx reduction are highly temperature-dependent.

Selective Catalytic Reduction and Particulate Filtration

The core of the Tier 4 emission control strategy is the integration of Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF). The SCR system functions by injecting a diesel exhaust fluid (DEF), primarily a urea solution, into the exhaust stream. This urea decomposes into ammonia, which then reacts with NOx in the presence of a catalyst—typically vanadium or zeolite—to produce harmless nitrogen gas and water vapor. This chemical conversion is the primary mechanism for achieving the required NOx reductions without sacrificing engine efficiency.

Simultaneously, the DPF addresses the particulate matter. The filter utilizes a wall-flow ceramic substrate that traps soot and carbon particles. Because the DPF would eventually clog, the system employs a process known as regeneration. During regeneration, the exhaust temperature is raised—either through passive heat from high-load operation or active injection of fuel into the exhaust stream—to incinerate the trapped soot, converting it into ash and gaseous CO2.

• Urea injection precision: Controlled by a dosing unit that adjusts based on NOx sensors.
• Catalyst substrate density: Optimized for maximum surface area contact with the exhaust gas.
• Wall-flow filtration: Capturing sub-micron particles to prevent atmospheric haze.
• Thermal management: Maintaining the "light-off" temperature required for the catalyst to function.

From a technical standpoint, the synergy between the SCR and DPF is critical. The DPF must be positioned to avoid interfering with the urea injection point, and the backpressure generated by the filter must be carefully managed to prevent engine lugging or increased fuel consumption. Any deviation in the pressure differential across the DPF serves as a primary indicator of filter loading and the need for a regeneration cycle.

Operational Integration on the US-36 BRT Corridor

The Flatiron Flyer’s operation across the US-36 BRT presents unique environmental and operational variables. The corridor's specific load profile—characterized by rapid acceleration from stations and sustained cruising speeds—creates a volatile thermal environment for the exhaust after-treatment system. The most significant risk in this environment is "cold-start" emissions and low-load idling, where exhaust temperatures fall below the threshold required for the SCR catalyst to remain active.

To mitigate this, the locomotives employ active thermal management. This includes the use of insulated exhaust piping and, in some cases, auxiliary heating elements to ensure the urea does not crystallize within the injection nozzle. Crystallization occurs when the urea solution evaporates too quickly or the temperature is too low, leading to deposits that can physically block the exhaust flow and trigger a system fault, potentially putting the locomotive into a "limp mode" to protect the engine.

• Duty cycle analysis: Mapping acceleration curves to predict thermal spikes in the exhaust.
• Idling mitigation: Implementing automatic stop-start or low-idle modes to prevent catalyst cooling.
• Ambient temperature compensation: Adjusting DEF dosing based on the Colorado climate's extremes.
• Vibration damping: Ensuring the heavy after-treatment hardware is isolated from chassis harmonics.

Furthermore, the integration of these systems requires a sophisticated Electronic Control Unit (ECU) that synchronizes engine RPM, fuel delivery, and DEF dosing. The ECU utilizes a closed-loop feedback system, reading data from NOx sensors located both upstream and downstream of the SCR catalyst. If the downstream sensor detects a spike in NOx, the ECU immediately increases the urea dose, ensuring that the Flatiron Flyer maintains compliance regardless of the passenger load or incline.

Forensic Degradation and Long-term Maintenance Analysis

As a senior technical analyst, the focus extends beyond installation to the forensic analysis of component degradation. The longevity of Tier 4 systems is threatened by catalyst

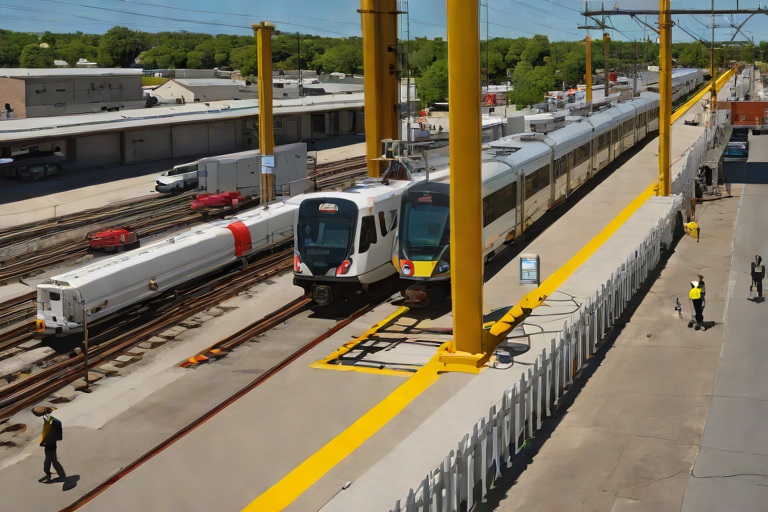

Methodologies for Physical Track Geometry Assessment

The integrity of the Colfax Avenue BRT line depends upon the precise execution of track geometry, where deviations of even a few millimeters can manifest as significant dynamic loads on the vehicle chassis and the surrounding infrastructure. A comprehensive physical inspection requires a dual-phase approach: the application of traditional chord-based measurements and the utilization of precision gauge tools. In the context of a dedicated transitway, the focus shifts toward the longitudinal alignment and the transverse level, ensuring that the guidance systems maintain a constant relationship with the vehicle's axle load.

Physical audits are conducted to identify "hard" failures—such as sudden settlement or structural heaving—that may be smoothed over by the averaging algorithms of automated survey vehicles. By employing manual track gauges and digital levels, engineers can isolate specific points of failure within the slab or rail interface. This empirical approach allows for the identification of localized stress concentrations that often precede larger structural collapses in the sub-base.

• Verification of gauge width consistency to prevent lateral hunting and excessive wheel-rail wear.
• Assessment of cross-level variations to ensure proper load distribution across the transitway width.
• Manual verification of superelevation in curved segments to mitigate centrifugal force impacts on the pavement envelope.
• Inspection of joint gaps and expansion plates to ensure thermal movement is accommodated without inducing buckling.

Laser Profiling and High-Resolution Spatial Analysis

While manual inspections provide critical spot-checks, laser profiling offers a continuous, high-density data stream that transforms the inspection process into a forensic audit. The deployment of laser-based profilometers across the Colfax Avenue corridor allows for the creation of a digital twin of the track surface. These systems utilize high-frequency laser scanners to capture the surface topology at millimetric intervals, identifying rutting, shoving, and surface irregularities that are invisible to the naked eye.

The analytical value of laser profiling lies in its ability to quantify the International Roughness Index (IRI). By analyzing the vertical profile of the transitway, engineers can determine the exact point where surface degradation begins to impact ride quality and vehicle longevity. This data is then cross-referenced with the original design blueprints to identify "out-of-tolerance" zones. The clinical precision of laser profiling eliminates the subjectivity of visual inspections and provides a defensible data set for prioritizing capital expenditures.

• Utilization of LiDAR sensors to map the three-dimensional geometry of the guideway in real-time.
• Analysis of longitudinal profile deviations to detect subtle settlement patterns in the sub-grade.
• Mapping of surface wear patterns to determine the efficacy of the concrete mix or asphalt binder used in the construction.
• Comparison of current surface profiles against baseline commissioning data to calculate the rate of degradation.

Forensic Analysis of Subgrade Stability and Envelope Integration

From a forensic engineering perspective, the track geometry is merely a symptom of the underlying subgrade health. The "infrastructure envelope" in this context refers to the entirety of the structural layers, from the wearing course down to the compacted sub-base and the surrounding drainage systems. On the Colfax Avenue line, the primary driver of geometry failure is typically the infiltration of water into the base layers, leading to the saturation of fines and subsequent loss of bearing capacity.

The failure mechanism usually begins at the interface between the transitway and the adjacent commercial infrastructure. Poorly executed drainage transitions or failed sealant joints in the building envelope of adjacent properties can lead to concentrated water runoff onto the trackbed. This moisture penetration creates voids beneath the slab, resulting in "pumping" where fines are forced upward through cracks in the surface, further destabilizing the geometry. Forensic analysis involves the use of Ground Penetrating Radar (GPR) to identify these subsurface voids before they manifest as surface failures.

• Evaluation of the drainage slope to ensure water is shed away from the structural core of the transitway.
• Assessment of the thermal expansion joints to prevent moisture ingress into the sub-base.
• Analysis of soil compaction reports to correlate geometry deviations with known areas of poor soil stability.
• Investigation of the chemical composition of runoff to determine if de-icing salts are accelerating the degradation of the concrete matrix.

Risk Mitigation and Long-Term Maintenance Protocols

The transition from reactive maintenance to a predictive reliability-centered maintenance (RCM) strategy is essential for the longevity of the Colfax Avenue BRT line. By integrating the data from physical inspections and laser profiling, engineers can establish a "trigger level" system. When a geometry deviation reaches a predefined threshold—for example, a 5mm deviation over a 10-foot chord—a corrective action is automatically triggered. This prevents the exponential acceleration of wear that occurs when a vehicle operates on a compromised surface.

Long-term stability is further ensured through the implementation of rigorous grinding and leveling schedules. For concrete sections, this may involve precision slab-jacking to restore the design elevation. For asphaltic sections, it requires the application of high-modulus overlays that can withstand the high shear forces of BRT vehicles. The ultimate goal is to maintain the track geometry within the tightest possible tolerances, thereby reducing the lifecycle costs of both the infrastructure and the rolling stock.

• Establishment of a recurring audit cycle, combining quarterly laser scans with monthly physical spot-checks.
• Implementation of a structural health monitoring (SHM) system using embedded sensors to detect real-time settlement.
• Development of a prioritized remediation matrix based on the severity of the geometry deviation and the volume of traffic.
• Standardization of repair materials to ensure that patches and overlays match the modulus of elasticity of the original structure.

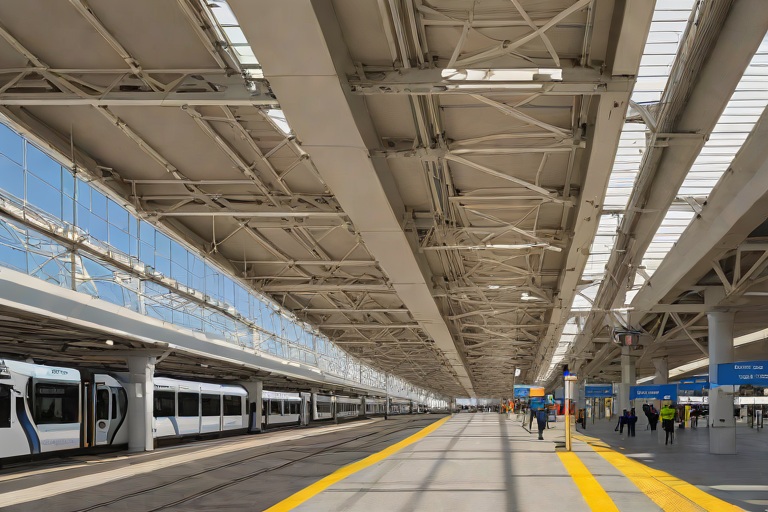

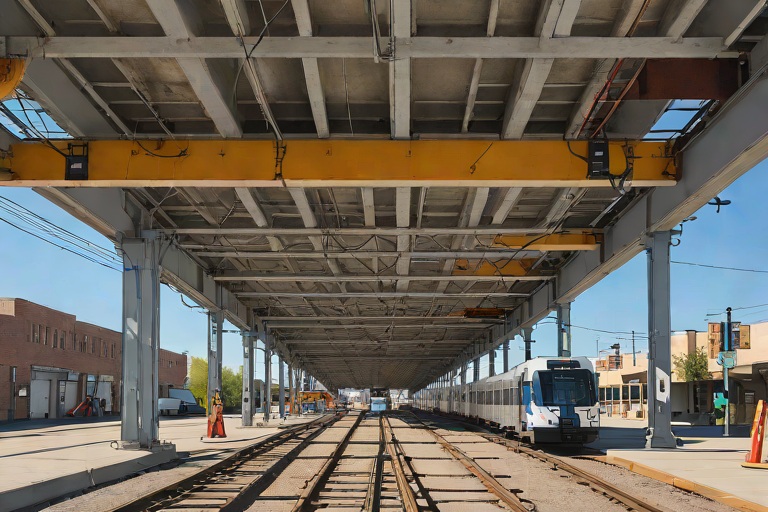

Structural Dynamics of Catenary Suspension and Tensioning

The overhead catenary system (OCS) within the Civic Center Transit Concourse functions as a critical power distribution network, requiring a precise balance between mechanical tension and geometric stability. In a high-traffic transit environment, the contact wire must remain perfectly aligned with the pantograph of the rolling stock to prevent catastrophic dewirement or excessive arcing. The primary engineering challenge lies in the management of the catenary curve—the natural dip that occurs between support points due to the wire's own self-weight. To mitigate this, a messenger wire is employed to support the contact wire via dropper wires, creating a compound suspension system that distributes the load more evenly across the span.

The tensioning requirements are governed by the need to maintain a constant height across the entire length of the concourse, regardless of the load distribution. If the tension is too low, the resulting sag increases the risk of pantograph entanglement. Conversely, excessive tension introduces extreme stress on the support brackets and the building envelope's structural anchors, potentially leading to fatigue failure or the deformation of the mounting hardware. Engineering specifications for this installation demand a rigorous adherence to the following parameters:

• Calculation of the maximum permissible sag based on the transit authority's clearance envelope.
• Determination of the horizontal tension component to ensure stability against wind-induced oscillation in semi-open concourse areas.
• Analysis of the support spacing to minimize the cumulative effect of wire stretch over long-distance runs.
• Verification of the shear strength of the mounting bolts and brackets against the calculated tensioning force.

Thermal Expansion Coefficients and Sag Analysis

The Civic Center Transit Concourse is subject to significant diurnal and seasonal temperature fluctuations, which directly impact the physical dimensions of the copper-based conductor wires. Copper and its alloys possess a high coefficient of thermal expansion, meaning that as the ambient temperature rises, the wire expands and the catenary sag increases. In a fixed-length system, this expansion would result in a dramatic drop in the contact wire's height, potentially falling below the minimum operational threshold and causing a loss of power or physical contact failure.

This thermal sag is not merely a linear progression but a complex interaction between temperature, tension, and the elasticity of the material. When the temperature drops, the wire contracts, which increases the tension. Without a mitigation system, this contraction could exert enough force to pull the support structures inward or cause the wire to snap due to brittle fracture during extreme cold. The forensic analysis of the concourse's thermal profile indicates that the temperature delta can vary by as much as 40 degrees Celsius between peak summer and peak winter, necessitating a dynamic response system to maintain the wire's verticality.

• Quantification of linear expansion using the formula for thermal strain.
• Evaluation of the "hard-spot" effect where the wire is fixed to a rigid structure, creating localized stress concentrations.
• Monitoring of the contact wire's vertical deviation relative to the track centerline.
• Assessment of the impact of solar radiation on wire temperature, which often exceeds the ambient air temperature.

Constant Tensioning Systems and Mechanical Mitigation

To counteract the effects of thermal expansion and contraction, the Civic Center Transit Concourse utilizes a Constant Tensioning System (CTS). This system replaces rigid anchoring with a dynamic assembly consisting of balance weights, pulleys, and high-strength guide cables. The balance weights provide a constant downward force, which translates into a consistent longitudinal tension across the entire catenary run. As the wire expands during a heatwave, the balance weights descend, allowing the wire to lengthen while maintaining the required tension. Conversely, as the wire contracts in the cold, the weights rise, absorbing the contraction without overloading the support brackets.

The precision of the CTS depends on the friction coefficients of the pulley system and the accuracy of the weight calibration. If the weights are incorrectly specified for the wire's gauge and material, the system will either fail to prevent sag or create an over-tensioned state. Furthermore, the integration of the CTS into the building's envelope requires specialized forensic attention to ensure that the weight-drop zones are clear of one another and that the guiding rails are perfectly plumb to prevent binding.

• Implementation of spring-loaded tensioners for shorter spans where balance weights are impractical.
• Use of high-grade galvanized steel for the weight-bearing components to prevent corrosion-induced friction.
• Installation of limit switches to alert maintenance crews when the balance weights reach their upper or lower travel limits.
• Calibration of the tensioning force to match the specific modulus of elasticity of the conductor alloy.

Forensic Analysis of Support Integrity and Long-term Mitigation

Long-term stability of the overhead catenary system requires a forensic approach to monitoring the interaction between the tensioning hardware and the commercial infrastructure. Over time, the repeated cycling of thermal expansion and contraction leads to mechanical fatigue, particularly at the points of attachment. This fatigue often manifests as micro-cracking in the support brackets or the gradual loosening of the anchor bolts within the concrete substrate. A senior technical analysis of these "hard points" is essential to prevent sudden failure, which could lead to a total loss of power for the transit concourse.

Mitigation strategies focus on the implementation of a predictive maintenance schedule based on empirical data. By utilizing strain gauges and laser-based height monitoring, engineers can identify sections of the concourse where the tensioning system is underperforming. The goal is to transition from a reactive maintenance model to a proactive one, ensuring that the building envelope remains intact and the transit system remains operational. The following forensic markers are prioritized during quarterly inspections:

• Inspection of the contact wire for "bird-caging" or strand separation caused by over-tensioning.
• Ultrasonic testing of the primary support welds to detect subsurface fatigue cracks.
• Verification of the lubrication levels in the pulley assemblies to ensure smooth movement of the balance weights.
• Measurement of the anchor bolt torque to ensure that the tensioning forces are not compromising the structural integrity of the concourse ceiling.

System Architecture and Signal Path Integrity

The implementation of Positive Train Control (PTC) at the Boulder Junction Depot necessitates a fail-safe communication architecture capable of maintaining near-zero latency and absolute availability. In the context of rail safety, signal loss is categorized as a critical failure, potentially triggering restrictive speed mandates or full stop commands across the sector. To mitigate this, the engineering strategy employs a geographically diverse fiber-optic ring topology. This ensures that if a primary conduit is compromised—whether through seismic shift, accidental excavation, or structural collapse—the system automatically reroutes data via the secondary path without interrupting the PTC heartbeat.

The redundancy is not merely a duplication of hardware but a strategic separation of physical pathways. By utilizing a dual-entry point system, the fiber feeds enter the depot from opposite cardinal directions. This eliminates the "single point of failure" inherent in single-trenching approaches. The technical specifications for this deployment adhere to the TIA-568 standards for structured cabling, ensuring that the optical budget is maintained across the entire span. Signal attenuation is minimized through the use of single-mode fiber (SMF), which provides the necessary bandwidth for high-frequency signaling while remaining resilient to the electromagnetic interference (EMI) common in high-voltage rail environments.

• Deployment of a redundant ring topology to ensure seamless failover.
• Utilization of diverse-path entry points to prevent localized structural damage from disabling the system.
• Adherence to SMF standards to minimize decibel loss over the signaling distance.
• Integration of industrial-grade switches with sub-50ms convergence times.

Building Envelope Penetration and Environmental Mitigation

From a building envelope forensics perspective, the introduction of fiber-optic conduits into the Boulder Junction Depot presents significant risks regarding moisture infiltration and thermal bridging. The integrity of the depot's exterior shell must be maintained to prevent the migration of water, which can lead to the degradation of internal structural members and the corrosion of electrical racks. Each fiber entry point is engineered as a sealed penetration, utilizing a combination of rigid PVC conduits and high-performance elastomeric sealants. The conduits are installed with a slight outward pitch to prevent the capillary action of groundwater from driving moisture into the building interior.

Special attention is paid to the transition from the underground concrete duct bank to the interior wall assembly. The use of "link-seals" or modular mechanical seals ensures a gas-tight and water-tight interface. This is critical because the depot is subject to extreme temperature fluctuations, which cause the building envelope to expand and contract. If the penetrations are too rigid, the resulting stress can crack the surrounding masonry or pull the sealant away from the substrate. By employing flexible, weather-resistant transition sleeves, the system accommodates thermal movement while maintaining a continuous air and vapor barrier, adhering to ASTM E2112 standards for water penetration testing.

• Installation of pitched conduits to facilitate natural drainage away from the building face.
• Application of industrial-grade, non-outgassing sealants to prevent moisture ingress.
• Use of modular mechanical seals to accommodate thermal expansion and contraction.
• Verification of vapor barrier continuity at all fiber-optic entry points.

Structural Support and Cable Management Standards

Internal routing of the PTC fiber within the depot requires a rigorous approach to cable management to prevent mechanical stress and signal attenuation. Fiber-optic cables are susceptible to "micro-bending" and "macro-bending," where tight turns or excessive pressure on the cable jacket cause light leakage and increased signal loss. To prevent this, the engineering specification mandates the use of dedicated overhead cable trays with a minimum bend radius of 10 times the cable diameter. These trays are suspended using vibration-dampening hangers to isolate the fiber from the constant low-frequency oscillations generated by passing locomotives.

The cable management system is designed to avoid "cable stacking," which can lead to uneven weight distribution and crushing of the lower fibers. Instead, a tiered tray system is utilized, separating the high-voltage power feeds from the low-voltage signaling fiber. This separation is not only a requirement for safety and code compliance but also a strategic move to eliminate crosstalk and EMI. Each cable run is labeled at 10-foot intervals with permanent, heat-shrink markers, allowing for rapid forensic identification during troubleshooting or system expansions. The termination points are housed in NEMA 4X rated enclosures, providing protection against dust, moisture, and accidental physical impact.

• Strict enforcement of minimum bend radius to eliminate signal attenuation.
• Installation of vibration-dampening supports to mitigate rail-induced oscillations.
• Physical segregation of power and data cabling to prevent electromagnetic interference.
• Utilization of NEMA 4X enclosures for all termination and splice points.

Forensic Risk Assessment and Redundancy Validation

The final phase of the engineering process involves a comprehensive forensic risk assessment to validate the redundancy of the PTC signaling. This is achieved through Optical Time-Domain Reflectometry (OTDR), which allows engineers to map the entire length of the fiber and identify any anomalies, such as splice losses or microscopic fractures in the glass core. By establishing a baseline "fingerprint" of the fiber plant, any future degradation can be pinpointed to within a few meters, allowing for surgical repairs rather than costly full-span replacements. This empirical data is essential for the long-term lifecycle management of the depot's infrastructure.

Furthermore, "stress-testing" the redundancy involves simulated failure scenarios. By intentionally disconnecting a primary fiber link, technicians can verify that the system switches to the redundant path within the required millisecond threshold without losing a single packet of data. The analysis also extends to the environmental stability of the routing; for instance, assessing the risk of pest intrusion or chemical corrosion from rail-side runoff. The conclusion of this analysis confirms that the combination of diverse routing, envelope protection, and structural isolation creates a resilient signaling environment capable of supporting the safety-critical demands of the Boulder Junction Depot.

• Execution of OTDR testing to establish a baseline for signal health and splice integrity.
• Simulated failover testing to validate the sub-50ms convergence of the redundant ring.
• Analysis of potential environmental stressors, including chemical runoff and seismic activity.
• Implementation of a scheduled forensic audit cycle to monitor for fiber degradation over time.

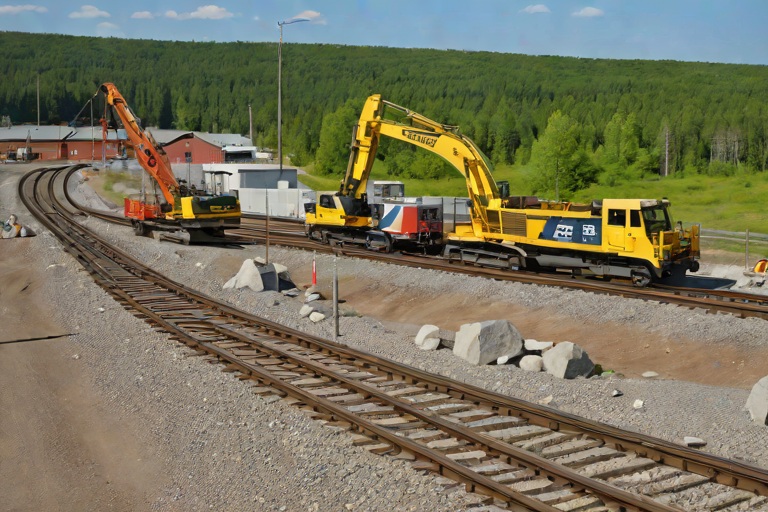

Geotechnical Stratigraphy and Subgrade Instability

The Longmont Intermodal Terminal is situated upon a complex stratigraphic profile characterized by high-plasticity alluvial clays and intermittent lenses of saturated silts. Forensic analysis of the subgrade reveals that the primary driver of track bed settlement is the phenomenon of primary and secondary consolidation. Under the cyclic loading of heavy freight axle loads, the pore water pressure within the clay layers increases, leading to a reduction in effective stress and subsequent volumetric contraction of the soil matrix. This differential settlement manifests as longitudinal dips and transverse irregularities, compromising the geometric integrity of the permanent way.

The interaction between the subgrade and the overlying ballast is governed by the modulus of subgrade reaction. In areas where the soil is under-consolidated or saturated, the subgrade fails to provide uniform vertical support, causing the sleepers to undergo uneven deflection. This lack of support triggers a chain reaction of structural degradation, where the load is no longer distributed evenly across the ballast shoulder, leading to localized shear failure of the soil. The following factors are identified as the primary contributors to subgrade instability across the terminal:

• High groundwater table causing capillary rise and saturation of the lower ballast layers.
• Inadequate initial compaction of the sub-ballast during the original construction phase.
• Presence of organic matter within the alluvial deposits, increasing the compressibility of the soil.
• Thermal cycling of the surface layers leading to shrink-swell cycles in the expansive clay.

Ballast Degradation and Fouling Mechanisms

Ballast serves as the critical interface for load distribution and drainage. However, forensic evidence from the Longmont terminal indicates a systemic failure of the ballast layer due to "fouling"—the accumulation of fine particles within the voids of the crushed stone. This fouling occurs through two primary mechanisms: attrition, where the angular edges of the ballast stones are crushed under load, and migration, where fine particles from the subgrade are forced upward into the ballast through a process known as "ballast pumping."

When the void ratio of the ballast is reduced by these fines, the hydraulic conductivity of the track bed is severely compromised. Instead of shedding water away from the sleepers, the fouled ballast retains moisture, which softens the subgrade and accelerates the rate of settlement. This creates a feedback loop where the loss of drainage leads to further soil softening, which in turn increases the mechanical stress on the ballast, accelerating the pulverization of the aggregate. The clinical indicators of this degradation include:

• The appearance of "mud pumps" or slurry ejecta on the surface of the ballast shoulder.
• A measurable increase in the track modulus variability across the intermodal switches.
• Loss of lateral stability, resulting in the widening of the track gauge under heavy tonnage.
• Reduction in the elastic response of the track bed, leading to increased vibration transmission to the surrounding infrastructure.

Tamping Forensics and Geometric Rectification

Tamping is the mechanical process of compacting the ballast under the sleepers to restore the design longitudinal and transverse levels. While essential for maintenance, forensic analysis suggests that excessive reliance on tamping at the Longmont terminal has reached a point of diminishing returns. Over-tamping occurs when the ballast is compacted beyond its optimal density, leading to the destruction of the stone's angularity. Once the ballast is "over-worked," it loses its interlocking capability, effectively transforming the structural layer into a dense, non-permeable mass that behaves more like a slab than a flexible bed.

The forensic signature of over-tamping is characterized by a rapid return to settlement shortly after the tamping machine has departed. This occurs because the crushed aggregate no longer possesses the internal friction necessary to resist lateral movement. Furthermore, the process of lifting the track to correct settlement often creates voids beneath the sleepers if the ballast is too fouled to flow back into the gap. This results in "hollow" sleepers that experience high-impact loading, further accelerating the degradation of both the rail fasteners and the ballast itself. Key forensic markers of tamping failure include:

• Shortened tamping cycles, where the interval between required corrections drops below industry standards.
• Physical evidence of "rounding" on the ballast stones, indicating severe mechanical attrition.
• Uneven sleeper spacing caused by excessive lateral shifting during the tamping process.
• Localized "hard spots" where the ballast has been compacted into a concrete-like state, causing abrupt changes in track stiffness.

Mitigation Strategies and Structural Stabilization

To arrest the progression of geotechnical settlement and ballast failure, a shift from reactive maintenance to systemic stabilization is required. The primary objective is to decouple the ballast layer from the unstable subgrade and restore the drainage capacity of the track bed. The implementation of geosynthetics is the most viable engineering solution. By installing a non-woven geotextile separator, the upward migration of fines from the subgrade can be halted, preventing ballast fouling. Additionally, the use of geogrids provides lateral confinement, which increases the shear strength of the ballast and reduces the frequency of required tamping cycles.

For areas of extreme settlement, a full-depth reconstruction of the sub-ballast layer is recommended. This involves the excavation of fouled material and the replacement with a graded, well-compacted granular base. The integration of under-sleeper pads (USPs) can also mitigate the impact of high axle loads by distributing the pressure more evenly across the sleeper seat, thereby reducing the rate of ballast pulverization. The following stabilization protocols are proposed for the Longmont Intermodal Terminal:

• Installation of high-strength biaxial geogrids to enhance the load-bearing capacity of the track bed.
• Implementation of a comprehensive subsurface drainage system, including deep longitudinal drains to lower the water table.
• Application of chemical soil stabilization, such as lime or cement injection, to reduce the plasticity of the alluvial clays.
• Transition to a predictive maintenance schedule utilizing automated track geometry cars to identify settlement trends before they reach critical thresholds.

Fundamental Tribological Dynamics of the Golden Station Loop

The wheel-rail interface within the Golden Station Transit Loop represents a critical point of concentrated stress where the kinematics of rolling contact meet the harsh realities of material degradation. In this specific transit environment, the primary challenge is the management of the contact patch, a microscopic area where the steel wheel flange interacts with the gauge face of the rail. The tribological state of this interface is governed by the coefficient of friction, which must be precisely modulated to prevent excessive wear while maintaining sufficient traction for acceleration and braking. In the tight-radius curves characteristic of the Golden Station loop, the lateral forces exerted by the wheel flanges are significantly amplified, leading to high Hertzian contact stresses that can exceed the yield strength of standard carbon steel rails.

The interaction is further complicated by the phenomenon of creepage, where the difference in rolling radii between the high and low rails in a curve forces a microscopic slip. This slip generates heat and mechanical energy, which, if left unmanaged, accelerates the transition from mild adhesive wear to severe abrasive wear. The Golden Station loop exhibits a high frequency of stop-and-go cycles, which introduces transient loading conditions that disrupt the stability of the tribofilm—the thin layer of lubricant and oxidized metal that separates the two surfaces. When this film fails, the result is direct metal-to-metal contact, leading to rapid material loss and the potential for surface fatigue.

• Hertzian Stress Analysis: Calculation of peak pressure at the contact patch to determine the risk of plastic deformation.
• Creepage Velocity: The measurement of relative sliding velocity between the wheel tread and the rail head.
• Contact Geometry: The study of the wheel profile and rail crown curvature to optimize the rolling radius.
• Tribofilm Stability: The evaluation of the lubricant's ability to maintain a continuous layer under extreme pressure.

Wear Mechanisms and Material Degradation in High-Curvature Zones

Within the Golden Station loop, the primary failure mode is gauge-face wear, characterized by the gradual removal of material from the inner side of the rail head. This process is driven by the abrasive action of the wheel flange, which acts as a cutting tool when the lubrication layer is breached. The degradation typically follows a predictable trajectory: initial polishing of the surface, followed by the development of micro-cracks, and eventually, the formation of deep grooves or "corrugations." These corrugations create a feedback loop of vibration and impact, which further accelerates the mechanical breakdown of both the rail and the rolling stock's axle assemblies.

Beyond simple abrasion, the interface is subject to adhesive wear, where small fragments of metal are torn from one surface and welded to the other due to the extreme localized heat generated by friction. In the Golden Station environment, this often manifests as "galling," where the metal appears smeared or torn. This is particularly prevalent during low-speed maneuvering through the loop's tightest radii. Furthermore, the presence of atmospheric contaminants and moisture can lead to oxidative wear, where the formation of iron oxides acts as an abrasive medium, further scouring the rail surface and increasing the rate of material loss.

• Abrasive Wear: Material removal caused by hard particles or surface asperities cutting into the softer metal.
• Adhesive Wear: The bonding of surfaces under pressure, resulting in the transfer of material between the wheel and rail.
• Surface Fatigue: The development of head checks and spalling due to repeated cyclic loading.
• Corrugation Patterns: Periodic wear waves that increase noise and vibration levels across the transit loop.

Flange Lubrication Protocols and Delivery Systems

To mitigate the destructive forces identified in the Golden Station loop, a rigorous flange lubrication protocol is mandatory. The objective is not to eliminate friction entirely—as this would compromise the traction required for safe operation—but to reduce the coefficient of friction at the gauge face while maintaining it at the rail crown. This is achieved through the strategic application of friction modifiers and lubricants. The Golden Station loop utilizes a dual-delivery system consisting of on-board applicators and trackside lubrication stations. On-board systems ensure that every vehicle provides a baseline of lubrication, while trackside stations provide targeted, high-volume application in the most severe curvature zones.

The selection of the lubricant is critical; traditional greases are often insufficient due to their tendency to migrate and contaminate the rail head, which can lead to dangerous wheel-slip conditions. Modern protocols favor the use of solid-stick lubricants or synthetic esters that possess high pressure (EP) additives. These additives chemically bond to the metal surface, creating a sacrificial layer that prevents direct steel-to-steel contact. The application frequency is determined by the Million Gross Tonnes (MGT) metric, ensuring that the lubricant is replenished before the tribofilm reaches a critical state of depletion.

• On-Board Applicators: Precision nozzles that apply lubricant directly to the wheel flange during transit.
• Trackside Lubricators: Fixed installations that spray lubricant onto the gauge face at specific intervals.
• Friction Modifiers: Specialized compounds designed to maintain a specific coefficient of friction to prevent wheel slip.
• EP Additives: Extreme Pressure chemicals that prevent the breakdown of the lubricant film under high loads.

Predictive Maintenance and Forensic Analysis of Rail Life Cycles

The longevity of the Golden Station Transit Loop depends upon a transition from reactive maintenance to a predictive, data-driven forensic approach. This involves the continuous monitoring of rail profiles using laser-based measurement systems. By comparing the current profile against the original design specifications, engineers can calculate the exact rate of wear in millimeters per MGT. This data allows for the precise scheduling of rail grinding operations, which are used to restore the rail profile and remove surface defects before they evolve into structural failures. The goal is to maintain the "ideal" contact geometry to distribute the load evenly across the rail head.

Electromagnetic Principles of Inductive Loop Detection in Rail Infrastructure

The operational integrity of grade crossing warning gates relies fundamentally on the precision of inductive loop detectors. These systems function as large-scale LC oscillators, where the loop of wire embedded in the approach track acts as the inductor (L) and the detector unit provides the capacitance (C). When a train—a massive ferrous object—enters the magnetic field generated by the loop, it creates a localized change in inductance through the principle of mutual inductance. This shift in the resonant frequency of the circuit is detected by the controller, which then triggers the warning sequence.

In the Lakewood-Wadsworth corridor, the engineering challenge lies in the stability of this resonant frequency. Any deviation in the loop's physical geometry or the electrical properties of the surrounding medium can introduce noise into the signal. To maintain a clinical level of reliability, the system must be tuned to a specific "Q factor," or quality factor, which determines the sharpness of the resonance peak. A high Q factor allows for the detection of smaller metallic masses but increases susceptibility to environmental interference, while a lower Q factor provides a more robust, albeit less sensitive, trigger mechanism.

• Inductance Shift: The primary mechanism where the presence of a metal mass decreases the total inductance of the loop.
• Resonant Frequency: The specific frequency at which the LC circuit oscillates, typically tuned to avoid overlap with power line harmonics.
• Mutual Inductance: The process by which the magnetic field of the loop induces a current in the passing train's wheelsets.
• Threshold Sensitivity: The calibrated limit that distinguishes a legitimate train presence from electromagnetic interference or small debris.

Environmental Variables and Signal Attenuation in the Lakewood-Wadsworth Corridor

The Lakewood-Wadsworth corridor presents a unique set of forensic challenges due to the intersection of varying soil compositions and extreme thermal cycling. Inductive loops are not isolated electrical components; they are embedded within a complex matrix of asphalt, concrete, and sub-grade soil. The dielectric constant of these materials directly influences the propagation of the magnetic field. In areas of the corridor where moisture saturation is high, the soil conductivity increases, which can lead to signal attenuation or "damping" of the inductive pulse.

Furthermore, the building envelope forensics of the surrounding road surface reveal significant thermal expansion and contraction cycles. As the asphalt expands during summer peaks and contracts during winter troughs, the physical stress on the loop wire can lead to micro-fractures in the insulation or slight shifts in the loop's geometry. These geometric distortions alter the loop's inductance, leading to "drift" in the calibration. If the drift exceeds the tolerance of the detector card, the system may either fail to trigger (a critical safety failure) or trigger erroneously (a "ghost" detection), leading to traffic congestion and driver complacency.

• Soil Conductivity: The capacity of the surrounding earth to conduct electricity, which can interfere with the magnetic flux.
• Thermal Expansion Coefficient: The rate at which the road surface materials expand, potentially stressing the embedded loop wires.
• Dielectric Constant: The measure of a material's ability to store electrical energy, affecting the loop's capacitance.
• Moisture Ingress: The penetration of water into the loop sealant, which can cause short circuits or oxidation of the copper conductors.

Calibration Protocols and Precision Tuning for Presence Detection

Calibration of the inductive loops across the Lakewood-Wadsworth corridor requires a rigorous, empirical approach to signal processing. The process begins with the measurement of the "empty" loop inductance using a high-precision LCR meter. Once the baseline inductance is established, the detector card is tuned to the specific frequency of the loop. This tuning must be precise to within a few hertz to ensure that the system can distinguish between the slow-moving mass of a freight train and the rapid, transient signal of a passenger vehicle crossing the loop area.

A critical component of this calibration is the adjustment of the "dwell time" and "sensitivity thresholds." The sensitivity must be set high enough to detect the leading axle of the train but low enough to ignore the electromagnetic noise generated by nearby utility lines or high-voltage transmission towers. In the Lakewood-Wadsworth corridor, where industrial interference is prevalent, engineers employ digital filtering and frequency hopping to mitigate the effects of external noise. The goal is to achieve a stable "presence" signal that remains constant as long as the train occupies the loop, ensuring the gates remain lowered until the entire consist has cleared the crossing.

• LCR Metering: The use of Inductance, Capacitance, and Resistance meters to verify the health of the loop before tuning.
• Frequency Filtering: The application of band-pass filters to remove unwanted noise from the signal.
• Presence Detection: The calibration state where the system recognizes a continuous mass occupying the loop.
• Sensitivity Mapping: The process of documenting the exact trigger point of the loop relative to the train's position.

Forensic Analysis of Loop Failure and Long-term Reliability Cycles

From a senior technical perspective, the long-term reliability of grade crossing loops is determined by the integrity of the loop sealant and the quality of the splice points. Forensic analysis of failed loops in the corridor typically reveals that the primary point of failure is the "edge effect," where the sealant separates from the asphalt, allowing salt-laden meltwater to penetrate the loop. This leads to galvanic corrosion of the copper wire, which increases the resistance and shifts the resonant frequency beyond the range of the detector's ability to compensate.

To ensure a sustainable lifecycle, a proactive maintenance regime based on empirical data is required. This includes quarterly inductance audits and the use of thermal imaging to identify "hot spots" in the circuitry that may indicate a partial short. By tracking the rate of frequency drift over time, engineers can predict the remaining useful life of a loop and schedule replacements before a catastrophic failure occurs. The integration of high-grade epoxy sealants and reinforced insulation is recommended to extend the mean time between failures (MTBF) in the challenging environmental conditions of the Lakewood-Wadsworth corridor.

• Galvanic Corrosion: The electrochemical process that degrades the copper conductors when exposed to moisture and salts.
• Mean Time Between Failures (MTBF): The statistical average time between inherent failures of the loop system.
• Thermal Imaging: The use of infrared cameras to detect electrical resistance and overheating in the circuit.
• Epoxy Sealant Integrity: The forensic evaluation of the bond between the loop insulation and the road surface.

Thermal Dynamics and Load Profiles of Traction Power Rectifiers

The traction power rectifier transformers at the Littleton Downtown Station operate as the critical nexus between the high-voltage utility grid and the DC propulsion systems required for light rail transit. From a thermal engineering perspective, these units are high-density heat sources. The process of stepping down voltage and subsequent rectification from AC to DC generates substantial waste heat, primarily through copper and iron losses within the transformer core and switching losses in the silicon rectifiers. This heat is typically managed via dielectric oil, which serves both as an electrical insulator and a primary heat transfer medium.

The thermal load is not static; it fluctuates based on the transit schedule, passenger load, and ambient environmental conditions. During peak commuting hours, the transformers operate near their maximum KVA rating, leading to an exponential increase in heat generation. If the cooling system fails to maintain the oil temperature below the rated thermal limit, the insulation degradation accelerates, leading to a reduction in the equipment's operational lifespan. The primary objective of the cooling architecture is to maintain a stable temperature gradient between the transformer core and the external environment to ensure efficient heat rejection.

• Core losses: Constant heat generation regardless of load, primarily due to hysteresis and eddy currents.
• Copper losses: Load-dependent heat generation resulting from the electrical resistance of the windings.
• Rectifier heat: Concentrated thermal energy produced at the diode junctions during the AC-to-DC conversion.
• Thermal inertia: The capacity of the oil-filled tank to absorb heat spikes before the cooling system reaches steady-state operation.

Envelope Forensics and Ventilation Integration

The building envelope of the Littleton Downtown substation is not merely a weather barrier but a critical component of the thermal management system. Forensic analysis of the envelope reveals that the interaction between the interior heat plumes and the exterior cladding determines the overall efficiency of the cooling cycle. In a substation environment, the "stack effect" is leveraged to move hot air upward and out of the structure. However, any failure in the building envelope—such as degraded roof seals or improperly sized louvers—can lead to short-circuiting of the airflow, where hot exhaust air is sucked back into the intake vents.

From a forensic standpoint, the interface between the transformer pads and the concrete slab is a point of significant thermal bridging. While the primary heat rejection occurs through the air, conductive heat transfer into the foundation can occur if thermal breaks are not properly implemented. Furthermore, the roofing system must be engineered to handle the high-velocity exhaust from the cooling fans. Standard commercial roofing membranes can suffer from premature degradation if exposed to constant, high-temperature air streams, necessitating the use of high-temp modified bitumen or reinforced TPO membranes in the immediate vicinity of the exhaust vents.

• Airflow Short-Circuiting: The phenomenon where heated air recirculates into the intake, raising the ambient temperature of the equipment room.
• Thermal Bridging: Unintended heat paths through the building structure that bypass the intended ventilation route.
• Envelope Leakage: Uncontrolled air infiltration that disrupts the calculated pressure differentials required for effective forced-air cooling.
• Roofing Fatigue: Thermal cycling of the roof membrane caused by the intermittent discharge of high-temperature exhaust air.

Analysis of Forced-Air vs. Natural Convection Systems

The cooling strategy at the Littleton Downtown Station employs a hybrid approach, utilizing both natural convection for baseline loads and forced-air systems for peak demand. Natural convection relies on the buoyancy of heated air, which rises and exits through high-level roof monitors. While energy-efficient, natural convection is insufficient during summer months when the temperature differential between the interior and exterior is minimized. This necessitates the activation of high-static pressure fans to mechanically drive the air through the transformer radiators.

The efficiency of the forced-air system is measured by the Cubic Feet per Minute (CFM) of air moved across the cooling fins. A critical engineering challenge is the management of static pressure; if the louvers are too restrictive or the ductwork is improperly sized, the fans will operate at a higher RPM without a corresponding increase in airflow, leading to premature motor failure and increased noise pollution. Empirical data suggests that maintaining a laminar flow across the radiator surfaces is essential to maximize the heat transfer coefficient. Turbulent flow, while often associated with better mixing, can create stagnant "dead zones" behind the transformer tanks if the layout is not optimized.

• CFM Requirements: Calculated based on the total BTU output of the transformers and the desired delta-T (temperature difference).
• Static Pressure Loss: The resistance encountered by the air as it moves through filters, louvers, and the radiator fins.
• Laminar Flow Optimization: The strategic placement of baffles to ensure air reaches all surfaces of the cooling radiators.
• Fan Curve Analysis: The relationship between the fan speed and the volume of air moved against the system's resistance.

Mitigation Strategies for Thermal Stress and Lifecycle Extension

To ensure the long-term reliability of the traction power infrastructure, a proactive mitigation strategy focusing on thermal stress reduction is mandatory. The first line of defense is the implementation of a rigorous Dissolved Gas Analysis (DGA) program for the transformer oil. By monitoring the concentration of gases like hydrogen and ethylene, engineers can detect internal arcing or overheating long before a catastrophic failure occurs. This forensic approach allows for the adjustment of cooling parameters in real-time based on the actual internal state of the equipment rather than relying solely on external ambient sensors.

Additionally, the building envelope should be upgraded with automated, sensor-driven louvers that adjust their aperture based on the internal temperature and external wind direction. This prevents the "wind-tunnel" effect from creating negative pressure zones that could impede the cooling fans. From a roofing perspective, the installation of reflective, high-albedo coatings on the substation roof can reduce the solar heat gain of the building, thereby lowering the baseline temperature of the air being drawn into the cooling system. These combined efforts reduce the thermal cycling of the transformer components, which is the primary driver of mechanical wear and insulation breakdown.

• Dissolved Gas Analysis (DGA): A diagnostic tool used to identify the specific type of thermal or electrical fault within the transformer.
• High-Albedo Roof Coatings: Materials designed to reflect solar radiation, reducing the cooling load on the building interior.
• Automated Louver Control: Systems that optimize airflow based on real-time atmospheric and internal temperature data.
• Thermal Cycling Reduction: Minimizing the frequency and magnitude of temperature swings to prevent expansion and contraction fatigue in the windings.

Mechanical Integration and Torque Specifications for Direct Fixation

The structural integrity of the Lone Tree City Center Transit rail system relies fundamentally on the precision of the direct fixation fasteners. In a direct fixation environment, the rail is secured directly to the concrete slab via a fastening system that must simultaneously provide rigid vertical support and controlled lateral restraint. The primary engineering challenge lies in the application of precise torque to ensure the correct pre-load on the bolt, which prevents the fastener from entering a state of dynamic loosening under the influence of high-frequency cyclical loading.

Insufficient torque results in a loss of clamping force, leading to micro-movements between the rail base and the fastening plate. These micro-movements initiate fretting corrosion and accelerate the wear of the rail seat, eventually compromising the gauge holding capacity of the system. Conversely, over-torquing the fasteners pushes the bolt into its plastic deformation zone, reducing the fatigue life of the steel and increasing the risk of sudden tensile failure. To maintain the equilibrium of the system, engineers must adhere to a strict torque-tension relationship, typically calibrated to the specific grade of the bolt and the coefficient of friction of the coating.

• Application of calibrated torque wrenches to ensure a variance of no more than +/- 5% from the design specification.
• Utilization of tension-indicating washers to provide a visual confirmation of pre-load achievement.
• Implementation of a staggered tightening sequence to ensure uniform load distribution across the slab interface.
• Strict adherence to ASTM standards for high-strength structural bolting to prevent premature yield.

Vibration Attenuation and Dampening Dynamics

Vibration management in the Lone Tree City Center Transit corridor is a critical forensic concern, as structure-borne noise (SBN) can propagate through the concrete slab and into adjacent commercial infrastructure. The direct fixation system employs elastomeric dampening pads—typically composed of high-density polyurethane or natural rubber—interposed between the rail and the concrete. These pads act as a mechanical filter, shifting the natural frequency of the track system away from the resonant frequencies of the supporting structure.

The efficacy of these dampening elements is governed by their dynamic stiffness and damping ratio. When a train passes, the vertical and lateral forces are absorbed by the elastomer, which converts kinetic energy into low-grade heat through hysteresis. If the dampening pads are improperly seated or if the fasteners are over-compressed, the elastomer may "bottom out," effectively creating a hard-point connection. This failure in dampening leads to an impedance mismatch, where vibration energy is transmitted directly into the slab, potentially causing hairline fractures in the concrete or disturbing sensitive electronic equipment in nearby commercial zones.

• Analysis of the loss factor in elastomeric materials to determine the efficiency of energy dissipation.
• Evaluation of the vertical stiffness (k-value) to ensure the system remains within the specified frequency range.
• Monitoring of the damping ratio to prevent the amplification of harmonic vibrations at specific vehicle speeds.
• Assessment of the interface between the rail profile and the pad to eliminate air gaps that cause impact loading.

Forensics of Fastener Fatigue and Failure Modes

From a forensic engineering perspective, the failure of rail fasteners in a transit environment is rarely the result of a single event but rather the culmination of cumulative fatigue cycles. The primary failure mode observed in direct fixation systems is the gradual loss of torque due to the "self-loosening" phenomenon. This occurs when the transverse vibrations induced by the wheel-rail interface create a momentary reduction in the friction between the nut and the bolt threads, allowing the fastener to rotate backward.

Furthermore, the thermal expansion and contraction of the continuous welded rail (CWR) introduce significant longitudinal stresses. If the fastening system is too rigid, these thermal forces can induce shear stress in the bolts, leading to fatigue cracking at the root of the thread. In the Lone Tree City Center environment, where temperature fluctuations can be significant, the interaction between the steel rail and the concrete slab must be managed to prevent the fasteners from acting as the primary load-bearing elements for thermal movement. Forensic analysis of failed components typically reveals a progression from pitting corrosion to crack initiation, followed by rapid propagation under peak loading conditions.

• Examination of bolt shear planes using scanning electron microscopy to identify fatigue striations.
• Analysis of galvanic corrosion at the interface of dissimilar metals to prevent localized pitting.
• Evaluation of the "creep" behavior of elastomeric pads, which can lead to a loss of pre-load over time.
• Assessment of the impact of ballastless track geometry on the distribution of lateral forces.

Quality Assurance and Long-term Structural Integrity

Ensuring the long-term viability of the Lone Tree City Center Transit infrastructure requires a rigorous quality assurance (QA) protocol centered on empirical data and periodic auditing. The transition from installation to operation marks the beginning of a degradation curve that must be managed through a predictive maintenance framework. This involves the use of non-destructive testing (NDT) to monitor the health of the fastening system without disrupting transit operations.

A primary component of the QA process is the implementation of a torque audit program. A statistically significant sample of fasteners is checked at regular intervals using a calibrated torque wrench to determine the rate of torque decay. This data allows engineers to establish a "loosening profile" for the specific transit corridor, enabling the scheduling of re-torquing cycles before the fasteners reach a critical state of instability. Additionally, the integration of vibration sensors at key intervals along the track allows for real-time monitoring of the dampening system's performance, ensuring that the elastomeric pads have not degraded due to UV exposure or chemical leaching from the concrete.

• Deployment of ultrasonic bolt tension monitors to verify actual clamping force rather than relying on torque alone.
• Establishment of a baseline vibration signature to detect anomalies in the dampening system.
• Regular inspection of the concrete slab for spalling or cracking around the fastener inserts.
• Development of a lifecycle replacement schedule for elastomeric components based on observed wear patterns.

Thermal Dynamics and the High-Altitude Microclimate of the Denver Concourse

The Denver International Airport (DEN) concourse line represents a critical infrastructure challenge due to its exposure to the high-altitude, semi-arid climate of the Colorado Front Range. Engineering for this environment requires an understanding of the specific thermodynamic pressures exerted during extreme blizzard events. The primary catalyst for system failure in traditional roofing is the rapid accumulation of high-density snow, which creates a significant thermal mass that traps moisture against the building envelope. In the Denver plateau, the combination of low atmospheric pressure and extreme wind-driven snow leads to accelerated heat loss via convection, often rendering standard resistive heating cables insufficient.

The phenomenon of ice damming across the expansive concourse rooflines is exacerbated by the "cold bridge" effect, where structural steel members conduct internal building heat outward, creating localized melting points. This meltwater then migrates toward the colder perimeter edges, where it refreezes, creating monolithic ice sheets that can exceed several hundred pounds per square foot in load. To counteract this, a switch heater induction system must be calibrated to manage the latent heat of fusion—the energy required to transition ice to water—without overheating the underlying roofing membrane.

• Atmospheric pressure variations affecting the boiling and melting points of surface moisture.
• Wind-chill factors that accelerate the rate of convective cooling across the roof surface.
• The impact of high UV exposure on the degradation of protective polymer coatings.
• Snow-load distribution patterns that create uneven pressure points on the structural decking.

Engineering the Induction System: Electromagnetics vs. Resistive Heating

Traditional snow-melting systems rely on resistive heating, where electrical current passes through a conductor to generate heat. While common, these systems are prone to "hot spotting" and have a slower response time, often failing to keep pace with the rapid deposition rates of a Colorado blizzard. In contrast, switch heater induction systems utilize electromagnetic fields to induce eddy currents directly within a conductive substrate or a specialized heating element. This method allows for a near-instantaneous ramp-up of temperature, ensuring that the roof surface remains above the freezing point precisely when the moisture sensors trigger the system.

The "switch" mechanism in these induction systems is a sophisticated logic controller that monitors ambient temperature, humidity, and roof-deck temperature. By utilizing a proportional-integral-derivative (PID) controller, the system can modulate power delivery to avoid the energy waste associated with constant-on heating. This precision is critical in a commercial environment like DEN, where the scale of the concourse line means that even a 10% increase in energy efficiency translates to significant operational cost savings and a reduction in the load on the airport's electrical grid.

• Induction coils designed for high-frequency oscillation to maximize heat transfer.
• Integration of moisture-sensing probes to initiate the "switch" sequence before accumulation begins.
• Use of ferromagnetic materials in the heating plates to enhance electromagnetic coupling.
• Rapid-response circuitry that prevents the formation of a base ice layer.

Building Envelope Integration and Forensic Risk Mitigation

From a forensic engineering perspective, the integration of an induction heating system into a commercial building envelope introduces complex variables regarding thermal expansion and contraction. The coefficient of thermal expansion differs significantly between the induction hardware, the structural steel, and the roofing membrane (typically TPO or modified bitumen). If the heating is too localized or intense, it can lead to "thermal shock," resulting in the premature embrittlement of the membrane or the failure of flashing seals at the parapet walls.

A rigorous forensic analysis of similar installations reveals that the most common point of failure is the interface between the heating element and the waterproofing layer. To mitigate this, the system must employ a thermally conductive but electrically insulating buffer. This ensures that the heat is transferred uniformly across the surface without creating dielectric breakdowns that could lead to electrical arcing. Furthermore, the system must be engineered to account for the structural deflection of the concourse roof under heavy snow loads, ensuring that the induction coils maintain a consistent gap to prevent mechanical abrasion of the roof surface.

• Analysis of differential thermal expansion to prevent membrane tearing and seam failure.
• Implementation of high-temperature resistant flashing to withstand localized heat spikes.
• Evaluation of the "cold bridge" effect to optimize the placement of induction zones.
• Monitoring of vapor drive to ensure that induced heat does not force moisture into the insulation layer.

Operational Reliability and Lifecycle Analysis in Extreme Conditions

The long-term viability of switch heater induction systems in a high-traffic aviation hub depends on the Mean Time Between Failures (MTBF) and the ease of modular replacement. Given the extreme weather conditions, the electrical components must be housed in NEMA 4X rated enclosures to protect against moisture ingress and corrosive agents. The lifecycle of the system is primarily dictated by the fatigue life of the induction coils and the stability of the power electronics. In the Denver environment, the cyclical nature of freeze-thaw cycles puts immense stress on all electrical connections, necessitating the use of vibration-resistant terminals and high-grade industrial conduits.

Empirical data suggests that induction systems, while requiring a higher initial capital expenditure, offer a lower total cost of ownership over a 20-year horizon compared to resistive systems. This is due to the lack of burnout associated with traditional heat tape and the significantly lower energy consumption per square foot of cleared roof. The ability to remotely monitor the system via a Building Management System (BMS) allows facility managers to identify failing zones in real-time, preventing the catastrophic structural failures associated with unmanaged snow accumulation during a "once-in-a-century" blizzard event.

• Utilization of redundant power feeds to ensure system availability during grid instability.
• Scheduled thermographic inspections to identify potential hot spots or coil degradation.
• Integration with airport-wide weather telemetry for predictive activation.
• Lifecycle assessment of the roofing membrane's resilience to repeated thermal cycling.

Material Specification and Mix Design for High-Density Concrete

The structural integrity of the I-25 South Commuter Bypass platforms depends fundamentally on the mitigation of capillary porosity. In high-density concrete (HDC) applications, the primary objective is to minimize the interconnected void spaces that allow the ingress of moisture and dissolved chlorides. To achieve this, the mix design must strictly adhere to a water-to-cementitious materials (w/cm) ratio of 0.40 or lower. This reduction in water content is critical; excess water creates shrinkage cracks and increases the permeability of the hardened cement paste, providing a direct conduit for deleterious agents to penetrate the matrix.

To further refine the pore structure, the integration of supplementary cementitious materials (SCMs) is mandatory. The use of silica fume, a highly reactive pozzolan, facilitates a chemical reaction that produces additional calcium silicate hydrate (C-S-H) gel, which fills the microscopic gaps between cement grains. This process, known as pore refinement, transforms the concrete from a sponge-like structure into a dense, impermeable barrier. Furthermore, the inclusion of Class F fly ash improves long-term durability by reducing the heat of hydration, thereby preventing early-age thermal cracking that would otherwise compromise the envelope's forensic seal.

• Target compressive strength: 6,000 to 8,000 psi at 28 days to ensure load-bearing capacity.
• Air entrainment: 5% to 7% to provide internal relief valves for expanding ice crystals.
• Silica fume replacement: 5% to 10% of total cementitious weight for permeability reduction.
• Superplasticizer dosage: High-range water reducers to maintain workability at low w/cm ratios.

The Mechanics of Freeze-Thaw Cycles and Chemical Attack

The I-25 corridor is subject to extreme diurnal temperature fluctuations, often crossing the freezing threshold multiple times within a single 24-hour period. When water enters the concrete's capillary pores and freezes, it expands by approximately 9% in volume. This expansion generates immense internal hydraulic pressure. If the concrete lacks a properly distributed system of air voids, this pressure exceeds the tensile strength of the cement paste, leading to internal micro-cracking. This cycle of expansion and contraction progressively weakens the structural matrix, a process known as freeze-thaw degradation.

The situation is exacerbated by the application of deicing salts, primarily sodium chloride and calcium chloride. These salts do not merely lower the freezing point of water; they initiate a complex chemical attack. Chloride ions penetrate the concrete and reach the steel reinforcement, where they destroy the passive oxide layer, triggering rapid galvanic corrosion. Additionally, the presence of salts increases the osmotic pressure within the pores. As the salt concentration varies between the surface and the interior, water is drawn toward the surface, creating "salt scaling." This manifests as the peeling of the concrete surface in thin, brittle sheets, exposing the aggregate to further environmental assault.

• Hydraulic Pressure: The force exerted by ice crystallization within saturated pores.
• Osmotic Shock: The movement of water across concentration gradients caused by salt saturation.
• Chloride Diffusion: The migration of ions through the concrete cover toward the rebar.
• Alkali-Silica Reaction (ASR): The potential for chemical instability between aggregates and cement.

Forensic Analysis of Surface Degradation and Spalling

A forensic evaluation of the I-25 South bypass platforms reveals a distinct pattern of failure characterized by surface scaling and deep-seated spalling. Scaling is typically a surface-level phenomenon, occurring within the first 5 to 10 millimeters of the slab. It is often the result of poor finishing practices, such as over-troweling, which pushes the fine aggregates deeper and leaves a weak, water-rich layer of paste at the surface. This layer is the first to fail under the stress of freeze-thaw cycles, resulting in a "sandpaper" texture that increases the surface area for further salt absorption.

Spalling, conversely, is a more severe structural failure where large chunks of concrete detach from the substrate. This is typically driven by the corrosion of internal reinforcement. As the steel rebar oxidizes, it expands to several times its original volume, creating massive internal tensile stresses. Because concrete is notoriously weak in tension, it fractures from the inside out. In the context of the commuter bypass, the dynamic loading from heavy vehicle traffic accelerates this process, as the vibration creates micro-fractures that allow salt-laden meltwater to bypass the surface defense and reach the steel more rapidly.

• Surface Scaling: Shallow loss of cement paste caused by salt-induced osmotic pressure.
• Delamination: Horizontal cracking parallel to the surface, often occurring at the lift line.
• Concrete Spalling: Ejection of concrete fragments due to internal rebar expansion.
• Efflorescence: The migration of salts to the surface, leaving white crystalline deposits.

Mitigation Strategies and Protective Overlays

To establish a permanent defense against the harsh conditions of the I-25 corridor, a multi-layered protection strategy is required. The first line of defense is the application of penetrating sealers. Silane-based sealers are preferred over topical films because they chemically bond with the concrete, creating a hydrophobic lining within the pores. This prevents liquid water and dissolved salts from entering the matrix while remaining vapor-permeable, allowing the concrete to "breathe" and release internal moisture without trapping it beneath a plastic skin.

Beyond chemical sealers, the integrity of the joint system is paramount. Expansion joints must be sealed with high-performance silicone or polyurethane sealants that can withstand the extreme thermal expansion and contraction of the bypass platforms. If these joints fail, they become primary entry points for salt-laden water, leading to localized "joint failure" and subsequent slab edge spalling. Finally, the implementation of a crystalline waterproofing admixture can provide a secondary, internal defense. These chemicals react with moisture to grow non-soluble crystals within the pores, effectively self-healing micro

Material Specification and Alloy Composition for Low-Floor Bogie Axles

The structural integrity of low-floor Light Rail Vehicle (LRV) bogie axles is predicated on the precise calibration of alloy composition and the rigorous control of the forging process. Unlike standard rail axles, low-floor configurations necessitate a more compact axle geometry to accommodate the lowered passenger floor height, which inherently increases the localized stress concentrations at the wheel-seat interface. The industry standard typically mandates the use of high-strength forged steel, often adhering to specifications similar to AISI 4140 or specialized vacuum-degassed steel grades to minimize non-metallic inclusions that act as nucleation sites for fatigue cracks.

The metallurgical priority is the achievement of a fine-grained pearlitic or tempered martensitic microstructure. This is accomplished through a stringent sequence of quenching and tempering, ensuring that the axle possesses a balanced hardness profile—typically ranging between 300 and 400 Brinell (HB)—to provide a compromise between high yield strength and sufficient fracture toughness. The presence of chromium and molybdenum is critical; chromium enhances hardenability and corrosion resistance, while molybdenum prevents grain growth during heat treatment and improves high-temperature strength, which is essential during heavy braking cycles at high-traffic transfer points.

• Vacuum Degassing: Essential for removing dissolved gases and reducing sulfur content to prevent hot shortness during forging.
• Grain Flow Optimization: Forging must be executed to ensure that the grain flow is longitudinal and continuous across the axle's critical sections to maximize resistance to transverse shear.
• Surface Hardening: Induction hardening of the journal areas to reduce adhesive wear and extend the lifecycle of the bearing seats.
• Dimensional Tolerance: Strict adherence to ISO standards for concentricity and cylindricity to prevent eccentric loading.

Stress Analysis and Fatigue Propagation at Peoria Station

The Peoria Station Commuter Transfer represents a high-stress operational environment characterized by frequent acceleration, decelerations, and complex track geometry involving switches and crossovers. For the LRV bogie, these conditions translate into high-amplitude cyclic loading. The primary concern in this sector is the "hunting oscillation" and the resulting lateral forces (Y-forces) that exert significant bending moments on the axle. In low-floor vehicles, the reduced distance between the axle and the vehicle frame alters the center of gravity and the distribution of vertical loads, often leading to accelerated fatigue in the transition zone between the wheel seat and the axle core.

Fatigue propagation in this environment follows a predictable clinical progression. It begins with micro-crack initiation at the surface, often triggered by fretting corrosion or microscopic surface imperfections. Once a crack initiates, the cyclic loading of the Peoria transfer’s stop-and-go cadence drives the crack deeper into the material. The stress intensity factor (K) increases as the crack grows, eventually reaching a critical threshold where the remaining cross-sectional area can no longer support the peak load, leading to a catastrophic brittle fracture. The analysis of the Peoria sector reveals that the frequent negotiation of tight-radius curves increases the shear stress on the axle, accelerating the transition from Stage I (initiation) to Stage II (propagation) fatigue.

• Cyclic Loading Profiles: Analysis of the load-unload cycles during the rapid transit phases of the transfer hub.
• Bending Moment Distribution: Calculation of the maximum moment at the wheel-seat fillet, where stress concentration factors (Kt) are highest.
• Lateral Force Impact: Evaluation of the impact of rail joints and switches on the axle's transverse stability.
• Thermal Cycling: The effect of regenerative braking heat transfer from the discs to the axle shaft.

Metallurgical Degradation and Surface Forensics

Forensic analysis of bogie axles recovered from the Peoria Station line indicates a prevalence of surface-initiated degradation. Scanning Electron Microscopy (SEM) of failed components typically reveals distinct fatigue striations, indicating the rate of crack growth per cycle. A common finding is the presence of "spalling" or "pitting" on the journal surfaces, which is often a result of lubricant breakdown or the ingress of environmental contaminants. These pits act as stress risers, significantly lowering the fatigue limit of the steel and providing a pathway for moisture-induced corrosion.

Furthermore, the phenomenon of hydrogen embrittlement must be considered, particularly if the axles have undergone improper plating or were exposed to corrosive runoff in the station’s drainage areas. Hydrogen atoms can diffuse into the metal lattice, accumulating at grain boundaries and causing internal pressure that leads to intergranular cracking. This is particularly dangerous because it can occur without visible surface warning, resulting in a sudden failure of the axle under nominal load. The forensic evidence suggests that the interaction between the high-frequency vibrations of the Peoria trackage and the inherent material properties of the alloy creates a synergistic effect that accelerates the degradation of the surface oxide layer.

• SEM Analysis: Used to identify the origin of the failure and distinguish between ductile dimpling and brittle cleavage.
• Hardness Mapping: Utilizing Rockwell C (HRC) testing across the axle cross-section to verify the consistency of the heat treatment.
• Eddy Current Testing: Employing electromagnetic induction to detect near-surface flaws that are invisible to the naked eye.
• Chemical Analysis: Using Optical Emission Spectroscopy (OES) to ensure the alloy composition remains within the specified tolerances.

Mitigation Strategies and Lifecycle Maintenance

To ensure the operational safety of the LRV fleet across the Peoria Station transfer, a transition from reactive to

Tribological Analysis of Carbon-Copper Interfaces

The operational integrity of the Decatur-Federal Stadium Line depends fundamentally on the tribological relationship between the pantograph carbon strips and the overhead catenary system (OCS). In this high-voltage environment, the carbon strip serves as a sacrificial anode, designed to wear down preferentially to protect the more expensive hard-drawn copper contact wire. The wear mechanism is primarily a combination of abrasive wear, caused by the microscopic irregularities of the contact wire, and adhesive wear, resulting from the high-pressure sliding contact at operational speeds.

Empirical data from the Decatur corridor indicates that wear rates are not linear but are instead accelerated by the high frequency of acceleration and deceleration cycles associated with stadium-adjacent transit. This creates a thermal cycling effect where the carbon strip undergoes rapid heating and cooling, leading to micro-fractures within the graphite matrix. When these fractures coalesce, the material loses structural cohesion, resulting in "chunking" or macroscopic material loss that exceeds standard wear projections.

• Electrographite Grade Selection: The use of high-density, high-purity graphite is mandatory to maintain a low coefficient of friction and ensure a consistent electrical path.
• Contact Pressure Variance: Maintaining a constant uplift force between 70N and 120N is critical; deviations outside this window lead to either premature strip erosion or excessive wire wear.
• Atmospheric Contamination: Urban pollutants and salt spray in the Decatur area act as catalysts for chemical erosion, increasing the oxidation rate of the copper wire and subsequently increasing the abrasiveness of the contact surface.

From a forensics perspective, the analysis of worn strips reveals a distinct "grooving" pattern. These grooves are indicative of "hard spots" in the catenary system—points where the wire is restricted or improperly tensioned. These hard spots create localized pressure spikes that breach the lubricating layer of the carbon, leading to localized overheating and accelerated material removal.

Kinetic Impact and Dynamic Oscillation

The mechanical stability of the pantograph assembly is the primary determinant of arc flash frequency. As the vehicle traverses the line toward Federal Stadium, the pantograph must maintain a seamless electrical connection despite the inherent oscillations of the train and the elasticity of the OCS. Dynamic oscillation occurs when the natural frequency of the pantograph matches the frequency of the wire's stagger, leading to a phenomenon known as "bounce."

When the pantograph loses contact with the wire, even for a few milliseconds, the electrical circuit is interrupted. However, the high potential difference between the pantograph and the catenary causes the air to ionize, creating a plasma arc. This arc flash generates temperatures exceeding 5,000 Kelvin, which instantaneously vaporizes small amounts of both the carbon strip and the copper wire. This process, known as electrical erosion, creates "beads" on the contact wire, which then act as abrasive points for the next pantograph, creating a destructive feedback loop.

• Damping Coefficients: The implementation of pneumatic or spring-loaded damping systems is required to absorb high-frequency vibrations and minimize the amplitude of the bounce.
• Stagger Alignment: Precise lateral alignment of the contact wire ensures that the carbon strip wears evenly across its entire width, preventing "edge-loading" and premature failure.
• Uplift Force Consistency: Inconsistent uplift forces lead to erratic contact, increasing the probability of high-energy arc events during high-speed transitions.

The kinetic energy involved in these oscillations is further complicated by the aerodynamic drag experienced at peak speeds. This drag can cause the pantograph head to tilt or lift unevenly, shifting the contact point toward the edge of the carbon strip. Once the contact moves to the edge, the surface area decreases, increasing the current density and the likelihood of a thermal runaway event that can melt the carbon binder.

Arc Flash Mitigation and Dielectric Integrity

Preventing arc flashes across the Decatur-Federal Stadium Line requires a multi-layered approach focusing on dielectric stability and material enhancement. The primary goal is to minimize the duration and intensity of any arc that occurs. This is achieved by optimizing the "arcing time" through the use of advanced carbon composites that incorporate metallic inserts or specialized alloys. These inserts help distribute the current more evenly across the strip, reducing the localized heat flux during a loss-of-contact event.

Furthermore, the dielectric integrity of the surrounding infrastructure must be considered. Arc flashes produce significant electromagnetic interference (EMI) and can induce transient voltages in nearby signaling equipment. In the dense commercial corridor of the Decatur line, this can lead to "ghost" signals or the failure of sensitive electronic relays. The use of shielded cabling and grounded mounting brackets for the OCS is essential to prevent these transients from migrating into the broader infrastructure.

• Carbon-Metal Composites: Integrating copper or stainless steel filaments into the carbon matrix increases the mechanical strength and improves the electrical conductivity, reducing the voltage drop at the contact point.
• Arc-Suppression Geometry: Shaping the pantograph head to ensure a gradual transition of contact helps in reducing the intensity of the spark during initial contact.
• Insulation Monitoring: Regular infrared thermography of the insulators ensures that no carbon tracking is occurring, which would otherwise create a low-resistance path to the ground and increase the risk of a catastrophic flashover.

The prevention of arc flashes is also tied to the cleanliness of the contact surface. Carbon dust, a byproduct of normal wear, can accumulate on the insulators and the pantograph frame. If this dust becomes damp, it becomes conductive, potentially leading to a phase-to-ground arc. This necessitates a rigorous cleaning schedule for the insulators and the implementation of hydrophobic coatings to repel moisture and contaminants.

Predict

Fluid Dynamics and the Critical Velocity of Smoke Control

The fundamental engineering challenge in the Table Mesa Park-n-Ride underground rail tunnel is the management of the "piston effect" and the prevention of smoke backlayering. In a confined subterranean environment, a fire event generates a massive thermal plume that creates its own buoyancy. If the forced air velocity provided by the jet-fan array is insufficient, the smoke will migrate upstream against the direction of the airflow, a phenomenon known as backlayering. This creates a lethal environment for passengers attempting to evacuate toward the tunnel portals.

To mitigate this, the system is engineered around the concept of Critical Velocity. This is the minimum air velocity required to ensure that the smoke interface remains stationary or moves in the intended direction of exhaust. For the Table Mesa infrastructure, the calculation of critical velocity must account for the heat release rate (HRR) of a worst-case scenario, such as a rolling stock fire involving synthetic interior materials. The resulting analysis dictates a high-velocity laminar flow that pushes the smoke column toward the designated exhaust shafts, maintaining a tenable environment in the evacuation path.

• Calculation of the Froude number to determine the stability of the smoke layer.
• Analysis of the "stack effect" caused by the slight gradient of the tunnel beneath the Park-n-Ride facility.
• Mitigation of turbulence induced by tunnel protrusions and signage which can disrupt the air column.
• Establishment of a safety factor of 1.5x the calculated critical velocity to account for unexpected thermal surges.

Mechanical Specifications and Jet-Fan Array Configuration

The hardware deployment for the Table Mesa project utilizes a series of high-output axial jet fans, strategically suspended from the tunnel crown. Unlike traditional ventilation systems that rely on massive intake and exhaust shafts at either end, jet fans act as "impulse" devices. They transfer momentum to the tunnel air, creating a high-velocity air stream without the need for bulky ductwork that would otherwise compromise the tunnel's vertical clearance and structural envelope.

Each fan unit is specified with high-temperature rated insulation, capable of maintaining structural integrity and operational capacity at 400 degrees Celsius for a minimum of two hours. This ensures that the fans can continue to operate even as they push hot gases through the tunnel. The array is configured in a staggered sequence to prevent the formation of stagnant air pockets or "dead zones," which could allow smoke to pool and drop in temperature, potentially leading to unpredictable erratic flow patterns.

• Axial flow impellers designed for maximum thrust-to-power efficiency.
• Variable Frequency Drives (VFDs) allowing for precise modulation of airflow based on real-time sensor data.
• Heavy-duty galvanized steel housings to resist the corrosive effects of moisture and particulate matter.
• Redundant power feeds sourced from independent substations to prevent total system failure during a localized electrical fire.

Fire Life Safety Integration and Control Logic

The operational efficacy of the smoke evacuation system is entirely dependent on the integration of the Supervisory Control and Data Acquisition (SCADA) system and the Fire Life Safety (FLS) matrix. The system does not operate on a binary "on/off" switch but rather through a sophisticated logic sequence triggered by linear heat detection cables and optical smoke sensors. Upon detection of a thermal anomaly, the system identifies the zone of origin and calculates the optimal fan sequence to create a "push-pull" effect, directing smoke away from the nearest safe egress point.

A critical component of this logic is the management of the "tenability limit." The system is designed to keep the temperature at the floor level below 60 degrees Celsius and maintain visibility above 10 meters for as long as possible. This is achieved by modulating the jet fans to create a high-pressure zone behind the fire and a low-pressure zone ahead of it, effectively "vacuuming" the smoke out of the tunnel. This precise pressure differential is essential to prevent smoke from leaking into the Park-n-Ride passenger platforms or adjacent utility corridors.

• Implementation of NFPA 130 standards for fixed guideway transit and passenger rail systems.
• Real-time monitoring of air velocity via ultrasonic anemometers.
• Automated interlocking with the rail signaling system to halt trains in optimal "safe zones."
• Integration of emergency lighting and voice evacuation systems synchronized with the airflow direction.

Structural Envelope Forensics and Pressure Differentials

From a building envelope perspective, the forced air system introduces significant pressure differentials between the tunnel interior and the surrounding soil and surface structures. The Table Mesa Park-n-Ride facility acts as a massive cap over the tunnel; therefore, the integrity of the tunnel lining and the portal seals is paramount. During a full-scale smoke evacuation event, the internal pressure can spike rapidly, creating a "pneumatic hammer" effect against the tunnel portals and any unplanned openings in the envelope.

Forensic analysis of the tunnel lining reveals that thermal expansion during a fire, coupled with the high-velocity airflow, can induce mechanical stress on the shotcrete and waterproof membranes. If the envelope is not perfectly sealed, the forced air can drive smoke into the interstitial spaces between the tunnel shell and the surrounding rock, potentially leading to "smoke seepage" in areas where passengers are seeking refuge. This necessitates the use of high-performance elastomeric sealants and reinforced gaskets at all penetration points.

• Assessment of the "Portal Effect" where air velocity increases as the tunnel diameter narrows at the exit.
• Evaluation of the thermal bridge between the tunnel crown and the Park-n-Ride foundation slab.
• Monitoring of structural deformation using fiber-optic strain gauges during high-pressure tests.
• Verification of the airtightness of emergency egress shafts to prevent reverse-flow contamination.

Kinetic Energy Recovery and Systemic Architecture of the E-470 Loop

The Southlands E-470 Feeder Loop represents a critical intersection of heavy commercial infrastructure and advanced electrical engineering. At its core, the system utilizes a high-capacity regenerative braking framework designed to capture kinetic energy during the deceleration phases of heavy transit and freight modules. Unlike traditional friction-based braking systems that dissipate energy as waste heat, the E-470 loop employs traction motors configured to operate as generators. When a vehicle initiates a braking sequence, the electromagnetic field within the motor reverses the flow of current, converting the vehicle's momentum back into high-voltage direct current (DC).

The efficiency of this capture is contingent upon the synchronization of the braking force with the available capacity of the feeder loop. If the grid is saturated, the system must divert excess energy to resistive load banks to prevent catastrophic overvoltage. However, the primary objective of the E-470 architecture is the seamless transition of this energy back into the commercial power grid, necessitating a sophisticated series of power inversion hubs situated at strategic intervals along the loop. These hubs act as the primary interface between the mobile kinetic sources and the stationary electrical infrastructure.

• Implementation of bidirectional IGBT (Insulated Gate Bipolar Transistor) modules for rapid switching.
• Utilization of high-capacity capacitor banks to smooth transient voltage spikes during peak braking events.
• Integration of real-time telemetry to balance load distribution across the feeder loop.
• Deployment of superconducting materials in primary conduits to minimize ohmic losses during energy transfer.

Power Grid Inversion and Harmonic Distortion Analysis

The process of returning captured DC energy to the alternating current (AC) utility grid requires a precise inversion process. The E-470 inversion stations utilize advanced Pulse Width Modulation (PWM) to synthesize a sinusoidal waveform that matches the grid's frequency and phase. This is a critical operation; any misalignment in phase synchronization can lead to destructive interference, resulting in equipment failure or grid instability. The technical challenge lies in managing the Total Harmonic Distortion (THD) introduced by the rapid switching of the inverters. High THD levels can lead to overheating in nearby transformers and the degradation of insulation in the commercial building envelopes surrounding the feeder loop.

To mitigate these effects, the Southlands project employs active harmonic filters that inject compensating currents to cancel out non-linear distortions. This ensures that the power fed back into the grid meets stringent IEEE 519 standards. From a forensic engineering perspective, the stability of this inversion process is monitored through high-frequency sampling of the current waveforms, allowing technicians to identify "dirty power" signatures before they manifest as physical failures in the infrastructure. The result is a stabilized energy recovery system that maximizes the utility of every joule captured from the braking modules.

• Application of LCL filters to attenuate high-frequency noise from the PWM inverters.
• Phase-Locked Loop (PLL) synchronization for precise alignment with the regional utility grid.
• Dynamic voltage regulation to prevent flicker and voltage sags in adjacent commercial zones.
• Continuous monitoring of the power factor to ensure maximum efficiency of energy delivery.

Thermal Management and Infrastructure Envelope Forensics

A significant engineering challenge associated with the E-470 Feeder Loop is the management of thermal loads generated by the inversion stations. The conversion of DC to AC, while efficient, still produces substantial waste heat. In a commercial infrastructure context, this heat can create localized "thermal plumes" that affect the surrounding building envelopes. Forensic analysis of the housing units reveals that without proper thermal decoupling, the heat from the power electronics can migrate through the structural slab, leading to thermal bridging. This bridging can cause premature degradation of moisture barriers and promote interstitial condensation within the wall assemblies of the facility.

To address these risks, the engineering team implemented a high-performance thermal envelope specifically for the inversion hubs. This includes the use of closed-cell spray polyurethane foam (ccSPF) and reflective radiant barriers to ensure that heat is directed upward and outward through dedicated HVAC exhaust systems rather than leaching into the primary structural components. Furthermore, the use of thermally broken mounting brackets for the heavy electrical switchgear prevents the direct conduction of heat into the steel superstructure. This approach protects the integrity of the building envelope and prevents the long-term forensic failures typically associated with high-heat industrial equipment.

• Installation of geothermal heat exchangers to sink excess thermal energy into the subsurface.
• Utilization of intumescent coatings on structural steel to prevent thermal deformation during peak loads.
• Implementation of vapor-permeable membranes to allow the envelope to "breathe" while maintaining a thermal seal.
• Strategic placement of ventilation louvers to facilitate passive convective cooling of the equipment housing.

Energy Recovery Optimization and Lifecycle Viability

The long-term viability of the Southlands E-470 Feeder Loop is measured by its net energy recovery ratio and the degradation rate of its electrical components. Empirical data suggests that the system can recover up to 35% of the energy typically lost during braking, provided the loop is operating at a minimum of 60% capacity. This recovered energy is not only fed back into the grid but is also used to power the facility's own lighting, climate control, and auxiliary systems, effectively reducing the operational carbon footprint of the commercial infrastructure. The lifecycle analysis indicates that the initial capital expenditure for the inversion hubs is offset within seven years through energy savings and grid-feed credits.

However, the longevity of the system depends on the rigorous maintenance of the capacitor banks and the cooling systems. Over time, the electrolytic capacitors in the inversion stations are subject to thermal stress, which can lead to a decrease in capacitance and an increase in ESR (Equivalent Series Resistance). To counter this, the E-470 loop employs a predictive maintenance schedule based on thermal imaging and electrical impedance spectroscopy. By identifying failing components before they reach a critical state, the engineering authority ensures that the energy recovery process remains uninterrupted and the grid inversion remains stable.

• Calculation of the Levelized Cost of Energy (LCOE) for the recovered power versus traditional utility sourcing.
• Deployment of SCADA systems for remote monitoring of energy flux and component health.
• Regular auditing of the building envelope to ensure thermal integrity remains within specified tolerances.
• Analysis of the "round-trip efficiency" to optimize the timing of energy discharge into the grid.

Geotechnical Substrate and Subgrade Interaction

The structural integrity of the Thornton Crossroads Regional Line is fundamentally predicated on the competence of the underlying subgrade. In this specific corridor, the geological profile is characterized by high-plasticity silty clays with a propensity for volumetric instability during seasonal moisture fluctuations. Forensic analysis of the failed sections reveals a critical deficiency in the California Bearing Ratio (CBR) values, which dropped significantly below the design threshold of 7% in saturated zones. This loss of bearing capacity creates a non-uniform support system, leading to differential settlement across the dedicated right-of-way.

When the heavy axle loads of articulated Bus Rapid Transit (BRT) vehicles are applied to a compromised subgrade, the resulting stress bulb extends deeper into the soil than originally modeled. This creates a phenomenon known as subgrade pumping, where fine particles are forced upward through the base course during loading cycles. The accumulation of these fines at the interface of the base and sub-base layers reduces the internal friction of the aggregate, effectively lubricating the layers and facilitating lateral displacement.

• Saturation-induced loss of shear strength in the clay horizons.
• Inadequate capillary break implementation between the subgrade and the granular base.
• Differential settlement resulting from inconsistent compaction densities across the regional line.
• Hydrostatic pressure buildup during peak precipitation events, leading to pore water pressure spikes.

The resulting instability manifests as a loss of vertical support, which forces the pavement structure to bridge gaps in the substrate. This bridging increases the tensile stress on the bottom of the asphalt or concrete slabs, initiating fatigue cracking that propagates upward toward the wearing course.

Dynamic Load Distribution and Shear Stress Analysis

Unlike standard mixed-use traffic, BRT dedicated lanes are subject to "channelized" loading. Because the buses follow a precise, repetitive wheel path with minimal lateral variance, the pavement is subjected to extreme concentrated stress. The shear forces are most acute at acceleration and deceleration zones, particularly near the Thornton Crossroads boarding platforms. Here, the horizontal force exerted by the tires during braking creates a high-magnitude shear stress ($\tau$) that acts parallel to the pavement surface.

This shear stress exceeds the cohesive bond strength of the asphalt binder or the frictional resistance between the concrete slabs and the base. In asphaltic sections, this results in "shoving," where the viscoelastic material is physically pushed forward, creating longitudinal ridges. In rigid pavement sections, the shear forces manifest as faulting at the transverse joints. The magnitude of these forces is compounded by the high gross vehicle weight (GVW) of the articulated units, which creates a significant torque effect on the pavement surface during start-stop cycles.

• Concentrated wheel-path loading leading to accelerated rutting and deformation.
• High-magnitude horizontal shear forces during braking and acceleration phases.
• Torsional stress induced by the articulation joint of the buses during slight curvatures.
• Exceedance of the shear capacity of the surface course binder.

The failure is further exacerbated by the thermal environment of the regional line. During peak summer temperatures, the binder in the asphaltic sections reaches a state of high fluidity, significantly lowering the shear resistance and allowing the lateral displacement of the material to occur more rapidly under the repetitive load of the BRT fleet.

Material Fatigue and Joint Failure Forensics

A forensic examination of the Thornton Crossroads pavement reveals a systemic failure in the jointing strategy and material selection. In the rigid pavement segments, the dowel bars—intended to transfer loads across joints—show evidence of premature corrosion and misalignment. This misalignment prevents the efficient transfer of loads, causing the edges of the slabs to take the brunt of the vertical load, which leads to spalling and corner breaks. The resulting "step-off" at the joint increases the dynamic impact load on the vehicle, which in turn increases the impulse force applied to the pavement.

In the flexible pavement sections, the primary failure mode is fatigue-induced alligator cracking. This is a classic bottom-up failure where the repeated bending of the asphalt layer exceeds its fatigue limit. The cracks provide a direct conduit for surface water to penetrate the base course, further weakening the subgrade and accelerating the cycle of degradation. The interface between the dedicated BRT lane and the adjacent shoulder also shows signs of delamination, suggesting an inadequate bond between the different material lifts during the paving process.

• Spalling and faulting at transverse joints due to inadequate load transfer.
• Bottom-up fatigue cracking resulting from repeated high-amplitude stress cycles.
• Delamination of asphalt lifts caused by poor tack coat application or contamination.
• Chemical degradation of the binder due to prolonged exposure to road salts and oils.

The synergy between these failures creates a feedback loop. As the joints fail, the structural rigidity of the slab is lost, increasing the shear stress on the remaining intact sections. This accelerates the propagation of cracks and leads to a rapid decline in the overall Serviceability Index (PSI) of the right-of-way.

Remediation Strategies and Structural Stabilization

To restore the structural integrity of the Thornton Crossroads Regional Line, a comprehensive remediation strategy must be implemented, focusing on both the substrate and the surface. The first priority is the stabilization of the subgrade. This should involve the installation of geogrid reinforcement and the use of lime or cement stabilization to reduce the plasticity of the silty clays. By creating a rigid, stabilized platform, the vertical stress is distributed more evenly, reducing the risk of differential settlement and subgrade pumping.

For the surface course, the transition to a high-modulus asphalt (HMA) or a continuously reinforced concrete pavement (CRCP) is recommended. High-modulus asphalt, utilizing polymer-modified binders, provides the necessary shear resistance to combat shoving in acceleration zones. CRCP eliminates the need for transverse joints, thereby removing the primary point of failure and ensuring a seamless load transfer across the entire length of the dedicated right-of-way. Furthermore, the implementation of an advanced subsurface drainage system is critical to prevent the saturation of the base course.

• Installation of biaxial geogrids to increase the tensile strength of the base layer.
• Application of polymer-modified binders to increase the viscoelastic stability of the wearing course.
• Implementation of Continuously Reinforced Concrete Pavement (CRCP) to eliminate joint faulting.
• Integration of deep-trench longitudinal drains to maintain a dry subgrade environment.

Finally, the design must incorporate a rigorous maintenance schedule involving periodic core sampling and Falling Weight Deflectometer (FWD) testing. This empirical approach allows engineers to detect the onset of structural degradation before it manifests as surface failure, enabling targeted interventions such as localized slurry sealing or joint resealing to extend the design life of the infrastructure.

Aeroelastic Instability and Vortex Shedding in Catenary Systems

The overhead catenary system (OCS) at the Union Station Transit Hub operates as a complex network of suspended conductors subject to extreme aeroelastic forces. In high-wind events, the primary driver of instability is the phenomenon of vortex shedding. As wind flows across the cylindrical profile of the contact and messenger wires, alternating low-pressure vortices are created on opposite sides of the conductor. When the frequency of this vortex shedding aligns with the natural fundamental frequency of the span, resonance occurs, leading to high-amplitude oscillations known as Aeolian vibration.

In the specific urban canyon environment of the Union Station hub, these forces are amplified by the Venturi effect, where wind is compressed between adjacent commercial structures, increasing local velocity. This acceleration shifts the Strouhal number, often pushing the system into a regime of "galloping"—a low-frequency, high-amplitude oscillation caused by the aerodynamic instability of the conductor's cross-section, particularly when ice accretion or pollutants alter the wire's profile. The resulting dynamic loads place immense stress on the registration arms and steady arms, potentially leading to fatigue failure at the bolted connections.

• Strouhal Number Calculation: Critical for determining the frequency of vortex shedding relative to wind speed.
• Aeolian Vibration: High-frequency, low-amplitude movement that causes long-term fatigue in stranded conductors.
• Galloping Instability: Large-scale oscillations that can lead to immediate contact loss between the pantograph and the wire.
• Reynolds Number Analysis: Essential for characterizing the transition from laminar to turbulent flow across the catenary span.

Structural Coupling and Boundary Condition Analysis

The stability of the OCS is not an isolated variable but is intrinsically coupled with the structural integrity of the support masts and the surrounding building envelope. At Union Station, the catenary supports are often integrated into the broader commercial infrastructure, meaning that oscillations in the wire can transmit harmonic energy back into the roofing systems and facade anchors. Forensic analysis of the boundary conditions reveals that the stiffness of the mast-to-roof connection significantly influences the damping characteristics of the entire system. If the support structure lacks sufficient rigidity, the system may experience coupled oscillation, where the mast and the wire vibrate in a sympathetic mode.

Furthermore, the interaction between the catenary system and the building envelope's thermal expansion joints must be considered. As the building shifts due to diurnal temperature cycles, the tension in the OCS is subtly altered. This variation in tension changes the natural frequency of the wires, potentially moving the system into a critical resonance window during peak wind seasons. The forensic evidence suggests that failure points are most common at the transition zones where the catenary exits the sheltered station environment and enters the exposed open-air corridors, creating a sudden change in wind pressure and turbulence intensity.

• Impedance Matching: Ensuring the support mast stiffness prevents the reflection of vibrational energy.
• Thermal Coupling: Analyzing the effect of roof-deck expansion on wire tension and frequency.
• Boundary Layer Turbulence: Evaluating the shear layers created by the station's parapets and roofing cornices.
• Fatigue Life Assessment: Utilizing S-N curves to predict the failure of registration arm brackets under cyclic loading.

Dynamic Modeling and Computational Fluid Dynamics (CFD) Parameters

To accurately predict the behavior of the OCS under extreme wind loads, a multi-physics modeling approach is required. This involves the integration of Finite Element Analysis (FEA) for structural response and Computational Fluid Dynamics (CFD) for wind load characterization. The modeling process begins with the establishment of a high-fidelity mesh of the Union Station transit hub, incorporating the specific geometry of the surrounding skyscrapers to simulate the actual wind vectors. The Navier-Stokes equations are solved to determine the pressure distribution across the conductor surfaces, which are then treated as flexible beams with non-linear material properties.

The model must account for the "Den Hartog criterion," which defines the conditions under which galloping occurs. By simulating various wind angles and velocities, engineers can identify the critical wind speed at which the aerodynamic lift slope becomes negative, triggering unstable oscillations. The inclusion of damping ratios—both structural damping from the materials and aerodynamic damping from the wind itself—is critical. Without precise damping coefficients, the model will overpredict the amplitude of oscillation, leading to over-engineered and prohibitively expensive support structures.

• Non-linear Beam Elements: Used to model the large deflections of the contact wire.
• Large Eddy Simulation (LES): Employed to capture the transient nature of turbulent gusts in the urban hub.
• Tensioning Constant Analysis: Modeling the effect of constant-tension weights on the system's natural frequency.
• Modal Analysis: Identifying the first five natural modes of vibration to ensure they do not overlap with expected vortex shedding frequencies.

Mitigation Strategies and Forensic Validation

Mitigating high-wind oscillation requires a dual approach: increasing the system's damping and disrupting the coherence of the vortex shedding. The most effective mechanical intervention is the installation of Stockbridge dampers—tuned mass dampers that consist of a central cable with two outer weights. These dampers are strategically placed near the support points to absorb and dissipate the vibrational energy of the conductor. Additionally, the use of cross-span ties can be implemented to break the long spans into shorter, stiffer segments, effectively raising the natural frequency of the system above the critical wind-induced excitation threshold.

Forensic validation of these mitigations is conducted through the deployment of high-sensitivity accelerometers and strain gauges at critical nodes across the Union Station hub. By correlating real-time vibration data with wind speed measurements from anemometers, engineers can verify the efficacy of the dampers. The forensic process involves a "back-calculation" where the observed amplitudes are compared against the CFD predictions. If the observed oscillations exceed the predicted values, the model is refined to account for previously unidentified variables, such as the impact of railway electrification currents on the magnetic damping of the wires.

• Tuned Mass Dampers (TMD): Specifically calibrated to the fundamental frequency of the catenary span.
• Cross-Span Ties: Reducing the effective length of the conductor to shift the resonance window.
• Real-time Structural Health Monitoring (SHM): Utilizing IoT sensors for continuous vibration tracking.
• Post-Event Forensic Audit: Inspecting bolted connections for micro-fractures following wind events exceeding 70 mph.

Topological Vulnerabilities and Single-Point Failure Analysis

The A-Line Airport Rail Corridor represents a critical infrastructure artery where the convergence of high-density passenger traffic and stringent security mandates necessitates an unfailing surveillance apparatus. From a forensic engineering perspective, the primary vulnerability in the existing surveillance backhaul is the reliance on a linear, non-redundant optical fiber path. In a standard linear topology, any physical breach—whether caused by accidental severance during track maintenance, seismic shifting of the rail bed, or intentional sabotage—results in a total loss of visibility for all downstream nodes. This "single-point-of-failure" (SPOF) architecture is unacceptable for Tier-1 transit security.

Empirical data from similar rail corridors indicates that cable cuts are the leading cause of unplanned downtime. In the A-Line context, the risk is compounded by the presence of high-voltage traction power systems, which can induce electromagnetic interference if shielding is compromised, and the physical volatility of the right-of-way. The failure of a single fiber strand or a conduit collapse does not merely degrade the signal; it creates a complete blackout of the security feed, rendering the centralized command center blind to critical incidents in real-time.

• Physical Severance: Accidental cuts during third-party utility work or railbed upgrades.
• Signal Attenuation: Micro-bends and macro-bends caused by improper cable tensioning during installation.
• Environmental Degradation: Water ingress in conduits leading to hydrogen darkening of the fiber core.
• Hardware Failure: SFP+ module burnout or switch port failure at intermediate aggregation points.

Diversified Pathing and Physical Layer Redundancy

To mitigate the risks identified in the topological analysis, the implementation of a geographically diverse fiber path is mandatory. Redundancy is not achieved simply by adding more fibers within the same conduit; true redundancy requires physical separation of the paths. For the A-Line corridor, this involves the deployment of a "Dual-Homing" strategy. This means the primary fiber run follows the main rail alignment, while the redundant backhaul is routed through a secondary, physically distinct path—potentially utilizing existing utility easements or a separate side of the rail corridor—to ensure that a single localized event cannot sever both links.

The engineering focus must extend to the "Last Mile" entry points at each station. Forensic analysis of building envelopes often reveals that redundancy is compromised at the point of entry (POE). If both the primary and secondary fiber paths enter a station through the same conduit bank or wall penetration, a localized fire or structural collapse at that specific entry point would neutralize the redundancy. Therefore, the specification requires Diverse Entry Points (DEPs), ensuring that fiber feeds enter the station facility from opposite cardinal directions.

• Geographic Separation: Maintaining a minimum of 10 meters of lateral separation between primary and secondary conduits.
• Hardened Conduit Systems: Utilization of Schedule 80 PVC or HDPE piping with reinforced concrete encasement in high-risk zones.
• Diverse Entry Points: Implementing separate building penetrations to prevent localized structural failures from causing total outages.
• Bend Radius Compliance: Strict adherence to TIA-568 standards to prevent long-term stress fractures in the glass core.

Optical Layer Switching and Failover Convergence

Physical redundancy is insufficient without an intelligent logical layer capable of instantaneous failover. For the A-Line surveillance network, the deployment of an Ethernet Ring Protection Switching (ERPS) protocol, adhering to ITU-T G.8032 standards, is recommended. Unlike traditional Spanning Tree Protocol (STP), which can take seconds or even minutes to converge, ERPS provides sub-50ms recovery times. This ensures that the security video stream remains uninterrupted, preventing the loss of critical frames during a link failure.

The architecture utilizes a closed-loop ring topology where one link is logically blocked to prevent loops. Upon detection of a Loss of Signal (LOS) on the primary path, the ring master immediately unblocks the redundant path, rerouting the traffic in milliseconds. This process must be paired with high-capacity optical switches that support Link Aggregation (LAG) and Quality of Service (QoS) tagging. By prioritizing surveillance traffic over general station data, the network ensures that high-resolution 4K feeds are maintained even during periods of peak network congestion or partial link failure.

• Convergence Time: Achieving a recovery window of less than 50ms to maintain real-time video continuity.
• Ring Topology: Implementing a closed-loop fiber circuit to eliminate the "end-of-line" vulnerability.
• Automatic Protection Switching (APS): Utilizing hardware-level detection to trigger failover without manual intervention.
• Traffic Prioritization: Applying DSCP (Differentiated Services Code Point) tags to ensure security data takes precedence.

Environmental Hardening and Forensic Lifecycle Management

The longevity of the fiber backhaul is contingent upon the integrity of the building envelope and the environmental controls surrounding the optical infrastructure. In the A-Line corridor, the fiber is exposed to extreme thermal cycling and moisture. From a forensics standpoint, the most common failure point is the interface between the outdoor conduit and the indoor termination cabinet. Improperly sealed penetrations allow moisture to migrate along the cable jacket—a phenomenon known as "wicking"—which can lead to corrosion of splice trays and degradation of the optical signal.

To ensure a 25-year lifecycle, the installation must employ industrial-grade sealing and thermal management. This includes the use of expanding foam and mechanical seals at all wall penetrations to maintain the building's thermal envelope and prevent pest ingress. Furthermore, the use of Low Smoke Zero Halogen (LSZH) cabling is non-negotiable to comply with transit safety codes and prevent the release of toxic fumes in the event of a fire. Regular forensic auditing via Optical Time-Domain Reflectometry (OTDR) should be scheduled bi-annually to identify nascent faults, such as increasing attenuation at splice points, before they result in a catastrophic failure.

• Moisture Mitigation: Installation of conduit seals and drip loops to prevent water ingress into station equipment rooms.
• Thermal Expansion Joints: Implementing slack loops in fiber runs to accommodate the expansion and contraction of the rail corridor.
• OTDR Baseline Testing: Establishing a "birth certificate" for every fiber strand to monitor degradation over time.
• LSZH Compliance: Ensuring all cabling meets stringent fire-safety and toxicity standards for enclosed transit environments.

Hydrodynamic Analysis and Scour Mechanisms of the South Platte River

The South Platte River, particularly within the corridor of the B-Line Westminster Spur, presents a complex fluvial environment characterized by high sediment transport and erratic flow regimes. For the engineering authority, the primary concern is the phenomenon of bridge pier scour, which is the removal of sediment from around the bridge foundations due to the acceleration of flow and the creation of turbulence. In this specific reach, the river exhibits a tendency toward meandering and lateral migration, which shifts the thalweg—the deepest part of the channel—periodically across the bridge openings. This shifting thalweg creates a dynamic state of stress on the pier foundations, alternating between general scour and localized pier scour.

The primary driver of scour at the Westminster Spur crossings is the formation of horseshoe vortices. As the current hits the leading edge of the pier, a downward pressure gradient is created, forcing the flow toward the riverbed. This results in a high-velocity jet that scours a deep hole around the base of the pier. This local scour is further exacerbated by contraction scour, where the bridge abutments and piers effectively narrow the river's cross-sectional area, increasing the velocity of the water and its capacity to transport bed material downstream. The resulting shear stress often exceeds the critical shear stress of the alluvial sands and gravels typical of the South Platte basin.

• Local Scour: Concentrated erosion at the pier face caused by vortex shedding and downward flow.
• Contraction Scour: Bed degradation resulting from the constriction of the flow area between bridge components.
• General Scour: Long-term degradation of the riverbed across the entire channel reach.
• Aggradation: The opposite of scour, where sediment deposits may bury piers, potentially altering the hydraulic profile.

Structural Vulnerability and Forensic Foundation Assessment

From a forensic engineering perspective, the B-Line Westminster Spur crossings utilize a combination of deep pile foundations and spread footings. The vulnerability of these structures is directly proportional to the ratio between the design scour depth and the actual embedment depth of the piles. When the riverbed degrades to a level where the pile cap or the upper portions of the piles are exposed, the effective length of the pile increases. This increase in unsupported length significantly reduces the lateral load capacity of the pier, increasing the risk of buckling or excessive tilt under the weight of the rail infrastructure and the dynamic loads of passing trains.

Forensic analysis of these crossings requires a clinical examination of the soil-structure interface. In the South Platte region, the presence of non-cohesive alluvial deposits means that scour can occur rapidly during high-magnitude, low-frequency events, such as the 100-year flood (Q100). If the foundation is not keyed into the underlying bedrock or a sufficiently dense glacial till, the loss of skin friction along the pile shaft can lead to sudden settlement. This settlement is often non-uniform, resulting in differential movement that can compromise the track geometry and the overall structural integrity of the bridge deck.

• Critical Scour Depth: The maximum depth to which the riverbed is expected to erode during a design flood event.
• Lateral Stability: The ability of the pier to resist horizontal forces from water flow and seismic activity.
• Skin Friction: The resistive force between the pile surface and the surrounding soil, which is lost during scour events.
• Embedment Ratio: The relationship between the depth of the foundation and the anticipated scour depth.

Monitoring Instrumentation and Real-Time Deployment Strategies

To mitigate the risk of catastrophic failure, a rigorous monitoring regime is mandatory. Traditional bathymetric surveys, while useful, provide only a snapshot in time and often miss the peak scour depth that occurs during the height of a flood event. Therefore, the implementation of real-time, automated monitoring systems is the industry standard for critical infrastructure. For the B-Line crossings, the deployment of fixed-point sonar sensors is the most effective method for tracking the bed elevation in real-time. These sensors are mounted to the pier and utilize acoustic pulses to measure the distance to the riverbed, providing a continuous data stream that identifies scour trends as they happen.

In addition to sonar, the use of Time-Domain Reflectometry (TDR) cables and tiltmeters provides a secondary layer of forensic data. TDR cables are installed vertically within the soil or attached to the pier; as the soil erodes, the cable breaks or changes its electrical properties, signaling the exact depth of the scour. Tiltmeters, meanwhile, detect minute changes in the pier's verticality. A sudden increase in tilt, correlated with a decrease in bed elevation reported by sonar, serves as a definitive indicator of foundation undermining. This multi-modal approach ensures that the engineering team can distinguish between general riverbed migration and a localized failure of the pier foundation.

• Fixed-Point Sonar: High-frequency acoustic sensors for continuous bed-level tracking.
• TDR Cables: Electrical conduits that detect soil loss through physical breakage or impedance changes.
• Biaxial Tiltmeters: Precision sensors that monitor the angular deviation of the pier shaft.
• Piezometers: Instruments used to monitor pore water pressure within the riverbed to assess liquefaction risk.

Mitigation Protocols and Long-Term Maintenance Engineering

Once scour is detected or predicted, the engineering response must be immediate and based on empirical hydraulic data. The primary method of stabilization for the South Platte crossings is the application of armor layers, specifically riprap. The sizing of the riprap is critical; it must be large enough to resist the maximum shear stress of the Q100 flow but not so large that it creates further turbulence and induces scour in adjacent, unprotected areas. The D50 (median stone size) must be calculated based on the local velocity and the specific gravity of the stone used. To prevent the riprap from sinking into the alluvial sands, a geotextile filter fabric or a graded granular filter

Structural Integration and Load Path Analysis of Runway Girders

The G-Line Gold Strike Alignment presents a unique set of engineering challenges due to the high-tonnage requirements of fleet maintenance facilities. In these environments, the overhead crane system is not merely an accessory but a primary structural driver. The load path begins at the hoist, transfers through the bridge girder to the runway beams, and is ultimately dissipated into the primary building columns and the foundation. A critical failure point in these facilities is often the connection between the runway girder and the column cap. When the crane operates at maximum rated capacity, the resulting moment forces can induce significant torsional stress on the supporting columns, potentially leading to lateral drift if the bracing is insufficient.

From a forensic perspective, we observe that the G-Line facilities often utilize heavy-duty wide-flange beams to support the runway. However, the interaction between the rolling load of the crane and the static load of the building envelope creates a complex stress state. We must analyze the shear capacity at the connection points, ensuring that the bolts and welds are rated for cyclic loading. The phenomenon of "fatigue cracking" is prevalent in facilities where the crane duty cycle is high, as the repeated application and release of loads create microscopic fractures in the heat-affected zones of the welds.

• Analysis of moment-resisting frames to prevent excessive lateral sway during hoist acceleration.
• Evaluation of weld throat thickness and penetration in the runway-to-column connections.
• Assessment of the G-Line specific soil-structure interaction to ensure foundation settlement does not introduce parasitic stresses into the crane rails.
• Verification of the crane rail alignment tolerances to prevent wheel-flange wear and uneven load distribution.

Building Envelope Forensics and Vibration-Induced Degradation

The relationship between the heavy structural steel of the crane system and the building envelope is often overlooked, yet it is where the most insidious failures occur. In the G-Line Gold Strike facilities, the vibration transmitted from the crane runway into the roof decking and wall assemblies can lead to a gradual breakdown of the building's weather-tightness. The building envelope, typically consisting of high-performance TPO or EPDM roofing membranes, is susceptible to mechanical fatigue when the underlying steel substrate undergoes constant micro-oscillations. This vibration can cause the fasteners in the roof decking to loosen, leading to "oil-canning" or the gradual detachment of the membrane from the substrate.

Furthermore, the interface between the crane's structural supports and the exterior wall cladding is a primary site for forensic investigation. Differential movement between the rigid crane columns and the more flexible cladding panels often results in the failure of joint sealants and flashing. Once the seal is compromised, moisture ingress occurs, leading to hidden corrosion of the structural steel. In our audits, we have identified numerous instances where the lack of flexible flashing at the column-to-wall transition allowed water to migrate directly into the load-bearing members, accelerating the oxidation process and reducing the effective cross-sectional area of the steel.

• Monitoring of membrane delamination caused by high-frequency vibration from crane travel.
• Inspection of flashing integrity at the penetration points where crane supports meet the exterior envelope.
• Evaluation of thermal bridging and its effect on condensation buildup near the runway girder supports.
• Analysis of sealant failure rates in facilities with higher crane duty cycles compared to low-use bays.

Forensic Audit Methodology for Load-Bearing Capacity

A comprehensive audit of the G-Line Gold Strike facilities requires a multi-tiered diagnostic approach, moving from visual inspection to non-destructive testing (NDT). The primary objective is to determine if the current structural state matches the original design intent and if it can sustain the current operational loads. We begin with a geometric survey using laser scanning to detect any bowing or deflection in the runway girders. Excessive deflection, often termed "sag," indicates that the beam is operating near or beyond its elastic limit, which can lead to permanent plastic deformation and eventual failure.

Following the geometric survey, we employ ultrasonic testing (UT) and magnetic particle inspection (MPI) to examine the integrity of the welds. These tools allow us to see beneath the surface of the paint and corrosion to identify internal voids or cracks. We specifically target the "web-to-flange" junctions of the runway beams, as these areas are subject to the highest shear stresses. Additionally, we perform a load-test simulation, utilizing calibrated weights to measure the actual deflection of the beam under load and comparing it to the theoretical calculations provided by the AISC (American Institute of Steel Construction) standards.

• Utilization of laser trackers to verify rail parallelism and elevation across the entire facility length.
• Implementation of ultrasonic thickness gauging to determine the extent of corrosion-related section loss.
• Application of magnetic particle inspection to detect surface-breaking cracks in critical weldments.
• Calculation of the actual vs. theoretical deflection ratios during maximum load simulations.

Mitigation Strategies and Long-Term Structural Stabilization

Once the audit identifies specific deficiencies, a targeted remediation plan is implemented to restore the structural integrity of the facility. For beams exhibiting excessive deflection or fatigue cracking, the most effective solution is often the installation of welded stiffeners or the addition of cover plates to increase the section modulus. In cases where the original design is found to be insufficient for updated fleet weights, we recommend the installation of carbon fiber reinforced polymer (CFRP) wraps. These wraps provide high-tensile strength reinforcement without adding significant dead weight to the structure, effectively arresting the growth of existing cracks and increasing the overall load-bearing capacity.

To address the building envelope issues, we advocate for the installation of vibration-dampening mounts between the crane runway and the primary building frame. By decoupling the high-frequency vibrations of the crane from the roof and wall assemblies, we can significantly extend the lifespan of the roofing membrane and flashing. Furthermore, we implement a rigorous preventative maintenance schedule that includes annual torque checks on all high-strength bolts and the application of high-performance industrial coatings to prevent further corrosion of the steel members. This holistic approach ensures that the G-Line Gold Strike facilities remain operational and safe for the duration of their intended service life.

• Installation of reinforced gusset plates to distribute loads more evenly at column connections.
• Application of CFRP wraps to strengthen girder webs and prevent shear failure.
• Retrofitting of flexible flashing systems to accommodate differential movement between steel and cladding.
• Establishment of a digital twin monitoring system using strain gauges for real-time load tracking.

Thermal Dynamics and Material Coefficient Analysis

The N-Line North Metro Express represents a critical infrastructure corridor where the interaction between high-carbon steel rail and reinforced concrete substructures is subject to extreme thermal amplitude. In environments experiencing 100-degree thermal swings, the primary engineering challenge is the management of longitudinal stress induced by the Coefficient of Thermal Expansion (CTE). Steel rail, typically possessing a CTE of approximately 11.5 to 12.5 microstrain per degree Celsius, undergoes significant volumetric change that must be absorbed to prevent catastrophic structural deformation.

When the ambient temperature rises, the rail expands linearly; conversely, a drop in temperature causes the rail to contract. Without precisely calibrated expansion joints, these forces translate into massive longitudinal pressures against the bridge abutments and tunnel portals. The forensic reality of such systems is that the rail does not act in isolation. It is coupled with the fastening system and the sleepers, meaning the thermal load is distributed across the entire track modulus. If the expansion joint is improperly sized, the resulting compressive force can exceed the lateral resistance of the ballast or the shear strength of the fastening clips.

• Linear Thermal Expansion: The calculation of total movement is derived from the product of the rail length, the CTE, and the temperature delta.
• Material Hysteresis: The lag between ambient air temperature and the actual internal temperature of the steel rail mass.
• Thermal Gradient: The difference in temperature between the rail head and the rail web, which can introduce secondary bending moments.
• Substructure Interaction: The degree to which the concrete deck expands at a different rate than the steel rail, necessitating a decoupled interface.

Gap Calibration and Geometric Tolerance Specifications

Calibration of the expansion joint gap is not a static measurement but a dynamic calculation based on the Rail Neutral Temperature (RNT). The RNT is the theoretical temperature at which the rail experiences zero longitudinal stress. For the N-Line North Metro Express, the RNT must be meticulously selected to split the difference of the 100-degree swing, ensuring that neither the maximum expansion (summer) nor the maximum contraction (winter) exceeds the physical limits of the joint assembly.

The gap width at the time of installation must be adjusted based on the actual rail temperature during the setting process. If the rail is laid at 60 degrees Fahrenheit but the RNT is set at 75 degrees, the gap must be narrowed to account for the anticipated contraction. Failure to calibrate this gap leads to "over-compression" during peak heat, which can lead to track buckling, or "over-extension" during peak cold, which can lead to rail pull-outs or excessive impact loads on the rolling stock as wheels traverse the gap.

• Neutral Temperature Alignment: Establishing a baseline temperature that minimizes the maximum stress in both directions.
• Gap Width Calculation: Utilizing the formula $\Delta L = \alpha \cdot L \cdot \Delta T$ to determine the exact millimeter requirement for the joint opening.
• Tolerance Windows: Maintaining a strict +/- 2mm tolerance during the final torqueing of the fastening system.
• Atmospheric Compensation: Adjusting for solar radiation gain, which often pushes the rail temperature 20 to 30 degrees above the ambient air temperature.

Forensic Analysis of Thermal-Induced Failure Modes

From a forensic engineering perspective, the failure of expansion joints in high-swing environments typically manifests in two distinct modes: compressive buckling and tensile fracture. Compressive buckling, often referred to as a "sun kink," occurs when the expansion joint reaches its minimum gap and the rail continues to expand. The resulting force, unable to be absorbed by the joint, is redirected laterally. This leads to a sudden, violent displacement of the track geometry, often resulting in derailment if the lateral resistance of the ballast is overcome.

Conversely, tensile failure occurs during the extreme low end of the 100-degree swing. As the rail contracts, the gap widens. If the gap exceeds the design limit of the joint assembly, the rail may pull away from the fishplates or the welded joint, creating a void that subjects the rail ends to severe impact loading. This cyclic pounding accelerates metal fatigue and can lead to the shearing of bolts or the cracking of the rail web. Forensic analysis of these failures often reveals that the initial gap calibration was based on historical averages rather than extreme peak-to-peak thermal data.

• Lateral Track Shift: The measurement of horizontal displacement resulting from uncontrolled longitudinal compression.
• Fastener Fatigue: The degradation of elastic clips due to repeated high-stress thermal cycles.
• Shear Failure: The snapping of joint bolts when the rail attempts to contract beyond the physical limit of the joint.
• Impact Loading: The increased dynamic force exerted on the rail head when the gap exceeds the permissible limit for smooth wheel transition.

Execution Protocols and Lifecycle Monitoring

To ensure the longevity of the N-Line North Metro Express, a rigorous installation and monitoring protocol must be implemented. The installation phase requires the use of precision hydraulic tensioners to "stress" the rail to its neutral temperature before the expansion joints are locked. This process, known as rail stressing, ensures that the internal energy of the steel is balanced across the entire segment. The gap must be verified using calibrated feeler gauges and laser measurement tools to ensure the geometric tolerances are met within a fraction of a millimeter.

Post-installation, the infrastructure requires a continuous monitoring regime. The use of embedded thermocouples and strain gauges at the expansion joints allows engineers to track the real-time response of the rail to thermal swings. By correlating the gap width with the actual rail temperature, the maintenance team can identify "creep"—the gradual migration of the rail over time—and perform corrective adjustments during scheduled maintenance windows. This proactive approach shifts the maintenance model from reactive repair to predictive forensic management.

• Hydraulic Stressing: The application of longitudinal force to simulate the RNT during the installation phase.
• Laser Gap Verification: Utilizing high-precision optical sensors to confirm the gap width across the entire line.
• Strain Gauge Integration: Installing sensors to monitor the actual kilo-newtons of force exerted on the joint during peak thermal events.
• Periodic Recalibration: Scheduling biennial audits to adjust the RNT based on shifting climatic data and material degradation.

Electrochemical Dynamics of Embedded Steel Tie Rods

The structural integrity of the E-Line Southeast Corridor relies heavily on the performance of concrete-embedded steel tie rods, which serve as critical tension members in retaining walls and tunnel segments. The fundamental mechanism governing the longevity of these components is the maintenance of the passive oxide layer. In a high-pH environment—typically between 12.5 and 13.5—the cementitious matrix promotes the formation of a dense, microscopic layer of gamma-ferric oxide on the steel surface. This passivity prevents the oxidation of iron, provided the alkalinity remains constant and the chloride concentration remains below a critical threshold.

Corrosion initiation on these tie rods occurs via two primary mechanisms: carbonation and chloride-induced depassivation. Carbonation involves the diffusion of atmospheric carbon dioxide into the concrete pores, reacting with calcium hydroxide to lower the pH to approximately 9.0. Once this threshold is crossed, the passive layer destabilizes, leaving the steel vulnerable to uniform corrosion. However, in the Southeast Corridor, chloride ingress from groundwater and seasonal de-icing agents presents a more aggressive threat. Chloride ions penetrate the concrete cover and accumulate at the steel-concrete interface, creating localized breakdown of the passive film and initiating pitting corrosion.

• Anodic Reaction: Fe → Fe2+ + 2e- (Iron dissolution)
• Cathodic Reaction: 1/2O2 + H2O + 2e- → 2OH- (Oxygen reduction)
• Formation of Rust: Fe2+ + 2OH- → Fe(OH)2, which further oxidizes to Fe2O3.H2O
• Volume Expansion: The oxidation process results in a volumetric increase of 2 to 6 times the original steel, generating internal tensile stresses.

These internal stresses lead to longitudinal cracking and spalling of the concrete cover, which in turn accelerates the ingress of moisture and oxygen, creating a self-catalyzing cycle of degradation. For the E-Line infrastructure, the critical failure point is not the loss of cross-sectional area alone, but the loss of bond strength between the tie rod and the surrounding concrete matrix.

Sensor Deployment and Monitoring Methodologies

To quantify the rate of degradation across the Southeast Corridor, a multi-modal monitoring array has been implemented. The primary objective is to transition from visual inspection—which only identifies damage after it has reached the surface—to empirical, real-time electrochemical analysis. The deployment focuses on Half-Cell Potential (HCP) mapping and Linear Polarization Resistance (LPR) measurements to determine both the probability and the instantaneous rate of corrosion.

HCP monitoring utilizes a reference electrode, typically copper-copper sulfate (Cu/CuSO4), placed on the concrete surface. By measuring the potential difference between the reference electrode and the embedded tie rod, engineers can map the isopotential contours of the structure. A potential shift more negative than -350mV generally indicates a high probability of active corrosion. However, HCP only identifies the likelihood of corrosion, not the speed at which the steel is wasting away.

• Linear Polarization Resistance (LPR): Applies a small voltage perturbation to the steel and measures the resulting current to calculate the polarization resistance (Rp).
• Embedded Reference Electrodes: Permanent silver/silver-chloride (Ag/AgCl) sensors installed during the casting phase to provide continuous data streams.
• Electrical Resistivity Testing: Measures the concrete's ability to resist ion flow, identifying zones of high moisture content that facilitate rapid corrosion.
• Strain Gauges: Vibrating wire sensors attached to the tie rods to monitor elongation and potential loss of tension due to section loss.

The integration of these sensors into a centralized SCADA (Supervisory Control and Data Acquisition) system allows for the creation of a "digital twin" of the E-Line corridor. This enables technical analysts to correlate spikes in corrosion current with environmental triggers, such as heavy precipitation events or temperature fluctuations, allowing for targeted maintenance interventions before structural capacity is compromised.

Environmental Stressors of the Southeast Corridor

The E-Line Southeast Corridor presents a unique set of environmental challenges that exacerbate the corrosion of embedded steel. The region is characterized by high humidity and a fluctuating water table, which ensures that the concrete remains in a state of partial saturation. This condition is ideal for the transport of ions, as fully saturated concrete can lead to anaerobic conditions that slow oxygen reduction, while completely dry concrete prevents ion mobility. The "intermediate" saturation level found in the corridor provides the optimal electrolyte for electrochemical cells to thrive.

Furthermore, the corridor is subject to significant mechanical vibration caused by high-frequency transit loads. These vibrations induce micro-cracking in the concrete envelope, particularly at the interface between the tie rod and the cementitious matrix. These micro-fissures act as preferential pathways for chloride-laden water, bypassing the slow diffusion process and delivering corrosive agents directly to the steel surface. This phenomenon, known as "accelerated ingress," significantly reduces the initiation period of the corrosion process.

• Thermal Cycling: Diurnal and seasonal temperature swings cause differential expansion between the steel tie rods and the concrete, stressing the bond zone.
• Sulfate Attack: Soil chemistry in the Southeast Corridor contains elevated sulfate levels, which react with the tricalcium aluminate in the cement to form ettringite, causing expansive cracking.
• Stray Current Interference: The E-Line's electrical traction system can induce stray DC currents in the steel reinforcement, leading to electrolytic corrosion at discharge points.
• Hydrostatic Pressure: High water tables force moisture into the concrete pores via capillary suction, increasing the internal humidity.

Mitigation Strategies and Life-Cycle Prognostics

Based on the empirical data gathered from the monitoring arrays, a tiered mitigation strategy has been adopted to extend the service life of the tie rods. The primary goal is to shift the electrochemical potential of the steel into the immune region, thereby halting the oxidation process. The most effective method for existing infrastructure is the implementation of Impressed Current Cathodic Protection (ICCP). By applying an external DC current, the steel tie rods are forced to act as the cathode of a larger electrochemical cell, preventing the loss of iron ions.

For new installations or major rehabilitations, the focus shifts to preventive barriers and material science. The use of epoxy-coated reinforcement or galvanized steel provides a physical and chemical barrier against chlorides. However, the industry is increasingly moving toward the use of stainless steel (Grade 2205 or 2304) for tie rods in high-risk zones. While the initial capital expenditure is higher, the life-cycle cost is significantly lower due to the elimination of cathodic protection requirements and the extension of the maintenance interval from 15 years to over 50 years.

• Sacrificial Anodes: Installation of zinc or magnesium anodes that corrode preferentially to the steel tie rods.
• Migrating Corrosion Inhibitors (MC

Hydrological Parameters and Front Range Precipitation Profiles

The Front Range region presents a unique set of meteorological challenges characterized by extreme volatility and high-intensity, short-duration precipitation events. For the H-Line City Center Feeder, sizing a stormwater detention vault for a 100-year event requires a departure from simplified averaging in favor of Intensity-Duration-Frequency (IDF) curves derived from NOAA Atlas 14 data. The primary driver in this region is orographic lift, which can trigger localized "cloudbursts" that overwhelm standard municipal drainage systems. In these scenarios, the time of concentration—the period required for runoff to travel from the hydraulically most distant point of the catchment to the vault inlet—is significantly compressed due to the prevalence of impervious surfaces.

To calculate the peak discharge (Q), the Rational Method remains the industry standard for small urban catchments, though it must be augmented with TR-55 methodology for larger, more complex drainage areas. The critical variable is the rainfall intensity (i) for the specific time of concentration. In a 100-year event, the peak intensity often exceeds the capacity of traditional piping, necessitating a detention volume that can buffer the surge and release it at a controlled, pre-development rate. Failure to account for the steepness of the IDF curve in the Front Range typically results in "surcharging," where the hydraulic grade line rises above the inlet rim, leading to catastrophic surface flooding and potential structural compromise of adjacent building envelopes.

• Analysis of 24-hour storm distributions to determine the critical duration for peak volume.
• Application of the 1% annual exceedance probability (AEP) to establish the baseline design storm.
• Evaluation of the time of concentration (Tc) using the kinematic wave formula for urbanized watersheds.
• Calibration of runoff models to account for soil saturation levels preceding the peak event.

Impervious Surface Analysis and the H-Line Feeder Interface

The H-Line City Center Feeder serves as a primary arterial for runoff across a high-density commercial corridor. In this environment, the runoff coefficient (C) approaches unity, meaning nearly 100% of precipitation is converted into immediate runoff. The building envelope forensics of the surrounding structures indicate a high concentration of modified bitumen roofing and reinforced concrete parking decks, both of which offer zero infiltration. When calculating the total volume required for the detention vault, the cumulative impervious area must be segmented by surface type to ensure the weighted runoff coefficient accurately reflects the hydraulic load.

The interface between the H-Line Feeder and the detention vault is the most common point of failure in urban infrastructure. If the feeder pipes are sized for a 10-year event but the vault is sized for a 100-year event, the system will fail at the conveyance level before the vault's capacity is ever utilized. Therefore, the engineering analysis must include a hydraulic grade line (HGL) study to ensure that the head pressure generated during the peak of the 100-year storm does not exceed the structural limits of the feeder conduits or cause backflow into the lower-level mechanical rooms of adjacent commercial assets.

• Calculation of weighted runoff coefficients for asphalt (0.95), concrete (0.90), and commercial roofing (0.95).
• Assessment of the H-Line Feeder's Manning's roughness coefficient to determine flow velocity.
• Modeling of the "first flush" effect, where initial runoff carries a high concentration of urban pollutants and debris.
• Verification of inlet capacity to prevent "skimming" or premature overflow during peak intensity.

Vault Geometry and Structural Integrity Requirements

Sizing a vault for a 100-year event is not merely a matter of volume, but of structural resilience against hydrostatic forces. A vault designed for the H-Line City Center must be analyzed for buoyancy and uplift, particularly if the surrounding water table rises during a prolonged storm event. The vault geometry typically employs a reinforced precast concrete box or a cast-in-place structure with a high-strength waterproofing membrane. The internal volume must include a dedicated sediment forebay—a lower-elevation zone where heavy solids can settle before the water enters the main detention chamber. This prevents the reduction of effective storage volume over time due to siltation.

From a forensic engineering perspective, the most critical failure mode for these vaults is the compromise of the slab-on-grade due to differential settlement or hydrostatic heave. The vault must be engineered with a thickness and reinforcement schedule capable of withstanding the external soil pressure when the vault is empty, as well as the internal hydrostatic pressure when the vault is at maximum capacity. Furthermore, the integration of a "dead storage" volume is essential; this is the volume below the lowest outlet pipe that remains permanently filled, providing a constant hydraulic head to drive the discharge process.

• Implementation of a reinforced concrete design with a minimum 28-day compressive strength of 4,000 psi.
• Utilization of hydrostatic uplift calculations to determine the necessary ballast or anchoring systems.
• Design of internal baffles to prevent short-circuiting of the flow and ensure full utilization of the vault volume.
• Integration of sediment traps and clean-out ports for empirical maintenance access.

Discharge Regulation and Long-term Forensic Maintenance

The final phase of the sizing process is the calibration of the discharge mechanism, typically an orifice plate or a multi-stage weir system. The goal is to restrict the outflow to the pre-development rate, effectively "shaving" the peak of the 100-year hydrograph. The orifice diameter must be precisely calculated using the Orifice Equation, accounting for the headwater depth above the opening. If the discharge rate is too high, the downstream municipal system may fail; if it is too low, the vault will not drain within the required drawdown period—typically 24 to 72 hours—leaving the system vulnerable to a subsequent storm event.

Long-term forensic analysis of stormwater systems reveals that the primary cause of failure is not initial undersizing, but the degradation of the discharge orifice due to debris blockage or corrosion. To mitigate this, the H-Line City Center Feeder system requires a rigorous maintenance schedule and the

Regulatory Framework and Fluid Dynamics of Smoke Control

The integrity of life-safety systems within the R-Line Aurora Metro Ring necessitates a rigorous adherence to NFPA 92 and the International Building Code (IBC) standards for smoke control. In high-rise commercial infrastructure, the stairwell acts as a critical sanctuary for egress. The fundamental engineering objective of stairwell pressurization is to create a positive pressure differential—typically maintained between 25 Pa and 50 Pa—relative to the floor areas. This pressure gradient ensures that smoke and toxic combustion gases are physically prevented from infiltrating the vertical egress path during a thermal event.

Within the specific urban density of the Aurora Metro Ring, the "stack effect" or chimney effect is exacerbated by extreme diurnal temperature swings. This phenomenon creates vertical air movement that can either assist or counteract the mechanical fans. When the internal building temperature significantly exceeds the external ambient temperature, the resulting buoyancy forces can lead to uncontrolled air migration. Engineering analysis must account for these stochastic variables to ensure that the pressurization fans are not over-pressurizing the shaft, which would render exit doors impossible to open for occupants, or under-pressurizing, which would allow smoke infiltration.

• NFPA 92 Compliance: Ensuring the smoke control system maintains a minimum pressure difference to prevent smoke migration.
• Pressure Gradient Analysis: Calculating the precise Pascal differential required based on the building height and enclosure leakage.
• Stack Effect Mitigation: Adjusting fan curves to compensate for vertical thermal buoyancy in high-rise structures.
• Egress Velocity: Maintaining air velocities that prevent smoke entry without exceeding the maximum allowable door-opening force.

Diagnostic Methodology for Fan Performance and Airflow Validation

The testing protocol across the R-Line infrastructure utilizes a clinical, empirical approach to validate the performance of the supply fans. The primary diagnostic tool is the differential pressure manometer, paired with calibrated anemometers to measure duct velocity. Testing begins with a "static state" analysis, where the fans are activated in isolation to determine the baseline pressure at the highest and lowest points of the stairwell. This establishes the efficiency of the distribution plenum and identifies any immediate obstructions or damper failures.

A critical component of the testing is the "Door-Opening Force" metric. According to ADA and IBC guidelines, the force required to open a pressurized door must not exceed 133 Newtons (approximately 30 lbs). If the fans are operating at peak RPM without modulated control, the pressure can build to a level that traps occupants. Therefore, our analysis focuses on the Variable Frequency Drive (VFD) response times. We simulate various failure scenarios—such as the opening of a primary discharge door—to observe how the system compensates to maintain the pressure envelope.

• Manometric Testing: Utilizing digital manometers to map pressure drops across the vertical shaft.
• VFD Calibration: Tuning the fan motor speeds to match the actual leakage area of the building.
• Airflow Balancing: Ensuring that the CFM (Cubic Feet per Minute) delivered to the stairwell matches the engineered design specifications.
• Door Force Validation: Measuring the physical resistance of exit doors using a force gauge to ensure egress viability.

Building Envelope Forensics and Leakage Analysis

From a forensic engineering perspective, the performance of a pressurization fan is only as reliable as the building envelope it serves. In the Aurora Metro Ring, we frequently encounter "envelope leakage" where the stairwell enclosure is compromised. This typically occurs at the roof-level penetration where the fan exhaust and supply ducts exit the building. If the roofing membranes or flashing are degraded, air escapes the system, leading to a loss of static pressure. This is a classic failure of the building envelope that directly undermines the mechanical life-safety system.

Furthermore, the forensic analysis extends to the curtain wall interfaces and the seals of the fire-rated doors. We utilize smoke pencils and ultrasonic leak detectors to identify "micro-leaks" in the stairwell perimeter. In several analyzed structures, it was discovered that the failure to properly seal the electrical conduits passing through the stairwell walls created a "pressure bleed," effectively turning the stairwell into a sieve. This necessitates a holistic approach where the mechanical fan testing is coupled with a comprehensive envelope audit to ensure the enclosure is airtight.

• Roof Penetration Audit: Inspecting the flashing and sealant around fan housings to prevent pressure loss.
• Perimeter Seal Verification: Utilizing thermal imaging to detect air infiltration points along the stairwell enclosure.
• Conduit Sealing: Ensuring all MEP (Mechanical, Electrical, Plumbing) penetrations are fire-stopped and air-sealed.
• Envelope Leakage Area (ELA) Calculation: Quantifying the total square inches of leakage to adjust fan capacity accordingly.

Remediation Protocols and Long-Term Reliability Engineering

Once the diagnostic phase identifies deficiencies in pressure maintenance or envelope integrity, a tiered remediation protocol is implemented. The first priority is the mechanical optimization of the fan assembly. This often involves the installation of barometric dampers, which automatically modulate based on the actual pressure in the stairwell, reducing the reliance on manual VFD adjustments. By implementing a closed-loop feedback system, the fans can respond in real-time to the opening and closing of doors, maintaining a steady state of pressurization.

The second priority is the structural reinforcement of the envelope. This includes the application of high-grade intumescent sealants to all joints and the replacement of worn weather-stripping on fire doors. For the R-Line Aurora Metro Ring, we recommend a semi-annual certification cycle. Because building envelopes shift due to thermal expansion and contraction, a system that is balanced in January may be inefficient by July. Continuous monitoring through the Building Management System (BMS) allows for predictive maintenance, identifying fan bearing wear or belt slippage before a total system failure occurs.

• Barometric Damper Integration: Installing automatic pressure-relief dampers to prevent over-pressurization.
• Intumescent Sealant Application: Closing gaps in the building envelope to reduce the required fan load.
• BMS Integration: Linking fan status and pressure sensors to a central monitoring station for real-time alerts.
• Scheduled Recertification: Implementing a six-month testing cadence to account for seasonal envelope shifts.

Regulatory Framework and EPA Tier 4 Compliance Mandates

The transition to EPA Tier 4 emission standards for diesel-electric commuter locomotives represents a paradigm shift in rail engineering, moving from simple mechanical optimization to complex chemical after-treatment. For the W-Line West Colfax Light Rail corridor, the implementation of Tier 4 technology is not merely a regulatory checkbox but a critical mitigation strategy for urban air quality. Tier 4 standards mandate a drastic reduction in Nitrogen Oxides (NOx) and Particulate Matter (PM), requiring a reduction of NOx emissions by up to 70% compared to Tier 3 benchmarks. This is achieved through the integration of Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF), which operate in tandem to neutralize combustion by-products before they exit the exhaust stack.

The engineering challenge in the West Colfax sector involves the high-density nature of the urban environment, where locomotives operate under varying load profiles. The regulatory focus is centered on the stoichiometric balance of the combustion cycle and the efficiency of the catalyst bed. Failure to maintain these standards results in the release of NOx, which acts as a precursor to ground-level ozone and smog, directly impacting the respiratory health of the surrounding population and the integrity of the local atmospheric chemistry.

• Reduction of NOx mass emissions to meet stringent grams-per-kilowatt-hour (g/kWh) limits.
• Integration of On-Board Diagnostics (OBD) to monitor real-time catalyst efficiency.
• Compliance with the Clean Air Act's mandates for non-road diesel engines in urban transit corridors.
• Implementation of rigorous testing protocols to ensure emission stability during transient load cycles.

SCR System Integration and Chemical Kinetics

The core of the Tier 4 NOx control system is the Selective Catalytic Reduction (SCR) process, a sophisticated chemical reaction that converts NOx into nitrogen (N2) and water (H2O). This process requires the injection of a Diesel Exhaust Fluid (DEF), typically a high-purity aqueous urea solution, into the exhaust stream. The urea decomposes into ammonia (NH3), which then reacts with the NOx across a catalyst substrate, usually composed of vanadium or zeolite. The precision of the DEF injection rate is critical; under-dosing leads to NOx breakthrough, while over-dosing results in "ammonia slip," where unreacted ammonia is released into the atmosphere.

From a technical standpoint, the SCR system must operate within a specific thermal window to maintain catalytic activity. In the commuter rail context of the W-Line, frequent stop-and-go cycles can cause exhaust temperatures to drop below the activation threshold, potentially leading to the formation of ammonium nitrates which can clog the catalyst. To counteract this, modern Tier 4 locomotives employ thermal management systems, including exhaust gas recirculation (EGR) and insulated piping, to ensure the catalyst remains at the optimal operating temperature regardless of the locomotive's idling status or load.

• Urea decomposition: (NH2)2CO + H2O → 2NH3 + CO2.
• NOx reduction: 4NO + 4NH3 + 2O2 → 4N2 + 6H2O.
• DPF filtration: Physical trapping of soot and carbonaceous particulates to prevent PM discharge.
• Catalyst substrate optimization: Use of honeycomb structures to maximize surface area for gas-solid interaction.

Infrastructure Impact and Building Envelope Forensics

As a senior analyst in infrastructure forensics, it is imperative to examine the intersection of locomotive emissions and the surrounding built environment. While Tier 4 controls significantly reduce the volume of pollutants, the residual emissions and the chemical nature of the exhaust still pose a risk to the building envelopes along the West Colfax corridor. NOx emissions, when combined with atmospheric moisture, contribute to the formation of nitric acid (HNO3). This acidic deposition accelerates the carbonation of concrete and the degradation of carbonate-based building materials, such as limestone and marble, through a process known as acid etching.

Forensic analysis of facades adjacent to the W-Line reveals a pattern of accelerated spalling and efflorescence in reinforced concrete structures. The penetration of nitrates into the concrete matrix lowers the pH of the material, neutralizing the alkalinity that protects the internal steel reinforcement from corrosion. This leads to the oxidation of the rebar, subsequent expansion, and the eventual cracking of the concrete cover. Furthermore, the deposition of fine particulate matter, even in Tier 4 systems, creates a porous film on building envelopes that traps moisture and pollutants, exacerbating the freeze-thaw cycle and compromising the hydrothermal performance of the exterior cladding.

• Concrete carbonation: The reaction of CO2 and NOx with calcium hydroxide to form calcium carbonate and nitrates.
• Steel reinforcement corrosion: Loss of passivity in the rebar due to pH reduction in the concrete matrix.
• Facade degradation: Chemical etching of stone and masonry due to nitric acid deposition.
• Hydrothermal failure: Increased moisture retention in building envelopes due to particulate accumulation.

Operational Performance and Maintenance Lifecycle

The long-term reliability of Tier 4 NOx controls in a commuter rail environment depends on a rigorous maintenance lifecycle. The complexity of the SCR and DPF systems introduces new failure modes that were absent in Tier 3 locomotives. One primary concern is the crystallization of

Fundamental Principles of Guideway Geometry and Alignment Deviations

In the context of the Flatiron Flyer US-36 BRT, track geometry does not refer to steel rails but to the precise spatial configuration of the dedicated concrete guideway. The engineering integrity of a Bus Rapid Transit (BRT) system relies on the strict adherence to longitudinal profiles and transverse slopes to ensure vehicle stability, passenger comfort, and optimal drainage. Any deviation from the design geometry introduces dynamic loading forces that accelerate the degradation of both the vehicle suspension and the pavement structure. When the guideway exhibits "waviness" or abrupt changes in grade, the resulting vertical acceleration creates impact loads that can lead to premature fatigue cracking in the concrete slabs.

The primary concern for a senior technical analyst is the management of the International Roughness Index (IRI). A high IRI value indicates a surface that deviates significantly from a theoretical plane, leading to increased rolling resistance and fuel inefficiency. In the US-36 corridor, the interaction between the heavy-axle loads of the BRT vehicles and the underlying subgrade creates a risk of differential settlement. This settlement manifests as longitudinal depressions or "dips" that disrupt the smooth flow of traffic and can lead to hydroplaning during heavy precipitation if the cross-slope is compromised.

• Longitudinal Profile: The vertical alignment of the guideway, ensuring that grade changes remain within specified tolerances to prevent bottoming out or loss of traction.
• Transverse Slope (Cross-Slope): The lateral tilt of the pavement, typically designed at 2% to ensure efficient water runoff toward the drainage systems.
• Super-elevation: The banking of the guideway on curves to counteract centrifugal force, maintaining vehicle stability at design speeds.
• Joint Geometry: The precision of the expansion and contraction joints, which must remain flush to prevent "joint jumping" and subsequent impact damage.

Methodology for Hands-On Physical Track Geometry Inspection

A rigorous physical inspection requires a combination of traditional surveying precision and empirical field observation. The process begins with a comprehensive visual audit to identify surface distress, such as spalling at the joints or longitudinal cracking, which often serves as a precursor to deeper geometric failure. Technical analysts employ the "straight-edge" method, utilizing a 10-foot precision-machined aluminum beam to identify localized depressions. By measuring the gap between the beam and the pavement surface using a feeler gauge, inspectors can quantify the magnitude of surface irregularities that may be too subtle for the naked eye but significant enough to impact ride quality.

Further analysis involves the use of digital inclinometers and leveling instruments to verify the cross-slope across the entire width of the BRT lane. This is critical because any "cupping" or "rutting" in the wheel paths alters the drainage characteristics, leading to moisture infiltration into the base course. Once moisture penetrates the sub-base, the risk of pumping—where fine particles are forced upward through cracks—increases, eventually leading to void formation beneath the slab. The physical inspection phase is designed to ground-truth the data, ensuring that the theoretical models align with the actual physical state of the infrastructure.

• Chord Measurement: Utilizing fixed-distance points to calculate the actual curvature and deviation from the design centerline.
• Joint Gap Analysis: Measuring the width of expansion joints to ensure they are operating within the thermal expansion coefficients of the concrete.
• Surface Flatness Testing: Applying a standardized profile gauge to determine the deviation from a perfectly flat plane over a set distance.
• Sub-surface Sounding: Using hammer-tapping or Ground Penetrating Radar (GPR) to identify delamination or voids beneath the wearing course.

Laser Profiling Audits and High-Resolution Surface Topography

To augment physical inspections, laser profiling audits provide a non-destructive, high-density data set that captures the entire surface topography of the US-36 BRT guideway. This process involves the deployment of a laser profiler—a vehicle-mounted system equipped with multiple laser sensors that scan the pavement at millimetric intervals. These sensors emit laser pulses that reflect off the surface, calculating the distance to the pavement and generating a high-resolution "point cloud." This digital twin of the guideway allows engineers to visualize the exact location of every rut, heave, and depression across the entire corridor.

The analytical power of laser profiling lies in its ability to perform longitudinal and transverse profiling simultaneously. By analyzing the "rut depth," engineers can determine if the pavement is experiencing structural deformation due to overstressing or if the wear is purely superficial. Furthermore, the laser data is compared against the original "as-built" CAD drawings to identify long-term settlement trends. This comparative analysis is essential for predicting the remaining service life of the guideway and scheduling preventative maintenance before a localized failure evolves into a systemic structural collapse.

Mechanical Fundamentals of Catenary System Architecture

The structural integrity of the Overhead Catenary System (OCS) across the Colfax Avenue BRT corridor relies upon the precise management of mechanical tension to ensure a consistent electrical interface between the contact wire and the vehicle pantograph. In a high-capacity BRT environment, the contact wire must maintain a rigid vertical profile to prevent pantograph bounce, which can lead to catastrophic arcing, accelerated component wear, and intermittent power loss. The system utilizes a dual-wire configuration consisting of a messenger wire and a contact wire, linked by droppers of varying lengths to maintain a near-horizontal contact surface.

The primary engineering challenge is the management of longitudinal force. If the tension is too low, the wire exhibits excessive sag, increasing the risk of entanglement or mechanical failure during high-speed transit. Conversely, excessive tension increases the dead load on the support poles and cantilever arms, potentially leading to structural fatigue or failure of the anchor points. To mitigate these risks, the system employs a constant tensioning mechanism that compensates for the natural elasticity of the copper alloy conductors.

• Application of high-tensile copper-cadmium alloys to increase the elastic limit of the contact wire.
• Implementation of precision-engineered droppers to maintain a vertical tolerance of +/- 10mm.
• Utilization of reinforced cantilever assemblies to resist lateral wind loads and longitudinal pull.
• Integration of heavy-duty anchor spans to isolate the tensioning sections from the rest of the infrastructure.

Thermal Expansion and Geometric Sag Dynamics

The Colfax Avenue corridor is subject to significant diurnal and seasonal temperature fluctuations, which introduce critical variables into the catenary's geometric stability. Copper and its alloys possess a relatively high coefficient of thermal expansion (CTE). As ambient temperatures rise, the conductor expands linearly, which, in a fixed-length system, manifests as an increase in vertical sag. This phenomenon, known as thermal sag, lowers the contact wire height, potentially bringing it below the minimum clearance required for safe pantograph operation.

The relationship between temperature and sag is non-linear; as the wire sags, the tension decreases, which in turn alters the catenary curve. In extreme heat, the loss of tension can lead to "hard spots" at the support points and "soft spots" at the mid-span, creating a wave-like profile. This profile induces harmonic oscillations in the pantograph, leading to mechanical fatigue in the vehicle's roof-mounted equipment and increasing the probability of a "dewire" event, where the pantograph lifts off the wire entirely.

• Calculation of thermal expansion based on the linear coefficient of 16.6 x 10^-6 per degree Celsius for hard-drawn copper.
• Analysis of the "catenary constant" to predict the vertical displacement of the contact wire relative to the messenger wire.
• Evaluation of solar gain, where wire temperature exceeds ambient air temperature due to radiative heating.
• Assessment of the impact of extreme cold, which increases tension and risks snapping the wire or damaging the support poles.

Automatic Tensioning and Compensation Mechanisms

To neutralize the effects of thermal expansion and contraction, the Colfax Avenue BRT line utilizes Automatic Tensioning Devices (ATDs). These systems typically consist of a pulley-and-weight assembly housed within a guide sleeve. The weight provides a constant downward force, which translates into a constant longitudinal tension in the wire, regardless of the temperature. As the wire expands in the heat, the balance weight rises, effectively "feeding" more wire into the span to maintain the predetermined tension level.

The precision of these ATDs is paramount. The weights must be calibrated to the specific mass and elasticity of the wire gauge used. Furthermore, the guide sleeves must be maintained to ensure the weights move freely without friction, as any "stiction" in the pulley system can cause the tension to jump abruptly, sending a shockwave through the catenary line. This shock can cause momentary spikes in tension that exceed the yield strength of the hangers or the contact wire itself.

• Installation of balance weight assemblies calibrated to the specific elastic modulus of the conductor.
• Use of low-friction rollers and precision-machined guides to ensure smooth vertical movement of the weights.
• Implementation of limit switches to notify maintenance crews when weights reach the upper or lower extremes of their travel.
• Strategic placement of tensioning sections to divide the line into manageable "zones," limiting the cumulative expansion of any single wire segment.

Forensic Analysis and Lifecycle Maintenance Protocols

Long-term reliability of the OCS is monitored through rigorous forensic analysis and empirical data collection. One of the primary areas of focus is the "stagger" of the contact wire. Because the pantograph wears a groove into the wire over time, the wire is intentionally shifted laterally in a zig-zag pattern across the center line of the track. This ensures that the pantograph head wears evenly across its entire width, preventing a localized "burn-through" that would result in a wire break.

Technical analysts employ thermal imaging and laser profiling to detect anomalies in the wire height and temperature. A "hot spot" detected via thermography often indicates a point of high electrical resistance, which may be caused by a failing splice or a corroded dropper. From a mechanical standpoint, fatigue analysis is performed on the cantilever arms and anchor bolts using ultrasonic testing to identify internal micro-fractures before they lead to catastrophic failure. The intersection of electrical wear and mechanical stress makes the OCS one of the most high-maintenance components of the BRT infrastructure.

• Quarterly laser profiling of the contact wire to verify vertical and horizontal alignment tolerances.
• Annual thermographic surveys to identify resistive heating at connection points and splices.
• Periodic replacement of carbon-strip pantograph heads to maintain a smooth contact surface.
• Detailed logging of "pantograph bounce" events via onboard vehicle sensors to identify specific spans requiring re-tensioning.

Structural Integration and Conduit Topology for Fiber Distribution

The deployment of Positive Train Control (PTC) fiber signaling within the Civic Center Transit Concourse requires a rigorous approach to structural integration to ensure zero-fail communication between the onboard train systems and the wayside interface units. From a master engineering perspective, the primary challenge lies in the routing of high-bandwidth single-mode fiber through a legacy transit environment characterized by high vibration and significant electromagnetic interference. The redundancy architecture is predicated on a dual-path physical separation strategy, ensuring that a localized structural failure or a singular conduit breach does not result in a total loss of signaling capability.

To achieve this, the engineering specification mandates the installation of heavy-wall Schedule 80 PVC or galvanized rigid conduit (GRC), depending on the specific zone of the concourse. In areas of high pedestrian traffic or potential mechanical impact, GRC is utilized to provide the necessary crush resistance and physical protection. The conduits are routed through the structural slab and along the primary ceiling girders, maintaining a strict minimum separation of 15 feet between the primary and redundant fiber runs. This spatial decoupling is critical to mitigate the risk of "common-mode failure," where a single localized event—such as a pipe burst or a structural collapse—could sever both signaling paths simultaneously.

• Implementation of bend radius controls to prevent micro-bending losses and signal attenuation.
• Utilization of expanded beam connectors to minimize insertion loss during splicing.
• Strategic placement of pull boxes at 50-foot intervals to facilitate future cable replacement without stressing the fiber core.
• Integration of seismic bracing for all overhead conduit runs to comply with regional transit authority safety codes.

Environmental Mitigation and Envelope Forensics

As a senior analyst in building envelope forensics, it is imperative to recognize that the integrity of the PTC fiber signaling is inextricably linked to the moisture-tightness of the concourse envelope. The Civic Center Transit Concourse acts as a semi-open environment, making it susceptible to wind-driven rain and hydrostatic pressure. Any breach in the building envelope where fiber conduits penetrate the exterior walls or roof membranes creates a potential pathway for water ingress. In the context of fiber optics, while the glass core is immune to electrical shorts, the splice enclosures and termination panels are highly vulnerable to humidity and corrosive particulates.

Forensic analysis of similar transit hubs reveals that the most frequent point of failure is the roof-to-wall transition. To prevent capillary action from drawing moisture into the conduit system, the engineering design employs a multi-stage sealing process. This includes the use of chemically cured sealant at the penetration point and the installation of a secondary flashing system integrated into the TPO (Thermoplastic Olefin) roofing membrane. Furthermore, the use of "drip loops" on all external cable entries ensures that gravity directs water away from the building penetration, preventing the saturation of the interior wall assembly.

• Application of closed-cell spray foam insulation around conduit penetrations to eliminate thermal bridging and condensation.
• Installation of hydrostatic seals at the slab-on-grade interface to prevent groundwater migration into the fiber vaults.
• Regular ultrasonic testing of the envelope seals to detect subsurface voids or degradation of the waterproofing membrane.
• Use of vapor-barrier coatings on all interior-facing conduit supports to prevent oxidation in high-humidity zones.

Signal Redundancy and Path Diversity Analysis

The technical objective of the PTC fiber network is to maintain a latency-free, high-availability connection that supports the fail-safe requirements of rail operations. This is achieved through a redundant ring topology, where data can be rerouted instantaneously if a primary link is compromised. The redundancy is not merely logical but physical; the "East Path" and "West Path" utilize entirely different structural corridors within the concourse. This ensures that the signaling system remains operational even during major renovations or localized structural failures within the transit hub.

From an empirical standpoint, the signal integrity is monitored via Optical Time-Domain Reflectometry (OTDR), which allows engineers to pinpoint the exact location of a fiber break or a degradation in signal strength within centimeters. The redundancy system is designed to handle a "worst-case" scenario involving the loss of 50% of the available fiber strands without a reduction in the polling rate of the PTC wayside equipment. This is critical because any increase in latency beyond the specified threshold could trigger an emergency brake application across all trains in the sector, leading to massive operational disruptions.

• Deployment of diverse-path routing to eliminate single points of failure (SPOF).
• Utilization of redundant power feeds for all fiber-to-ethernet converters, backed by industrial-grade UPS systems.
• Implementation of automatic protection switching (APS) to ensure sub-50ms failover times.
• Strict adherence to TIA-598 standards for fiber optic cabling and labeling to ensure rapid troubleshooting.

Long-term Maintenance and Forensic Monitoring Protocols

The lifecycle management of the PTC fiber infrastructure requires a shift from reactive maintenance to a predictive, forensic-based approach. Given the harsh environment of a transit concourse—characterized by constant vibration from trains and the accumulation of metallic dust—the degradation of the protective conduits and the building envelope is an inevitability. A comprehensive monitoring protocol is established to track the health of the fiber paths and the integrity of the surrounding structural supports. This includes the use of thermal imaging to identify hotspots in the signal amplifiers and the inspection of conduit hangers for signs of fatigue or corrosion.

Furthermore, the forensic monitoring program includes quarterly audits of the roof penetrations and wall seals. By utilizing infrared thermography, engineers can detect moisture plumes within the walls before they reach the fiber conduits. This proactive approach prevents the "slow-leak" scenario where moisture gradually degrades the cable jackets, leading to hydrogen darkening of the fiber and a subsequent increase in signal attenuation. The ultimate goal is to ensure that the signaling infrastructure outlasts the current lifecycle of the building's interior finishes, maintaining a gold standard of reliability for the transit network.

• Scheduled OTDR baseline testing every six months to track the evolution of splice loss.
• Annual inspection of all roof-mounted flashing and sealant beads using high-resolution drone imagery.
• Vibration analysis of conduit mounts to ensure that harmonic resonance from trains is not causing mechanical wear on the fiber.
• Calibration of environmental sensors within the fiber vaults to monitor for humidity spikes and temperature fluctuations.

Geotechnical Subgrade Analysis and Primary Settlement Mechanisms

The structural integrity of the Boulder Junction Depot track bed is fundamentally dependent on the modulus of subgrade reaction and the consolidation characteristics of the underlying alluvial strata. Forensic analysis of the site indicates a heterogeneous soil profile consisting of silty clays interspersed with lenses of saturated sand. This composition creates a high susceptibility to differential settlement, particularly under the static loads of stationary rolling stock and the dynamic impact loads of accelerating or decelerating locomotives. The primary mechanism of failure observed is the time-dependent consolidation of the clay layers, where pore water pressure is expelled under sustained loading, leading to a reduction in void ratio and a subsequent vertical subsidence of the track geometry.

Furthermore, the interaction between the subgrade and the ballast layer is compromised by the migration of fines. When the subgrade is not properly separated from the ballast by a geotextile membrane or a graded sub-ballast layer, the phenomenon of "pumping" occurs. This occurs when cyclic loading forces moisture and fine particles upward into the ballast voids, effectively turning the structural ballast into a slurry. This loss of internal friction reduces the shear strength of the track bed, resulting in localized depressions and a loss of longitudinal profile stability across the depot's main switching leads.

• Analysis of primary consolidation rates indicating a non-linear settlement curve over a ten-year horizon.
• Identification of hydrostatic pressure buildup within the sandy lenses, exacerbating lateral spreading.
• Evaluation of the California Bearing Ratio (CBR) values, which show significant variance across the northern and southern quadrants of the depot.
• Correlation between seasonal groundwater fluctuations and the acceleration of track bed deformation.

Ballast Degradation and Fouling Kinetics

The forensic examination of the ballast section reveals a critical state of attrition and fouling. Ballast, designed as a layer of crushed angular stone, relies on interlock and frictional resistance to distribute loads to the subgrade. However, the Boulder Junction Depot has experienced significant mechanical degradation of the aggregate. This degradation is characterized by the rounding of angular edges due to the crushing forces exerted by the sleepers and the tamping process itself. As the stones lose their angularity, the coefficient of internal friction drops, leading to increased lateral movement of the track under thermal stress and heavy axle loads.

Fouling kinetics are further accelerated by the infiltration of external contaminants and the breakdown of the aggregate into smaller fragments. The fouling index—a measurement of the percentage of material passing through a specific sieve size—has exceeded acceptable industry thresholds in several critical zones. When the ballast becomes fouled, its hydraulic conductivity is severely diminished. Instead of shedding water rapidly to the side drains, the fouled ballast retains moisture, which softens the underlying subgrade and creates a feedback loop of accelerating settlement. This hydraulic failure is the primary driver behind the "soft spots" identified during the recent laser-profile surveys.

• Quantification of aggregate attrition through sieve analysis and microscopy of crushed faces.
• Assessment of the fouling index, noting a 35% increase in fines within the high-traffic switching areas.
• Evaluation of drainage efficiency, showing a 60% reduction in permeability in fouled sections.
• Analysis of the relationship between ballast void ratio and the capacity for vertical load distribution.

Tamping Cycle Efficacy and Mechanical Deformation

Tamping is the primary maintenance intervention used to restore track geometry; however, forensic data suggests that over-tamping has contributed to the long-term instability at the Boulder Junction Depot. The mechanical process of tamping involves vibrating tamping tools that lift the sleeper and compress the ballast beneath it. While this provides immediate correction of the longitudinal profile, repeated cycles of tamping in a fouled ballast environment can lead to "ballast pulverization." The constant agitation of the aggregate, combined with the presence of fines, creates a compacted, concrete-like mass that lacks the elasticity required to absorb dynamic loads.

Moreover, the forensic evidence indicates that tamping operations have frequently ignored the underlying geotechnical cause of the settlement. By merely lifting the track to correct the surface profile without addressing the subgrade consolidation, the maintenance crews have effectively created "voids" or "soft pockets" beneath the ballast. This leads to a cycle of rapid settlement immediately following the tamping event, known as the "tamping rebound effect." The resulting instability manifests as abrupt changes in the track's vertical alignment, which increases the risk of derailment and necessitates more frequent, yet less effective, maintenance interventions.

• Comparison of pre- and post-tamping settlement rates to determine the duration of geometric stability.
• Analysis of tamping tool penetration depth and its impact on the integrity of the sub-ballast interface.
• Evaluation of the "floating" effect where sleepers are not fully embedded in the ballast after a tamping cycle.
• Assessment of the mechanical stress induced on the sleepers during high-frequency vibration tamping.

Remediation Strategies and Long-term Stability Metrics

To arrest the ongoing settlement and restore the structural integrity of the Boulder Junction Depot, a comprehensive remediation strategy focusing on subsurface stabilization is required. The most effective approach is the implementation of a full-depth ballast renewal combined with the installation of a high-modulus geogrid. The geogrid acts as a reinforcement layer, confining the ballast particles and preventing lateral spreading. This confinement increases the effective stiffness of the track bed and distributes the load over a wider area of the subgrade, thereby reducing the vertical stress on the compressible clay layers and slowing the rate of consolidation.

Additionally, the installation of a non-woven geotextile separator between the subgrade and the sub-ballast is mandatory to eliminate the migration of fines. This creates a permanent capillary break, ensuring that the ballast remains free-draining regardless of the groundwater level. To monitor the efficacy of these interventions, the installation of settlement plates and vibrating wire piezometers is recommended. These instruments provide real-time empirical data on pore water pressure and vertical displacement, allowing for a transition from reactive maintenance to a predictive, condition-based asset management strategy.

• Implementation of a multi-layered stabilization system: subgrade stabilization, geotextile separation, and geogrid reinforcement.
• Specification of a high-angularity, crushed basalt ballast with a strict adherence to the fouling index limit of less than 10%.
• Establishment of a rigorous monitoring regime using automated track geometry cars and subsurface settlement sensors.
• Development of a revised tamping schedule based on empirical settlement thresholds rather than calendar intervals.

Kinematics of the Wheel-Rail Interface and Contact Stress Analysis

The operational efficiency of the Longmont Intermodal Terminal is fundamentally governed by the tribological interaction between the steel wheel tread and the rail head. At the core of this interface is the contact patch, a microscopic area where immense vertical loads are concentrated. In an intermodal environment, characterized by high axle loads and frequent low-speed transitions, these contact stresses often exceed the yield strength of the rail steel, leading to plastic deformation. The physics of this interaction is defined by Hertzian contact theory, which posits that the stress distribution is not uniform but peaks at the center of the contact ellipse.

Within the Longmont facility, the prevalence of tight-radius curves and switch-points introduces significant lateral forces. As a wheelset enters a curve, the leading axle's outer wheel experiences a high angle of attack, forcing the flange against the gauge face of the rail. This creates a high-pressure sliding contact that generates intense frictional heat and shear stress. If the coefficient of friction is left uncontrolled, the resulting energy dissipation manifests as rapid material loss and the development of surface irregularities.

• Hertzian Contact Stress: The primary driver of subsurface fatigue and crack initiation.
• Creepage: The relative sliding velocity between the wheel and rail that determines the friction regime.
• Angle of Attack: The geometric misalignment during curve entry that concentrates loads on the wheel flange.
• Contact Patch Geometry: The elliptical area of interaction that shifts based on load and wheel profile.

Mechanisms of Surface Degradation and Wear Profiles

Wear at the Longmont Intermodal Terminal is categorized into three primary modes: adhesive, abrasive, and fatigue-driven. Adhesive wear occurs when microscopic welds form between the wheel and rail under high pressure, which are then sheared apart as the wheel continues its rotation. This process effectively "plucks" small fragments of metal from the surface. Abrasive wear, conversely, is driven by hard particles—such as silica or metallic debris—becoming trapped between the surfaces, acting as cutting tools that score the rail head and flange.

Of greater concern to the senior analyst is Rolling Contact Fatigue (RCF). RCF manifests as "head checking" or "squats," where repeated loading and unloading cycles create microscopic cracks. In the high-torque environment of an intermodal terminal, these cracks can propagate rapidly. When the flange makes contact with the rail in a non-lubricated state, the resulting "galling" creates a rough surface topography that further accelerates the wear of the wheelset, leading to a destructive feedback loop of material degradation.

• Adhesive Wear: Material transfer caused by high-pressure molecular bonding.
• Three-Body Abrasion: The interaction of wheel, rail, and an intervening hard particle.
• Head Checking: Fine, transverse cracks on the rail crown resulting from RCF.
• Galling: Localized welding and tearing of the surface under extreme shear stress.

Flange Lubrication Protocols and Chemical Application Strategies

To mitigate the aforementioned wear mechanisms, the Longmont Terminal employs a dual-stage lubrication protocol designed to decouple the need for traction from the need for wear reduction. The primary objective is to maintain a controlled coefficient of friction ($\mu$) at the flange-gauge interface while preserving a higher $\mu$ on the rail crown to ensure braking and acceleration efficiency. This is achieved through the strategic application of flange lubricants, which act as a sacrificial boundary layer that prevents direct metal-to-metal contact.

The terminal utilizes a combination of on-board lubrication systems and trackside applicators. On-board systems provide a continuous supply of lubricant to the wheel flanges regardless of the track location, ensuring that the flange is always protected during transition through switches. Trackside applicators are strategically placed at the entry and exit of high-curvature segments to provide a concentrated dose of lubricant. The choice of lubricant is critical; synthetic greases with molybdenum disulfide ($\text{MoS}_2$) or graphite are preferred due to their high pressure-resistance and ability to maintain a stable film under extreme loads.

• Boundary Lubrication: The creation of a thin chemical film to prevent surface welding.
• $\text{MoS}_2$ Additives: Solid lubricants that provide low friction even after the base oil has been squeezed out.
• On-Board Applicators: Systems that ensure consistent coverage across the entire terminal network.
• Traction Management: The careful balancing of lubrication to avoid "rail slipping" during heavy haulage.

Lifecycle Analysis and Predictive Maintenance Integration

The transition from reactive to predictive maintenance at the Longmont Terminal relies on the empirical analysis of wear rates and the integration of Wayside Monitoring Systems (WMS). By utilizing automated wheel-profile measurement systems, engineers can track the rate of flange thinning in real-time. This data is then correlated with the lubrication intervals to determine the optimal "re-profiling" schedule for the wheelsets. When the flange profile deviates from the industry-standard template, the risk of derailment increases, necessitating immediate intervention.

Furthermore, the implementation of ultrasonic rail testing allows for the detection of subsurface fatigue cracks before they reach the surface. The synergy between rigorous lubrication protocols and non-destructive testing (NDT) significantly extends the lifecycle of the infrastructure. A well-lubricated rail exhibits a marked reduction in the rate of RCF propagation, shifting the maintenance curve from a steep, exponential decay to a linear, manageable degradation path. This systemic approach reduces the Total Cost of Ownership (TCO) for the terminal's permanent way.

• Wayside Monitoring: Automated sensors that detect wheel-wear and thermal anomalies.
• Ultrasonic Testing: The use of high-frequency sound waves to identify internal rail defects.
• Wheel Re-profiling: The process of machining the wheel back to its original geometric specification.
• TCO Reduction: The long-term financial gain achieved through the prevention of premature rail replacement.

Electromagnetic Fundamentals of Inductive Loop Detection

The operational integrity of the Golden Station Transit Loop depends upon the precise application of Faraday’s Law of Induction. At its core, the grade crossing warning system utilizes inductive loops—essentially air-core transformers—embedded within the transit corridor's infrastructure. These loops consist of insulated conductive wires coiled in a specific geometry and buried beneath the trackbed. When the system is energized, an alternating current creates a stable magnetic field extending upward from the loop. The introduction of a ferromagnetic mass, such as a locomotive or a heavy rail car, disrupts this field, causing a measurable decrease in the loop's inductance.

In the specific context of the Golden Station Transit Loop, the complexity is heightened by the proximity of overlapping signal blocks and the presence of high-voltage traction power lines. This environment introduces significant electromagnetic interference (EMI), which can manifest as "ghost" triggers or failed detections. Engineering precision requires that the loop be tuned to a specific resonant frequency that distinguishes the signature of a rail vehicle from transient electrical noise or smaller metallic debris. The relationship between the loop's inductance and the detector's internal capacitance determines the center frequency of the circuit, and any deviation in the physical integrity of the loop—such as a hairline fracture in the insulation or a shift in the surrounding soil's dielectric constant—can shift this frequency, leading to calibration drift.

• Mutual inductance variance: The primary mechanism for detecting the approach of a rail vehicle.
• Resonant frequency tuning: The process of aligning the detector's operating frequency with the loop's physical inductance.
• Ferromagnetic saturation: The point at which the metallic mass of the train maximizes the inductive shift.
• Signal-to-noise ratio (SNR): The critical metric used to differentiate between a valid vehicle presence and background EMI.

Calibration Parameters and Sensitivity Thresholds

Calibration of the Golden Station warning gates is not a static event but a dynamic optimization process. The primary objective is to establish a "detection threshold" that is sensitive enough to trigger the warning gates with sufficient lead time for road traffic to clear, yet robust enough to ignore non-target metallic objects. This is achieved by adjusting the Delta L (change in inductance) parameters within the detector unit. If the threshold is set too narrow, the system may suffer from "flutter," where the gate cycles rapidly between open and closed states as the train's wheels pass over the loop gaps. Conversely, a threshold set too wide may result in a delayed trigger, compromising the safety margin of the grade crossing.

Environmental variables play a decisive role in calibration stability. Temperature fluctuations affect the resistivity of the copper windings and the physical dimensions of the loop, while moisture infiltration into the surrounding bedding material alters the soil's permittivity. In the Golden Station corridor, empirical data indicates that seasonal shifts in ground saturation can cause a 2% to 5% drift in baseline inductance. To counteract this, the calibration protocol must include a compensation algorithm that adjusts the sensitivity threshold based on ambient temperature sensors integrated into the transit loop's control cabinet. This ensures that the "trigger" and "release" points remain consistent regardless of whether the system is operating in peak summer heat or sub-zero winter conditions.

• Inductance baseline: The steady-state value of the loop when no vehicle is present.
• Trigger threshold: The specific percentage drop in inductance required to initiate the warning sequence.
• Release threshold: The value at which the system recognizes the vehicle has cleared the loop, allowing the gates to rise.
• Dwell time: The programmed delay to ensure the entire length of the train has passed before resetting the loop.

Forensic Analysis of Signal Degradation and Failure Modes

From a forensic engineering perspective, the failure of inductive loops at the Golden Station Transit Loop typically stems from mechanical stress and chemical degradation of the envelope. The constant cyclic loading of heavy rail cars creates a high-pressure environment that can lead to "cold flow" of the sealant material. Over time, this allows moisture to penetrate the loop's insulation, leading to a gradual decrease in the insulation resistance (IR) between the loop turns. When the IR drops below a critical megohm threshold, the loop begins to leak current into the surrounding earth, which manifests as a "noisy" signal and eventual detector failure.

Furthermore, the lead-in cables—the wires connecting the buried loop to the roadside cabinet—are frequent points of failure. Thermal expansion and contraction of the pavement and rail bedding create shear forces at the transition point between the rigid loop and the flexible lead-in. Forensic analysis of failed loops often reveals fatigue cracking in the copper strands at these transition zones. This mechanical failure increases the overall resistance of the circuit, shifting the resonant frequency and causing the detector to report a "loop fault." In the Golden Station loop, the interaction between the alkaline nature of the concrete bedding and the PVC jacket of the wiring has also been identified as a catalyst for long-term polymer degradation, necessitating the use of high-grade cross-linked polyethylene (XLPE) insulation in all new installations.

• Dielectric breakdown: The failure of the insulation layer leading to current leakage.
• Mechanical shear: The physical severing of conductors due to ground movement or thermal cycling.
• Capacitive coupling: Unwanted signal transfer between adjacent loops or power cables.
• Oxidation: The corrosion of splice points and terminations within the junction boxes.

Implementation of Precision Calibration Protocols

To ensure the long-term reliability of the Golden Station Transit Loop, a rigorous, multi-stage calibration protocol must be implemented. The process begins with a comprehensive baseline audit using a high-precision LCR (Inductance, Capacitance, and Resistance) meter. This allows technicians to verify the actual inductance of the loop against the design specifications before the loop is connected to the detector. Any loop exhibiting a variance of more than 3% from the design value must be inspected for installation errors or physical damage. Once the physical parameters are verified, the detector is commissioned using a phased approach: first, the baseline is established in an empty state, followed by the introduction of a known ferromagnetic mass to map the inductive curve.

The final stage of the protocol involves the verification of the timing sequence. The "Warning-to
