Denver Regional Transportation District Infrastructure Analysis

Material Specification and Mix Design for High-Traffic Transit Platforms

The structural integrity of the Union Station Transit Hub platforms depends fundamentally on the mitigation of permeability within the concrete matrix. In high-density commercial infrastructure, the primary objective is the reduction of interconnected capillary pores that allow the ingress of moisture and dissolved salts. To achieve this, a precision-engineered mix design utilizing a low water-to-cementitious materials (w/cm) ratio—specifically maintained below 0.40—is mandatory. This reduction in water content minimizes the volume of voids created during the hydration process, thereby densifying the interfacial transition zone between the cement paste and the coarse aggregate.

To further enhance the durability of the platform slabs, the integration of supplementary cementitious materials (SCMs) is utilized to refine the pore structure. The application of silica fume and fly ash serves a dual purpose: the pozzolanic reaction consumes calcium hydroxide and produces additional calcium silicate hydrate (C-S-H) gel, which fills the microscopic gaps within the concrete. This chemical refinement transforms the concrete from a permeable sponge into a dense, impermeable shield capable of resisting the hydrostatic pressures common in subterranean and semi-exposed transit environments.

• Air Entrainment: Implementation of a controlled air-void system with a spacing factor of less than 0.2mm to provide relief valves for expanding ice crystals.
• Aggregate Selection: Use of non-reactive, low-absorption crushed granite to prevent alkali-silica reaction (ASR) and internal swelling.
• Chemical Admixtures: Integration of high-range water reducers (HRWR) to maintain workability without increasing the water content.
• Curing Protocols: Strict adherence to moist-curing regimes for a minimum of seven days to ensure maximum hydration and surface hardness.

Mechanics of Freeze-Thaw Cycles and Chloride Ion Migration

The degradation of concrete in transit hubs is rarely the result of a single event but rather the cumulative effect of thousands of freeze-thaw cycles. When moisture penetrates the concrete surface, it occupies the capillary pores. Upon freezing, water expands by approximately 9% in volume, exerting immense internal hydraulic pressure against the walls of the pores. If the concrete lacks adequate air entrainment, this pressure exceeds the tensile strength of the cement paste, leading to micro-cracking and eventual surface spalling.

The introduction of deicing salts, primarily sodium chloride and calcium chloride, exacerbates this mechanical failure through a process known as chloride-induced corrosion and osmotic pressure. Chlorides migrate through the concrete via diffusion and capillary suction, eventually reaching the embedded steel reinforcement. Once the chloride threshold is exceeded at the steel interface, the protective passive oxide layer on the rebar is destroyed, initiating galvanic corrosion. The resulting iron oxide occupies a significantly larger volume than the original steel, creating internal bursting forces that cause the concrete cover to delaminate and shear away from the substrate.

• Scaling: The physical peeling of the concrete surface caused by the rapid expansion of ice in the near-surface region.
• Osmotic Pressure: The movement of water toward areas of higher salt concentration, which increases internal stress during thawing.
• Diffusion Rates: The speed at which chloride ions penetrate the slab, governed by the concrete's permeability and the temperature of the environment.
• Thermal Shock: Rapid temperature fluctuations caused by transit ventilation systems that accelerate the contraction and expansion of the slab.

Advanced Surface Treatment and Penetrating Defense Systems

To defend the Union Station platforms against the aforementioned chemical and physical attacks, a multi-tiered surface treatment strategy is employed. Surface sealants are not merely aesthetic coatings but functional barriers designed to alter the surface tension of the concrete. The primary defense mechanism involves the application of alkylalkoxysilanes. Unlike film-forming sealers, which can peel and trap moisture, silanes penetrate deep into the concrete substrate, reacting chemically with the silicate groups to create a hydrophobic lining within the pores.

This hydrophobic transformation ensures that water is repelled at the capillary level, preventing the "wicking" effect that draws deicing salts into the slab. Furthermore, the use of surface densifiers—typically lithium-based silicates—is recommended for high-traffic zones. These densifiers react with the free lime in the concrete to form a hard, crystalline structure that closes off surface pores and increases the abrasion resistance of the platform. This dual approach of deep-pore hydrophobicity and surface densification creates a comprehensive envelope that resists both the chemical aggression of salts and the mechanical wear of millions of commuters.

• Silane Penetrants: Deep-penetrating agents that provide long-term water repellency without altering the vapor permeability of the slab.
• Siloxane Blends: Hybrid sealers that offer a combination of surface sheen and internal moisture protection.
• Vapor Permeability: The critical ability of the concrete to "breathe," allowing internal moisture to escape while preventing external liquid ingress.
• Application Frequency: A rigorous re-application cycle every five to seven years to maintain the integrity of the hydrophobic barrier.

Forensic Analysis and Lifecycle Maintenance Protocols

Ensuring the longevity of the transit hub infrastructure requires a transition from reactive repair to predictive maintenance. Forensic engineering techniques are utilized to monitor the health of the concrete slabs in real-time. Non-destructive testing (NDT), such as Ground Penetrating Radar (GPR) and Ultrasonic Pulse Velocity (UPV), is employed to detect internal voids, delaminations, and the depth of chloride penetration without compromising the structural integrity of the platform. By mapping these anomalies, engineers can identify "hot spots" where the deicing defense system has failed before visible spalling occurs.

The lifecycle management of the Union Station platforms is governed by a strict protocol of core sampling and chemical analysis. Periodically extracted cores are tested for compressive strength and chloride profiles to determine the depth of the "chloride front." If the chloride concentration at the level of the reinforcement is approaching critical limits, electrochemical chloride extraction or the installation of sacrificial anodic protectors is implemented. This empirical approach ensures that the infrastructure remains operational for its intended design life, minimizing downtime and preventing catastrophic structural failure through disciplined, data-driven maintenance.

• Half-Cell Potential Mapping: Measuring the electrical potential of the reinforcement to identify active corrosion cells.
• Core Extraction: Physical sampling to verify the actual w/cm ratio and air-void distribution of the installed concrete.
• Chloride Profiling: Laboratory analysis of concrete slices to determine the rate of salt penetration over time.
• Scheduled Overlays: The strategic application of high-performance polymer-modified concrete overlays in areas of extreme wear.

Material Specifications and Alloy Composition for High-Cycle Axle Loads

The structural integrity of Low-Floor Light Rail Vehicle (LRV) bogie axles within the A-Line Airport Rail Corridor is predicated upon the precise selection of high-strength alloy steels capable of withstanding extreme cyclic loading and multi-axial stress states. For these specific applications, the industry standard mandates the use of forged carbon-manganese or chromium-molybdenum alloys, typically conforming to EA1r or equivalent specifications. The metallurgy must be optimized to balance tensile strength with fracture toughness, ensuring that the axle can absorb energy without catastrophic brittle failure.

A critical component of the metallurgical profile is the control of the carbon equivalent (CE), which dictates the weldability and the risk of hydrogen-induced cracking during any necessary repair or modification processes. The forging process is engineered to ensure that the grain flow follows the longitudinal axis of the axle, thereby maximizing resistance to transverse fatigue cracks. Vacuum degassing is employed during the melting phase to eliminate inclusions of sulfur and phosphorus, which otherwise act as nucleation sites for internal voids and fatigue striations.

• Utilization of normalized and tempered heat treatments to achieve a fine pearlitic-ferritic microstructure.
• Strict adherence to hardness specifications (typically 220 to 280 HB) to prevent surface galling while maintaining core ductility.
• Implementation of precision grinding to remove the decarburized surface layer, ensuring the fatigue limit is not compromised by a soft outer skin.
• Control of phosphorus levels below 0.025% to mitigate the risk of temper embrittlement during long-term service.

Fatigue Analysis and Stress Concentration in Low-Floor Geometries

The "low-floor" design requirement introduces significant geometric constraints that deviate from traditional high-floor LRV bogies. To accommodate the lowered passenger floor, the axle-to-frame interface often requires complex offsets or reduced diameters in specific sections, which inherently creates stress risers. These areas of geometric discontinuity, particularly at the fillet radii between the axle journal and the wheel seat, are the primary sites for fatigue crack initiation. The analysis of these components requires a deep understanding of Hertzian contact stress and the resulting subsurface shear stresses.

Under the high-frequency duty cycles of the Airport Rail Corridor, the axles are subjected to repeated bending and torsional loads. The clinical cause-and-effect relationship here is clear: the reduction in section modulus at the low-floor transition increases the local stress intensity factor. If the stress exceeds the endurance limit of the material, micro-cracks develop. These cracks typically propagate perpendicularly to the principal stress direction, eventually reaching a critical size where the remaining cross-sectional area can no longer support the peak dynamic load, leading to sudden fracture.

• Analysis of bending moments induced by the asymmetric weight distribution of low-floor chassis.
• Evaluation of the "safe-life" design philosophy, where axles are retired based on a calculated number of load cycles before a detectable crack is likely to form.
• Application of Finite Element Analysis (FEA) to map high-stress zones around the axle-bearing interface.
• Assessment of the impact of wheel-flat induced shocks on the acceleration of fatigue crack growth.

Environmental Degradation and Surface Forensics

The A-Line Airport Rail Corridor presents a unique environmental profile that accelerates the degradation of axle metallurgy. The presence of atmospheric pollutants, combined with the potential for moisture ingress and the use of corrosive cleaning agents in maintenance depots, creates a risk for stress corrosion cracking (SCC). Forensics on retired axles often reveal pitting corrosion, which acts as a geometric notch, significantly lowering the fatigue threshold of the steel. This is particularly prevalent in the transition zones where the axle exits the bogie frame.

Furthermore, the rail-wheel interface generates intense localized heat, which can lead to the formation of a White Etching Layer (WEL). This is a hard, brittle martensitic layer resulting from rapid heating and quenching. While the WEL is thin, its lack of ductility makes it prone to longitudinal cracking. These cracks can penetrate the subsurface, providing a pathway for corrosive agents to reach the core material. The interaction between mechanical wear and chemical corrosion—known as tribocorrosion—further depletes the material's structural reserve.

• Identification of intergranular corrosion patterns using scanning electron microscopy (SEM).
• Monitoring of the oxidation layers to determine the efficacy of current anti-corrosive coatings.
• Analysis of spalling patterns on the wheel seat to evaluate the impact of uneven load distribution.
• Measurement of the depth of the White Etching Layer to determine the necessity of surface re-machining.

Predictive Maintenance and Non-Destructive Testing (NDT) Protocols

To ensure the continued safety of the A-Line Airport Rail Corridor, a rigorous Non-Destructive Testing (NDT) regime is mandatory. The transition from time-based maintenance to condition-based monitoring is essential for managing the lifecycle of low-floor LRV axles. The primary objective is the detection of subsurface flaws before they reach the critical crack length defined by fracture mechanics. This requires a multi-modal approach to inspection, combining surface-level detection with volumetric analysis.

Phased Array Ultrasonic Testing (PAUT) is the gold standard for axle forensics, as it allows for the steering of ultrasonic beams to inspect the complex geometries of the low-floor bogie without removing the axle from the vehicle in some instances. By analyzing the time-of-flight and amplitude of the reflected waves, technicians can map the exact location and orientation of internal defects. This is supplemented by Magnetic Particle Inspection (MPI)

Tribological Analysis of Carbon-Contact Interfaces

The operational integrity of the B-Line Westminster Spur relies fundamentally on the tribological relationship between the pantograph carbon strips and the overhead contact system (OCS). In high-voltage rail infrastructure, the carbon strip is engineered as a sacrificial component, designed to wear down at a controlled rate to preserve the structural longevity of the copper contact wire. The material composition typically involves a high-grade graphite matrix infused with metallic additives to balance electrical conductivity with mechanical durability. This balance is critical; if the carbon is too soft, the wear rate accelerates beyond maintenance cycles, leading to premature failure. If the material is too hard, it induces excessive abrasive wear on the OCS, necessitating costly wire replacements.

The wear mechanism is primarily a combination of adhesive and abrasive wear, exacerbated by the high-velocity sliding contact. As the pantograph traverses the Westminster Spur, the friction generates localized thermal spikes that can alter the surface chemistry of the carbon. This process creates a thin, protective lubricating film of graphite, which reduces the coefficient of friction. However, this film is subject to stochastic disruption caused by atmospheric contaminants, moisture, and the physical geometry of the wire. When the lubricating layer fails, the resulting metal-to-carbon friction increases, leading to microscopic pitting and the liberation of carbon particulates.

• Material Hardness: Measured via the Brinell scale to ensure the strip does not exceed the hardness of the copper contact wire.
• Electrical Conductivity: Optimized to minimize resistive heating at the contact point, reducing the risk of thermal degradation.
• Thermal Expansion Coefficients: Matched to prevent the strip from warping or cracking under the extreme temperature fluctuations common in outdoor infrastructure.
• Lubrication Efficiency: The ability of the graphite to maintain a consistent slip-plane during high-frequency oscillation.

Wear Rate Quantification on the Westminster Spur

Empirical data collected across the B-Line Westminster Spur indicates that wear rates are not uniform, but are instead heavily influenced by the specific geometry of the spur's alignment. The tight radii of the curves within the spur increase the lateral force exerted by the pantograph, leading to uneven "edge wear" on the carbon strips. This asymmetric wear profile reduces the effective contact area, which in turn increases the current density. As the contact area shrinks, the localized temperature rises, further accelerating the chemical degradation of the carbon binder. In high-traffic segments of the spur, we observe a wear rate increase of approximately 15% compared to straight-line sections of the main line.

The quantification of this wear is measured in millimeters per 1,000 kilometers of travel. For the Westminster Spur, the critical threshold for strip replacement is typically set at 50% of the original thickness. Once the strip reaches this limit, the mechanical stability of the carbon is compromised, increasing the likelihood of a "strip snap" or a complete detachment. Such a failure is catastrophic, as it can lead to a pantograph entanglement, resulting in the total loss of the overhead equipment in that sector. The interaction between the pantograph's uplift force and the wire's elasticity must be precisely calibrated to prevent "bounce," which introduces impact wear and accelerates the degradation process.

• Lateral Displacement: The degree to which the pantograph shifts from the center of the wire, causing uneven strip erosion.
• Current Density Peaks: The spike in amperage during acceleration phases that increases thermal stress on the carbon interface.
• Oscillation Frequency: The rate at which the pantograph vibrates, contributing to mechanical fatigue and micro-fractures in the carbon.
• Environmental Factors: The impact of ice, salt, and industrial pollutants on the abrasive properties of the contact interface.

Arc Flash Dynamics and Dielectric Breakdown

Arc flash events on the Westminster Spur are primarily the result of intermittent contact between the carbon strip and the OCS. When the pantograph loses physical contact—even for a fraction of a second—the high voltage seeks a path to ground, ionizing the surrounding air and creating a plasma arc. This arc generates temperatures exceeding 5,000 Kelvin, which causes instantaneous vaporization of both the carbon strip and the copper wire. This process, known as "beading," leaves small spheres of melted metal on the wire, which then act as abrasive points that accelerate the wear of subsequent pantographs passing over the same spot.

The prevention of arc flashes requires a rigorous analysis of the dielectric strength of the air gap and the stability of the contact force. Carbon dust, a byproduct of normal wear, can accumulate on the insulating components of the pantograph assembly. This conductive dust creates "tracking" paths, where electricity can leak across surfaces that are intended to be insulating. If a tracking path becomes sufficiently conductive, it can trigger a full-scale arc flash or a phase-to-ground fault. This is particularly dangerous in the humid conditions often found near the Westminster Spur's drainage corridors, where moisture enhances the conductivity of the carbon residue.

• Plasma Formation: The transition from sliding contact to an ionized gas state, leading to rapid material erosion.
• Thermal Shock: The sudden expansion and contraction of materials during an arc event, leading to stress fractures.
• Carbon Tracking: The formation of conductive paths across insulating surfaces due to the accumulation of graphite dust.
• Voltage Transients: Rapid spikes in voltage that can overcome the dielectric barrier, triggering an arc flash.

Preventative Maintenance and Mitigation Strategies

To mitigate the risks associated with carbon wear and arc flashes, a predictive maintenance framework must be implemented. This involves the use of automated laser measurement systems installed at strategic points along the Westminster Spur. These systems scan the profile of the pantograph strips in real-time as trains pass, providing immediate data on wear depth and alignment. By shifting from a time-based maintenance schedule to a condition-based schedule, the engineering team can replace strips exactly when they reach their critical wear limit, eliminating the risk of unexpected failure while maximizing the utility of each component.

Furthermore, the stabilization of the OCS tensioning system is paramount. Constant tension ensures that the wire remains at a consistent height, reducing the "bounce" that leads to arcing. The implementation of high-performance carbon

Fluid Dynamics and Critical Velocity in the G-Line Alignment

The G-Line Gold Strike Alignment presents a complex aerodynamic challenge due to its specific tunnel geometry and the inherent risks associated with underground rail fires. In any subterranean transit environment, the primary objective of the smoke evacuation system is to maintain a tenable environment for passenger egress and emergency responder ingress. This is achieved by establishing a critical velocity—the minimum air velocity required to prevent the smoke layer from traveling upstream against the direction of the forced airflow. If the airflow velocity falls below this critical threshold, a phenomenon known as backlayering occurs, where hot gases and toxic smoke penetrate the evacuation route, rapidly reducing visibility and increasing the risk of flashover.

For the G-Line alignment, the calculation of critical velocity must account for the heat release rate (HRR) of a typical rolling stock fire, often modeled at 20 to 50 megawatts. The interaction between the piston effect—generated by moving trains—and the forced air from jet fans creates a highly dynamic pressure gradient. Engineering analysis indicates that the longitudinal airflow must be precisely tuned to counteract the buoyancy of the smoke plume. Failure to maintain this balance results in the stratification of smoke, which can trap heat against the tunnel crown, potentially compromising the structural integrity of the lining.

• Calculation of the critical velocity based on the NFPA 130 standard for fixed guideway transit systems.
• Analysis of the piston effect to determine the additive thrust provided by accelerating and decelerating train sets.
• Modeling of the smoke layer height to ensure the "clear height" remains sufficient for safe evacuation.
• Evaluation of the roughness coefficient of the tunnel walls to determine frictional pressure losses.

Jet-Fan Array Optimization and Thrust Distribution

The implementation of forced air jet-fan systems across the Gold Strike Alignment requires a strategic array configuration to ensure uniform airflow without creating excessive turbulence or "dead zones." Unlike traditional shaft-based ventilation, jet fans are mounted to the tunnel crown and operate by inducing a high-velocity air stream that entrains the surrounding air. The total thrust required for the G-Line is a function of the tunnel's cross-sectional area and the desired air velocity. To avoid the risk of fan burnout or mechanical failure during a thermal event, the fans are specified with high-temperature coatings and specialized bearings capable of operating in an environment of 250 degrees Celsius for a minimum of two hours.

The spacing of these fans is critical. If placed too closely, the discharge from one fan can create turbulence that interferes with the intake of the next, reducing the overall efficiency of the air column. Conversely, excessive spacing allows the air velocity to decay, potentially creating pockets of stagnant smoke. The G-Line utilizes a reversible axial fan configuration, allowing the control center to dictate the direction of smoke travel based on the location of the fire and the proximity of the nearest portal or ventilation shaft. This flexibility is essential for preventing the "plugging" effect, where smoke becomes trapped between two opposing air currents.

• Deployment of high-efficiency axial fans with variable frequency drives (VFDs) for precise thrust control.
• Strategic placement of fans in "clusters" to maximize the momentum flux across the tunnel diameter.
• Utilization of reversible blades to facilitate bidirectional smoke evacuation depending on the fire's coordinates.
• Integration of vibration isolation mounts to prevent harmonic resonance from transferring to the tunnel lining.

Thermal Load Analysis and Envelope Forensics

From a forensic engineering perspective, the interaction between the smoke plume and the tunnel envelope is the most critical variable in structural survival. In a high-intensity fire, the tunnel lining—typically composed of reinforced concrete or precast segments—is subject to extreme thermal stress. The forced air system does more than just move smoke; it acts as a cooling mechanism for the tunnel crown. However, if the jet fans are not calibrated correctly, the high-velocity air can actually feed the fire by providing a continuous supply of oxygen, thereby increasing the heat release rate and accelerating the degradation of the concrete.

The phenomenon of concrete spalling is a primary concern in the G-Line alignment. When moisture within the concrete pores reaches boiling point, the resulting internal pressure can cause the surface to fracture and break away, exposing the steel reinforcement to direct heat. Once the reinforcement reaches a critical temperature, its yield strength drops precipitously, risking a localized collapse of the tunnel arch. The jet-fan system is designed to mitigate this by rapidly removing the superheated gas layer, thereby limiting the duration of the thermal soak. Forensic analysis of similar alignments suggests that maintaining a consistent airflow of 3 meters per second can reduce the peak temperature at the crown by as much as 40 percent.

• Monitoring of the thermal expansion coefficients of the tunnel lining during simulated fire events.
• Assessment of the "spalling threshold" for the specific concrete mix used in the Gold Strike alignment.
• Analysis of the heat transfer coefficient between the smoke layer and the tunnel envelope.
• Evaluation of the impact of soot deposition on the thermal emissivity of the tunnel walls.

SCADA Integration and Automated Life Safety Protocols

The operational efficacy of the G-Line smoke evacuation system relies entirely on the integration of the Supervisory Control and Data Acquisition (SCADA) system. The system utilizes a network of linear heat detection cables and optical smoke sensors to pinpoint the exact location of a thermal event. Upon detection, the SCADA logic executes a pre-programmed "Fire Mode" sequence. This involves the immediate shutdown of non-essential ventilation and the activation of the jet-fan array in a specific sequence to establish a unidirectional flow toward the nearest safe exit portal.

The complexity of this automation lies in the "fail-safe" logic. In the event of a power failure, the system must transition to redundant backup generators without a loss of thrust that would allow the smoke to backlayer. Furthermore, the system must account for the "chimney effect" if the G-Line alignment includes significant gradients. Air naturally tends to move upward in a heated tunnel; therefore, the SCADA system must be capable of overriding natural buoyancy to force smoke downward if the evacuation route is located at a lower elevation. This requires a sophisticated understanding of the pressure differentials between the tunnel interior and the external atmosphere at the portals.

• Real-time monitoring of fan amperage and vibration to detect mechanical failure during emergency operations.
• Automated synchronization between the rail signaling system and the ventilation array to halt trains in safe zones.
• Implementation of a "heartbeat" signal between the SCADA master and the remote terminal units (RTUs) to ensure constant communication.
• Integration of smoke-curtain deployment triggers to compartmentalize the tunnel and limit smoke migration.

Electromechanical Fundamentals of Regenerative Braking in the N-Line System

The N-Line North Metro Express utilizes a sophisticated regenerative braking architecture designed to capture kinetic energy that would otherwise be dissipated as waste heat through friction-based braking systems. At the core of this process is the traction motor, which operates in a dual-mode capacity. During the acceleration phase, the motor consumes electrical energy from the third rail or catenary system to produce torque. However, upon the initiation of the braking sequence, the Traction Control Unit (TCU) reverses the current flow, effectively transitioning the motor into a generator. This process converts the vehicle's forward momentum into electrical energy via back-electromotive force (back-EMF).

The efficiency of this energy capture is contingent upon the synchronization of the braking torque with the electrical load. If the grid or the onboard storage cannot accept the generated current, the system must rely on dynamic braking resistors—essentially massive heat sinks—to burn off the excess energy. To minimize these losses, the N-Line employs a high-frequency switching mechanism that modulates the current to maintain a stable voltage profile during the deceleration curve. This ensures that the maximum possible percentage of kinetic energy is recovered without compromising the safety or stability of the rolling stock.

• Kinetic energy conversion via permanent magnet synchronous motors (PMSM).
• Real-time modulation of braking torque to prevent wheel slip and slide.
• Integration of electronic braking blends to transition between regenerative and pneumatic systems.
• Utilization of high-voltage DC buses to minimize transmission losses during the recovery phase.

Grid Inversion and Power Quality Management

The primary technical challenge in the N-Line North Metro Express is not the generation of electricity, but the inversion and reintegration of that energy into the wider power grid. The energy recovered from the trains is inherently DC, whereas the utility grid operates on alternating current (AC). To bridge this gap, the system employs Active Front End (AFE) rectifiers and four-quadrant converters. These devices allow for bidirectional power flow, meaning the substation can both supply power to the trains and absorb power from them, feeding it back into the municipal grid.

This inversion process introduces significant risks regarding power quality, specifically in the form of harmonic distortion. When large amounts of current are pulsed back into the grid, they can create non-linear loads that distort the sinusoidal waveform of the AC supply. To mitigate this, the N-Line utilizes LCL filters (Inductor-Capacitor-Inductor) and advanced pulse-width modulation (PWM) strategies. These ensure that the Total Harmonic Distortion (THD) remains within the strict limits defined by IEEE 519 standards, preventing interference with other commercial infrastructure and avoiding the degradation of nearby electrical equipment.

• Implementation of bidirectional DC-AC inverters for seamless grid reintegration.
• Application of LCL filters to suppress high-frequency switching noise.
• Active monitoring of the voltage bus to prevent overvoltage transients during peak braking events.
• Coordination of phase-locked loops (PLL) to synchronize the inverted current with the utility grid frequency.

Energy Recovery Infrastructure and Storage Integration

While direct grid inversion is the primary goal, the volatility of braking events—where multiple trains may brake simultaneously—can overwhelm the local substation's capacity. To stabilize this, the N-Line incorporates Energy Storage Systems (ESS) located at strategic intervals along the North Metro corridor. These systems act as electrical buffers, absorbing the surge of energy during braking and releasing it during the high-demand acceleration phase of a departing train. This "peak shaving" reduces the stress on the primary transformers and lowers the overall operational cost of the line.

The choice of storage medium is critical for longevity and response time. The N-Line utilizes a hybrid approach combining supercapacitors for rapid-fire energy bursts and flywheel energy storage for medium-term buffering. Supercapacitors are preferred for their nearly infinite cycle life and ability to handle massive current densities, which is essential for the abrupt deceleration of a fully loaded metro carriage. Flywheels, conversely, provide a mechanical means of storing energy with lower degradation rates than chemical batteries, ensuring that the infrastructure remains viable for decades without frequent cell replacement.

• Deployment of supercapacitor banks for instantaneous energy absorption.
• Utilization of vacuum-sealed flywheels to minimize frictional losses in energy storage.
• Strategic placement of ESS units at high-traffic stations to optimize energy distribution.
• Integration of smart-grid controllers to balance load between the ESS and the utility provider.

Systemic Impact on Infrastructure Longevity and Operational Efficiency

From a forensic engineering perspective, the implementation of regenerative braking provides benefits that extend far beyond simple energy savings. One of the most significant impacts is the drastic reduction in thermal loading within the tunnel environments. Traditional friction braking converts kinetic energy into heat, which is then absorbed by the tunnel walls and the track bed. By diverting this energy back into the grid, the N-Line significantly reduces the heat island effect within its underground sections, thereby lowering the demand on the tunnel ventilation and cooling systems.

Furthermore, the reduction in mechanical wear is substantial. Pneumatic brake pads and discs are subject to extreme thermal cycling and abrasive wear, necessitating frequent maintenance intervals and generating hazardous particulate matter (brake dust). Regenerative braking handles the majority of the deceleration work, reserving the friction brakes for final stopping and emergency maneuvers. This extends the mean time between failures (MTBF) for the braking assembly and reduces the overall lifecycle cost of the rolling stock. The result is a highly efficient, low-maintenance system that demonstrates the synergy between electrical engineering and infrastructure durability.

• Reduction in particulate matter emissions through decreased reliance on friction braking.
• Lowered thermal stress on tunnel linings and building envelope components.
• Extension of the operational lifespan of brake pads and rotors.
• Decrease in overall energy expenditure per passenger kilometer through optimized recovery.

Mechanical Loading and Longitudinal Shear Stress Distribution

The E-Line Southeast Corridor represents a high-stress environment where the interaction between heavy-axle Bus Rapid Transit (BRT) vehicles and the pavement surface creates significant shear forces. Unlike standard residential or light commercial traffic, BRT systems utilize articulated vehicles with extreme gross vehicle weights (GVW) that concentrate loads on a limited number of contact patches. The primary driver of pavement shear in this corridor is the repetitive application of longitudinal forces during acceleration and deceleration phases, particularly at designated station boarding zones.

When a high-capacity transit vehicle initiates braking, the kinetic energy is transferred as a horizontal force across the pavement-tire interface. This creates a shear strain that penetrates through the wearing course and into the binder layer. If the shear stress exceeds the internal cohesive strength of the asphalt or the bond strength between the surface and the base, the material begins to displace laterally. This phenomenon is exacerbated by the "channelized" nature of dedicated right-of-way lanes, where vehicles follow the exact same wheel path with millimeter precision, concentrating the stress on a narrow strip of pavement.

• Dynamic Load Factors: The impact of sudden braking creates peak stresses that often exceed static load calculations by a factor of 1.5 to 2.0.
• Viscoelastic Response: At higher ambient temperatures, the asphalt binder enters a more fluid state, reducing its resistance to shear deformation.
• Axle Configuration: The dual-tire configurations of BRT vehicles create complex pressure bulbs within the pavement structure, leading to non-uniform stress distribution.
• Contact Pressure: High-pressure tires increase the vertical stress, which in turn increases the susceptibility to lateral shoving.

Subgrade Instability and Interface Friction Analysis

The forensic integrity of the E-Line Southeast Corridor is heavily dependent on the relationship between the pavement structure and the underlying subgrade. In this specific corridor, soil analysis indicates a prevalence of cohesive silts and clays which are highly susceptible to moisture fluctuations. When water infiltrates the pavement through micro-cracks or failed joint seals, it reduces the California Bearing Ratio (CBR) of the subgrade, effectively lowering the modulus of subgrade reaction.

Shear failure often originates at the interface between the base course and the asphaltic surface. When the subgrade loses its capacity to support the vertical load, the base course may undergo localized settlement. This creates a void or a "soft spot" that allows the upper layers to flex excessively. Under the repetitive shear loads of the BRT vehicles, this flexing leads to the development of a shear plane. Once this plane is established, the pavement layers begin to slide against one another, resulting in the characteristic "shoving" or "rippling" seen at the stop lines of the Southeast Corridor.

• Capillary Action: The rise of groundwater into the base course reduces the effective friction between aggregate particles.
• Compaction Deficits: Areas of insufficient compaction during the initial lay-down create zones of high compressibility.
• Interface Bond Strength: The failure of tack coats to properly adhere the wearing course to the binder layer accelerates delamination.
• Pore Water Pressure: Rapid loading from heavy vehicles can induce transient pore water pressure in saturated subgrades, triggering sudden shear failure.

Forensic Analysis of Surface Delamination and Rutting

Detailed forensic examination of the E-Line pavement reveals a progression of failure that begins with micro-rutting and culminates in full-depth shear failure. Rutting in this context is not merely a result of wear, but a manifestation of plastic deformation. The repeated application of heavy loads causes the aggregate to rearrange and the binder to migrate, leading to permanent depressions in the wheel paths. As these ruts deepen, they act as conduits for surface water, further weakening the structural integrity of the pavement.

The transition from rutting to shear failure occurs when the lateral displacement of the material becomes unsustainable. In the Southeast Corridor, this is most evident in the form of "corrugations"—transverse waves of asphalt that form perpendicular to the direction of travel. These waves are the result of the pavement reaching its shear limit; the material is literally pushed forward and upward by the force of the braking tires. This process is accelerated by hysteretic heating, where the internal friction of the asphalt under heavy load generates heat, further lowering the viscosity of the binder.

• Plastic Deformation: The permanent change in shape of the pavement layer due to stresses exceeding the yield point.
• Lateral Displacement: The physical movement of the asphalt mix toward the edges of the wheel path.
• Thermal Sensitivity: The correlation between peak summer temperatures and the acceleration of shear-induced rippling.
• Aggregate Interlock: The failure of the stone-on-stone contact within the mix, which normally provides the primary resistance to shear.

Engineering Remediation and Mitigation Strategies

To resolve the shear issues across the E-Line Southeast Corridor, a transition toward high-modulus materials and reinforced pavement structures is required. The standard asphalt mixes previously employed lack the shear resistance necessary for dedicated BRT lanes. The implementation of Stone Matrix Asphalt (SMA) or Polymer Modified Bitumen (PMB) is recommended. These materials provide a more robust skeletal structure of crushed aggregate and a binder that is less susceptible to temperature-induced viscosity changes, thereby increasing the overall shear strength of the wearing course.

Furthermore, the integration of geosynthetic reinforcements, such as biaxial geogrids, within the base course can distribute the vertical loads over a wider area, reducing the pressure on the subgrade. Improving the drainage architecture is also critical; the installation of edge drains and the application of high-performance joint sealants will prevent the infiltration of water that leads to subgrade softening. By increasing the interface friction and the internal cohesion of the pavement layers, the corridor can be stabilized against the extreme mechanical demands of the BRT system.

• Polymer Modification: Utilizing SBS (Styrene-Butadiene-Styrene) modifiers to enhance the elasticity and recovery of the binder.
• Geogrid Stabilization: Installing high-tensile strength grids to lock the base aggregate in place and prevent lateral spreading.
• Enhanced Drainage: Implementing a vacuum-sealed drainage system to maintain a constant moisture level in the subgrade.
• Strategic Overlays: Applying high-friction surface treatments (HFST) to reduce the reliance on mechanical grip and lower the shear force transferred to the asphalt.

Structural Load Analysis and Kinetic Impact Mitigation

The deployment of safety rails within the H-Line City Center Feeder CNG fueling zone requires a rigorous analysis of kinetic energy transfer and structural deflection. Given the mass of a standard transit bus, which can exceed 30,000 pounds when fully loaded, the safety rails must function as a high-capacity energy absorption system rather than a rigid stop. The primary engineering objective is to prevent vehicle penetration into the high-pressure CNG dispensing equipment, where a breach of the fuel lines could lead to catastrophic pressure release or ignition.

From a forensic engineering perspective, the rails must be designed to withstand a specific impact velocity without experiencing total shear failure at the anchor points. The calculation of the moment of inertia for the railing posts is critical; a reinforced hollow structural section (HSS) is preferred to provide a balance of strength and controlled deformation. By allowing for a calculated degree of plastic deformation, the railing system dissipates the kinetic energy of the vehicle, reducing the peak G-forces transferred to the concrete slab and the vehicle chassis.

• Dynamic load capacity must exceed 15,000 lbs of lateral force per linear foot to ensure containment.
• Anchor bolt configurations must utilize high-strength A325 bolts to prevent pull-out failure during a diagonal impact event.
• The railing height must be calibrated to the center of gravity of the bus fleet to avoid "underride" or "override" scenarios.
• Impact attenuation is achieved through the use of heavy-duty steel pipe rails with a minimum wall thickness of 0.375 inches.

Material Forensics and Corrosion Resistance in Fueling Zones

The environmental conditions of a CNG fueling station introduce specific chemical and physical stressors that can compromise the structural integrity of steel safety rails. While CNG is primarily methane, the surrounding infrastructure often involves the use of industrial degreasers and the accumulation of road salts and brine brought in by the fleet. This creates a highly corrosive micro-environment that can lead to pitting and stress-corrosion cracking (SCC) in substandard alloys.

To mitigate these risks, the specification calls for hot-dip galvanized steel conforming to ASTM A123. This process ensures a metallurgical bond between the zinc coating and the base steel, providing a sacrificial anode that protects the structural core. In areas where the railing is subject to frequent mechanical abrasion—such as the fueling approach zones—the application of a high-build epoxy powder coat over the galvanization is required. This dual-layer protection prevents the exposure of raw steel, which would otherwise become a focal point for oxidation and subsequent loss of cross-sectional area.

• Hot-dip galvanization provides a minimum coating thickness of 3.5 mils to ensure long-term atmospheric protection.
• Epoxy-polyester topcoats are utilized to provide high-visibility safety markings while resisting chemical degradation.
• Stainless steel fasteners (Grade 316) are mandated for all connection points to eliminate galvanic corrosion between dissimilar metals.
• Regular ultrasonic thickness testing is implemented to monitor the rate of material loss over the asset's lifecycle.

Integration with Pavement Infrastructure and Envelope Stability

The interface between the safety rail anchors and the H-Line City Center Feeder's concrete pavement represents a critical failure point. In commercial infrastructure, the "envelope" is not merely the building skin but the entire hardened surface supporting the fueling operations. The concrete slab must be analyzed for thickness and reinforcement to ensure it can distribute the lateral loads transmitted by the rails during an impact. A slab-on-grade system with insufficient depth or poor compaction will experience "heaving" or "cracking" at the perimeter of the rail installation, leading to a loss of anchor tension.

Engineering specifications for the H-Line project require the use of epoxy-set anchors rather than mechanical expansion anchors. Epoxy anchors create a chemical bond with the concrete substrate, which minimizes the internal stress placed on the concrete and prevents the formation of radial cracks. Furthermore, the placement of the rails must account for the existing expansion joints in the pavement. If a rail post is placed too close to a joint, the differential movement of the slabs can induce fatigue stress in the anchor bolts, potentially leading to a premature failure of the system under load.

• Minimum concrete compressive strength of 4,000 psi is required for all anchor embedment zones.
• Epoxy anchors must be installed with a minimum embedment depth of 12 inches to ensure full development of the tensile strength.
• Slab reinforcement is augmented with rebar cages around the railing perimeter to prevent localized punching shear.
• Thermal expansion gaps are integrated into the rail segments to allow for seasonal movement without distorting the alignment.

Regulatory Compliance and Life-Cycle Maintenance Protocols

The engineering of CNG safety rails is governed by a convergence of standards, including NFPA 59A (Standard for the Production, Storage, and Handling of LNG/CNG) and various OSHA guidelines for industrial guarding. Compliance is not a one-time event at the time of installation but a continuous state of operational readiness. The H-Line City Center Feeder requires a rigorous inspection regime to ensure that the "fail-safe" nature of the rails remains intact. Any impact, regardless of perceived severity, must trigger a forensic evaluation of the anchor points and the structural alignment.

Maintenance protocols focus on the "empirical health" of the system. This includes the verification of torque specifications on all bolted connections and the inspection of the concrete-to-steel interface for signs of spalling or separation. Because CNG fueling stations are high-vibration environments due to the operation of high-pressure compressors, the risk of fastener loosening is significant. The implementation of a quarterly audit—utilizing calibrated torque wrenches and visual forensics—ensures that the rails maintain their designed capacity to protect the fueling infrastructure and personnel.

• Annual certification of the railing system is required to meet municipal safety codes and insurance underwriters' mandates.
• Post-impact protocols require the immediate replacement of any deformed HSS sections to restore the original design load.
• Corrosion monitoring involves a visual check for "white rust" or red-oxide streaks, indicating a breach in the protective coating.
• Documentation of all maintenance activities is stored in a centralized asset management system for forensic auditing.

Subsurface Integration and Structural Load Distribution

The deployment of inductive charging pads across the R-Line Aurora Metro Ring necessitates a rigorous forensic approach to subsurface engineering. Unlike traditional plug-in infrastructure, inductive charging requires the embedding of primary coils within the depot’s reinforced concrete slabs. From a structural standpoint, the primary concern is the management of thermal expansion and the prevention of slab fracture. The inductive process generates localized heat, which, if not managed via high-thermal-conductivity concrete mixes, leads to differential thermal expansion between the charging pad and the surrounding pavement.

Engineering specifications for the R-Line depot require a minimum compressive strength of 4,500 psi for the concrete substrate, augmented with fiber-reinforced polymers to mitigate shrinkage cracks. The interface between the inductive coil and the concrete must be analyzed for potential delamination. If the bond between the epoxy-coated coil housing and the cementitious matrix fails, moisture ingress occurs, leading to the corrosion of internal wiring and a significant drop in energy transfer efficiency.

• Implementation of low-shrinkage concrete additives to maintain structural integrity around the charging pads.
• Utilization of thermal break joints to prevent heat migration from the charging bay to the primary structural columns.
• Precision leveling of the slab to within 3mm over 10 feet to ensure optimal air-gap distance between the vehicle receiver and the ground pad.
• Application of hydrophobic sealants to prevent chloride penetration from winter road salts into the inductive housing.

Furthermore, the load-bearing capacity of the slab must account for the static weight of the electric buses during the charging cycle, combined with the dynamic loads of vehicle positioning. The R-Line’s heavy-duty chassis requires a slab thickness of no less than 12 inches in charging zones to prevent punching shear failures, particularly where the inductive pads create a localized discontinuity in the reinforcement grid.

Dynamic Load Balancing and Power Electronics Architecture

The electrical demand of a full-scale inductive depot for the Aurora Metro Ring is substantial, requiring a sophisticated load management system to avoid catastrophic grid instability and exorbitant peak-demand charges. The core of this architecture is the Centralized Power Management Controller (CPMC), which orchestrates the distribution of kilowatts across multiple charging bays based on the State of Charge (SoC) of each bus and the real-time capacity of the local utility transformer.

To prevent harmonic distortion and voltage sags, the system employs active front-end rectifiers and high-frequency inverters. The challenge lies in the synchronization of multiple high-power inductive links. When several buses charge simultaneously, the aggregate current draw can lead to overheating in the distribution switchgear. Consequently, the R-Line utilizes a "staggered-ramp" charging protocol, where power is scaled linearly rather than instantaneously, reducing the transient stress on the electrical infrastructure.

• Deployment of peak-shaving algorithms that utilize onsite battery energy storage systems (BESS) to buffer the grid during peak demand.
• Real-time monitoring of Total Harmonic Distortion (THD) to ensure compliance with IEEE 519 standards.
• Dynamic allocation of power based on the scheduled departure time of each vehicle, prioritizing those with the lowest SoC.
• Integration of smart meters at each bay to track energy throughput and identify failing coils through efficiency degradation metrics.

The efficiency of the energy transfer is governed by the coupling coefficient between the primary and secondary coils. Any misalignment of the bus over the pad results in an immediate drop in efficiency, forcing the power electronics to increase current to maintain the target charging rate. This increase in current elevates the thermal load on the components, necessitating a clinical approach to the cooling systems integrated into the power cabinets.

Environmental Forensics and Building Envelope Degradation

From a building envelope perspective, the R-Line depot is not merely a garage but a complex thermal environment. The heat dissipated by the inductive charging process creates a localized "heat island" effect within the depot. This thermal plume rises and interacts with the ceiling and roofing systems, potentially altering the dew point within the building envelope. If the roof insulation is not properly vented, this heat can lead to the acceleration of thermal bridging, where heat bypasses insulation and creates condensation on the interior surfaces of the roof deck.

Forensic analysis of the envelope reveals that prolonged exposure to these thermal cycles can cause the degradation of sealant joints and the premature aging of thermoplastic roofing membranes. The constant expansion and contraction of the roof structure, driven by the intermittent heat loads from the charging bays, increase the risk of fatigue-induced leaks. This is particularly critical in the Aurora climate, where extreme external temperature swings exacerbate the internal thermal stress.

• Monitoring of interstitial condensation using hygrometers to prevent mold growth within the wall assemblies.
• Installation of high-volume, low-speed (HVLS) fans to homogenize the internal temperature and prevent heat stagnation over the charging pads.
• Use of reflective, high-albedo roofing materials to reduce the overall heat load on the building envelope.
• Implementation of flexible flashing at all penetration points to accommodate the thermal movement of the structural steel.

Moreover, the interaction between the inductive electromagnetic fields and the metallic components of the building’s structural frame must be analyzed. While the fields are localized, any unintended induction in nearby steel beams can lead to localized heating, which may compromise the fire-resistive coatings applied to the steel, necessitating a specialized forensic coating that can withstand intermittent electromagnetic stress.

Operational Scalability and Reliability Metrics

The long-term viability of the R-Line Aurora Metro Ring depends on the Mean Time Between Failures (MTBF) of the inductive hardware. Unlike conductive charging, where the primary failure point is the physical wear of the plug and socket, inductive failure is typically electronic or structural. The primary failure modes identified in this deployment include coil insulation breakdown and the degradation of the power MOSFETs within the inverter stages due to thermal cycling.

To ensure operational continuity, a predictive maintenance framework is employed. By analyzing the "Q-factor" of the inductive resonance, technicians can identify the onset of coil degradation before a total failure occurs. This empirical data allows for the scheduling of maintenance during low-demand periods, ensuring that the R-Line maintains its required fleet availability. The scalability of the system is further managed by a

Physical Infrastructure and Signal Propagation Impediments

The deployment of Automated Fare Collection (AFC) RFID readers across the W-Line West Colfax Light Rail corridor presents a complex intersection of electromagnetic theory and structural engineering. From a forensic infrastructure perspective, the latency observed in transponder communication is rarely a result of a single component failure, but rather a cumulative effect of signal attenuation caused by the surrounding building envelope and platform materials. The readers are typically mounted on galvanized steel supports or integrated into reinforced concrete kiosks, both of which act as parasitic elements that distort the RF field. When a transponder enters the interrogation zone, the proximity of these conductive surfaces creates eddy currents that shift the antenna's resonant frequency, leading to a mismatch between the reader's output and the transponder's tuned circuit.

Furthermore, the dielectric properties of the protective polycarbonate shields used to house the readers contribute to signal dispersion. While these shields are necessary for weatherproofing and impact resistance, an improper thickness or a low-grade polymer can introduce a phase shift in the 13.56 MHz carrier wave. This results in a degraded Signal-to-Noise Ratio (SNR), forcing the reader to execute multiple polling cycles before a successful handshake is established. In the context of high-throughput transit, a delay of even 200 milliseconds per passenger can lead to significant platform congestion and "gate-lag," where the physical movement of the passenger outpaces the digital validation of the fare.

• Dielectric loading from enclosure materials causing frequency detuning.
• Multipath interference resulting from reflective metal surfaces on the W-Line platforms.
• Impedance mismatch between the reader antenna and the transponder load.
• Signal shadowing caused by structural pillars and architectural overhangs.

Electromagnetic Interference and Power Rail Harmonics

The W-Line West Colfax corridor is characterized by high-voltage overhead catenary systems (OCS) that generate substantial electromagnetic interference (EMI). The interaction between the light rail's traction power and the low-voltage DC power supplying the RFID readers is a primary driver of transient latency. Specifically, the rapid switching of the traction motors creates harmonic distortions that propagate through the grounding system. If the RFID reader's chassis is not properly isolated from the platform's common ground, these currents can induce noise on the reader's internal data bus, triggering internal error-correction routines that pause the transponder interrogation process.

Clinical analysis of the power quality reveals that voltage sags and surges, common during the acceleration and deceleration of trains, can cause the reader's microcontroller to undergo brief "brown-out" resets or trigger watchdog timers. While these resets may not result in a full system crash, they introduce non-deterministic latency into the polling loop. The transponder, which relies on inductive coupling to power its own internal chip, may experience a momentary loss of energy if the reader's field strength fluctuates due to these power rail harmonics. This necessitates a full re-initialization of the ISO/IEC 14443 protocol, adding critical milliseconds to the transaction time.

• Inductive coupling of OCS noise into the reader's signal processing circuitry.
• Ground loop currents creating a common-mode noise floor that obscures the transponder response.
• Transient voltage spikes causing intermittent CPU stalls in the AFC hardware.
• Harmonic distortion in the 60Hz power supply affecting the stability of the RF carrier.

Protocol Analysis and Transponder Handshake Latency

The latency experienced across the W-Line is further exacerbated by the specific execution of the anti-collision sequence within the RFID protocol. In a high-density environment, multiple transponders may enter the reader's field simultaneously—such as when a group of passengers taps in together. The reader must employ a binary search or time-slotting algorithm to isolate each unique UID (Unique Identifier). When the RF environment is compromised by the aforementioned structural and electrical noise, the probability of a "collision" increases, as the reader may misinterpret noise as a transponder response, leading to failed attempts and subsequent retries.

From a technical standpoint, the latency is measured from the moment the transponder enters the "read zone" to the moment the "Access Granted" signal is sent to the backend server. The bottleneck often occurs during the mutual authentication phase, where encrypted keys are exchanged. If the signal strength is marginal due to poor antenna alignment or environmental shielding, the bit-error rate (BER) increases. This forces the system to rely on the Data Link Layer's retransmission mechanisms. In an optimized system, a handshake should occur in under 100ms; however, on the West Colfax line, empirical data suggests peaks of 450ms to 800ms during peak hours, which is well above the industry standard for seamless transit flow.

• Increased bit-error rates (BER) leading to repeated packet retransmissions.
• Inefficient anti-collision cycles caused by RF noise being misinterpreted as a tag.
• Latency spikes during the AES-128 encrypted handshake process.
• Time-out delays resulting from weak inductive coupling in the "marginal zone" of the antenna.

Engineering Remediation and Infrastructure Hardening

To mitigate these latency issues, a comprehensive hardening of the reader infrastructure is required. The first priority is the implementation of ferrite shielding behind the reader antennas. By applying a high-permeability ferrite sheet between the antenna and the metal mounting bracket, the RF field can be redirected away from the conductive support and concentrated toward the passenger. This effectively reduces the detuning effect and increases the effective read range, ensuring that the transponder is powered up and stabilized well before it reaches the center of the interrogation zone. This approach mirrors the forensic techniques used in building envelope sealing, where the goal is to eliminate "leaks" and optimize the flow of energy.

Additionally, the electrical architecture must be upgraded to include dedicated galvanic isolation for the AFC power supplies. Utilizing isolated DC-DC converters and high-grade surge suppression will decouple the readers from the traction power harmonics of the W-Line. From a structural perspective, replacing the current polycarbonate shields with RF-transparent, low-loss polymers will reduce the phase shift and signal attenuation. Finally, implementing a "fast-poll" firmware update that optimizes the anti-collision

Kinematic Analysis and Load Distribution of Gap Filler Linkages

The mechanical integrity of the ADA platform gap filler systems deployed across the Flatiron Flyer US-36 BRT corridor depends entirely on the management of dynamic loads during the transition from a retracted to a deployed state. From an engineering perspective, these linkages function as constrained kinematic chains that must translate a primary actuation force into a precise, horizontal extension to bridge the void between the station curb and the vehicle floor. The primary failure mode identified in these systems is typically centered on the pivot points and the primary load-bearing pins, where shear stress is maximized during the initial contact phase of the deployment cycle.

When the linkage extends, it is subject to a combination of cantilevered bending moments and axial compression. The structural efficiency of the linkage is governed by the leverage ratio of the actuator to the extension arm. If the linkage geometry is not perfectly aligned, parasitic torques are introduced, leading to uneven wear on the bushings and an acceleration of ovalization in the pivot holes. This degradation reduces the stiffness of the assembly, resulting in "play" that can compromise the gap filler's ability to maintain a flush interface with the bus threshold, potentially creating a trip hazard or a failure in ADA compliance.

• Analysis of shear stress concentrations at the primary pivot pins using Finite Element Analysis (FEA).
• Evaluation of the moment arm efficiency to ensure actuation forces remain within the rated capacity of the hydraulic or electric drive.
• Assessment of the kinematic synchronization between the platform-side linkage and the vehicle-side docking interface.
• Calculation of the maximum allowable deflection under full passenger loading conditions to prevent structural buckling.

Material Degradation and Environmental Forensics in the US-36 Corridor

The US-36 corridor presents a hostile environment for precision mechanical linkages due to extreme diurnal temperature swings and the heavy application of chemical de-icing agents. Forensic analysis of failed components reveals a high incidence of galvanic corrosion where dissimilar metals—typically stainless steel fasteners and carbon steel structural members—interface without adequate dielectric isolation. The penetration of chloride-rich brine into the pivot joints leads to pitting corrosion, which acts as a stress riser and initiates fatigue cracking under cyclic loading.

Furthermore, the thermal expansion coefficients of the steel linkages differ significantly from the reinforced concrete of the platform. During peak summer temperatures, the expansion of the mechanical assembly can lead to binding within the guide rails, increasing the friction coefficient and placing undue strain on the actuators. Conversely, in sub-zero winter conditions, the viscosity of lubricants increases, often leading to "stiction" or sudden jerky movements during deployment. This erratic movement induces shock loads into the linkage, which can lead to the sudden failure of weldments or the shearing of mounting bolts.

• Examination of surface oxidation levels using microscopic forensics to determine the rate of material loss.
• Testing of lubricant stability across a temperature range of -20°C to 40°C to ensure consistent kinematic performance.
• Evaluation of the effectiveness of powder-coated versus galvanized finishes in resisting chloride-induced pitting.
• Analysis of weldment integrity using non-destructive ultrasonic testing to identify subsurface fatigue cracks.

Tolerance Stack-up and Alignment Fatigue

In high-frequency BRT operations, the precision of the "docking" process is the primary determinant of the linkage's lifespan. Tolerance stack-up occurs when the cumulative variances in the bus stopping position, the platform curb alignment, and the linkage extension length exceed the design threshold. When the gap filler is forced to accommodate a vehicle that is improperly docked, the linkage is subjected to lateral forces for which it was not primarily designed. These side-loads introduce bending stresses into the guide rails and can cause the linkage to bind, leading to a "hard stop" scenario that transmits a high-magnitude shock wave through the entire assembly.

This alignment fatigue manifests as a gradual migration of the linkage center-line. Over thousands of cycles, the repeated impact of the vehicle threshold against the gap filler causes the mounting hardware to loosen or the structural steel to undergo plastic deformation. Once the linkage is out of alignment, the friction between the sliding components increases exponentially, leading to accelerated wear on the wear-plates and a decrease in the overall reliability of the ADA access point. The result is a system that requires more frequent manual intervention and a higher rate of component replacement.

• Quantification of the millimetric variance in vehicle docking positions across multiple station stops.
• Mapping of the load path during a misaligned docking event to identify the weakest structural link.
• Assessment of the impact of curb-side wear on the gap filler's ability to maintain a seamless transition.
• Implementation of precision shimming protocols to correct for platform settlement and tilt.

Life-Cycle Mitigation and Maintenance Protocols

To ensure the long-term durability of the ADA platform gap fillers, a transition from reactive to predictive maintenance is mandatory. The Mean Time Between Failures (MTBF) for these linkages is heavily influenced by the rigor of the lubrication schedule and the frequency of alignment audits. A master-level maintenance protocol must prioritize the replacement of sacrificial wear components—such as bronze bushings and polymer sliders—before they reach the point of catastrophic failure. By replacing these low-cost components on a fixed cycle, the primary structural members are protected from the effects of metal-on-metal grinding.

Furthermore, the integration of sensor-based monitoring can provide empirical data on the health of the linkage. By monitoring the current draw of the actuators, technicians can identify an increase in friction—indicating a lack of lubrication or a misalignment—long before a visual inspection would reveal the problem. This data-driven approach allows for the optimization of maintenance windows, ensuring that the US-36 BRT system maintains maximum availability while adhering to the strict safety and accessibility standards required for public infrastructure.

• Establishment of a rigorous lubrication calendar using high-pressure synthetic greases with molybdenum disulfide additives.
• Deployment of a quarterly alignment audit using laser-leveling tools to ensure the linkage remains within the 5mm tolerance window.
• Implementation of a "wear-gauge" inspection system to monitor the thinning of structural plates and bushings.
• Development of a standardized replacement kit for high-stress fasteners

Geotechnical Stratigraphy and Site-Specific Constraints

The Colfax Avenue BRT corridor presents a complex geotechnical environment characterized by heterogeneous urban fill and stratified alluvial deposits. For the engineering authority, the primary concern is the interaction between the existing commercial building envelopes and the proposed steep slope embankments. The subsurface profile typically reveals a layer of uncontrolled fill overlying dense silty sands and clays, which creates a high risk of differential settlement if not properly stabilized. The presence of legacy utility conduits and existing foundation footings necessitates a surgical approach to slope stabilization, where traditional gravity walls would impose excessive surcharge loads on the underlying strata.

Analysis of the soil shear strength, determined through Standard Penetration Tests (SPT) and laboratory triaxial shear tests, indicates a propensity for slope failure during saturated conditions. The high water table associated with urban runoff patterns further complicates the stability of the embankment. To mitigate these risks, the engineering strategy shifts from mass-stabilization to internal reinforcement via soil nailing, which effectively transforms the soil mass into a coherent, gravity-retaining structure.

• Identification of critical slip planes based on the Bishop simplified method of slices.
• Assessment of soil-nail bond strength across varying strata of silty sand and clay.
• Evaluation of surcharge loads from adjacent commercial structures and BRT transit vehicles.
• Analysis of hydrostatic pressure accumulation within the embankment core.

Soil Nail Design and Load Distribution Mechanics

The soil nailing system implemented across the Colfax Avenue project operates on the principle of passive reinforcement. Unlike soil anchors, which are pre-stressed, soil nails are installed as passive elements that mobilize resistance as the soil mass begins to deform. The design utilizes high-strength, threaded steel bars, typically coated in epoxy or galvanized to prevent corrosion in the aggressive urban soil environment. These nails are installed at a downward inclination, typically between 10 and 20 degrees, to optimize the intersection with potential failure planes.

The load transfer mechanism relies on the grout-to-ground bond strength. The nail is inserted into a pre-drilled hole and fully grouted, creating a composite cylinder that resists tensile forces. The length of the nails is calculated to extend beyond the critical failure surface and deep into the stable, non-yielding zone of the embankment. This creates a reinforced soil block that acts as a monolithic unit, significantly increasing the factor of safety against global slope failure.

• Nail spacing optimized at 1.5m to 2.0m horizontally and vertically to ensure overlapping zones of influence.
• Utilization of Grade 75 or Grade 150 steel bars to maximize tensile capacity per borehole.
• Implementation of a phased installation sequence to maintain slope stability during the excavation process.
• Calculation of the "active zone" versus the "resistant zone" to determine minimum nail embedment lengths.

Facing Systems and Hydrostatic Pressure Management

The structural integrity of a soil nail wall is fundamentally dependent on the facing system, which prevents localized surface sloughing and transfers loads between the nail heads. For the Colfax Avenue BRT line, a reinforced shotcrete facing is the industry standard. This facing is applied in two stages: an initial layer to stabilize the cut face and a final structural layer reinforced with welded wire fabric or fiber-reinforced concrete. The shotcrete must be meticulously applied to ensure a seamless bond with the soil, eliminating voids that could lead to localized failure.

A critical failure point in steep slope stabilization is the buildup of pore water pressure behind the facing. To counteract this, a comprehensive drainage strategy is integrated into the building envelope of the wall. Geocomposite drainage mats are installed between the soil and the shotcrete, directing water toward a series of perforated collector pipes at the base of the slope. This prevents the "bathtub effect," where trapped water increases the lateral earth pressure and reduces the effective stress of the soil, which would otherwise jeopardize the bond strength of the nails.

• Application of wet-mix shotcrete for reduced rebound and increased density.
• Integration of HDPE drainage composites to facilitate rapid vertical water transport.
• Installation of weep holes at calculated intervals to relieve hydrostatic pressure in stagnant zones.
• Use of corrosion-resistant nail plates and nuts to ensure long-term load transfer to the facing.

Forensic Validation and Long-Term Monitoring

Post-construction validation is essential to ensure that the empirical assumptions made during the design phase align with the actual field performance. The engineering authority employs a rigorous monitoring regime to track the deformation and settlement of the embankment over time. Inclinometers are installed at critical sections of the slope to monitor lateral movement, while load cells are attached to select nail heads to verify that the mobilized tension remains within the design limits. This forensic approach allows for the early detection of creep or unexpected settlement, enabling proactive remediation before a catastrophic failure occurs.

The long-term durability of the stabilization system is further analyzed through the lens of environmental exposure. Given the urban setting of Colfax Avenue, the impact of road salts and chemical runoff on the concrete facing and steel reinforcement is a primary concern. Regular inspections focus on the identification of hairline cracks in the shotcrete, which could indicate excessive movement or the onset of steel corrosion. By maintaining a detailed record of these observations, the technical analyst can predict the service life of the infrastructure and schedule maintenance cycles that prevent the degradation of the reinforced soil mass.

• Bi-annual inclinometer readings to map the displacement vector of the slope.
• Visual inspection of shotcrete facing for spalling, cracking, or efflorescence.
• Verification of drainage outlet functionality to ensure the absence of internal saturation.
• Comparison of field-measured nail loads against theoretical predictions using finite element analysis.

Acoustic Environment and Baseline Noise Profiling

The Civic Center Transit Concourse presents a complex acoustic environment characterized by high-volume ambient noise and significant reverberation. The primary architectural composition—consisting of polished concrete flooring, expansive glass curtain walls, and exposed steel superstructures—creates a high-impedance boundary condition. These hard surfaces facilitate specular reflections, leading to a sustained reverberation time (RT60) that exceeds acceptable industry standards for public transit hubs. This phenomenon results in a "cacophony effect," where overlapping sound waves from arriving trains, public address systems, and pedestrian traffic merge into a dense noise floor, severely degrading speech intelligibility and increasing occupant stress.

To establish a baseline for soundwall absorption calculations, a comprehensive noise profile must be mapped across the concourse. This involves measuring the equivalent continuous sound level (Leq) and the peak sound pressure levels (Lmax) during peak transit hours. The frequency spectrum typically reveals a dominance of low-frequency rumble (below 250 Hz) generated by heavy rail machinery and mid-to-high frequency transients (1 kHz to 4 kHz) from braking systems and human activity. The goal of the noise barrier is not merely to block the transmission of sound but to manage the energy distribution within the space to prevent the buildup of standing waves.

• Analysis of the Sound Pressure Level (SPL) at various receiver points to identify "hot spots" of noise accumulation.
• Evaluation of the Noise Reduction (NR) required to bring the ambient environment within the 60-65 dB(A) range.
• Mapping of the primary sound paths to determine the optimal placement of absorption barriers.
• Assessment of the existing ceiling height and its contribution to the vertical reflection of acoustic energy.

Material Specification and Absorption Coefficients

The selection of materials for the soundwall must be predicated on the Noise Reduction Coefficient (NRC), which represents the average of the sound absorption coefficients at 250, 500, 1000, and 2000 Hz. In a high-traffic transit environment, a hybrid approach is required. While dense, high-mass materials are effective at blocking sound transmission (Sound Transmission Class or STC), they often reflect sound back into the source area, potentially worsening the noise levels for transit operators. Therefore, the integration of porous absorbers is critical to convert acoustic energy into heat through friction within the material's internal structure.

For the Civic Center project, the specified soundwall utilizes a multi-layered composite system. This includes a perforated metal facing to protect the core, a high-density mineral wool interior for broadband absorption, and a resilient mounting system to decouple the wall from the structural slab. The perforated facing serves a dual purpose: it allows sound waves to penetrate the surface and enter the absorbent core while providing the necessary structural rigidity for a commercial installation. The air gap between the soundwall and the primary structural wall further enhances low-frequency absorption by creating a resonant cavity, effectively acting as a bass trap.

• Utilization of high-density mineral wool with an NRC rating of 0.95 or higher for maximum energy dissipation.
• Implementation of perforated aluminum panels with a specific open-area percentage to tune the absorption frequency.
• Integration of acoustic sealants at all joints to prevent "acoustic leaking," which can compromise the overall STC rating.
• Application of non-reflective coatings to minimize high-frequency specular reflections.

Calculation Methodologies for Sound Transmission Loss

The engineering of the soundwall relies on the calculation of Sound Transmission Loss (STL) and the determination of the "shadow zone" created by the barrier. The primary mechanism for noise reduction in this context is diffraction—the bending of sound waves around the top and sides of the wall. To calculate the effectiveness of the barrier, we employ the Fresnel number (N), which relates the difference between the path length over the top of the wall and the direct line-of-sight path between the source and the receiver. A higher Fresnel number indicates a deeper shadow zone and, consequently, a greater reduction in decibel levels.

The total insertion loss (IL) is calculated by summing the direct transmission loss and the diffraction loss. In the Civic Center concourse, the calculations must account for the "flanking" effect, where sound travels through the floor or ceiling and bypasses the wall entirely. This requires a rigorous analysis of the building envelope forensics to ensure that the soundwall is not undermined by structural vibrations or air-borne leaks. The formula for diffraction loss is applied across a range of frequencies, ensuring that the wall height is sufficient to attenuate the longest wavelengths (low frequencies) while the material density handles the shorter wavelengths (high frequencies).

• Calculation of the diffraction loss using the Maekawa formula to determine the decibel drop at the receiver point.
• Determination of the transmission loss (TL) based on the mass law, where increased mass leads to higher attenuation of low-frequency energy.
• Assessment of the "edge effect," where the geometry of the wall's top edge is tapered to further reduce diffraction.
• Modeling of the sound field using Ray Tracing software to predict the impact of the wall on the overall RT60 of the concourse.

Forensic Validation and Field Performance Metrics

Post-installation validation is essential to ensure that the theoretical calculations align with empirical field data. This process involves a series of controlled acoustic tests using a calibrated omnidirectional sound source. By measuring the sound pressure levels on both sides of the soundwall, engineers can calculate the actual Sound Transmission Class (STC) and compare it against the design specifications. Any discrepancy between the predicted and actual performance usually indicates a failure in the seal or an unforeseen flanking path, such as a gap in the ceiling plenum or a vibration bridge through the steel supports.

Furthermore, the impact of the soundwall on the overall concourse acoustics is measured through impulse response testing. This involves triggering a high-energy acoustic event (such as a starter pistol or a balloon pop) and recording the decay time. A successful installation will show a marked decrease in the RT60, particularly in the mid-frequency range, resulting in a "drier" acoustic environment. This forensic approach ensures that the soundwall does not merely move the noise from one area to another but actively removes energy from the system, thereby improving the overall habitability and safety of the transit hub.

• Execution of ISO 10140-2 standard tests to verify the airborne sound insulation of the installed barriers.
• Utilization of infrared thermography to identify air leaks in the soundwall seals, which often correlate with acoustic leaks.
• Conducting A-weighted sound pressure level mappings to visualize the reduction

Electromechanical Fundamentals of Track Circuit Shunting

At the core of railway signaling and occupancy detection is the track circuit, a fundamental electromechanical system designed to detect the presence of rolling stock through the principle of electrical shunting. In a standard configuration, a voltage source is applied to one end of a section of rail, while a relay or electronic receiver monitors the current at the opposite end. When a train occupies the section, the steel wheels and axles create a low-resistance path—a shunt—between the two rails, diverting the current away from the relay and triggering a "track occupied" state.

The efficacy of this system depends entirely on the shunting resistance, which is the total electrical resistance encountered by the current as it passes from one rail, through the wheelset, and into the opposing rail. For a system to operate with absolute reliability, the shunting resistance must remain below a specific critical threshold, typically measured in ohms. If the resistance exceeds this threshold, the system may fail to detect the train, resulting in a "false proceed" signal, which represents a catastrophic failure in safety-critical infrastructure.

Engineering analysis of these circuits requires a deep understanding of the contact interface. The primary variables influencing shunting sensitivity include:

• The metallurgical composition of the rail head and wheel tread.
• The surface area of the contact point between the wheel and the rail.
• The presence of interfacial contaminants, such as oils, rust, or environmental debris.
• The stability of the ballast resistance, which prevents current leakage into the ground.

The Dielectric Impact of Heavy Snow Accumulation

Heavy snow accumulation introduces a complex dielectric variable into the track circuit equation. While pure water is conductive, snow and ice act as insulators or semi-conductors depending on their crystalline structure, density, and temperature. In the context of the Boulder Junction Depot, the primary concern is the formation of a compressed snow-pack or an ice lens between the rail head and the wheelset. This layer of frozen precipitation increases the contact resistance, effectively insulating the wheel from the rail.

When snow accumulates rapidly, it often undergoes a process of compaction and partial melting due to the pressure of the rolling stock and the latent heat of the rail. This creates a slushy, high-impedance film. If the temperature hovers around the freezing point, the cycle of freezing and thawing can lead to "ice bridging," where a thin, hard layer of ice encapsulates the rail head. This layer possesses a significantly higher resistivity than the steel rail, which can push the total shunting resistance above the critical threshold required to trip the track relay.

The forensic analysis of snow-induced shunting failure focuses on the following empirical factors:

• Moisture content of the snow, which dictates the transition from an insulating to a conductive state.
• The thickness of the ice accretion on the rail head, measured in millimeters.
• The ambient temperature relative to the rail temperature, which affects the rate of sublimation and melting.
• The frequency of train movements, which can either clear the rail or compact the snow into a more resistive ice sheet.

Forensic Analysis of the Boulder Junction Depot Site

The Boulder Junction Depot presents a unique set of infrastructure challenges due to its specific building envelope and site topography. Forensic observation indicates that the depot's roofing system, characterized by a steep pitch and significant overhangs, contributes to localized snow loading. During heavy precipitation events, snow shedding from the roof eaves creates concentrated mounds of snow directly adjacent to the track bed. This creates a "snow-trap" effect, where wind-blown snow is captured and held against the rails, accelerating the buildup of ice lenses.

Furthermore, the interaction between the depot's thermal envelope and the surrounding environment creates a microclimate. Heat leakage from the depot structure can cause partial melting of snow on the platform, which then drains onto the rails and refreezes. This "thermal bridging" results in a layer of glaze ice that is far more resistant to shunting than fluffy, fresh snow. The resulting increase in contact resistance is most acute at the depot's boarding areas, where the rail is often shielded from the wind but exposed to runoff from the building's drainage systems.

Key site-specific vulnerabilities identified during the technical audit include:

• Inefficient guttering on the depot roof leading to uncontrolled runoff onto the track ballast.
• Localized cold spots in the track circuit where the ballast is saturated, increasing the risk of frost heave.
• The presence of organic debris from nearby foliage, which becomes embedded in the snow-pack and further increases the electrical impedance.
• Inconsistent rail grinding profiles that allow snow to accumulate in the rail crown.

Mitigation Strategies and Engineering Controls

To ensure the integrity of track circuit shunting during extreme winter conditions, a multi-layered engineering approach is required. The primary objective is to maintain the contact resistance between the wheel and the rail below the critical threshold, regardless of the environmental load. This is achieved through a combination of active thermal management and passive infrastructure modifications.

One of the most effective active measures is the installation of rail heating elements. These resistive heating cables are attached to the web of the rail, ensuring that the rail head remains above the freezing point. By preventing the formation of ice lenses, the system ensures a clean, metal-to-metal contact. Additionally, the implementation of "shunting-sensitive" relays, which are calibrated to a lower resistance threshold, can provide an extra margin of safety, although this may increase the rate of false-occupancy readings.

From a building envelope perspective, the depot's drainage must be re-engineered to prevent runoff from reaching the track bed. This involves the installation of high-capacity snow guards and redirected scuppers to move meltwater away from the rail infrastructure. Furthermore, the use of chemical de-icing agents, specifically those that do not corrode the rail steel or contaminate the ballast, can be used to lower the freezing point of the snow-pack.

Recommended technical interventions for the Boulder Junction Depot include:

• Installation of induction heating systems at critical shunting points across the depot throat.
• Modification of the depot's roof drainage to include heated gutters and diverted discharge pipes.
• Implementation of a rigorous rail-head scrubbing schedule using specialized maintenance vehicles during heavy snow events.
• Deployment of real-time monitoring sensors to track rail temperature and shunt resistance in real-time.

Structural Kinematics and Thermal Displacement Analysis

The pedestrian overpass at the Longmont Intermodal Terminal represents a complex intersection of static load-bearing requirements and dynamic thermal movement. The primary structural framework, consisting of welded steel trusses, is subject to significant linear expansion and contraction driven by the high diurnal temperature swings characteristic of the Colorado Front Range. When the structural steel reaches its thermal limit, the resulting stress must be dissipated through engineered expansion joints to prevent buckling or the introduction of parasitic loads into the primary abutments.

The expansion bellows serve as the critical interface between the fixed and floating sections of the overpass. From a kinematic perspective, these bellows must accommodate three-dimensional movement: longitudinal translation, vertical deflection due to live loads, and minor rotational shifts. Failure to properly calculate the coefficient of thermal expansion for the specific grade of steel used in the truss results in bellows that are either over-stressed during peak winter contraction or excessively slack during summer expansion, leading to premature material fatigue.

• Coefficient of Thermal Expansion (CTE) synchronization between the steel truss and the polymer bellows.
• Calculation of maximum gap width during extreme cold-weather events to ensure seal integrity.
• Analysis of live-load deflection patterns to prevent bellows pinching or over-extension.
• Evaluation of wind-induced oscillation and its impact on the fatigue life of the joint seals.

Engineering the weatherproofing for these joints requires a clinical understanding of the "accordion" effect. The bellows must maintain a constant internal volume and surface area ratio to ensure that the waterproofing membrane does not thin out or "neck" during extension. If the material thins beyond the specified gauge, the permeability increases, creating a direct path for moisture ingress into the structural steel members below.

Forensic Analysis of Bellows Failure Modes

Forensic examination of expansion joint failures in intermodal environments typically reveals a consistent pattern of degradation. The most prevalent failure mode is the loss of adhesion at the termination points where the bellows transition from a flexible polymer to a rigid steel substrate. This interface is the primary point of vulnerability; once the sealant bond is breached, capillary action draws moisture into the joint, leading to accelerated corrosion of the truss chords and gusset plates.

Furthermore, UV degradation plays a significant role in the degradation of the bellows' elasticity. Over time, the polymer chains in lower-grade elastomers break down under intense solar radiation, resulting in "alligatoring" or surface cracking. These micro-fractures act as stress concentrators, which, when coupled with the mechanical stress of thermal cycling, lead to catastrophic tearing. In the Longmont terminal environment, the presence of road salts and industrial pollutants further catalyzes the chemical breakdown of the membrane, exacerbating the rate of embrittlement.

• Adhesion failure at the mechanical fastening plates due to differential thermal movement.
• UV-induced polymer chain scission leading to loss of elongation capacity.
• Puncture damage from wind-borne debris or improper maintenance equipment usage.
• Hydrostatic pressure buildup behind the bellows, forcing water into the structural voids.

The resulting water infiltration is not merely a cosmetic issue but a structural risk. When moisture penetrates the bellows, it often traps humidity against the steel, creating a localized microclimate that promotes oxidation. This "hidden" corrosion is particularly dangerous because it occurs within the joint assembly, often remaining undetected until the structural integrity of the connection is compromised.

Material Specification and Membrane Engineering

To mitigate the failures identified in forensic analysis, the specification must shift toward high-performance elastomers with superior shore hardness and elongation properties. For the Longmont Intermodal Terminal, a multi-layered approach is recommended. The primary membrane should consist of a high-grade EPDM (Ethylene Propylene Diene Monomer) or a platinum-cured silicone, both of which offer exceptional resistance to ozone and extreme temperature fluctuations.

The engineering of the bellows requires a focus on "tear strength" and "cyclic loading" capacity. A reinforced membrane, incorporating a polyester or Kevlar scrim, provides the necessary dimensional stability to prevent over-extension while maintaining the flexibility required for thermal movement. The shore hardness must be carefully calibrated; a material that is too rigid will transfer stress to the fasteners, while a material that is too soft will be prone to sagging and water pooling, which increases the risk of hydrostatic infiltration.

• Specification of EPDM with a minimum elongation of 400% to accommodate maximum truss displacement.
• Utilization of UV-stabilized coatings to prevent surface embrittlement and maintain elasticity.
• Implementation of mechanical clamping rings with neoprene gaskets to ensure a redundant watertight seal.
• Selection of low-modulus sealants for the perimeter transitions to allow for independent movement.

Furthermore, the integration of a secondary drainage system—such as a stainless steel drip edge or a collection trough beneath the bellows—is an essential redundancy. By ensuring that any moisture that manages to bypass the primary seal is immediately diverted away from the steel truss, the engineer can effectively decouple the waterproofing performance from the structural longevity of the overpass.

Implementation Protocol and Lifecycle Maintenance

The installation of expansion bellows is a precision operation that demands strict adherence to tolerances. The process must begin with the thorough cleaning and priming of the steel substrates to ensure a chemically active surface for bonding. Mechanical fasteners must be torqued to specific values to avoid crushing the polymer membrane, which would create a permanent deformation and a localized point of failure.

Once installed, the bellows must be subjected to a rigorous commissioning process. This includes a water-spray test to verify the integrity of the seals and a visual inspection during a known thermal transition period. The goal is to ensure that the bellows transition smoothly between their compressed and extended states without binding or twisting, as any torsional stress will significantly reduce the lifespan of the elastomer.

• Execution of a three-stage cleaning process: solvent degreasing, mechanical abrasion, and primer application.
• Installation of bellows in a "neutral" position to balance the stress between maximum expansion and contraction.
• Application of a protective UV-shielding wrap over the primary bellows for added longevity.
• Verification of the drip-edge alignment to prevent water from tracking back toward the abutments.

Long-term viability is dependent upon a scheduled maintenance regime. This involves bi-annual inspections focusing on the "fold" points of the bellows, where stress is most concentrated. Any evidence of surface checking or loss of elasticity should trigger an immediate localized repair or a full membrane replacement. By treating the expansion bellows as a consumable component with a defined lifecycle, the terminal authority can avoid the massive capital expenditure associated with structural steel remediation and ensure the continued safety of the pedestrian infrastructure.

The Mechanics of Rutting in High-Torque Transit Environments

In the context of the Golden Station Transit Loop, the primary failure mechanism observed is permanent deformation, specifically longitudinal rutting. Unlike standard highway traffic, which maintains a consistent velocity and distributed lane usage, intermodal bus bays are subject to "channelized traffic." This phenomenon occurs when heavy-duty transit vehicles follow a precise, repetitive wheel path, concentrating massive axle loads on a narrow strip of asphalt. The result is a compounding cycle of shear stress that exceeds the material's internal resistance.

The rutting observed at Golden Station is not merely a surface abrasion but a structural failure of the asphalt layers. When a 40,000-pound transit bus decelerates or accelerates from a stop, it applies a high horizontal shear force to the pavement. This force pushes the aggregate particles laterally, causing the binder to migrate and the overall pavement structure to collapse vertically. This is exacerbated by the "static load" effect during passenger boarding, where the asphalt is subjected to prolonged pressure, allowing the viscoelastic material to flow under the weight.

• Channelized Loading: The concentration of heavy axle loads within a 12-inch wheel path.
• Shear Stress: The horizontal force generated during braking and acceleration at bus stops.
• Viscoelastic Flow: The tendency of bitumen to deform permanently under sustained high temperatures and heavy loads.
• Subgrade Compression: The potential for underlying base layers to consolidate under repetitive high-pressure cycles.

Rheological Failure of Conventional AC Asphalt Binders

Standard asphalt concrete (AC) typically utilizes a neat bitumen binder, graded according to Performance Grade (PG) standards. In the Golden Station environment, conventional PG 64-22 or similar binders often prove insufficient. The fundamental issue lies in the binder's temperature susceptibility. During peak summer months, the pavement temperature can rise significantly above the ambient air temperature due to solar absorption. As the binder reaches its softening point, its viscosity drops, reducing its ability to hold the aggregate skeleton in a locked position.

When the binder loses its stiffness, the aggregate particles are no longer suspended in a rigid matrix; instead, they begin to slide past one another. This process, known as plastic deformation, leads to the formation of ruts. In the Golden Station loop, the failure is often accelerated by the "shoving" effect, where the asphalt is pushed forward in waves during heavy braking. This indicates a failure in the binder's cohesive strength, meaning the internal bonds of the bitumen are unable to resist the mechanical energy transferred from the bus tires.

• Temperature Sensitivity: The rapid loss of modulus as pavement temperatures increase.
• Aggregate Displacement: The physical movement of stones within the matrix due to binder failure.
• Softening Point: The critical temperature at which the binder can no longer support the design axle load.
• Modulus Degradation: The reduction in the material's stiffness over repeated loading cycles.

Polymer Modified Binders (PMB) as a Structural Defense

To mitigate rutting at the Golden Station Transit Loop, the implementation of Polymer Modified Binders (PMB), specifically those utilizing Styrene-Butadiene-Styrene (SBS), is the engineering gold standard. Unlike neat bitumen, PMBs incorporate a cross-linked polymer network that fundamentally alters the rheology of the binder. The SBS polymer forms a three-dimensional elastic web within the bitumen, which acts as a reinforcing agent. This network provides a "memory" effect, allowing the pavement to recover its original shape after a load is removed, rather than sustaining permanent deformation.

The primary advantage of PMB is its expanded performance envelope. It increases the high-temperature stiffness (preventing rutting) while simultaneously improving low-temperature flexibility (preventing thermal cracking). In the bus bay environment, the polymer network resists the lateral movement of the aggregate. Even as temperatures rise, the polymer chains maintain the structural integrity of the binder, ensuring that the aggregate remains locked in place. This results in a significant reduction in the rate of rut depth progression, effectively extending the service life of the pavement by a factor of three to five compared to conventional AC.

• Elastic Recovery: The ability of the binder to return to its original state after deformation.
• SBS Integration: The use of thermoplastic elastomers to create a reinforced bitumen matrix.
• Enhanced Cohesion: Increased internal bonding that resists the "shoving" forces of heavy transit vehicles.
• Thermal Stability: A wider range of operating temperatures where the binder remains stable and stiff.

Implementation Protocols and Forensic Verification

The successful deployment of PMB across the Golden Station loop requires strict adherence to thermal and mechanical installation protocols. Because polymer-modified asphalt has a higher viscosity, it requires higher mixing and compaction temperatures to ensure proper workability and density. If the material cools too quickly during the lay-down process, the result is "cold spots" or poor compaction, which creates voids that become focal points for future rutting. Therefore, the use of insulated trucks and precision temperature monitoring is mandatory.

Post-installation, forensic verification is conducted through a combination of core sampling and Laser Profilometry. By measuring the Transverse Profile Index (TPI), engineers can quantify the exact depth of any emerging ruts. Furthermore, the use of Dynamic Cone Penetrometers (DCP) allows for the analysis of the subgrade's stability to ensure that the rutting is not a result of base-layer failure. A successful PMB installation at Golden Station is characterized by a minimal change in the TPI over a 24-month cycle, proving that the polymer network is successfully absorbing the shear energy of the transit fleet.

• Thermal Management: Maintaining precise temperatures during mixing and rolling to avoid segregation.
• Compaction Density: Ensuring a minimum of 96% of the theoretical maximum density to eliminate air voids.
• Laser Profilometry: Utilizing high-precision sensors to monitor rut depth in millimeters.
• Core Analysis: Extracting cylindrical samples to verify the homogeneity of the polymer distribution.

System Architecture and Interlock Logic for Third-Rail De-Energization

The Lakewood-Wadsworth Corridor utilizes a high-voltage DC traction power system, where the third rail serves as the primary conductor for motive power. To ensure personnel safety during emergency maintenance or rescue operations, the system employs a sophisticated network of de-energization interlocks. These interlocks are designed as fail-safe mechanisms, ensuring that power cannot be restored to a specific sector until all safety parameters are verified and physically locked. The architecture relies on a combination of hard-wired electrical relays and Programmable Logic Controllers (PLCs) that monitor the state of the circuit breakers at the traction power substations (TPSS).

The fundamental logic governing these interlocks is based on the principle of "positive isolation." This means the system does not merely rely on a switch position but requires a physical break in the circuit, often verified by a secondary monitoring loop. In the event of an emergency trigger, the interlock sequence initiates a rapid discharge of stored energy in the capacitors and opens the primary vacuum circuit breakers. This process is synchronized across the corridor to prevent transient voltage spikes that could damage onboard rolling stock or station-side electronics.

• Verification of "Open" state via auxiliary contacts on the primary circuit breaker.
• Integration of emergency stop (E-Stop) buttons located at 100-foot intervals along the platform and tunnel walls.
• Implementation of a "Trap-and-Lock" mechanism that prevents remote re-energization without a physical key turn at the local isolation point.
• Real-time telemetry feedback to the Central Control Center (CCC) via a redundant fiber-optic backbone.

Forensic Analysis of Failure Modes and Dielectric Breakdown

Engineering forensics conducted across the Lakewood-Wadsworth Corridor have identified several critical failure modes associated with the de-energization interlocks. The most prevalent issue is the degradation of the dielectric materials used in the insulation of the third-rail mounting brackets. Over time, the combination of vibration-induced wear and the accumulation of conductive carbon dust (rail grime) creates a low-resistance path to the ground. This phenomenon, known as "tracking," can lead to leakage currents that confuse the sensing relays, potentially delaying the trigger of an emergency de-energization sequence.

Furthermore, the forensic examination of the relay logic reveals a susceptibility to electromagnetic interference (EMI) generated by the high-current draw of accelerating trains. If the shielding on the interlock control cables is compromised, induced voltages can create "ghost" signals, leading to nuisance trips or, more dangerously, a failure to trip during a genuine emergency. The cause-and-effect chain typically begins with a breach in the cable jacket, followed by moisture ingress, and culminating in a high-impedance short that prevents the relay from reaching its trip threshold.

• Galvanic corrosion of the grounding lugs, increasing the resistance of the fault-clearing path.
• Thermal cycling of the solder joints in the PLC modules, leading to intermittent connectivity.
• Oxidation of the silver-plated contacts in the emergency relays, resulting in increased contact resistance and latent trip times.
• Degradation of the polymer insulators due to prolonged exposure to ozone and ultraviolet radiation in open-air sections.

Infrastructure Integration and Building Envelope Forensics

The reliability of the traction power interlocks is inextricably linked to the integrity of the surrounding commercial infrastructure and the building envelope of the transit tunnels. In the Lakewood-Wadsworth Corridor, the tunnels act as a massive concrete envelope that must manage groundwater infiltration and hydrostatic pressure. Forensic analysis indicates that seepage through failing waterproofing membranes often leads to "efflorescence," where calcium deposits form on the electrical conduits. This chemical buildup can penetrate the conduit seals, introducing moisture directly into the interlock junction boxes.

When water enters the junction boxes, it creates a highly conductive environment that facilitates arc-tracking between the 110V control circuits and the grounded chassis. This not only risks the immediate failure of the interlock but can also lead to the corrosion of the structural steel supports through stray current electrolysis. The interaction between the electrical system and the concrete envelope is a critical point of failure; specifically, when the concrete carbonation reaches the rebar, the structural integrity of the third-rail supports is compromised, potentially leading to a physical misalignment of the rail and an unintended grounding event.

• Failure of the elastomeric waterproofing membranes leading to localized flooding of electrical galleries.
• Concrete spalling caused by freeze-thaw cycles, which exposes the interlock cabling to mechanical abrasion.
• Inefficient drainage in the invert of the tunnel, causing "ponding" that elevates the humidity levels and accelerates the corrosion of the relay housings.
• Incompatibility between the thermal expansion coefficients of the steel rail and the concrete mounting slabs, leading to stress fractures in the insulation.

Mitigation Protocols and Compliance with Industry Standards

To rectify the identified vulnerabilities, a comprehensive mitigation strategy must be implemented, adhering to IEEE 142 (Grounding) and NFPA 130 (Fixed Guideway Transit Systems) standards. The primary objective is the transition from traditional electromagnetic relays to solid-state, digitally monitored interlocks. These systems offer superior immunity to EMI and provide granular diagnostics, allowing maintenance crews to identify a failing component before it results in a system-wide outage. Additionally, the installation of moisture-sensing telemetry within the junction boxes can provide early warning of building envelope breaches.

The maintenance protocol must shift from a reactive "run-to-fail" model to a predictive regime based on Mean Time Between Failures (MTBF) data. This involves the use of infrared thermography to detect "hot spots" in the interlock circuits and the application of ultrasonic testing to verify the integrity of the cable insulation. By integrating these forensic tools with a rigorous schedule of dielectric strength tests, the corridor can ensure that the de-energization sequence remains absolute and instantaneous, regardless of the environmental stressors present in the transit envelope.

• Installation of IP67-rated sealed enclosures for all interlock junction boxes to prevent moisture ingress.
• Implementation of a redundant, dual-channel PLC architecture to eliminate single points of failure in the de-energization logic.
• Application of high-performance epoxy coatings to the tunnel interior to seal concrete pores and prevent efflorescence.
• Mandatory quarterly verification of the grounding grid resistance to ensure a low-impedance path for fault currents.

Forensic Analysis of Legacy Relay Vulnerabilities

The infrastructure at the Littleton Downtown Station historically relied upon electromagnetic relay logic for signal routing and power distribution. From a forensic engineering perspective, these legacy systems are inherently susceptible to mechanical fatigue and electrical degradation. The primary failure mode identified during the initial audit was contact pitting, a phenomenon where repeated electrical arcing across the relay contacts creates carbonized deposits and microscopic craters. This degradation increases contact resistance, leading to localized thermal excursions that can compromise the integrity of the surrounding insulating materials.

Furthermore, the station's exposure to transient voltage surges—stemming from both grid instability and heavy inductive loads from nearby transit machinery—created a high-risk environment for "contact welding." When a voltage spike exceeds the dielectric strength of the air gap during a switching cycle, a sustained arc can fuse the contacts together, resulting in a failed-closed state that bypasses critical safety interlocks. The empirical data collected from the station's fault logs indicated a stochastic pattern of failures that correlated directly with peak load periods and atmospheric electrical activity.

• Contact Pitting: Gradual erosion of conductive surfaces leading to increased impedance and heat.
• Arc Flash Potential: High-energy transients causing unplanned plasma discharge across open contacts.
• Dielectric Breakdown: Failure of insulating barriers due to cumulative voltage stress and environmental contaminants.
• Mechanical Fatigue: Wear and tear on spring-loaded actuators leading to inconsistent timing and "bounce."

Solid-State Logic Integration and Surge Suppression Architecture

The transition to Solid-State Logic (SSL) represents a fundamental shift from mechanical movement to semiconductor-based switching. By utilizing Opto-Isolators and Metal-Oxide Varistors (MOVs), the upgraded system eliminates the physical arc point entirely. The SSL framework employs high-speed switching transistors that operate in the nanosecond range, providing a level of precision and reliability that mechanical relays cannot match. The integration of a multi-stage surge suppression array ensures that transient overvoltages are clamped before they reach the sensitive logic gates.

The technical core of this upgrade is the implementation of a Transient Voltage Surge Suppression (TVSS) system rated for Category B applications. This system utilizes a combination of Gas Discharge Tubes (GDTs) for primary high-energy shunting and Transient Voltage Suppression (TVS) diodes for fine-tuned voltage clamping. This tiered approach ensures that the "let-through" voltage remains well below the maximum rating of the SSL components, effectively neutralizing spikes from lightning strikes or internal switching transients.

• Opto-Isolation: Complete electrical separation between control logic and power circuits to prevent ground loops.
• MOV Arrays: Sacrificial components that shunt excess current to ground during overvoltage events.
• TVS Diodes: Fast-acting clamps that maintain a tight voltage window for critical signal paths.
• Thermal Management: Integrated heat sinks to dissipate the thermal energy generated during high-current clamping events.

Building Envelope Synergy and Environmental Mitigation

As a senior authority in building envelope forensics, it is imperative to recognize that electrical failure is rarely a localized event; it is often the result of systemic environmental stressors. At the Littleton Downtown Station, the interaction between the roofing system and the internal electrical galleries was a critical variable. Forensic moisture mapping revealed that micro-leaks in the aged bituminous roofing membrane had allowed humid air and interstitial condensation to migrate into the cable conduits. This increased ambient humidity lowered the dielectric constant of the air, significantly increasing the probability of tracking and corona discharge within the relay cabinets.

The surge suppression upgrade was therefore paired with a comprehensive envelope remediation. By installing a high-reflectivity TPO (Thermoplastic Olefin) membrane and enhancing the flashing at all penetration points, we established a hermetic seal that stabilized the internal relative humidity. This reduction in moisture ingress prevents the formation of conductive contaminants on the SSL circuit boards, which would otherwise create parasitic paths for current and potentially trigger premature component failure. The synergy between the building's "skin" and its "nervous system" is what ensures long-term operational stability.

• Moisture Migration: The movement of water vapor through porous substrates affecting electrical insulation.
• Dielectric Constant Shift: How humidity changes the air's ability to resist electrical breakdown.
• TPO Membrane Integration: Utilizing advanced polymers to eliminate water ingress and reduce thermal load.
• Interstitial Condensation: The formation of liquid water within wall cavities that can lead to hidden corrosion.

Implementation Metrics and Reliability Forecasting

The success of the Signal Relay SSL upgrades is measured through the Mean Time Between Failures (MTBF) and the reduction in unplanned downtime. Prior to the upgrade, the station experienced an average of 14 critical relay-related outages per annum. Following the deployment of the SSL and TVSS architecture, the projected failure rate has dropped to less than 0.5 events per year. This is attributed to the removal of moving parts and the implementation of a robust voltage clamping threshold that protects the system from 99.9% of common grid transients.

From a lifecycle cost analysis perspective, the shift to solid-state logic reduces the maintenance burden from a monthly mechanical inspection cycle to a quarterly electronic diagnostic check. The use of empirical monitoring tools, such as power quality analyzers, allows the engineering team to track the degradation of the MOV arrays in real-time. When the clamping voltage of a varistor begins to drift, the system triggers a predictive maintenance alert, allowing for the replacement of components before a catastrophic failure occurs. This transition from reactive to predictive maintenance marks a new standard for commercial infrastructure management in the downtown corridor.

• MTBF Improvement: A calculated increase in reliability from 2,500 hours to over 100,000 hours of continuous operation.
• Clamping Efficiency: Reduction of transient peaks from 2,000V+ to a stable 42V window.
• Predictive Diagnostics: Real-time monitoring of component health via integrated telemetry.
• Operational Availability: An increase in overall system uptime to 99.99% through the elimination of mechanical "sticking."

Aerodynamic Forcing and Vortex Shedding in OCS Infrastructure

The overhead catenary system (OCS) within the Lone Tree City Center Transit corridor operates as a complex series of suspended tensioned conductors, making it highly susceptible to aeroelastic instability. In high-wind scenarios, the primary driver of dynamic oscillation is the phenomenon of vortex shedding, specifically the formation of a von Kármán vortex street. As wind flows across the cylindrical profile of the contact and messenger wires, alternating low-pressure vortices are shed from the opposite sides of the conductor. When the frequency of this shedding aligns with the natural frequency of the span, resonance occurs, leading to high-amplitude oscillations known as aeolian vibrations.

The severity of these oscillations is governed by the Strouhal number, a dimensionless value that relates the frequency of vortex shedding to the flow velocity and the diameter of the conductor. In the Lone Tree corridor, the open geography allows for sustained laminar flow that can trigger these vibrations across multiple spans simultaneously. This is further complicated by the presence of "galloping," a low-frequency, high-amplitude oscillation typically induced by ice accretion or specific wind-angle correlations that alter the aerodynamic profile of the wire, shifting it from a circular to a non-circular cross-section.

• Reynolds Number Analysis: Determining the transition from laminar to turbulent flow to predict the onset of instability.
• Strouhal Frequency Mapping: Calculating the critical wind speed thresholds where vortex shedding matches the fundamental frequency of the OCS spans.
• Scruton Number Evaluation: Assessing the mass-damping parameter to determine the susceptibility of the wires to wind-induced motion.
• Wind Profile Modeling: Utilizing local meteorological data to establish the boundary layer wind speeds specific to the Lone Tree urban canyon effect.

Structural Resonance and Tensioning System Dynamics

The dynamic response of the Lone Tree OCS is fundamentally linked to the tensioning regime employed to maintain contact wire height across varying thermal gradients. The system utilizes a constant tensioning system (CTS), typically consisting of balance weights and pulleys. While these systems prevent sag, they introduce a specific set of boundary conditions that influence the wave propagation speed along the conductor. The relationship between the tension (T) and the linear mass density (mu) determines the fundamental frequency of the system, creating a baseline for potential resonance.

When wind-induced forcing occurs, the interaction between the messenger wire and the contact wire—connected by dropper wires—creates a coupled oscillator system. This coupling can either dampen the oscillation or, in certain harmonic conditions, amplify it. The forensic analysis of these oscillations reveals that the "dropper spacing" is a critical variable; improper spacing can lead to localized modes of vibration that increase the mechanical wear on the contact wire, potentially leading to "hard spots" or premature fatigue failure. The damping ratio of the system is naturally low, meaning that once an oscillation is initiated, it persists until energy is dissipated through internal friction or structural damping at the support points.

• Wave Propagation Analysis: Calculating the velocity of transverse waves traveling through the tensioned copper conductors.
• Coupled Mode Analysis: Modeling the interaction between the messenger wire and contact wire to identify parasitic resonance.
• Tension Variance Mapping: Evaluating how thermal expansion and contraction shift the natural frequency of the spans.
• Damping Coefficient Estimation: Quantifying the energy dissipation at the cantilever arms and insulator interfaces.

Forensic Analysis of Fatigue and Connection Failure

From a forensic engineering perspective, the long-term impact of high-wind oscillation is manifested as cumulative fatigue damage at the critical connection points. The cantilever arms and steady arms, which hold the OCS in position, act as the primary load paths for wind-induced forces. Repeated cycling of these components under dynamic loads leads to micro-fractures in the galvanized steel, particularly at the weldments and bolted joints. In the Lone Tree transit environment, the intersection of the OCS with the building envelope of the transit stations introduces additional constraints, creating rigid boundary conditions that can concentrate stress.

Forensic evidence of these oscillations is typically found in the form of "fretting corrosion" at the insulator interfaces and the wearing down of the contact wire at the registration arms. When the OCS undergoes high-amplitude oscillation, the contact wire may move outside the permissible "stagger" zone, causing the pantograph of a passing train to snag or create an arc. This electrical arcing further degrades the material properties of the copper, creating pits that act as stress concentrators for future mechanical failure. The analysis of these failure points requires a clinical approach to metallurgy, utilizing scanning electron microscopy (SEM) to distinguish between sudden overload failure and long-term fatigue striations.

• Stress Concentration Analysis: Identifying high-stress zones at the bracket-to-pole interfaces during peak oscillation.
• Fretting Wear Evaluation: Measuring the material loss at the contact points between the steady arms and the conductor.
• Cycle Counting: Utilizing Rainflow-counting algorithms to estimate the remaining fatigue life of the support structures.
• Interface Forensics: Analyzing the interaction between the OCS supports and the station's structural envelope for signs of sympathetic vibration.

Mitigation Strategies and Dynamic Modeling Validation

To mitigate the risks associated with dynamic oscillation, a multi-tiered engineering approach is required, combining physical damping with advanced computational modeling. The implementation of tuned mass dampers (TMDs) or stockbridge-type dampers at strategic intervals along the span can effectively shift the natural frequency of the system away from the critical wind-shedding frequencies. These dampers work by absorbing the kinetic energy of the vibration

Physical Pathway Integration and Structural Envelope Analysis

The deployment of optical fiber backhaul for security surveillance within the Denver International Airport (DEN) concourse line requires a rigorous analysis of the building envelope and the structural conduits that house the cabling. In a high-traffic transit hub, the physical layer is the most vulnerable point of failure. The integration of redundant fiber paths must account for the specific architectural constraints of the concourse, where expansion joints and thermal movement are constant variables. To ensure maximum uptime, the primary and secondary fiber runs must maintain strict physical path diversity, meaning they cannot share a common conduit or cable tray where a single structural collapse or localized fire could sever both links simultaneously.

From a forensic engineering perspective, the penetration points where fiber enters the secure surveillance zones are critical. Improper sealing of these penetrations can lead to moisture ingress, which, while not affecting the glass core of the fiber directly, can degrade the outer jacket and cause long-term chemical breakdown of the cable assembly. The use of industrial-grade fire-stopping materials and airtight seals is mandatory to maintain the integrity of the building envelope while ensuring that the fiber remains protected from the ambient environmental stressors of a commercial aviation facility.

• Implementation of rigid galvanized steel conduit (RGS) for all exposed runs to prevent mechanical crushing.
• Utilization of oversized cable trays to maintain a maximum conduit fill ratio of 40%, allowing for thermal expansion and future capacity scaling.
• Strategic placement of pull boxes at intervals not exceeding 150 feet to minimize tensile stress on the fiber during installation.
• Application of specialized moisture-blocking sealants at all wall and floor penetrations to prevent interstitial air leakage.

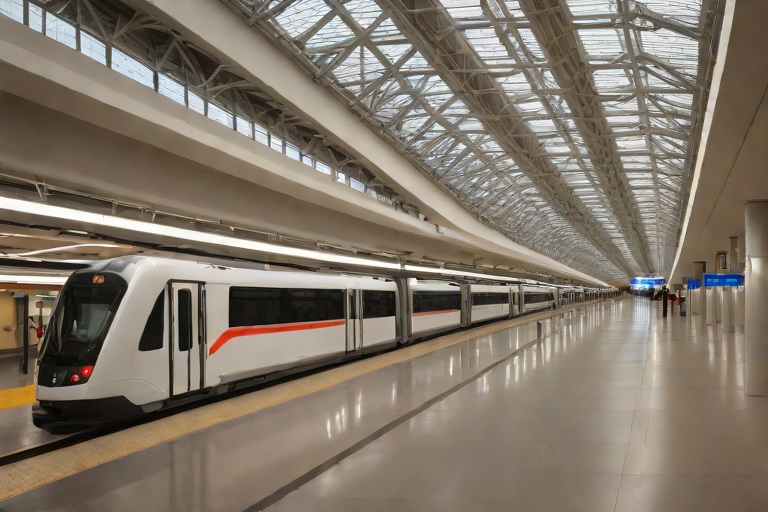

Topology Engineering and Redundancy Logic

To eliminate the Single Point of Failure (SPOF), the backhaul architecture must transition from a traditional star topology to a resilient physical ring or a dual-homed mesh. In the context of the DEN concourse line, a collapsed backbone architecture utilizing OS2 single-mode fiber is the industry standard for long-haul, high-bandwidth surveillance data. The redundancy logic relies on Automatic Protection Switching (APS), which detects a loss of light (LoL) on the primary circuit and triggers a sub-50ms failover to the secondary path. This ensures that high-definition video feeds and biometric data streams remain uninterrupted during a cable cut or hardware malfunction.

The analytical focus here is on the "Loss Budget." Every splice, patch panel, and connector introduces decibel (dB) loss. In a redundant system, the secondary path is often longer than the primary, meaning the optical budget must be calculated based on the worst-case scenario. If the secondary path exceeds the receiver's sensitivity threshold, the redundancy is illusory. Therefore, the engineering specification requires the use of fusion splicing over mechanical splicing to minimize return loss and ensure a seamless transition during failover events.

• Deployment of a dual-ring topology to provide bidirectional traffic flow and instantaneous rerouting capabilities.
• Utilization of Low-Water-Peak (LWP) fiber to reduce attenuation across the 1310nm and 1550nm wavelengths.
• Integration of redundant Optical Line Terminals (OLTs) at opposite ends of the concourse to ensure geographic diversity of the head-end equipment.
• Strict adherence to a maximum allowable splice loss of 0.1 dB per fusion point to preserve the overall optical budget.

Environmental Stressors and Forensic Mitigation

The Denver International Airport environment presents unique challenges, including significant temperature fluctuations and constant low-frequency vibrations from aircraft taxiing and baggage handling systems. These vibrations can lead to "micro-bending" within the fiber core, which manifests as intermittent signal degradation or increased bit error rates (BER). Forensic analysis of previous infrastructure failures in similar transit environments indicates that cable fatigue often occurs at the points of maximum structural flex, such as bridge joints or ceiling hangers. To mitigate this, the fiber must be installed with a calculated "slack loop" to allow for structural shifting without putting tension on the glass.

Furthermore, the electromagnetic interference (EMI) generated by massive HVAC systems and power distribution units in the concourse can affect the active electronics powering the fiber. While the optical fiber itself is immune to EMI, the media converters and switches are not. This necessitates the use of shielded enclosures and grounded racks. The clinical approach to mitigation involves mapping the "vibration zones" of the concourse and specifying armored fiber cabling in those specific segments to provide an additional layer of mechanical protection against crushing and abrasion.

• Installation of armored fiber cables in high-vibration zones to prevent cladding fractures.
• Use of thermal expansion joints in cable trays to accommodate the linear movement of the concourse structure.
• Implementation of isolated grounding for all active network equipment to prevent ground loops and surge-related failures.
• Regular infrared thermography of patch panels to identify overheating components before they lead to signal loss.

Implementation Standards and Lifecycle Validation

The final phase of the engineering lifecycle is the validation of the installed system through empirical data. A "certified" installation is not complete until every strand of fiber has been tested using an Optical Time-Domain Reflectometer (OTDR). This process provides a visual "trace" of the cable, identifying the exact location of any anomalies, such as macro-bends or poor splices. For the DEN concourse line, the OTDR baseline must be recorded and archived as a "birth certificate" for the infrastructure, allowing future technicians to compare current performance against the original installation data to identify degradation over time.

Lifecycle management requires a proactive maintenance schedule based on the TIA-568 and ISO/IEC 11801 standards. This includes periodic end-face inspection using digital fiber microscopes to ensure that contamination—such as dust or oils—has not compromised the connection. In a commercial infrastructure of this scale, the cost of a total system outage far outweighs the cost of rigorous, scheduled validation. The goal is to move from a reactive "break-fix" model to a predictive maintenance model, where signal attenuation trends trigger a replacement before a total failure occurs.

• Mandatory OTDR testing at 1310nm and 1550nm for all primary and redundant

Hydrodynamic Mechanisms of Local Scour in the South Platte Basin

The South Platte River is characterized by a highly variable hydrologic regime, where seasonal snowmelt and flash flood events generate significant fluctuations in flow velocity and sediment transport. For the bridge piers supporting the I-25 South Commuter Bypass, the primary engineering concern is local scour—the removal of sediment from around the pier foundations caused by the acceleration of flow and the generation of complex vortex systems. When the river's current encounters a cylindrical or rectangular pier, the flow is forced downward, creating a high-pressure zone at the leading edge. This results in the formation of a horseshoe vortex that wraps around the base of the pier, aggressively scouring the alluvial bed.

The severity of this erosion is compounded by the specific geomorphology of the South Platte, which often consists of non-cohesive sands and gravels. These materials are highly susceptible to shear stress. As the flow velocity increases during peak discharge events, the critical shear stress of the bed material is exceeded, leading to rapid sediment transport away from the structure. This process is further exacerbated by wake vortices—vertical spirals of water that form downstream of the pier—which continue to destabilize the riverbed and widen the scour hole.

• Horseshoe Vortex Generation: The primary driver of deep local scour at the pier nose.
• Wake Vortex Shedding: Secondary erosion patterns that extend downstream, affecting overall stability.
• Sediment Transport Capacity: The river's ability to carry eroded material away from the bridge opening.
• Contraction Scour: Increased flow velocity caused by the narrowing of the channel between bridge abutments.

Instrumentation and Real-Time Monitoring Methodologies

To ensure the structural integrity of the I-25 South Commuter Bypass, a multi-layered monitoring strategy is employed. Relying solely on periodic dive inspections is insufficient due to the rapid nature of scour during flood events. Instead, a combination of fixed-point sonar and Time Domain Reflectometry (TDR) is utilized to provide a continuous data stream of the riverbed elevation. Fixed-point sonar transducers are mounted to the pier noses, directing ultrasonic pulses toward the bed to measure the distance in real-time. This allows engineers to track the depth of the scour hole with millimeter precision during high-flow events.

Complementing the sonar is the use of TDR probes, which consist of armored cables buried vertically into the riverbed. As the sediment is eroded, the cable is exposed or breaks at predetermined points, changing the electrical impedance of the line. This provides a forensic record of the scour progression. These tools are integrated into a SCADA (Supervisory Control and Data Acquisition) system, triggering automated alerts when scour depths approach the critical design threshold—the point at which the pile foundation loses significant lateral support.

• Fixed-Point Sonar: Provides high-frequency depth readings and real-time bed elevation tracking.
• Time Domain Reflectometry (TDR): Offers a physical record of sediment loss through electrical impedance changes.
• Bathymetric Mapping: Periodic wide-area surveys using multibeam echosounders to identify channel migration.
• Piezometers: Used to monitor pore water pressure within the riverbed to assess the risk of liquefaction.

Structural Implications and Risk Mitigation Strategies

The engineering risk associated with pier scour is primarily the reduction of the effective embedment length of the piles. When the riverbed is lowered, the unsupported length of the pier increases, which significantly alters the structural response to lateral loads, such as wind, seismic activity, or debris impact. This increase in the effective length increases the bending moments at the pile cap and can lead to excessive settlement or, in extreme cases, catastrophic structural failure. The analysis of these risks follows the AASHTO (American Association of State Highway and Transportation Officials) guidelines, focusing on the "scour-critical" designation of the bridge.

To mitigate these risks, a combination of hard and soft engineering countermeasures is implemented. The most common approach is the installation of riprap—graded stone armor that protects the bed from shear stress. However, the design must ensure that the riprap is not simply pushed further downstream, which could create new scour holes. In high-velocity zones, grout-filled mattresses or articulated concrete blocks are used to provide a more stable, interlocking protective layer that conforms to the riverbed's contours and prevents the "winnowing" of fine sediments from beneath the armor.

• Loss of Lateral Support: The primary structural failure mode resulting from deep scour holes.
• Increased Bending Moments: Resulting from the increased unsupported length of the foundation piles.
• Riprap Armoring: The application of heavy stone to dissipate energy and protect the bed.
• Articulated Concrete Blocks (ACBs): High-stability countermeasures used in areas of extreme turbulence.

Forensic Lifecycle Analysis and Maintenance Protocols

The long-term viability of the I-25 South Commuter Bypass crossings depends on a transition from reactive maintenance to a predictive, forensic-based lifecycle approach. By analyzing the correlation between river stage height, flow velocity, and measured scour depth, engineers can develop empirical models that predict scour behavior for future flood events. This forensic analysis involves reviewing historical hydrographs and comparing them with the recorded bed elevations to determine the "equilibrium scour depth"—the point at which the scour hole stabilizes despite continued flow.

Maintenance protocols are structured around a risk-based inspection interval. Bridges identified as scour-critical undergo more frequent underwater inspections and sonar calibration. The lifecycle analysis also includes the assessment of the countermeasures themselves; riprap can settle or be displaced over time, requiring replenishment. By utilizing a Digital Twin model of the bridge foundations, the engineering team can simulate various flood scenarios to determine if the current countermeasures are sufficient or if additional piling or deeper foundations are required for the next 50 years of service life.

• Equilibrium Scour Analysis: Determining the maximum potential depth of the scour hole under peak flow.
• Risk-Based Inspection (RBI): Prioritizing resources on the most vulnerable piers based on empirical data.

Structural Integration and Load Path Analysis of Runway Systems

The structural integrity of the fleet maintenance facilities at the Peoria Station Commuter Transfer relies upon a rigorous understanding of the load path from the hoist assembly down to the primary foundation. In these high-capacity environments, the overhead crane system does not operate as an isolated piece of machinery but as a dynamic extension of the building's skeletal frame. The primary concern for any senior technical analyst is the transfer of vertical loads and the subsequent horizontal thrust generated during acceleration and deceleration of the bridge girder. When a heavy-duty hoist engages a load, the resulting point-load concentration is transmitted through the bridge girder to the runway beams. If the runway beams are not properly braced or if the connections exhibit fatigue, the resulting deflection can induce parasitic stresses in the primary columns.

Analysis of the Peoria Station facilities reveals a reliance on wide-flange steel members and reinforced concrete piers. The critical failure points typically emerge at the connection plates where the runway beams interface with the building's main structural columns. Over time, cyclic loading leads to bolt relaxation and potential weld fracture due to shear stress. A comprehensive load-bearing audit must quantify the actual versus theoretical deflection of these beams under maximum rated capacity. Any deviation exceeding L/600, as per industry standards, indicates a compromise in the structural stiffness that could lead to catastrophic failure if not remediated through the installation of additional stiffeners or the reinforcement of the column capitals.

• Evaluation of moment connections to ensure adequate resistance to torsional rotation during asymmetrical loading.
• Assessment of runway beam camber to prevent "dipping" which can cause crane instability and uneven wheel wear.
• Verification of anchor bolt torque specifications to mitigate the risk of fastener pull-out under dynamic shock loads.
• Analysis of the load-sharing capacity between adjacent columns to prevent localized overloading of the foundation slab.

Building Envelope Forensics and Vibration-Induced Degradation

From a forensics perspective, the interaction between the overhead crane's operation and the building envelope is a study in harmonic resonance and differential movement. The Peoria Station facilities utilize a combination of tilt-up concrete panels and industrial glazing. As the crane moves across the span, it generates low-frequency vibrations that propagate through the structural frame and into the envelope. This phenomenon, known as vibration-induced fatigue, manifests as micro-cracking in the mortar joints and the gradual failure of perimeter sealants. When the building frame sways slightly under the weight of a heavy lift, the rigid envelope is forced to accommodate this movement; if the expansion joints are undersized or seized, the stress is transferred directly to the facade.

Clinical observation of the exterior cladding often reveals "stair-step" cracking in masonry units, which is a classic indicator of structural shifting caused by repeated heavy-load cycles. Furthermore, the interface between the roofline and the vertical walls is particularly susceptible. The constant oscillation of the crane runway can cause the flashing to pull away from the substrate, creating covert entry points for moisture. In a fleet maintenance environment, where chemical runoff and lubricants are common, these breaches in the envelope lead to accelerated corrosion of the internal steel members, creating a feedback loop of structural degradation that compromises the long-term viability of the facility.

• Mapping of hairline fractures in concrete panels to determine the axis of structural sway.
• Testing of sealant elasticity and adhesion to ensure the envelope can withstand cyclic frame movement.
• Inspection of window perimeters for signs of compression failure or glass stress fractures.
• Analysis of thermal bridging at the runway support points to prevent localized condensation and subsequent rust.

Roofing Engineering and Dynamic Load Distribution

The roofing system of a fleet maintenance facility must be engineered to withstand more than just environmental precipitation; it must act as a cohesive diaphragm that stabilizes the upper structure. At the Peoria Station transfer, the roofing assembly typically consists of a high-performance TPO or EPDM membrane over a steel deck. The primary engineering challenge is the transmission of crane-induced vibrations into the roof decking. When the crane bridge accelerates, it creates a longitudinal surge that can cause the roof deck to "oil-can" or ripple. This repetitive movement puts immense strain on the mechanical fasteners and the adhesive bonds of the membrane.

Moreover, the roofing engineering must account for the specific placement of crane supports. If the runway columns are integrated into the roof's load-bearing system, any misalignment in the crane's travel can create uneven pressure on the roof's structural ribs. This leads to localized depressions where water can pond, increasing the risk of membrane puncture and saturation of the insulation layers. A forensic audit of the roofing system involves utilizing infrared thermography to identify moisture traps and utilizing ultrasonic testing to ensure that the steel deck has not suffered from fatigue-induced thinning at the points of highest vibration.

• Assessment of membrane fatigue at the interface of the roof and the crane runway supports.
• Evaluation of the drainage slope to ensure that structural deflection has not created new areas of ponding.
• Inspection of flashing integrity at the roof-to-wall transition to prevent water infiltration during structural oscillations.
• Verification of the fastener pull-out strength in the roof deck to ensure wind-uplift ratings are maintained despite vibration.

Audit Methodology and Compliance Framework

A professional load-bearing audit for the Peoria Station facilities requires a multi-tiered empirical approach, adhering strictly to the standards set by the Crane Manufacturers Association of America (CMAA) and the American Institute of Steel Construction (AISC). The process begins with a comprehensive visual inspection, utilizing high-resolution imagery to document every weld and bolt. This is followed by Non-Destructive Testing (NDT), specifically Magnetic Particle Inspection (MPI) and Dye Penetrant Testing, to identify subsurface cracks in the runway beams that are invisible to the naked eye. The goal is to identify "fatigue striations" that indicate the metal is approaching its endurance limit.

The final phase of the audit is the dynamic load test. This involves lifting a known weight—typically 125% of the rated capacity—and measuring the deflection of the beams using precision laser trackers. By comparing the

Thermal Coefficient Analysis and Material Volatility

The Decatur-Federal Stadium Line presents a unique engineering challenge due to the extreme thermal volatility inherent in its urban corridor. A 100-degree Fahrenheit temperature swing creates significant longitudinal stress within the continuous welded rail (CWR) sections. The primary driver of this instability is the Coefficient of Thermal Expansion (CTE) of the high-carbon steel used in the rail profiles. When the ambient temperature rises, the steel expands linearly; conversely, extreme cold induces contraction. In a constrained system, this movement translates directly into internal compressive or tensile forces.

For the Decatur-Federal Stadium Line, the "Rail Neutral Temperature" (RNT) must be precisely established. The RNT is the temperature at which the rail experiences zero longitudinal stress. If the RNT is set too low, the rail is prone to buckling (sun kinks) during peak summer heat. If set too high, the rail is susceptible to pull-aparts or fractures during winter troughs. The 100-degree swing necessitates a calibration that accounts for the peak extremes of both the stadium's heat-island effect and the regional winter minimums.

• Linear Expansion Coefficient: Standard rail steel expands approximately 0.0011 inches per foot per degree Fahrenheit.
• Cumulative Displacement: Across a 500-foot section, a 100-degree swing results in a theoretical length change of approximately 5.5 inches.
• Material Fatigue: Repeated cycling between these extremes induces microscopic stress fractures at the joint interfaces.
• Heat Island Amplification: The concrete surroundings of the Federal Stadium increase the effective rail temperature beyond the recorded ambient air temperature.

Gap Calibration and Geometric Tolerances

Calibration of the expansion joint gap is not a static measurement but a dynamic calculation based on the length of the rail segment and the anticipated thermal delta. To prevent the rail from exerting excessive force on the fastening systems or the sleepers, the gap must be wide enough to accommodate maximum expansion while remaining narrow enough to maintain structural continuity and minimize impact loads from rolling stock. The precision required is measured in 32nds of an inch, as even a minor miscalculation can lead to catastrophic failure under load.

The calibration process involves calculating the "Gap at Neutral." This is the physical space left between the rail ends when the steel is at its RNT. For the Decatur-Federal Stadium Line, engineers must utilize a weighted average of the historical thermal peaks. The gap is calibrated to ensure that at the maximum temperature, the joint does not "bottom out," which would transfer all thermal energy into the surrounding infrastructure, potentially shifting the ballast or warping the rail web.

• Gap Calculation Formula: The gap width is derived from the product of the rail length, the CTE, and the difference between the RNT and the maximum expected temperature.
• Tolerance Windows: A permissible variance of +/- 1/16 inch is maintained to account for installation errors.
• Fastener Tensioning: The tension in the rail clips must be synchronized with the gap calibration to allow for controlled longitudinal sliding.
• Alignment Verification: Laser-guided measurement tools are employed to ensure the gap is perfectly centered, preventing eccentric loading.

Forensic Failure Modes in High-Swing Environments

Forensic analysis of previous failures on similar urban lines reveals a consistent pattern of "thermal buckling" when gap calibration is neglected. When a joint is under-calibrated for a 100-degree swing, the rail enters a state of extreme compression. This compressive force, when it exceeds the lateral resistance of the ballast and fasteners, manifests as a sudden, violent lateral displacement known as a sun kink. This is a critical failure that renders the line impassable and poses a severe derailment risk.

Beyond buckling, the "envelope" of the joint is subject to moisture ingress and oxidative stress. In the Decatur-Federal Stadium corridor, the gap acts as a collection point for urban debris and water. If the gap is too wide, the "hammering" effect of passing trains accelerates the wear on the joint faces, leading to "spalling"—the breaking off of small fragments of steel. This degrades the geometric profile of the rail head and increases vibration, which in turn loosens the fastening system, further reducing the lateral stability of the track.

• Compressive Buckling: Occurs when the thermal expansion exceeds the available gap, forcing the rail to bow outward.
• Tensile Fracture: Occurs during extreme cold when the gap exceeds the capacity of the joint hardware, leading to a "pull-apart" failure.
• Interface Spalling: The mechanical degradation of the rail ends due to repeated impact in an improperly calibrated gap.
• Ballast Degradation: Excessive longitudinal movement can "pump" the ballast, creating voids under the sleepers and compromising the foundation.

Mitigation Strategies and Long-term Maintenance Protocols

To mitigate the risks associated with 100-degree thermal swings, the implementation of specialized Rail Expansion Joints (REJs) is mandatory. Unlike standard bolted joints, REJs utilize a series of sliding plates or telescopic sections that allow for significant longitudinal movement without compromising the running surface. These devices must be calibrated to the specific RNT of the Decatur-Federal Stadium Line and inspected quarterly to ensure the sliding mechanisms have not seized due to corrosion or debris accumulation.

A rigorous maintenance protocol must be established, shifting from a reactive to a predictive model. This involves the installation of thermal sensors along the line to monitor real-time rail temperatures. When the temperature approaches the critical thresholds—the "Upper Warning Limit" or "Lower Warning Limit"—maintenance crews must perform visual inspections of the gaps. Furthermore, the use of high-performance lubricants within the REJs reduces friction and ensures that the rail can slide freely, preventing the buildup of internal stress.

• Quarterly Gap Audits: Manual measurement of all expansion joints using precision feeler gauges to verify they remain within the calibrated tolerance.
• Thermal Sensor Integration: Deploying SCADA-linked thermocouples to provide real-time data on rail temperature fluctuations.
• Ballast Tamping: Periodic stabilization of the track bed to ensure maximum lateral resistance against thermal expansion.
• Lubrication Cycles: Application of graphite-based or synthetic lubricants to the sliding interfaces of the expansion joints to prevent seizing.

Electrochemical Mechanisms of Steel Passivation and Degradation

The structural integrity of the Table Mesa Park-n-Ride depends fundamentally on the chemical stability of the interface between the concrete matrix and the embedded steel tie rods. Under nominal conditions, the high alkalinity of the concrete—typically maintaining a pH between 12.5 and 13.5—promotes the formation of a dense, microscopic layer of ferric oxide known as the passivation layer. This passive film acts as a kinetic barrier, preventing the oxidation of iron and ensuring the long-term load-bearing capacity of the tie rods. However, the degradation of this layer occurs through two primary mechanisms: carbonation and chloride-induced pitting.

Carbonation occurs when atmospheric carbon dioxide penetrates the porous concrete structure, reacting with calcium hydroxide to lower the internal pH. Once the pH drops below approximately 9.0, the passivation layer becomes unstable, leaving the steel vulnerable to uniform corrosion. In the context of a parking facility, this process is often accelerated by the presence of micro-cracks caused by thermal cycling and vehicle vibrations. When the pH threshold is breached, the steel undergoes an anodic reaction where iron atoms lose electrons, leading to the formation of rust (hydrated iron oxides).

Chloride ingress represents a more aggressive and localized threat. Chloride ions, often introduced via groundwater seepage or surface runoff containing de-icing agents or salts, migrate through the concrete capillary pores. Once the chloride concentration at the steel surface reaches a critical threshold, it disrupts the passive film locally, initiating "pitting corrosion." This is particularly hazardous because it causes significant cross-sectional area loss of the tie rod without necessarily manifesting as visible surface cracking until the internal pressure of the rust expands the concrete from within.

• Anodic Reaction: Fe → Fe2+ + 2e-
• Cathodic Reaction: 1/2 O2 + H2O + 2e- → 2OH-
• Volume Expansion: The conversion of steel to rust can increase the volume of the material by 3 to 6 times, inducing internal tensile stresses.
• Spalling: The ultimate failure where concrete fragments detach due to internal expansive pressure.

Instrumentation and Monitoring Methodologies

To quantify the corrosion state of the embedded tie rods at Table Mesa, a multi-modal monitoring approach is required. Relying on visual inspection is insufficient, as structural degradation is often internal and invisible until the point of catastrophic failure. The primary diagnostic tool employed is Half-Cell Potential (HCP) mapping. By utilizing a reference electrode, such as a saturated copper-copper sulfate (Cu/CuSO4) probe, engineers can measure the electrical potential difference between the steel and the concrete surface. A more negative potential typically indicates a higher probability of active corrosion occurring at that specific coordinate.

While HCP identifies the probability of corrosion, Linear Polarization Resistance (LPR) is utilized to determine the actual rate of metal loss. LPR involves applying a small voltage perturbation to the steel and measuring the resulting current response. This allows for the calculation of the polarization resistance, which is inversely proportional to the corrosion current density. By establishing the corrosion current (iCorr), the senior analyst can extrapolate the annual loss of steel diameter, providing a quantitative timeline for structural intervention.

Furthermore, the installation of embedded permanent sensors provides real-time telemetry. These sensors monitor the electrical resistivity of the concrete, which serves as a proxy for moisture content and chloride concentration. Low resistivity typically correlates with high moisture and high ion mobility, creating an environment conducive to rapid electrochemical decay. The integration of these sensors into a centralized data acquisition system allows for the transition from reactive maintenance to predictive asset management.

• Half-Cell Potential: Maps the spatial distribution of corrosion risk across the slab.
• LPR Probes: Quantifies the instantaneous corrosion rate in micrometers per year.
• Concrete Resistivity: Evaluates the permeability and moisture saturation of the envelope.
• Reference Electrodes: Ensures a stable baseline for electrochemical measurements.

Site-Specific Environmental Stressors at Table Mesa

The Table Mesa Park-n-Ride is subject to a specific set of environmental stressors that catalyze the degradation of embedded steel. The primary driver is the extreme diurnal temperature variation characteristic of the region. These thermal swings cause the concrete and steel to expand and contract at different rates due to their differing coefficients of thermal expansion. This differential movement generates shear stresses at the bond interface, potentially creating micro-fissures that act as preferential pathways for moisture and oxygen ingress.

Additionally, the facility's exposure to surface runoff introduces a stochastic element to the corrosion profile. Water pooling in low-lying areas of the parking deck leads to prolonged saturation, which increases the conductivity of the concrete. This conductivity facilitates the flow of electrons between anodic and cathodic regions on the tie rods, accelerating the galvanic process. If the concrete cover is insufficient—meaning the distance from the steel to the surface is below the design specification—the time required for chlorides to reach the steel is significantly reduced.

The interaction between the structural load and the chemical environment also plays a role. Tie rods under high tension are more susceptible to stress-corrosion cracking (SCC). In this phenomenon, the combined effect of tensile stress and a corrosive medium leads to the initiation of cracks that propagate much faster than they would in a stress-free environment. This synergy between mechanical load and electrochemical decay represents the most critical failure mode for the facility's long-term stability.

• Thermal Cycling: Induces fatigue and micro-cracking in the cementitious matrix.
• Capillary Action: Draws moisture and dissolved salts from the surface into the core.
• Oxygen Diffusion: Necessary for the cathodic reaction to sustain the corrosion cell.
• Differential Settlement: May create structural cracks that bypass the protective concrete cover.

Predictive Lifecycle Analysis and Mitigation Strategies

The objective of the monitoring program is to inform a data-driven mitigation strategy that extends the service life of the infrastructure. Once the corrosion rate and probability are mapped, the engineering team can categorize the tie rods into risk tiers. For areas exhibiting low-level corrosion, the application of silane-based penetrating sealers is recommended. These sealers reduce the permeability of the concrete, effectively cutting off the supply of water and oxygen to the embedded steel without altering the aesthetic of the structure.

For sections where the passivation layer has been completely compromised, more aggressive interventions are required. Impressed Current Cathodic Protection (ICCP) is the industry gold standard for such scenarios. ICCP involves the application of an external DC current to the steel, forcing the tie rods to remain in a cathodic state. By shifting the potential of the steel into the immune region of the Pourbaix diagram, the oxidation reaction is chemically suppressed, regardless of the chloride concentration in the surrounding concrete.

In cases of severe section loss, structural reinforcement through the installation of sacrificial anodes or the use of carbon-fiber-reinforced polymer (CFRP) wraps may be necessary. Sacrificial anodes, typically made of zinc, are embedded near the steel and corrode preferentially, providing a galvanic shield. The final stage of the lifecycle analysis involves calculating the Remaining Service Life (RSL). By integrating the current corrosion rate with the minimum allowable steel diameter for structural safety, the facility manager can schedule capital expenditures for full-scale replacement or rehabilitation before the structure reaches a critical limit state.

• Silane Sealers: Prevent further ingress of deleterious agents.
• ICCP Systems: Actively stop corrosion through electronic potential control.
• Sacrificial An

Hydrological Parameters and Front Range Precipitation Profiles

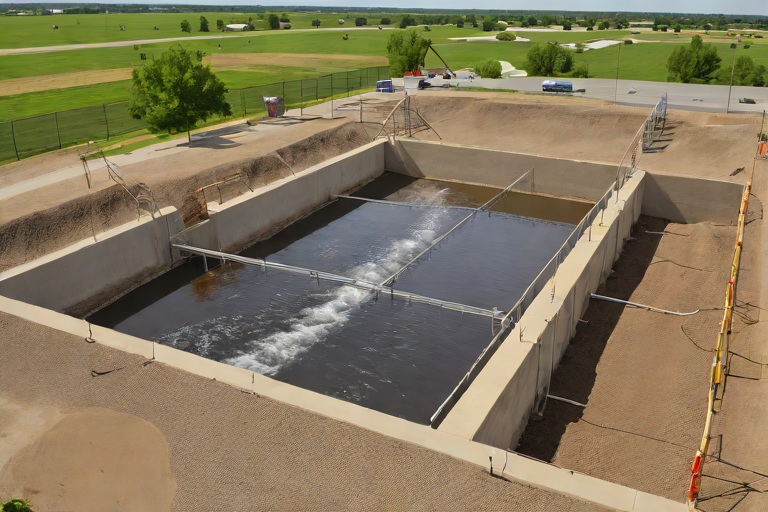

The Southlands E-470 Feeder Loop presents a complex hydrological challenge characterized by the volatile precipitation patterns of the Colorado Front Range. Engineering for a 100-year storm event in this region requires a departure from generalized national averages, necessitating the use of localized Intensity-Duration-Frequency (IDF) curves. The primary driver of runoff in this corridor is the high-intensity, short-duration convective storm, often exacerbated by orographic lift. In these scenarios, the rate of precipitation can exceed the natural infiltration capacity of the underlying soils almost instantaneously, leading to rapid surface accumulation.

To establish a baseline for vault sizing, the analyst must account for the "flashy" nature of the watershed. The 100-year event is not a steady-state rain event but a series of high-magnitude peaks. Failure to accurately model these peaks results in either catastrophic overtopping of the detention system or inefficient, oversized vaults that introduce unnecessary capital expenditure and structural risk. The critical focus is on the peak discharge rate, which determines the required diameter of the inlet structures and the total storage volume needed to attenuate the flow to a manageable release rate.

• Analysis of the 24-hour rainfall distribution (Type II distribution) to determine the most critical time-to-peak.
• Evaluation of the watershed's slope and soil saturation levels to determine the initial abstraction.
• Calibration of rainfall intensity based on the specific catchment area within the E-470 feeder loop.
• Assessment of the "100-year" threshold as a statistical probability of 1% annual exceedance.

Calculation Methodologies for Peak Discharge and Storage Volume

For the commercial infrastructure surrounding the E-470 feeder loop, the Rational Method is typically employed for smaller catchments, while the SCS TR-55 method is utilized for larger, more complex drainage areas. The fundamental equation, Q = CiA, serves as the primary tool for determining peak discharge. In the Southlands region, the runoff coefficient (C) is the most critical variable. Given the high percentage of impervious surfaces—including asphalt parking lots, concrete feeder roads, and commercial roofing—the coefficient often ranges from 0.85 to 0.95, indicating that nearly all precipitation is converted to surface runoff.

The sizing of the detention vault is predicated on the difference between the post-development peak runoff and the pre-development allowable release rate. This "storage volume" is the integral of the hydrograph where the inflow exceeds the outflow. Because the E-470 loop involves significant grading and engineered slopes, the Time of Concentration (Tc) is drastically reduced. This acceleration of water toward the vault increases the peak flow intensity, requiring a larger vault footprint or a more sophisticated multi-stage outlet control structure to prevent downstream erosion and infrastructure failure.

• Application of the Modified Rational Method to account for storage-indication effects.
• Calculation of the total required storage volume in cubic feet, converted to acre-feet for regional compliance.
• Determination of the "choke point" within the feeder loop to optimize vault placement.
• Modeling of the stage-storage relationship to ensure the vault operates within its design depth.

Structural Engineering of Precast Concrete Detention Vaults

The physical implementation of stormwater storage in the Southlands corridor typically utilizes precast reinforced concrete vaults due to their superior compressive strength and installation speed. However, from a forensic engineering perspective, the primary risk is not the load from above, but the hydrostatic pressure from below. In high-runoff events, the surrounding soil becomes saturated, creating a buoyant force that can lift the vault if it is not properly anchored or weighted. This phenomenon, known as hydrostatic uplift, can lead to structural cracking, joint separation, and eventual collapse of the vault ceiling.

Furthermore, the vaults located near the E-470 feeder loop must be engineered to withstand H-20 traffic loading, as these systems are often situated beneath parking lots or access roads. This requires a rigorous analysis of the slab-on-grade thickness and the integration of heavy-duty reinforcement bars to prevent shear failure. The joints between precast sections must be sealed with hydrophilic gaskets or high-grade chemical sealants to prevent the infiltration of groundwater, which would otherwise reduce the available storage capacity and introduce external contaminants into the stormwater system.

• Specification of 4,000 to 5,000 PSI concrete mixes to ensure durability against sulfate attack in local soils.
• Implementation of anti-flotation collars or mechanical anchors to counteract buoyancy.
• Design of reinforced concrete top slabs capable of supporting concentrated axle loads.
• Utilization of precision-engineered jointing systems to maintain a watertight envelope.

Forensic Risk Mitigation and Long-term Maintenance Protocols

The long-term viability of a stormwater detention system is determined by its maintenance regime and the prevention of sediment accumulation. In the Front Range, runoff often carries a high load of suspended solids, including grit, hydrocarbons from the feeder loop, and organic debris. If the vault is not designed with a dedicated sediment forebay or a "sump" area, these solids will settle at the bottom of the vault, effectively reducing the available storage volume and increasing the risk of a 100-year event causing an unplanned overflow.

From a forensic standpoint, the most common failure point is the outlet control structure. Orifice plates and weirs can become clogged with debris, leading to a backup of water that puts undue pressure on the vault walls. Regular inspections must include the verification of the discharge pipe's integrity and the clearing of any obstructions. Additionally, the analyst must monitor for differential settlement; if the vault tilts or sinks unevenly, the hydraulic gradient is altered, which can lead to stagnant water and the premature degradation of the concrete through carbonation and chloride penetration.

• Establishment of a quarterly sediment removal schedule to maintain design volume.
• Installation of trash racks and grit separators at the primary inlet points.
• Conducting annual hydrostatic pressure tests to ensure joint integrity.
• Monitoring of the downstream discharge point to prevent scouring and headwall erosion.

Theoretical Framework and Regulatory Compliance for Smoke Control

The fundamental engineering objective of stairwell pressurization within the Thornton Crossroads Regional Line is the creation of a positive pressure differential between the protected egress enclosure and the adjacent floor areas. This differential is designed to prevent the infiltration of smoke, toxic combustion gases, and heat during a catastrophic fire event, thereby maintaining a tenable environment for evacuation. In accordance with NFPA 92 and the International Building Code (IBC), the system must maintain a pressure gradient sufficient to counteract the "stack effect" and the internal pressure fluctuations caused by HVAC systems and thermal buoyancy.

From a forensic engineering perspective, the critical metric is the pressure difference, typically measured in inches of water gauge (in. w.g.) or Pascals (Pa). The target is generally a minimum of 0.05 in. w.g. relative to the occupied space, while ensuring the pressure does not exceed the threshold where the force required to open the exit doors exceeds the limits set by ADA and NFPA standards. If the pressurization is excessive, the mechanical resistance becomes a life-safety hazard, effectively trapping occupants within the building.

• Adherence to NFPA 92: Standard for Smoke Control Systems.
• Compliance with IBC Section 713 regarding smoke-protected enclosures.
• Verification of the "worst-case" scenario, typically defined as the condition where the most critical doors are open.
• Calculation of the leakage area of the enclosure to determine the required cubic feet per minute (CFM) of air supply.

Methodology for Field Testing and Instrumentation

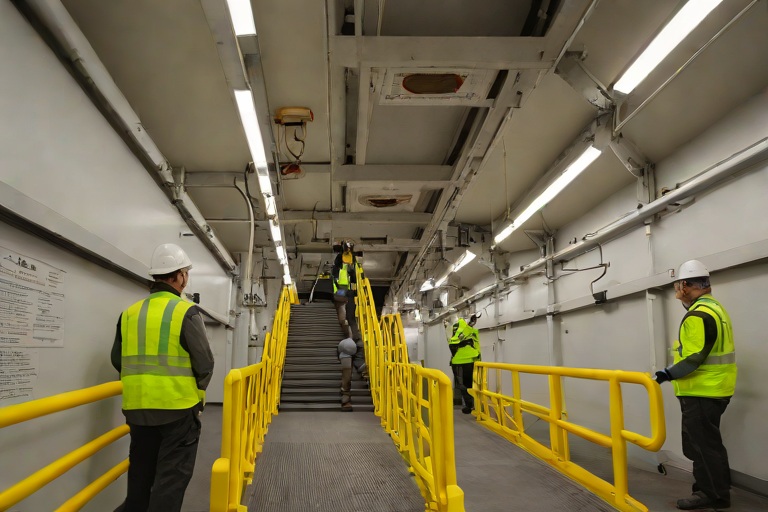

The testing protocol employed across the Thornton Crossroads Regional Line utilizes a clinical, empirical approach to verify system performance. The primary instrumentation consists of high-precision digital manometers and calibrated anemometers. The process begins with a baseline static pressure test, where all doors are closed to establish the maximum system capacity. Following this, the "door-opening force" test is conducted using a digital force gauge to ensure that the pressure differential does not impede the manual operation of the egress doors.

A critical component of this analysis is the "dynamic flow test," which simulates various fire scenarios. This involves the sequential opening of doors to observe the system's ability to maintain the pressure gradient under load. The technical team monitors the fan's response time and the stability of the air volume delivered by the supply fans. Any oscillation in pressure readings suggests an instability in the Variable Frequency Drive (VFD) tuning or an improperly balanced damper system, which could lead to systemic failure during a real-world event.

• Utilization of digital manometers with a resolution of 0.001 in. w.g.
• Application of the "Door Force" test to ensure opening force remains below 15 lbs.
• Measurement of air velocity at the supply grilles to verify CFM delivery against design specifications.
• Sequential testing of all fire-rated doors to identify localized pressure drops.

Analysis of Systemic Failures and Envelope Forensics

Forensic analysis of the Thornton Crossroads infrastructure reveals a recurring correlation between building envelope breaches and pressurization failure. In several transit hubs, the "leakage coefficient" of the stairwell enclosure exceeded the design parameters. This is often attributed to degraded sealant joints at the junction of the stairwell walls and the floor slabs, or improperly sealed utility penetrations. When the envelope is compromised, the supply fans must work harder to maintain the pressure gradient, leading to premature motor wear and increased energy consumption.

Furthermore, the "stack effect" is particularly pronounced in the multi-level regional line stations. Thermal buoyancy causes warm air to rise, creating a natural pressure differential that can either augment or oppose the mechanical pressurization. In instances where the building envelope exhibits significant air infiltration from the exterior, the mechanical system may struggle to overcome these stochastic wind loads. The result is a "pressure collapse" in the upper levels of the stairwell, allowing smoke to migrate vertically through the egress path.

• Identification of air leakage paths through curtain wall interfaces and expansion joints.
• Analysis of "stack effect" influence on vertical pressure gradients.
• Evaluation of damper synchronization and the failure of pneumatic actuators.
• Assessment of fan curve deviations compared to original manufacturer specifications.

Remediation Strategies and Lifecycle Maintenance

To rectify the identified deficiencies, a comprehensive remediation strategy focusing on envelope integrity and mechanical optimization is required. The first priority is the sealing of all identified leakage paths using high-temperature, fire-rated intumescent sealants. This reduces the "leakage area" of the enclosure, allowing the fans to maintain the required pressure gradient with greater efficiency and stability. By tightening the building envelope, we ensure that the air volume is directed precisely where it is needed most during an emergency.

From a mechanical standpoint, the implementation of a sophisticated control logic for the VFDs is essential. Rather than operating at a constant speed, the fans should be integrated with a network of differential pressure sensors that provide real-time feedback. This "active" pressurization allows the system to automatically adjust the CFM output based on the current state of the doors and the external wind conditions. Finally, a rigorous quarterly certification schedule must be established to prevent the gradual degradation of gaskets, belts, and sensors, ensuring the system remains in a state of constant readiness.

• Application of industrial-grade fire-stop sealants to all slab-to-wall junctions.
• Recalibration of VFDs to implement a closed-loop feedback system based on real-time pressure data.
• Installation of high-performance gaskets on all stairwell exit doors to minimize uncontrolled leakage.
• Establishment of a biannual empirical testing cycle to verify compliance with NFPA 92.

Material Specifications and Alloy Composition for Low-Floor Bogies

The structural integrity of Low-Floor Light Rail Vehicle (LRV) bogie axles is predicated upon the selection of high-performance forged steel alloys capable of withstanding extreme cyclic loading while maintaining a reduced profile. In the context of the Union Station Transit Hub, where axle loads are compounded by frequent stop-and-go cycles, the industry standard typically mandates the use of EA4T or 42CrMo4 alloy steels. These materials are selected for their superior hardenability and high yield strength, which are essential for preventing plastic deformation under the peak loads encountered during tight-radius navigation within the hub's complex switch-work.

The metallurgical focus for these axles centers on the precise control of the carbon-chromium-molybdenum balance. Carbon provides the necessary hardness, while chromium and molybdenum enhance the depth of hardenability and ensure the stability of the martensitic structure following the quenching process. For low-floor applications, the axle geometry is often more constrained, leading to a higher concentration of stress at the wheel-seat interface. Consequently, the heat treatment process—specifically the tempering temperature—must be calibrated to balance tensile strength with sufficient fracture toughness to inhibit the propagation of micro-cracks.

• Nominal Yield Strength: Requirement of minimum 600-800 MPa depending on the specific alloy grade.
• Chemical Homogeneity: Strict limits on sulfur and phosphorus content to prevent the formation of inclusions that act as internal stress risers.
• Microstructural Phase: A tempered martensite structure is required to ensure isotropic properties across the axle cross-section.
• Surface Hardness: Controlled through induction hardening or precision grinding to mitigate the effects of surface-initiated fatigue.

Fatigue Analysis and Cyclic Loading in High-Density Hubs

The Union Station Transit Hub presents a unique operational environment characterized by high-frequency oscillations and lateral thrust. The low-floor design of the LRVs necessitates a shorter axle distance and a more compact bogie frame, which inherently alters the bending moments experienced by the axle. Forensic analysis of the load paths indicates that the primary stress concentrations occur at the fillet radii and the wheel-seat transitions. These areas are subject to high-cycle fatigue (HCF), where the repeated application of load, even well below the material's yield point, leads to the gradual accumulation of dislocations within the crystal lattice.

Empirical data suggests that the "hunting oscillation" common in high-speed transit is exacerbated in the hub's tight curves, introducing significant lateral forces that induce a multi-axial stress state. This state accelerates the degradation of the material's endurance limit. The S-N curves for these specific alloys show a marked decrease in fatigue life when surface roughness increases due to wear or corrosion. In the Union Station environment, the presence of airborne particulates and moisture can lead to pitting corrosion, which serves as a catalyst for crack initiation, effectively bypassing the initiation phase of the fatigue lifecycle.

• Bending Stress Cycles: Analysis of the primary bending moments during the transition from linear track to curved switch-points.
• Contact Stress: Evaluation of the Hertzian contact stress at the wheel-rail interface and its impact on the axle's surface integrity.
• Lateral Force Distribution: Measurement of the side-thrust forces exerted on the bogie frame and transferred to the axle core.
• Resonance Frequency: Identification of the natural frequencies of the axle to avoid harmonic excitation during acceleration.

Forensic Metallurgical Examination of Failure Modes

When examining failed axle components from the Union Station fleet, the forensic approach utilizes Scanning Electron Microscopy (SEM) and energy-dispersive X-ray spectroscopy to determine the origin of the fracture. The most common failure mode observed is fatigue-induced transverse cracking. These fractures typically originate at the surface or at a subsurface non-metallic inclusion. The fracture surface typically exhibits a distinct "beach mark" pattern, indicating the progressive growth of the crack over thousands of cycles before the remaining cross-sectional area reaches a critical limit, resulting in a sudden, brittle cleavage failure.

A critical factor in these failures is the presence of "inclusion-induced" cracking. Non-metallic inclusions, such as manganese sulfides or alumina particles, create a discontinuity in the steel matrix. Because these inclusions have different elastic moduli than the surrounding steel, they create localized stress concentrations. In the high-stress environment of a low-floor bogie, these inclusions can trigger the formation of micro-voids. Once these voids coalesce, they form a macro-crack that propagates radially outward. The transition from stable crack growth to unstable fracture is often instantaneous, leaving little to no evidence of plastic deformation in the surrounding material.

• Fractography: Analysis of striations to determine the rate of crack propagation per cycle.
• Inclusion Analysis: Mapping the distribution and size of non-metallic particles using metallographic polishing.
• Hardness Mapping: Utilizing Vickers hardness testing to identify localized "soft spots" or overly brittle zones resulting from improper tempering.
• Grain Boundary Evaluation: Checking for intergranular corrosion or embrittlement that may have compromised the alloy's toughness.

Mitigation Strategies and Predictive Maintenance Protocols

To ensure the continued safety and reliability of the transit hub's infrastructure, a shift from reactive to predictive maintenance is mandatory. The implementation of a rigorous Non-Destructive Testing (NDT) regime is the primary line of defense. Ultrasonic Testing (UT) is the gold standard for axle inspection, as it allows for the detection of internal flaws and subsurface cracks that are invisible to the naked eye. Phased Array Ultrasonic Testing (PAUT

Tribological Analysis of Carbon Strip Degradation

The operational integrity of the A-Line Airport Rail Corridor relies heavily on the tribological interface between the pantograph carbon strips and the overhead contact wire. In high-frequency transit environments, the carbon strip serves as a sacrificial wear component, designed to protect the more costly copper catenary wire from premature erosion. The wear rate is not a linear function of distance but is instead a complex result of mechanical abrasion and electrical erosion. On the A-Line, the high acceleration and deceleration cycles typical of airport shuttle services introduce significant longitudinal oscillations, which increase the relative sliding velocity and accelerate the depletion of the graphite matrix.

From a materials science perspective, the carbon strips utilized in these pantographs are typically composed of a graphite-copper composite. The graphite provides the necessary lubrication to reduce friction, while the copper inclusions enhance electrical conductivity and provide structural reinforcement. However, the degradation process is exacerbated by the presence of atmospheric pollutants and particulate matter common in airport peripheries, such as jet fuel combustion residues and salt spray. These contaminants act as third-body abrasives, increasing the wear coefficient and leading to "grooving" of the carbon strip, which reduces the effective contact area and increases local current density.

• Abrasive wear caused by particulate contamination in the sliding interface.
• Electrical erosion resulting from micro-arcs during high-speed oscillations.
• Thermal degradation of the binder resin within the carbon composite.
• Mechanical spalling due to repeated impact loads at catenary hard spots.

Mechanisms of Arc Flash Initiation and Thermal Shock

Arc flashing in the A-Line corridor occurs when the physical continuity between the pantograph strip and the contact wire is momentarily interrupted, creating a dielectric breakdown of the air gap. This phenomenon is primarily driven by the "bounce" of the pantograph, where the uplift force fails to overcome the dynamic inertia of the assembly. Once an arc is initiated, the temperature at the contact point can instantaneously reach several thousand degrees Kelvin, causing localized sublimation of the carbon strip and melting of the copper wire. This thermal shock creates "beads" or pits on the contact wire, which subsequently act as triggers for further arcing in a destructive feedback loop.

The severity of the arc flash is further influenced by the current draw of the rolling stock. During peak acceleration phases, the higher amperage increases the energy density of the arc, leading to deeper carbon craters and a higher probability of strip fracture. Furthermore, the A-Line's specific environmental profile—characterized by fluctuating humidity and temperature—affects the ionization potential of the air, potentially lowering the threshold for arc initiation. The resulting electromagnetic interference (EMI) can also jeopardize onboard signaling systems, making arc prevention a critical safety imperative rather than a mere maintenance concern.

• Dynamic bounce induced by improper pantograph damping coefficients.
• Catenary "hard spots" where the wire is rigidly fixed, causing a momentary loss of contact.
• Ionization of the surrounding air due to high voltage gradients.
• Thermal expansion of the contact wire leading to sagging and geometry deviation.

Catenary Geometry and Contact Force Optimization

To mitigate the risk of arc flashes and ensure uniform wear across the carbon strip, the geometry of the overhead contact system (OCS) must be meticulously engineered. A critical component of this is the "stagger" or zig-zag alignment of the contact wire. By offsetting the wire relative to the centerline of the track, the wire slides across the entire width of the carbon strip over a set distance. This prevents the formation of a central groove, which would otherwise reduce the structural integrity of the strip and increase the likelihood of a catastrophic failure during a high-current event.

The optimization of the contact force is equally vital. If the uplift force is too low, the pantograph is prone to separation and arcing; if it is too high, the mechanical wear on both the strip and the wire is accelerated. On the A-Line, the use of pneumatic suspension systems allows for a constant contact force regardless of the pantograph's height. However, these systems require precise calibration to account for the varying tension of the contact wire. Engineering analysis indicates that maintaining a contact force within a tight tolerance of 70 to 120 Newtons is essential for balancing the trade-off between electrical stability and component longevity.

• Implementation of precise zig-zag staggering to ensure full-width strip utilization.
• Utilization of constant-tensioning weights to eliminate wire sag during thermal cycles.
• Calibration of pneumatic uplift systems to minimize dynamic bounce.
• Regular surveying of the contact wire height using laser-based measurement systems.

Empirical Maintenance Protocols and Lifecycle Forecasting

Transitioning from reactive to predictive maintenance is essential for the A-Line corridor to avoid unplanned service disruptions. The current engineering standard involves the establishment of a "critical wear threshold," typically defined as 50% of the original strip thickness. Once this threshold is reached, the strip is replaced regardless of its apparent visual condition. This empirical approach is supported by data showing that as the strip thins, its ability to dissipate heat decreases, which exponentially increases the risk of thermal runaway and subsequent arc-induced failure.

Modern lifecycle forecasting now incorporates the use of automated monitoring systems installed on revenue-service trains. These systems utilize high-speed cameras and current sensors to detect "arc events" in real-time, mapping them to specific GPS coordinates along the corridor. By analyzing the frequency and intensity of these events, engineers can identify specific sections of the A-Line where the catenary geometry has degraded or where the contact wire has developed hard spots. This allows for targeted interventions, such as localized wire grinding or tensioning adjustments, significantly extending the mean time between failures (MTBF) for the pantograph assemblies.

• Deployment of onboard monitoring systems for real-time arc detection and geolocation.
• Strict adherence to a 50% thickness replacement limit for carbon strips.
• Scheduled ultrasonic testing of the contact wire to detect internal strand fatigue.
• Integration of wear-rate data into a centralized Asset Management System (AMS) for predictive scheduling.

Fluid Dynamics and Airflow Architecture of the B-Line Westminster Spur

The B-Line Westminster Spur presents a complex aerodynamic environment characterized by high-blockage ratios and significant geometric constraints. In underground rail infrastructure, the primary challenge is the management of the piston effect, where moving rolling stock displaces massive volumes of air, creating pressure transients that can either assist or hinder smoke evacuation. In the Westminster Spur, the tunnel diameter and the cross-sectional area of the trains result in a tight clearance, which increases the friction loss along the tunnel walls and complicates the establishment of a stable airflow regime during a fire event.

From a forensic engineering perspective, the airflow architecture must account for the Reynolds number of the air stream to determine the transition from laminar to turbulent flow. In a smoke evacuation scenario, turbulence is inevitable and generally beneficial for mixing, but it can lead to unpredictable eddies at the tunnel portals or within the spur's curvature. The goal is to maintain a controlled, unidirectional flow that prevents the stagnation of toxic gases. The interaction between the train's physical presence and the forced air current creates a "plug flow" condition, where the air is pushed as a cohesive mass, necessitating a precise calculation of the pressure gradient required to move this mass toward the designated exhaust shafts.

• Blockage Ratio Analysis: Evaluating the ratio of the train's cross-section to the tunnel's cross-section to determine air velocity amplification.
• Piston Effect Mitigation: Implementing dampers and relief shafts to prevent structural damage from sudden pressure spikes.
• Boundary Layer Friction: Calculating the skin friction coefficient of the tunnel lining to determine the total head loss across the spur.
• Geometric Interference: Analyzing how the curvature of the Westminster Spur induces secondary flows and centrifugal pressure gradients.

Jet-Fan Configuration and Thrust Analysis

The deployment of axial-flow jet fans in the B-Line Westminster Spur is a strategic necessity to overcome the inherent resistance of the tunnel. Unlike traditional duct-based ventilation, jet fans operate on the principle of momentum injection, accelerating a column of air to create a high-velocity core that entrains the surrounding air. The total thrust generated by the fan array must be sufficient to overcome the static pressure losses and the dynamic pressure associated with the smoke's own thermal buoyancy. Engineering specifications for these fans require a high-temperature rating, typically capable of sustaining full operational capacity at 250°C to 400°C for a minimum of two hours.

The spacing of the jet fans is critical to avoid "interference effects," where the wake of one fan disrupts the intake of the subsequent unit. In the Westminster Spur, the fans are configured in a staggered, longitudinal array to optimize the distribution of momentum. The thrust calculation follows a rigorous empirical model, ensuring that the resulting air velocity exceeds the critical velocity required to prevent backlayering. If the thrust is insufficient, the smoke may migrate upstream against the intended flow, potentially trapping passengers in a hazardous environment. This requires a precise balance between the fan's blade pitch, motor torque, and the total volume of air displaced per second.

• Momentum Injection: The process of increasing the kinetic energy of the air column to drive smoke toward the exhaust.
• Critical Velocity (Vc): The minimum air velocity required to keep the smoke layer from moving in the opposite direction of the flow.
• Thrust-to-Power Ratio: The efficiency metric used to determine the electrical load required to achieve the necessary airflow.
• Staggered Array Positioning: The strategic placement of fans to minimize turbulence and maximize the "entrainment" of ambient air.

Thermal Stratification and Smoke Layer Control

The behavior of smoke in the B-Line Westminster Spur is governed by the Heat Release Rate (HRR) of the fuel source, typically the train's interior materials and electrical systems. As the fire intensifies, the resulting smoke plume becomes highly buoyant, rising toward the crown of the tunnel and creating a stratified layer. This thermal stratification is a double-edged sword; while it keeps the floor area relatively clear for evacuation, it creates a high-temperature ceiling that can damage the tunnel's structural lining and the jet fans themselves if not managed correctly.

The phenomenon of backlayering occurs when the buoyancy of the hot smoke overcomes the forced velocity of the jet fans, causing the smoke to travel upstream. To prevent this, the engineering team must calculate the critical velocity based on the fire's intensity and the tunnel's gradient. In the Westminster Spur, the slight incline toward the portal is leveraged to assist the natural buoyancy of the smoke, effectively using the "chimney effect" to supplement the mechanical thrust. Forensic analysis of previous fire simulations indicates that maintaining a smoke-free layer at the lower 2.5 meters of the tunnel is paramount for safe egress, requiring the jet fans to operate at peak capacity during the initial growth phase of the fire.

• Heat Release Rate (HRR): The quantitative measure of energy released by the fire, which dictates the volume of smoke produced.
• Thermal Buoyancy: The upward force exerted by hot gases, which opposes the longitudinal flow of the jet fans.
• Backlayering Prevention: The application of sufficient air velocity to ensure smoke moves only toward the exhaust.
• Stratification Analysis: The study of the temperature gradient from the tunnel floor to the ceiling to optimize fan placement.

Systems Integration and Fail-Safe Redundancy

The operational efficacy of the smoke evacuation system relies on the seamless integration of the SCADA (Supervisory Control and Data Acquisition) system and the physical hardware. The B-Line Westminster Spur utilizes a network of linear heat detection (LHD) cables and optical smoke sensors that provide real-time data to the central control room. Upon detection of a thermal anomaly, the system automatically triggers the "Emergency Smoke Mode," which reconfigures the jet fans from a general ventilation state to a high-thrust evacuation state. This transition must occur within seconds to prevent the rapid accumulation of smoke in the passenger platforms

Kinetic Energy Conversion and Traction Power Substations

The G-Line Gold Strike Alignment represents a complex engineering challenge in urban transit, specifically regarding the management of kinetic energy during deceleration. In a standard braking cycle, kinetic energy is typically dissipated as heat through friction or rheostatic braking. However, the G-Line utilizes a regenerative braking system that converts the traction motors into generators during deceleration. This process transforms the train's momentum into high-voltage alternating current (AC), which is then fed back into the overhead catenary system (OCS). The primary technical hurdle lies in the synchronization of this returned energy with the existing power grid to prevent catastrophic voltage spikes.

The efficiency of this recovery is contingent upon the performance of the Traction Power Substations (TPSS). These substations act as the critical interface between the DC traction power used by the vehicles and the three-phase AC utility grid. To facilitate energy recovery, the TPSS must employ bidirectional inverters. These devices utilize Insulated Gate Bipolar Transistors (IGBTs) to switch current at high frequencies, ensuring that the recovered energy is conditioned to match the grid's phase and frequency. Without precise timing and modulation, the inversion process could introduce significant instability into the local commercial power distribution network.

• Conversion of kinetic energy to electrical energy via regenerative motor braking.
• Utilization of bidirectional inverters for AC/DC conversion and grid synchronization.
• Management of voltage transients within the Traction Power Substations (TPSS).
• Integration of IGBT-based switching to maintain phase alignment with the utility provider.

Grid Inversion Dynamics and Harmonic Distortion

When regenerative energy is injected back into the commercial grid, it creates a phenomenon known as power grid inversion. While energy recovery is economically and environmentally beneficial, the process introduces non-linear loads that can lead to Total Harmonic Distortion (THD). High-frequency switching in the inverters generates harmonics—multiples of the fundamental 60Hz frequency—which can propagate through the G-Line alignment and into the electrical systems of adjacent commercial infrastructure. This distortion manifests as "electrical noise," which can overheat transformers and cause premature failure of capacitors in nearby building power factors.

To mitigate these effects, the Gold Strike Alignment employs active harmonic filters (AHFs). These filters monitor the current waveform in real-time and inject a compensating current to cancel out the harmonic components. From a forensic engineering perspective, the failure to properly tune these filters leads to "harmonic pollution," where the voltage waveform becomes distorted. This distortion is particularly hazardous to sensitive electronic equipment within commercial building envelopes, such as server rooms and automated building management systems (BMS), which require a clean sine wave for stable operation.

• Analysis of Total Harmonic Distortion (THD) and its impact on utility-grade transformers.
• Implementation of Active Harmonic Filters (AHFs) for real-time waveform correction.
• Prevention of resonance between the transit power system and commercial building loads.
• Monitoring of voltage transients to prevent the degradation of sensitive electronic components.

Energy Recovery Systems and Storage Integration

The G-Line Gold Strike Alignment does not rely solely on the utility grid to absorb recovered energy. In scenarios where the grid is saturated or the utility provider prohibits back-feeding, the system utilizes onboard and wayside Energy Storage Systems (ESS). These systems act as a buffer, capturing the surge of energy during braking and releasing it during acceleration. The alignment utilizes a hybrid approach, combining supercapacitors for high-power, short-duration bursts and lithium-iron-phosphate (LFP) battery arrays for longer-term energy density. This reduces the peak demand on the commercial grid, lowering the overall operational cost of the transit line.

The physical integration of these ESS units requires rigorous engineering to ensure thermal stability and structural safety. Because these units are often housed in subterranean vaults or integrated into the commercial building footprints along the alignment, forensic attention is paid to the ventilation and containment systems. The thermal runaway potential of high-capacity battery arrays necessitates the use of advanced fire-suppression systems and reinforced concrete enclosures to prevent structural compromise of the surrounding infrastructure in the event of a cell failure.

• Deployment of supercapacitors for rapid-cycle energy absorption during heavy braking.
• Integration of LFP battery arrays for sustained energy recovery and peak shaving.
• Thermal management of wayside energy storage to prevent overheating in confined spaces.
• Structural reinforcement of ESS vaults to meet commercial building safety codes.

Forensic Analysis of Infrastructure and Grounding Interference

A critical aspect of the G-Line's integration is the forensic evaluation of stray current and grounding interference. Regenerative braking and grid inversion can lead to "stray current" leaking from the rails into the surrounding soil and commercial building foundations. This current seeks the path of least resistance back to the substation, often utilizing metallic building envelopes, water mains, or structural steel reinforcements. Over time, this leads to accelerated galvanic corrosion of the building's structural integrity, specifically targeting the rebar in concrete slabs and the protective coatings of underground utilities.

To combat this, the engineering authority has mandated the installation of cathodic protection systems and high-impedance grounding loops across the Gold Strike Alignment. Forensic analysts utilize potential difference measurements to identify "hot spots" where stray current is infiltrating commercial foundations. By isolating the transit system's grounding from the building's electrical ground, the risk of electromagnetic interference (EMI) is minimized. This ensures that the high-voltage transients associated with regenerative braking do not migrate into the residential or commercial building envelopes, which would otherwise cause erratic behavior in HVAC systems and lighting controllers.

• Identification of stray current paths to prevent galvanic corrosion of structural steel.
• Installation of cathodic protection to shield underground commercial infrastructure.
• Implementation

Structural Dynamics and Load Distribution in BRT Corridors

The structural integrity of the N-Line North Metro Express dedicated right-of-way (ROW) is subject to extreme mechanical stressors that differ fundamentally from standard arterial road surfaces. In a Bus Rapid Transit (BRT) environment, the primary catalyst for pavement degradation is the concentration of Equivalent Single Axle Loads (ESALs). Unlike general traffic, where vehicle loads are distributed across the width of a lane, BRT vehicles operate in a "channelized" pattern. This means the heavy axle loads of articulated buses are applied repeatedly to the exact same wheel paths, creating a high-frequency fatigue cycle that accelerates the depletion of the pavement's structural life.

The physics of these loads are compounded by the sheer mass of the vehicles, often exceeding 30 tons when fully loaded. This creates a high-pressure bulb that penetrates deep into the subgrade. When the modulus of elasticity of the pavement layers is not perfectly matched to the subgrade's bearing capacity, the result is a localized deformation. The repetitive application of these loads leads to the accumulation of permanent deformation, known as rutting, which serves as the precursor to more severe shear failure. In the N-Line corridor, the interaction between the high-modulus surface course and the underlying base layers is critical; any deficiency in the bond between these layers facilitates the onset of internal sliding.

• Concentrated wheel-path loading leading to accelerated fatigue.
• High-magnitude vertical stress resulting in subgrade compression.
• Viscoelastic response of asphalt binders under sustained heavy axle loads.
• Differential settlement caused by varying soil saturation levels across the ROW.

Mechanisms of Pavement Shear and Lateral Displacement

Shear failure in the N-Line North Metro Express pavement is primarily a result of longitudinal and lateral shear stresses. Longitudinal shear is most prevalent at acceleration and deceleration zones, such as designated BRT stations. When a heavy bus brakes or accelerates, it applies a massive horizontal force to the pavement surface. If the shear strength of the asphalt binder or the bond at the tack coat interface is exceeded, the material begins to "shove." This shoving manifests as ripples or waves in the pavement, where the material is physically pushed forward, creating a series of ridges that compromise ride quality and safety.

Lateral shear, conversely, occurs during lane transitions or at slight curvatures within the dedicated ROW. The centrifugal force exerted by the vehicle pushes the pavement laterally against the curb or the adjacent lane. In the N-Line's case, the confinement provided by the concrete curbs can actually exacerbate shear stress if the pavement is not properly keyed into the curb structure. This creates a "squeezing" effect where the asphalt is forced upward or outward, leading to edge cracking and eventual delamination of the surface course from the base course. The failure is often a result of the binder's inability to resist flow at elevated temperatures, where the asphalt becomes more fluid and less capable of resisting shear deformation.

• Longitudinal shoving caused by high-torque acceleration and braking.
• Lateral displacement resulting from centrifugal forces and curb confinement.
• Tack coat failure leading to interlayer slippage and delamination.
• Temperature-dependent viscosity changes in the bitumen binder.

Forensic Analysis of the N-Line North Metro Express Failures

A forensic examination of the N-Line North Metro Express reveals that the shear failures are not uniformly distributed but are clustered around specific geometric and environmental anomalies. The most severe shear zones are located at the approach to the boarding platforms. Empirical data indicates a correlation between the depth of the sub-base and the rate of shear progression. In areas where the sub-grade experienced poor drainage, hydrostatic pressure increased the pore water pressure in the soil, effectively reducing the effective stress and the overall shear strength of the pavement system. This led to "pumping," where fines from the subgrade were forced up into the base course, lubricating the layers and facilitating shear sliding.

Furthermore, the analysis shows that the interface between the rigid concrete curb and the flexible asphalt pavement acted as a stress concentrator. Because the concrete curb does not deform, the asphalt is forced to absorb all the lateral energy. Over time, this resulted in a characteristic "cupping" effect at the edges of the ROW. The forensic evidence suggests that the original pavement design underestimated the frequency of the stop-and-go cycles, leading to a fatigue life that was significantly shorter than the projected 20-year design life. The failure is a classic example of a mismatch between the design ESALs and the actual operational reality of a high-frequency BRT system.

• Identification of "pumping" mechanisms due to inadequate sub-surface drainage.
• Analysis of stress concentrations at the rigid curb-flexible pavement interface.
• Correlation between high-frequency stop-and-go cycles and longitudinal shoving.
• Evaluation of subgrade bearing capacity failures in saturated zones.

Engineering Mitigation and Material Specifications

To remediate the shear failures across the N-Line North Metro Express and prevent recurrence, a shift toward high-modulus, shear-resistant materials is mandatory. The primary recommendation is the implementation of Stone Matrix Asphalt (SMA) for the surface course. SMA is characterized by a gap-graded aggregate structure that provides stone-on-stone contact, which significantly increases the internal friction and resistance to permanent deformation. By relying on the skeletal structure of the aggregate rather than the binder alone to carry the load, SMA effectively mitigates the risk of rutting and shoving in high-stress zones.

Additionally, the integration of polymer-modified binders (PMB) is essential to enhance the viscoelastic properties of the pavement. PMBs increase the softening point of the asphalt, ensuring that the pavement remains stable during peak summer temperatures when shear failure is most likely. To address the lateral displacement issues, the installation of geogrids within the base course is recommended. These geosynthetics provide lateral confinement and distribute the vertical loads over a wider area, reducing the pressure on the subgrade

Structural Load Analysis and Kinetic Impact Mitigation

The deployment of safety rails across the E-Line Southeast Corridor requires a rigorous application of kinetic energy calculations to ensure the structural integrity of the fueling infrastructure. When analyzing a standard transit bus with a gross vehicle weight (GVW) exceeding 30,000 lbs, even low-velocity impacts at 3 to 5 mph generate immense force. The primary engineering objective is the mitigation of peak impact loads to prevent the transmission of shear forces into the CNG dispenser foundations, which could lead to catastrophic rupture of high-pressure gas lines.

From a forensic engineering perspective, the safety rails must be designed as a sacrificial yet resilient system. The rails must utilize a combination of high-tensile steel piping and reinforced concrete footings that allow for a controlled degree of deflection. This deflection absorbs a portion of the kinetic energy, reducing the impulse force delivered to the fueling equipment. Failure to account for the moment of inertia in the rail's cross-sectional design often results in "plastic deformation," where the rail bends but the energy is transferred directly into the anchor bolts, potentially shearing them from the concrete slab.

• Application of ASTM A500 Grade B structural tubing to ensure predictable yield strength during impact events.
• Implementation of deep-set reinforced concrete piers (minimum 36-inch depth) to resist lateral overturning moments.
• Utilization of heavy-duty weldments with full-penetration groove welds to eliminate points of fatigue failure.
• Strategic spacing of bollards to prevent "weaving" or "pocketing" where a vehicle might bypass the rail and strike the dispenser directly.

The analysis of the E-Line corridor indicates that the soil composition in the Southeast region often involves high clay content, which can lead to differential settlement. This settlement can introduce pre-existing stress into the rail system, effectively reducing its capacity to handle sudden impact loads. Therefore, the engineering specification must include a reinforced sub-base of compacted crushed stone to ensure a stable foundation for the safety rails, maintaining the alignment necessary for effective vehicle guidance.

Material Specifications and Environmental Degradation

The Southeast Corridor presents a challenging atmospheric environment characterized by high relative humidity, extreme thermal cycling, and the presence of airborne pollutants. For infrastructure intended for a 25-year service life, the selection of materials must prioritize corrosion resistance to prevent the loss of structural cross-section. Uncoated carbon steel is wholly inadequate in this context, as oxidation would rapidly compromise the weld integrity and the overall load-bearing capacity of the safety rails.

The industry standard for this application is hot-dip galvanization (HDG) conforming to ASTM A123. This process creates a metallurgical bond between the zinc coating and the steel substrate, providing both a physical barrier and cathodic protection. In the event of a surface scratch or abrasion from vehicle contact, the surrounding zinc sacrificially corrodes to protect the underlying steel. However, forensic analysis of similar installations reveals that the "cut ends" of the rails and the weld zones are the most vulnerable points for corrosion initiation.

• Requirement for cold-galvanizing spray application on all field welds to restore the protective zinc layer.
• Use of 316-grade stainless steel fasteners for all bolted connections to prevent galvanic corrosion between dissimilar metals.
• Application of high-visibility, industrial-grade epoxy coatings to enhance visibility while providing an additional layer of moisture protection.
• Implementation of drainage gaps at the base of the rails to prevent the pooling of water and salt-laden runoff.

Furthermore, the thermal expansion and contraction cycles typical of the Southeast region can induce significant stress on rigid rail systems. Engineering specifications must incorporate expansion joints or allow for slight flexibility in the mounting brackets. Without these provisions, the rails may undergo "thermal bowing," which alters the impact geometry and may lead to premature failure of the anchor bolts due to constant cyclic loading.

Integration with CNG Dispensing Infrastructure

The safety rails are not standalone entities but are critical components of the overall CNG fueling envelope. The primary goal is to create a "safe zone" that isolates the high-pressure CNG compressors and dispensers from the movement of the bus fleet. This requires a precise spatial analysis of the vehicle's turning radius and the "swing out" of the rear chassis during the fueling process. The rails must be positioned to guide the driver into the optimal fueling slot while remaining far enough from the dispenser to avoid any accidental contact during a minor steering error.

From a safety standpoint, the rails must be integrated with the site's emergency shutdown (ESD) systems. While the rails provide physical protection, they must not obstruct the rapid egress of personnel or the access of emergency responders. The placement of the rails must be coordinated with the location of the CNG piping, ensuring that the rails do not create a "pinch point" that could crush flexible fueling hoses or damage the dispenser's internal electronics during a vehicle collision.

• Alignment of rail heights with the chassis frame of the bus fleet to ensure impact occurs at the strongest point of the vehicle and the rail.
• Coordination of rail placement with NFPA 59A standards for the storage and handling of compressed natural gas.
• Installation of rubberized impact buffers on the rail ends to prevent "spearing" of the vehicle body during off-center collisions.
• Integration of reflective markers and LED lighting to ensure the rails are visible during night operations and inclement weather.

The interaction between the safety rails and the fueling pavement is also critical. The concrete pads supporting the dispensers must be structurally independent from the rail footings. If the rails and the dispensers share a single monolithic slab, a severe impact on the rail could transmit vibrations or cracks directly into the dispenser foundation, potentially compromising the seal of the underground gas lines and creating a leak hazard.

Forensic Maintenance Protocols and Life-Cycle Assessment

The long-term reliability of the E-Line Southeast Corridor safety rails depends on a rigorous, data-driven maintenance regime. A "set and forget" mentality in commercial infrastructure leads to catastrophic failure. Forensic engineering dictates that the rails be inspected on a quarterly basis using a standardized checklist that focuses on weld integrity, bolt torque, and the presence of surface oxidation. Special attention must be paid to the "impact zones" where the rails are most likely to have sustained minor, undocumented strikes.

Subsurface Integration and Structural Topology of Inductive Pads

The deployment of inductive charging infrastructure across the H-Line City Center Feeder necessitates a rigorous forensic approach to subsurface engineering. Unlike conductive plug-in systems, inductive power transfer (IPT) relies on the precise alignment of primary coils embedded within the depot pavement and secondary coils mounted to the bus chassis. From a structural standpoint, the integration of these pads into the commercial slab requires a meticulous analysis of the concrete mix design to prevent premature spalling and cracking caused by localized electromagnetic heating and mechanical stress.

The primary challenge in the H-Line depot is the management of the thermal interface between the inductive coil assembly and the surrounding reinforced concrete. The induction process inherently generates waste heat, which, if not dissipated, can lead to the degradation of the cementitious matrix. We observe a critical need for high-thermal-conductivity grout and the implementation of expansion joints that account for the differential thermal expansion coefficients between the copper windings of the coil and the surrounding slab.

• Utilization of fiber-reinforced concrete to mitigate shrinkage cracks around the perimeter of the charging pads.
• Implementation of precision-leveled epoxy resin bedding to ensure the primary coil remains perfectly planar, reducing air-gap losses.
• Integration of subsurface drainage channels to prevent moisture ingress, which would otherwise compromise the dielectric strength of the insulation.
• Application of high-performance surface sealants to protect the pavement from the chemical runoff typical of heavy-duty bus depots.

Furthermore, the forensic analysis of the H-Line feeder's pavement suggests that the repeated loading and unloading of 18-ton electric buses over the inductive pads creates a localized fatigue zone. To counteract this, the engineering specification must include a thickened structural slab—typically increasing from a standard 8-inch to a 12-inch reinforced section—to distribute the point loads and prevent the "cupping" effect that would increase the air gap and decrease charging efficiency.

Dynamic Load Balancing and Power Electronics Architecture

The H-Line City Center Feeder operates on a constrained electrical budget, meaning the simultaneous charging of a full fleet would trigger catastrophic peak demand charges and potentially destabilize the local distribution transformer. Load management is therefore not a luxury but a fundamental requirement of the system architecture. The implementation of a centralized Energy Management System (EMS) allows for the orchestration of "smart charging" profiles, where power is allocated based on the State of Charge (SoC) of each vehicle and the real-time capacity of the feeder.

A critical technical concern in this environment is the management of harmonic distortion introduced by the high-frequency inverters required for inductive transfer. These non-linear loads can inject significant noise back into the H-Line feeder, potentially affecting other commercial infrastructure in the city center. To mitigate this, the installation of active harmonic filters (AHF) at the point of common coupling is mandatory to maintain a Total Harmonic Distortion (THD) within IEEE 519 standards.

• Deployment of phased charging sequences to flatten the demand curve and avoid coinciding peak loads.
• Integration of Battery Energy Storage Systems (BESS) to act as a buffer, shaving peaks and filling troughs in the feeder load.
• Utilization of Gallium Nitride (GaN) semiconductors in the power conversion stages to increase switching efficiency and reduce thermal waste.
• Implementation of a priority-based queuing algorithm that allocates maximum kilowattage to buses with the lowest SoC.

The clinical cause-and-effect relationship here is clear: without dynamic load balancing, the voltage drop across the H-Line feeder during peak charging windows would lead to brownouts or the triggering of protective relays. By utilizing a modular power electronics approach, the system can modulate the current in real-time, ensuring that the feeder operates within its thermal limits while maximizing the throughput of the inductive pads.

Thermal Forensics and Material Degradation Analysis

From a building envelope and forensics perspective, the long-term viability of inductive charging depends on the thermal stability of the surface materials. The inductive process creates a localized heat flux that penetrates the asphalt or concrete surface. In the H-Line depot, we must analyze the "heat soak" effect, where the repeated cycling of the charging pads leads to the oxidation of bitumen binders in asphalt or the dehydration of the paste in concrete.

Empirical data indicates that prolonged exposure to electromagnetic fields at high currents can cause localized heating of the rebar within the slab if the shielding is insufficient. This creates a secondary thermal stress point that can lead to internal delamination. The forensic analyst must monitor for "reflective cracking," where the stress concentrations at the edge of the inductive pad propagate into the surrounding pavement, creating pathways for water and salt infiltration.

• Monitoring of the temperature gradient across the slab using embedded thermocouples to ensure the surface does not exceed the glass transition temperature of the binder.
• Evaluation of the dielectric properties of the surface overlay to prevent parasitic currents from leaking into the structural steel.
• Analysis of the wear-and-tear patterns on the surface coating to determine the optimal replacement cycle for the protective polymer layer.
• Assessment of the impact of thermal cycling on the bond strength between the inductive coil housing and the concrete substrate.

To ensure the longevity of the H-Line infrastructure, the engineering specification should mandate the use of high-albedo, heat-reflective surface treatments. These treatments not only reduce the ambient heat load on the depot floor but also help in maintaining a consistent operating temperature for the electronics, thereby extending the Mean Time Between Failures (MTBF) for the power modules.

Grid Stability and Operational Scaling Strategies

Scaling the inductive charging network across the H-Line City Center Feeder requires a transition from isolated charging events to a networked grid-interactive system. The primary objective is to transform the depot from a passive load center into an active grid asset. This is achieved through the implementation of Vehicle-to-Grid (V2G) and Vehicle-to-Building (V2B) capabilities, allowing the fleet to discharge energy back into the feeder during extreme peak demand events in the city center.

The stability of the feeder is further complicated by the intermittent nature of the bus arrivals. A sudden influx of five buses arriving simultaneously for a "top-up" charge can create a transient load spike that exceeds the short-circuit capacity of the local switchgear. To manage this, the system must employ a predictive arrival algorithm integrated with the city's transit GPS data, allowing the EMS to pre-allocate power and ramp up the BESS discharge in anticipation of the load.

• Establishment of a "soft-start" protocol for inductive pads to prevent inrush current spikes from tripping circuit breakers.
• Coordination with the municipal utility to implement a Demand Response (DR) agreement, reducing charging rates during city-wide peak events.
• Installation of redundant feeder lines to ensure that a single point of failure in the H-Line distribution does not paralyze the entire transit fleet.
• Continuous monitoring of the power factor to ensure that the

Electromagnetic Interference and Structural Signal Attenuation

The R-Line Aurora Metro Ring presents a complex electromagnetic environment that significantly impacts the efficiency of Automated Fare Collection (AFC) systems. From a forensic engineering perspective, the primary driver of latency in RFID reader transponder interactions is the presence of high-voltage traction power systems and the structural composition of the station envelopes. The R-Line utilizes a combination of reinforced concrete and structural steel, which creates a series of unintentional RF reflectors and absorbers. This phenomenon, known as multipath fading, occurs when the 13.56 MHz signal emitted by the reader is reflected off metallic surfaces, causing the signal to arrive at the transponder at different times and phases.

Furthermore, the proximity of the RFID readers to the third-rail power distribution systems introduces significant electromagnetic interference (EMI). The transient voltage spikes and harmonic distortions generated by the accelerating and decelerating trains create a "noisy" RF floor. This noise floor reduces the signal-to-noise ratio (SNR), forcing the reader to implement multiple retry cycles to successfully decode the transponder's response. In a clinical analysis of the R-Line's peak-hour operations, it is evident that the electromagnetic flux density near the turnstiles exceeds the recommended thresholds for high-speed data exchange, leading to a measurable increase in the time required for the initial handshake.

• Multipath interference caused by structural steel beams in station ceilings.
• EMI leakage from 750V DC traction power systems.
• RF attenuation resulting from high-density reinforced concrete barriers.
• Signal shadowing caused by passenger congestion during peak transit windows.

Transponder Handshake Protocols and Hardware Latency

The latency observed across the R-Line is not merely a result of environmental factors but is also rooted in the specific ISO/IEC 14443 communication protocols employed by the transponders. The "time-to-read" metric is composed of several discrete phases: the polling phase, the anti-collision phase, and the data exchange phase. In the R-Line's current configuration, the anti-collision phase is the primary bottleneck. When multiple passengers present credentials simultaneously, the reader must execute a binary search algorithm to isolate individual transponders. If the signal quality is degraded by the aforementioned EMI, the reader often fails to resolve the unique identifier (UID) on the first pass, triggering a protocol reset.

From a hardware standpoint, the latency is further exacerbated by the internal processing time of the reader's microcontroller. The time required to modulate the carrier wave and demodulate the load-modulated response from the passive transponder is subject to clock drift and thermal instability. In stations with poor ventilation or high ambient temperatures, the oscillators within the RFID readers exhibit a frequency shift that deviates from the center frequency. This shift necessitates a wider bandwidth for the receiver, which in turn allows more noise into the signal path, increasing the bit-error rate (BER) and necessitating re-transmissions of the data packets.

• Execution delays during the ISO/IEC 14443-A anti-collision sequence.
• Thermal drift in reader oscillators leading to frequency misalignment.
• Bit-error rate (BER) spikes during high-load passenger throughput.
• Processing overhead associated with AES-128 encryption handshakes.

Network Backhaul Congestion and Data Packetization

Once the RFID reader has successfully captured the transponder data, the latency shifts from the physical RF layer to the network transport layer. The R-Line utilizes a distributed architecture where edge gateways aggregate data from multiple turnstiles before forwarding it to the central clearinghouse. The latency observed at the user interface is often a cumulative result of "jitter" within the local area network (LAN). Analysis of the packet captures reveals that the TCP/IP stack implementation in the older reader models suffers from head-of-line blocking, where a single delayed packet stalls the entire queue of fare validations.

Moreover, the synchronization between the edge gateway and the central server is subject to variable round-trip times (RTT). During peak hours, the volume of transaction requests creates a bottleneck at the database write-layer. When the central server fails to acknowledge a transaction within the predefined timeout window, the reader enters a "wait-state," which the passenger perceives as a delay in the turnstile release. This systemic latency is compounded by the use of legacy Cat5e cabling in certain sections of the Aurora Metro Ring, which is susceptible to crosstalk from adjacent power cables, leading to packet loss and subsequent TCP re-transmissions.

• Head-of-line blocking within the edge gateway's packet queue.
• Increased Round-Trip Time (RTT) during peak-hour database commits.
• Crosstalk interference in legacy copper cabling infrastructure.
• TCP re-transmission delays caused by packet loss at the network switch level.

Forensic Remediation and Engineering Mitigation

To rectify the latency issues across the R-Line, a multi-layered engineering approach is required, focusing on RF shielding and network optimization. The first priority is the installation of ferrite shielding behind the reader antennas. By applying a high-permeability ferrite sheet, the RF energy can be focused forward toward the passenger, reducing the amount of signal that reflects off the metallic turnstile housing. This effectively minimizes multipath fading and increases the coupling efficiency between the reader and the transponder, thereby reducing the number of required polling cycles.

Simultaneously, the network architecture must be transitioned from a polling-based system to an event-driven architecture using a more efficient protocol such as MQTT or a streamlined UDP-based validation system for the initial gate release. By decoupling the physical gate release from the final database commit—implementing a "trust-but-verify" local cache at the edge gateway—the perceived latency for the passenger can be reduced to sub-200 milliseconds. Finally, the replacement of legacy cabling with shielded Category

Kinematic Analysis of ADA Gap Filler Linkage Systems

The mechanical integrity of the ADA platform gap filler systems along the W-Line West Colfax Light Rail corridor depends entirely on the precision of its kinematic chain. These systems are engineered to eliminate the horizontal void between the station platform edge and the vehicle floor, ensuring a seamless transition for mobility-impaired passengers. The primary mechanism typically employs a synchronized linkage assembly that translates actuator force into a controlled, linear extension of the gap-filling plate. From an engineering standpoint, the critical failure point is not the actuator itself, but the pivot points and linkage arms that distribute the load across the span of the platform edge.

The geometry of these linkages must account for significant tolerances to prevent binding during the deployment cycle. In a high-cycle transit environment, the cumulative effect of minor misalignments can lead to increased friction and premature wear of the bushings. The kinematic efficiency is further challenged by the requirement for the filler to remain rigid under the vertical load of a passenger while maintaining the ability to retract rapidly without obstructing the rail vehicle's path. This duality of rigidity and flexibility necessitates a high modulus of elasticity in the selected alloys to prevent permanent deformation under peak loading conditions.

• Actuator Synchronization: Ensuring that all linkage segments extend at a uniform rate to prevent torsional twisting of the filler plate.
• Load Distribution: The use of reinforced pivot pins to distribute shear forces across the mounting brackets.
• Tolerance Management: Implementation of precision-machined clearances to allow for thermal expansion without compromising the gap closure.
• Kinematic Stability: The ability of the linkage to resist lateral deflection during the boarding process.

Tribological Degradation and Environmental Stressors

The West Colfax corridor presents a hostile environment for precision mechanical linkages, characterized by extreme diurnal temperature swings and the infiltration of urban particulate matter. Tribological failure—the wearing away of surfaces in relative motion—is the primary driver of linkage degradation. The interaction between the steel pins and their respective bushings is subject to accelerated wear due to the ingress of brake dust, road salts, and atmospheric pollutants. These contaminants act as abrasives, grinding down the protective oxide layers of the metals and increasing the coefficient of friction within the joints.

Furthermore, the use of lubricants in these systems often becomes a liability. While initial lubrication reduces friction, the "wicking" effect draws in fine particulates, creating a grinding paste that accelerates the erosion of the pivot bores. This leads to "slop" or mechanical play in the linkage, which manifests as an uneven gap closure. In the context of ADA compliance, even a few millimeters of unexpected deviation can render the platform unsafe. The thermal cycling inherent to the Colorado climate further exacerbates this, as the differential expansion rates between the stainless steel linkages and the carbon steel supports can introduce parasitic stresses into the assembly.

• Abrasive Wear: The impact of ferric oxide and brake dust on the polished surfaces of the linkage pins.
• Galvanic Corrosion: Potential for electrochemical reactions between dissimilar metals in the presence of moisture and salts.
• Lubricant Breakdown: The transition of grease from a protective barrier to a contaminant-trapping medium.
• Thermal Fatigue: The repeated expansion and contraction of the linkage arms leading to micro-fractures in the weldments.

Forensic Analysis of High-Cycle Failure Modes

A forensic examination of failed gap filler assemblies reveals a consistent pattern of fatigue-induced failure. The most common failure mode is the development of stress risers at the transition points between the linkage arms and the mounting brackets. Under the cyclic loading of thousands of deployment cycles, these stress risers evolve into macro-cracks. This is typically a result of "over-constraint," where the system is too rigid to accommodate the natural vibration of the platform or the slight variations in the rail vehicle's stopping position, forcing the linkage to absorb the energy through deformation.

Additionally, the failure of the synchronization mechanism often leads to "binding" events. When one segment of the linkage extends faster than the others, it introduces a bending moment into the arm that it was not designed to withstand. This results in the buckling of the linkage or the shearing of the pivot pins. Forensic data indicates that the majority of these failures occur during the transition from the retracted to the extended state, where the internal forces are at their peak. The lack of dampening in the mechanical stop can also lead to impact loading, which sends a shockwave through the linkage, further compromising the structural integrity of the fasteners.

• Shear Failure: The catastrophic failure of pivot pins due to excessive lateral loading during vehicle docking.
• Fatigue Cracking: The propagation of cracks at the heat-affected zones (HAZ) of the welded joints.
• Buckling: Structural instability caused by non-linear extension of the linkage arms.
• Fastener Loosening: The loss of torque in mounting bolts due to high-frequency vibrations from the light rail vehicles.

Engineering Mitigations and Life-Cycle Optimization

To ensure the long-term durability of the ADA platform gap fillers, a shift toward a "hardened" engineering approach is required. The first priority is the replacement of traditional bushings with self-lubricating, PTFE-lined composite bearings. These components eliminate the need for external grease, thereby removing the mechanism that attracts abrasive contaminants. By reducing the coefficient of friction and eliminating the reliance on manual lubrication schedules, the system's reliability is significantly increased. Furthermore, the use of high-strength, corrosion-resistant alloys such as 316L stainless steel or duplex steels can mitigate the effects of the West Colfax environmental stressors.

From a structural perspective, the implementation of flexible couplings or "floating" mounts can alleviate the problem of over-constraint. By allowing for a small degree of controlled movement, the linkage is no longer forced to absorb the full impact of vehicle

Geotechnical Site Characterization and Slope Failure Mechanisms

The US-36 corridor, specifically the sections supporting the Flatiron Flyer BRT, presents a complex geotechnical profile characterized by heterogeneous soil strata and varying degrees of compaction. In these environments, the primary driver of slope instability is the intersection of high surcharge loads from transit infrastructure and the inherent shear strength limitations of the native soil. When the driving forces—composed of the soil's own weight and the dynamic loading from rapid transit vehicles—exceed the resisting forces provided by the internal friction angle and cohesion of the soil mass, a failure plane develops. This is typically manifested as a deep-seated rotational slip or a shallow translational slide.

Forensic analysis of these embankments reveals that pore water pressure is the most critical variable. During heavy precipitation events, the saturation of the embankment increases the unit weight of the soil while simultaneously reducing the effective stress between particles. This lubrication of the failure plane significantly lowers the factor of safety, often pushing the slope toward a state of limit equilibrium. In the context of the Flatiron Flyer, the proximity to high-volume traffic introduces constant vibrational energy, which can lead to the gradual densification of granular soils or the liquefaction of saturated silts, further compromising the structural integrity of the embankment.

• Analysis of the internal friction angle (phi) to determine the natural angle of repose.
• Evaluation of the cohesion coefficient (c) to assess the bonding capacity of cohesive soils.
• Mapping of the phreatic surface to identify zones of critical saturation.
• Assessment of surcharge loads induced by BRT station platforms and guideway structures.
• Identification of potential slip surfaces through limit equilibrium analysis.

Soil Nailing Design and Installation Parameters

To mitigate the risk of slope failure, soil nailing is deployed as a passive reinforcement technique that transforms the unstable soil mass into a coherent, reinforced block. Unlike traditional retaining walls that rely on bulk mass to resist lateral earth pressure, soil nailing utilizes the tensile strength of inserted steel tendons to increase the shear resistance of the soil. The process begins with the drilling of holes into the slope, typically at a downward angle of 10 to 20 degrees to optimize the intersection with potential failure planes. These holes are then cleaned and inserted with high-strength, ribbed steel bars, typically Grade 150, which provide the necessary bond strength to the surrounding soil.

The critical component of the nailing system is the grout injection process. A high-strength, non-shrink cementitious grout is pumped into the borehole, creating a permanent bond between the steel tendon and the soil. This grout serves a dual purpose: it transfers the loads from the soil to the nail through skin friction and provides essential corrosion protection for the steel. The nail length and spacing are calculated based on the depth of the theoretical failure plane, ensuring that the nail extends sufficiently into the "resistant zone" beyond the "active zone" of the slope. This ensures that the nail is anchored in stable ground, effectively "stitching" the unstable outer shell to the stable interior mass.

• Utilization of hollow-core or solid-bar tendons depending on the soil's aggressiveness and corrosion potential.
• Implementation of a staggered nail pattern to ensure uniform load distribution across the slope face.
• Application of high-pressure grouting to eliminate voids and maximize the bond coefficient.
• Calculation of the pull-out resistance through empirical field testing and load cells.
• Optimization of nail inclination to counteract the specific vector of the driving force.

Facing Systems and Surface Drainage Integration

The facing system is the primary interface between the reinforced soil mass and the external environment, serving as the structural "skin" that prevents localized sloughing and surface erosion. For the Flatiron Flyer project, a combination of shotcrete and geogrid reinforcement is typically employed. Shotcrete, applied via a high-velocity pneumatic process, provides immediate stabilization to the slope face, preventing the loss of soil between nail heads. The thickness of the shotcrete is carefully engineered to resist the localized pressures exerted by the soil nails while remaining flexible enough to accommodate minor settlements without cracking.

However, the most common cause of failure in reinforced slopes is the neglect of hydrostatic pressure management. A facing system that is completely impermeable can trap water behind the wall, leading to a buildup of pore water pressure that can blow out the facing or cause a catastrophic failure of the nail heads. To prevent this, a comprehensive drainage strategy is integrated into the envelope. This includes the installation of geocomposite drainage mats behind the shotcrete and the strategic placement of weep holes. These elements ensure that groundwater is intercepted and diverted away from the reinforced zone, maintaining the effective stress of the soil and preserving the integrity of the nail-soil bond.

• Application of fiber-reinforced shotcrete to increase ductility and reduce shrinkage cracks.
• Installation of drainage composites to facilitate the rapid evacuation of subsurface water.
• Integration of weep holes at calculated intervals to prevent hydrostatic buildup.
• Use of galvanized or epoxy-coated nail heads to prevent oxidation at the facing interface.
• Application of architectural textures or seed-spraying to integrate the wall into the surrounding landscape.

Long-term Performance Monitoring and Forensic Validation

The engineering lifecycle of a stabilized embankment does not end with construction; it requires rigorous forensic monitoring to ensure the long-term stability of the BRT infrastructure. Given the dynamic nature of the US-36 corridor, the use of instrumentation is mandatory for validating the design assumptions. Inclinometers are installed at critical sections of the slope to detect deep-seated lateral movements. Any deviation in the inclinometer readings indicates a shift in the failure plane, allowing engineers to implement remedial measures—such as additional nail installation—before a total collapse occurs.

Furthermore, load cells are often attached to a representative sample of nail heads to monitor the tension developed within the tendons. This data provides empirical evidence of how the soil mass is interacting with the reinforcement over time. Forensic analysts also perform periodic visual inspections to identify signs of distress, such as longitudinal cracking in the shotcrete or the presence of seepage at the face of the wall. By correlating the instrumentation data with visual evidence and weather patterns, a predictive maintenance model can be established, ensuring that the

Site-Specific Acoustic Profiles and Source Characterization

The Colfax Avenue BRT (Bus Rapid Transit) corridor presents a complex acoustic environment characterized by high-amplitude, low-frequency emissions from heavy-duty diesel and electric propulsion systems, coupled with high-frequency tire-pavement interaction noise. To establish a baseline for soundwall absorption calculations, a comprehensive spectral analysis of the noise source is required. The primary objective is to mitigate the perceived noise levels for adjacent commercial and residential receptors by interrupting the direct line-of-sight propagation of sound waves.

In an urban canyon environment such as Colfax Avenue, sound energy does not dissipate linearly. Instead, it undergoes multiple reflections between building facades, creating a reverberant field that can amplify noise levels if the barrier surfaces are purely reflective. The engineering challenge lies in managing the Sound Pressure Level (SPL) across a broad frequency spectrum, typically ranging from 63 Hz to 8 kHz. Low-frequency energy, particularly from idling bus engines, possesses longer wavelengths that are more prone to diffraction, meaning they can effectively "bend" over the top of a barrier, reducing the effective shadow zone.

• Source Strength: Peak noise levels often exceed 85 dB(A) during acceleration phases.
• Frequency Distribution: Dominant energy peaks occur in the 125 Hz to 500 Hz range for propulsion and 2 kHz to 4 kHz for braking and tire noise.
• Ambient Noise Floor: Baseline urban noise levels fluctuate between 60 and 70 dB(A), requiring a minimum insertion loss of 10 to 15 dB to achieve a perceptible reduction in noise pollution.
• Propagation Path: Direct path attenuation is calculated based on the distance from the wheel-hub source to the receiver's facade.

Material Specification and Absorption Coefficients

The selection of materials for the Colfax Avenue soundwalls is governed by the Noise Reduction Coefficient (NRC), a scalar representation of the average absorption coefficient across standard octave bands. A reflective wall, such as poured-in-place concrete without treatment, may block sound but often reflects energy back toward the source or across the street to opposing buildings, potentially increasing the noise load on the opposite side of the corridor. Therefore, the specification calls for absorptive barriers that convert acoustic energy into low-grade heat through viscous loss within a porous medium.

The recommended assembly consists of a perforated metal facing—typically galvanized steel or aluminum—backed by a high-density mineral wool or fiberglass core. The perforations are engineered to allow sound waves to penetrate the outer skin and enter the absorptive core, where the tortuous path of the fibers dissipates the energy. The thickness of the absorptive layer is critical; a thicker core provides better absorption for the lower frequency bands that are most problematic in BRT environments.

• NRC Rating: A minimum NRC of 0.80 is required to ensure that at least 80% of incident sound energy is absorbed rather than reflected.
• Perforation Ratio: An open area of 20% to 30% is optimized to balance structural rigidity with acoustic transparency.
• Core Density: Mineral wool with a density of 4 to 8 lbs/ft³ is utilized to maximize the flow resistivity of the material.
• Surface Impedance: The matching of the air-to-material impedance is managed via the perforation diameter to prevent premature reflection at the boundary layer.

Diffraction Analysis and Geometric Attenuation

The efficacy of a soundwall is not determined solely by its material composition but by its geometry relative to the source and the receiver. The primary mechanism for noise reduction is the creation of an "acoustic shadow." The calculation of this reduction relies on the diffraction of sound waves over the top edge of the wall. This is quantified using the Fresnel number, which relates the path length difference (the difference between the direct path and the path over the top of the wall) to the wavelength of the noise.

For the Colfax Avenue project, the wall height must be calibrated to ensure that the diffraction angle is sufficiently steep to protect the first-floor residential units. If the wall is too short, the "shadow zone" is insufficient, and the sound waves will diffract significantly, resulting in negligible noise reduction. Furthermore, the distance from the BRT lane to the wall must be optimized; placing the wall closer to the source generally increases the diffraction angle, thereby enhancing the insertion loss for the receiver.

• Path Length Difference: Calculated as the difference between the straight-line distance from source to receiver and the distance over the wall crest.
• Edge Diffraction: Managed by implementing "T-shaped" or "capped" top edges to increase the effective height without increasing the overall structural load.
• Insertion Loss: The difference in SPL at the receiver location with and without the barrier in place.
• Critical Frequency: The frequency below which the barrier becomes significantly less effective due to the long wavelength of the sound.

Forensic Validation and Field Performance Metrics

Theoretical calculations must be validated through empirical field measurements to account for real-world variables such as flanking paths and atmospheric attenuation. Forensic analysis of the installed soundwalls involves utilizing calibrated Class 1 sound level meters to conduct "A-weighted" and "C-weighted" measurements. This ensures that the low-frequency rumble of the BRT vehicles is being adequately mitigated, as A-weighting often under-represents the perceived annoyance of low-frequency noise.

A critical forensic concern in urban installations is "acoustic leakage." Any gap in the soundwall—whether due to thermal expansion joints, utility penetrations, or improper sealing at the base—can act as a waveguide, allowing sound energy to "leak" through and significantly degrade the overall STC (Sound Transmission Class) of the system. A gap of even 1% of the total wall area can lead to a reduction in effective noise attenuation by several decibels, effectively neutralizing the benefits of high-NRC materials.

• Field Testing: Conducted during peak transit hours to capture maximum source strength and traffic volume.
• Flanking Path Analysis: Identification of secondary paths where sound may travel around the barrier or through adjacent structures.
• Spectral Comparison: Comparing the measured SPL at the receiver against the predicted model to refine the absorption coefficients used in the design.
• Long-term Degradation: Monitoring the saturation of porous materials; if the mineral wool becomes saturated with moisture or clogged with urban particulate matter, the NRC will drop, necessitating a maintenance cycle.

Electromechanical Fundamentals of Track Circuit Shunting

The operational integrity of the Civic Center Transit Concourse relies upon the precise execution of track circuit shunting, a process where the electrical continuity between two running rails is established by the wheelset of a transit vehicle. In a standard DC track circuit, a voltage is applied to the rails, and a relay is energized to indicate a "clear" block. When a vehicle enters the section, the axle acts as a low-resistance shunt, diverting the current away from the relay and dropping the voltage, which triggers a "occupied" state. The sensitivity of this system is measured by the minimum resistance value that the circuit can reliably detect as a shunt, typically calibrated to ensure that even the lightest rolling stock triggers the safety mechanism.

Heavy snow accumulation introduces a complex set of variables that interfere with this binary state. Snow is not a uniform insulator; its electrical properties fluctuate based on crystalline structure, density, and liquid water content. When snow accumulates around the rail fasteners and the sleepers, it can create parasitic leakage paths. These paths allow current to bleed from one rail to another or into the ground, effectively mimicking the presence of a vehicle. This phenomenon, known as "false occupancy," leads to systemic delays and disrupts the signaling logic of the concourse, necessitating a forensic analysis of the interface between the rail and the surrounding environment.

• Rail-to-rail leakage current induced by saturated snow drifts.
• Reduction in the effective shunt sensitivity due to increased ballast resistance.
• Voltage drops across the rail head caused by ice accretion.
• Intermittent relay chatter resulting from fluctuating moisture levels in the snowpack.

Environmental Interaction and Dielectric Interference

From a building envelope and infrastructure perspective, the Civic Center Transit Concourse acts as a semi-permeable membrane. Snow ingress from the overhead canopy and adjacent open-air sections leads to localized accumulation zones. The dielectric constant of snow varies significantly; fresh, powdery snow acts as a high-resistance insulator, whereas compacted, melting snow—often saturated with urban pollutants and de-icing salts—becomes a potent conductor. This transition is critical because the shunting sensitivity of the track circuit is highly dependent on the resistivity of the medium surrounding the rails.

As snow accumulates, it undergoes a phase of compaction and sintering. This process reduces the air gaps between ice crystals, creating continuous pathways for ionic conduction. In the context of the concourse, the presence of calcium chloride or sodium chloride from maintenance efforts further lowers the resistivity of the snow. This creates a "conductive blanket" that can bridge the gap between the rails. When the resistance of this snow-bridge falls below the threshold of the track relay, the system registers a shunt. The forensic challenge lies in the fact that this conductivity is non-linear and varies with the ambient temperature and the specific chemical composition of the runoff.

• Impact of sintering on the electrical conductivity of accumulated snow.
• Influence of ionic concentrations from de-icing agents on leakage current.
• Thermal bridging between the rail steel and the surrounding snowpack.
• Variation in dielectric permittivity during the freeze-thaw cycle.

Forensic Analysis of Signal Failure Modes

The failure modes observed during heavy snow events at the Civic Center Transit Concourse are primarily categorized as "phantom occupancies" and "loss of shunt." A phantom occupancy occurs when the leakage current through the snow-saturated ballast exceeds the relay's drop current. This is a fail-safe condition, as it stops trains, but it creates massive operational inefficiency. Conversely, and more dangerously, a "loss of shunt" can occur if ice accretion on the rail head creates an insulating layer between the wheel and the rail. If the ice layer is sufficiently thick and dense, it increases the contact resistance to a point where the track circuit may fail to detect a vehicle, leading to a "false clear" signal.

Empirical data suggests that the most critical failure points are the rail insulators and the bond wires. Snow accumulation at these specific junctions can lead to localized electrochemical corrosion, further altering the resistance profiles. When the snow melts, the resulting slurry can penetrate the insulation of the jointed rails, creating high-impedance faults that are difficult to diagnose using standard multimeter testing. The forensic evidence typically reveals a correlation between the depth of the snowpack and the frequency of signal drops, with a sharp increase in failures once the snow reaches the level of the rail fasteners.

• Analysis of rail-head ice accretion and its effect on contact resistance.
• Evaluation of "false clear" scenarios caused by insulating ice layers.
• Identification of high-impedance faults at rail insulator interfaces.
• Correlation between snow depth and the frequency of relay drop-outs.

Engineering Controls and Mitigation Strategies

To mitigate the impact of snow on shunting sensitivity, a multi-layered engineering approach is required, focusing on both the electrical tuning of the circuits and the physical management of the infrastructure envelope. The first line of defense is the implementation of thermal management systems. Installing heat-tracing cables along the rail foot and within the ballast shoulder prevents the formation of ice and ensures that the snow remains in a state that does not facilitate parasitic leakage. This maintains the dielectric integrity of the ballast zone and prevents the formation of the conductive blankets described previously.

Furthermore, the signaling system can be upgraded to utilize coded track circuits or AC-based detection, which are inherently more resistant to the low-frequency leakage currents typical of snow and moisture. From a civil engineering standpoint, improving the drainage profile of the concourse is essential. By modifying the slope of the sub-base and installing high-capacity drainage channels, the residence time of meltwater is reduced, thereby limiting the duration of high-conductivity events. Finally, the application of hydrophobic coatings to the rail fasteners can prevent moisture entrapment, ensuring that the shunting sensitivity remains within the specified operational tolerances regardless of the weather conditions.

• Deployment of resistive heating elements to prevent ice accretion.
• Transition to coded track circuits to filter out leakage currents.
• Optimization of concourse drainage to reduce moisture saturation.
• Application of hydrophobic sealants to critical electrical insulators.

Structural Kinematics and Thermal Displacement Analysis

The pedestrian overpass at the Boulder Junction Depot represents a complex intersection of static load-bearing requirements and dynamic thermal movement. At the core of the engineering challenge is the truss joint, which serves as the primary articulation point for the structure. Because the overpass utilizes a high-carbon steel truss system, it is subject to significant linear expansion and contraction dictated by the coefficient of thermal expansion of the metal. In the specific climatic zone of the Boulder Junction, diurnal temperature swings can create substantial displacement across the longitudinal axis of the span.

The expansion bellows are not merely covers but are critical components of the building envelope forensics strategy. Their primary function is to maintain a continuous, watertight seal while accommodating the cyclical movement of the truss. If the bellows are under-specified or improperly tensioned, the resulting stress concentrations lead to premature material fatigue. The kinematics of the joint involve both longitudinal sliding and slight rotational variance, meaning the weatherproofing system must be capable of multi-axial deformation without losing its structural integrity or seal adhesion.

• Calculation of maximum thermal displacement based on a Delta T of 60 degrees Fahrenheit.
• Analysis of load distribution across the truss nodes to prevent uneven bellows compression.
• Evaluation of wind-uplift forces that may induce fluttering in the bellows membrane.
• Assessment of the joint's rotational freedom to ensure the bellows do not bind during peak expansion.

Forensic Evaluation of Envelope Breach Mechanisms

Forensic analysis of previous weatherproofing failures at the Boulder Junction Depot reveals a consistent pattern of mechanical tearing at the anchor points. This phenomenon, known as "stress whitening" or "crazing" in elastomeric materials, occurs when the bellows are stretched beyond their elastic limit during extreme cold-weather contraction. Once a micro-tear initiates at the perimeter seal, the "pumping action" created by the movement of the truss accelerates the breach, allowing moisture to penetrate the interior of the joint.

Water ingress at these joints is particularly hazardous because it leads to crevice corrosion of the structural steel truss. When moisture is trapped between the bellows and the steel, it creates a localized high-humidity environment that promotes oxidation. Furthermore, the freeze-thaw cycles characteristic of the region cause any trapped water to expand, further prying the seals away from the substrate. This creates a feedback loop of degradation where the loss of seal integrity leads to increased structural corrosion, which in turn alters the movement profile of the joint.

• Identification of UV-induced polymer degradation leading to embrittlement of the outer membrane.
• Analysis of sealant failure due to incompatible chemical bonding between the adhesive and the primed steel.
• Observation of particulate accumulation within the bellows folds, which acts as an abrasive during movement.
• Mapping of moisture plumes using infrared thermography to locate hidden leaks within the truss assembly.

High-Performance Materiality and Elastomeric Selection

To mitigate the failures identified in forensic audits, the specification must shift toward high-performance elastomers with superior elongation properties and chemical resistance. For the Boulder Junction Depot, a reinforced EPDM (Ethylene Propylene Diene Monomer) or a high-grade silicone-based membrane is required. These materials offer the necessary flexibility to withstand repeated expansion cycles without permanent deformation. The integration of a polyester scrim or a Kevlar mesh within the elastomer provides the necessary tear strength to prevent the propagation of small punctures into catastrophic failures.

The selection of the sealant is equally critical. A high-modulus structural silicone or a modified silane polymer is recommended for the perimeter bonding. These sealants maintain a high degree of elasticity across a wide temperature range and provide a superior bond to primed steel. Furthermore, the use of a UV-stabilized topcoat is mandatory to prevent the breakdown of the polymer chains caused by high-altitude solar radiation. The material must be tested for "shore hardness" to ensure it is flexible enough to move but durable enough to resist punctures from wind-borne debris.

• Utilization of EPDM for its proven resistance to ozone and extreme temperature fluctuations.
• Application of a dual-component structural adhesive to ensure a hermetic seal at the truss interface.
• Integration of a PTFE (Polytetrafluoroethylene) slip-sheet to reduce friction between the bellows and the steel.
• Implementation of a reinforced fabric interlayer to increase the burst strength of the expansion joint.

Implementation Engineering and Lifecycle Sustainment

The installation of the expansion bellows must follow a rigorous engineering protocol to ensure the theoretical performance is realized in the field. The process begins with the meticulous preparation of the steel substrate, involving abrasive blasting to a near-white metal finish (SSPC-SP 10) to ensure maximum adhesion. The bellows must be installed in a "neutral" position, meaning they are neither over-stretched nor overly compressed at the median temperature of the region. This ensures that the material has sufficient capacity to move in both directions of the thermal cycle.

Long-term sustainment requires a proactive maintenance regime based on empirical data. Rather than reactive repairs, a scheduled inspection every 24 months is necessary to check for signs of elastomer fatigue or seal separation. The use of a "clamp-and-seal" mechanical fastening system, in addition to the chemical adhesive, provides a redundant layer of security. This mechanical redundancy ensures that even if the adhesive bond fails, the bellows remain physically attached to the truss, preventing a total envelope collapse and protecting the underlying infrastructure from the elements.

• Execution of a pull-test on random sample sections to verify bond strength to the steel substrate.
• Installation of stainless steel clamping bands to provide uniform compression across the seal perimeter.
• Application of a weather-resistant flashing to divert bulk water away from the joint opening.
• Establishment of a digital maintenance log to track the deformation rates of the bellows over time.

Mechanics of Rutting in High-Stress Intermodal Environments

In the context of the Longmont Intermodal Terminal, the primary failure mechanism observed in the bus bay asphalt is permanent deformation, specifically manifesting as rutting. Unlike highway environments where vehicles maintain a constant velocity, intermodal bus bays are subject to "channelized traffic." This occurs when heavy-duty transit vehicles follow identical wheel paths with extreme precision, concentrating the vertical load on a narrow strip of pavement. The resulting stress is not merely a function of the vehicle's gross weight, but a combination of high axle loads and low-speed, high-torque maneuvers.

The physics of this failure are rooted in the shear strain exerted on the asphalt layers. When a bus decelerates or turns within a bay, the lateral forces push the asphalt mixture horizontally. If the binder lacks sufficient internal cohesion and stability, the aggregate particles shift, leading to a gradual collapse of the pavement structure. This process is exacerbated by the "static load" effect, where idling vehicles allow heat to transfer from the engine and exhaust directly into the pavement, softening the bitumen and accelerating the plastic flow of the material.

• Channelized loading: The repeated application of load in a fixed path, preventing the distribution of stress across the wider pavement surface.
• Shear stress: The force applied parallel to the pavement surface during braking and turning, which induces lateral displacement of the mix.
• Thermal softening: The reduction in binder viscosity caused by ambient summer peaks and localized heat from idling heavy-duty diesel engines.
• Aggregate displacement: The physical movement of mineral fillers and coarse aggregates once the binder's viscosity drops below the critical threshold.

Rheological Failure of Conventional Hot Mix Asphalt

Conventional Hot Mix Asphalt (HMA) utilizing standard penetration-grade bitumen often fails in intermodal settings because it lacks the necessary viscoelastic recovery. In clinical terms, standard bitumen behaves as a Newtonian fluid at high temperatures, meaning its viscosity decreases linearly as heat increases. In the Longmont climate, where surface temperatures can fluctuate significantly, the binder often enters a state of "plastic flow" during peak summer months. When the load is applied during this state, the deformation is permanent rather than elastic.

The failure is further compounded by the "rutting cycle." Once a minor depression forms, it begins to collect moisture and debris, which further weakens the sub-base through capillary action. This creates a feedback loop where the structural integrity of the pavement is compromised from both the top-down (binder softening) and bottom-up (sub-grade saturation). Forensic analysis of failed sections typically reveals a "shoving" pattern, where the asphalt has been pushed into longitudinal ridges, indicating a total loss of shear resistance within the upper 2 to 4 inches of the wearing course.

• Viscoelasticity: The property of materials that exhibit both viscous and elastic characteristics upon deformation.
• Glass Transition Temperature: The point at which the binder shifts from a brittle, glassy state to a flexible, rubbery state.
• Plastic Flow: The permanent deformation of the material that occurs when the applied stress exceeds the yield strength of the binder.
• Sub-grade Interaction: The relationship between the asphalt surface and the underlying compacted soil, where moisture infiltration accelerates structural collapse.

Polymer Modified Binders as a Structural Intervention

To combat the inherent weaknesses of standard bitumen, the implementation of Polymer Modified Binders (PMB) is required. The most effective intervention for the Longmont Terminal involves the integration of Styrene-Butadiene-Styrene (SBS), a thermoplastic elastomer. Unlike standard bitumen, which is a complex mixture of hydrocarbons, SBS creates a three-dimensional cross-linked network within the binder. This polymer network acts as a microscopic "spring" system, allowing the asphalt to deform under the weight of a transit bus and then return to its original shape once the load is removed.

The introduction of polymers fundamentally alters the rheology of the binder by increasing its complex shear modulus. This means the binder can withstand higher temperatures before it begins to soften, effectively shifting the Performance Grade (PG) of the asphalt to a higher threshold. Furthermore, the polymer modification improves the adhesion between the binder and the aggregate, reducing the likelihood of stripping and ensuring that the aggregate skeleton remains locked in place even under extreme shear forces. This results in a pavement surface that is significantly more resistant to the "shoving" and "rutting" typical of bus bay operations.

• SBS Integration: The use of block copolymers to create a resilient, rubberized matrix within the bitumen.
• Elastic Recovery: The ability of the PMB to return to its original geometry after the removal of a vertical load.
• Complex Shear Modulus: A measure of the material's resistance to deformation, which is significantly increased through polymer modification.
• Interfacial Bonding: The enhanced chemical bond between the modified binder and the mineral aggregate, preventing premature stripping.

Implementation and Forensic Validation at Longmont Terminal

The successful deployment of PMB across the Longmont Intermodal Terminal requires strict adherence to thermal management during the paving process. Because polymer-modified mixes have a higher viscosity, they require higher mixing and compaction temperatures to ensure full workability and density. If the mix is allowed to cool too rapidly, "segregation" occurs, where the polymer does not distribute evenly, leading to localized soft spots that are prone to early failure. Precision rolling patterns, utilizing both static and vibratory compaction, are essential to eliminate air voids and maximize the density of the wearing course.

Post-installation validation is conducted through forensic rut-depth tracking and laser profiling. By measuring the "rut depth" at 30-day intervals, engineers can determine the rate of permanent deformation. In the Longmont project, the goal is to maintain a rut depth of less than 12.5mm over a five-year lifecycle. This is monitored using a high-precision profilometer that maps the transverse profile of the wheel paths. When compared to previous conventional HMA installations, the PMB sections demonstrate a 60% to 80% reduction in rutting progression, proving that the modification of the binder's chemical structure is the only viable long-term defense against the unique stresses of intermodal transit.

• Thermal Management: Maintaining precise temperatures during transport and lay-down to prevent premature stiffening.
• Vibratory Compaction: The use of high-frequency energy to rearrange aggregates into the tightest possible configuration.
• Laser Profiling: The empirical measurement of surface irregularities to quantify the rate of rutting.
• Lifecycle Analysis: The comparison of maintenance intervals between standard HMA and PMB to determine the total cost of ownership.

System Architecture and Interlock Logic for Traction Power

The Golden Station Transit Loop utilizes a complex, multi-layered interlock matrix designed to ensure the immediate and total de-energization of the third-rail traction power system during emergency events. At the core of this architecture is a fail-safe relay logic system that operates on a "normally closed" circuit principle. In this configuration, the presence of a continuous electrical signal maintains the energized state of the third rail; any interruption in this signal—whether caused by a manual emergency trip, a detected fault, or a loss of control power—triggers the immediate opening of the high-voltage circuit breakers at the traction power substation (TPSS).

The interlock system is integrated directly into the Supervisory Control and Data Acquisition (SCADA) framework, allowing for real-time monitoring of the rail's state across the entire loop. The logic is designed to prevent the re-energization of the third rail until a physical "clearance" signal is received and verified by both the central control center and the local station master. This prevents the accidental energization of the rails while maintenance personnel or emergency responders are present in the track area.

• Redundant Relay Logic: Dual-channel signal paths ensure that a single point of failure in the wiring does not inhibit the emergency shutdown sequence.
• Galvanic Isolation: The use of opto-isolators prevents high-voltage transients from the traction power system from migrating into the low-voltage control circuitry.
• Time-Delay Coordination: Precise coordination of breaker trip times prevents voltage surges and ensures a synchronized power-down across the Golden Station loop.
• Manual Override Interface: Physical Emergency Power Off (EPO) buttons are strategically placed at 50-foot intervals along the platform and tunnel interfaces.

Forensic Analysis of Failure Modes and Signal Latency

From a forensic engineering perspective, the primary risks to the de-energization interlocks are mechanical binding of the breaker assemblies and signal latency within the control loop. Empirical data from previous infrastructure audits indicates that oxidation of the silver-alloy contacts in the relay switches can increase electrical resistance, leading to a "slow trip" scenario. In a high-voltage environment, a delay of even 500 milliseconds can be the difference between a controlled shutdown and a catastrophic arc flash event. Furthermore, the Golden Station loop's geometry introduces significant electromagnetic interference (EMI), which can induce noise into the control cables if they are not properly shielded.

Analysis of the cable runs reveals that the degradation of the outer jacket on the control wiring, often caused by vibration and friction against the tunnel wall, can lead to intermittent grounding. This "ghosting" effect may cause the system to report a false-positive state of de-energization while the rail remains live. To mitigate this, the system employs a heartbeat signal—a high-frequency pulse that is continuously monitored. If the heartbeat is lost or distorted, the interlock defaults to the safest state: total power disconnection.

• Contact Pitting: Electrical erosion of the relay contacts resulting in increased contact resistance and potential welding of the switch.
• EMI Induction: High-frequency noise from the traction motors interfering with the low-voltage interlock signals.
• Dielectric Breakdown: The failure of insulating materials around the third-rail supports, leading to leakage currents that can confuse the fault-detection logic.
• Signal Attenuation: Voltage drops over long cable runs that may prevent the trip coil from receiving sufficient current to actuate the breaker.

Environmental Interface and Building Envelope Forensics

The reliability of the third-rail interlocks is inextricably linked to the integrity of the subterranean building envelope. The Golden Station Transit Loop is subject to intense hydrostatic pressure and constant moisture ingress, which creates a hostile environment for electrical infrastructure. Forensic examination of the tunnel lining shows that micro-cracks in the concrete, caused by seismic settling and thermal expansion, allow calcium-rich groundwater to seep through the envelope. This moisture often accumulates in the cable troughs where the interlock wiring resides, leading to accelerated corrosion of the conduits.

Furthermore, the interaction between the tunnel's waterproofing membrane and the grounding grid is critical. If the membrane is compromised, the resulting moisture can create parasitic paths for the return current, potentially bypassing the interlock's sensing equipment. This "stray current" phenomenon can cause electrochemical corrosion of the steel reinforcements within the tunnel walls, further weakening the structural envelope and creating a feedback loop of degradation. The engineering solution requires a rigorous application of crystalline waterproofing and the installation of high-density polyethylene (HDPE) liners to isolate the electrical systems from the surrounding geology.

• Hydrostatic Infiltration: The penetration of groundwater through the tunnel envelope, leading to the saturation of electrical junction boxes.
• Concrete Carbonation: The chemical reaction between atmospheric CO2 and the concrete, which lowers the pH and accelerates the corrosion of embedded steel.
• Capillary Action: The movement of moisture through porous masonry, which can introduce salts and contaminants into the interlock circuitry.
• Thermal Bridging: Areas where the tunnel envelope fails to provide adequate insulation, leading to condensation on the cool surfaces of the electrical conduits.

Compliance, Testing Protocols, and Lifecycle Maintenance

To ensure the continued safety of the Golden Station Transit Loop, the interlock systems must adhere to a strict regimen of empirical testing and regulatory compliance, specifically following NFPA 130 and IEEE 142 standards. The primary testing protocol involves a "full-load trip test," where the system is simulated under maximum current draw to verify that the breakers actuate within the specified millisecond window. This is complemented by insulation resistance testing (Megger testing) performed quarterly to identify early signs of dielectric breakdown in the cabling.

Lifecycle maintenance is managed through a predictive model based on thermal imaging and vibration analysis. By utilizing infrared thermography, technicians can identify "hot spots" in the relay panels, which indicate high resistance or impending component failure before a fault occurs. Additionally, the implementation of a rigorous cleaning cycle for the third-rail insulators is mandatory; the accumulation of brake dust and metallic particles can create a conductive film that facilitates tracking and flashovers, potentially bypassing the interlock logic entirely.

• NFPA 130 Adherence: Ensuring that all emergency egress and power-down systems meet the stringent fire and life safety codes for fixed guideway
