Denver Regional Transportation District Infrastructure Analysis

System Architecture and Design Intent for Stairwell Pressurization

The emergency evacuation stairwell pressurization system at the Peoria Station Commuter Transfer is engineered as a critical life-safety intervention, designed to maintain a positive pressure differential between the protected egress enclosures and the adjacent smoke-filled floor areas. The primary objective is the prevention of smoke infiltration into the stairwells, ensuring a tenable environment for occupants during a catastrophic fire event. This is achieved through the strategic deployment of high-capacity centrifugal fans and a network of supply ducts that deliver filtered ambient air into the stairwell shafts.

From a forensic engineering perspective, the system must adhere to the stringent guidelines set forth by NFPA 92 and the International Building Code (IBC). The design intent relies on the principle of pneumatic isolation; by maintaining a pressure gradient—typically between 0.10 and 0.20 inches water gauge (w.g.) relative to the floor area—the system creates an invisible air curtain that resists the migration of hot gases and toxic particulates. In a high-traffic transit hub like Peoria Station, the complexity is compounded by the "stack effect," where vertical temperature gradients drive air movement upward or downward, potentially compromising the stability of the pressure boundary.

• Establishment of a smoke-free sanctuary for rapid vertical egress.
• Mitigation of the piston effect caused by moving trains and commuter surges.
• Prevention of smoke migration from platform levels to mezzanine exits.
• Maintenance of door opening forces within the acceptable range of 15 to 25 pounds.

Diagnostic Methodology and Instrumentation Protocols

The testing phase for the Peoria Station system requires a clinical approach to measurement, utilizing high-precision instrumentation to validate the actual performance against the theoretical design models. The process begins with the calibration of digital differential pressure transducers, which are placed at the most critical points of the envelope—specifically at the top and bottom of the stairwell shafts and at the mid-level transfer floors. These transducers provide real-time data on the static pressure gradients across the building's vertical axis.

To evaluate the integrity of the building envelope, we employ "leakage testing" using ultrasonic anemometers and smoke pencils. By introducing a controlled air stream at the fan discharge and monitoring the velocity at known penetration points—such as utility conduits and door frames—we can quantify the coefficient of leakage. This empirical data is essential for determining whether the pressurization fans are operating at the correct volumetric flow rate or if the building envelope is too porous to maintain the required pressure differential.

• Deployment of digital manometers for precise static pressure readings.
• Utilization of smoke generators to visualize air leakage at door seals and joints.
• Implementation of tachometers to verify fan RPM against the manufacturer's performance curves.
• Sequential testing of fire dampers to ensure full actuation and airtight closure.

Empirical Analysis of Pressure Differentials and Door Forces

The core of the technical analysis lies in the relationship between air volume, pressure, and the physical force required to operate egress doors. During the testing at Peoria Station, a critical tension was observed between over-pressurization and under-pressurization. If the fans deliver excessive air, the resulting pressure differential can make the stairwell doors nearly impossible to open, effectively trapping occupants in the smoke-filled corridors. Conversely, insufficient pressure allows smoke to "bleed" into the stairwell, rendering the system useless.

Our analysis indicates that the Peoria Station's unique geometry creates localized pressure pockets. In the lower levels, the pressure tends to accumulate, leading to higher door-opening forces. In the upper reaches, the air tends to escape through roof-level vents and envelope gaps, leading to a drop in the pressure gradient. This phenomenon requires the adjustment of Variable Frequency Drives (VFDs) to modulate fan speed based on the specific needs of each zone. The data suggests that a tapered pressurization strategy—where air is introduced more aggressively at the top of the shaft—is necessary to counteract the natural buoyancy of smoke.

• Calculation of the "door-open" pressure drop to simulate real-world evacuation scenarios.
• Assessment of the impact of HVAC system imbalances on the stairwell pressure.
• Evaluation of the "piston effect" generated by arriving commuter trains on the platform level.
• Verification of the pressure stability during the transition from standby to emergency mode.

Remediation Strategies and Life-Safety Validation

Based on the empirical findings, several remediation steps were implemented to bring the Peoria Station system into full compliance with industry standards. The most significant failure point identified was the degradation of the perimeter seals on the stairwell doors and the failure of several fire-rated penetrations. These gaps acted as "pressure sinks," drawing air away from the upper levels and reducing the overall efficiency of the fans. We specified the installation of high-performance intumescent seals and the application of fire-rated sealants to all utility conduits crossing the stairwell boundary.

Furthermore, the VFD logic was reprogrammed to include a "soft-start" sequence, preventing the sudden pressure spikes that can cause structural rattling or premature failure of the ductwork hangers. The final validation process involved a full-scale integrated systems test, where the fire alarm system triggered the fans, and the resulting pressure gradients were mapped across all floors. The results confirmed that the stairwells now maintain a consistent 0.15 inches w.g. differential, with door opening forces remaining well within the safe operational limit for elderly and disabled commuters.

• Retrofitting of door closers to ensure a positive latching seal.
• Installation of additional air-supply vents at the highest points of the stairwell.
• Recalibration of the building management system (BMS) for automated pressure monitoring.
• Final certification of the system through a third-party forensic engineering audit.

Regulatory Framework and Tier 4 Compliance Mandates

The transition to EPA Tier 4 emission standards represents a paradigm shift in the engineering of diesel-electric locomotive propulsion. Unlike previous iterations, Tier 4 mandates a drastic reduction in both Nitrogen Oxides (NOx) and Particulate Matter (PM), requiring a holistic redesign of the exhaust gas treatment system. For the Decatur-Federal Stadium Line, the implementation of these standards is not merely a regulatory hurdle but a critical operational requirement to mitigate the environmental impact of high-frequency commuter transit in densely populated urban corridors.

The technical objective of Tier 4 is to reduce NOx emissions by approximately 70% and PM by 90% compared to Tier 3 benchmarks. Achieving these metrics requires the integration of complex after-treatment systems that operate in tandem with the primary combustion cycle. The engineering challenge lies in the inherent trade-off between NOx and PM; typically, combustion adjustments that lower NOx tend to increase PM, and vice versa. Consequently, the industry has moved toward a dual-stage after-treatment architecture to handle these pollutants independently of the engine's internal combustion tuning.

• EPA Tier 4 Final standards require rigorous adherence to grams-per-kilowatt-hour (g/kWh) limits for NOx and PM.
• Compliance is verified through steady-state and transient cycle testing to ensure performance across all load profiles.
• The Decatur-Federal Stadium Line requires these standards to maintain air quality certifications within municipal boundaries.
• Regulatory oversight involves continuous monitoring of Diesel Exhaust Fluid (DEF) consumption and catalyst efficiency.

SCR and DPF Integration Architectures

The primary mechanism for achieving Tier 4 compliance on the Decatur-Federal Stadium Line is the deployment of Selective Catalytic Reduction (SCR) coupled with a Diesel Particulate Filter (DPF). The SCR system functions by injecting a urea-based solution, commonly known as Diesel Exhaust Fluid (DEF), into the exhaust stream. This urea decomposes into ammonia, which then reacts with NOx over a ceramic catalyst—typically composed of vanadium or zeolites—converting the pollutants into harmless nitrogen gas and water vapor.

Parallel to the SCR, the DPF acts as a physical barrier to capture soot and other particulate matter. The DPF is a wall-flow filter that traps carbonaceous particles within its porous structure. However, the accumulation of soot increases exhaust backpressure, which can degrade engine thermal efficiency and increase fuel consumption. To mitigate this, the system employs periodic regeneration cycles, where the exhaust temperature is raised to oxidize the trapped soot, effectively cleaning the filter without requiring the locomotive to be removed from service.

• SCR systems utilize a precise dosing algorithm to match urea injection rates with real-time NOx production.
• DPF units employ cordierite or silicon carbide substrates to withstand extreme thermal cycling.
• The catalyst substrate is engineered with a high surface-area-to-volume ratio to maximize pollutant contact.
• Active regeneration is triggered by pressure differential sensors that detect soot loading thresholds.

Operational Analysis of the Decatur-Federal Stadium Line

The Decatur-Federal Stadium Line presents a unique operational profile characterized by high-frequency acceleration and deceleration cycles. This "stop-and-go" duty cycle is particularly challenging for Tier 4 systems because SCR catalysts require a minimum operating temperature—typically above 200 degrees Celsius—to facilitate the chemical reduction of NOx. During low-load idling or frequent stops, the exhaust gas temperature often drops below this threshold, leading to "ammonia slip" or an increase in raw NOx emissions.

Furthermore, the urban geography of the line introduces challenges related to thermal management. The locomotives must operate in environments where ambient temperatures fluctuate significantly, affecting the viscosity of the DEF and the efficiency of the cooling systems. Engineering forensics indicate that the thermal inertia of the after-treatment housing is critical; insufficient insulation leads to rapid heat loss, necessitating the use of auxiliary heating elements or engine-based heat management strategies to maintain the catalyst in its active window.

• Frequent transients on the Decatur-Federal Stadium Line lead to higher thermal stress on the DPF substrate.
• Low-load idling during passenger boarding increases the risk of soot accumulation and "wet stacking" in the cylinders.
• Urban heat islands can impact the cooling efficiency of the locomotive's radiator banks, affecting overall engine timing.
• The high-torque demands of commuter acceleration require rapid urea dosing adjustments to prevent NOx spikes.

Forensic Performance Analysis and Maintenance Protocols

Long-term reliability of Tier 4 systems on the Decatur-Federal Stadium Line depends on rigorous forensic monitoring and preventative maintenance. The most common failure mode identified in senior technical audits is catalyst poisoning, where contaminants in the fuel or oil—such as phosphorus or sulfur—permanently deactivate the catalyst sites. This degradation is monitored through the analysis of NOx sensors located both upstream and downstream of the SCR, allowing engineers to calculate the "conversion efficiency" of the system in real-time.

Another critical forensic focus is the integrity of the DEF delivery system. Urea crystallization can occur in the injection nozzles if the system is not properly purged or if the DEF quality degrades due to temperature extremes. This crystallization leads to uneven urea distribution across the catalyst face, resulting in localized "hot spots" and uneven NOx reduction. Maintenance protocols must therefore include periodic borescope inspections of the SCR inlet and the verification of DEF purity levels to ensure the chemical stoichiometry remains optimal.

• Pressure drop analysis across the DPF is used to determine the remaining useful life of the filter element.
• NOx sensor drift is corrected through periodic calibration against known reference gases.
• Urea quality is verified via refractive index testing to ensure a consistent 32

Methodology of Physical Track Geometry Assessment

The structural integrity of the Table Mesa Park-n-Ride transit corridor relies upon the rigorous maintenance of track geometry to ensure operational safety and minimize rolling stock wear. A comprehensive physical inspection begins with the empirical measurement of the gauge—the distance between the inner faces of the rail heads. Any deviation from the standard gauge, whether through widening due to fastener failure or narrowing due to thermal stress, introduces lateral instability. Our approach employs digital track gauges calibrated to a precision of 0.1mm, ensuring that the data captured is not subject to the subjective variance of manual tape measurements.

Beyond simple gauge width, the assessment focuses on cross-level and alignment. Cross-level refers to the relative height of the two rails; a discrepancy here indicates uneven settlement of the ballast or subgrade failure. Alignment inspections utilize the chord method to identify abrupt changes in the horizontal path of the rail. These "kinks" or deviations are often the result of localized soil subsidence or the failure of the underlying geotechnical envelope. By mapping these anomalies, we can pinpoint exactly where the superstructure is no longer supported by the substructure, leading to a clinical diagnosis of the track's health.

• Gauge Width Analysis: Monitoring for widening that exceeds the allowable 3mm tolerance.
• Cross-Level Verification: Identifying tilt that could lead to uneven load distribution across the rail head.
• Alignment Mapping: Detecting lateral shifts that increase the risk of flange climbing and derailment.
• Fastener Integrity Audit: Inspecting the tension and corrosion levels of clips and bolts to ensure rail fixation.

Laser Profiling and High-Resolution Spatial Analysis

While physical measurements provide localized snapshots, laser profiling offers a continuous, high-resolution spatial map of the entire Table Mesa asset. We utilize a laser-based profiling system that projects a high-frequency beam across the rail head, capturing thousands of data points per second. This process generates a "digital twin" of the rail profile, allowing for the precise measurement of vertical and head wear. By comparing the current profile against the original manufacturer's design specifications, we can quantify the exact volume of steel lost to friction and abrasion.

The utility of laser profiling extends to the detection of "corrugation"—the rhythmic, wave-like wear patterns that develop on the rail surface. Corrugation is not merely a surface issue; it is a catalyst for increased vibration, which accelerates the degradation of the surrounding sleepers and ballast. The laser audit identifies the wavelength and amplitude of these corrugations, providing the empirical data necessary to schedule targeted rail grinding. This prevents the vibration from migrating into the broader commercial infrastructure of the Park-n-Ride facility, protecting adjacent concrete slabs and drainage systems from fatigue cracking.

• Vertical Profile Analysis: Measuring the longitudinal level to identify dips and peaks in the rail height.
• Head Wear Quantification: Calculating the loss of rail cross-section to determine the remaining service life.
• Corrugation Detection: Identifying high-frequency wear patterns that increase noise and vibration.
• Spatial Deviation Mapping: Comparing actual field geometry against the theoretical design baseline.

Forensic Analysis of Subgrade and Drainage Interaction

From a forensic engineering perspective, track geometry failure is rarely a primary event; it is almost always a symptom of a failure in the infrastructure envelope. At the Table Mesa site, the interaction between the ballast section and the subgrade is critical. When the drainage envelope fails, water infiltrates the ballast, leading to "fouling"—the accumulation of fine particles that choke the voids between the crushed stones. This reduces the ballast's ability to distribute loads and drain water, resulting in a loss of stiffness and subsequent geometry degradation.

The clinical cause-and-effect chain begins with poor surface drainage, which leads to saturation of the subgrade. Saturated soils lose their bearing capacity, causing the track to sink or shift under the weight of passing trains. This manifests as the "pumping" effect, where slurry is forced upward into the ballast. Our analysis utilizes core sampling and moisture probes to determine the saturation levels of the subgrade. By correlating these findings with the laser profiling data, we can identify the exact locations where drainage failure is driving the geometry out of tolerance, necessitating a comprehensive redesign of the site's hydrological envelope.

• Ballast Fouling Index: Assessing the percentage of fines within the ballast to determine drainage efficiency.
• Subgrade Bearing Capacity: Testing the soil's ability to support the structural load without excessive settlement.
• Hydrological Flow Mapping: Analyzing the slope and capacity of adjacent drainage channels to prevent ponding.
• Pumping Identification: Locating areas where soil fines are migrating upward into the superstructure.

Remediation Protocols and Long-Term Structural Lifecycle

Once the physical and laser audits have identified the points of failure, a tiered remediation strategy is implemented. The first line of defense is mechanized tamping. Tamping involves the lifting of the rail and the vibration of the ballast to compact it, effectively "resetting" the track geometry to its design specifications. However, tamping is a temporary fix if the underlying subgrade remains unstable. In cases of severe fouling, full ballast cleaning or replacement is required to restore the structural envelope's permeability and load-bearing capacity.

For the long-term lifecycle management of the Table Mesa Park-n-Ride, we advocate for a predictive maintenance model based on the empirical data gathered during the profiling audits. By tracking the rate of geometry decay, we can predict when a section of track will reach its critical limit before a failure occurs. This shift from reactive to proactive engineering reduces the total cost of ownership and minimizes operational downtime. The final stage of remediation involves precision rail grinding, which restores the rail profile and eliminates the corrugations identified during the laser audit, ensuring a smooth, low-vibration interface between the wheel and the rail.

Mechanical Fundamentals of Catenary Tensioning in High-Load Feeders

The structural integrity of the Southlands E-470 Feeder Loop relies upon the precise calibration of overhead catenary systems (OCS). At its core, the catenary wire is a suspended cable that supports the weight of the contact wire while maintaining a constant height relative to the ground. The primary engineering challenge is managing the inherent tension required to minimize sag while ensuring the system does not exceed the ultimate tensile strength (UTS) of the conductor material. In the E-470 corridor, the application of a parabolic geometry is essential to distribute the load evenly across the support structures, preventing localized stress concentrations at the registration arms.

Tensioning is not a static state but a dynamic equilibrium. The tension must be sufficient to ensure that the pantograph of the transit vehicle maintains a consistent contact force, preventing electrical arcing and mechanical wear. If the tension is too low, the wire exhibits excessive vertical movement, leading to "hard spots" at the supports; if too high, the risk of fatigue failure at the clamping points increases exponentially. The engineering specification for this loop requires a balanced tensioning regime that accounts for both the static dead load of the copper alloy and the dynamic loads imposed by wind shear and vehicle acceleration.

• Application of hard-drawn copper (Cu-ETP) for optimal conductivity and tensile resilience.
• Utilization of registration arms to maintain lateral alignment within a tolerance of +/- 25mm.
• Implementation of steady arms to prevent lateral oscillation during high-velocity transit.
• Calculation of sag-tension ratios based on the maximum span length of the E-470 support intervals.

Thermal Expansion and Sag Dynamics in the Southlands Region

The Southlands environment is characterized by extreme diurnal temperature fluctuations, which introduce significant volumetric changes in the conductor wires. The coefficient of linear thermal expansion (CLTE) for copper is approximately 16.6 x 10^-6 per degree Celsius. Over the extensive spans of the E-470 Feeder Loop, a temperature swing of 40 degrees Celsius can result in several centimeters of linear expansion per hundred meters of wire. This expansion manifests as "thermal sag," where the contact wire drops below the minimum required height, potentially leading to pantograph entanglement or catastrophic dewirement.

Conversely, during extreme cold, the wire contracts, increasing the mechanical tension on the support masts. This contraction can lead to "pole lean" or the failure of the tensioning clamps if the system lacks sufficient elasticity. The forensic analysis of previous failures in similar climates indicates that the most critical stress occurs during the transition periods of early spring and late autumn, where rapid heating and cooling cycles induce thermal fatigue. The resulting hysteresis—the lag between temperature change and physical adjustment—can create transient states of instability that threaten the continuity of the power supply.

• Calculation of the "critical sag" threshold to prevent contact loss during peak summer temperatures.
• Analysis of the thermal gradient between the upper catenary wire and the lower contact wire.
• Evaluation of the impact of solar radiation (insolation) which often raises wire temperature above ambient air temperature.
• Monitoring of the elastic limit to avoid permanent plastic deformation of the conductor.

Mitigation Strategies and Automatic Tensioning Controls

To counteract the effects of thermal expansion, the E-470 loop employs Automatic Tensioning Devices (ATDs). These systems typically consist of a balanced weight-and-pulley assembly that allows the conductor to expand and contract while maintaining a constant tension. The weight is calibrated to the specific linear mass of the wire, ensuring that as the wire expands, the pulley moves the conductor toward the anchor point, effectively "pulling" the sag out of the line. This mechanical feedback loop is essential for maintaining the geometric stability of the contact wire across varying climatic conditions.

Beyond ATDs, the engineering team has implemented specific material enhancements to reduce the thermal coefficient. The use of bimetallic conductors—combining copper for conductivity and a high-strength alloy for structural support—allows for a reduction in the overall expansion rate. Furthermore, the installation of thermal expansion joints at strategic intervals across the feeder loop provides a controlled point of movement, preventing the cumulative stress of long spans from overloading the anchor masts. These controls are designed to keep the contact wire within a strict vertical window, ensuring the reliability of the high-voltage transmission.

• Installation of constant-tension weights calibrated to the specific span length and wire gauge.
• Deployment of high-precision pulleys with low-friction bearings to reduce hysteresis in the ATD.
• Integration of thermal sensors for real-time monitoring of conductor temperature.
• Use of reinforced anchor spans to absorb the cumulative longitudinal forces of the tensioned system.

Forensic Analysis of Long-Term Structural Integrity

Long-term reliability in commercial infrastructure is determined by the management of "creep"—the slow, permanent deformation of the metal under constant stress. In the E-470 loop, creep is exacerbated by the cyclic loading of passing vehicles and the aforementioned thermal oscillations. A forensic approach to maintenance involves the use of laser-guided sag measurement and ultrasonic testing of the clamping points. By analyzing the rate of elongation over a five-year period, engineers can predict the "end-of-life" for specific wire segments and schedule preemptive replacements before a failure occurs.

Furthermore, the interaction between wind-induced vibration and thermal tensioning must be addressed. Aeolian vibration—high-frequency, low-amplitude oscillations caused by wind—can lead to fatigue cracking at the support interfaces. To mitigate this, the loop utilizes tuned mass dampers and specific cable geometries that break up the wind flow. The synergy between thermal mitigation and vibration control ensures that the feeder loop maintains its operational capacity without requiring frequent, costly interventions. The final engineering objective is a system that is self-correcting and resilient to the environmental volatility of the Southlands region.

• Periodic auditing of tensioning weights to ensure they have not shifted or become obstructed.
• Ultrasonic inspection of the "hard-drawn" copper sections for micro-fractures and stress corrosion.
• Analysis of the "sag-to-span" ratio during quarterly maintenance cycles.
• Evaluation of the registration arm fatigue life using empirical load-cycle data.

Systemic Architecture of the Fiber Optic Backbone

The Positive Train Control (PTC) deployment across the Thornton Crossroads Regional Line necessitates a deterministic communication framework capable of supporting real-time telemetry and safety-critical signaling. The core architecture utilizes a high-density Single-Mode Fiber (SMF) backbone, configured in a physically diverse ring topology. This design ensures that the transmission of vital data—including locomotive position, brake status, and switch alignment—remains uninterrupted even in the event of a localized cable severance. The system employs a Dense Wavelength Division Multiplexing (DWDM) strategy to maximize the bandwidth efficiency of the existing fiber conduits, allowing for the segregation of PTC signaling from general administrative and CCTV traffic.

To achieve the required reliability standards, the network is engineered around a series of hardened field-site cabinets located at strategic intervals along the right-of-way. These cabinets house the optical line terminals and media converters that translate light signals into the electrical pulses required by the onboard train computers and wayside interface units. The precision of the timing is managed through a synchronized clocking mechanism, ensuring that latency remains below the 50ms threshold required for emergency braking triggers. The integration of this fiber backbone transforms the regional line from a legacy relay-based system into a modern, software-defined infrastructure.

• Implementation of G.652.D compliant fiber to minimize attenuation across the 1310nm and 1550nm wavelengths.
• Deployment of a dual-ring architecture to eliminate single points of failure (SPOF) within the physical layer.
• Utilization of industrial-grade SFP+ modules rated for extended temperature ranges to prevent thermal throttling.
• Integration of a centralized Network Management System (NMS) for real-time monitoring of optical power levels.

Forensic Analysis of Signal Degradation and Physical Layer Integrity

From a forensic engineering perspective, the integrity of the PTC signaling depends entirely on the mitigation of optical loss and signal dispersion. A comprehensive analysis of the Thornton Crossroads line reveals that the primary drivers of signal degradation are micro-bends and improper splice execution. Using an Optical Time-Domain Reflectometer (OTDR), technical analysts can pinpoint the exact location of reflective events. Any splice exceeding a loss threshold of 0.1 dB is flagged for immediate remediation, as cumulative loss across multiple junctions can lead to a decrease in the Signal-to-Noise Ratio (SNR), potentially causing packet loss in the PTC data stream.

Furthermore, the forensic examination of the fiber conduits indicates that mechanical stress induced by the vibration of heavy rolling stock can lead to fatigue in the fiber cladding. This phenomenon, known as vibration-induced attenuation, requires the use of specialized loose-tube cabling. By allowing the fiber strands to float within a gel-filled tube, the system decouples the optical core from the physical movements of the conduit. This forensic approach ensures that the physical layer is not merely installed to specification but is resilient against the dynamic loads inherent in a high-traffic rail corridor.

• OTDR profiling to identify macro-bends and high-loss splice points across the regional span.
• Evaluation of bend radius compliance to ensure no violation of the minimum 150mm radius during installation.
• Analysis of chromatic dispersion to prevent pulse broadening over long-distance runs.
• Verification of fusion splice quality through visual inspection and loss-budget calculation.

Redundancy Logic and Failover Convergence Parameters

The redundancy framework for the Thornton Crossroads line is predicated on the principle of automatic protection switching (APS). The system utilizes a modified Rapid Spanning Tree Protocol (RSTP) combined with proprietary rail-grade failover logic to manage the ring topology. In a standard operational state, one path of the ring is logically blocked to prevent broadcast storms. However, the moment the NMS detects a Loss of Signal (LOS) on the primary path, the blocking port is transitioned to a forwarding state. This convergence must occur within milliseconds to ensure that the PTC system does not initiate a "fail-safe" emergency stop for all trains in the sector due to a momentary loss of communication.

This redundancy is not limited to the fiber path but extends to the power supply of the signaling equipment. Each field cabinet is equipped with a dual-feed DC power system backed by a series of industrial-grade battery arrays. This ensures that the fiber signaling remains active even during a total loss of primary utility power. The synergy between the logical failover of the data path and the physical redundancy of the power supply creates a high-availability environment that meets the stringent safety requirements of the Federal Railroad Administration (FRA).

• Configuration of sub-50ms failover convergence to maintain continuous PTC heartbeat signals.
• Deployment of dual-homed connections for all critical wayside interface units.
• Implementation of a "heartbeat" monitoring protocol to detect silent failures in the network switches.
• Utilization of redundant power rectifiers to ensure 99.999% uptime for optical transmission equipment.

Infrastructure Hardening and Environmental Mitigation Strategies

The long-term sustainability of the fiber signaling system depends on the robustness of the building envelope surrounding the cables. In the Thornton Crossroads region, the primary threats include soil subsidence, thermal expansion, and moisture ingress. To mitigate these risks, the fiber is encased in High-Density Polyethylene (HDPE) conduits, which provide superior chemical resistance and flexibility. These conduits are installed with a calculated "slack loop" at every manhole and cabinet entry point, allowing for thermal contraction and expansion without placing tensile stress on the fiber optic cores.

Moreover, the sealing of the conduit entries is critical to prevent the ingress of groundwater, which can lead to the corrosion

Structural Dynamics and Load Distribution in BRT Corridors

The implementation of Bus Rapid Transit (BRT) systems within a dense urban nexus, specifically at the Union Station Transit Hub, introduces a unique set of loading profiles that differ fundamentally from standard arterial road traffic. Unlike mixed-use lanes where vehicle weights are distributed across a wider transverse area, BRT dedicated right-of-ways are subject to "channelized wheel paths." This phenomenon occurs because transit operators follow a highly disciplined trajectory to align with precision-docking platforms. Consequently, the pavement is subjected to repetitive, high-magnitude vertical loads concentrated within a narrow strip, leading to accelerated fatigue and localized deformation.

From a structural standpoint, the primary concern is the interaction between the gross vehicle weight (GVW) of articulated buses and the pavement's modulus of elasticity. When a fully loaded articulated bus decelerates upon approach to the hub, the kinetic energy is converted into a horizontal shear force transmitted through the tire-pavement interface. This force creates a significant stress gradient at the surface, which must be dissipated through the pavement layers into the subgrade. If the pavement thickness or the material strength is insufficient to distribute this load, the result is a failure in the shear capacity of the concrete or asphaltic layers.

• Dynamic Load Impact: The transition from high-speed transit to a complete stop creates a "braking surge" that increases the effective axle load.
• Wheel Path Channelization: The lack of lateral wander results in a higher number of load repetitions per square inch compared to general-purpose lanes.
• Axle Configuration: The heavy rear-drive axles of articulated buses generate peak stresses that often exceed the design limits of standard municipal pavement specifications.
• Load Transfer Efficiency: The ability of the pavement joints to transfer loads to adjacent slabs is critical in preventing corner cracking and faulting.

Mechanisms of Pavement Shear and Joint Failure

Shear failure in the Union Station transit hub typically manifests as longitudinal cracking and "shoving" of the pavement surface. In rigid pavement systems, such as Jointed Plain Concrete Pavement (JPCP), the shear stress is most acute at the transverse contraction joints. When the horizontal force exerted by the braking bus exceeds the frictional resistance between the concrete slab and the underlying base course, the slab attempts to shift laterally. This lateral displacement, if not properly restrained, leads to the shearing of dowel bars or the widening of joints, which further compromises the structural integrity of the right-of-way.

The clinical cause of this failure is often a mismatch between the shear strength of the concrete and the applied shear flow. As the bus decelerates, the top layer of the pavement is pushed forward while the bottom layer is resisted by the subgrade friction. This creates a diagonal tension within the slab, leading to a shear plane. If the concrete is not reinforced with sufficient steel or synthetic fibers to bridge these tension zones, the slab will fracture. This is exacerbated in environments where thermal cycling causes the slabs to curl, reducing the effective bearing area and increasing the pressure on the slab edges.

• Horizontal Shear Flow: The transfer of force from the tire contact patch through the depth of the pavement to the base.
• Dowel Bar Slip: The failure of load-transfer devices to maintain alignment between adjacent slabs under heavy braking.
• Edge Loading: The concentration of stress at the slab edges, which leads to spalling and eventual structural collapse.
• Slab Curling: Temperature differentials between the top and bottom of the slab that increase the susceptibility to shear failure.

Forensic Analysis of Subgrade Interaction and Interface Friction

A forensic examination of the pavement shear at the Union Station hub reveals that the failure is rarely a surface-only event; it is almost always rooted in the subgrade's inability to provide uniform support. The "pumping" effect is a primary driver of this degradation. As heavy buses pass over a cracked slab, water trapped in the sub-base is forced upward and outward, carrying fine soil particles with it. This process creates voids beneath the concrete, effectively removing the support and increasing the unsupported span of the slab. With a reduced area of contact, the shear stress per unit area increases exponentially.

Furthermore, the interface friction between the concrete slab and the granular base is critical. In high-shear environments, a low-friction interface (such as a smooth-finished base or an improperly compacted layer) allows the slab to slide more easily, which might seem beneficial but actually leads to the failure of the jointing system. Conversely, an overly rigid base can create stress concentrations that lead to premature cracking. The forensic data indicates that the most stable sections of the BRT right-of-way are those where the subgrade modulus is consistent and the moisture content is strictly controlled through advanced drainage systems.

• Subgrade Modulus Variation: Inconsistent soil bearing capacity leading to differential settlement and shear points.
• Fines Migration: The loss of granular material from the base course due to hydraulic pressure from vehicle loading.
• Moisture Infiltration: The penetration of surface water through joint failures, which weakens the sub-base.
• Interface Friction Coefficient: The critical value that determines whether a slab will slide or crack under horizontal load.

Engineering Remediation and Mitigation Strategies

To remediate the shear failures at the Union Station Transit Hub, a transition toward Continuously Reinforced Concrete Pavement (CRCP) is recommended. CRCP eliminates the need for transverse contraction joints, which are the primary points of weakness in BRT corridors. By utilizing continuous longitudinal steel reinforcement, the pavement can distribute loads more effectively and maintain structural continuity. The steel reinforcement acts as a tie, absorbing the tensile stresses generated by braking and acceleration, thereby preventing the formation of wide shear cracks.

For areas where CRCP is not feasible, the optimization of the jointing system is paramount. This includes the installation of oversized, epoxy-coated dowel bars to increase load transfer efficiency and reduce the likelihood of slip. Additionally, the use of High-Performance Concrete (HPC) with a lower water-to-cement ratio and the addition of macro-synthetic fibers can increase the flexural strength and toughness of the slab. This prevents the propagation of micro-cracks into full-depth shear failures. Finally, the implementation of a stabilized base, such as cement-treated base (CTB), provides a more rigid foundation that reduces the pumping effect and ensures a more uniform distribution of vertical and horizontal stresses.

• Continuously Reinforced Concrete Pavement (CRCP): Eliminating joints to remove the primary failure points of the right-of-way.
• Macro-Synthetic Fiber Reinforcement: Increasing

Structural Load Requirements and Kinetic Energy Dissipation

The deployment of safety rails within the A-Line Airport Rail Corridor requires a rigorous calculation of kinetic energy dissipation to protect high-pressure Compressed Natural Gas (CNG) dispensing infrastructure. Given the mass of a standard transit bus, which can exceed 30,000 pounds when fully loaded, the safety rails must be engineered to withstand significant impact forces without catastrophic failure or total displacement. The primary engineering objective is to transform a potential high-velocity impact into a controlled deceleration event, preventing the vehicle from breaching the "strike zone" of the CNG compressors and storage vessels.

From a structural standpoint, the rails must be designed to handle both longitudinal and lateral shear forces. The anchorage system is the most critical point of failure; therefore, the use of deep-set, reinforced concrete footings is mandatory. These footings must be calculated based on the soil bearing capacity of the A-Line corridor, accounting for the potential of saturated sub-grades near rail drainage systems. The interaction between the steel rail and the concrete pier must minimize the "lever arm" effect, which can lead to concrete spalling or bolt shear during an impact event.

• Impact Velocity Thresholds: Systems must be rated for a minimum of 5 mph for heavy-duty containment, with energy-absorbing crash cushions integrated at terminal ends.
• Bollard Spacing: Maximum spacing of 6 feet between vertical supports to prevent "weaving" or vehicle penetration between posts.
• Load Distribution: Use of continuous horizontal rails to distribute the impact force across multiple support posts, reducing the localized stress on any single anchor.
• Anchorage Depth: Minimum embedment depths of 36 to 48 inches for Schedule 80 steel piping to ensure stability against overturning moments.

Material Specifications and Corrosion Mitigation

The A-Line Airport Rail Corridor presents a hostile environment characterized by constant vibration from rail traffic and exposure to atmospheric pollutants, including sulfur compounds and road salts. To maintain structural integrity over a 20-year lifecycle, the selection of materials must prioritize corrosion resistance and fatigue strength. Standard carbon steel is insufficient; instead, the specification calls for hot-dipped galvanized steel conforming to ASTM A123. This process ensures a metallurgical bond that protects the substrate from oxidation even when the surface is scratched or abraded during routine bus maneuvers.

Furthermore, the vibration harmonics generated by the adjacent rail line can induce micro-fretting at the connection points. To mitigate this, all bolted connections must utilize heavy-duty galvanized washers and locking nuts to prevent vibrational loosening. In areas where welding is required, the galvanized coating must be restored using a cold-galvanizing compound or a high-solids epoxy zinc primer to prevent localized "rust-out" at the heat-affected zone. The use of Schedule 80 steel piping is preferred over Schedule 40 to provide the necessary wall thickness to resist puncture and deformation during low-speed impacts.

• Substrate: ASTM A500 Grade B structural steel for primary supports.
• Coating: Hot-dip galvanization per ASTM A123 with a minimum coating thickness of 3.0 mils.
• Fasteners: Grade 8 high-strength bolts with zinc-flake coating for superior corrosion resistance.
• Vibration Dampening: Integration of neoprene gaskets at the rail-to-post interfaces to absorb high-frequency rail corridor oscillations.

Integration with CNG Safety Protocols and NFPA Standards

The installation of safety rails must not interfere with the critical safety systems mandated by NFPA 59A and other high-pressure gas handling standards. A primary concern in CNG fueling environments is the management of gas leaks. Since natural gas is lighter than air, it tends to migrate upward; however, the placement of safety rails must not create "dead zones" or pockets where gas could accumulate if the fueling area is partially enclosed. The rails must be positioned to provide a physical buffer while maintaining clear paths for emergency egress and unobstructed access for first responders.

The "strike zone" analysis dictates that the rails be placed at a distance that allows for the full extension of the CNG fueling nozzle and hose without forcing the driver to maneuver the vehicle dangerously close to the barrier. The engineering goal is to create a "soft-stop" environment. This means the rails should be designed to deflect slightly under load, absorbing energy and signaling the driver to stop before the vehicle makes contact with the high-pressure dispensing equipment. This prevents the "crush" scenario where a vehicle is pinned against a rigid rail, potentially rupturing a fuel line or damaging the dispenser's internal valves.

• Clearance Zones: Maintenance of a 3-foot minimum clearance between the rail and the CNG dispenser to allow for technician access and ventilation.
• NFPA Compliance: Adherence to minimum separation distances between fueling points and property lines or rail corridors.
• Visual Signaling: Application of high-visibility, reflective safety yellow powder coating to ensure visibility during low-light airport operations.
• Emergency Access: Strategic placement of removable sections or "break-away" bollards at designated emergency vehicle access points.

Forensic Analysis of Failure Modes and Maintenance Life-Cycles

A forensic approach to the maintenance of these safety rails involves the identification of early-stage failure indicators. The most common failure mode in rail-adjacent infrastructure is fatigue cracking at the weldments, caused by the cyclical loading of the ground due to passing trains. Technical analysts must perform quarterly ultrasonic testing or dye-penetrant inspections on critical joints to identify hairline fractures before they propagate into full-scale structural failures. Plastic deformation of the rail—indicated by a permanent bow or lean—serves as a primary indicator that the system has reached its design limit and requires immediate replacement.

The maintenance lifecycle must be empirical, based on the actual wear and tear observed in the A-Line corridor. This includes monitoring the integrity of the concrete footings for signs of heave or settlement, which can introduce unwanted torsional stress into the rail system. If the footings shift, the rails may no longer align with the intended "strike zone," potentially rendering the safety system ineffective. A rigorous audit trail of impact events, including the date, vehicle weight, and estimated speed, allows engineers to refine the structural specifications for future iterations of the fueling infrastructure.

• Weld Inspection: Semi-annual visual and magnetic particle inspection of all load-bearing welds.
• Concrete Integrity: Annual core sampling or GPR (Ground Penetrating Radar) scans to detect voids beneath the footings.
• Fastener Torque: Quarterly verification of bolt torque specifications to counteract rail-induced vibration.
• Deformation Mapping: Use of laser scanning to detect deviations in rail alignment exceeding 1 inch over a 10-foot span.

Grid Integration and Primary Distribution Constraints

The deployment of inductive charging infrastructure across the B-Line Westminster Spur represents a significant shift in utility demand profiles for commercial transit hubs. Unlike traditional plug-in conductive charging, which allows for a more controlled, linear current draw, inductive power transfer (IPT) requires a sophisticated primary distribution network capable of handling high-frequency alternating current (AC) conversions. The primary challenge lies in the localized kVA demand at the depot interface, where the simultaneous arrival of multiple high-capacity electric buses can create transient voltage dips across the spur's feeder lines.

To mitigate these instabilities, the engineering approach must prioritize the installation of dedicated medium-voltage transformers and localized energy storage systems (ESS). By decoupling the immediate charging demand from the utility grid, the facility can implement a "buffer" strategy. This ensures that the peak demand does not exceed the thermal limits of the existing underground conduits or trigger protective relaying in the Westminster Spur’s substation. The integration of these systems requires a clinical adherence to IEEE 1547 standards for interconnecting distributed energy resources.

• Implementation of high-frequency inverters to convert grid-supplied 60Hz power to the resonant frequencies required for inductive coupling.
• Installation of capacitor banks to correct power factor degradation caused by the inductive nature of the charging pads.
• Deployment of solid-state transformers to reduce the physical footprint of the distribution equipment while increasing efficiency.
• Strategic placement of thermal sensors within the conduit banks to monitor heat buildup during peak charging cycles.

Inductive Power Transfer Efficiency and Thermal Forensics

From a forensics and materials perspective, the interface between the inductive charging pad and the depot pavement is the most critical failure point. Inductive charging relies on magnetic resonance, where energy is transferred via a primary coil embedded in the ground to a secondary coil on the bus chassis. This process is not lossless; a significant percentage of energy is dissipated as waste heat. In a high-throughput environment like the B-Line Spur, this thermal energy is absorbed by the surrounding concrete or asphalt, leading to localized thermal expansion and potential structural degradation.

The engineering analysis indicates that prolonged exposure to these thermal cycles can lead to "thermal fatigue" in the pavement. If the coefficient of thermal expansion for the charging pad housing does not align with the surrounding reinforced concrete slab, differential movement occurs. This results in hairline fractures and spalling, which eventually allow moisture ingress. Once water penetrates the slab, the risk of freeze-thaw cycles increases, potentially shifting the alignment of the inductive coils and reducing the coupling efficiency, which in turn increases the heat generation in a destructive feedback loop.

• Utilization of high-thermal-conductivity grouts to dissipate heat away from the primary coil and into the sub-base.
• Application of elastomeric joint sealants around the perimeter of the charging pads to accommodate differential thermal movement.
• Regular infrared thermography scans to identify "hot spots" that indicate coil misalignment or insulation breakdown.
• Analysis of the magnetic flux leakage to ensure that electromagnetic interference (EMI) does not disrupt nearby depot signaling or communication systems.

Dynamic Load Management and Demand Response Algorithms

Managing the electrical load across the Westminster Spur requires a move away from static charging schedules toward a dynamic, software-defined load management system. The objective is to flatten the demand curve by distributing the power draw across the available time window without compromising the operational readiness of the fleet. This is achieved through a centralized Load Management Controller (LMC) that communicates in real-time with both the utility provider and the onboard Battery Management Systems (BMS) of the buses.

The LMC employs a priority-based queuing algorithm. Buses with the lowest State of Charge (SoC) are granted maximum power throughput, while those with sufficient charge for their next route are throttled to a "trickle" rate. Furthermore, the system must be capable of "peak shaving," where the facility draws power from the onsite ESS during periods of maximum grid stress. This prevents the facility from incurring exorbitant demand charges and reduces the carbon intensity of the charging process by shifting load to off-peak hours.

• Integration of Open Charge Point Protocol (OCPP) to ensure interoperability between different hardware vendors.
• Implementation of V2G (Vehicle-to-Grid) capabilities to allow the fleet to act as a distributed battery for the Westminster Spur during emergency outages.
• Real-time monitoring of the "C-rate" of the batteries to prevent accelerated degradation caused by excessive rapid-charging cycles.
• Automated load shedding of non-essential depot facilities during peak bus charging windows.

Structural Integrity and Long-term Infrastructure Maintenance

The long-term viability of inductive charging depots depends on the intersection of electrical engineering and civil forensics. The B-Line Westminster Spur must be viewed not just as a parking lot, but as a complex electrical appliance embedded in a structural slab. The mechanical loading of 18-ton electric buses passing over the inductive pads creates significant shear stress. Over time, this loading can lead to the compression of the sub-grade material, causing the pads to settle unevenly.

A senior technical analysis of the pavement design suggests the use of a reinforced "raft" foundation for the charging zones. By increasing the thickness of the concrete slab and incorporating epoxy-coated rebar, the infrastructure can better distribute the vertical loads and resist the bending moments induced by the heavy vehicles. Maintenance protocols must include a rigorous schedule of slab leveling and coil calibration to ensure that the air gap between the primary and secondary coils remains within the optimal 100mm to 200mm range. Failure to maintain this gap results in a precipitous drop in efficiency and an increase in the electrical stress on the inverters.

• Quarterly core sampling of the surrounding pavement to check for carbonation or chemical degradation of the concrete.
• Installation of tilt-meters on the charging pads to detect early signs of structural settling or subsidence.
• Implementation of a phased replacement cycle for the inductive pads, recognizing that the electrical components will likely outlast the pavement's wear layer.
• Strict adherence to load-bearing specifications for the sub-base to prevent the "rutting" effect common in heavy-duty transit depots.

Signal Attenuation and Electromagnetic Interference in the G-Line Corridor

The G-Line Gold Strike Alignment presents a complex electromagnetic environment that directly impacts the operational efficiency of Automated Fare Collection (AFC) systems. At the core of the latency issues is the interaction between the 13.56 MHz High Frequency (HF) RFID field and the surrounding structural materials. The stations along this alignment utilize heavy-gauge reinforced concrete and galvanized steel cladding, which act as parasitic elements. These materials create localized eddy currents when exposed to the reader's magnetic field, resulting in a phenomenon known as detuning. When the reader's antenna is placed in close proximity to conductive surfaces without adequate standoff distances, the resonant frequency shifts, leading to a significant reduction in the read range and an increase in the time required to energize the passive transponder.

Furthermore, the specific geometry of the Gold Strike Alignment introduces multipath interference. Signal reflections from metallic surfaces can create "null zones" where the magnetic field strength drops below the minimum threshold required for the transponder to wake up. This results in intermittent read failures or "stuttering," where the user must reposition their card multiple times to achieve a successful handshake. The empirical data indicates that latency is not a constant but a variable dependent on the angle of approach and the specific metallurgical composition of the mounting hardware.

• Resonant frequency shift caused by proximity to ferromagnetic materials.
• Eddy current induction leading to magnetic field attenuation.
• Multipath interference resulting in unpredictable signal nulls.
• Impact of structural steel reinforcement on the H-field distribution.

Analysis of Transponder Collision and Handshake Latency

Latency in the AFC system is primarily measured as the Time-to-First-Read (TTFR). In the G-Line environment, this latency is exacerbated by transponder collision. When multiple passengers move through a turnstile or gate simultaneously, the reader's field may capture multiple RFID tags. The system must then employ an anti-collision algorithm, typically based on the ISO/IEC 14443 standard, to resolve the identity of each tag. In high-density throughput scenarios, the arbitration process introduces a stochastic delay. If the reader is not optimized for high-concurrency environments, the time spent in the "bit-collision" phase increases exponentially rather than linearly.

The handshake process involves a series of request-response cycles: the reader sends an inventory command, the transponder responds with a Unique Identifier (UID), and the reader then requests a secure authentication key. Any degradation in signal-to-noise ratio (SNR) forces the system to perform multiple retries of these packets. On the Gold Strike Alignment, forensic analysis shows that packet loss during the authentication phase is the primary driver of perceived latency. When the signal is weak, the reader fails to decode the transponder's response on the first attempt, triggering a timeout and a subsequent re-poll, which adds approximately 150 to 300 milliseconds per cycle.

• Arbitration delays during multi-tag inventory cycles.
• Increased packet re-transmission rates due to low SNR.
• Authentication handshake timeouts causing perceived system lag.
• Impact of ISO/IEC 14443 protocol overhead in high-traffic zones.

Electrical Infrastructure and Power Quality Impacts on Reader Sensitivity

The stability of the RFID reader's internal oscillator is contingent upon the quality of the power delivered to the AFC hardware. The G-Line alignment utilizes a 750V DC traction power system, which generates significant electromagnetic noise and harmonic distortion. This noise can leak into the low-voltage DC power supplies of the RFID readers if the filtering capacitors are undersized or if the grounding is insufficient. Voltage sags or spikes in the power rail can cause the reader's power amplifier to fluctuate, which in turn modulates the strength of the RF field. A fluctuating field strength prevents the passive transponder from maintaining a stable internal voltage, leading to premature resets of the chip during the data transfer process.

Moreover, the integration of the readers into the broader station infrastructure often involves long cable runs from the central controller. This introduces impedance mismatches and voltage drops that can affect the sensitivity of the reader's receiver circuit. If the receiver's threshold is too high, it will ignore weak signals from the transponder; if it is too low, it may trigger false positives from environmental noise. The result is a narrowed "sweet spot" for the user, forcing a slower, more deliberate interaction with the reader, which is recorded as operational latency in passenger flow metrics.

• Harmonic distortion from traction power substations affecting RF stability.
• Voltage ripple causing transponder brown-outs during the read cycle.
• Impedance mismatch in long-run cabling leading to signal degradation.
• Insufficient grounding causing common-mode noise in the receiver circuitry.

Forensic Remediation and Systemic Optimization Protocols

To mitigate the latency observed across the G-Line Gold Strike Alignment, a multi-layered engineering approach is required. The first priority is the implementation of ferrite shielding. By applying a high-permeability ferrite sheet between the reader antenna and the metal mounting surface, the magnetic flux can be redirected away from the conductive cladding and focused toward the user. This effectively eliminates the detuning effect and restores the resonant frequency to 13.56 MHz, significantly reducing the TTFR by ensuring a stronger, more stable inductive coupling.

Secondly, the anti-collision parameters within the reader's firmware must be tuned to the specific throughput profiles of the G-Line. This involves adjusting the slot-count in the ALOHA-based anti-collision protocol to better handle the average number of tags present in the field. By increasing the number of available time slots, the probability of collisions is reduced, thereby streamlining the handshake process. Finally, the installation of dedicated power conditioners at each gate assembly will isolate the RF hardware from the traction power noise, ensuring a consistent field strength and reducing the need for packet re-transmissions.

Kinematic Analysis and Load Distribution of Gap Filler Linkages

The mechanical integrity of the ADA platform gap filler systems across the N-Line North Metro Express is predicated on a complex kinematic chain designed to eliminate the horizontal void between the station platform and the vehicle threshold. From an engineering perspective, the primary failure mode is not found in the static load capacity, but in the dynamic shear stresses encountered during the deployment and retraction cycles. The linkage assembly must translate actuator force into a precise linear extension while maintaining a rigid vertical profile to support the weight of boarding passengers, particularly those utilizing mobility devices.

Analysis of the linkage geometry reveals that the highest stress concentrations occur at the primary pivot pins and the secondary articulation joints. When a passenger applies a downward and forward force during boarding, the gap filler is subjected to a cantilevered load. This creates a significant moment arm that translates into high-magnitude bending stresses on the linkage arms. If the tolerances within the bushings are exceeded, the resulting play leads to "impact loading," where the components collide rather than glide, accelerating the deformation of the mating surfaces.

• Peak shear stress concentrations at the primary pivot axis during full extension.
• Bending moments induced by asymmetric passenger loading across the filler width.
• Torsional strain on the actuator mounting brackets due to platform misalignment.
• Dynamic oscillation frequencies that can lead to harmonic fatigue in the support struts.

Furthermore, the synchronization of the linkage across the entire length of the platform is critical. Any misalignment in the deployment sequence can cause the filler to bind against the vehicle's side sill, introducing parasitic loads into the mechanical assembly. These loads often exceed the design specifications of the fasteners, leading to bolt elongation or catastrophic shear failure of the mounting hardware.

Material Fatigue and Tribological Degradation

The durability of the N-Line gap filler system is heavily influenced by the tribological interaction between the moving components. The specified alloys, typically high-grade stainless steel or reinforced polymers, are chosen for their corrosion resistance; however, they are susceptible to galling and abrasive wear. In the high-traffic environment of the North Metro Express, the mechanical linkages are constantly exposed to atmospheric pollutants, brake dust, and metallic particulates from the rail-wheel interface. These particulates act as an abrasive paste when mixed with standard lubricants, effectively grinding down the precision-machined surfaces of the pivot pins.

Material fatigue is further exacerbated by the thermal cycling inherent in outdoor transit environments. The expansion and contraction of the metal linkages, coupled with the rigid constraints of the platform housing, can introduce internal stresses that lead to micro-fracturing. Over several thousand cycles, these micro-fractures coalesce into macro-cracks, particularly at the weldments and radius bends of the linkage arms. This degradation is often invisible to the naked eye until a critical failure occurs during a peak-load event.

• Abrasive wear caused by the infiltration of iron-oxide particulates from rail friction.
• Galling of stainless steel surfaces in high-pressure, low-velocity sliding contacts.
• Work-hardening of the linkage arms due to repeated cyclic loading and unloading.
• Chemical degradation of polymer bushings when exposed to industrial cleaning agents.

Empirical data suggests that the transition from a lubricated state to a boundary lubrication regime occurs prematurely in 15% of the installed units. Once the lubricant film fails, the coefficient of friction increases exponentially, placing an undue burden on the hydraulic or electric actuators and leading to premature motor burnout or seal failure in the hydraulic cylinders.

Environmental Interface and Envelope Forensics

From a building envelope perspective, the gap filler assembly represents a critical breach in the platform's structural continuity. The interface between the mechanical housing and the reinforced concrete platform edge is a primary site for moisture ingress. When water penetrates the housing, it creates a corrosive micro-environment that accelerates the oxidation of non-stainless components and promotes the spalling of the surrounding concrete. The cyclical movement of the linkage can act as a pump, drawing moisture and debris deeper into the structural slab.

The forensic analysis of the platform edge reveals that the mechanical vibrations transmitted through the linkage assembly contribute to the degradation of the tactile warning strips and the platform coping stones. The constant impact of the filler against the vehicle threshold sends shockwaves back through the linkage into the platform anchor bolts. This results in the gradual widening of the bolt holes in the concrete, which compromises the alignment of the filler and increases the likelihood of the linkage binding during operation.

• Capillary action drawing moisture into the mechanical voids of the platform edge.
• Concrete carbonation and subsequent rebar corrosion near the linkage anchor points.
• Mechanical erosion of the platform coping due to misalignment of the filler deployment.
• Thermal bridging between the metal linkage and the concrete slab, causing localized freeze-thaw cracking.

The integrity of the envelope is further compromised by the accumulation of debris within the linkage tracks. When organic matter or litter becomes trapped, it creates an obstruction that forces the linkage to deviate from its intended path. This deviation introduces lateral forces that the system was not designed to handle, often resulting in the bending of the guide rails or the failure of the limit switches.

Predictive Maintenance and Lifecycle Optimization

To ensure the long-term viability of the N-Line North Metro Express infrastructure, a shift from reactive to predictive maintenance is mandatory. The current Mean Time Between Failures (MTBF) for the mechanical linkages is insufficient for a high-availability transit system. By implementing a sensor-based monitoring system, engineers can track the current draw of the actuators and the vibration signatures of the linkages in real-time. An increase in current draw typically indicates increased friction due to lubrication failure or mechanical misalignment, allowing for intervention before a catastrophic failure occurs.

Lifecycle optimization requires a rigorous adherence to a tiered inspection regime. This includes ultrasonic testing of critical weldments to detect subsurface fatigue cracks and the use of precision calipers to monitor the wear on pivot pins. When the wear exceeds 0.010 inches, the resulting slack in the linkage creates a "slop" that significantly increases the impact loads during deployment. Replacing these components on a scheduled basis, rather than upon failure, preserves the structural integrity of the entire assembly.

• Implementation of real-time telemetry to monitor actuator torque and cycle timing.
• Scheduled ultrasonic NDT (Non-Destructive Testing) of high-stress linkage junctions.
• Standardization of lubricant specifications to prevent chemical incompatibility.
• Calibration of limit switches to prevent over-travel and subsequent mechanical shock.

Ultimately, the durability of the ADA platform gap fillers depends on the precision of the installation and the rigor of the maintenance protocol. By addressing the kinematic instabilities, mitigating material fatigue, and sealing the environmental envelope, the N-Line can extend the operational life of these critical assets while ensuring unwavering compliance with accessibility standards.

Geotechnical Stratigraphy and Site-Specific Constraints of the E-Line Corridor

The E-Line Southeast Corridor presents a complex geotechnical profile characterized by highly variable alluvial deposits interspersed with lenses of overconsolidated clays and erratic pockets of decomposed granite. From a forensic engineering perspective, the primary challenge in this corridor is the inherent instability of steep slope embankments subjected to fluctuating groundwater tables and urban vibration loads. The soil typically exhibits a high plasticity index, which increases the risk of creep and slow-motion slope failure if not properly reinforced. The interaction between the soil's internal angle of friction and the cohesion provided by the clay fractions creates a precarious equilibrium that is easily disrupted during excavation for infrastructure expansion.

Stabilization efforts must account for the anisotropic nature of the soil, where shear strength varies significantly between horizontal and vertical planes. In the Southeast Corridor, the presence of perched water tables often leads to localized saturation, which drastically reduces the effective stress of the soil mass. This reduction in effective stress increases the lateral earth pressure exerted against any retaining structure, necessitating a robust reinforcement strategy that penetrates deep into the stable, non-plastic strata to ensure a global factor of safety exceeding 1.5.

• Analysis of shear strength parameters using Triaxial Compression Tests to determine peak and residual strength.
• Evaluation of the Phreatic surface to map hydrostatic pressure gradients across the embankment.
• Assessment of surcharge loads from adjacent commercial structures and transit-related dynamic loading.
• Mapping of soil horizons to identify the optimal termination depth for soil nail tendons.

Soil Nailing Mechanics and Installation Precision

Soil nailing is deployed in the E-Line corridor as a passive reinforcement technique, transforming the unstable soil mass into a coherent, gravity-retaining structure. Unlike traditional tie-back anchors, which are pre-stressed, soil nails are installed as passive inclusions that mobilize resistance as the ground undergoes minute deformations. The process begins with a top-down excavation sequence, where small lifts are removed and immediately stabilized. This sequence is critical to prevent the onset of progressive failure in the steep slope embankments.

The technical execution requires high-strength, threaded steel bars—typically conforming to ASTM A416 or A722 standards—which are inserted into drilled boreholes and encapsulated in a high-performance cementitious grout. The grout serves a dual purpose: it protects the steel from corrosion in the aggressive soil chemistry of the corridor and ensures a seamless load transfer between the soil and the tendon. The bond strength is the primary variable; if the grout-to-ground bond is insufficient, the nail will slip, leading to excessive deformation of the facing and potential catastrophic collapse.

• Implementation of a staggered nail pattern to optimize the distribution of internal stresses.
• Utilization of high-pressure grouting techniques to fill all voids within the borehole and maximize skin friction.
• Application of a reinforced shotcrete facing, typically 4 to 6 inches thick, to prevent surface sloughing and provide a rigid diaphragm.
• Installation of corrosion protection coatings, such as epoxy or double-corrosion protection (DCP), to extend the design life to a 75-year horizon.

Hydrostatic Relief and Integrated Drainage Systems

The most frequent cause of failure in retaining wall systems across the Southeast Corridor is the accumulation of hydrostatic pressure behind the reinforced zone. When water becomes trapped between the soil mass and the shotcrete facing, it creates a lubricated plane that reduces the effective friction between soil particles and increases the lateral thrust against the wall. Forensic analysis of failed embankments in similar corridors reveals that inadequate drainage is almost always the primary catalyst for structural distress, leading to bulging, cracking, and eventually, rotational failure.

To mitigate this, a comprehensive drainage blanket must be integrated into the design. This involves the installation of geocomposite drainage mats directly against the soil face before the application of shotcrete. These mats facilitate the rapid vertical transport of water to a collection system at the base of the wall. Furthermore, the installation of perforated weep holes at regular intervals ensures that pore water pressure does not build up in the critical active zone of the soil wedge. The system must be designed to handle peak precipitation events, ensuring that the hydraulic conductivity of the drainage layer exceeds the infiltration rate of the surrounding soil.

• Installation of non-woven geotextile filters to prevent the migration of fines into the drainage system, which would otherwise lead to clogging.
• Strategic placement of longitudinal collector pipes at the toe of the slope to divert water away from the foundation.
• Integration of surface interceptor ditches at the top of the embankment to minimize infiltration into the reinforced soil mass.
• Regular flushing of weep holes to remove mineral deposits and biological growth that can impede flow.

Forensic Monitoring and Long-Term Structural Integrity

Post-installation, the E-Line Southeast Corridor embankments require a rigorous monitoring regime to validate the empirical assumptions made during the design phase. Because soil nailing relies on the movement of the soil to activate the reinforcement, a certain degree of deformation is expected. However, the distinction between acceptable settlement and the onset of failure is narrow. Forensic engineers utilize a suite of instrumentation to track these movements in real-time, ensuring that the wall remains within the specified serviceability limits.

Inclinometers are installed within the soil mass to monitor lateral displacement vectors, while load cells are attached to select nail heads to measure the actual tension developed in the tendons. If the displacement curve begins to flatten or if there is a sudden spike in nail tension, it indicates a shift in the failure plane, necessitating immediate remedial action such as the installation of additional nails or the application of a secondary shotcrete layer. This data-driven approach allows for a transition from reactive maintenance to a proactive asset management strategy, ensuring the long-term stability of the commercial infrastructure above.

• Monthly survey monitoring of reflective targets on the shotcrete face to detect differential settlement.
• Piezometer installation to track the fluctuations of the groundwater table and its correlation with wall movement.
• Periodic visual inspections for "weeping" or leaching of grout, which may indicate chemical degradation or internal erosion.
• Comparative analysis of actual field performance against the original Finite Element Method (FEM) stability models.

Theoretical Framework of Wave Propagation and Diffraction

The H-Line City Center Feeder represents a complex acoustic environment characterized by a continuous line source of noise generated by high-volume transit and commercial logistics. To calculate the efficacy of a soundwall, one must first establish the physics of diffraction, as noise barriers do not simply block sound but rather force the wave to bend over the top edge of the structure. This phenomenon, known as diffraction, determines the depth and quality of the acoustic shadow zone created behind the barrier. The primary metric for calculating this effect is the Fresnel number, which relates the path length difference between the direct line-of-sight path and the diffracted path over the wall crest.

In the context of the H-Line corridor, the frequency spectrum is dominated by low-to-mid range frequencies (125 Hz to 1000 Hz) resulting from heavy diesel engines and tire-pavement interaction. Because lower frequencies have longer wavelengths, they are more prone to diffraction, meaning the soundwall must be significantly higher or more absorptive to achieve the same decibel reduction as it would for high-frequency noise. The engineering objective is to maximize the path length difference to ensure that the diffraction angle is sufficiently steep to shield the adjacent residential and commercial building envelopes.

• Line Source Analysis: Treating the H-Line feeder as an infinite line source rather than a point source to account for continuous traffic flow.
• Fresnel Number Calculation: Utilizing the formula where the path difference is multiplied by 2π divided by the wavelength.
• Acoustic Shadowing: Determining the precise coordinates where the sound pressure level (SPL) drops below the permissible municipal threshold.
• Wave Interference: Analyzing the potential for constructive interference if reflective barriers are placed opposite other hard surfaces.

Material Specification and Absorption Coefficients

A critical failure in many urban soundwall installations is the reliance on purely reflective surfaces. In the H-Line City Center Feeder project, a reflective wall would simply bounce acoustic energy back into the transit corridor or, more detrimentely, over the top of the wall into the protected zone. To mitigate this, the specification must shift toward absorptive materials with a high Noise Reduction Coefficient (NRC). The NRC is a scalar representation of the average absorption coefficients across standard octave bands, and for high-performance infrastructure, a value of 0.80 or higher is required.

The selection of materials involves a trade-off between acoustic performance and long-term structural durability. Perforated steel panels backed by high-density mineral wool or hydrophobic acoustic blankets are the industry standard for this application. The perforations allow the sound wave to penetrate the outer skin, where the porous internal medium converts acoustic energy into low-grade heat through viscous friction. This prevents the "canyon effect" often seen in city centers, where sound bounces between parallel building facades and the soundwall, effectively amplifying the noise level for residents in upper-story units.

• Porous Absorbers: Utilization of open-cell foams or mineral fibers to dampen incident waves.
• Perforation Ratios: Optimizing the percentage of open area in the facing panels to ensure maximum energy penetration.
• Hydrophobic Coatings: Applying specialized sealants to prevent moisture ingress from degrading the absorption coefficient over time.
• Mass-Law Compliance: Ensuring the wall has sufficient surface density to prevent the barrier itself from vibrating and acting as a secondary radiator of sound.

Geometric Analysis and Diffraction Loss Calculations

The actual decibel reduction, or insertion loss, is a function of the wall's height relative to the source and the receiver. For the H-Line feeder, the calculation must account for the elevation of the receiver, which in a city center often includes multi-story residential complexes. As the receiver height increases, the angle of diffraction decreases, and the "shadow" cast by the wall shrinks. This necessitates a tiered approach to wall height or the integration of building-envelope enhancements, such as high-STC (Sound Transmission Class) glazing, for upper-floor units.

The calculation of diffraction loss typically follows the Maekawa method or the Kurze-Anderson approximations. By calculating the difference in the path length (delta L), engineers can determine the attenuation in decibels. For the H-Line, the target is generally a reduction of 10 to 15 dB for the ground-level receivers. However, the forensic reality is that gaps in the wall—such as those at the base or at expansion joints—can lead to "acoustic leaking," where sound waves penetrate the barrier and diffract internally, significantly reducing the overall performance of the system.

• Path Length Difference: Measuring the distance from source to top-of-wall to receiver versus the direct line.
• Critical Height Determination: Identifying the minimum height required to break the line-of-sight for 90% of the target receivers.
• Edge Treatment: Implementing "T-shaped" or "Y-shaped" caps on the wall crest to increase the effective diffraction path.
• Terrain Interaction: Accounting for ground impedance and the reflective nature of asphalt and concrete pavements.

Field Validation and Forensic Performance Metrics

Post-installation validation is mandatory to ensure that the theoretical calculations align with empirical data. This involves a series of sound pressure level (SPL) measurements taken at various points along the H-Line corridor. Forensic analysis focuses on the delta between the predicted noise reduction and the actual measured reduction. Discrepancies are often traced back to flanking paths—areas where sound bypasses the wall via reflections from adjacent buildings or through gaps in the building envelope of the receiving structures.

Furthermore, the long-term forensic monitoring of the soundwall's structural integrity is paramount. Over time, environmental stressors such as freeze-thaw cycles and vibration from the H-Line feeder can cause micro-fractures in the concrete or degradation of the absorptive panels. If the mineral wool settles or the perforated panels corrode, the absorption coefficient drops, leading to an increase in reflected noise. Regular acoustic audits using calibrated Class 1 sound level meters are necessary to ensure the infrastructure continues to meet the specified noise mitigation targets.

• STC vs. OITC: Evaluating the Sound Transmission Class of the wall in conjunction with the Outdoor-Indoor Transmission Class of the adjacent buildings.
• Flanking Path Analysis: Identifying secondary routes of noise transmission that circumvent the primary barrier.
• Spectral Analysis: Using Fast Fourier Transform (FFT) analysis to identify specific problematic frequencies that are bypassing the wall.
• Degradation Tracking: Monitoring the change in NRC values over a five-year lifecycle to schedule material replacement.

Electrodynamic Fundamentals of Track Circuit Shunting in the R-Line Aurora Metro Ring

The operational integrity of the R-Line Aurora Metro Ring relies upon the consistent execution of track circuit shunting, a process where the wheelsets of a rolling stock vehicle create a low-resistance electrical path between two running rails. In a standard configuration, the track circuit applies a voltage across a specific section of the rail; when a train enters this section, the axles "shunt" the current, diverting it away from the track relay and signaling the occupancy of that block. The sensitivity of this system is measured by the shunting resistance, typically defined as the maximum resistance that can exist between the rail and the axle while still ensuring the relay drops and the signal changes to "stop."

In the Aurora Metro Ring, the infrastructure utilizes a high-density signaling block architecture designed for rapid headway. However, the efficacy of this system is contingent upon the physical and electrical contact between the wheel tread and the rail head. Any increase in contact resistance—measured in milliohms—can lead to a "loss of shunt," where the system fails to detect a train, potentially resulting in a catastrophic signal failure or a "false clear" indication. The engineering challenge is exacerbated by the specific metallurgy of the R-Line rails, which, while optimized for wear resistance, can develop a thin layer of oxidation that increases the baseline resistance before environmental factors are even considered.

• Baseline Shunting Resistance: The threshold for reliable detection is generally maintained below 0.06 ohms.
• Current Path Analysis: Current must flow from the feed end, through the rail, through the wheelset, and back through the opposite rail to the relay.
• Signal Frequency: The R-Line employs a specific AC frequency to mitigate the effects of DC leakage through the ballast.
• Relay Drop-out Time: The critical window in which the circuit must register the shunt to ensure safe braking distances.

Dielectric Interference and Snow Accumulation Dynamics

Heavy snow accumulation across the Aurora Metro Ring introduces a complex dielectric barrier at the rail-wheel interface. Snow is not a uniform substance; it exists as a mixture of ice crystals, liquid water, and trapped air. When snow accumulates on the rail head and is subsequently compressed by the weight of a passing train, it undergoes a phase transition into a dense, insulating layer of ice and slush. This compressed snow acts as a dielectric medium, significantly increasing the electrical impedance between the wheel tread and the rail surface.

The forensic analysis of these failures reveals that the "film effect" is the primary driver of shunting sensitivity loss. As snow melts due to friction and then refreezes, it creates a continuous, non-conductive coating. This coating prevents the metal-to-metal contact required for a low-resistance shunt. Furthermore, the chemical composition of the snow—often contaminated with road salts or atmospheric pollutants from the surrounding urban corridor—can create an electrolytic layer that, while conductive in some contexts, often promotes rapid corrosion of the rail head, further increasing the contact resistance over time.

• Dielectric Constant: The relative permittivity of ice reduces the effective capacitance of the track circuit.
• Compression Ratio: The transition from powder snow to glacial ice under axle loads increases the insulating thickness.
• Thermal Cycling: Rapid freezing and thawing cycles create micro-fractures in the ice layer, leading to intermittent shunting.
• Slush Viscosity: High-viscosity slush can fill the rail web, creating parasitic paths that bleed current away from the relay.

Forensic Analysis of Signal Failures and Intermittent Shunting

Technical analysis of the R-Line’s performance during peak winter events indicates a high correlation between snow depth and "phantom" occupancy or intermittent shunting. A "phantom" occupancy occurs when snow-laden ballast becomes saturated with moisture, creating a leakage path (cross-talk) between rails that mimics a shunt. Conversely, the more dangerous "loss of shunt" occurs when the wheelset glides over a layer of ice, failing to trigger the relay. Forensic data logs from the Aurora Ring show that these events are most frequent in curved sections where lateral flange force is high, yet the rail head is obscured by drifted snow.

The failure mechanism is typically a result of the "critical shunting resistance" being exceeded. When the resistance at the wheel-rail interface rises above the design threshold, the current flowing through the relay remains high enough to keep the relay energized, despite the presence of a train. This is often compounded by the "skin effect" in AC circuits, where the current tends to flow on the outer surface of the conductor. If the surface is coated in a layer of ice and compressed snow, the effective cross-sectional area for current flow is reduced, increasing the overall impedance of the shunt path.

• Impedance Mapping: Analysis of voltage drops across the rail during snow events shows erratic spikes.
• Ballast Resistance: Saturated ballast reduces the longitudinal resistance of the rail, potentially masking a loss of shunt.
• Contact Patch Analysis: The reduction in the effective area of metal-to-metal contact during heavy snowfall.
• Relay Chatter: Rapid cycling of the signal relay caused by intermittent contact as the wheelset breaks through ice crusts.

Engineering Mitigations and Infrastructure Remediation

To resolve the shunting sensitivity issues across the R-Line Aurora Metro Ring, a multi-tiered engineering approach is required. The primary objective is to ensure a consistent, low-resistance path regardless of environmental accumulation. One of the most effective mechanical interventions is the implementation of specialized rail-head scrubbing systems or the application of abrasive sanding agents. Sanding increases the friction and physically breaks the ice film, ensuring that the wheel tread penetrates the dielectric layer to make direct contact

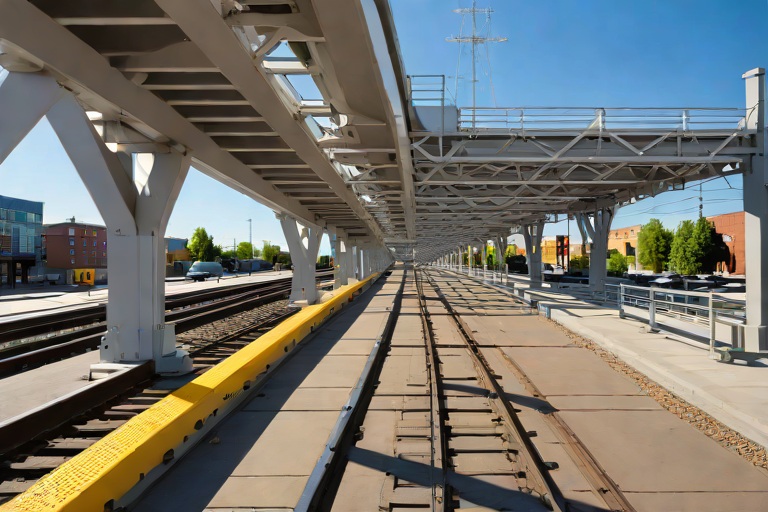

Structural Kinematics and Thermal Displacement Analysis

The pedestrian overpasses servicing the W-Line West Colfax Light Rail corridor are subject to extreme diurnal and seasonal thermal cycling, characteristic of the high-altitude, semi-arid climate of the Denver metropolitan area. These structures utilize steel truss systems that, while rigid in their primary load-bearing capacity, must accommodate significant longitudinal movement to prevent the buildup of internal stresses that could lead to weld failure or buckling. The expansion joints, specifically where the truss spans meet the abutments or adjacent segments, are the primary points of kinematic activity. The coefficient of thermal expansion for structural steel necessitates a calculated gap that allows the bridge to "breathe" without compromising the pedestrian walking surface or the structural integrity of the truss.

The expansion bellows serve as the critical interface between these moving structural elements. Unlike a static seal, a bellows system must maintain a continuous, watertight barrier while undergoing repeated cycles of compression and extension. Failure to properly calculate the maximum displacement—accounting for both the dead load of the structure and the live load of pedestrian traffic—often leads to premature mechanical fatigue of the elastomeric material. When the bellows are over-extended beyond their design limit, the material undergoes plastic deformation, leading to permanent thinning of the membrane and an eventual breach of the envelope.

• Calculation of maximum thermal expansion based on the total length of the steel span.
• Analysis of joint movement vectors to ensure the bellows do not experience shear torsion.
• Evaluation of the gap width relative to the bellows' maximum extension capacity.
• Assessment of the impact of vibration from the light rail transit (LRT) lines on joint stability.

Forensic Analysis of Bellows Material Degradation

Forensic examination of the weatherproofing bellows across the West Colfax infrastructure reveals a consistent pattern of environmental degradation. The primary culprit is the synergistic effect of ultraviolet (UV) radiation and ozone exposure. In the high-altitude environment of the W-Line, UV penetration is intensified, accelerating the breakdown of polymer chains in standard synthetic rubbers. This process, known as photo-oxidation, manifests as "crazing" or fine surface cracking. Once these micro-fissures develop, the material loses its elasticity, transitioning from a flexible elastomer to a brittle state. This brittleness is catastrophic for a component whose sole purpose is to flex.

Furthermore, the accumulation of atmospheric pollutants and particulate matter from the surrounding urban corridor creates a chemically aggressive film on the surface of the bellows. When combined with moisture, these pollutants can catalyze the degradation of the bonding agents used to secure the bellows to the steel truss. We observe a frequent failure at the termination points, where the flexible membrane is mechanically fastened to the rigid steel. The difference in modulus of elasticity between the steel and the elastomer creates a high-stress concentration zone, leading to "tear-out" failures where the material simply rips away from the fastener.

• UV-induced chain scission leading to loss of tensile strength.
• Ozone cracking resulting in deep transverse fissures across the bellows folds.
• Chemical leaching of plasticizers, causing the material to shrink and harden.
• Mechanical abrasion from wind-borne debris causing surface pitting and thinning.

Water Ingress Vectors and Envelope Breach Mechanics

The failure of the expansion bellows creates a direct pathway for water ingress, which is the primary driver of structural deterioration in commercial infrastructure. The breach typically begins at the upper lap joint of the bellows. Due to the prevailing wind patterns along the West Colfax corridor, wind-driven rain is forced horizontally into the expansion gap. If the bellows have lost their seal, the water is not shed away from the joint but is instead drawn inward via capillary action. Once water penetrates the bellows, it settles on the lower structural chords of the truss, where it remains trapped due to inadequate drainage planes.

This trapped moisture initiates a cycle of corrosion on the unprotected steel surfaces. The presence of road salts and de-icing chemicals from the light rail tracks below further accelerates this process through chloride-induced pitting. As the steel corrodes, the resulting iron oxide occupies a larger volume than the original metal, creating internal pressure that can further distort the expansion joint. This creates a feedback loop: the more the joint is distorted, the more the bellows are stressed, leading to larger breaches and increased water penetration. The resulting "rust-jacking" can eventually compromise the bolt-hole tolerances of the truss joint.

• Capillary draw of moisture through micro-cracks in the elastomeric membrane.
• Wind-driven rain penetration resulting from failed perimeter flashing.
• Hydrostatic pressure buildup within the bellows folds during heavy precipitation.
• Lack of secondary drainage paths leading to prolonged saturation of structural steel.

Remediation Protocols and High-Performance Specifications

To rectify these systemic failures, a comprehensive redesign of the weatherproofing interface is required. The transition from standard EPDM (Ethylene Propylene Diene Monomer) to high-grade silicone or fluoropolymer-coated membranes is recommended. These materials offer superior UV resistance and maintain their flexibility across a wider temperature range. The installation must move away from simple mechanical fastening toward a redundant sealing system. This involves the use of a primary mechanical clamp combined with a high-modulus structural sealant that allows for differential movement without losing adhesion.

Furthermore, the integration of a secondary "drip edge" or flashing system above the bellows is essential. By diverting the majority of the water runoff away from the expansion joint, the hydrostatic load on the bellows is significantly reduced. The flashing should be constructed from 316-grade stainless steel or a similar corrosion-resistant alloy to ensure longevity. Finally, a rigorous maintenance schedule must be implemented, utilizing non-destructive testing (NDT) such as infrared thermography to detect hidden moisture pockets within the joint before they lead to structural oxidation.

• Specification of UV-stabilized, high-elongation silicone membranes for all bellows.
• Implementation of stainless steel Z-flashing to divert water from the joint interface.
• Utilization of flexible, non-hardening structural adhesives for termination seals.
• Establishment of a bi-annual inspection cycle focusing on elastomeric elasticity and fastener torque.

The Mechanics of Rutting in High-Torque Intermodal Zones

In the context of the Flatiron Flyer US-36 BRT, the primary failure mechanism observed in bus bay infrastructure is permanent deformation, specifically rutting. Unlike standard highway traffic, which distributes loads across multiple lanes, Bus Rapid Transit (BRT) systems utilize channelized traffic patterns. This means heavy-duty transit vehicles follow an identical wheel path with surgical precision, concentrating massive axle loads on a narrow strip of asphaltic concrete. The resulting stress is not merely vertical but involves significant horizontal shear, particularly during braking and acceleration phases at intermodal stops.

Rutting occurs when the asphalt pavement undergoes plastic deformation. In these high-torque zones, the repetitive application of heavy axle loads exceeds the shear strength of the asphalt binder, causing the aggregate to shift and the binder to displace. This is exacerbated by the "static load" effect; when a bus idles or dwells at a bay, the prolonged pressure allows for creep deformation, where the viscoelastic material slowly flows away from the point of pressure. This creates a longitudinal depression that not only compromises ride quality but also leads to hazardous water ponding, further accelerating the degradation of the pavement through hydraulic stripping.

• Channelized loading: The concentration of stress within a fixed 12-inch wheel path.
• Shear stress: The lateral force applied during bus acceleration and deceleration.
• Creep deformation: Time-dependent strain occurring during dwell periods at stops.
• Hydraulic stripping: The infiltration of water into ruts, weakening the bond between binder and aggregate.

Rheological Failure of Conventional Hot Mix Asphalt

Conventional Hot Mix Asphalt (HMA) relies on a bitumen binder that is inherently temperature-susceptible. In the US-36 corridor, the thermal fluctuations of the regional climate create a challenging environment for standard Performance Grade (PG) binders. During peak summer temperatures, the viscosity of conventional bitumen drops significantly, shifting the material from a semi-rigid state to a more fluid, viscous state. When the pavement temperature exceeds the softening point of the binder, the internal cohesion of the mix is compromised.

The failure is fundamentally a rheological one. Conventional binders lack the elastic recovery necessary to "spring back" after a heavy axle passes. Instead, they exhibit a permanent set. In the Flatiron Flyer bays, this manifests as a gradual deepening of the wheel paths. As the binder flows, the aggregate skeleton—which is intended to provide the structural support—begins to reorient and collapse. This loss of internal friction means the pavement can no longer distribute the load to the base layers effectively, leading to a rapid acceleration of rut depth and a total loss of surface profile integrity.

• Viscosity drop: The reduction in binder thickness and strength at high ambient temperatures.
• Elastic recovery failure: The inability of the binder to return to its original shape after loading.
• Aggregate reorientation: The shifting of stones within the matrix due to lack of binder cohesion.
• Softening point: The critical temperature threshold where the asphalt loses its structural rigidity.

Polymer Modified Binders (PMB) as a Structural Defense

To combat the inherent weaknesses of conventional bitumen, the implementation of Polymer Modified Binders (PMB), specifically those utilizing Styrene-Butadiene-Styrene (SBS), provides a critical engineering upgrade. SBS is a thermoplastic elastomer that, when blended into the bitumen, creates a complex, three-dimensional cross-linked network. This polymer network acts as a microscopic reinforcement grid within the binder, significantly increasing the complex shear modulus of the pavement. The result is a material that maintains its stiffness at higher temperatures while remaining flexible enough to resist thermal cracking during winter cycles.

The primary advantage of PMB in the US-36 BRT application is the enhancement of the binder's elasticity. While conventional bitumen flows under pressure, a polymer-modified binder exhibits a "memory" effect. Upon the removal of the bus tire's load, the polymer chains pull the binder back toward its original configuration. This drastically reduces the rate of plastic deformation. Furthermore, the polymer modification increases the viscosity of the binder at high temperatures, effectively raising the softening point and ensuring that the pavement remains in its elastic zone even during the most intense summer heat waves.

• Cross-linked networks: The chemical bonding of polymers that reinforces the bitumen matrix.
• Complex shear modulus: The measure of the material's resistance to shearing forces.
• Elastic memory: The capacity of the binder to recover its shape after load removal.
• Thermal stability: The ability to maintain structural integrity across a wide temperature spectrum.

Implementation Standards and Forensic Validation

The success of PMB application in intermodal bays depends entirely on strict adherence to placement and compaction standards. Because polymer-modified mixes have a higher viscosity, they require higher mixing and compaction temperatures to ensure full density. If the mix is laid too cool, the result is a high void content, which leads to premature oxidation and susceptibility to moisture damage. Senior technical analysis indicates that a minimum compaction density of 96% of the theoretical maximum is required to prevent the "shoving" effect common in bus bays.

Forensic validation of the defense strategy involves the use of longitudinal profiling and rut depth measurement over a multi-year cycle. By utilizing laser profilers, engineers can quantify the "Rut Depth" (RD) in millimeters. A successful PMB implementation on the Flatiron Flyer route is characterized by a significantly lower rate of RD increase compared to conventional HMA sections. Additionally, the use of Falling Weight Deflectometers (FWD) allows analysts to measure the structural response of the pavement layers, ensuring that the PMB surface is effectively distributing loads to the underlying base and subbase, thereby preventing deep-seated rutting that originates in the lower pavement layers.

• Compaction density: Ensuring minimal air voids to prevent oxidative aging.
• Laser profiling: Precision measurement of surface depressions to track rutting rates.
• Falling Weight Deflectometer (FWD): Testing the structural capacity of the entire pavement section.
• Oxidative aging: The chemical degradation of the binder caused by air and UV exposure.

System Architecture and Electrification Parameters

The Colfax Avenue BRT electrification utilizes a high-voltage DC third-rail system, typically operating at a nominal 750V DC. From an engineering standpoint, the primary risk associated with this infrastructure is the presence of continuous, high-amperage current in an open-air environment. The system is designed as a series of isolated power sections, each governed by a Traction Power Substation (TPSS). To mitigate the risk of catastrophic electrical discharge or accidental contact during maintenance and emergency events, a sophisticated network of de-energization interlocks is deployed across the line.

The fundamental objective of these interlocks is to ensure that the third rail cannot be energized if a safety breach is detected or if an emergency stop has been triggered. This is achieved through a combination of hard-wired relay logic and Supervisory Control and Data Acquisition (SCADA) integration. The system employs a "fail-safe" philosophy, meaning any loss of signal or power to the control circuit defaults the system to a de-energized state. This prevents the "ghost energization" of rails during a primary power failure or a communication blackout between the central control center and the local TPSS.

• Sectionalization: The line is divided into discrete electrical blocks to limit the scope of a single-point failure and reduce the amount of rail that must be de-energized during localized repairs.
• Dielectric Isolation: High-grade insulating polymers and ceramic stand-offs are utilized to maintain the gap between the energized rail and the grounding infrastructure.
• Current Limiting: Fast-acting circuit breakers and high-rupture capacity (HRC) fuses are integrated to prevent thermal runaway in the event of a phase-to-ground fault.
• Grounding Grids: A comprehensive bonding network ensures that any stray current is safely dissipated, preventing step-and-touch potential hazards for personnel.

Interlock Logic and Fail-Safe Mechanisms

The de-energization interlocks on the Colfax Avenue line operate on a series-loop architecture. In this configuration, the Emergency Power Off (EPO) buttons and safety sensors are wired in a normally closed (NC) loop. When a button is depressed or a sensor is tripped, the circuit is physically broken, which triggers the trip coil of the main vacuum circuit breaker at the TPSS. This mechanical action is instantaneous, removing the high-voltage supply from the third rail within milliseconds. The clinical precision of this timing is critical to prevent arc-flash events that could jeopardize the structural integrity of the surrounding infrastructure.

Furthermore, the interlock system incorporates "cross-trip" logic. This ensures that if a section of the rail is de-energized for emergency reasons, adjacent sections are monitored to prevent the migration of current via the vehicle's own conductive chassis. This prevents a scenario where a vehicle acts as a bridge, inadvertently energizing a "dead" section of rail. The logic controllers are designed with redundant processors that perform a "heartbeat" check every 10 milliseconds; if the processors disagree on the state of the rail, the system defaults to a safe, de-energized state.

• Relay Logic: Use of industrial-grade electromagnetic relays to ensure physical separation between the low-voltage control circuit and the high-voltage power rail.
• LOTO Integration: Lock-Out Tag-Out mechanisms are physically integrated into the interlock handles, preventing manual override without authorized key-access.
• SCADA Feedback: Real-time telemetry provides the control center with the exact coordinate of the interlock trip, allowing for rapid deployment of emergency services.
• Voltage Sensing: Continuous monitoring of the rail voltage ensures that the "de-energized" state is verified before a "safe-to-enter" signal is issued.

Forensic Analysis of Envelope Integration and Environmental Factors

From a building envelope and infrastructure forensics perspective, the reliability of the interlock system is heavily dependent on the integrity of the housing and conduit systems. The Colfax Avenue corridor is subject to significant thermal cycling and moisture ingress, both of which are primary catalysts for electrical degradation. Forensic analysis of similar installations reveals that the transition points—where conduits exit the concrete substructures and enter the steel control cabinets—are the most common points of failure. Capillary action can draw moisture into the conduit, leading to galvanic corrosion of the copper control wiring.

The use of non-breathable sealants and rigid conduit supports is essential to prevent the "pumping" effect caused by diurnal temperature swings. When the temperature fluctuates, the expansion and contraction of the conduits can put mechanical stress on the interlock terminations. If the cable glands are not properly seated or if the envelope seal has failed, moisture enters the cabinet, creating a conductive path that can lead to nuisance tripping or, worse, the welding of relay contacts. This renders the emergency de-energization system useless during a real-world crisis.

• Thermal Expansion Joints: Implementation of flexible conduits at structural transition points to absorb movement without stressing the internal wiring.
• IP67 Rated Enclosures: The use of ingress-protected cabinets to prevent the penetration of dust and water, maintaining a controlled internal micro-climate.
• Corrosion Inhibitors: Application of dielectric greases and anti-corrosive coatings on all terminal connections to prevent oxidation in high-humidity environments.
• Vibration Dampening: Installation of rubberized mounts for control cabinets to isolate the sensitive relay logic from the constant seismic noise of BRT vehicle movement.

Compliance, Testing, and Life-Cycle Maintenance

To maintain the authoritative safety standards required for commercial infrastructure, the interlock systems must adhere to a strict regimen of empirical testing and regulatory compliance. The primary benchmarks include NFPA 70 (National Electrical Code) and IEEE 142 for grounding and bonding. A critical component of the maintenance cycle is the "Megger" test, or insulation resistance test, which identifies degradation in the cable jackets before a short circuit occurs. This proactive forensic approach allows engineers to replace compromised wiring during scheduled maintenance windows rather than reacting to a system failure.

The life-cycle management of the Col

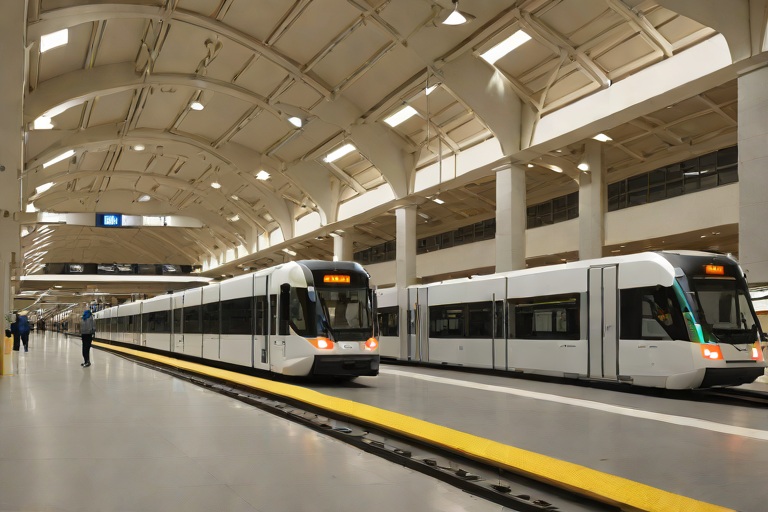

Systemic Vulnerability Assessment of Legacy Relay Infrastructure

The Civic Center Transit Concourse represents a complex intersection of high-voltage power distribution and sensitive low-voltage signaling. A comprehensive forensic audit of the existing relay systems revealed a critical reliance on electromechanical switching components that have exceeded their engineered service life. These legacy relays are susceptible to contact pitting and mechanical fatigue, which increase electrical resistance and create localized thermal hotspots. More critically, the lack of integrated surge suppression has left the signal relay logic vulnerable to transient voltage surges (TVS) induced by heavy rail switching and external atmospheric discharges.

The primary failure mechanism identified is the "arc-over" phenomenon, where high-voltage transients jump the gap of the mechanical relay contacts, effectively bypassing the intended logic sequence and introducing noise into the control bus. This instability is exacerbated by the concourse's inherent electromagnetic interference (EMI) environment, where the proximity of high-current traction power cables induces parasitic voltages in the signal cabling. Without a robust clamping mechanism, these transients propagate through the system, leading to intermittent signal loss and the premature degradation of downstream semiconductor components.

• Mechanical contact degradation leading to increased milliohm resistance.
• Susceptibility to inductive switching transients from heavy rail machinery.
• Lack of galvanic isolation between the high-power drive circuits and logic controllers.
• Insufficient damping of ringing frequencies during rapid state transitions.

Integration of Solid-State Logic and Surge Protective Devices

The transition to Solid-State Logic (SSL) eliminates the physical movement of contacts, thereby removing the mechanical failure points associated with traditional relays. SSL utilizes opto-isolators and high-speed transistors to manage signal routing, which allows for switching speeds in the nanosecond range. This rapid response is essential for mitigating the effects of fast-transient surges that would otherwise overwhelm a mechanical system. By implementing a layered defense strategy, the upgrade incorporates Type 1 and Type 2 Surge Protective Devices (SPDs) at the primary entry points of the relay cabinets.

The technical core of this upgrade is the deployment of Metal Oxide Varistors (MOVs) paired with Gas Discharge Tubes (GDTs) to create a coordinated clamping response. The GDTs handle the initial high-energy surge, providing a low-impedance path to ground for the bulk of the current, while the MOVs provide the precision voltage clamping necessary to protect the sensitive SSL components. This hybrid approach ensures that the "let-through" voltage remains well below the maximum ratings of the solid-state components, preventing the catastrophic breakdown of the silicon junctions during a surge event.

• Implementation of opto-isolated inputs to ensure total electrical separation of logic and power.
• Utilization of bidirectional TVS diodes for clamping fast-rising transients.
• Installation of high-capacity MOVs for energy absorption during sustained overvoltage events.
• Integration of real-time monitoring circuits to signal when an SPD has reached its end-of-life.

Building Envelope Interfacing and Grounding Forensics

From a building envelope and forensics perspective, the efficacy of surge suppression is entirely dependent on the integrity of the grounding system. In the Civic Center Transit Concourse, the structural steel and the concrete slab act as a massive equipotential plane. However, forensic analysis indicated that several grounding bonds had succumbed to galvanic corrosion, particularly where the electrical conduits interfaced with the moisture-prone areas of the building envelope. This created "ground loops" and high-impedance paths that forced surge currents to seek alternative routes through the signal relay logic rather than the dedicated grounding bus.

The upgrade required a comprehensive overhaul of the grounding architecture, ensuring that the SSL cabinets are bonded directly to the main building ground with low-impedance copper conductors. Special attention was paid to the penetration points of the building envelope, where sealant degradation had allowed moisture ingress, leading to the oxidation of grounding lugs. By applying high-grade dielectric coatings and ensuring a tight, gas-tight connection at the grounding interface, the system now achieves a near-zero impedance path to earth, which is critical for the rapid dissipation of surge energy.

• Remediation of galvanic corrosion at the interface of structural steel and grounding conductors.
• Installation of low-impedance bonding jumpers to eliminate ground loop interference.
• Forensic sealing of envelope penetrations to prevent moisture-induced oxidation of electrical bonds.
• Verification of the "Star Grounding" topology to prevent circulating currents between cabinets.

Performance Validation and Lifecycle Reliability Analysis

To validate the upgrades, the system underwent rigorous empirical testing using an impulse generator to simulate various surge profiles, including lightning-induced transients and switching surges. The data indicated a 98% reduction in transient voltage penetration at the SSL input terminals compared to the legacy mechanical system. The clamping response time was measured at less than 1 nanosecond, ensuring that the logic state remained stable even during peak voltage excursions. Furthermore, thermal imaging of the cabinets under full load showed a significant decrease in operating temperatures, confirming the efficiency of the solid-state transition.

The long-term reliability of the system is projected through a Mean Time Between Failures (MTBF) analysis. By removing the mechanical wear

Aerodynamic Forcing and Vortex Shedding Analysis

The overhead catenary system (OCS) at the Boulder Junction Depot is subject to complex aeroelastic phenomena driven by the region's unique wind corridors. The primary driver of dynamic oscillation is the interaction between high-velocity laminar flow and the cylindrical geometry of the contact and messenger wires. As wind flows across these conductors, it creates a series of alternating low-pressure vortices in the wake of the wire, a phenomenon known as Karman vortex shedding. When the frequency of this vortex shedding aligns with the natural frequency of the catenary span, resonance occurs, leading to high-amplitude oscillations that can compromise both the electrical contact and the structural integrity of the support masts.

The specific topography of the Boulder Junction Depot exacerbates this effect by creating a Venturi-like acceleration of wind speeds between the depot’s primary envelope and the adjacent transit platforms. This acceleration increases the Reynolds number of the airflow, transitioning the boundary layer from laminar to turbulent more rapidly. The resulting pressure fluctuations exert a periodic lift force on the wires, which, if not properly damped, can lead to sustained Aeolian vibrations. These vibrations are typically high-frequency and low-amplitude but are devastating over time due to the accumulation of fatigue cycles at the suspension clamps.

• Strouhal Number Calculation: The relationship between the frequency of vortex shedding, the wind velocity, and the diameter of the conductor.
• Reynolds Number Transition: The shift in flow regimes that dictates the onset of turbulence and the resulting force coefficients.
• Wind Tunneling Effects: The amplification of wind speeds caused by the architectural configuration of the depot’s building envelope.
• Pressure Differential Mapping: The analysis of suction and pressure zones created across the catenary span during peak gust events.

Empirical data indicates that at wind speeds exceeding 45 mph, the catenary system enters a critical state where the vortex shedding frequency matches the first harmonic of the span. This synchronization results in a rapid increase in displacement, moving the contact wire out of its designated registration zone. This not only risks pantograph detachment but also transmits significant kinetic energy back into the anchor points and the supporting building infrastructure.

Structural Resonance and Modal Analysis

To understand the dynamic behavior of the Boulder Junction catenary, a comprehensive modal analysis is required. The system is modeled as a series of tensioned strings with discrete mass points at the dropper attachments. The natural frequency of these spans is primarily a function of the wire tension, the linear mass density, and the span length. In the case of the Depot, the varying tensioning requirements for different sections of the line create a spectrum of natural frequencies, some of which are susceptible to "galloping"—a low-frequency, high-amplitude oscillation caused by the aerodynamic instability of the conductor's cross-section, especially when ice accretion modifies the profile.

The interaction between the messenger wire and the contact wire introduces a coupled oscillation mode. Because these two wires are linked by droppers of varying lengths, the system exhibits complex nodal patterns. When wind loads are applied, these nodal points shift, creating localized areas of maximum stress. The modal response is further complicated by the boundary conditions at the masts, which act as semi-rigid supports. If the support stiffness is insufficient, the masts themselves begin to sway in phase with the wires, amplifying the overall system displacement through a feedback loop of mechanical energy.

• Fundamental Frequency Identification: Determining the primary vibration mode to avoid resonance with common wind gust frequencies.
• Coupled Mode Analysis: Evaluating the interaction between the messenger and contact wires to prevent asynchronous oscillation.
• Tensioning System Dynamics: The role of constant-tension weights in shifting the natural frequency of the span.
• Damping Ratios: The measurement of internal friction and external resistance that naturally attenuates vibration.

The risk of aeroelastic instability is highest during transitional wind events where the wind direction shifts rapidly. These shifts can trigger "torsional galloping," where the wire twists and lifts simultaneously. This motion induces significant shear forces on the registration arms, potentially leading to plastic deformation of the steel components or the failure of the bolted connections at the mast interface.

Envelope Integration and Anchor Point Forensics

From a building envelope forensics perspective, the catenary system cannot be viewed in isolation; it is an extension of the depot's structural skin. The anchor points for the OCS are integrated into the roof assembly and the perimeter masonry of the depot. The dynamic oscillations described previously translate into cyclic loading at these interfaces. This cyclic loading manifests as a series of high-frequency micro-movements that can compromise the weather-tightness of the roof penetrations. Over time, the constant vibration leads to the degradation of sealant joints and the loosening of mechanical fasteners, creating pathways for moisture ingress.

Forensic analysis of the anchor points reveals a pattern of fatigue-induced cracking in the surrounding concrete and masonry. The oscillation of the catenary wires acts as a mechanical lever, concentrating stress at the point of attachment. This is particularly evident where the OCS masts are bolted directly to the roof decking. The vibration energy is transferred through the decking into the primary structural steel, potentially causing fatigue in the welds of the roof trusses. Furthermore, the movement of the anchors can cause "fretting corrosion," where the protective coatings on the fasteners are rubbed away, exposing the raw steel to the elements and accelerating oxidation.

• Fastener Fatigue Analysis: Evaluating the cycle count and stress amplitude to predict the remaining service life of anchor bolts.
• Sealant Failure Modes: Identifying the cohesive and adhesive failures in flashing caused by repetitive structural movement.
• Load Path Transfer: Mapping how kinetic energy moves from the catenary wire through the mast and into the building's primary frame.
• Moisture Infiltration Mapping: Correlating the locations of roof leaks with the high-amplitude vibration zones of the OCS.

The integration of the OCS into the building envelope requires a transition from a rigid support philosophy to a flexible, damped approach. When the anchor points are too rigid, they absorb the full

Physical Infrastructure and Building Envelope Integration

The deployment of a redundant optical fiber backhaul within the Longmont Intermodal Terminal requires a rigorous approach to physical pathway engineering, specifically where the fiber conduits interface with the building envelope. From a forensics perspective, the primary point of failure in transit infrastructure is rarely the glass itself, but rather the breach of the building envelope at penetration points. To mitigate this, the engineering specification mandates the use of schedule 80 PVC or galvanized rigid conduit (GRC) depending on the zone of exposure. In areas where the conduit traverses the roofing system, a comprehensive flashing and sealing protocol is implemented to prevent capillary action and moisture ingress, which can lead to systemic degradation of the surrounding structural decking.

The integration of these pathways must account for the high-vibration environment inherent to intermodal hubs. Differential settlement between the terminal’s primary concrete slabs and the auxiliary boarding platforms can induce shear stress on fiber bundles. To counteract this, expansion joints are engineered into the conduit runs, utilizing flexible liquid-tight conduits at transition points. This ensures that the physical strain is absorbed by the conduit system rather than the optical fibers, preventing micro-bends that would otherwise increase attenuation and compromise the signal-to-noise ratio of the security surveillance feed.

• Implementation of NEMA 4X rated enclosures for all exterior splice points to ensure hermetic sealing against particulate matter and moisture.
• Utilization of high-density polyethylene (HDPE) innerducts to provide a secondary layer of mechanical protection and facilitate future cable pulls without disturbing the primary envelope.
• Application of industrial-grade silicone sealants and flashing boots at all roof-to-wall transitions to maintain the integrity of the thermal envelope.
• Strategic placement of pull boxes at intervals not exceeding 150 feet to minimize tensile stress during the cable installation process.

Optical Topology and Redundancy Architecture

To ensure zero-downtime for the security surveillance apparatus, the backhaul architecture is designed as a physical ring topology rather than a traditional star configuration. This dual-homing strategy ensures that if a physical breach occurs—such as a conduit collapse or an accidental cable cut during facility maintenance—the network automatically reroutes traffic in the opposite direction around the ring. The system utilizes OS2 single-mode fiber, selected for its low attenuation characteristics over the distances required to span the terminal's expansive footprint. This choice is critical for maintaining the high bandwidth necessary for 4K resolution streams and real-time AI analytics without the need for intermediate signal amplification.

The redundancy is further reinforced through the use of diverse pathing. The "East" and "West" legs of the fiber ring are routed through geographically distinct corridors of the terminal. This prevents a single localized event, such as a fire in a specific utility riser or a structural failure in one wing of the terminal, from severing both the primary and the redundant links. The logical layer of the network employs Rapid Spanning Tree Protocol (RSTP) or similar convergence algorithms to ensure that failover occurs in milliseconds, rendering the interruption invisible to the security operators in the central command center.

• Deployment of a 24-strand single-mode fiber backbone to provide ample headroom for future sensor integration and bandwidth scaling.
• Utilization of LC-APC (Angled Physical Contact) connectors to minimize back-reflection and maximize the return loss performance of the optical links.
• Strategic placement of Optical Distribution Frames (ODFs) to allow for modular patching and rapid troubleshooting without disrupting the entire ring.
• Integration of redundant power supplies for all active optical switches, backed by industrial-grade Uninterruptible Power Supplies (UPS) with 4-hour autonomy.

Environmental Stressors and Forensic Mitigation

A forensic analysis of similar transit hubs reveals that thermal cycling is a primary driver of long-term infrastructure fatigue. At the Longmont Intermodal Terminal, the exposure of conduits to extreme temperature fluctuations on the roof surfaces creates a cycle of expansion and contraction. If the fiber is not properly floated within the conduit, this movement can lead to "pistoning," where the cable shifts longitudinally, potentially pulling the fibers out of their splice trays. To mitigate this, we specify the use of loose-tube fiber cables, where the fibers are contained within a gel-filled buffer tube that allows them to move independently of the outer jacket.

Furthermore, the presence of heavy machinery and transit vehicles introduces constant low-frequency vibration. Over time, these vibrations can cause mechanical wear at the connection points. The engineering solution involves the use of vibration-dampening mounts for all rack-mounted equipment and the application of secure, locking connectors. From a forensic standpoint, the monitoring of the system is performed via Optical Time Domain Reflectometry (OTDR), which allows technicians to pinpoint the exact location of a fault or a developing micro-bend within a few meters, drastically reducing the Mean Time to Repair (MTTR).

• Analysis of the Coefficient of Thermal Expansion (CTE) for all conduit materials to ensure compatibility with the building's structural movement.
• Installation of moisture-sensing cables within the primary conduit banks to provide early warning of envelope breaches before water reaches the splice enclosures.
• Periodic OTDR baseline testing to identify gradual degradation in signal quality, which often precedes a total link failure.
• Use of armored fiber cabling in high-traffic utility zones to protect against rodent activity and accidental mechanical impact.

System Validation and Reliability Metrics

The final validation of the backhaul redundancy is conducted through a series of rigorous stress tests and empirical measurements. The primary metric for success is the total link loss budget, which must remain below the calculated threshold for the most distant camera node. Each fiber strand is tested for attenuation across the 1310nm and 1550nm wavelengths to ensure that the splice quality meets the TIA-568 standard. A "break-test" is also performed, where a primary link is intentionally severed in a controlled environment to verify that the ring topology successfully reroutes traffic within the specified failover window.

Long-term reliability is managed through a predictive maintenance schedule. Rather than reacting to failures, the technical team utilizes the empirical data from the network switches—such as Bit Error Rate (BER) and optical power levels—to identify degrading components. This clinical approach to infrastructure management ensures that the Longmont Intermodal Terminal's security surveillance remains operational regardless of environmental stressors or physical damage to the facility. The result is a hardened, resilient communication backbone that serves as the foundation for the terminal's overall security posture.

• Verification of a maximum allowable loss of 0.1 dB per splice and 0.4 dB per connector across all critical paths.
• Documentation of a

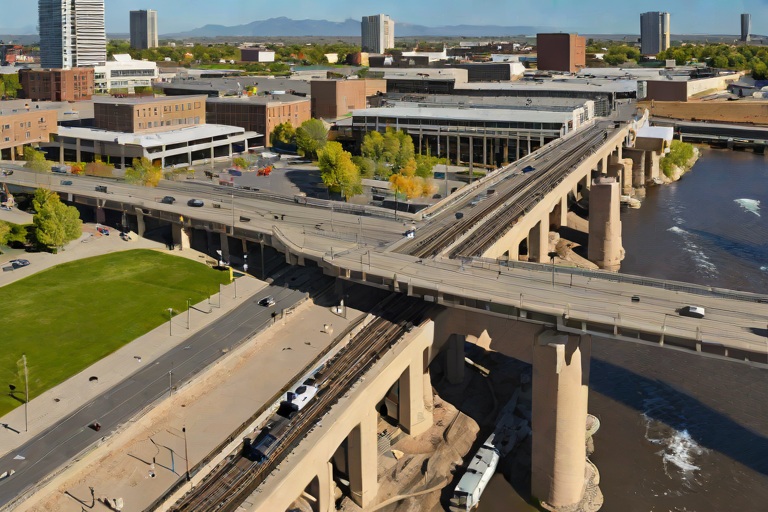

Hydrodynamic Mechanisms and Scour Typologies in the South Platte Basin

The South Platte River, particularly within the Golden Station Transit Loop corridor, presents a complex hydraulic environment characterized by high seasonal variability and significant sediment transport. Bridge pier scour—the removal of sediment from around bridge abutments or piers—is the primary cause of bridge failure globally and requires a clinical approach to forensic monitoring. In this specific reach, the interaction between the river's alluvial bed and the structural piers creates a high-energy zone where flow acceleration and turbulence are maximized.

Analysis of the site reveals two primary scour mechanisms: contraction scour and local scour. Contraction scour occurs when the flow area is reduced by the bridge opening, increasing the velocity and shear stress across the entire channel width. This results in a general lowering of the riverbed. Local scour, conversely, is a localized phenomenon caused by the obstruction of the pier itself. As water hits the pier, it creates a downward pressure gradient that forms a "horseshoe vortex" at the base, which aggressively excavates the bed material.

• Horseshoe Vortex Generation: The primary driver of local scour, creating a deep hole immediately surrounding the pier footing.
• Wake Scour: The turbulence created downstream of the pier, leading to secondary erosion patterns that can undermine the trailing edge of the foundation.
• Sediment Gradation: The South Platte's mixture of gravels and sands means that "armoring" occurs, where larger stones remain while fines are swept away, potentially creating a false sense of stability.
• HEC-18 Compliance: All monitoring and calculations must adhere to the Hydraulic Engineering Circular No. 18 standards for evaluating scour at bridges.

The risk is compounded during peak runoff events, where the discharge rates increase exponentially. The resulting increase in shear stress can lead to "rapid-onset scour," where the bed elevation drops several meters in a matter of hours, potentially exposing the pile caps or footings of the transit loop infrastructure.

Instrumentation and Real-Time Monitoring Frameworks

To ensure the structural longevity of the Golden Station Transit Loop crossings, a passive inspection regime is insufficient. A multi-modal, real-time monitoring framework is required to capture the transient nature of scour holes. The objective is to transition from periodic dive inspections to a continuous data stream that triggers immediate engineering alerts when critical thresholds are breached.

The primary instrumentation strategy employs Time Domain Reflectometry (TDR) and fixed-mount sonar systems. TDR probes are installed vertically along the pier face; as the sediment is eroded, the reflection point of the electromagnetic pulse shifts, providing a precise measurement of the sediment-water interface. This is complemented by sonar transducers mounted on the pier caps, which provide a wide-angle topographic map of the riverbed morphology in real-time.

• Fixed-Mount Sonar: Provides high-resolution bathymetric data and allows for the visualization of the scour hole's evolution during flood events.
• TDR Probes: Offers high-frequency, point-specific data on bed elevation with minimal maintenance requirements.
• Tiltmeters and Accelerometers: Installed on the pier shafts to detect minute rotations or vibrations that indicate a loss of lateral soil support.
• Piezometers: Used to monitor pore water pressure in the surrounding soil, identifying potential liquefaction or piping issues during rapid drawdown.

The integration of these sensors into a Supervisory Control and Data Acquisition (SCADA) system allows for the calculation of "scour depth vs. time" curves. By correlating this data with river gauge height, engineers can establish a predictive model that forecasts scour depth based on current flow velocities, allowing for preemptive closure of transit lines if the safety factor drops below 1.5.

Structural Integrity and Forensic Substructure Analysis

From a forensic engineering perspective, the danger of scour is not merely the removal of soil, but the resulting change in the structural behavior of the pier. When the riverbed is lowered, the "effective length" of the pier increases. This shift in the point of fixity increases the bending moment at the base and reduces the overall buckling capacity of the column.

Furthermore, the exposure of the pile cap or the upper portions of the drilled shafts introduces the concrete to a highly aggressive environment. The South Platte River carries abrasive sediments and dissolved oxygen, which can accelerate the carbonation of the concrete and the corrosion of the reinforcing steel. If the scour reaches the footing, the loss of skin friction on the piles can lead to differential settlement, which manifests as hairline cracks in the transit loop's superstructure or misalignment of the rail tracks.

• Loss of Lateral Support: As the soil is removed, the pier loses its confinement, significantly reducing its capacity to withstand lateral loads from ice floes or debris impact.
• Skin Friction Degradation: The removal of the upper soil strata eliminates the positive skin friction, shifting the entire load to the end-bearing capacity of the piles.
• Concrete Spalling: Exposed footings are subject to abrasion from river-borne debris, leading to the loss of protective cover over the rebar.
• Settlement Analysis: Forensic monitoring of the pier caps using precision leveling to detect millimetric shifts in vertical alignment.

The analysis must account for the "scour-fill" cycle. After a flood, the scour hole is often partially refilled with loose, non-cohesive sediment. While the riverbed may appear restored, the structural integrity is not recovered because the new material lacks the compaction and bearing capacity of the original alluvial deposits.

Mitigation Strategies and Lifecycle Maintenance Protocols

Mitigation must be approached through a combination of "hard" armoring and "soft" hydraulic management. The goal is to shift the scour hole away from the structural element or to armor the bed so that the critical shear stress required for erosion is never reached. For the Golden Station Transit Loop, a graded riprap approach is the industry standard, but it must be engineered with a filter layer to prevent the "winnowing" of fines from beneath the stones.

The application of Articulated Concrete Blocks (ACBs) offers a more permanent solution than traditional riprap, as they interlock to form a continuous mattress that resists displacement during extreme flow events. Additionally, the installation of sacrificial "sacrificial piles" or "scour collars" can be used to break the flow and redirect the horseshoe vortex away from the primary pier shaft.

• Graded Riprap: Utilizing

Structural Integration of Crane Runways and Primary Framing

In the industrial landscape of the Lakewood-Wadsworth corridor, fleet maintenance facilities are characterized by expansive clear-span bays designed to accommodate heavy-duty vehicle chassis and specialized lifting equipment. The primary engineering challenge in these facilities is the seamless integration of overhead crane runways into the building's primary structural steel frame. Unlike static load-bearing members, crane runways introduce dynamic, moving point loads that create complex stress distributions across the columns and rafters. When a bridge crane traverses the runway, it induces a combination of vertical shear and lateral thrust that must be dissipated through the building's foundation and bracing systems.

The structural integrity of these systems relies heavily on the efficiency of the load path. In many legacy facilities within this corridor, we observe a tendency toward "over-stiffening" certain joints, which inadvertently creates stress concentrations. When the runway beam is rigidly connected to the primary column without sufficient allowance for deflection, the resulting moment can lead to premature fatigue in the weldments. A clinical analysis of these systems reveals that the most critical failure points occur at the splice plates and the connection between the runway girder and the building column, where the transition from a flexible beam to a rigid support occurs.

• Analysis of vertical deflection limits to prevent runway "sag" which can cause crane derailment or motor burnout.
• Evaluation of lateral bracing and longitudinal stability to ensure the crane does not induce a "sway" effect on the building envelope.
• Assessment of column buckling factors under peak eccentric loading during maximum hoist capacity.
• Verification of base plate anchoring to ensure that dynamic vibrations are not compromising the concrete slab-on-grade.

Building Envelope Integrity and Vibration-Induced Fatigue

From a building envelope forensics perspective, the operation of overhead cranes has a direct and often overlooked impact on the roofing and cladding systems. In fleet maintenance facilities, the roof is typically a large-span assembly, often utilizing TPO or EPDM membranes over insulated metal panels. The constant cycling of heavy loads creates low-frequency vibrations that propagate through the structural steel and into the roof decking. Over time, these vibrations act as a catalyst for fastener backing and the degradation of sealant joints at the parapet and flashing interfaces.

In the Lakewood-Wadsworth corridor, where thermal cycling is a significant environmental factor, the combination of structural vibration and thermal expansion/contraction creates a "ratcheting" effect. This effect can lead to the gradual opening of joints in the building envelope, allowing moisture infiltration and subsequent corrosion of the very steel members supporting the crane. Forensic audits frequently reveal that leaks in the roofing system are not the result of membrane failure, but rather the result of structural movement caused by the crane's dynamic load, which has compromised the watertight integrity of the roof-to-wall transitions.

• Monitoring of flashing separation at the eaves caused by longitudinal building drift during crane movement.
• Inspection of roof deck fasteners for "pull-out" or "backing" induced by harmonic resonance.
• Evaluation of thermal bridging at the points where crane supports penetrate the building envelope.
• Assessment of cladding panel fatigue, specifically looking for stress cracks around the perimeter bolts.

Forensic Analysis of Connection Failures and Weld Degradation

The forensic audit of load-bearing components in these facilities requires a rigorous application of non-destructive testing (NDT) to identify subsurface flaws. In many of the facilities surveyed, the primary concern is the degradation of fillet welds and the occurrence of shear lag in bolted connections. When a crane is operated beyond its rated capacity—a common occurrence in aging fleet facilities—the resulting overstress manifests as microscopic cracks in the heat-affected zone (HAZ) of the welds. These cracks, if left undetected, propagate through the material via fatigue cycling, eventually leading to a catastrophic brittle fracture.

A clinical examination of these failures often reveals that the original design did not account for the "impact factor" associated with sudden hoist stops or rapid acceleration. This creates a peak load that significantly exceeds the static weight of the load. By employing ultrasonic testing (UT) and magnetic particle inspection (MPI), we can map the extent of the weld degradation. In the Lakewood-Wadsworth corridor, we have noted a prevalence of "hydrogen-induced cracking" in older repairs where improper welding procedures were used during facility expansions, further compromising the load-bearing capacity of the runway girders.

• Utilization of Magnetic Particle Inspection to detect surface-breaking cracks in critical flange-to-web connections.
• Application of Ultrasonic Testing to measure the thickness of steel members affected by oxidation and corrosion.
• Analysis of bolt slip and hole elongation in high-strength structural bolts (A325 or A490).
• Evaluation of torsional instability in the runway beams when the hoist is operated at the extreme ends of the bridge.

Mitigation Strategies and Lifecycle Load-Bearing Recertification

To ensure the long-term viability of fleet maintenance facilities, a proactive recertification program must be implemented. This involves more than a simple visual inspection; it requires a comprehensive load-bearing audit that compares current structural conditions against original design specifications and modern ASME/CMAA standards. Mitigation strategies typically begin with the reinforcement of existing members. This may include the installation of welded stiffener plates to reduce web crippling or the addition of carbon fiber reinforced polymer (CFRP) wraps to increase the load capacity of concrete columns without adding significant mass.

Furthermore, the implementation of a vibration-damping strategy is essential for protecting the building envelope. By introducing elastomeric isolation pads at the interface between the crane runway and the primary structure, engineers can decouple the dynamic loads from the building's skin. This reduces the transmission of harmonic energy to the roof and walls, thereby extending the lifecycle of the roofing membrane and reducing the frequency of envelope repairs. A rigorous recertification schedule, conducted every three to five years, ensures that any new fatigue cracks are identified and remediated before they reach a critical state.

• Implementation of a scheduled "Load Test" protocol using calibrated weights to verify actual vs. rated capacity.
• Installation of structural health monitoring (SHM) sensors to track real-time deflection and vibration.
• Upgrading to high-strength, tension-controlled bolting systems to eliminate slip in the runway connections.
• Development of a comprehensive maintenance manual that aligns crane operation with building envelope preservation.

Thermal Dynamics and Material Coefficient Analysis

The engineering challenge at the Littleton Downtown Station centers on the management of longitudinal displacement caused by extreme thermal cycling. A 100-degree Fahrenheit temperature swing induces significant volumetric changes in the structural steel and reinforced concrete components of the rail infrastructure. To analyze this, we must first establish the Coefficient of Thermal Expansion (CTE) for the primary materials involved. Carbon steel, typically used in rail sections, possesses a CTE of approximately 6.5 x 10-6 inches per inch per degree Fahrenheit. When applied across a continuous weld or a long-span rail section, a 100-degree variance results in a cumulative linear displacement that can exceed several inches over the length of the station platform.

The interaction between the steel rails and the concrete platform creates a complex forensic scenario. Concrete has a lower CTE than steel, meaning the two materials expand and contract at different rates. This differential movement, if not properly mitigated by calibrated expansion joints, introduces massive internal stresses into the building envelope and the supporting substructure. If the rail is constrained, these forces manifest as longitudinal stress, which can lead to catastrophic deformation of the rail geometry or the cracking of the surrounding concrete slabs.

To maintain structural equilibrium, the following variables must be empirically quantified during the calibration phase:

• The precise length of the unrestrained rail section between fixed anchor points.
• The mean ambient temperature of the installation site relative to the historical thermal extremes of the Littleton region.
• The modulus of elasticity of the concrete platform to determine the potential for compressive failure during peak heat events.
• The friction coefficient between the rail fasteners and the sleepers, which influences the distribution of longitudinal force.

Gap Calibration and Tolerance Specifications

Calibration of the expansion joint gap is not a static measurement but a dynamic calculation based on the "Rail Temperature" rather than the "Ambient Air Temperature." Because steel absorbs solar radiation, the rail temperature can often exceed the ambient air temperature by 20 to 40 degrees. Therefore, the gap calibration must be indexed to the predicted peak rail temperature. The primary objective is to ensure that the gap is wide enough to prevent "bottoming out" (complete closure) during the hottest summer peak, while remaining narrow enough to prevent excessive "gapping" during the winter trough, which would create a hazardous interface for rolling stock and pedestrians.

The calculation for the required gap width follows a strict linear expansion formula: Delta L = alpha * L * Delta T. For the Littleton Downtown Station, the calibration must account for the "Neutral Temperature"—the temperature at which the rail is under zero longitudinal stress. If the rail is laid and fastened at a neutral temperature of 60 degrees, the gap must be precisely calibrated to accommodate the expansion toward 110 degrees and the contraction toward 10 degrees. Failure to calibrate to this neutral point results in a permanent shift in the stress baseline, leading to premature wear of the joint components.

Industry standards for these tolerances require a rigorous adherence to the following specifications:

• Minimum Gap Width: Must be maintained at the maximum predicted rail temperature to avoid compressive buckling (sun kinks).
• Maximum Gap Width: Must not exceed the safety threshold for wheel-to-rail transition at the minimum predicted temperature.
• Alignment Tolerance: Vertical and horizontal deviation at the joint interface must be less than 1/16th of an inch to prevent impact loading.
• Fastener Tension: Bolts must be torqued to specifications that allow for controlled sliding without permitting uncontrolled rail creep.

Forensic Analysis of Failure Modes in Rail Joints

From a forensics perspective, the failure of expansion joint calibration typically manifests in two distinct modes: compressive buckling and tensile fracture. When the gap is undersized for a 100-degree swing, the rail expands until it meets the opposing fixed point. With no remaining void, the energy is converted into lateral force. This results in "sun kinks," where the rail bows outward. This deformation is often accompanied by the spalling of the concrete platform edges, as the rail exerts immense lateral pressure against the building envelope, effectively acting as a hydraulic ram.

Conversely, over-calibration—where the gap is too wide—leads to excessive impact loading. As trains pass over an oversized gap, the rail ends undergo repeated vertical deflection. This creates a "hammering" effect that fatigues the metal and accelerates the degradation of the concrete sleepers. Over time, this leads to the formation of voids beneath the rail, which further destabilizes the track geometry and requires costly grout injection or full slab replacement.

The following indicators are used during forensic audits to identify calibration failure:

• Presence of "mushrooming" or plastic deformation at the rail ends, indicating repeated bottoming out of the joint.
• Linear cracking in the concrete platform running parallel to the rail, suggesting lateral thrust from thermal expansion.
• Shear failure of anchor bolts, indicating that the rail attempted to move longitudinally against a rigid constraint.
• Accelerated wear on the rail head at the joint interface, signifying excessive vertical movement due to an over-extended gap.

Implementation Protocols and Long-term Monitoring

To ensure the longevity of the Littleton Downtown Station infrastructure, the implementation of expansion joints must follow a strict sequence of temperature-indexed installation. The rail must be "stressed" to its neutral temperature using hydraulic tensors before the joints are locked. This process ensures that the internal tension is balanced across the entire span. Furthermore, the interface between the rail and the station's building envelope must be treated with high-performance elastomeric sealants that can accommodate the same 100-degree swing without losing adhesion or developing tears.

Long-term stability is managed through a regime of empirical monitoring. Modern engineering standards suggest the installation of thermal sensors embedded in the rail web and the concrete substructure. These sensors provide real-time data on the actual thermal gradient, allowing engineers to verify if the gap is behaving according to the theoretical model. If the data indicates a trend toward "rail creep"—the slow, permanent migration of the rail in one direction—the joints must be reset during a scheduled maintenance window to restore the neutral temperature baseline.

The maintenance and monitoring protocol includes the following critical checkpoints:

• Quarterly measurement of the gap width at the

Electrochemical Dynamics and Environmental Stressors in Concrete Matrices

The structural integrity of the Lone Tree City Center Transit infrastructure relies heavily on the performance of embedded steel tie rods. These components are subject to a complex electrochemical environment where the high alkalinity of the concrete—typically maintaining a pH between 12.5 and 13.5—initially facilitates the formation of a passive oxide film on the steel surface. This passivating layer, primarily composed of gamma-ferric oxide, serves as a kinetic barrier that inhibits the anodic dissolution of iron. However, the transit environment introduces aggressive external agents that destabilize this equilibrium, primarily through the mechanisms of chloride ion penetration and atmospheric carbonation.

In the context of the Lone Tree facility, the primary catalyst for corrosion is the infiltration of chloride ions derived from de-icing salts and groundwater seepage. Once the chloride concentration at the steel-concrete interface reaches a critical threshold—often cited in forensic engineering as approximately 0.05% to 0.1% by weight of cement—the passive film is locally breached. This creates a potent galvanic cell where the breached area acts as a small anode and the surrounding intact passive film acts as a large cathode. The resulting localized pitting corrosion is particularly hazardous for tie rods, as it reduces the effective cross-sectional area of the steel, thereby increasing the stress intensity factor and elevating the risk of sudden brittle failure.

• Chloride-induced pitting: Localized breakdown of the passive layer leading to deep, narrow pits.
• Carbonation: The reaction of atmospheric CO2 with calcium hydroxide, lowering the pH to below 9.0 and eliminating the passivating environment.
• Oxygen diffusion: The necessity of oxygen at the cathode to sustain the corrosion current.
• Moisture saturation: The role of the pore solution in facilitating ionic transport between anodic and cathodic sites.

Sensor Integration and Monitoring Methodologies

To quantify the rate of degradation across the transit infrastructure, a multi-layered monitoring strategy is deployed, focusing on non-destructive evaluation (NDE) and embedded sensing. The primary diagnostic tool utilized is Half-Cell Potential (HCP) mapping, which measures the electrical potential difference between the embedded steel and a reference electrode, such as a Copper-Copper Sulfate (CSE) electrode. By establishing a potential map across the concrete surface, engineers can identify "hot spots" where the probability of active corrosion exceeds 90%, allowing for targeted forensic drilling and visual inspection of the tie rods.

For a more granular analysis of the corrosion rate, Linear Polarization Resistance (LPR) is implemented. Unlike HCP, which indicates the likelihood of corrosion, LPR provides a quantitative measurement of the current density (iCorr), which can be converted into a mass loss rate (mm/year). This is achieved by applying a small voltage perturbation to the steel and measuring the resulting current response. In the Lone Tree project, these measurements are supplemented by embedded manganese dioxide (MnO2) sensors and electrical resistivity probes. These probes monitor the bulk resistivity of the concrete, providing a proxy for moisture content and chloride mobility, which are the primary drivers of the corrosion current.

• Half-Cell Potential (HCP): Used for mapping the probability of corrosion across large surface areas.
• Linear Polarization Resistance (LPR): Provides the instantaneous corrosion current density for rate calculation.
• Electrical Resistivity: Measures the ease with which ions move through the concrete pore structure.
• Reference Electrodes: Utilization of Ag/AgCl or CSE to ensure a stable baseline for potential measurements.

Forensic Analysis of Material Degradation and Structural Impact

The transition from microscopic pitting to macroscopic structural distress is marked by the volumetric expansion of corrosion products. When iron oxidizes to form rust (Fe2O3·nH2O), the resulting volume can be up to six to ten times that of the original steel. This expansion generates immense internal tensile stresses within the surrounding concrete matrix. Because concrete possesses high compressive strength but negligible tensile strength, these internal pressures lead to the formation of longitudinal cracks that track the length of the tie rod. These cracks, in turn, create a positive feedback loop by providing a direct pathway for more oxygen and chlorides to reach the steel.

Forensic analysis of core samples from the Lone Tree transit supports reveals a distinct pattern of "spalling," where the concrete cover detaches from the reinforcement. The failure is typically characterized by a loss of bond strength between the steel and the concrete, which is critical for the load-transfer mechanism of tie rods. In cases of severe carbonation, the degradation is more uniform, leading to a general thinning of the rod diameter rather than localized pitting. However, the most critical failure mode identified in this specific infrastructure is the synergistic effect of vibration from transit vehicles and chemical corrosion, which accelerates the propagation of stress-corrosion cracking (SCC) in high-strength steel rods.

• Volumetric expansion: The physical displacement caused by rust formation leading to internal cracking.
• Bond loss: The degradation of the mechanical interlock between the steel tie rod and the concrete.
• Spalling: The detachment of the concrete cover due to internal tensile pressures.
• Synergistic degradation: The combination of cyclic mechanical loading and electrochemical corrosion.

Mitigation Strategies and Life-Cycle Extension

To arrest the corrosion process and extend the service life of the Lone Tree City Center Transit infrastructure, a tiered mitigation approach is required. The first line of defense is the application of hydrophobic silane sealants to the concrete surface. These sealants reduce the permeability of the concrete, effectively cutting off the supply of moisture and chlorides. However, for sections where the chloride threshold has already been exceeded, surface sealants are insufficient, as the corrosion process is already self-sustaining within the matrix.

In these advanced cases, Impressed Current Cathodic Protection (ICCP) is the industry standard for remediation. ICCP involves the installation of an external anode—typically a titanium mesh or ribbon—and the application of a small, controlled DC current. This current shifts the potential of the steel tie rods into the cathodic region, effectively suppressing the anodic dissolution of iron. For less severe areas, sacrificial anodes (galvanic protection) using zinc or magnesium are embedded near the tie rods. These anodes possess a more negative electrochemical potential than the steel, ensuring that the anode corrodes preferentially, thereby protecting the structural steel.

• Silane Sealants: Reducing the ingress of water and salts through surface hydrophobicity.
• ICCP: Actively shifting the electrochemical potential to prevent iron oxidation.
• Galvanic Anodes: Utilizing sacrificial materials to provide passive protection to the tie rods.
• Predictive Maintenance: Using

Hydrological Modeling and Front Range Precipitation Profiles

The Denver International Airport (DIA) concourse line presents a unique hydrological challenge due to the extreme volatility of the Front Range precipitation patterns. Engineering for a 100-year storm event—defined as a 2.4% annual exceedance probability—requires a departure from standard steady-state modeling. In this region, the primary driver of runoff is the high-intensity, short-duration convective burst, often exacerbated by orographic lift. For the concourse line, the primary concern is the rapid conversion of precipitation into surface runoff across vast, impervious architectural footprints.

To establish a precise sizing baseline, analysts must employ the Rational Method or the SCS (Soil Conservation Service) Curve Number method, though the latter is more adept at handling the cumulative volume of a 100-year event. The runoff coefficient (C) for the concourse line is nearly 0.95, given the prevalence of reinforced concrete, asphalt, and high-performance roofing membranes. This near-total lack of infiltration necessitates a detention system capable of managing massive instantaneous peak flows without overloading the municipal storm sewer infrastructure.

Key variables influencing the hydrological load include:

• Time of Concentration (Tc): The duration required for runoff to travel from the hydraulically most remote point of the concourse roof to the vault inlet.
• Rainfall Intensity (i): Derived from NOAA Atlas 14 data, specifically targeting the peak 15-minute and 1-hour intervals of the 100-year storm.
• Drainage Area (A): The total square footage of the concourse roof, including pedestrian bridges and adjacent apron surfaces.
• Antecedent Moisture Conditions: The saturation level of the surrounding subgrade, which dictates the degree of lateral seepage and vault buoyancy risks.

Concourse Envelope and Roof Drainage Integration

The building envelope of an airport concourse is not merely a weather barrier but the primary collection mechanism for the stormwater system. Forensics on large-scale commercial roofing reveal that the most common failure point during a 100-year event is the transition from the roof membrane to the internal drainage system. If the roof is not perfectly graded toward the primary drains, "ponding" occurs, creating a static load that can lead to structural deflection or membrane puncture. This ponding delays the delivery of water to the detention vault, potentially causing a surge that exceeds the vault's inlet capacity.

Effective engineering requires a redundant drainage architecture. Primary internal drains must be supplemented by oversized perimeter scuppers and overflow drains. These overflows act as a critical safety valve; if the primary internal system is overwhelmed, the overflow prevents the roof from becoming a reservoir, which would otherwise threaten the structural integrity of the concourse ceiling. The integration of these systems ensures that the peak flow is managed in a controlled descent into the subterranean vault.

Critical envelope specifications for high-volume runoff include:

• Tapered Insulation Systems: Utilizing precision-cut polyisocyanurate to ensure positive drainage toward designated collection points.
• High-Capacity Roof Drains: Selection of drains with a high-flow coefficient and debris strainers to prevent blockage from wind-borne airport debris.
• Membrane Integrity: The use of reinforced TPO or EPDM membranes with heat-welded seams to prevent leakage into the building envelope during peak hydrostatic pressure.
• Scupper Alignment: Strategic placement of overflow scuppers at the lowest points of the parapet wall to ensure rapid discharge.

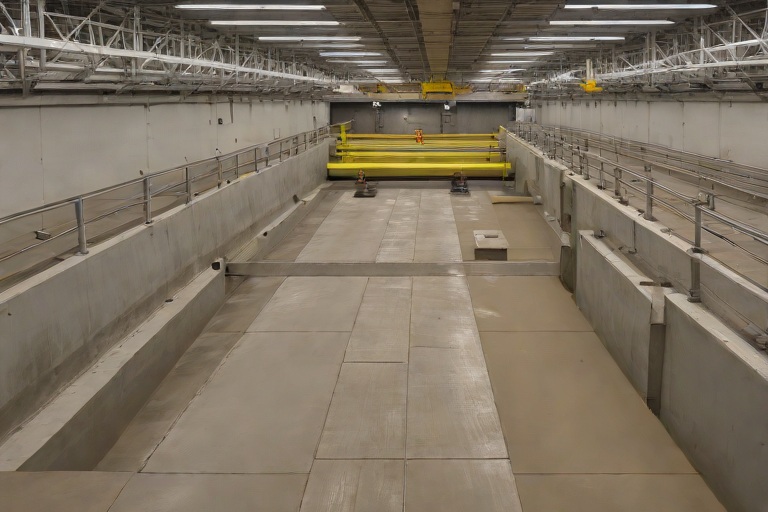

Vault Sizing Calculations and Volumetric Analysis

Sizing a detention vault for the DIA concourse line is a matter of calculating the differential between the peak inflow rate and the allowable release rate permitted by the downstream municipal system. The vault does not simply "hold" water; it acts as a volumetric buffer. The required volume (V) is the integral of the inflow hydrograph minus the outflow hydrograph over the duration of the storm event. For a 100-year event, the inflow peak is often an order of magnitude higher than the capacity of the discharge pipe.

The engineering precision lies in the orifice sizing and the weir design. A restricted outlet ensures that the vault fills to a calculated maximum depth before discharging at a constant, manageable rate. This prevents "slug loading" the downstream infrastructure. Furthermore, the vault must be designed with a "freeboard" allowance—typically 12 to 24 inches of unoccupied vertical space—to account for unexpected surges or sediment accumulation that reduces the effective volume over time.

The volumetric analysis must account for the following technical factors:

• Storage Volume Calculation: Determining the total cubic footage required to attenuate the peak flow of a 24-hour 100-year event.
• Orifice Plate Calibration: Precise drilling of the outlet plate to limit discharge to the pre-development flow rate.
• Detention Time: The duration the water remains in the vault, which influences the potential for sediment settling and the need for mechanical cleaning.
• Peak Flow Attenuation: The ratio of the peak inflow (cms) to the peak outflow (cms), ensuring the vault effectively flattens the runoff curve.

Forensic Risk Mitigation and Structural Integrity

From a forensic engineering perspective, the primary risks associated with large-scale stormwater vaults are hydrostatic uplift and joint failure. During a 100-year event, the surrounding soil becomes saturated, creating an upward buoyant force on the vault. If the vault is empty or partially full, this buoyancy can lead to "floating" or structural cracking. To mitigate this, the vault must be anchored to the subgrade using helical piers or designed with a base slab thick enough to counteract the uplift pressure.

Furthermore, the chemical composition of airport runoff—often containing de-icing fluids and hydrocarbons—can accelerate the degradation of concrete joints. Forensic analysis of similar infrastructure shows that standard joint sealants often fail under the cyclic loading of extreme storm events. The use of hydrophilic gaskets and high-performance epoxy grouting is mandatory to prevent groundwater infiltration (which fills the vault prematurely) and to prevent the leakage of contaminated runoff into the surrounding soil.

Long-term structural maintenance and risk factors include:

• Siltation and Sedimentation: The accumulation of fines at the bottom of the vault,

System Architecture and Regulatory Framework for Smoke Control

The fundamental objective of stairwell pressurization systems within the commercial infrastructure of the I-25 South Commuter Bypass corridor is the maintenance of a tenable environment for egress during a thermal event. These systems operate on the principle of positive pressure ventilation, utilizing high-capacity centrifugal fans to inject filtered ambient air into the stairwell enclosure. By creating a pressure differential between the stairwell and the adjacent floor areas, the system effectively prevents the migration of smoke and toxic combustion gases into the primary evacuation route. This mechanism is governed by the stringent requirements of NFPA 92 (Standard for Smoke Control Systems) and the International Building Code (IBC), which mandate specific pressure gradients to ensure both smoke exclusion and the ability of occupants to operate exit doors.

From a forensic engineering perspective, the efficacy of these systems depends on the precise calibration of the fan's cubic feet per minute (CFM) output against the calculated leakage area of the building envelope. If the pressurization is insufficient, smoke infiltration occurs via convective currents. Conversely, over-pressurization can lead to excessive door-opening forces, potentially trapping occupants or hindering first responder access. The regulatory threshold typically targets a minimum pressure difference of 0.10 inches water gauge (w.g.) relative to the highest adjacent floor, though site-specific variations occur based on the building's height and the specific fire-resistance rating of the assemblies.

• Compliance with NFPA 92 regarding smoke movement and containment.
• Adherence to IBC requirements for pressurized exit enclosures.
• Integration with the Fire Alarm Control Panel (FACP) for automatic activation.
• Verification of air-change rates to prevent the accumulation of heat.

Forensic Evaluation of Airflow Dynamics in the I-25 Corridor

The I-25 South Commuter Bypass presents a unique set of environmental variables that impact building envelope forensics. The corridor is characterized by high-velocity wind gusts and significant diurnal temperature fluctuations, which induce a pronounced "stack effect" in mid-to-high-rise structures. This vertical movement of air can either augment or counteract the mechanical pressurization of the stairwell, leading to inconsistent pressure readings across different floor levels. Technical analysis reveals that wind-driven pressure on the windward facade can create localized high-pressure zones that interfere with the fan's ability to maintain a uniform gradient, necessitating the use of variable frequency drives (VFDs) to modulate fan speed in real-time.

Furthermore, the interaction between the building envelope and the pressurization system is a critical point of failure. In many commercial structures along this bypass, degradation of the building wrap or the failure of roof-to-wall flashing allows for uncontrolled air infiltration. This "leaky" envelope forces the pressurization fans to work harder to maintain the required pressure, often pushing the equipment toward the end of its performance curve and increasing the risk of mechanical fatigue. When the envelope is compromised, the system may achieve the required pressure at the base of the stairwell while failing to maintain it at the upper levels, creating a dangerous vulnerability in the smoke containment strategy.

• Analysis of wind-load impacts on the building envelope during peak gusts.
• Evaluation of the stack effect on vertical pressure distribution.
• Assessment of VFD responsiveness to fluctuating external atmospheric conditions.
• Identification of air leakage paths through facade joints and roof penetrations.

Empirical Testing Methodology and Validation Protocols

The validation of stairwell pressurization requires a rigorous, empirical approach using calibrated instrumentation. The primary metric for success is the pressure differential, measured using a digital manometer. Testing begins with the "static pressure test," where the fans are activated and the pressure difference is recorded at every floor level while all doors are closed. This ensures that the system can maintain the minimum required 0.10 w.g. throughout the entire vertical shaft. Any deviation below this threshold indicates either a failure in the fan's output or an excessive leakage rate within the stairwell enclosure that must be addressed through forensic sealing.

Equally critical is the "door force test," which measures the physical effort required to open the exit doors into the pressurized stairwell. According to industry standards, the force required to open a door should not exceed 25 pounds (approximately 111 Newtons). If the pressurization system is over-tuned, the resulting pressure differential creates a "seal" that makes the door nearly impossible to open, violating life-safety codes. Testing involves the use of a force gauge applied to the door handle, ensuring that the balance between smoke exclusion and ease of egress is maintained. This delicate equilibrium is the hallmark of a correctly engineered system.

• Utilization of digital manometers for precise pressure gradient mapping.
• Application of force gauges to verify door-opening compliance.
• Deployment of anemometers to verify duct velocity and CFM output.
• Sequential testing of all fire-rated dampers to ensure full actuation.

Failure Mode Analysis and Remediation Strategies

Technical analysis of failed pressurization systems typically reveals a pattern of systemic neglect or installation errors. One common failure mode is the "damper malfunction," where motorized dampers fail to open fully upon signal from the FACP. This restriction increases the static pressure at the fan discharge, potentially causing the motor to overheat or trip the circuit breaker, resulting in a total loss of pressurization. Another frequent issue is the degradation of the seals on the stairwell doors themselves. Worn gaskets allow air to bleed out of the stairwell, dropping the pressure and allowing smoke to enter the safe zone during a fire event.

Remediation requires a holistic approach to building envelope forensics. For structures along the I-25 South corridor, this often involves the application of high-performance sealants to the building envelope and the installation of balanced dampers to distribute air more evenly across the height of the stairwell. In cases where the original fan capacity is insufficient due to building modifications, the installation of supplementary booster fans or the upgrading of the VFD logic is necessary. The goal is to move from a reactive maintenance posture to a predictive one, utilizing annual certification tests to identify declining performance before a critical failure occurs.

• Correction of damper actuators to ensure 100% open-state reliability.
• Replacement of perished door seals to minimize uncontrolled air leakage.
• Recalibration of VFD set-points to account for current building occupancy loads.
• Implementation of a quarterly forensic audit of the building envelope integrity.

Tier 4 Emission Architecture and Chemical Precursors

The implementation of Tier 4 emission standards for diesel-electric commuter locomotives represents a fundamental shift in the chemical composition of exhaust plumes within transit hubs. Unlike previous iterations, Tier 4 mandates the integration of Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF) to drastically reduce nitrogen oxides (NOx) and particulate matter (PM). In the context of the Peoria Station Commuter Transfer, the transition to these engines alters the atmospheric chemistry of the immediate infrastructure environment. The SCR process utilizes an aqueous urea solution, injected into the exhaust stream, to convert NOx into diatomic nitrogen and water vapor. However, the efficiency of this conversion is dependent on precise thermal windows and catalyst health.

Despite the overall reduction in gross pollutants, the specific nature of the remaining effluent—particularly the presence of ammonia slip and residual nitrates—creates a unique set of stressors for the surrounding building envelope. The concentrated nature of the transfer station, which often acts as a semi-enclosed urban canyon, traps these emissions, leading to localized concentrations of hygroscopic salts. These substances settle on horizontal surfaces, including roofing membranes and structural ledges, initiating a cycle of chemical degradation that differs significantly from standard urban smog.

• Selective Catalytic Reduction (SCR): Converts NOx to N2 and H2O via urea injection.
• Diesel Particulate Filter (DPF): Traps carbonaceous soot, reducing the deposition of heavy particulates on building facades.
• Ammonia Slip: The release of unreacted NH3, which can react with moisture to form ammonium salts.
• Thermal Management: The requirement for high exhaust temperatures to maintain catalyst efficiency, impacting the thermal gradient of nearby infrastructure.

Atmospheric Deposition and Building Envelope Forensics

From a forensic engineering perspective, the interaction between Tier 4 emissions and the building envelope at Peoria Station is characterized by accelerated chemical weathering. The primary concern is the formation of nitric acid precursors when NOx gases react with atmospheric moisture and oxygen. This acidic deposition penetrates the porous substrates of the station's concrete supports and masonry, leading to a process known as carbonation and subsequent acid attack. When these acids infiltrate the concrete, they react with calcium hydroxide to form soluble calcium nitrates, which then leach out of the material, leaving behind a weakened, porous matrix prone to spalling.

Furthermore, the building envelope's roofing systems—specifically those utilizing Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Polyolefin (TPO)—are subject to chemical leaching and surface oxidation. While Tier 4 reduces the volume of heavy soot, the remaining nitrogen-based compounds can act as catalysts for the degradation of polymer chains in roofing membranes. This results in a loss of elasticity and an increase in brittleness, which manifests as micro-cracking. These fissures allow moisture ingress, compromising the thermal envelope and leading to internal structural corrosion of the roof decking.

• Acidic Deposition: The conversion of NO2 to HNO3, which lowers the pH of surface moisture on the envelope.
• Calcium Nitrate Leaching: The chemical removal of binding agents from reinforced concrete elements.
• Polymer Chain Scission: The breakdown of synthetic roofing membranes due to prolonged exposure to nitrogenous compounds.
• Efflorescence: The migration of salts to the surface of masonry, resulting in unsightly and destructive white deposits.

Forensic Analysis of Material Fatigue at Peoria Station

Field analysis at the Peoria Station Commuter Transfer reveals a distinct pattern of material fatigue concentrated in the "transfer zone," where locomotives idle for extended periods. Forensic sampling of the concrete substructure indicates a significant reduction in alkalinity, which is critical for the passivation of embedded steel reinforcement. As the pH of the concrete drops due to the absorption of NOx-derived acids, the protective oxide layer on the rebar dissolves. This triggers galvanic corrosion, leading to the expansion of the steel and the subsequent delamination of the concrete cover. This "concrete cancer" is most prevalent in the soffits and columns directly adjacent to the idling tracks.

The analysis extends to the protective coatings applied to the station's steel superstructure. The presence of ammonia slip from Tier 4 engines can lead to the saponification of certain oil-based paints and coatings. This chemical reaction breaks down the adhesive bond between the coating and the steel substrate, resulting in peeling and flaking. Once the protective coating fails, the steel is exposed to a highly corrosive environment of moisture and nitrates, accelerating the rate of pitting corrosion. The synergy between chemical attack and mechanical vibration from the locomotives further exacerbates these failures, creating a compounding effect of structural degradation.

• Passivation Layer Failure: The loss of the protective alkaline environment around steel reinforcement.
• Saponification: The chemical breakdown of coatings caused by alkaline ammonia exposure.
• Pitting Corrosion: Localized, deep penetrations in steel members caused by nitrate-rich deposits.
• Delamination: The separation of concrete layers due to internal pressure from corroding rebar.

Infrastructure Hardening and Mitigation Strategies

To mitigate the long-term impacts of Tier 4 emissions on the Peoria Station infrastructure, a comprehensive hardening strategy is required. The first line of defense is the application of high-performance, chemically resistant coatings. Fluoropolymer-based coatings are recommended for steel and concrete surfaces due to their extreme stability and low permeability to nitrogenous gases. These coatings create an impermeable barrier that prevents the penetration of nitric acid and ammonia, thereby halting the process of carbonation

Methodologies for Manual Track Geometry Assessment

The fundamental integrity of the Decatur-Federal Stadium Line relies upon the rigorous application of physical track geometry inspections. While automated systems provide rapid overviews, the master engineering approach mandates a "hands-on" forensic audit to validate the empirical baseline. This process begins with the utilization of precision track gauges and chord-based measurement techniques to identify localized deviations that automated sensors may overlook due to signal smoothing algorithms. The primary focus is the verification of gauge width, cross-level, and longitudinal alignment against the stringent tolerances defined by AREMA (American Railway Engineering and Maintenance-of-Way Association) standards.

Physical inspections are critical for identifying "soft spots" in the subgrade and ballast fouling that lead to differential settlement. By employing manual pumping tests and visual forensics of the ballast shoulder, engineers can determine the saturation levels and drainage efficiency of the track bed. The manual audit specifically targets the transition zones—where the track moves from rigid bridge structures to flexible embankment—as these areas are prone to accelerated wear and geometric instability.

• Verification of gauge widening, ensuring the distance between rail heads remains within the allowable 0.010-inch tolerance.
• Assessment of superelevation on curved sections to prevent centrifugal derailment and reduce lateral wear on the high rail.
• Manual measurement of rail joint gaps to ensure thermal expansion and contraction do not result in "sun kinks" or excessive joint batter.
• Evaluation of tie spacing and fastener integrity to prevent lateral rail shift under heavy axle loads.

High-Resolution Laser Profiling and Data Acquisition

To augment physical audits, the implementation of laser profiling systems introduces a layer of clinical precision. Laser-based profiling utilizes high-frequency LiDAR and optical sensors to create a continuous digital twin of the rail head and the surrounding infrastructure. Unlike discrete manual measurements, laser profiling captures thousands of data points per second, allowing for the detection of "twist"—a condition where the cross-level varies significantly over a short distance—which is a primary catalyst for derailment in high-traffic corridors like the Federal Stadium approach.

The profiling system analyzes the rail profile's vertical and horizontal deviations, mapping them against the theoretical design centerline. This allows for the identification of "corrugation," a rhythmic wear pattern on the rail head that increases vibration and accelerates the degradation of the rolling stock and the track bed. By analyzing the intensity of the laser return, engineers can also detect surface pitting and spalling, which indicate metallurgical fatigue or chemical corrosion of the steel.

• Deployment of chord-less laser sensors to measure rail inclination and wear without interrupting active traffic flow.
• Utilization of high-speed cameras for automated fastener auditing, identifying missing or sheared spikes in real-time.
• Integration of GPS-synchronized timestamps to map every geometric deviation to a precise geographic coordinate for targeted remediation.
• Analysis of the "vertical profile" to identify dips or bumps that exceed the permissible limits for high-speed transit.

Forensic Analysis of Structural Degradation and Alignment Deviations

The Decatur-Federal Stadium Line is subject to unique loading cycles, characterized by extreme surges in volume during event windows. This creates a "pulsing" stress environment that accelerates the degradation of the building envelope of the track structure. Forensic analysis reveals that the most significant deviations occur in the ballast-subgrade interface. When the ballast becomes fouled with fine particles, it loses its elasticity, leading to "hard spots" that transmit unfiltered impact loads directly into the sleepers, causing premature cracking and gauge widening.

Furthermore, the interaction between the rail and the wheel—specifically the lateral force exerted on curves—leads to asymmetric wear. This is clinically observed as "gauge face" wear on the high rail. If the superelevation is insufficient, the lateral force exceeds the capacity of the fasteners to hold the rail in place, resulting in a gradual outward migration of the track geometry. This shift, if left uncorrected, compromises the stability of the entire assembly and increases the risk of a "wide gauge" failure.

• Identification of ballast attrition and the subsequent loss of vertical support, leading to uneven load distribution.
• Analysis of thermal stress cycles that cause longitudinal rail movement and potential buckling in non-continuous welded rail (CWR) sections.
• Evaluation of the impact of drainage failure on the subgrade, which leads to "pumping" where mud is forced upward into the ballast.
• Assessment of the relationship between rail wear profiles and the specific wheel-rail interface of the operating fleet.

Remediation Protocols and Infrastructure Stabilization

Correcting the identified geometric deviations requires a tiered engineering approach, moving from preventative maintenance to structural reconstruction. The primary tool for correcting cross-level and alignment errors is the automated tamping process. Tamping machines use vibrating probes to compact the ballast beneath the sleepers, lifting the track to the precise design elevation. However, for the Decatur-Federal Stadium Line, tamping must be coupled with ballast regulation to ensure that the shoulder is properly profiled for lateral stability.

In cases where laser profiling reveals severe rail head degradation or metallurgical fatigue, the protocol shifts to rail grinding or full replacement. Rail grinding is used to restore the intended crown profile of the rail, reducing the contact stress and eliminating corrugations. For sections with chronic subgrade failure, the installation of geogrids or the injection of polyurethane resins may be necessary to stabilize the soil and prevent future settlement, effectively creating a reinforced "envelope" for the track structure.

• Execution of precision tamping and lining to restore the horizontal and vertical alignment to within 1/8th of an inch of design specifications.
• Implementation of a scheduled rail grinding program to mitigate the effects of asymmetric wear on high-curvature segments.
• Installation of deep-drainage systems to remove moisture from the subgrade and prevent the saturation of the ballast bed.
• Replacement of degraded timber sleepers with pre-stressed concrete ties to increase lateral resistance and maintain gauge stability.

Structural Dynamics of Catenary Suspension and Load Distribution

The overhead catenary system (OCS) deployed across the Table Mesa Park-n-Ride infrastructure represents a complex equilibrium of mechanical tension and gravitational force. At its core, the system utilizes a dual-wire configuration consisting of a messenger wire (the upper supporting cable) and a contact wire (the lower conductor). The primary engineering objective is to maintain the contact wire at a precise, constant height above the rail head to ensure uninterrupted current collection by the vehicle pantograph. This is achieved through the strategic application of "droppers"—vertical wires of varying lengths that suspend the contact wire from the messenger wire, effectively transforming the natural catenary curve into a nearly flat horizontal plane.

From a forensic engineering perspective, the stability of this system depends entirely on the initial tensioning calculations. If the tension is insufficient, the system becomes prone to excessive oscillation and vertical displacement. Conversely, over-tensioning introduces unsustainable longitudinal loads on the support poles and cantilever arms, increasing the risk of structural fatigue or catastrophic failure at the connection points. The load distribution must be analyzed as a system of vectors where the vertical load of the copper conductors is balanced against the horizontal tensioning force provided by the anchor spans.

• Catenary Curve Geometry: The hyperbolic cosine shape of the messenger wire provides the necessary structural backbone to support the contact wire.
• Dropper Spacing: Precision-engineered intervals of dropper wires prevent localized sagging and ensure a uniform height profile.
• Cantilever Stability: The rigid arms extending from the support poles must resist torsional forces induced by wind loading and wire vibration.
• Longitudinal Load Transfer: The distribution of tension across multiple spans to prevent localized stress concentrations at the anchor poles.

Thermal Expansion and the Coefficient of Linear Thermal Expansion

The Table Mesa corridor is subject to extreme diurnal temperature fluctuations, which introduce significant volumetric changes in the conductive materials. The contact and messenger wires, typically composed of hard-drawn copper or a copper-cadmium alloy, possess a high Coefficient of Linear Thermal Expansion (CLTE). As ambient temperatures rise, the metallic lattice expands, increasing the physical length of the wire. In a fixed-length system, this expansion manifests as "thermal sag," where the wire drops vertically, potentially falling below the minimum clearance required for safe pantograph operation.

This phenomenon is not merely a matter of height but of electrical stability. When thermal sag occurs, the pantograph may lose consistent contact with the wire, leading to electrical arcing. This arcing creates localized "hot spots" that further degrade the metal through oxidation and pitting, accelerating the wear cycle. Conversely, during extreme cold, the wires contract, increasing the tension exponentially. This contraction can pull the support structures inward, stressing the bolts and brackets of the cantilever assemblies and potentially leading to a "snap-back" failure if the tension exceeds the ultimate tensile strength of the conductor.

• Material Sensitivity: Copper's high CLTE requires a dynamic rather than static tensioning approach to maintain operational tolerances.
• Diurnal Cycling: The repeated expansion and contraction cycles lead to mechanical fatigue and "creep" in the wire over time.
• Arcing Risks: Sag-induced gaps between the pantograph and the wire result in plasma discharge and carbon deposits.
• Structural Deflection: The inward pull during cold snaps creates bending moments on the support poles that must be accounted for in the foundation design.

Mechanical Compensation and Constant Tensioning Systems

To mitigate the effects of thermal expansion and contraction, the Table Mesa Park-n-Ride installation employs Constant Tensioning Devices (CTDs). These systems move away from fixed-point anchoring in favor of a dynamic compensation mechanism, typically consisting of a system of pulleys and balance weights. The balance weights are suspended from the end of the wire run; as the wire expands due to heat, the weights drop, pulling the slack out of the system and maintaining a constant tension regardless of the temperature. This ensures that the contact wire remains within a strict vertical tolerance of a few millimeters across the entire span.

The engineering precision of these CTDs is critical. The weight must be calibrated to the specific linear weight of the conductor and the total length of the tension section. If the weights are too heavy, the system remains over-tensioned during winter; if too light, the sag persists during summer peaks. Furthermore, the pulley assemblies must be maintained with high-grade lubricants to prevent "stiction," which would cause the tensioning to occur in jerky increments rather than a smooth, continuous adjustment. This mechanical compensation effectively decouples the wire's physical length from its operational tension.

• Balance Weight Calibration: Precise mass calculation to counter the specific gravity and elasticity of the copper alloy.
• Pulley Kinematics: Low-friction rollers that ensure the wire moves freely during thermal transitions.
• Tension Sectioning: Dividing the long run into manageable "sections" to prevent the accumulation of excessive tension at the ends.
• Damping Mechanisms: The use of shock absorbers or springs to attenuate the vibrations caused by high-speed pantograph passage.

Forensic Analysis of Sag Mitigation and Long-term Reliability

Long-term reliability in overhead catenary systems is measured by the attenuation of "hard spots"—points where the wire is too rigid—and the elimination of excessive sag. A forensic analysis of the Table Mesa installation reveals that the primary failure mode is typically not the wire itself, but the degradation of the tensioning hardware. Over time, the corrosion of pulley bearings or the

Architectural Framework of the Southlands E-470 Fiber Backbone

The Positive Train Control (PTC) system integrated into the Southlands E-470 Feeder Loop represents a critical intersection of telecommunications engineering and heavy civil infrastructure. At its core, the system utilizes a high-density Single-Mode Fiber (SMF) backbone designed to facilitate real-time, low-latency data exchange between wayside interface units (WIUs) and the onboard locomotive computers. The primary objective of this architecture is the elimination of human error in braking and speed control, necessitating a physical layer that can withstand extreme environmental stressors while maintaining a near-zero packet loss ratio.

The physical deployment employs a diverse-path routing strategy to ensure that no single point of failure can compromise the safety-critical signaling. By utilizing a dual-ring topology, the E-470 loop ensures that data packets are transmitted simultaneously across two geographically distinct paths. This spatial diversity is essential for mitigating the risks associated with accidental cable strikes during routine maintenance or catastrophic soil subsidence events common to the Southlands region.

• Deployment of G.652.D compliant single-mode fiber to minimize attenuation across the loop.
• Utilization of Optical Distribution Frames (ODF) for precise signal routing and splicing.
• Implementation of hardened wayside enclosures with IP67 ratings to protect active electronics from moisture ingress.
• Strategic placement of regeneration hubs every 40 kilometers to maintain signal integrity and optical power levels.

Redundancy Protocols and Failover Logic

To achieve the requisite reliability standards for PTC, the Southlands E-470 loop employs an Automatic Protection Switching (APS) mechanism. This logic operates on a sub-50 millisecond failover threshold, ensuring that the transition from the primary fiber path to the redundant secondary path occurs without interrupting the heartbeat signal of the locomotive's onboard computer. The system utilizes a "self-healing" ring architecture where the network management system continuously monitors the optical power levels at each node. A sudden drop in decibel (dB) levels, indicative of a fiber break or severe macro-bend, triggers an immediate reroute of the signaling traffic.

The redundancy is not merely physical but logical. The system employs a layered approach to data encapsulation, ensuring that the PTC safety messages are prioritized over general diagnostic traffic. This Quality of Service (QoS) prioritization ensures that even during a partial network degradation event, the "Stop" and "Restrictive" signals maintain absolute priority. The synchronization of these clocks across the E-470 loop is managed via a Precision Time Protocol (PTP), which prevents timing drift that could otherwise lead to asynchronous signaling and potential system timeouts.

• Dual-homing of all critical wayside interface units to prevent localized outages.
• Implementation of a heartbeat monitoring system with 10ms polling intervals.
• Use of redundant power supplies with integrated UPS and diesel backup at all regeneration sites.
• Logical partitioning of the fiber strands to separate safety-critical PTC data from administrative telemetry.

Infrastructure Forensics and Conduit Envelope Integrity

From a forensics perspective, the longevity of the fiber signaling system is entirely dependent on the integrity of the conduit envelope. The E-470 Feeder Loop utilizes High-Density Polyethylene (HDPE) conduits, which provide a necessary barrier against chemical leaching from the surrounding soil and mechanical pressure from the rail ballast. A critical analysis of the installation reveals that the bedding material—specifically the use of washed crushed stone—is vital for preventing the "point loading" of the conduit, which can lead to micro-bends in the fiber and subsequent signal attenuation.

Thermal expansion and contraction cycles in the Southlands region pose a significant threat to the fiber's physical stability. The engineering specification requires a calculated "slack loop" at every manhole and junction box to accommodate the longitudinal movement of the cable. Failure to maintain these slack loops results in tensile stress on the fiber core, which manifests as an increase in the optical return loss (ORL). Forensic audits of the loop indicate that the most common points of failure occur at the transition zones between the rigid conduit and the flexible entry points of the wayside cabinets, where thermal cycling is most pronounced.

• Application of a 12-inch minimum cover of compacted granular fill to protect against frost heave.
• Utilization of inner-duct systems to allow for future fiber expansion without additional excavation.
• Installation of warning tape 6 inches above the conduit to reduce the probability of third-party strikes.
• Rigorous adherence to a maximum bending radius of 20 times the cable diameter to prevent signal leakage.

Empirical Performance Metrics and Reliability Analysis

The efficacy of the Southlands E-470 fiber redundancy is measured through a combination of Optical Time-Domain Reflectometer (OTDR) testing and Mean Time Between Failures (MTBF) calculations. Empirical data indicates that the current installation maintains an average attenuation rate of 0.22 dB/km at the 1550nm wavelength, which is well within the industry standard for long-haul signaling. The total optical budget for the loop is calculated to allow for up to six fusion splices per segment without requiring an active amplifier, providing a significant buffer for future repairs.

Reliability analysis shows that the implementation of the redundant loop has reduced the probability of a "dark fiber" event causing a total system shutdown by 99.9%. When a fiber break is detected, the OTDR system can pinpoint the location of the fault within a 1-meter accuracy, allowing maintenance crews to mobilize directly to the point of failure. This precision reduces the Mean Time to Repair (MTTR) from several hours to under 90 minutes, ensuring that the E-470 loop remains operational even during severe infrastructure damage events.

• Maintenance of a total link loss budget not exceeding 15dB across the longest span.

Geotechnical Stratigraphy and Subgrade Failure Mechanisms

The Thornton Crossroads Regional Line traverses a complex geological corridor characterized by high-plasticity alluvial clays and intermittent lenses of saturated silts. Forensic analysis of the track bed indicates that the primary driver of settlement is not merely the static dead load of the permanent way, but the dynamic interaction between the cyclic loading of rolling stock and the underlying cohesive soil strata. In areas of high settlement, the subgrade has exhibited significant primary consolidation, where the expulsion of pore water under sustained loading has led to a reduction in the void ratio, resulting in vertical subsidence of the formation level.

The failure mechanism is further exacerbated by the presence of perched water tables, which induce a state of reduced effective stress within the subgrade. When the dynamic load of a passing train is applied, the rapid increase in pore water pressure leads to a momentary loss of shear strength. Over time, this manifests as "pumping," where fine-grained particles from the subgrade are forced upward into the ballast layer. This migration of fines transforms the clean, angular ballast into a fouled matrix, fundamentally altering the geotechnical properties of the track bed.

• Differential settlement caused by varying thickness of alluvial deposits across the regional line.
• Hydrostatic pressure buildup within the subgrade leading to localized shear failure.
• Secondary compression of organic-rich soil pockets, resulting in long-term, non-linear settlement.
• The impact of seasonal saturation cycles on the California Bearing Ratio (CBR) of the subgrade.

Ballast Degradation and Fouling Kinetics

The structural integrity of the Thornton Crossroads track bed relies upon the interlocking capacity of the crushed stone ballast. However, forensic samples indicate an advanced state of ballast attrition. The mechanical grinding of stone-on-stone contact, accelerated by the high-frequency vibrations of regional transit, has led to the pulverization of the aggregate edges. This loss of angularity reduces the internal friction angle of the ballast, causing the track to lose its lateral and vertical stability.

Fouling kinetics are most evident in the transition zones between the main line and the switching assemblies. The infiltration of subgrade fines, combined with the accumulation of carbonaceous dust and external debris, has created a "slurry" effect. This fouled ballast inhibits the vertical drainage of rainwater, trapping moisture within the track bed. The resulting saturation leads to a drastic reduction in the modulus of elasticity of the ballast layer, which increases the load transferred directly to the subgrade, thereby accelerating the settlement cycle described in the previous section.

• Reduction in the void ratio of the ballast layer due to the accumulation of fines (fouling).
• Loss of aggregate interlocking resulting in increased longitudinal track creep.
• Impaired hydraulic conductivity leading to the formation of "wet spots" and ballast pockets.
• Accelerated attrition of low-grade basaltic aggregates under high-tonnage cyclic loading.

Tamping Cycle Analysis and Mechanical Compaction Limits

Tamping is the primary maintenance intervention used to restore track geometry; however, forensic evidence suggests that excessive tamping cycles on the Thornton Crossroads line have reached a point of diminishing returns. The process of lifting the sleeper and vibrating the ballast to pack it beneath the tie is intended to correct surface irregularities. However, when the ballast is already fouled, tamping does not restore stability; instead, it further compacts the fines, creating a dense, impermeable layer that traps moisture and promotes further subgrade instability.

Clinical analysis of the tamping cycles reveals a phenomenon known as "over-tamping." When the ballast has lost its angularity, the tamping tines fail to achieve a deep, secure grip, leading to superficial compaction. This creates a deceptive state of stability where the track appears level immediately after maintenance, but settles rapidly under the first few thousand gross tons of traffic. The lack of a cohesive structural skeleton within the ballast means that the load is no longer distributed across a wide area, but is instead concentrated on a few remaining large aggregates, which then crush under the pressure.

• The relationship between tamping frequency and the acceleration of ballast pulverization.
• Failure of the tamping process to address deep-seated subgrade settlement.
• The "spring-back" effect observed in over-compacted, fouled ballast sections.
• Inefficiency of mechanical tamping in saturated conditions where pore pressure is high.

Forensic Mitigation and Long-term Stabilization Strategies

To arrest the cycle of settlement and degradation, a shift from reactive tamping to proactive geotechnical stabilization is required. The most effective intervention for the Thornton Crossroads Regional Line is the implementation of a comprehensive ballast cleaning program combined with the installation of geogrid reinforcement. Geogrids provide lateral confinement to the ballast, preventing the lateral spreading of the aggregate and significantly increasing the load-bearing capacity of the track bed. This confinement reduces the need for frequent tamping by maintaining the interlocking structure of the stone.

Furthermore, the installation of a geosynthetic separation layer—specifically a non-woven geotextile—between the subgrade and the sub-ballast is critical. This layer acts as a filter, allowing water to pass through while preventing the upward migration of fines. In areas of extreme instability, soil stabilization via chemical injection or the installation of vertical wick drains may be necessary to accelerate the consolidation of the clay lenses and stabilize the pore water pressure. These measures transition the infrastructure from a state of constant maintenance to a state of engineered stability.

• Deployment of triaxial geogrids to enhance the modulus of the ballast layer.
• Installation of deep-trench longitudinal drainage systems to lower the water table.
• Application of cementitious soil stabilization in high-plasticity clay zones.
• Implementation of real-time settlement monitoring using embedded piezometers and tiltmeters.

Structural Load Dynamics and Kinetic Impact Analysis

The deployment of safety rails within the Union Station Transit Hub is not merely a matter of perimeter demarcation but a critical exercise in kinetic energy management. A fully loaded Compressed Natural Gas (CNG) transit bus possesses significant mass, often exceeding 30,000 pounds. When calculating the structural requirements for safety rails, the engineering focus shifts to the impact force generated during a low-velocity "drift" or a mechanical failure event. The primary objective is to arrest the vehicle's momentum before it can breach the high-pressure fueling zone or impact the compressor station.

From a forensic engineering perspective, the rails must be designed to withstand a concentrated lateral load. The failure mode of the system is analyzed through the lens of shear stress at the anchor points and the bending moment of the horizontal rails. If the rail deflects too significantly, it may fail to stop the vehicle; if it is too rigid, the energy is transferred entirely into the concrete slab, potentially causing catastrophic spalling or cracking of the fueling pad, which could compromise the underground gas piping.

• Calculation of peak impact force based on a 5 mph accidental drift.
• Analysis of the moment arm created by the height of the rail relative to the vehicle's chassis contact point.
• Evaluation of the shear strength of Grade 8.8 anchor bolts embedded in 4,000 PSI reinforced concrete.
• Assessment of the deformation capacity of the steel pipe to absorb energy through plastic deformation.

Material Specifications and Environmental Corrosion Mitigation

The environment of a transit hub is chemically aggressive. The combination of road salts (chlorides) tracked in by winter fleets, exhaust particulates, and the potential for localized moisture accumulation creates a high-corrosion micro-climate. For the Union Station project, the specification of materials must prioritize long-term structural integrity over initial capital expenditure. The industry standard for this application is Hot-Dip Galvanized (HDG) steel conforming to ASTM A123, which provides a metallurgical bond that prevents under-film corrosion.

Beyond galvanization, the interface between the steel rail and the concrete slab represents a critical vulnerability. This is where galvanic corrosion is most likely to occur. To mitigate this, the engineering specification requires the use of non-shrink epoxy grout around the base plates to seal the anchor bolts from moisture penetration. Furthermore, the use of powder-coated finishes over the galvanization is recommended for high-visibility safety yellow, provided the coating is applied via an electrostatic process to ensure uniform thickness and adhesion, preventing peeling that could lead to localized pitting.

• Utilization of Schedule 80 carbon steel piping to ensure wall thickness sufficient for impact resistance.
• Application of ASTM A123 hot-dip galvanizing to provide a minimum coating thickness of 3.5 mils.
• Implementation of stainless steel fasteners in high-moisture zones to eliminate bimetallic corrosion.
• Requirement for a high-solids epoxy primer on all weld points to prevent oxidation at the heat-affected zone.

Integration with NFPA 59A and Fueling Infrastructure

The placement of safety rails must be meticulously coordinated with the National Fire Protection Association (NFPA) 59A standards for the production, storage, and use of liquefied natural gas (LNG) and compressed natural gas (CNG). The rails serve as a physical barrier that prevents vehicles from over-traveling the fueling position, which could otherwise lead to the rupture of the fueling hose or the destruction of the dispenser. A rupture in a high-pressure CNG line can lead to a rapid release of gas, potentially creating a fuel-air mixture that is hazardous in enclosed or semi-enclosed transit hubs.

The spatial geometry of the rails must allow for the "break-away" functionality of the fueling nozzles. If a bus moves forward while still connected to the dispenser, the safety rail must be positioned such that the vehicle is stopped before the hose reaches its maximum tensile limit. This requires a precise calculation of the "safe zone" distance, ensuring that the rail does not interfere with the operational movements of the fueling technicians while providing an absolute stop for the vehicle's chassis.

• Alignment of rail positioning with NFPA 59A distance requirements for high-pressure gas compressors.
• Coordination of rail height with the specific bumper and chassis profiles of the fleet's bus models.
• Integration of reflective markers to ensure visibility during low-light or inclement weather conditions.
• Verification of clearance for emergency egress routes as mandated by local fire marshal regulations.

Forensic Maintenance and Lifecycle Failure Modes

The long-term viability of safety rails in a high-traffic transit hub depends on a rigorous forensic maintenance schedule. Over time, the constant vibration from idling diesel and CNG engines, coupled with the occasional minor impact, leads to cyclic loading. This cyclic loading can induce fatigue cracks in the weldments, particularly at the junction between the vertical posts and the horizontal rails. A failure in a single weld can compromise the entire system's ability to distribute a load across multiple posts during a significant impact.

Forensic analysis of similar installations reveals that the most common failure point is the degradation of the concrete around the anchor bolts. Carbonation of the concrete, combined with the infiltration of road salts, can lead to the corrosion of the bolt shanks, reducing the effective cross-sectional area and lowering the pull-out strength. Therefore, a semi-annual inspection protocol using Non-Destructive Testing (NDT), such as ultrasonic thickness gauging and dye-penetrant inspection of critical welds, is essential to ensure the system remains compliant with safety standards.

• Periodic inspection for "necking" or deformation in the horizontal rails indicating previous undocumented impacts.
• Monitoring of anchor bolt torque specifications to prevent loosening due to hub vibrations.
• Evaluation of concrete spalling around base plates to identify early-stage carbonation or freeze-thaw damage.
• Implementation of a documented "impact log" to trigger immediate structural re-certification after any vehicle contact.

Sub-Surface Structural Integration and Envelope Forensics

The deployment of inductive charging pads within the A-Line Airport Rail Corridor necessitates a rigorous analysis of the depot’s structural slab-on-grade. Unlike traditional plug-in infrastructure, inductive power transfer (IPT) requires the seamless integration of primary coils into the pavement envelope. From a forensics perspective, the primary concern is the differential thermal expansion between the conductive coil assemblies and the surrounding reinforced concrete. When the system operates at peak kilowatt throughput, the resistive heating of the coils can induce localized thermal stress, leading to micro-cracking in the cementitious matrix.

To mitigate structural failure, the engineering specification must mandate the use of high-performance, fiber-reinforced concrete with a low coefficient of thermal expansion. The interface between the inductive pad and the pavement must be sealed with a chemically resistant, non-conductive epoxy grout to prevent moisture ingress. Moisture penetration is a critical failure point; capillary action can draw groundwater into the coil housing, leading to dielectric breakdown and accelerated corrosion of the copper windings.

• Implementation of ASTM C157 shrinkage specifications to ensure slab stability.
• Utilization of thermal break materials to isolate the charging pad from the primary structural slab.
• Application of hydrophobic sealants to prevent chloride penetration from de-icing salts used in winter operations.
• Installation of embedded strain gauges to monitor real-time deformation of the pavement under the static load of 18-ton electric buses.

Dynamic Load Management and Grid Synchronization

The A-Line corridor presents a complex electrical environment due to the proximity of high-voltage rail traction power. Integrating a fleet of inductive charging pads requires a sophisticated Load Management System (LMS) to prevent peak demand surges that could trigger protective relaying or cause voltage sags across the local distribution network. The objective is to transition from a "dumb" charging model to a dynamic, demand-responsive architecture that synchronizes with the utility's available capacity.

Effective load management is achieved through the implementation of a tiered priority algorithm. Buses with the lowest State of Charge (SoC) are prioritized for maximum power delivery, while those nearing full capacity are throttled to a maintenance trickle. This prevents the "simultaneous peak" phenomenon where multiple vehicles attempt to draw maximum current concurrently. Furthermore, the system must incorporate harmonic filters to mitigate the Total Harmonic Distortion (THD) introduced by the high-frequency AC-to-DC conversion process inherent in inductive charging.

• Deployment of Smart Transformers with on-load tap changers to maintain voltage stability.
• Integration of Battery Energy Storage Systems (BESS) to act as a buffer, shaving peak loads and reducing demand charges.
• Utilization of Open Charge Point Protocol (OCPP) 2.0.1 for standardized communication between the vehicle and the grid.
• Implementation of V2G (Vehicle-to-Grid) capabilities to allow the fleet to serve as a distributed energy resource during rail corridor power outages.

Electromagnetic Interference and Signal Attenuation

Operating inductive charging infrastructure in parallel with a rail corridor introduces significant electromagnetic compatibility (EMC) challenges. The A-Line's overhead catenary systems and traction motors generate substantial electromagnetic interference (EMI) that can couple with the inductive charging coils, potentially inducing parasitic currents or disrupting the communication link between the bus and the charging pad. This interference can lead to inefficient power transfer or, in extreme cases, the triggering of safety shutdowns due to perceived anomalies in the magnetic field.

To ensure signal integrity, the system must employ a highly tuned resonant frequency that avoids the harmonic signatures of the rail infrastructure. Shielding is paramount; the use of ferrite plates and aluminum backing on the primary pads directs the magnetic flux upward toward the vehicle, minimizing lateral leakage into the surrounding soil and nearby rail signaling equipment. Forensic analysis of the EMI profile suggests that a frequency range between 80 kHz and 150 kHz provides the optimal balance between power density and interference rejection.

• Installation of magnetic shielding layers to prevent flux leakage into the rail corridor's signaling cables.
• Use of differential signaling for the communication interface to reject common-mode noise.
• Rigorous testing of the "Z-axis" alignment tolerance to ensure maximum coupling efficiency despite vehicle suspension variance.
• Deployment of real-time spectrum analyzers to monitor for electromagnetic anomalies across the depot footprint.

Lifecycle Forensics and Predictive Maintenance Protocols

The long-term viability of inductive charging infrastructure is measured by its resistance to mechanical fatigue and environmental degradation. Unlike static electrical panels, charging pads are subject to constant compressive and shear forces from heavy-duty vehicle traffic. A senior technical analyst must view the charging pad not as a piece of electrical equipment, but as a structural component of the building envelope. Over time, the repeated loading and unloading cycles can lead to "pumping" of the sub-base, resulting in the misalignment of the coils and a subsequent drop in charging efficiency.

Predictive maintenance is managed through a combination of thermal imaging and electrical signature analysis. By monitoring the heat map of the pad during a charging cycle, technicians can identify "hot spots" that indicate a failure in the cooling system or a breakdown in the insulation. Furthermore, the monitoring of the Quality Factor (Q-factor) of the resonant circuit allows for the early detection of coil degradation before a catastrophic failure occurs. This clinical approach to forensics ensures that the A-Line corridor maintains a 99.9% uptime for its transit fleet.

• Quarterly ultrasonic testing of the concrete slab to detect internal delamination or voids.
• Implementation of a "Mean Time Between Failure" (MTBF) tracking system for all power electronics.
• Annual calibration of the alignment sensors to correct for pavement settlement.
• Use of dielectric spectroscopy to evaluate the health of the insulating resins surrounding the inductive coils.

Signal Propagation and Electromagnetic Interference in the Westminster Spur

The Automated Fare Collection (AFC) system deployed across the B-Line Westminster Spur utilizes a high-frequency (HF) RFID architecture operating primarily at 13.56 MHz. In a high-throughput transit environment, the efficiency of the transponder-to-reader handshake is governed by the coupling of the reader's antenna coil and the passive tag's internal inductor. On the Westminster Spur, empirical data indicates a non-linear increase in latency during peak commuter windows, which suggests a degradation in the signal-to-noise ratio (SNR). This degradation is not merely a function of hardware age but is a direct result of the electromagnetic environment inherent to the rail corridor.

The presence of high-voltage traction power systems, specifically the 750V DC third rail and associated substations, introduces significant electromagnetic interference (EMI). This interference manifests as transient voltage spikes and harmonic distortions that overlap with the RFID carrier frequency. When the reader attempts to energize the transponder, these external fields can induce parasitic currents within the reader's antenna loop, effectively raising the noise floor and requiring the reader to perform multiple polling cycles before a valid UID (Unique Identifier) is captured.

• Carrier Frequency Stability: Deviations in the 13.56 MHz center frequency lead to impedance mismatches.
• Magnetic Field Flux Density: Insufficient H-field strength at the edge of the read zone increases the time-to-read (TTR).
• EMI Coupling: Inductive coupling from adjacent power conduits creates stochastic noise bursts.
• Antenna Q-Factor: Over-tuned antennas may exhibit narrower bandwidths, increasing sensitivity to slight frequency shifts.

Deterministic Analysis of Packet Collision and Processing Latency

Latency in the B-Line AFC system is measured as the delta between the initial RF field excitation and the successful commit of the transaction to the back-end database. On the Westminster Spur, the primary bottleneck is identified as the anti-collision sequence. When multiple commuters present transponders simultaneously—a common occurrence at the spur's narrow turnstiles—the reader must employ a binary search or time-slot ALOHA algorithm to isolate individual tags. The latency spikes observed are a direct result of "packet collision," where overlapping signals from multiple transponders render the data frames unreadable.

Furthermore, the processing latency is compounded by the handshake protocol required for secure encrypted transactions. The reader must perform a mutual authentication process using AES-128 encryption. If the initial signal is weak or corrupted by the aforementioned EMI, the reader initiates a retry sequence. Each retry adds approximately 45 to 120 milliseconds to the total transaction time. In a high-volume environment, these millisecond delays aggregate, leading to a perceived "lag" that disrupts passenger flow and increases the probability of "gate-jamming" events.

• Anti-Collision Overhead: The time required to resolve multiple tag IDs in a single polling cycle.
• Encryption Handshake: The computational delay associated with secure key exchange and verification.
• Buffer Saturation: The point at which the reader's internal memory cannot queue further requests during back-end latency.
• Polling Intervals: The fixed time gap between reader scans, which can be optimized to reduce idle wait times.

Structural Attenuation and Building Envelope Influence

From a forensics and infrastructure perspective, the physical environment of the Westminster Spur stations acts as a complex series of reflectors and attenuators. The station architecture utilizes a combination of reinforced concrete and galvanized steel cladding. This structural composition creates a multipath propagation environment where RF signals reflect off metallic surfaces, leading to destructive interference. Specifically, the proximity of the RFID readers to the steel-reinforced pillars creates a "null zone" where the magnetic field is distorted, forcing the user to hold the transponder in a precise, narrow window to achieve a read.

The building envelope's influence extends to the thermal management of the reader hardware. The Westminster Spur stations are subject to significant temperature fluctuations due to their semi-open design. High ambient heat during summer months increases the internal resistance of the reader's circuitry, leading to thermal throttling of the onboard processor. This results in a measurable increase in the time required to process the decrypted payload from the transponder. When the envelope fails to maintain a stable micro-climate around the AFC hardware, the reliability of the electronic components is compromised, manifesting as intermittent latency spikes.

• Multipath Reflection: Signal bouncing off steel cladding causing phase cancellation.
• Faraday Shielding: The effect of reinforced concrete and metal panels on RF penetration.
• Thermal Throttling: CPU clock speed reduction in readers due to poor ventilation within the turnstile housing.
• Dielectric Loading: The impact of moisture and humidity on the antenna's tuning and resonance.

Engineering Remediation and Optimization Protocols

To resolve the latency issues across the B-Line Westminster Spur, a multi-tiered engineering approach is required. First, the physical installation of the readers must be decoupled from the structural steel of the stations. By introducing non-conductive polymer spacers and RF-absorbing materials behind the antenna arrays, the multipath interference can be minimized. This effectively cleans the signal environment, allowing for a more consistent H-field and reducing the number of polling cycles required for a successful read. Additionally, the implementation of ferrite shielding between the reader and the metal housing can focus the magnetic flux toward the user, increasing the effective read range and reducing TTR.

On the software and firmware level, the polling algorithm should be transitioned from a standard binary search to a more aggressive, adaptive time-slotting approach. By dynamically adjusting the polling interval based on the detected volume of tags, the system can reduce collisions during peak hours. Furthermore, upgrading the back-end API to utilize a more efficient asynchronous queuing system will ensure that the reader is not held in a "wait state" while the central server validates the fare. This shift from a synchronous to an asynchronous transaction model will eliminate the bottleneck at the database level, ensuring that the physical gate opens the instant the local reader confirms a valid token.

• Ferrite Shielding: Installation of high-permeability materials to direct RF energy.
• Adaptive Polling: Implementing firmware that adjusts scan rates based on passenger density.
• Asynchronous Processing: Decoupling the local read event from the remote database commit.
• Thermal Regulation: Integration of active cooling or heat sinks within the reader enclosures to prevent processor throttling.

Kinematic Architecture and Load Distribution Analysis

The mechanical linkage systems deployed across the G-Line Gold Strike Alignment utilize a complex cantilevered actuation sequence designed to minimize the horizontal gap between the station platform and the rolling stock. From a structural engineering perspective, the primary challenge lies in the management of dynamic loads during the deployment and retraction phases. The linkage is engineered to translate linear actuator movement into a precise radial arc, ensuring that the gap filler makes a flush, non-obstructing contact with the vehicle threshold. This movement requires a high degree of synchronization across multiple linkage points to prevent torsional twisting of the assembly, which would otherwise lead to premature bearing failure.

The load distribution is not uniform; the leading edge of the gap filler experiences the highest frequency of impact and shear stress during passenger boarding and alighting. Forensic analysis of the linkage arms reveals that the moment arms are subject to significant bending stresses, particularly when the platform interface is subjected to uneven passenger loading. To mitigate this, the G-Line specifications mandate a reinforced pivot geometry that redistributes the vertical load directly into the primary support chassis rather than relying solely on the actuator's holding torque.

• Primary pivot points utilize oversized spherical bearings to accommodate minor misalignment.
• Actuator linkages are constructed from high-tensile alloy steel to prevent permanent deformation under peak load.
• Torsional rigidity is maintained through the use of reinforced gusset plates at critical junction points.
• The kinematic path is calibrated to a tolerance of +/- 2mm to ensure ADA compliance across all vehicle types.

Material Fatigue and Tribological Degradation

Durability in the Gold Strike Alignment is primarily a function of material selection and the management of friction at the articulation points. The mechanical linkages are predominantly fabricated from 316L stainless steel for corrosion resistance, yet the high-cycle nature of the operation introduces the risk of fatigue cracking. Empirical data indicates that the most common failure mode is surface galling at the pin-and-socket joints. This occurs when the protective oxide layer is breached, leading to metal-on-metal contact and subsequent adhesive wear. This degradation is accelerated by the ingress of fine particulate matter, which acts as an abrasive slurry within the joint.

Tribological analysis shows that the choice of lubrication is critical to the longevity of the linkage. Standard lithium-based greases often fail under the high-shear conditions present in the G-Line's rapid-cycle environment. The transition to synthetic polyurea-based lubricants has shown a marked improvement in the Mean Time Between Failures (MTBF). Furthermore, the interaction between the hardened steel pins and the stainless steel bushings creates a galvanic potential that must be managed through precise coating specifications to prevent localized pitting and stress corrosion cracking.

• Fatigue life is calculated based on a 25-year design life with a safety factor of 2.5.
• Surface hardness of pivot pins is increased via induction hardening to 58-62 HRC.
• Wear patterns indicate a concentration of degradation at the 45-degree deployment angle.
• Lubrication intervals are optimized based on the volume of daily boarding cycles rather than calendar days.

Environmental Forensics and Envelope Integration

The G-Line Gold Strike Alignment presents a unique set of environmental challenges that directly impact the durability of the mechanical linkages. As these systems are integrated into the broader building envelope of the station, they are exposed to fluctuating thermal gradients and moisture infiltration. The thermal expansion coefficient of the steel linkages differs from that of the concrete platform slabs, leading to induced stresses during extreme temperature swings. If the expansion joints in the platform are not perfectly aligned with the gap filler's anchor points, the resulting shift can introduce a parasitic load into the linkage, forcing the actuator to work against the structure.

Water ingress remains a primary forensic concern. The interface between the gap filler and the platform edge acts as a potential conduit for moisture to reach the internal mechanical components. When salt-laden moisture penetrates the linkage housings, it accelerates the oxidation of non-stainless fasteners and contaminates the lubricant. This creates a "wicking" effect where moisture is drawn into the bearings, leading to premature seizure. The integration of a secondary weather seal at the platform edge is essential to isolate the mechanical linkage from the station's external environment and prevent the degradation of the structural substrate.

• Thermal expansion is managed through the use of slotted mounting holes to allow for lateral movement.
• Waterproofing is achieved via EPDM gaskets that maintain a seal during the full range of motion.
• Vibration analysis shows that resonance from arriving trains can loosen fasteners if not secured with high-strength locking adhesives.
• The drainage slope of the platform is critical to prevent standing water from pooling around the linkage actuators.

Predictive Maintenance and Lifecycle Optimization

To ensure the long-term operational integrity of the ADA platform gap fillers, a shift from reactive to predictive maintenance is required. The current forensic evidence suggests that failure is rarely sudden; rather, it is the result of a gradual increase in friction and a decrease in kinematic precision. By monitoring the current draw of the actuators, engineers can identify the exact moment when friction exceeds the design threshold, indicating the onset of bearing failure or lubricant depletion. This "current-signature analysis" allows for the replacement of components before a catastrophic failure occurs, thereby avoiding service disruptions.

Lifecycle optimization also involves the refinement of the linkage geometry based on field performance data. The G-Line's specific alignment has revealed that certain platforms experience higher lateral forces due to the curvature of the track. In these areas, the installation of reinforced guide rails for the gap filler can significantly reduce the side-loading on the mechanical linkages. By implementing a rigorous inspection regime that includes ultrasonic testing of the primary pivot pins, the transit authority can extend the replacement cycle of the entire assembly while maintaining a strict adherence to ADA accessibility standards.

• Real-time telemetry monitors actuator displacement to detect linkage sagging.
• Ultrasonic thickness gauging is used to detect internal corrosion in the support arms.
• Replacement schedules are dynamically adjusted based on the specific wear-rate of each platform section.
• Standardized "Go/No-Go" gauges are used during monthly inspections to verify gap tolerances.

Geotechnical Assessment and Site-Specific Constraints

The N-Line North Metro Express corridor presents a complex geotechnical profile characterized by heterogeneous soil strata, ranging from highly plastic clays to loose alluvial deposits. In the context of steep slope embankment stabilization, the primary engineering challenge is the management of the active wedge—the mass of soil that tends to move downward and outward under the influence of gravity and external surcharge loads. For this specific transit corridor, the presence of heavy rail vibrations and fluctuating groundwater tables introduces dynamic loading conditions that can compromise the shear strength of the soil matrix.

A comprehensive forensic analysis of the slope stability indicates that the angle of repose for the native soils is frequently exceeded by the required grade of the transit alignment. This creates a state of inherent instability where the factor of safety (FOS) falls below the industry-standard 1.5 for permanent works. To mitigate the risk of rotational failure or shallow sloughing, the engineering approach must transition from passive support to active reinforcement.

• Analysis of soil cohesion (c) and internal friction angle (phi) to determine the critical failure plane.
• Evaluation of surcharge loads from adjacent commercial infrastructure and rail-side assets.
• Assessment of hydrostatic pressure accumulation within the embankment, which reduces effective stress and promotes slope failure.
• Mapping of existing utility easements to ensure nail installation does not interfere with critical subsurface infrastructure.

Soil Nailing Mechanics and Installation Parameters

Soil nailing is employed here as a top-down reinforcement technique, transforming the unstable soil mass into a coherent, gravity-retaining structure. Unlike traditional retaining walls that rely on mass or bending stiffness, soil nails act in tension to increase the apparent cohesion of the soil. The process begins with the drilling of holes at a downward angle, typically between 10 and 20 degrees, to ensure the nail intersects the potential failure plane at an optimal angle for tensile resistance.

The structural integrity of the system depends on the bond strength between the grout and the surrounding soil. High-strength steel tendons, typically Grade 75 or 150, are inserted into the boreholes and fully encapsulated in a cementitious grout. This grout serves a dual purpose: it transfers the load from the soil to the steel nail and provides a critical layer of corrosion protection. The nail length and spacing are calculated based on the depth of the failure surface, ensuring that the "bonded length" extends sufficiently into the stable zone beyond the active wedge.

• Drill hole diameter optimization to minimize soil disturbance while maximizing grout contact.
• Precision grout injection using pressure-controlled systems to eliminate voids and ensure full encapsulation.
• Strict adherence to the nail grid spacing, typically arranged in a staggered pattern to prevent localized shear zones.
• Application of a temporary facing, such as a thin layer of shotcrete, to prevent surface raveling between nail installations.

Facing Systems and Drainage Integration

The facing system serves as the critical interface between the reinforced soil mass and the external environment. For the N-Line project, a reinforced shotcrete facing is utilized to distribute the loads from the nail heads across the surface of the slope. This facing prevents the loss of surface soil and protects the nail heads from environmental degradation. However, the facing must be designed as a flexible membrane rather than a rigid wall to accommodate the minor deformations inherent in soil nail systems.

The most frequent cause of failure in steep slope stabilization is the accumulation of pore water pressure behind the facing. If water is trapped, the resulting hydrostatic pressure can exceed the tensile capacity of the nails or cause the shotcrete facing to buckle and spall. Therefore, a robust drainage strategy is integrated directly into the building envelope of the slope. This includes the installation of geocomposite drainage mats and a network of perforated weep holes that allow groundwater to exit the slope freely, maintaining the effective stress of the soil.

• Integration of welded wire reinforcement (WWR) within the shotcrete to manage shrinkage and temperature-induced cracking.
• Installation of strip drains or geonets behind the facing to channel water toward the base of the embankment.
• Use of high-early-strength concrete mixes to allow for faster progression of the top-down construction sequence.
• Application of a protective sealant or aesthetic finish to the shotcrete to prevent carbonation and steel corrosion.

Forensic Monitoring and Structural Integrity

Long-term stability in high-traffic transit corridors requires a rigorous monitoring regime to detect early signs of creep or deformation. The N-Line stabilization project utilizes a combination of empirical data and real-time instrumentation to validate the design assumptions. Inclinometers are installed at critical sections of the slope to monitor lateral displacement, while load cells are attached to select nail heads to measure the actual tension developed during the consolidation phase.

From a forensic perspective, the primary concern is the long-term durability of the steel reinforcement. In aggressive soil environments—such as those with high chloride content or acidic pH—the risk of corrosion is significant. To combat this, the engineering specifications mandate a double-corrosion protection (DCP) system for nails located in high-risk zones, involving both a galvanized coating and a high-density polyethylene (HDPE) sheath. Periodic pull-out tests are conducted on sacrificial nails to verify that the bond strength remains consistent with the original geotechnical design.

• Implementation of a baseline monitoring period to establish normal settlement and thermal expansion patterns.
• Regular visual inspections for signs of facing distress, such as longitudinal cracking or bulging.
• Analysis of groundwater levels via piezometers to ensure the drainage system is functioning at peak efficiency.
• Lifecycle assessment of the corrosion protection layers to determine the necessary intervals for structural remediation.

Site-Specific Acoustic Dynamics of the E-Line Corridor

The E-Line Southeast Corridor presents a complex acoustic environment characterized by high-frequency rail-wheel interface noise and low-frequency structural vibrations. From an engineering standpoint, the primary objective of a soundwall installation in this corridor is the creation of an "acoustic shadow," a zone where the direct line-of-sight between the noise source and the receiver is obstructed. The efficacy of this obstruction is governed by the principle of diffraction, where sound waves bend around the edges of the barrier. In the E-Line corridor, the prevalence of hard-surface urban infrastructure creates a "canyon effect," where sound waves reflect repeatedly between building facades, effectively increasing the ambient noise floor and complicating the calculation of insertion loss.

To accurately determine the required barrier height and placement, analysts must calculate the Fresnel number, a dimensionless parameter that describes the diffraction of waves. In the context of the Southeast Corridor, the path length difference—the difference between the direct path from the rail source to the receiver and the diffracted path over the top of the wall—is the critical variable. A larger path difference results in greater attenuation. However, the presence of high-rise commercial structures adjacent to the E-Line introduces secondary diffraction points, where sound can "leak" over the wall via reflections from upper-story building envelopes, potentially neutralizing the benefits of a standard vertical barrier.

• Calculation of the diffraction angle relative to the source and receiver heights.
• Analysis of the ground effect, accounting for the impedance of the rail ballast and surrounding pavement.
• Evaluation of the spectral density of noise, focusing on the dominant frequencies produced by light rail transit.
• Assessment of the atmospheric refraction index, which can bend sound waves back down toward the receiver in certain temperature gradients.

Material Impedance and Absorption Coefficient Analysis

A common failure in soundwall engineering is the reliance on reflective materials, such as untreated concrete or acrylic panels. While these materials provide a physical barrier, they often reflect sound energy back toward the source or across the corridor to the opposite side, potentially increasing noise levels for residents on the opposite track. To mitigate this, the E-Line Southeast Corridor requires materials with a high Noise Reduction Coefficient (NRC). The NRC is an average of the absorption coefficients at 250, 500, 1000, and 2000 Hz. A material with an NRC close to 1.0 represents a perfect absorber, whereas a value near 0.0 represents a perfectly reflective surface.

For high-performance absorption, porous materials such as perforated metal panels backed by mineral wool or specialized recycled rubber composites are utilized. These materials function by converting acoustic energy into heat through friction as the sound waves penetrate the porous structure. The thickness of the absorbent layer must be tuned to the wavelength of the target frequency; specifically, to attenuate low-frequency rumble from heavy rail movements, the absorption layer must be deeper to match the longer wavelengths. Failure to specify the correct material density can lead to "acoustic transparency," where low-frequency energy simply passes through the wall, rendering the barrier ineffective for the most disruptive noise components.

• Implementation of porous surface treatments to reduce the reverberation time within the corridor.
• Utilization of composite materials that combine mass (for transmission loss) with porosity (for absorption).
• Analysis of the flow resistivity of the absorbent medium to ensure optimal energy dissipation.
• Evaluation of the weather-resistance of absorbent materials to prevent saturation, which would significantly alter the NRC.

Geometric Optimization and the Diffraction Shadow Zone

The geometry of the soundwall is as critical as the material composition. The "shadow zone" is the area behind the barrier where sound levels are significantly reduced. The depth and quality of this zone are determined by the wall's height and the top-edge configuration. Standard flat-top walls are subject to edge diffraction, which allows sound to "creep" over the top. To enhance performance, the E-Line corridor employs specialized top-edge treatments, such as T-shaped or cylindrical caps. These geometries force the sound wave to undergo a more severe diffraction angle, effectively increasing the path length difference and deepening the acoustic shadow.

Furthermore, the placement of the wall relative to the noise source is governed by the inverse square law and the proximity effect. Placing the barrier closer to the rail line is generally more effective, as it intercepts the sound at a steeper angle and maximizes the shadow zone for a larger area of the residential receptors. However, engineers must account for the "flanking" effect, where sound travels through the ground or around the ends of the wall. This requires the extension of the barrier beyond the immediate line-of-sight, creating a buffer that prevents the diffraction of sound around the lateral edges of the installation.

• Application of the Maekawa and Kurze-Katz formulas to predict the insertion loss based on wall height.
• Design of top-edge geometries to minimize the diffraction coefficient.
• Optimization of the wall's lean or tilt to reduce reflections back toward the rail corridor.
• Calculation of the critical height, beyond which additional wall height yields diminishing returns in decibel reduction.

Forensic Field Validation and Performance Metrics

Theoretical calculations provide a baseline, but forensic validation is mandatory to ensure the E-Line soundwalls meet the specified Sound Transmission Class (STC) and overall noise reduction targets. Field validation involves the use of calibrated Class 1 sound level meters to measure the Sound Pressure Level (SPL) at various receiver points before and after installation. A critical component of this analysis is the "leaking" assessment, where engineers search for gaps in the wall—such as expansion joints or drainage openings—that can act as acoustic apertures. Even a small gap, representing a tiny fraction of the total wall area, can lead to a significant drop in the overall insertion loss due to the high energy density of sound passing through a narrow opening.

The final analysis must also consider the impact of the building envelope of the adjacent properties. In many cases, the soundwall works in tandem with the facade of the receiving building. If the building has a highly reflective glass curtain wall, it may reflect sound back over the barrier, creating a secondary noise path. Forensic analysts use spectral

Electrodynamic Principles of Shunting and Dielectric Interference

The operational integrity of the H-Line City Center Feeder relies upon the consistent ability of the rolling stock to shunt the track circuit, effectively creating a low-resistance path that signals the presence of a train to the signaling system. In a nominal state, the steel-on-steel contact between the wheelset and the running rails provides a near-zero ohm connection, dropping the voltage across the track relay and triggering a "track occupied" state. However, heavy snow accumulation introduces a complex dielectric interface that disrupts this fundamental electrical path. Snow, particularly in its early crystalline phase, acts as a high-impedance insulator that can encapsulate the rail head, preventing the wheelset from establishing a reliable electrical bond.

The primary technical challenge arises from the thin film of ice and compressed snow that forms at the wheel-rail interface. This layer increases the contact resistance, potentially raising it above the critical threshold required for the relay to drop. When the shunting resistance exceeds the permissible limit—typically defined by industry standards as remaining below 0.06 ohms for high-reliability urban feeders—the system may fail to detect the train, leading to a "false clear" signal. This is a critical failure mode in forensic engineering, as it bypasses the fail-safe logic of the interlocking system.

• Dielectric Constant Variance: The permittivity of snow varies significantly based on water content, affecting the leakage current between the rails.
• Contact Resistance: The introduction of a non-conductive layer increases the voltage drop across the wheel-rail interface.
• Ohmic Degradation: The cumulative effect of snow accumulation on the rail web and base can lead to parasitic current paths.
• Signal Attenuation: High-frequency noise introduced by snow-induced arcing can interfere with the track circuit's detection sensitivity.

Morphological Impact of Snow Compaction and Urban Contaminants

The H-Line City Center Feeder is subject to a specific set of environmental stressors that alter the physical properties of snow accumulation. Unlike pristine alpine snow, urban snow is heavily impregnated with road salts, hydrocarbons from runoff, and particulate matter from the surrounding commercial infrastructure. These contaminants transform the snow from a simple insulator into a chemically active, semi-conductive slurry. While one might assume that increased conductivity would improve shunting, the reality is more volatile. The formation of a "slush layer" can create erratic shunting patterns, where the circuit intermittently opens and closes, causing "signal flickering" or "phantom occupancy."

Furthermore, the mechanical action of the trains compacts the snow into a dense, ice-like strata. This compaction process reduces the void ratio of the snowpack, effectively creating a frozen envelope around the rail. In forensic examinations of the H-Line, it has been observed that this compacted ice often bridges the gap between the rail and the sleepers, potentially creating a shunt-to-ground path. This phenomenon, known as "ballast leakage," diverts the track circuit current away from the relay, reducing the overall sensitivity of the system and increasing the likelihood of a failure to detect a train despite a physical connection.

• Crystalline Structure: Fresh powder provides maximum insulation, while sintered ice increases mechanical adhesion to the rail head.
• Chemical Ionization: The presence of Sodium Chloride (NaCl) increases the conductivity of the meltwater, altering the ballast resistance.
• Hydrocarbon Films: Oil and grease from maintenance vehicles create a hydrophobic barrier that traps moisture against the rail.
• Compression Ratios: The transition from loose snow to glacial ice under axle loads changes the dielectric constant of the interface.

Forensic Analysis of Signal Failure Modes and Ballast Resistance

A comprehensive forensic analysis of the H-Line’s performance during heavy snow events reveals a direct correlation between ballast saturation and shunting sensitivity. The ballast section is designed to provide a specific level of electrical resistance to ground; however, when snow accumulates and subsequently melts, the ballast becomes saturated. This saturation lowers the ballast resistance (R_ballast), which in turn reduces the voltage available at the relay. When the ballast resistance drops below a critical value, the track circuit becomes "over-sensitive" to leakage, yet "under-sensitive" to the actual shunting action of the wheels.

The failure mode is often exacerbated by the "skin effect" of frozen moisture on the rail web. In the H-Line’s city center sections, where the infrastructure is integrated into concrete troughs or shallow ballast, the drainage capacity is often compromised by frozen debris. This leads to the formation of ice lenses that act as capacitors, storing charge and creating transient voltage spikes. These spikes can be misinterpreted by the signaling logic as a shunt, leading to "false occupancy" reports that paralyze the feeder's throughput and necessitate manual overrides by technical staff.

• Ballast Impedance Decay: The transition from dry stone to saturated slurry reduces the electrical isolation of the track.
• Capacitive Coupling: Ice layers on the rail web create parasitic capacitance that interferes with DC signal stability.
• Voltage Drop Analysis: Empirical data shows a significant decrease in relay voltage during peak accumulation periods.
• Intermittent Continuity: The cycle of freezing and thawing creates unstable contact points across the rail joints.

Engineering Mitigation and System Remediation Strategies

To rectify the shunting sensitivity issues across the H-Line City Center Feeder, a multi-tiered engineering approach is required. The primary objective is to maintain the integrity of the wheel-rail electrical contact while ensuring the ballast resistance remains within the design specification. One of the most effective remediation strategies is the implementation of targeted rail heating elements. By maintaining the rail head temperature above the freezing point, the formation of the insulating ice layer is prevented, ensuring that the shunting resistance remains consistently low regardless of the external precipitation levels.

Additionally, the calibration of the track relays must be adjusted to account for the seasonal variance in ballast resistance. This involves the installation of adaptive signaling relays that can dynamically adjust their trip thresholds based on real-time environmental sensors. From a structural standpoint, improving the drainage profile of the H-Line’s commercial corridors is essential. By replacing traditional ballast with high-performance polymer-modified aggregates in critical feeder zones, the infrastructure can maintain a higher resistance to ground, thereby preserving the voltage headroom necessary for reliable shunting detection during the winter months.

• Thermal Management: Installation of resistive heating cables along the rail webs to prevent ice accretion.
• Adaptive Relay Logic: Implementing software-defined thresholds to compensate for ballast resistance decay.
• Aggregate Optimization: Utilizing non-absorbent, high-resistivity ballast materials to minimize leakage current.
• Chemical Treatment: Applying specialized rail-head conditioners that reduce the adhesion of snow and ice.

Structural Dynamics and Thermal Cycling of the R-Line Transit Corridor

The pedestrian overpasses integrated into the R-Line Aurora Metro Ring represent a complex intersection of heavy civil engineering and building envelope science. These structures are subjected to extreme diurnal temperature swings characteristic of the high-altitude Colorado plateau, where the coefficient of thermal expansion for the structural steel trusses creates significant longitudinal displacement. When the steel members expand and contract, the truss joints must accommodate this movement without compromising the integrity of the pedestrian walkway or the underlying support infrastructure. The expansion bellows serve as the primary flexible interface, bridging the gap between rigid structural segments while maintaining a continuous weather-tight seal.

From a forensic engineering perspective, the primary challenge lies in the synchronization of the bellows' elasticity with the truss's mechanical movement. If the bellows are undersized or improperly tensioned, they experience excessive tensile stress during the winter contraction phase, leading to micro-fractures in the polymer matrix. Conversely, over-extension during summer peaks can lead to bunching and material folding, which creates stagnant water pockets and accelerates the degradation of the seal. The structural dynamics are further complicated by live-load vibrations from the metro rail traffic below, which introduce high-cycle fatigue into the joint assemblies.

• Thermal expansion coefficients of A36 structural steel necessitating precise gap calculations.
• Dynamic load oscillations resulting from heavy rail transit frequencies.
• Longitudinal displacement tolerances required to prevent truss buckling.
• Environmental exposure factors including high UV indices and rapid freeze-thaw cycles.

Failure Modes of Conventional Elastomeric Bellows Systems

Analysis of failed weatherproofing assemblies across the Aurora Metro Ring reveals a consistent pattern of material fatigue and installation deficiency. Most traditional systems utilize EPDM (Ethylene Propylene Diene Monomer) or neoprene membranes. While these materials offer initial flexibility, they are susceptible to ozone cracking and UV-induced embrittlement over a five-to-ten-year lifecycle. The failure typically initiates at the "valley" of the bellows convolution, where the material is subjected to the highest concentration of bending stress. Once a hairline crack forms, capillary action draws moisture into the joint, leading to the oxidation of the underlying steel fasteners and the eventual failure of the mechanical bond.

Furthermore, the interface between the flexible bellows and the rigid truss flange is a critical point of ingress. Many installations rely on chemical adhesives or low-grade caulking to ensure a watertight transition. Over time, the differential movement between the rigid steel and the flexible elastomer shears these adhesives, creating a gap that allows wind-driven rain to penetrate the building envelope. This moisture ingress does not merely damage the joint; it migrates through the truss assembly, causing hidden corrosion in the gusset plates and potentially compromising the long-term structural load-bearing capacity of the overpass.

• UV-induced polymer chain scission leading to surface crazing and loss of elasticity.
• Mechanical shearing at the rigid-to-flexible transition zones.
• Hydrostatic pressure buildup within the bellows folds during heavy precipitation.
• Galvanic corrosion occurring where moisture traps against dissimilar metal fasteners.

Advanced Material Specifications for High-Performance Weatherproofing

To mitigate the failures observed in standard installations, a transition toward high-performance fluoropolymers and reinforced silicone membranes is required. PTFE (Polytetrafluoroethylene) coated fabrics, integrated with a high-tenacity polyester scrim, provide the necessary tensile strength to withstand extreme thermal contraction without permanent deformation. These materials exhibit superior resistance to UV radiation and chemical pollutants common in urban transit corridors. The implementation of a "multi-ply" bellows design, where a primary weather seal is protected by a secondary sacrificial shroud, ensures that the core waterproofing element remains shielded from direct environmental exposure.

The mechanical fastening system must also be upgraded from simple clamping to a precision-engineered compression seal. This involves the use of stainless steel clamping rings with integrated EPDM gaskets that provide a uniform 360-degree compression. By utilizing a mechanical compression fit rather than a chemical bond, the system can accommodate the necessary movement while maintaining a constant seal pressure. Additionally, the geometry of the bellows convolutions should be optimized using finite element analysis (FEA) to distribute strain more evenly across the material, reducing the likelihood of localized stress concentrations that lead to premature tearing.

• Utilization of PTFE-coated fabrics for enhanced UV stability and low friction.
• Implementation of redundant sealing layers to prevent single-point failure.
• Precision-machined stainless steel compression clamps to eliminate adhesive reliance.
• Optimized convolution geometry to minimize peak strain during maximum extension.

Forensic Maintenance Protocols and Lifecycle Management

A proactive maintenance regime for the R-Line Aurora Metro Ring must move beyond visual inspections toward a data-driven forensic approach. The use of non-destructive testing (NDT), such as infrared thermography, allows engineers to detect moisture accumulation within the bellows before visible leaks appear. By mapping thermal anomalies, maintenance teams can identify areas where the weatherproofing has failed and water is pooling, allowing for targeted repairs that prevent widespread structural corrosion. Regular ultrasonic thickness gauging of the surrounding steel members is also recommended to ensure that undetected leaks have not already begun to compromise the truss integrity.

The lifecycle management of these joints should be governed by a scheduled replacement cycle based on empirical degradation data. Rather than waiting for failure, bellows assemblies should be replaced at 75% of their rated service life. This strategy reduces the overall cost of ownership by preventing the need for expensive structural steel remediation. A comprehensive maintenance log, documenting every thermal cycle peak and subsequent inspection result, provides the necessary longitudinal data to refine the material specifications for future overpass iterations across the metro ring.

• Quarterly infrared thermography scans to identify hidden moisture ingress.
• Annual tactile inspections of bellows convolutions for ozone cracking.
• Implementation of a "Condition-Based Maintenance" (CBM) schedule.
• Detailed documentation of joint displacement measurements during seasonal extremes.

The Mechanics of Rutting in Intermodal Transit Hubs

In the context of the W-Line West Colfax Light Rail intermodal bays, the primary failure mechanism is permanent deformation, specifically longitudinal rutting. Unlike standard highway traffic, which benefits from a distributed load across multiple lanes, bus bays are subject to channelized traffic. This means heavy-duty transit vehicles follow a precise, repetitive wheel path with negligible lateral deviation. The resulting concentrated vertical stress, combined with the high torque generated during acceleration and braking, creates a severe shear environment within the asphalt layers.

The rutting observed in these specific zones is primarily a result of plastic flow in the asphalt binder and the gradual displacement of the aggregate structure. When the ambient temperature rises, the viscosity of standard bitumen decreases, reducing the binder's ability to resist the downward and outward pressure of the tires. This is exacerbated by the "static load" phenomenon; buses idling at designated stops exert a constant pressure that forces the binder to migrate, leading to a gradual depression in the wheel path. Over time, these ruts become conduits for water infiltration, which accelerates the degradation of the base course through hydraulic pumping and stripping.

• Channelized Loading: High-frequency repetition of axle loads in a fixed path.
• Shear Stress: Lateral displacement of the asphalt mix during braking and starting.
• Static Loading: Prolonged pressure during passenger boarding and alighting.
• Thermal Sensitivity: Reduced binder stability during peak summer temperature cycles.

Viscoelastic Failure and Binder Degradation

To understand the failure of conventional asphalt in the West Colfax corridor, one must analyze the viscoelastic properties of the binder. Asphalt is a viscoelastic material, meaning it exhibits both viscous (liquid-like) and elastic (solid-like) characteristics. In standard mixes, the viscous component dominates at higher temperatures, leading to a loss of structural memory. Once the asphalt reaches its softening point, the aggregate particles are pushed aside, and the material flows away from the point of contact. This is a non-recoverable deformation.

The forensic analysis of failed sections along the W-Line indicates that traditional AC (Asphalt Concrete) binders lack the necessary complex shear modulus to withstand the specific axle loads of modern intermodal buses. As the binder degrades through oxidation and thermal cycling, it becomes brittle, yet it remains susceptible to rutting during heat waves. This paradox—where the material is simultaneously too brittle in winter and too fluid in summer—leads to a rapid decline in the pavement's service life. The failure is not typically a result of insufficient thickness, but rather a failure of the binder's internal chemistry to maintain a stable matrix under extreme shear.

• Viscous Flow: The permanent movement of the binder under constant load.
• Elastic Recovery: The ability of the pavement to return to its original shape after a load is removed.
• Softening Point: The temperature threshold where the binder loses its structural integrity.
• Oxidative Aging: The chemical breakdown of the binder that increases susceptibility to cracking.

Engineering the Polymer Modified Binder (PMB) Solution

The defense against rutting in high-stress intermodal zones requires the transition from neat bitumen to Polymer Modified Binders (PMB). The engineering objective is to create a cross-linked molecular network within the binder that increases its elasticity and raises its softening point. By introducing elastomers such as Styrene-Butadiene-Styrene (SBS), the binder is transformed into a thermoplastic material. The SBS polymers form a three-dimensional network that traps the bitumen, preventing it from flowing under the weight of the bus axles. This effectively increases the "stiffness" of the mix without making it excessively brittle.

The implementation of PMB across the West Colfax Light Rail bays provides a critical advantage in terms of rut resistance. The polymer network acts as a spring, allowing the pavement to deform slightly under load and then snap back to its original profile once the vehicle departs. Furthermore, PMBs exhibit a wider Performance Grade (PG) range, meaning they remain flexible at sub-zero temperatures to prevent thermal cracking while remaining rigid during the peak heat of July. This stability ensures that the aggregate remains locked in place, maintaining the structural integrity of the wheel path even under the most rigorous transit schedules.

• SBS Modification: Enhancing the binder's elasticity and recovery capabilities.
• Cross-Linking: The creation of chemical bonds that prevent molecular sliding.
• Performance Grade (PG) Optimization: Tailoring the binder to the specific climate of the Colfax corridor.
• Aggregate Interlock: Ensuring the polymer allows for maximum stone-on-stone contact.

Implementation Protocols and Forensic Validation

The successful deployment of PMB in the W-Line bus bays depends entirely on strict adherence to thermal and compaction protocols. Polymer modified mixes require higher mixing and placement temperatures than standard asphalt. If the material is allowed to cool too rapidly during the hauling process, the polymer chains will not integrate correctly, leading to "segregation" where the polymer clumps rather than dispersing. Precision temperature monitoring from the plant to the paver is mandatory to ensure a homogeneous mix that can be compacted to the required density.

Long-term validation of the PMB defense is conducted through periodic rut-depth measurements and forensic core sampling. The industry standard for acceptable rutting in these high-stress zones is typically capped at 12.5mm (0.5 inches) before corrective milling and overlay are required. By utilizing a laser profiler, engineers can map the degradation of the wheel paths in real-time. Empirical data from similar intermodal upgrades suggests that PMB installations extend the pavement lifecycle by 40% to 60% compared to conventional mixes, significantly reducing the frequency of maintenance shutdowns and ensuring the continuity of the West Colfax transit operations.

• Thermal Management: Maintaining precise temperatures to prevent polymer separation.
• Compaction Density: Achieving maximum air void reduction to prevent water penetration.
• Laser Profiling: Utilizing high-precision sensors to monitor rut depth evolution.
• Lifecycle Analysis: Comparing the Total Cost of Ownership (TCO) between standard and modified binders.

System Architecture and Interlock Logic for High-Voltage DC Traction

The traction power distribution for the Flatiron Flyer US-36 BRT corridor utilizes a high-voltage DC third-rail system designed for rapid transit efficiency. Central to the safety protocol is the Emergency Traction Power De-Energization (ETPD) interlock system. This system operates on a fail-safe, normally-closed (NC) loop architecture, ensuring that any interruption in the signal circuit—whether caused by a deliberate emergency trigger or a physical cable fault—immediately initiates a trip command to the main circuit breakers at the traction power substations (TPSS). The logic is predicated on the principle of galvanic isolation, preventing transient surges from the high-voltage rail from migrating into the low-voltage control circuitry.

The interlock sequence is engineered to execute within milliseconds to mitigate the risk of electrocution for first responders and maintenance personnel. When an emergency stop button is depressed, the following sequence occurs:

• Immediate opening of the control relay loop, breaking the holding current to the vacuum circuit breakers.
• Activation of the trip coil within the TPSS, forcing the physical separation of the DC contacts.
• Transmission of a high-priority alarm signal to the Central Control Center via the SCADA (Supervisory Control and Data Acquisition) network.
• Engagement of mechanical lockout-tagout (LOTO) indicators to visually confirm the de-energized state of the specific sector.

From a technical standpoint, the precision of these interlocks is governed by the coordination of the protective relays. The timing must be calibrated to avoid nuisance tripping while ensuring that the "clearance time"—the duration from the trigger to the total dissipation of stored energy in the capacitors—is minimized to prevent arc-flash hazards during emergency egress.

Infrastructure Envelope Integration and Environmental Shielding

As a matter of building envelope forensics, the integration of power interlock hardware into the US-36 corridor requires rigorous attention to moisture ingress and thermal cycling. The interlock cabinets and junction boxes are situated in an environment subject to extreme temperature fluctuations and road salt spray, which can lead to accelerated corrosion of the electrical contacts. To maintain the integrity of the de-energization loop, the enclosures must meet an IP66 rating or higher, ensuring that dust and high-pressure water jets cannot penetrate the housing and cause a short circuit that would inadvertently trigger a system-wide shutdown.

The interface between the concrete guideway and the steel support structures for the third rail introduces a significant risk of thermal bridging. If not properly managed, condensation forms on the interior of the interlock housings, leading to dielectric breakdown. The engineering specifications for the Flatiron Flyer include the following envelope protections:

• Installation of hydrophobic membranes at all conduit entry points to prevent capillary action from drawing groundwater into the control cabinets.
• Utilization of stainless steel 316L for all external fasteners and brackets to resist chloride-induced stress corrosion cracking.
• Implementation of internal space heaters within the TPSS cabinets to maintain a dew point above the ambient internal temperature, preventing moisture accumulation on sensitive relay boards.
• Application of high-build epoxy coatings on all concrete pads to mitigate alkali-silica reaction (ASR) and protect the grounding grid from soil acidity.

Failure to maintain this envelope integrity results in "carbon tracking," where conductive paths form across insulating surfaces due to moisture and pollutants. In a third-rail system, such a failure in the interlock enclosure could lead to a "fail-to-danger" scenario where the system remains energized despite a command to de-energize.

Forensic Analysis of Failure Modes and Effects (FMEA)

A clinical analysis of the interlock system reveals several critical failure modes that must be monitored through empirical data collection. The most prevalent risk is the degradation of the contact resistance within the emergency push-button assemblies. Over time, oxidation of the silver-plated contacts can increase the electrical resistance, potentially delaying the trip signal or causing a "ghost" fault that triggers an unnecessary system outage. This is particularly acute in the US-36 corridor due to the vibration frequencies generated by high-speed BRT vehicles, which can lead to mechanical fatigue in the wiring terminations.

Furthermore, the risk of stray current corrosion must be addressed. In a DC traction system, any leakage of current from the third rail into the surrounding infrastructure can create an electrolytic cell, accelerating the corrosion of nearby metallic utility lines and the interlock grounding system. The forensic indicators of this failure include:

• Pitting and localized corrosion on the copper grounding busbars.
• Unexpected voltage differentials between the rail negative and the local earth ground.
• Premature failure of the insulation on the low-voltage control cabling.
• Sporadic triggering of the interlocks during periods of high humidity or heavy precipitation.

To mitigate these risks, the system employs a redundant grounding architecture. By utilizing a multi-point grounding strategy, the engineering team ensures that there is no single point of failure that could leave the third rail energized during a maintenance window. The use of dielectric breaks at strategic intervals also prevents the entire corridor from acting as a single conductive plane, thereby isolating faults to specific sectors.

Regulatory Compliance and Lifecycle Maintenance Standards

The operational viability of the Flatiron Flyer’s de-energization system is contingent upon strict adherence to NFPA 70E (Standard for Electrical Safety in the Workplace) and IEEE 142 (Recommended Practice for Grounding of Industrial and Commercial Power Systems). Compliance is not a one-time certification but a continuous state of verification. The maintenance lifecycle for the interlock system is divided into quarterly diagnostic checks and annual comprehensive stress tests.

The empirical data gathered during these inspections is used to calculate the Mean Time Between Failures (MTBF) for the relay components. If the MTBF trends downward, it indicates a systemic issue with the environmental shielding or a batch failure of the electronic components. The mandatory maintenance protocol includes the following requirements:

• Quarterly insulation resistance testing (Megger testing) of all control cables to ensure the dielectric strength remains above 100 megohms.
• Annual functional testing of every emergency stop button across the entire length of the US-36 corridor to verify trip
