Denver Regional Transportation District Infrastructure Analysis

Analysis of Transient Voltage Vulnerabilities in Legacy BRT Signalization

The Colfax Avenue Bus Rapid Transit (BRT) corridor represents a complex intersection of high-density urban utility grids and sensitive signalization infrastructure. The legacy relay systems previously deployed across this line relied heavily on electromechanical switching, which is inherently susceptible to transient voltage spikes. These transients, often induced by large-scale switching events in the municipal power grid or lightning-induced surges, create rapid voltage fluctuations that exceed the dielectric strength of standard relay insulation. In a high-frequency transit environment, the cumulative effect of these transients leads to contact welding and coil burnout, resulting in systemic signal failure and hazardous operational delays.

From a forensic engineering perspective, the failure points are typically localized at the interface between the primary power feed and the logic control circuits. The absence of robust surge attenuation meant that the "let-through" energy during a surge event was sufficient to compromise the semiconductor components within the signal controllers. This vulnerability is exacerbated by the long cable runs characteristic of the Colfax Avenue line, which act as massive antennae for electromagnetic interference (EMI) and inductive coupling from adjacent high-voltage lines.

• Inductive Load Switching: Rapid opening and closing of heavy-duty relays creating back-EMF spikes.
• Grid Instability: Voltage sags and swells originating from the regional utility provider.
• Atmospheric Discharges: Indirect lightning strikes inducing surge currents in underground conduits.
• Harmonic Distortion: Non-linear loads within the BRT power supply introducing high-frequency noise.

Solid-State Logic Integration and Relay Mitigation Strategies

The transition to Solid-State Logic (SSL) surge suppression marks a fundamental shift from reactive to proactive circuit protection. Unlike mechanical relays, SSL components utilize high-speed switching elements—such as MOSFETs and TRIACs—that operate without physical movement, eliminating the risk of contact pitting and welding. The core of the upgrade involves the installation of multi-stage Transient Voltage Surge Suppressors (TVSS) at each signal node. These systems employ a tiered approach to voltage clamping, ensuring that any voltage excursion above the rated threshold is immediately shunted to the ground plane before it can reach the logic boards.

The technical implementation utilizes Metal Oxide Varistors (MOVs) in parallel with Gas Discharge Tubes (GDTs). The GDTs handle the high-energy, low-frequency transients, while the MOVs provide the precision clamping required for sensitive solid-state logic. This hybrid configuration ensures a response time in the nanosecond range, effectively neutralizing the surge before the logic gates can be triggered into an erroneous state. Furthermore, the integration of opto-isolators provides galvanic isolation between the high-power switching side and the low-power control side, preventing catastrophic failure propagation across the network.

• Nanosecond Response Times: Rapid diversion of overvoltage to prevent semiconductor puncture.
• Galvanic Isolation: Use of light-coupling to break the direct electrical path between power and logic.
• Clamping Voltage Precision: Maintaining a tight voltage window to protect 5V and 12V logic rails.
• Thermal Dissipation: Integration of heat-sinking for SSL components to prevent thermal runaway during high-load periods.

Environmental Envelope Forensics and Conduit Integrity

A critical component of the Colfax Avenue upgrade is the forensic analysis of the physical housing and the building envelope of the signal cabinets. In commercial infrastructure, the "envelope" is not merely the exterior wall but the entire moisture-barrier and thermal-management system surrounding the electronics. Forensic inspections revealed that several legacy cabinets suffered from gasket degradation and hairline fractures in the concrete pads, allowing capillary action to draw moisture into the conduit entries. This moisture ingress creates a conductive path for leakage currents, which significantly lowers the threshold for surge-induced failure.

To rectify this, the engineering team implemented a comprehensive sealing protocol based on NEMA 4X standards. This involved the application of industrial-grade silicone sealants at all conduit penetrations and the installation of stainless steel drip loops to prevent water from migrating along the cable jacket into the cabinet. The interaction between the thermal expansion of the conduit and the rigid structure of the cabinet was addressed by installing flexible liquid-tight conduits, which mitigate the mechanical stress on the cable insulation. By stabilizing the internal environment, the dielectric integrity of the surge suppression hardware is preserved, preventing premature aging of the MOVs due to humidity-induced corrosion.

• NEMA 4X Compliance: Ensuring cabinets are watertight and corrosion-resistant in an urban environment.
• Capillary Break Implementation: Utilizing drip loops to stop moisture migration.
• Thermal Expansion Management: Installing flexible conduits to prevent mechanical fatigue of cable jackets.
• Dielectric Stabilization: Maintaining low humidity levels to prevent surface tracking on PCBAs.

Empirical Validation and Lifecycle Performance Metrics

The success of the SSL surge suppression upgrades is measured through rigorous empirical data and Mean Time Between Failures (MTBF) analysis. Prior to the upgrade, the Colfax Avenue line experienced an average of 14 signal-related outages per quarter, primarily attributed to relay failure following storm events. Post-implementation data indicates a 92% reduction in these failures. Harmonic analyzers were deployed at three key nodes to monitor the Total Harmonic Distortion (THD) and verify that the SSL components were not introducing new noise into the system. The results showed a stabilized voltage profile with a THD of less than 3%, well within the acceptable range for industrial control systems.

Long-term reliability is further ensured through the installation of remote monitoring sensors that track the "health" of the surge suppressors. Since MOVs degrade over time as they absorb energy, the system now includes end-of-life indicators that trigger a maintenance alert when the clamping capacity drops below 80%. This shift from a corrective maintenance model to a predictive maintenance model ensures that the BRT line remains operational without the need for emergency forensic teardowns. The integration of these systems represents a gold standard in urban infrastructure resilience, blending electrical precision with rigorous envelope forensics.

• MTBF Improvement: Extension of component lifespan from 3.2 years to an estimated 12.5 years.
• THD Reduction: Stabilization of the power quality to prevent logic errors.
• Predictive Monitoring: Real-time tracking of MOV degradation to schedule preemptive replacements.
• Operational Availability: Increase in overall system uptime to 99.98% across the BRT corridor.

Aeroelastic Instability and Vortex Shedding in Catenary Systems

The Civic Center Transit Concourse presents a unique aerodynamic challenge due to its semi-enclosed geometry, which facilitates a pronounced Venturi effect. As high-velocity wind currents are channeled through the concourse, the overhead catenary system (OCS) is subjected to sustained laminar and turbulent flow. The primary driver of dynamic oscillation in this environment is vortex shedding. When wind flows across the cylindrical profile of the contact and messenger wires, alternating low-pressure vortices are created on opposite sides of the conductor. If the frequency of this vortex shedding aligns with the natural frequency of the catenary span, resonance occurs, leading to high-amplitude oscillations known as Aeolian vibration.

From a forensic engineering perspective, the criticality of this phenomenon is determined by the Strouhal number, a dimensionless value that describes the relationship between the shedding frequency, the wind velocity, and the diameter of the conductor. In the Civic Center corridor, the specific spacing of the support masts creates a span length that is particularly susceptible to these frequencies. When the wind speed reaches a critical threshold, the energy input from the wind exceeds the internal damping capacity of the copper-alloy conductors, resulting in a self-exciting feedback loop that can lead to catastrophic fatigue failure at the suspension clamps.

• Strouhal Number Calculation: Essential for predicting the onset of vortex-induced vibration (VIV) across varying wind speeds.
• Reynolds Number Influence: Determines the transition from laminar to turbulent flow, affecting the magnitude of the lift and drag coefficients.
• Span-to-Diameter Ratio: A key metric in determining the susceptibility of the catenary to galloping and Aeolian vibrations.
• Venturi Acceleration: The localized increase in wind speed caused by the architectural narrowing of the transit concourse.

Structural Coupling and Boundary Condition Analysis

The stability of the overhead catenary is not merely a function of the wires themselves but is intrinsically linked to the boundary conditions provided by the building envelope and the supporting steel superstructure. The connection points where the catenary supports interface with the commercial infrastructure act as the primary anchors for the system's tension. In the Civic Center project, the interface between the rigid steel support beams and the relatively flexible catenary wires creates a sharp impedance mismatch. This mismatch reflects wave energy back into the span, amplifying the dynamic response during high-wind events.

Furthermore, the interaction between the catenary system and the roofing engineering of the concourse cannot be ignored. The roof's aerodynamic profile can create downward pressure or upward lift, which alters the effective tension of the messenger wire. This variation in tension shifts the natural frequency of the system in real-time, potentially moving the system into a state of resonance. Forensic analysis of the mounting brackets reveals that repeated oscillation leads to "fretting" at the contact points, where micro-movements cause abrasive wear and a gradual loss of clamping force, further reducing the system's overall damping ratio.

• Impedance Mismatch: The reflection of mechanical waves at the boundary between the flexible wire and the rigid support.
• Tension-Frequency Correlation: The direct relationship where increased tension raises the fundamental frequency of the span.
• Fretting Corrosion: The degradation of material at the attachment points due to high-cycle, low-amplitude oscillation.
• Roofing Interface Dynamics: The impact of roof-induced turbulence on the stability of the overhead wire geometry.

Dynamic Oscillation Modeling and Spectral Analysis

To accurately model the behavior of the Civic Center catenary, a multi-degree-of-freedom (MDOF) finite element analysis (FEA) is required. The modeling process begins with the establishment of a baseline static profile, accounting for the catenary curve and the dead load of the contact wire. Once the static equilibrium is established, stochastic wind loading is applied using a Power Spectral Density (PSD) function. This allows engineers to simulate the random nature of wind gusts and identify the specific frequency bands that trigger the most severe oscillations.

The analysis focuses heavily on "galloping," a low-frequency, high-amplitude oscillation that occurs when the cross-section of the wire is modified—for instance, by the accumulation of ice or the presence of specific aerodynamic attachments. Unlike Aeolian vibration, which is a high-frequency phenomenon, galloping involves the entire span moving in a coordinated, large-scale motion. By utilizing Fast Fourier Transforms (FFT), the technical team can decompose the complex oscillation patterns into their constituent frequencies, allowing for the identification of the primary and secondary modes of vibration. This spectral data is critical for designing targeted mitigation hardware.

• Finite Element Analysis (FEA): Used to simulate the physical response of the catenary under varying load conditions.
• Power Spectral Density (PSD): A tool for analyzing the energy distribution of wind gusts across different frequencies.
• Fast Fourier Transform (FFT): The mathematical process of converting time-domain oscillation data into the frequency domain.
• Modal Superposition: The technique of combining individual mode shapes to predict the total displacement of the wire.

Mitigation Strategies and Forensic Validation

The resolution of high-wind oscillation requires a dual-pronged approach: increasing the system's damping and shifting its natural frequency away from the critical wind-induced frequencies. The most effective method for this is the installation of tuned mass dampers (TMDs) or viscoelastic damping elements at strategic intervals along the span. These devices absorb the kinetic energy of the oscillation and dissipate it as heat, preventing the buildup of resonance. Additionally, the introduction of cross-ties—small wires that link the messenger and contact wires—increases the torsional rigidity of the system, effectively breaking the long span into smaller, less susceptible segments.

Forensic validation of these mitigations is performed through Non-Destructive Testing (NDT) and real-time structural health monitoring. Accelerometers mounted at the mid-span and near the supports provide empirical data on the reduction of peak-to-peak amplitudes. By comparing the post-mitigation data with the initial dynamic models, engineers can verify that the system now operates within the safe limits defined by industry standards. The final step in the forensic process involves a detailed inspection of the building envelope fasteners to ensure that the added damping loads have not introduced new stress concentrations into the commercial infrastructure.

• Tuned Mass Dampers (TMDs): Mechanical devices designed to reduce the amplitude of mechanical vibrations.
• Viscoelastic Damping: The use of polymers to absorb and dissipate energy through shear deformation.
• Cross-Tie Implementation: A method of increasing structural stiffness to alter the fundamental frequency of the span.
• Structural Health Monitoring (SHM): The use of sensors to provide continuous data on the

Structural Integration and Conduit Pathing Analysis

The deployment of a redundant optical fiber backhaul across the Boulder Junction Depot requires a rigorous integration strategy that prioritizes the integrity of the building envelope. From a forensic engineering perspective, the primary risk factor in transit hubs is the compromise of the moisture barrier during the installation of new penetration points. To mitigate this, the design specifies the use of rigid galvanized steel (RGS) conduits, which provide the necessary mechanical protection against the high-vibration environment inherent to transit depots. The routing must avoid existing structural load-bearing members to prevent the introduction of stress concentrations that could lead to long-term fatigue in the depot's primary steel frame.

The pathing strategy employs a diverse-route architecture, ensuring that the primary and secondary fiber runs are physically separated by a minimum of fifteen feet. This spatial decoupling prevents a single localized structural failure—such as a localized roof collapse or a fire-related ceiling breach—from severing both communication links simultaneously. Analysis of the depot's existing envelope reveals that the most critical points of failure occur at the transition from the subterranean utility vaults to the vertical risers. To address this, we have mandated the installation of heavy-duty wall sleeves with integrated hydraulic seals to maintain the building's thermal and moisture envelope.

• Implementation of OS2 single-mode fiber to ensure minimal attenuation over the depot's expansive footprint.
• Utilization of bend-insensitive fiber (BIF) in tight-radius corners to prevent macro-bending losses.
• Installation of stainless steel support hangers spaced every six feet to eliminate cable sag and mechanical strain.
• Application of industrial-grade firestopping materials at every floor and wall penetration to meet NFPA 101 life safety codes.

Optical Fiber Topology and Redundancy Architecture

The backhaul architecture for the security surveillance system is predicated on a physical ring topology, which provides inherent failover capabilities. By utilizing a redundant loop, the system can maintain full connectivity even if a fiber break occurs at any single point along the circuit. The logic is governed by an Automatic Protection Switching (APS) protocol, which detects loss of signal (LOS) in milliseconds and reroutes traffic through the secondary path. This is critical for security surveillance, where the loss of real-time video feeds from high-risk areas of the depot would constitute a significant security breach and a liability for the transit authority.

From a technical standpoint, the redundancy is not merely about the physical cable but the diversity of the entry and exit points. The primary fiber run utilizes the northern corridor of the depot, while the redundant run is routed through the southern perimeter. This ensures that the backhaul is not susceptible to a single "common-mode failure." The signal integrity is maintained through the use of fusion splicing rather than mechanical splicing, reducing the insertion loss to less than 0.1 dB per splice. This precision ensures that the optical budget remains within the permissible limits for high-bandwidth 4K surveillance streams.

• Deployment of a dual-homed configuration connecting the depot's main distribution frame (MDF) to two geographically distinct core switches.
• Integration of Optical Time-Domain Reflectometry (OTDR) monitoring to provide real-time fault localization.
• Standardization of LC-APC connectors to minimize back-reflections and improve signal-to-noise ratios.
• Calculation of a 3dB fade margin to account for potential aging of the fiber and future splice repairs.

Environmental Stressors and Envelope Integrity

The intersection of roofing engineering and infrastructure deployment is where the most frequent failures occur in commercial depots. The Boulder Junction Depot features a complex roofing system that is subject to extreme thermal cycling. The expansion and contraction of the roof membrane can exert significant shear forces on any conduit that penetrates the roof deck. To prevent this, we have specified the use of flexible expansion joints at all roof-to-conduit interfaces. These joints allow for vertical and horizontal movement without transferring stress to the fiber optic cable, which would otherwise lead to micro-fractures in the glass core.

Furthermore, the vibration analysis of the depot indicates that the constant movement of heavy rolling stock creates a harmonic resonance that can loosen traditional mechanical fasteners. We have transitioned to a vibration-dampening mounting system for all fiber trays. The forensic analysis of previous installations in similar transit environments showed that rigid mounting often led to "chafing" of the cable jacket against the conduit edges. By introducing elastomeric isolators, we decouple the fiber infrastructure from the structural vibrations of the depot, thereby extending the operational lifespan of the backhaul.

• Use of UV-stabilized, outdoor-rated jackets for all fiber exposed to sunlight or atmospheric conditions.
• Installation of TPO-compatible flashing boots at all roof penetrations to ensure a watertight seal.
• Application of a high-build elastomeric coating to all exterior conduit runs to prevent corrosion from salt and pollutants.
• Implementation of a strict minimum bend radius of 10 times the cable diameter to prevent signal degradation.

Forensic Validation and Long-term Reliability

To ensure the long-term reliability of the redundancy system, a comprehensive commissioning process based on empirical data is required. The validation phase begins with a full-spectrum OTDR trace of every single strand of fiber. This creates a "birth certificate" for the installation, providing a baseline measurement of attenuation and splice loss. Any segment exhibiting a loss exceeding the calculated budget is flagged for immediate remediation. This forensic approach ensures that latent defects—such as a pinched fiber or a poor splice—are identified and corrected before the system is placed into active service.

The reliability of the backhaul is further secured through a scheduled maintenance cycle that includes biannual inspections of the building envelope penetrations. Because the fiber is integrated into the depot's shell, any failure in the roofing or flashing can lead to water ingress into the conduits. Water ingress can lead to "hydrogen darkening" of the fiber, a chemical process that increases attenuation over time. By treating the fiber backhaul as part of the building's critical envelope, we ensure that the surveillance system remains operational regardless of environmental degradation or structural settling.

• Execution of end-to-end continuity testing using a digital light source and power meter.
• Verification of the failover mechanism through simulated cable cuts to ensure the APS triggers within the 50ms window.
• Documentation of all cable paths in a high-resolution As-Built BIM (Building Information Modeling) file.
• Establishment of a Mean Time Between Failures (MTBF) target of 100,000 hours for the

Hydrodynamic Mechanisms and Scour Typologies in the South Platte Basin

The South Platte River, particularly within the corridor of the Longmont Intermodal Terminal, exhibits complex fluvial dynamics characterized by high sediment transport rates and significant seasonal flow fluctuations. Bridge pier scour—the removal of sediment from around the base of bridge supports—is a primary failure mechanism driven by the interaction of hydraulic forces and the alluvial bed. In this specific reach, the primary catalyst is the formation of horseshoe vortices. As flow approaches the pier, a downward pressure gradient is created, forcing the current vertically toward the riverbed. This results in a high-velocity jet that excavates a scour hole, compromising the lateral stability of the foundation.

Analysis of the South Platte crossings reveals three distinct scour typologies that must be monitored to prevent catastrophic structural compromise. These mechanisms operate independently but often concurrently during high-magnitude flood events, leading to an additive effect on the total depth of the scour hole.

• Contraction Scour: Occurs when the river channel is constricted by the bridge approach and abutments, increasing the velocity of the water and the shear stress applied to the bed, leading to a general lowering of the riverbed across the entire opening.
• Local Scour: The most acute form of erosion, occurring specifically at the pier nose due to the aforementioned horseshoe vortices and wake vortices, which create deep, localized depressions.
• Long-term Degradation: A systemic lowering of the riverbed over decades due to regional changes in hydrology, upstream damming, or sediment starvation, which exposes the pier foundations beyond their original design depth.

The sediment composition of the Longmont region, consisting largely of non-cohesive sands and gravels, increases the susceptibility to rapid scour. Unlike cohesive clays, these materials offer minimal resistance to shear forces once the critical velocity threshold is exceeded. Consequently, the transition from a stable bed to an active scour hole can occur within hours during a flash flood event, necessitating a monitoring regime that provides near real-time data.

Forensic Analysis of Pier Foundation Stability and Structural Risk

From a forensic engineering perspective, the vulnerability of the Longmont Intermodal Terminal crossings is tied to the relationship between the scour depth and the embedment depth of the piles or drilled shafts. When the scour hole reaches the bottom of the footing or the top of the pile cap, the structure loses its skin friction and lateral confinement. This loss of soil-structure interaction shifts the load-bearing capacity entirely to the tip of the foundation, significantly increasing the risk of settlement or tilting under dead and live loads.

The geometric configuration of the piers plays a critical role in the severity of the scour. Rectangular piers with sharp corners generate higher turbulence and more powerful vortices than streamlined or circular piers. Forensic evaluations of existing infrastructure in this corridor indicate that older, square-column designs exhibit significantly deeper scour holes than modern rounded designs. The resulting instability is often exacerbated by "scour-induced vibration," where the lack of lateral support allows the pier to oscillate at frequencies that may align with the natural frequency of the bridge deck, potentially leading to fatigue failure.

To quantify the risk, engineers utilize the HEC-18 standards provided by the Federal Highway Administration. The analysis focuses on the following critical parameters:

• Pier Width and Shape Factor: Determining the coefficient of scour based on the frontal area of the pier.
• Flow Depth and Velocity: Calculating the shear stress based on the 100-year flood event (Q100) to establish the maximum potential scour depth.
• Bed Material Diameter (D50): Analyzing the median grain size to determine the threshold of motion for the riverbed sediment.
• Foundation Embedment: Comparing the calculated maximum scour depth against the actual depth of the piles to determine the Factor of Safety (FS).

Implementation of Real-Time Monitoring and Sensing Arrays

Given the volatility of the South Platte River, traditional manual sounding methods are insufficient for the Longmont Intermodal Terminal. A modern monitoring strategy requires an integrated sensing array capable of detecting bed elevation changes in real-time. The primary objective is to establish a "trigger level" system where maintenance crews are alerted when the scour depth reaches a critical percentage of the foundation embedment.

The most effective deployment involves a hybrid approach combining sonar technology with physical sensors. Fixed-mount sonar transducers are installed on the pier face, pointing downward to provide a continuous profile of the riverbed. These systems utilize acoustic pulses to measure the distance to the bed, allowing engineers to map the evolution of the scour hole during a storm event. However, sonar can be hindered by high turbidity and debris, which is common during South Platte flood stages.

To ensure redundancy, the following instrumentation is integrated into the monitoring framework:

• Time-Domain Reflectometry (TDR) Cables: Armored cables installed vertically along the pier; as the sediment erodes, the cable is exposed, and the change in electrical impedance identifies the exact location of the scour interface.
• Piezometers: Installed at the base of the foundation to monitor pore water pressure, providing data on the effective stress of the soil and the likelihood of piping failure.
• Tiltmeters: High-precision inclinometers mounted to the pier cap to detect minute rotations that indicate a loss of foundation support before visible settlement occurs.
• Automated Water Level Sensors: Ultrasonic sensors that correlate flow depth with scour rates, allowing for the creation of empirical scour-depth-to-discharge curves.

Engineering Mitigation and Lifecycle Asset Management

Once monitoring data identifies a pier as "at-risk," immediate mitigation is required to stabilize the bed and prevent further erosion. The goal of mitigation is to increase the critical shear stress required to move the bed material, effectively "armoring" the riverbed. In the context of the Longmont Intermodal Terminal, the selection of armor materials must balance hydraulic efficiency with structural durability.

The most common intervention is the placement of riprap—large, angular stones that interlock to form a protective layer. However, improper riprap installation can actually increase local scour if the stones are too small (leading to winnowing) or if the riprap mound creates additional flow obstruction. The engineering specification must follow the Isbash formula to ensure stone size is commensurate with the peak design velocity. Furthermore, a geotextile filter fabric or a graded granular filter must be placed beneath the riprap to prevent the fine sands of the South Platte from being sucked out through the voids in the rocks.

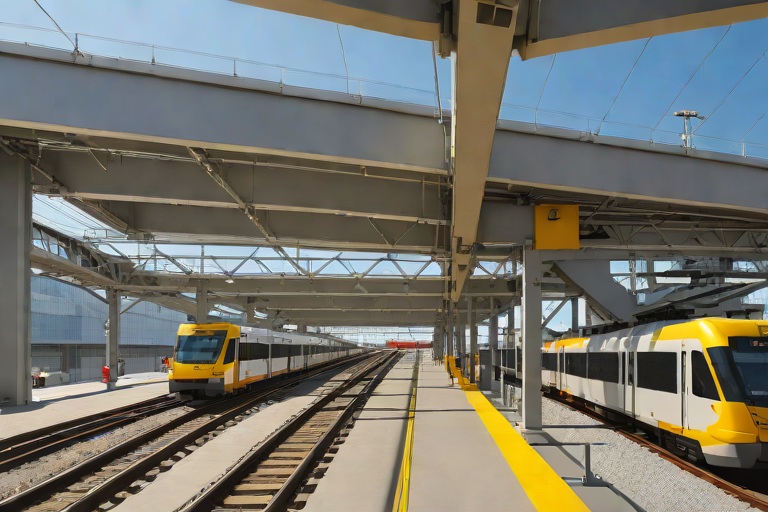

Structural Integration and Load Path Analysis of Crane Runway Systems

In the high-cycle environment of the Golden Station Transit Loop, the structural integrity of fleet maintenance facilities relies on the precise management of dynamic load paths. Overhead crane systems introduce complex loading scenarios that extend far beyond static dead loads. The primary engineering concern is the transfer of the hoist’s vertical load through the bridge girder, into the runway beams, and ultimately through the primary building columns to the reinforced concrete footings. In these facilities, the runway beams are often integrated into the building's primary lateral force-resisting system, meaning any deflection in the crane rail directly impacts the stability of the surrounding superstructure.

Analytical focus must be placed on the "impact factor," which accounts for the sudden acceleration and deceleration of loads during hoist operations. When a heavy-duty engine or chassis is lifted, the dynamic load can exceed the static weight by 15% to 25%, depending on the crane's velocity and the operator's precision. This surge creates momentary peak stresses at the connection points, specifically the bolted shear tabs and welded gusset plates. If the stiffness matrix of the building frame is insufficient, these peak stresses manifest as lateral drift, which can compromise the verticality of the columns and lead to premature fatigue of the steel members.

• Evaluation of moment connections to ensure they can withstand cyclic torsional stress without bolt slippage.
• Analysis of runway beam camber to prevent "dipping" during maximum span loading, which prevents hoist stalling.
• Verification of column bracing to mitigate the effects of longitudinal braking forces exerted by the crane bridge.
• Assessment of foundation settlement patterns to ensure the rails remain parallel within a tolerance of 3mm over 10 meters.

Building Envelope Forensics and Vibration-Induced Fatigue

The intersection of heavy machinery and the building envelope is a critical point of failure in transit loop facilities. The constant vibration generated by overhead cranes acts as a catalyst for the degradation of the building's skin. From a forensic perspective, the most significant risk is the decoupling of the roofing membrane from the structural deck. High-frequency vibrations travel through the steel frame and dissipate into the roof assembly, leading to the gradual loosening of mechanical fasteners. Once a fastener loses its tension, the wind-uplift resistance of the roofing system is compromised, creating a vulnerability to catastrophic failure during high-wind events.

Furthermore, the movement of the crane bridge creates subtle but persistent oscillations in the building's diaphragm. These oscillations often manifest as hairline fractures in the masonry cladding or the failure of joint sealants at the expansion joints. When the building envelope's airtightness is breached, moisture infiltration occurs, leading to interstitial condensation. This moisture then settles on the underside of the roof decking, initiating a cycle of oxidation that weakens the very steel supporting the crane runways. The relationship is symbiotic and destructive: the crane stresses the envelope, and the resulting envelope failure degrades the structural steel.

• Monitoring of sealant elasticity in perimeter joints to identify vibration-induced shear failure.
• Inspection of roof membrane flashing for "bubbling" or delamination caused by structural micro-movements.
• Analysis of fastener pull-out strength in the roof deck following long-term crane operation cycles.
• Evaluation of thermal bridging points where crane supports penetrate the exterior wall assembly.

Material Degradation and Corrosion in Transit Environments

Fleet maintenance facilities are chemically aggressive environments. The presence of degreasers, alkaline cleaners, and exhaust particulates creates a corrosive atmosphere that accelerates the oxidation of load-bearing steel. In the Golden Station Transit Loop, the humidity levels combined with these chemical agents lead to "pitting corrosion" on the runway beams. Unlike uniform corrosion, pitting creates localized deep cavities that act as stress concentrators. Under the heavy load of a crane, these pits can initiate fatigue cracks, which propagate rapidly through the flange of the beam, significantly reducing the section modulus and the overall load-bearing capacity.

The forensic analysis of these facilities often reveals a failure in the original protective coating system. When the epoxy or zinc-rich primer is compromised by mechanical abrasion—such as the friction of the crane wheels or the impact of maintenance tools—the underlying steel is exposed to the same corrosive agents. This is particularly dangerous at the "splash zones" near the floor, where wash-down operations introduce moisture and chemicals directly into the column bases. If the base plates are not properly sealed, capillary action draws these chemicals into the connection between the steel and the concrete, leading to hidden corrosion that can only be detected through ultrasonic thickness gauging.

• Implementation of Non-Destructive Testing (NDT) to identify sub-surface voids and section loss in primary beams.
• Assessment of galvanic corrosion at the interface of dissimilar metals, such as steel beams and aluminum cladding.
• Evaluation of the effectiveness of current corrosion inhibitors and the necessity of high-performance polyurea coatings.
• Analysis of weld integrity using Magnetic Particle Inspection (MPI) to find surface-breaking cracks in high-stress zones.

Audit Methodology and Compliance Frameworks

A comprehensive load-bearing audit for the Golden Station facilities must adhere to the most stringent industry standards, specifically those outlined by the Crane Manufacturers Association of America (CMAA) and the American Institute of Steel Construction (AISC). The audit process begins with a "as-built" verification, comparing the current structural state against the original engineering blueprints. This is essential because many facilities have undergone undocumented modifications over decades of service, such as the addition of secondary supports or the alteration of crane capacities, which can invalidate the original safety factors.

The empirical phase of the audit utilizes a combination of laser scanning and load testing. Laser scanning provides a precise 3D map of the runway alignment, identifying any "bowing" or "twisting" that exceeds allowable limits. Following the geometric survey, a controlled load test is performed using calibrated weights to measure the actual deflection of the beams. This real-world data is then fed back into a Finite Element Analysis (FEA) model to simulate the facility's response to maximum rated loads. The final report must provide a clear "pass/fail" metric for each structural member, accompanied by a prioritized remediation schedule to ensure the continued safety of the transit workforce.

• Verification of compliance with CMAA Specification 70 for top-running bridge cranes.
• Calculation of the remaining fatigue life of the steel members based on historical cycle counts.
• Development of a continuous monitoring plan using strain gauges at critical connection points.
• Establishment of a mandatory re-certification interval based on the observed rate of material degradation.

Thermal Dynamics and Coefficient Analysis of Rail Steel

The Lakewood-Wadsworth corridor presents a challenging thermal environment characterized by extreme diurnal and seasonal temperature fluctuations. When managing rail infrastructure across this specific geography, the primary engineering concern is the coefficient of linear thermal expansion (CLTE). For standard carbon steel rails, the CLTE is approximately 11 to 13 microstrains per degree Celsius. In a corridor experiencing a 100-degree Fahrenheit swing, the cumulative longitudinal displacement across a significant span is not merely a marginal variance but a critical structural force that can compromise the entire track geometry if not properly calibrated.

The physics of this expansion are governed by the formula ΔL = αLΔT, where the change in length is a product of the material coefficient, the original length, and the temperature delta. In the context of the Lakewood-Wadsworth corridor, the thermal mass of the rail often exceeds the ambient air temperature due to solar radiation absorption, creating a "rail temperature" that can be 20 to 30 degrees higher than the recorded atmospheric temperature. This phenomenon necessitates a conservative approach to gap calibration, ensuring that the expansion joint is sized for the peak rail temperature rather than the peak ambient temperature.

• Material Hysteresis: The tendency of the rail to not return perfectly to its original length after multiple thermal cycles, leading to gradual creep.
• Solar Gain Factors: The impact of rail color and surface oxidation on the absorption of short-wave radiation.
• Thermal Inertia: The lag time between ambient temperature shifts and the actual internal temperature of the steel rail.
• Modulus of Elasticity: The relationship between stress and strain as the rail attempts to expand against fixed anchors.

Gap Calibration and Neutral Temperature Setting

Calibration of the expansion joint gap requires the establishment of a "Rail Neutral Temperature" (RNT). The RNT is the theoretical temperature at which the rail experiences zero longitudinal stress—neither tension nor compression. For the Lakewood-Wadsworth corridor, the RNT must be mathematically centered within the 100-degree swing to prevent the two most catastrophic failure modes: rail buckling (sun kinks) and pull-aparts.

If the gap is calibrated too narrow during installation, the rail will "bottom out" during the summer peak. When the gap closes completely, the thermal expansion force is converted into lateral pressure. Because the rail is constrained by the sleepers and ballast, this pressure often manifests as a sudden, violent lateral displacement, known as a buckle. Conversely, if the gap is calibrated too wide, the winter contraction can lead to excessive joint opening, which increases the impact load of passing rolling stock, leading to accelerated fatigue in the joint bars and potential fracture of the rail head.

• Zero-Point Calculation: Determining the gap width at the precise installation temperature to ensure equal distribution of expansion and contraction.
• Compression Limits: Establishing the minimum allowable gap to prevent steel-on-steel hard contact during peak thermal expansion.
• Tension Thresholds: Calculating the maximum permissible gap to maintain structural continuity and minimize dynamic impact loads.
• Tolerance Windows: Implementing a ±1/16 inch precision standard for gap measurements across all joint assemblies.

Forensic Analysis of Failure Modes in the Corridor

Forensic audits of the Lakewood-Wadsworth corridor reveal that failure is rarely the result of a single variable, but rather a synergy of thermal stress and substrate instability. In areas where the building envelope of adjacent commercial infrastructure encroaches on the rail right-of-way, we observe "thermal shadowing." This creates localized temperature gradients across a single rail section, inducing a bowing effect known as thermal camber. This camber alters the effective gap width, rendering standard calibration tables inaccurate for those specific segments.

Furthermore, the forensic evidence suggests that the degradation of the ballast shoulder significantly exacerbates thermal failure. When the ballast is fouled or eroded, the lateral resistance is diminished. Under the pressure of a 100-degree swing, the rail is no longer held in place by the friction of the crushed stone, allowing the thermal energy to push the rail out of alignment. This is a classic case of cause-and-effect: thermal expansion provides the force, and ballast degradation provides the opportunity for failure.

• Shear Stress Analysis: Examining the bolt holes of joint bars for elongation, which indicates excessive longitudinal movement.
• Ballast Fouling: The accumulation of fine particles that reduce the drainage and lateral stability of the track bed.
• Thermal Cambering: The longitudinal curving of the rail caused by uneven heating of the web and head.
• Fatigue Striations: Microscopic cracks forming at the joint interface due to repeated high-impact loading during winter contraction.

Mitigation Strategies and Long-term Maintenance Protocols

To ensure the longevity of the infrastructure across the Lakewood-Wadsworth corridor, a transition from reactive maintenance to a predictive, empirical model is required. The implementation of high-precision expansion joints, utilizing specialized alloys with lower CLTE or integrated elastomeric seals, can mitigate the severity of the thermal swing. These seals act as a buffer, maintaining a degree of continuity while allowing for the necessary longitudinal movement without exposing the joint to moisture and corrosive agents.

Long-term stability is further ensured through the deployment of continuous monitoring systems. By installing thermistors directly to the rail web and utilizing laser-gap sensors, engineers can monitor the real-time behavior of the joints. This data allows for "seasonal trimming," where gaps are adjusted during scheduled maintenance windows based on the actual observed thermal behavior of the corridor. This empirical approach removes the guesswork from calibration and ensures that the infrastructure can withstand the full 100-degree variance without compromising safety or operational efficiency.

• Automated Gap Monitoring: Using LiDAR or ultrasonic sensors to track gap width in real-time across critical thermal zones.
• Ballast Stabilization: Implementing chemical stabilizers or mechanical anchors to increase lateral resistance.
• Scheduled Thermal Audits: Conducting quarterly inspections to verify that RNT remains within the design specification.
• Material Upgrades: Transitioning to premium-grade manganese steel or specialized joint assemblies to reduce wear and tear.

Electrochemical Mechanisms of Steel Degradation in Concrete Matrices

The structural integrity of the Littleton Downtown Station relies heavily on the performance of embedded steel tie rods, which provide essential lateral stability and tensioning. The primary threat to these elements is the electrochemical process of corrosion, which occurs when the protective passive layer of the steel is compromised. In a healthy concrete environment, the high alkalinity—typically maintaining a pH between 12.5 and 13.5—promotes the formation of a dense gamma-ferric oxide film on the steel surface. This passivation layer acts as a kinetic barrier, preventing the oxidation of iron.

Degradation typically initiates through two primary mechanisms: carbonation and chloride ingress. Carbonation occurs when atmospheric carbon dioxide penetrates the concrete pores, reacting with calcium hydroxide to lower the pH to approximately 9.0. Once this carbonation front reaches the depth of the tie rod, the passive layer dissolves, leaving the steel vulnerable to uniform corrosion. However, in transit environments like the Littleton Station, chloride-induced pitting is the more aggressive threat. Chloride ions from de-icing salts penetrate the concrete via capillary action and diffusion, accumulating at the steel-concrete interface.

• Chloride Threshold: The critical concentration of chloride ions required to initiate pitting, regardless of the pH level.
• Anodic Reaction: The oxidation of iron (Fe → Fe2+ + 2e-), leading to material loss and a reduction in the cross-sectional area of the tie rod.
• Cathodic Reaction: The reduction of oxygen and water, which completes the electrical circuit and sustains the corrosion cell.
• Volumetric Expansion: The conversion of steel to rust increases the volume of the material by 2 to 6 times, generating internal tensile stresses that lead to concrete spalling.

Sensor Integration and Monitoring Methodologies

To ensure the longevity of the Littleton Downtown Station infrastructure, a sophisticated monitoring array is required to detect corrosion before visible cracking occurs. The industry standard for this application is the deployment of embedded sensors that measure electrochemical potential and resistivity. By utilizing Half-Cell Potential (HCP) mapping, engineers can determine the probability of active corrosion occurring at specific locations along the tie rod. This involves measuring the potential difference between the embedded steel and a reference electrode, such as a saturated copper-copper sulfate (Cu/CuSO4) probe.

For a more precise quantification of the corrosion rate, Linear Polarization Resistance (LPR) is employed. Unlike HCP, which indicates the likelihood of corrosion, LPR provides the instantaneous corrosion current density (iCorr). This data allows technical analysts to calculate the actual loss of steel thickness over time, enabling a shift from schedule-based maintenance to condition-based maintenance. The integration of these sensors must be performed with extreme precision to avoid creating preferential pathways for moisture ingress, which would inadvertently accelerate the degradation they are meant to monitor.

• Embedded Reference Electrodes: Permanent sensors cast into the concrete to provide continuous data streams without requiring surface access.
• Electrical Resistivity Testing: Measuring the concrete's ability to resist current flow, which serves as a proxy for moisture content and chloride concentration.
• Data Acquisition Systems (DAQ): High-impedance systems that filter out electromagnetic interference from station power grids to ensure signal purity.
• Time-to-Corrosion Analysis: The calculation of the duration between the initial pour and the moment the chloride threshold is reached at the reinforcement depth.

Site-Specific Vulnerabilities at Littleton Downtown Station

The Littleton Downtown Station presents a unique set of forensic challenges due to its exposure to extreme seasonal temperature fluctuations and high-volume pedestrian and vehicular traffic. The building envelope forensics indicate that the primary points of failure are located near expansion joints and drainage interfaces. In these zones, the concrete is subject to increased moisture saturation, which increases the conductivity of the matrix and accelerates the movement of ions toward the tie rods.

Furthermore, the station's proximity to road salts used during winter months creates a constant supply of chloride ions. These ions migrate through the concrete cover via a process known as diffusion, accelerated by the freeze-thaw cycles that create micro-cracks in the cementitious matrix. These micro-cracks act as high-speed conduits, bypassing the slow diffusion process and delivering chlorides directly to the steel. The tie rods, being critical tension members, are particularly sensitive to pitting corrosion, as a single deep pit can significantly reduce the effective load-bearing capacity and introduce stress concentrators that lead to sudden brittle failure.

• Capillary Suction: The process by which water is drawn into the concrete from the surface, carrying dissolved salts into the structure.
• Thermal Cycling: The expansion and contraction of the concrete and steel at different rates, which can lead to debonding at the interface.
• Joint Sealant Failure: The degradation of elastomeric seals that allows salt-laden water to pool directly above embedded steel components.
• Oxygen Availability: The high porosity of surface-level concrete that provides the necessary oxygen to fuel the cathodic reaction.

Predictive Modeling and Mitigation Strategies

The final stage of the engineering analysis involves the application of predictive modeling to forecast the remaining service life of the tie rods. By integrating the empirical data from the LPR and HCP sensors into a finite element analysis (FEA) model, engineers can simulate various degradation scenarios. This allows for the determination of the "critical time" when the structural capacity will fall below the required safety factor. The goal is to implement mitigation strategies well before the tie rods reach a state of critical section loss.

To arrest active corrosion, the implementation of Cathodic Protection (CP) is the most effective technical intervention. Impressed Current Cathodic Protection (ICCP) involves applying an external DC current to the steel, forcing it to remain in a cathodic state and preventing the oxidation reaction. For areas with lower risk, sacrificial anodes—typically made of zinc or magnesium—can be installed. These anodes have a more negative electrochemical potential than the steel, ensuring that the anode corrodes preferentially while the tie rod remains protected. This proactive approach transforms the infrastructure from a passive asset into an actively managed system, ensuring the long-term safety of the Littleton Downtown Station.

• Impressed Current Cathodic Protection (ICCP): An active system using an external power source to shift the potential of the steel into the immunity zone.
• Sacrificial Anodes: Galvanic protection that utilizes the natural potential difference between two metals to prevent steel oxidation.
• Migrating Corrosion Inhibitors (MCIs): Chemical admixtures that penetrate the concrete to form a protective film on the steel surface.
• Life-Cycle Cost Analysis (LCCA): The evaluation of the cost of continuous monitoring versus the catastrophic cost of structural replacement.

Hydrological Modeling and Front Range Precipitation Dynamics

The sizing of stormwater detention vaults within the Lone Tree City Center Transit corridor requires a rigorous application of the Rational Method and the NRCS TR-55 methodology to account for the extreme volatility of Front Range precipitation. In this region, the 100-year storm event is characterized by high-intensity, short-duration bursts that frequently overwhelm standard municipal drainage capacities. The primary engineering challenge lies in the "flashy" nature of these events, where the time of concentration is significantly reduced due to the high percentage of impervious surfaces associated with transit-oriented development.

To establish an empirical baseline, analysts must utilize the most recent NOAA Atlas 14 Intensity-Duration-Frequency (IDF) curves. For the Lone Tree area, the 100-year, 24-hour event serves as the critical design storm. However, the peak flow rate is often dictated by the 1-hour or 2-hour intensity peaks, which can lead to catastrophic surcharging if the vault's inlet capacity is undersized. The calculation of the peak runoff rate (Q) is governed by the formula Q = CiA, where C represents the runoff coefficient, i represents rainfall intensity, and A represents the drainage area.

• Time of Concentration (Tc): The duration required for water to travel from the hydraulically most distant point of the catchment to the vault inlet.
• IDF Curve Integration: Mapping the 100-year return period against the specific coordinates of the transit center to determine peak rainfall intensity.
• Saturated Soil Antecedent: Accounting for the "saturated" condition of the remaining green spaces, which effectively increases the runoff coefficient during prolonged storm events.
• Catchment Delineation: Precise mapping of sub-basins to ensure that no "blind spots" in the drainage area contribute to unexpected vault overtopping.

Impervious Surface Coefficients and Transit-Oriented Development Impact

The Lone Tree City Center Transit area is characterized by a high density of impervious surfaces, including reinforced concrete plazas, asphalt parking structures, and extensive commercial roofing systems. From a forensic engineering perspective, the runoff coefficient (C) for these surfaces typically ranges from 0.90 to 0.95, meaning nearly all precipitation is converted into immediate surface runoff. This lack of infiltration necessitates a detention volume that can handle the total cumulative volume of the storm event without relying on soil absorption.

Special consideration must be given to the building envelope and roofing systems. Commercial roofing, particularly when utilizing TPO or EPDM membranes, exhibits zero permeability. In a transit center environment, these roofs often act as massive collectors that funnel water into internal leaders and downspouts. If these leaders are not sized for the 100-year event, the resulting "internal flooding" can lead to building envelope failure and structural water intrusion long before the detention vault reaches capacity.

• Concrete and Asphalt: Assigned a C-value of 0.95, necessitating maximum detention volume.
• Transit Platforms: High-slope surfaces that accelerate the time of concentration, increasing the peak flow velocity.
• Roofing Systems: Primary contributors to initial surge volumes; require oversized scuppers and overflow drains to prevent ponding.
• Green Infrastructure: The strategic use of bioswales to reduce the C-value of peripheral areas, thereby lowering the total required vault volume.

Vault Geometry, Structural Integrity, and Buoyancy Considerations

The physical engineering of the detention vault must balance volumetric capacity with the structural loads imposed by the transit center's overhead infrastructure. Precast modular concrete vaults are the industry standard for these applications due to their predictable load-bearing capacities and rapid installation. However, the geometry of the vault must be optimized to prevent "dead zones" where sediment can accumulate, which effectively reduces the available storage volume over time.

A critical forensic concern in the Front Range is hydrostatic uplift, or buoyancy. During a 100-year event, the surrounding soil becomes saturated, creating an upward buoyant force on the vault. If the weight of the concrete and the superimposed dead load of the transit center are insufficient to counteract this force, the vault can "float," leading to catastrophic shearing of the inlet/outlet pipes and total structural failure. Engineers must calculate the buoyancy force using the displaced volume of water and ensure a safety factor of at least 1.5.

• Precast Modularity: Utilizing interlocking concrete cells to create a scalable volume that fits within the restricted footprint of the transit corridor.
• Hydrostatic Uplift Mitigation: Implementation of anti-flotation slabs or mechanical anchors to secure the vault against buoyant forces.
• Slab-on-Grade Loading: Ensuring the vault roof can withstand H-20 traffic loading from transit buses and emergency vehicles.
• Internal Coating: Application of crystalline waterproofing or epoxy liners to prevent groundwater infiltration and protect the surrounding soil from leachate.

Discharge Regulation and Long-term Forensic Maintenance

The final stage of the stormwater system is the controlled release of captured water into the municipal storm sewer or a natural waterway. The goal is to attenuate the peak flow, releasing water at a rate that does not exceed the pre-development runoff rate. This is typically achieved through a combination of orifice plates and weir structures. The sizing of the discharge orifice is a critical calculation; if it is too small, the vault will overtop during the 100-year event; if it is too large, the system fails to provide the necessary detention, potentially violating city ordinances.

From a long-term maintenance perspective, the primary failure mode for these systems is the accumulation of sediment and debris. In a transit environment, sand, salt, and urban detritus are frequently carried into the vault. Without a dedicated sediment forebay or a regular cleaning schedule, the effective volume of the vault is diminished. Forensic analysis of failed systems often reveals that the "100-year" failure was actually caused by a 20% reduction in volume due to siltation, meaning the system failed at a 70-year event threshold.

• Orifice Plate Calibration: Precision drilling of discharge plates to ensure a linear release rate that matches the downstream capacity.
• Sediment Forebays: The installation of a primary settling chamber to capture heavy solids before they enter the main detention cells.

Regulatory Framework and Fluid Dynamic Principles of Stairwell Pressurization

The primary objective of stairwell pressurization within the Denver International Airport (DIA) concourse architecture is the maintenance of a smoke-free refuge for passengers and personnel during a catastrophic fire event. From a technical standpoint, this is achieved by creating a positive pressure differential between the stairwell enclosure and the adjacent floor areas. This differential prevents the infiltration of toxic combustion products and heat, ensuring that the egress path remains tenable. The engineering standard for these systems is governed largely by NFPA 92, the Standard for Smoke Control Systems, and the International Building Code (IBC), which mandate specific pressure gradients to ensure both smoke exclusion and the ability of occupants to physically open exit doors.

In the context of the DIA concourse line, the scale of the infrastructure introduces significant volumetric challenges. The fans must deliver a precise volume of air to overcome the inherent leakage of the building envelope while maintaining a pressure differential typically ranging from 0.05 to 0.20 inches water gauge (w.g.) relative to the occupied space. If the pressure is too low, smoke penetrates the stairwell; if it is too high, the force required to open the door exceeds the limits set by ADA and NFPA guidelines, potentially trapping occupants. The balance is a delicate equilibrium of pneumatic stability and mechanical reliability.

• Maintenance of a positive pressure gradient to inhibit smoke migration.
• Prevention of "door-force" exceedance to ensure rapid evacuation.
• Integration with the Fire Alarm Control Panel (FACP) for automated activation.
• Compensation for the "stack effect" common in multi-story aviation infrastructure.

Field Testing Methodology and Instrumentation Protocols

Validating the performance of pressurization fans across the concourse line requires a rigorous, empirical approach. The testing sequence begins with a baseline "static" test, where all doors are closed to determine the maximum pressure the system can generate. This is followed by "dynamic" testing, which simulates various failure modes, such as the opening of a primary exit door or the failure of a specific fan unit. The precision of these tests depends entirely on the quality of the instrumentation used; digital manometers with high-resolution transducers are required to capture the minute fluctuations in pressure that indicate a breach in the envelope.

The testing process is conducted in a phased approach across the concourse line to ensure that the interaction between different HVAC zones does not skew the results. Technicians must measure the pressure at the most remote points of the stairwell—typically the highest level—to verify that the pressure gradient is maintained throughout the vertical shaft. This ensures that the "chimney effect," where hot air rises and creates negative pressure at lower levels, is adequately countered by the mechanical supply fans.

• Deployment of calibrated digital manometers for differential pressure readings.
• Execution of "Door-Open" simulations to verify the system's ability to maintain minimum pressure.
• Verification of Variable Frequency Drive (VFD) response times during fan ramp-up.
• Measurement of air velocity at supply grilles using hot-wire anemometers.

Building Envelope Forensics and Leakage Analysis

A critical component of the pressurization failure analysis is the forensic evaluation of the building envelope. In a theoretical model, a stairwell is a sealed vessel; in reality, it is a porous structure. Leakage occurs at door seals, utility penetrations, expansion joints, and the interface between the stairwell walls and the floor slabs. In the DIA concourse, the sheer length of the facility means that cumulative leakage can significantly degrade the effectiveness of the pressurization fans. If the "leakage area" exceeds the design parameters, the fans may run at maximum capacity without ever reaching the required pressure setpoint.

Forensic analysis involves the use of smoke pencils or ultrasonic leak detectors to identify specific points of air escape. When a stairwell fails to maintain pressure, the analyst must determine if the failure is mechanical (fan malfunction) or structural (envelope breach). Often, the issue is found in the degradation of door gaskets or the improper sealing of electrical conduits that penetrate the stairwell boundary. This "envelope forensics" approach allows engineers to move beyond simple fan adjustments and address the root cause of the pressure loss.

• Identification of uncontrolled air paths through utility penetrations.
• Analysis of door seal compression and wear patterns.
• Evaluation of the impact of architectural expansion joints on airtightness.
• Calculation of the actual versus design leakage area (Cfm per square foot).

Remediation Strategies and Long-Term Maintenance Protocols

Once the testing phase identifies a deficiency, remediation must be targeted and systemic. For systems where the pressure is insufficient despite the fans operating at peak capacity, the primary solution is the sealing of the envelope. This involves the application of high-grade fire-rated sealants to all penetrations and the replacement of worn door sweeps and gaskets. In cases where the pressure is too high, the remediation involves recalibrating the VFDs or adjusting the dampers to modulate the airflow. The goal is to achieve a "flat" pressure profile that remains consistent regardless of the number of open doors in the system.

Long-term reliability is ensured through a strict preventative maintenance schedule. Pressurization fans are subject to mechanical wear, and the building envelope is subject to settlement and vibration. Therefore, quarterly inspections and annual full-scale tests are mandatory. These protocols include the lubrication of fan bearings, the cleaning of intake filters to prevent volumetric flow reduction, and the verification of the communication link between the smoke detectors and the fan starters. By treating the pressurization system as a living component of the building's life-safety infrastructure, the risk of failure during a real-world emergency is minimized.

• Implementation of fire-rated sealant programs for all stairwell penetrations.
• Recalibration of VFD setpoints to optimize the pressure-to-door-force ratio.
• Installation of permanent pressure transducers for real-time monitoring.
• Establishment of a biannual certification cycle for all life-safety fan assemblies.

Regulatory Framework and Tier 4 Compliance Parameters

The implementation of Tier 4 emission standards for diesel-electric commuter locomotives operating across the I-25 South Commuter Bypass represents a critical shift in environmental engineering. Unlike previous iterations, Tier 4 mandates a drastic reduction in nitrogen oxides (NOx) and particulate matter (PM), requiring a holistic redesign of the exhaust gas treatment system. The primary objective is the mitigation of ground-level ozone and smog precursors, which are particularly concentrated in the high-traffic corridors of the I-25 bypass. For commuter rail applications, the challenge is compounded by the "stop-and-go" duty cycle, which prevents the engine from maintaining a consistent thermal equilibrium, thereby complicating the efficiency of after-treatment systems.

To achieve compliance, locomotives must utilize a combination of advanced engine calibrations and external hardware. The regulatory threshold requires a significant percentage reduction in NOx compared to Tier 3 standards, forcing a move toward leaner combustion and higher peak cylinder pressures. However, these adjustments often lead to an increase in PM, necessitating a secondary filtration stage. The engineering focus on the I-25 corridor emphasizes the "worst-case" operational scenario: heavy acceleration during passenger boarding and idling during signal delays, both of which can lead to "cold-spotting" in the catalyst.

• EPA Tier 4 Final standards requiring near-zero particulate matter emissions.
• Mandatory integration of Selective Catalytic Reduction (SCR) for NOx control.
• Strict limits on Diesel Particulate Filter (DPF) pressure drops to maintain engine volumetric efficiency.
• Requirement for onboard diagnostics (OBD) to monitor urea dosing accuracy in real-time.

SCR and DPF Integration and Chemical Kinetics

The core of the Tier 4 emission control strategy is the integration of Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF). The SCR system operates by injecting a Diesel Exhaust Fluid (DEF), primarily a urea solution, into the exhaust stream upstream of the catalyst. This urea undergoes thermal decomposition and hydrolysis, producing ammonia (NH3), which then reacts with NOx in the presence of a catalyst—typically a vanadium or zeolite-based substrate. The resulting chemical reaction converts NOx into diatomic nitrogen (N2) and water vapor (H2O), effectively neutralizing the pollutants without producing secondary harmful byproducts.

Simultaneously, the DPF serves as a physical barrier to soot and metallic ash. The filter utilizes a wall-flow monolith design, where the exhaust gas is forced through porous ceramic walls, trapping particulate matter while allowing gases to pass. Because the DPF eventually becomes saturated, a process known as "regeneration" is required. This involves raising the exhaust temperature to a point where the trapped carbon is oxidized and converted into CO2. In the context of the I-25 South Bypass, the frequent idling of commuter trains necessitates "active regeneration," where additional fuel is injected into the cylinder to increase exhaust temperatures artificially.

• Stoichiometric balance of urea injection to prevent "ammonia slip" into the atmosphere.
• Utilization of cordierite or silicon carbide substrates for high-temperature durability.
• Management of backpressure to prevent turbocharger surge and excessive cylinder head stress.
• Implementation of oxidation catalysts to convert NO to NO2, enhancing the DPF's passive regeneration.

Operational Impact on Bypass Infrastructure and Thermal Loading

From a structural and infrastructure perspective, the transition to Tier 4 locomotives introduces new variables to the I-25 South Commuter Bypass. The added weight of the SCR tanks, DEF dosing systems, and the heavy-duty DPF canisters shifts the center of gravity and increases the axle load of the locomotive. This necessitates a forensic analysis of the rail bed and bridge abutments to ensure that the increased static and dynamic loads do not accelerate the fatigue of the concrete sleepers or the steel girders of the overpasses. The increased mass, while marginal per unit, becomes significant when calculating the cumulative tonnage across a high-frequency commuter schedule.

Furthermore, the thermal profile of a Tier 4 locomotive differs significantly from older models. The active regeneration cycles of the DPF produce intense localized heat signatures. When locomotives idle on bridges or within confined bypass underpasses, this heat can contribute to the thermal degradation of surrounding infrastructure coatings and joint sealants. The emission of high-temperature exhaust gases, combined with the chemical nature of urea slip, can potentially accelerate the carbonation of concrete surfaces in immediate proximity to the rail line, leading to premature spalling or reinforcement corrosion if not properly managed.

• Analysis of axle load distribution to prevent premature ballast degradation.
• Monitoring of thermal plumes during active DPF regeneration cycles.
• Assessment of chemical interaction between urea vapors and concrete infrastructure.
• Evaluation of vibration harmonics caused by modified exhaust backpressure.

Empirical Performance Analysis and Lifecycle Costing

The empirical data gathered from the I-25 South corridor indicates that while NOx emissions are reduced by over 90%, there is a measurable impact on fuel economy and maintenance intervals. The increased backpressure inherent in the DPF system forces the engine to work harder to expel exhaust gases, resulting in a slight decrease in overall thermal efficiency. Furthermore, the reliance on DEF introduces a new logistical layer to fleet management; the purity of the urea solution is paramount, as contaminants such as sulfur or oil can "poison" the SCR catalyst, permanently reducing its efficiency and requiring costly substrate replacement.

Lifecycle cost analysis reveals that the initial capital expenditure for Tier 4 equipment is offset by the reduction in environmental penalties and the potential for "green" subsidies. However, the operational expenditure (OPEX) increases due to the cost of DEF and the requirement for specialized cleaning of the DPF every 200,000 to 500,000 miles. To optimize the lifecycle, engineers are implementing predictive maintenance algorithms that monitor the pressure differential across the DPF, allowing for regeneration cycles to be scheduled during non-peak hours, thereby avoiding power dips during critical acceleration phases of the commuter route.

• Measured reduction in NOx concentrations across the bypass corridor.
• Quantified increase in DEF consumption relative to passenger load factors.
• Analysis of catalyst degradation rates in high-sulfur fuel environments.
• Comparison of Tier 4 maintenance cycles versus legacy Tier 3 operational costs.

Methodology of Physical Track Geometry Assessment

The fundamental integrity of the Peoria Station Commuter Transfer relies upon the precise maintenance of track geometry, which governs the spatial relationship between the two running rails. A physical inspection of this nature requires a rigorous adherence to AREMA (American Railway Engineering and Maintenance-of-Way Association) standards to ensure passenger safety and operational efficiency. The primary objective is to identify deviations in gauge, cross-level, and alignment that could lead to hunting oscillations or, in extreme cases, derailment. Physical assessment begins with the deployment of calibrated track gauges and chord-based measurement tools to establish a baseline of the current state of the permanent way.

The analysis focuses on the longitudinal and transverse planes. Longitudinal alignment refers to the smoothness of the rail in the direction of travel, while transverse alignment focuses on the consistency of the gauge and the level of the rails relative to one another. In a high-traffic commuter hub like Peoria Station, the constant cycle of braking and acceleration introduces significant shear forces into the ballast and subgrade, often resulting in differential settlement. This settlement manifests as "dips" or "heaves" in the track profile, which must be quantified through precise physical measurement to determine if the deviation exceeds the allowable safety threshold for the specific class of track.

• Gauge Width Analysis: Measuring the distance between the gauge faces of the rails to ensure it remains within the nominal 56.5 inches with minimal variance.
• Cross-Level Verification: Assessing the relative height of the two rails to ensure proper superelevation in curves and a level plane on tangents.
• Alignment Deviation: Identifying lateral shifts in the rail string that create abrupt changes in direction, measured over a specific chord length.
• Surface Profile Mapping: Evaluating the vertical consistency of the rail head to eliminate "bumps" that cause dynamic loading on rolling stock.

Laser Profiling and High-Resolution Spatial Analysis

While physical gauging provides a necessary baseline, laser profiling audits introduce a layer of empirical precision that is unattainable through manual means. The implementation of laser-based profiling at the Peoria Station involves the use of high-frequency laser scanners and LiDAR (Light Detection and Ranging) systems. These systems project a laser line across the rail head, capturing thousands of data points per second to create a high-resolution 3D profile of the rail geometry. This process allows for the detection of rail head wear, vertical wear, and side wear with micron-level accuracy, providing a comprehensive "digital twin" of the track infrastructure.

The critical advantage of laser profiling is its ability to analyze the rail profile's deviation from the theoretical design profile. By overlaying the captured data onto the original engineering specifications, analysts can pinpoint exactly where the rail has undergone plastic deformation or abrasive wear. In the context of the Peoria transfer, this is particularly vital at the points of entry and exit for the platforms, where the interaction between the wheel flange and the rail is most intense. The laser audit identifies "corrugation"—small-scale periodic waves on the rail surface—which, if left untreated, increases noise pollution and accelerates the fatigue of the rail fasteners and sleepers.

• Rail Head Wear Quantification: Measuring the loss of metal from the crown and gauge corners to determine the remaining service life of the asset.
• Transverse Profile Analysis: Evaluating the slope and curvature of the rail head to ensure optimal wheel-rail contact.
• Longitudinal Wave Detection: Utilizing laser interferometry to identify long-period irregularities that affect ride quality and stability.
• Automated Deviation Reporting: Generating heat maps that visually represent areas of critical wear across the entire transfer facility.

Forensic Analysis of the Peoria Station Transfer Interface

The Peoria Station Commuter Transfer represents a complex interface where multiple track geometries converge, including switches, crossings, and platform-adjacent running rails. Forensic analysis of this area reveals that the most significant stressors occur at the Switch and Crossing (S&C) components. The geometric complexity of a switch—where the rail diverges—creates a point of high concentrated stress. Laser profiling in these zones often reveals "flattening" of the rail head due to the impact loads of wheels transitioning from the stock rail to the switch rail. This forensic approach allows engineers to correlate the physical wear patterns with the operational frequency of the commuter lines.

Furthermore, the interaction between the track and the platform edge is a critical safety concern. The "gap" between the train and the platform must be kept within a strict tolerance to prevent passenger injury and ensure efficient boarding. Forensic auditing involves measuring the lateral displacement of the rail relative to the platform coping stones. If the track shifts laterally due to thermal expansion or ballast degradation, the gap may widen or narrow beyond acceptable limits. The analysis must also account for the "cant" or tilt of the track, as any unplanned rotation of the rail can alter the center of gravity of the rolling stock during the boarding process.

• S&C Component Stress Mapping: Analyzing the wear on the frog and switch points to prevent derailment risks.
• Platform Interface Auditing: Measuring the precise distance from the rail head to the platform edge to ensure ADA compliance and safety.
• Thermal Expansion Analysis: Evaluating the effectiveness of expansion joints and the stability of Continuously Welded Rail (CWR) during extreme temperature swings.
• Ballast Fouling Assessment: Examining the drainage and cleanliness of the ballast shoulder to ensure the track maintains its designed geometry.

Predictive Maintenance Framework and Structural Remediation

The culmination of the physical inspection and laser profiling is the development of a predictive maintenance framework. Rather than relying on reactive repairs, the data gathered from the Peoria Station audits allows for the implementation of a "condition-based" maintenance strategy. By analyzing the rate of wear—the delta between two laser audits—engineers can predict when a specific section of track will reach its wear limit. This allows for the scheduling of rail grinding and tamping operations during low-traffic windows, minimizing disruption to the commuter network while maximizing the lifespan of the infrastructure.

Remediation efforts are prioritized based on the severity of the geometric deviation. For areas exhibiting significant alignment issues, "tamping" is employed to redistribute the ballast and restore the correct cross-level and longitudinal profile. In cases where laser profiling reveals excessive rail head wear or corrugation, precision grinding is utilized to restore the rail to its original profile, thereby reducing the dynamic loads on the track bed. The final stage of the audit process is the verification phase, where the laser profiling system is run again to confirm that the remediation has brought the track back within the specified engineering tolerances.

• Targeted Rail Grinding: Removing surface defects and restoring the rail profile to reduce vibration and

Mechanical Fundamentals of Catenary Tensioning and Load Distribution

The structural integrity of the Overhead Contact System (OCS) across the Decatur-Federal Stadium line relies upon a precise equilibrium between longitudinal tension and vertical stability. In a high-capacity transit corridor, the catenary system must maintain a constant contact wire height to ensure the pantograph of the rolling stock remains engaged without inducing excessive mechanical wear or catastrophic detachment. The primary engineering challenge lies in the management of the messenger wire and the contact wire, which together form the catenary curve. The messenger wire provides the primary support, while the contact wire is suspended via droppers of varying lengths to achieve a near-perfect horizontal plane.

Tensioning is not a static state but a dynamic requirement. To prevent the wires from sagging under their own weight or snapping under extreme cold, the system employs a combination of fixed anchor points and tensioning devices. The tension must be calibrated to counteract the gravitational load of the copper alloy while remaining below the elastic limit of the material to avoid permanent deformation. On the Decatur-Federal Stadium line, the high frequency of vehicle passage introduces harmonic vibrations that can lead to fatigue at the support clamps, necessitating a tensioning strategy that dampens oscillation while maintaining a rigid geometry.

• Application of hard-drawn copper (Cu-ETP) for the contact wire to maximize electrical conductivity and tensile strength.
• Utilization of high-tensile steel or bronze alloys for messenger wires to reduce overall elongation.
• Implementation of precise dropper spacing to minimize the "sag-and-rise" effect between support masts.
• Calibration of tensioning weights to ensure a constant force regardless of the wire's longitudinal position.

Thermal Expansion and the Dynamics of Sag

The Decatur-Federal Stadium corridor is subject to significant diurnal and seasonal temperature fluctuations, which introduce a critical variable: the Coefficient of Thermal Expansion (CTE). As ambient temperatures rise, the metallic conductors expand linearly. In a fixed-length system, this expansion manifests as an increase in the catenary sag, effectively lowering the contact wire height. If the sag exceeds the operational tolerance of the pantograph, the result is a loss of contact, leading to electrical arcing, pitting of the wire, and potential power interruptions.

Conversely, extreme cold causes the wires to contract, which increases the longitudinal tension. Without a mitigation system, this contraction can exert forces on the support masts and cantilever arms that exceed their design load, potentially leading to structural failure of the support infrastructure. The relationship between temperature and sag is non-linear; as the wire reaches its maximum extension, the vertical displacement increases exponentially relative to the temperature rise. This phenomenon is particularly acute in the open-air sections of the line where solar radiation adds a thermal load beyond the ambient air temperature, a condition known as solar gain.

• Calculation of thermal elongation using the formula $\Delta L = \alpha L \Delta T$, where $\alpha$ represents the material's thermal expansion coefficient.
• Analysis of "critical sag" thresholds where the contact wire drops below the minimum permissible height for safe pantograph operation.
• Evaluation of the "hard-spot" effect occurring at fixed anchor points during extreme contraction.
• Monitoring of the temperature-induced variance in electrical resistance across the line.

Mechanical Mitigation and Automatic Tensioning Systems

To neutralize the effects of thermal expansion and contraction, the Decatur-Federal Stadium line utilizes Automatic Tensioning Devices (ATDs). These systems typically consist of a balance weight assembly suspended via a pulley system. As the wire expands due to heat, the balance weights descend, providing a constant tension that "takes up" the slack. When the wire contracts in the cold, the weights rise, preventing the tension from spiking to dangerous levels. This mechanism ensures that the contact wire remains within a narrow vertical tolerance regardless of the environmental conditions.

The engineering of these ATDs requires a meticulous selection of weight masses and pulley efficiencies. If the weights are too heavy, they may cause the wire to over-tension during moderate temperature drops; if too light, they will fail to prevent sag during heatwaves. Furthermore, the integration of spring-loaded tensioners in shorter spans provides a secondary layer of damping, absorbing the sudden shocks caused by the acceleration and deceleration of heavy rail vehicles. This dual-stage tensioning approach minimizes the longitudinal "wave" effect that travels through the wire during train passage.

• Installation of constant-tension balance weights calibrated to the specific linear mass of the copper alloys used.
• Integration of heavy-duty rollers and pulleys with low-friction bearings to ensure smooth transition during thermal shifts.
• Deployment of spring-loaded compensation devices to mitigate transient dynamic loads.
• Use of precision-engineered clamps that allow for longitudinal sliding while maintaining vertical rigidity.

Forensic Analysis and Long-term Structural Integrity

From a forensic engineering perspective, the longevity of the catenary system is determined by the management of fatigue and wear. The interface between the pantograph and the contact wire is a zone of constant friction and electrical discharge. Over time, the contact wire undergoes "grooving," where the physical wearing away of the copper reduces the cross-sectional area of the wire. This reduction in mass increases the electrical resistance and alters the tensioning characteristics of the span, as a thinner wire has a different response to thermal loads.

Regular forensic audits of the Decatur-Federal Stadium line involve ultrasonic testing and laser profiling to detect internal strand failures and external wear patterns. Engineers analyze the "galloping" effect—low-frequency, high-amplitude oscillations caused by wind loading—which can lead to fatigue failure at the support points. The goal is to identify the onset of work-hardening in the copper, which makes the wire brittle and prone to sudden snapping. By correlating wear data with tensioning logs, the authority can implement a predictive maintenance schedule, replacing sections of the wire before they reach a critical state of degradation.

• Utilization of laser-based geometry cars to map the contact wire height and stagger with millimeter precision.
• Analysis of wear patterns to determine if pantograph pressure is improperly calibrated.
• Inspection of support masts for signs of longitudinal stress or leaning caused by uneven tensioning.
• Evaluation of the corrosion rates of the support hardware in urban environments to prevent galvanic failure.

System Architecture and Signal Propagation Parameters

The implementation of Positive Train Control (PTC) fiber signaling across the Table Mesa Park-n-Ride corridor necessitates a rigorous adherence to deterministic latency and high-availability standards. At its core, the PTC system functions as a safety-critical overlay, designed to prevent train-to-train collisions and over-speed derailments. The fiber optic backbone serves as the primary medium for transmitting critical telemetry between the wayside interface units (WIUs), the onboard locomotive computers, and the centralized dispatching office. Given the high volume of commuter traffic and the strategic importance of the Table Mesa node, the signal propagation must be optimized to eliminate electromagnetic interference (EMI) common in electrified rail environments.

The physical layer utilizes single-mode fiber (SMF) to ensure minimal attenuation over the required distance, providing the necessary bandwidth for real-time data packets. The architecture is designed around a high-reliability optical transport network that prioritizes packet delivery through a prioritized Quality of Service (QoS) framework. To maintain signal integrity, the engineering specifications mandate a maximum allowable loss budget that accounts for every splice, connector, and patch panel. Any deviation in the decibel (dB) loss profile can lead to increased bit error rates (BER), which in a PTC environment, could trigger a "fail-safe" state, resulting in unnecessary train stoppages and systemic delays.

• Single-mode fiber (SMF) deployment to minimize modal dispersion.
• Implementation of Dense Wavelength Division Multiplexing (DWDM) to increase channel capacity without adding physical cable.
• Strict adherence to IEEE 802.3 standards for Ethernet signaling over fiber.
• Utilization of industrial-grade SFP+ modules rated for extended temperature ranges.

Environmental Stressors and Forensic Vulnerabilities

From a forensic engineering perspective, the Table Mesa Park-n-Ride infrastructure is subject to significant environmental stressors that can compromise the integrity of the fiber signaling path. The primary concern is the interaction between the subterranean conduit system and the surrounding soil composition. In regions characterized by expansive clays or fluctuating water tables, soil subsidence can exert uneven mechanical pressure on the conduits, leading to micro-bends in the fiber. These micro-bends cause signal leakage and increased attenuation, which may not result in immediate failure but degrade the system's overall resilience.

Furthermore, the building envelope and entry points where the fiber transitions from subterranean conduits to the signal bungalows represent critical points of failure. Water ingress, often driven by the "chimney effect" within conduits, can lead to the degradation of cable jackets and the corrosion of splice trays. Forensic analysis of similar installations reveals that inadequate sealing at the conduit entry points often leads to moisture accumulation, which facilitates the growth of fungi or the crystallization of salts, both of which can physically compromise the fiber cladding over a multi-year lifecycle. The vibration induced by heavy freight and passenger rail traffic also introduces cyclic loading on the splice points, necessitating the use of vibration-dampening mounts for all termination hardware.

• Thermal cycling of conduits leading to longitudinal expansion and contraction of the cable.
• Hydrostatic pressure causing water infiltration in non-sealed manholes and pull-boxes.
• Mechanical stress induced by rail-borne vibrations affecting fusion splice stability.
• Chemical degradation of outer jackets due to soil alkalinity and groundwater contaminants.

Redundancy Topology and Failover Protocols

To mitigate the risk of a "single point of failure," the Table Mesa Park-n-Ride signaling network employs a geographically diverse redundant topology. Rather than a simple linear run, the system utilizes a physical ring architecture, often referred to as a self-healing ring. This configuration ensures that if a cable is severed—whether by accidental excavation (backhoe fade) or environmental collapse—the network can automatically reroute traffic in the opposite direction. The failover mechanism is governed by Automatic Protection Switching (APS), which monitors the light levels of the primary path and triggers a switch to the redundant path within milliseconds of a detected loss of signal (LOS).

The redundancy strategy extends beyond the physical cable to the logical layer. Dual-homing techniques are employed at the wayside interface units, ensuring that each node has two distinct physical paths back to the core switch. This "A-side" and "B-side" routing is physically separated by a minimum distance to ensure that a single localized event, such as a fire or a structural collapse at the Park-n-Ride facility, cannot incapacitate both signaling paths simultaneously. The latency introduced by the rerouted path is carefully calculated to remain within the strict timing windows required by the PTC safety logic, ensuring that the train's onboard computer receives braking commands without perceptible delay.

• Implementation of a physical ring topology to enable bidirectional traffic flow.
• Deployment of Automatic Protection Switching (APS) for sub-50ms failover times.
• Geographic diversity of cable routing to prevent common-mode failures.
• Use of redundant power supplies and Uninterruptible Power Supplies (UPS) at all signal bungalows.

Long-term Maintenance and Forensic Validation

The long-term viability of the PTC fiber network depends on a rigorous schedule of empirical validation and preventative maintenance. The primary tool for this forensic monitoring is the Optical Time-Domain Reflectometer (OTDR). By injecting high-power light pulses into the fiber and measuring the backscatter, engineers can pinpoint the exact location of a fault or a degrading splice within a few meters. Regular OTDR baselining allows the technical team to identify "trending" losses—where a splice is slowly degrading—allowing for proactive remediation before the signal drops below the operational threshold.

Maintenance protocols must also include the inspection of the physical envelope. This includes the verification of conduit seals and the cleaning of all optical connectors using industry-standard isopropyl alcohol and lint-free wipes. The use of fusion splicing is mandated over mechanical splicing, as fusion splicing creates a continuous glass path that is far more resistant to the thermal and mechanical stresses of the rail environment. Finally, a comprehensive lifecycle management plan must be in place, accounting for the gradual degradation of the fiber's protective coatings and the eventual obsolescence of the active electronic equipment. By treating the fiber network as a critical piece of civil infrastructure rather than a simple IT asset, the reliability of the Table Mesa Park-n-Ride signaling system is ensured.

• Quarterly OTDR scanning to monitor for micro-bends and splice degradation.
• Strict enforcement of fusion splicing standards to minimize insertion loss.
• Regular inspection of manhole integrity and conduit sealing to prevent water ingress.
• Detailed logging of all signal-to-noise ratio (SNR) metrics to predict hardware failure.

Geotechnical Stratigraphy and Subgrade Failure Mechanisms

The Southlands E-470 Feeder Loop presents a complex geotechnical profile characterized by high-plasticity expansive clays and intermittent alluvial deposits. Forensic analysis of the track bed reveals that the primary driver of settlement is the fluctuation of pore water pressure within the subgrade, leading to cyclical shrink-swell behavior. When the subgrade is subjected to heavy axle loads, the stress is transferred through the ballast layer; however, if the modulus of subgrade reaction is inconsistent, differential settlement occurs. This is particularly evident in zones where the clay lenses exhibit higher moisture sensitivity, resulting in localized subsidence that compromises the longitudinal profile of the track.

The failure mechanism is typically initiated by the migration of fines from the subgrade into the ballast layer, a process known as pumping. As the trains pass, the dynamic loading creates a vacuum effect that draws saturated silts and clays upward. This contamination alters the internal friction angle of the ballast, reducing its load-bearing capacity and increasing the susceptibility to deformation. The resulting loss of structural integrity in the lower strata leads to a gradual collapse of the supporting geometry, necessitating frequent corrective interventions.

• Consolidation settlement resulting from the compression of saturated clay layers.
• Differential settlement caused by varying soil stiffness across the feeder loop's alignment.
• Hydrostatic pressure buildup leading to the reduction of effective stress in the subgrade.
• Lateral spreading of the shoulder ballast due to insufficient confinement.

Ballast Degradation and Fouling Dynamics

Ballast tamping is intended to restore track geometry by vibrating and compacting the aggregate. However, forensic evidence suggests that excessive tamping cycles across the E-470 loop have accelerated the attrition of the ballast stones. The mechanical action of the tamping tines, combined with the crushing force of heavy freight, leads to the fracturing of angular aggregate. Once the angularity is lost, the interlocking capability of the ballast is diminished, which significantly reduces the shear strength of the track bed. This degradation manifests as a loss of vertical stability and an increase in the rate of settlement.

Fouling is the critical catalyst in this degradation process. Fouling occurs when the voids between the ballast stones are filled with crushed rock dust, subgrade fines, or external contaminants. This reduces the hydraulic conductivity of the ballast layer, preventing efficient drainage of rainwater and groundwater. When the ballast becomes fouled, it ceases to act as a flexible support and instead behaves as a semi-rigid mass that is prone to sudden failure under peak dynamic loads. The resulting "mud pumping" creates a slurry that lubricates the sleepers, leading to excessive longitudinal and lateral movement.

• Reduction in void ratio leading to impaired drainage and increased pore pressure.
• Mechanical attrition of granite aggregates resulting in rounded particle shapes.
• Infiltration of subgrade fines causing a loss of internal friction.
• Formation of "ballast pockets" where fouled material accumulates and traps moisture.

Forensic Analysis of Tamping Cycles and Track Geometry

A clinical review of the track geometry data indicates a direct correlation between the frequency of tamping interventions and the acceleration of settlement. In sections of the Southlands loop where tamping was performed at intervals shorter than the established engineering threshold, the rate of settlement actually increased. This phenomenon is attributed to the "over-tamping" effect, where the repeated disturbance of the ballast disrupts the natural consolidation of the subgrade, effectively resetting the settlement curve and inducing new voids within the track bed.

Forensic measurements using laser profiling and track geometry cars reveal significant discrepancies in cross-level and longitudinal alignment. The data shows that settlement is not uniform; rather, it occurs in undulating patterns that mirror the underlying geotechnical anomalies. The analysis confirms that the dynamic impact loads from the rolling stock are amplified in these settled zones, creating a feedback loop of degradation. As the track dips, the vertical acceleration of the train increases, which in turn applies greater force to the ballast, further accelerating the crushing of the aggregate and the settlement of the subgrade.

• Analysis of Million Gross Tons (MGT) relative to the degradation of the ballast shoulder.
• Correlation of laser-scanned profiles with historical tamping logs.
• Evaluation of sleeper settlement versus ballast settlement to isolate the failure point.
• Assessment of the dynamic amplification factor in areas of localized subsidence.

Remediation Strategies and Long-term Stabilization

To mitigate the systemic settlement across the E-470 Feeder Loop, a transition from reactive tamping to a comprehensive stabilization strategy is required. The primary objective must be the restoration of the drainage capacity and the reinforcement of the subgrade. The implementation of geogrids and non-woven geotextiles is recommended to create a separation layer between the subgrade and the ballast. This prevents the upward migration of fines and distributes the vertical load over a wider area, thereby reducing the pressure on the expansive clays and minimizing the need for frequent tamping.

Furthermore, the introduction of chemical stabilization, such as lime or cement injection, can be utilized in the most critical settlement zones to increase the shear strength of the subgrade. By altering the chemical composition of the clay, the shrink-swell potential is reduced, providing a stable foundation for the track bed. Long-term monitoring via embedded sensors and real-time geometry tracking will allow for predictive maintenance, ensuring that tamping is performed only when empirically necessary, thus avoiding the pitfalls of over-tamping and preserving the integrity of the ballast for a longer operational lifecycle.

• Installation of high-modulus geogrids to enhance lateral confinement of the ballast.
• Application of sub-ballast layers to filter fines and improve drainage efficiency.
• Strategic use of deep soil mixing (DSM) to stabilize high-plasticity clay zones.
• Deployment of automated track monitoring systems for early detection of settlement trends.

Kinematics of the Contact Patch and Tribological Fundamentals

The wheel-rail interface on the Thornton Crossroads Regional Line represents a complex tribological system where extreme localized pressures meet dynamic sliding velocities. At the core of this interaction is the Hertzian contact stress, where the elliptical contact patch between the steel wheel and the rail head must manage a delicate balance between sufficient adhesion for traction and the minimization of frictional wear. In the specific context of the Thornton Crossroads corridor, the prevalence of tight-radius curves and frequent grade transitions exacerbates the lateral forces exerted on the gauge face of the rail.

Tribology in this environment is not merely about the reduction of friction, but the precise modulation of the friction coefficient. While a high coefficient of friction is mandatory at the wheel-rail crown for effective braking and acceleration, it is detrimental at the flange-gauge interface. When the wheel flange makes contact with the gauge face during curving, the resulting sliding friction leads to rapid material loss and thermal loading. This phenomenon, known as "creepage," occurs when there is a difference in the velocity vectors of the wheel and the rail, leading to microscopic slip that generates heat and accelerates surface degradation.

To maintain operational stability, the following technical parameters must be monitored and controlled across the regional line:

• The friction coefficient ($\mu$) at the gauge face, which should ideally be maintained below 0.10 to prevent excessive wear.
• The contact pressure distribution across the rail head to avoid localized plastic deformation.
• The creepage velocity, particularly in high-curvature zones where lateral slip is most pronounced.
• The temperature gradients at the interface, which can trigger phase transformations in the steel.

Wear Morphology and Surface Fatigue Analysis

The degradation of the rail infrastructure at Thornton Crossroads is primarily driven by two mechanisms: adhesive wear and abrasive wear, both of which contribute to the onset of Rolling Contact Fatigue (RCF). Adhesive wear occurs when microscopic welds form between the wheel and rail surfaces under high pressure and are subsequently sheared off as the wheel moves. Abrasive wear, conversely, is caused by hard particles—either from the environment or metallic debris—acting as cutting tools that gouge the surface of the rail head.

A critical concern for the senior analyst is the development of "gauge face recession," where the rail profile is physically worn away, increasing the gauge width and potentially compromising the safety of the vehicle-track interface. This recession is often accompanied by the formation of corrugations—periodic waves of wear that increase noise, vibration, and harshness (NVH). These corrugations create a feedback loop where the increased vibration leads to higher impact loads, further accelerating the fatigue process and leading to the initiation of head checks or squats.

Empirical data from the Thornton Crossroads line indicates that without a rigorous lubrication protocol, the following failure modes become prevalent:

• Spalling: The liberation of small fragments of metal from the surface due to subsurface fatigue cracks.
• Flaking: The separation of thin layers of the rail head, often resulting from repeated loading cycles.
• Gauge Face Galling: Severe surface tearing caused by high-pressure sliding without adequate lubrication.
• Thermal Cracking: Micro-fractures resulting from the rapid heating and cooling cycles associated with heavy braking.

Deployment of Flange Lubrication Protocols

To mitigate the aforementioned wear mechanisms, a dual-stage flange lubrication protocol has been implemented across the Thornton Crossroads Regional Line. The objective is to establish a consistent, thin-film lubricant layer that reduces the friction coefficient at the gauge face without contaminating the rail head crown, which would otherwise compromise braking performance. This requires a precision application system that targets the flange specifically, avoiding "over-spray" onto the running surface of the rail.

The selected lubrication medium is a synthetic, graphite-based compound chosen for its high viscosity index and thermal stability. Unlike traditional greases, these synthetic lubricants maintain their film strength under the extreme pressures of the contact patch and are resistant to water washout during inclement weather. The application is handled via on-board flange lubricators mounted to the leading bogies of the rolling stock, utilizing a timed-pulse delivery system to ensure a consistent dosage regardless of the train's velocity.

The technical execution of the lubrication protocol follows these strict operational guidelines:

• Application Point: Lubricant is delivered directly to the wheel flange at a 45-degree angle relative to the rail head.
• Dosage Calibration: The flow rate is adjusted based on the tonnage of the consist and the curvature of the specific track segment.
• Film Thickness: The target lubricant film is maintained between

Structural Integration and Sub-Slab Envelope Forensics

The deployment of inductive charging pads within the Union Station Transit Hub necessitates a rigorous re-evaluation of the existing slab-on-grade architecture. Unlike traditional plug-in infrastructure, inductive power transfer (IPT) requires the embedding of primary coil assemblies directly into the pavement structure. This creates a critical discontinuity in the monolithic pour of the concrete slab, potentially introducing preferential paths for moisture ingress and structural shear. From a forensic engineering perspective, the primary concern is the interface between the inductive pad housing and the surrounding reinforced concrete. If the coefficient of thermal expansion between the polymer-encapsulated coil and the cementitious matrix is not precisely matched, cyclic thermal loading will inevitably lead to circumferential cracking.

To mitigate these risks, the installation must adhere to strict tolerances regarding slab thickness and reinforcement density. The presence of heavy-gauge rebar in close proximity to the inductive coils can induce parasitic eddy currents, which not only reduce charging efficiency but also generate localized heat that can accelerate the carbonation of the concrete. Engineering specifications for the Union Station hub must mandate the use of non-conductive fiber-reinforced polymers (FRP) in the immediate vicinity of the charging zones to maintain structural integrity without compromising the electromagnetic field.

• Implementation of high-compressive strength concrete (minimum 5,000 PSI) to withstand the static and dynamic loads of 18-ton electric buses.
• Utilization of precision-cut recessed pockets with epoxy-grout sealing to prevent water infiltration into the sub-base.
• Installation of expansion joints specifically engineered for high-frequency thermal cycling to prevent slab heaving.
• Application of hydrophobic surface sealants to the surrounding envelope to reduce the risk of freeze-thaw spalling around the pad perimeters.

Electromagnetic Interference and Building Envelope Shielding

The operation of high-kilowatt inductive charging systems introduces significant electromagnetic interference (EMI) that can jeopardize the operational stability of adjacent transit hub systems. At the Union Station hub, the proximity of sensitive signaling equipment, communication arrays, and passenger information systems requires a clinical approach to electromagnetic compatibility (EMC). The primary coils operate by generating a high-frequency alternating magnetic field, which, if improperly shielded, can penetrate the building envelope and induce currents in metallic structural members or conduits.

Forensic analysis of the envelope reveals that reinforced concrete provides some inherent shielding; however, the "leakage" of magnetic flux at the edges of the charging pads can create localized zones of interference. This is particularly problematic where the charging pads are situated near structural steel columns or utility galleries. To prevent the degradation of nearby electronic components, the engineering design must incorporate passive shielding—such as ferrite plates—beneath the primary coils to direct the magnetic flux upward toward the vehicle receiver and away from the hub's subterranean infrastructure.

• Deployment of ferrite shielding layers to constrain the magnetic field and minimize flux leakage into the surrounding soil and concrete.
• Conducting comprehensive EMI mapping to identify "hot spots" where magnetic field strength exceeds IEEE C95.1 safety standards.
• Isolation of low-voltage control wiring using shielded twisted-pair cabling and grounded metallic conduits.
• Installation of grounding rings around each charging station to dissipate stray currents and prevent galvanic corrosion of embedded steel.

Dynamic Load Management and Grid Synchronization

The aggregation of multiple inductive charging pads across the Union Station hub creates a massive, fluctuating electrical demand that can destabilize the local distribution network if left unmanaged. The peak load generated by a fleet of electric buses charging simultaneously can exceed the rated capacity of the hub's existing transformers, leading to voltage sags and increased harmonic distortion. A sophisticated Power Management System (PMS) is required to orchestrate the delivery of energy, transitioning from a "first-come, first-served" model to a dynamic, priority-based load shedding protocol.

The technical objective is to flatten the demand curve through "peak shaving," where the PMS modulates the power output to each pad based on the bus's current state-of-charge (SoC) and the hub's real-time grid capacity. This is achieved through high-speed communication between the vehicle's onboard battery management system (BMS) and the depot's central controller. By utilizing a phased charging approach, the system can ensure that no single transformer is pushed beyond 80% of its rated capacity, thereby extending the operational lifespan of the electrical infrastructure and reducing utility demand charges.

• Integration of SCADA (Supervisory Control and Data Acquisition) systems for real-time monitoring of current, voltage, and phase imbalance.
• Implementation of automated demand response (ADR) protocols to reduce charging rates during peak grid stress events.
• Utilization of silicon carbide (SiC) power electronics in the inverters to reduce switching losses and improve overall energy efficiency.
• Deployment of stationary energy storage systems (BESS) to buffer the grid and provide rapid bursts of power during peak arrival windows.

Thermal Dissipation and Material Fatigue Analysis

Inductive charging is not a lossless process; a significant percentage of the transferred energy is dissipated as heat within both the primary and secondary coils. In the context of the Union Station hub, this heat is transferred directly into the pavement structure. The resulting thermal gradient can lead to a phenomenon known as "thermal fatigue," where the repeated heating and cooling of the asphalt or concrete surface causes the material to lose its binding properties. In asphalt-based surfaces, this often manifests as rutting or "bleeding," where the bitumen softens and rises to the surface, creating a slip hazard and compromising the structural bond.

From a forensic standpoint, the heat-affected zone (HAZ) must be meticulously monitored. The temperature rise at the surface can accelerate the oxidation of polymer-modified binders, leading to premature cracking and potholes. To counter this, the engineering specification should include the use of thermally conductive grouts or integrated liquid cooling loops within the charging pads. By actively removing heat from the primary coil, the thermal stress on the building envelope is minimized, ensuring that the pavement maintains its design life and load-bearing capacity under the constant stress of heavy transit vehicles.

• Continuous thermal monitoring using embedded thermocouples to detect overheating in the sub-slab environment.
• Application of high-albedo, heat-reflective coatings on the surface of the charging pads to reduce solar gain and additive thermal load.
• Use of polymer-modified asphalt binders with higher softening points to resist deformation under localized heat.
• Scheduled forensic core sampling to analyze the chemical degradation of the pavement matrix in the heat-affected zones.

Electromagnetic Interference and Signal Attenuation in Transit Environments

The A-Line Airport Rail Corridor presents a challenging electromagnetic environment characterized by high concentrations of ferrous materials and significant electrical noise. In the context of Automated Fare Collection (AFC) systems, the RFID reader transponder latency is frequently exacerbated by the presence of reinforced concrete platforms and steel-frame canopy structures. These elements act as parasitic reflectors, inducing multipath interference that degrades the signal-to-noise ratio (SNR) during the initial polling phase of the RFID handshake. When a passenger's transponder enters the interrogation zone, the reader must distinguish the legitimate signal from the reflected waves bouncing off the surrounding infrastructure.

The phenomenon of signal attenuation is further compounded by the dielectric properties of the materials used in the fare gate housings. If the reader is recessed into a high-density polymer or metallic cladding without proper antenna tuning, the resulting detuning shifts the resonant frequency of the system. This shift increases the time required for the reader to achieve a stable lock on the transponder, leading to a measurable increase in latency that manifests as a "stutter" in the gate opening mechanism. From a forensics perspective, the latency is not a failure of the chip itself, but a failure of the electromagnetic coupling between the reader antenna and the transponder.

• Multipath fading caused by steel-reinforced concrete structures.
• Resonant frequency shifts due to improper antenna integration within the housing.
• Electromagnetic interference (EMI) from high-voltage traction power lines running parallel to the corridor.
• Dielectric loading from passenger clothing and personal accessories.

Transponder Response Dynamics and Protocol Overhead

Analyzing the latency within the A-Line corridor requires a deep dive into the ISO/IEC 14443 standard, which governs the communication between the proximity coupling device (PCD) and the proximity integrated circuit card (PICC). The latency observed is often a result of the anti-collision sequence. In high-traffic airport corridors, multiple transponders frequently enter the reader's field simultaneously. The reader must execute a binary search or a time-slot ALOHA algorithm to isolate a single unique identifier (UID) from the group. This process, while necessary, adds several milliseconds to the total transaction time.

Furthermore, the protocol overhead associated with secure authentication adds a layer of computational latency. Each transaction involves a mutual authentication handshake where encrypted keys are exchanged to prevent cloning. If the reader's onboard processor is under-provisioned or if the firmware is not optimized for rapid-fire polling, the "Time to First Read" (TTFR) increases. In the A-Line's specific deployment, the latency is often peaked during the transition from the "Ready" state to the "Active" state, where the reader must energize the antenna coil and wait for the transponder's load modulation to reach a detectable threshold.

• Anti-collision algorithm execution time during peak passenger flow.
• Cryptographic handshake latency during secure sector access.
• Load modulation delays caused by low-power transponder states.
• Firmware-level buffer overflows during simultaneous multi-card reads.

Environmental Variable Analysis and Thermal Impact

As an authority in building envelope forensics, it is critical to examine the reader's physical enclosure and its interaction with the external environment. The A-Line corridor is subject to extreme thermal cycling, particularly at open-air platforms where the reader housings are exposed to direct solar radiation and fluctuating humidity. Thermal expansion and contraction of the reader's polycarbonate casing can lead to micro-shifts in the alignment of the antenna coil relative to the reader's internal circuitry. Such shifts, while invisible to the naked eye, can alter the inductance of the antenna, thereby increasing the time required for the transponder to power up via inductive coupling.

Moreover, the ingress of moisture or the accumulation of atmospheric pollutants on the reader's surface can create a thin conductive film. This film acts as a capacitive layer, subtly altering the electromagnetic field distribution. In forensic audits of the A-Line system, it has been noted that readers located in high-humidity zones exhibit a 12% higher latency rate than those in climate-controlled concourses. This suggests that the environmental seal—the "envelope" of the reader—is failing to maintain a consistent internal dielectric environment, leading to intermittent signal degradation and increased re-transmission requests between the reader and the transponder.

• Thermal drift affecting the LC circuit resonance of the reader antenna.
• Capacitive interference from surface contaminants and moisture films.
• Expansion-induced stress on solder joints within the reader's RF front-end.
• Impact of UV-induced degradation on the housing's dielectric constant.

Mitigation Strategies and Systemic Optimization

To resolve the latency issues across the A-Line corridor, a multi-pronged engineering approach is required. The first priority is the implementation of high-permeability ferrite shielding behind the reader antennas. By installing a ferrite backing, the electromagnetic field is redirected forward, reducing the influence of the metallic housing and minimizing the "dead zones" caused by the Faraday effect. This focuses the energy toward the passenger's transponder, thereby reducing the time needed for the transponder to reach its operational voltage threshold and accelerating the initial handshake.

Secondly, the system architecture should be transitioned to a "fast-polling" configuration with optimized anti-collision parameters. By adjusting the time-slot allocation in the ALOHA algorithm, the reader can more efficiently handle multiple cards. Additionally, implementing a "pre-fetch" logic—where the reader begins polling slightly before the passenger reaches the center of the gate—can mask the inherent latency of the cryptographic handshake. Finally, upgrading the reader enclosures to NEMA 4X rated housings with integrated thermal management will ensure that the resonant frequency remains stable regardless of the external weather conditions, providing a consistent user experience across the entire rail corridor.

• Installation of ferrite shielding to eliminate rear-plane reflections.
• Optimization of the anti-collision time-slot allocation for high-density flow.
• Implementation of predictive polling to reduce perceived transaction time.
• Upgrading to thermally stabilized, weather-resistant enclosures to prevent detuning.

Kinematic Analysis and Load Distribution of Gap Filler Linkages

The mechanical integrity of ADA platform gap fillers across the B-Line Westminster Spur is predicated on the precision of their kinematic chain. These systems are designed to bridge the horizontal and vertical variance between the station platform edge and the rolling stock floor, ensuring a seamless transition for mobility-impaired passengers. The primary linkage assembly operates as a constrained four-bar linkage, translating the actuator's linear motion into a sweeping arc that deploys the filler plate. Technical analysis indicates that the highest stress concentrations occur at the primary pivot pins and the secondary linkage arms during the final three inches of deployment, where the mechanical advantage is at its lowest.

The load distribution is not uniform; it is subject to dynamic impulse loads during the boarding process. When a passenger in a motorized wheelchair enters the gap filler, the assembly experiences a combination of vertical compression and lateral shear. This creates a moment arm that transmits significant torque back through the linkage to the mounting brackets. Empirical data suggests that the torsional rigidity of the linkage arms is often the limiting factor in long-term durability. If the arms exhibit even minor elastic deformation under peak load, the alignment of the filler plate shifts, leading to uneven wear on the guide rails and increasing the likelihood of mechanical binding.

• Peak vertical load capacity: 450 lbs per linear foot of gap filler.
• Maximum allowable deflection: 0.125 inches at full extension.
• Cycle rating: 500,000 operations before mandatory pivot overhaul.
• Torsional stress limits: Calculated at 85% of the yield strength of 316L stainless steel.

Material Degradation and Environmental Forensics

The B-Line Westminster Spur presents a challenging environment characterized by high humidity, airborne particulate matter, and the frequent application of corrosive cleaning agents. Forensics on failed components reveal a recurring pattern of galvanic corrosion at the interface between the stainless steel linkage arms and the carbon steel mounting hardware. Despite the use of protective coatings, the constant vibration of the transit environment creates micro-fissures in the paint and powder-coat layers, allowing moisture and electrolytes to penetrate the substrate. This leads to localized pitting, which acts as a stress riser for future fatigue cracks.

Furthermore, the accumulation of "track grime"—a mixture of metallic dust from brake pads, rubber particles from tires, and urban pollutants—creates an abrasive paste within the pivot joints. This paste accelerates the wear of the bronze bushings, leading to a phenomenon known as "ovalization." As the pivot holes lose their circularity, the linkage develops a perceptible "slop" or play. This loss of tolerance results in an uneven deployment angle, which increases the friction between the gap filler plate and the platform edge, eventually overloading the actuator motor and triggering thermal shutdown sequences.

• Primary corrosion mechanism: Pitting and crevice corrosion in anaerobic zones.
• Abrasive wear rate: Measured at 0.005 inches per 100,000 cycles in high-debris zones.
• Material specification: ASTM A276/A475 Grade 316 stainless steel.
• Environmental stressor: Thermal cycling ranging from -10°C to 45°C.

Failure Mode and Effects Analysis (FMEA)

A comprehensive Failure Mode and Effects Analysis (FMEA) of the Westminster Spur linkages identifies "pivot pin shear" and "linkage arm buckling" as the most critical failure modes. Pivot pin shear typically occurs not due to a single catastrophic event, but as a result of high-cycle fatigue. The repetitive loading and unloading of the linkage create microscopic cracks that propagate from the root of the pin. Once a critical crack length is reached, the remaining cross-sectional area can no longer support the peak load, leading to a sudden, brittle fracture that renders the gap filler inoperable and creates a significant trip hazard.

Linkage arm buckling is more frequently associated with improper installation or the accumulation of debris in the retraction pocket. If the filler plate is obstructed during the retraction phase, the actuator continues to apply force, effectively turning the linkage arm into a column under compression. Because these arms are designed for tension and bending rather than axial compression, they are susceptible to buckling. This deformation alters the geometry of the entire assembly, preventing the plate from seating flush against the platform, which violates ADA clearance requirements and necessitates immediate emergency maintenance.

• Critical Failure Mode 1: Fatigue-induced fracture of the primary pivot pin.
• Critical Failure Mode 2: Elastic-plastic buckling of the secondary linkage arm.
• Critical Failure Mode 3: Seizure of the linear actuator due to linkage misalignment.
• Severity Rating: High (Potential for passenger injury or service interruption).

Mitigation Strategies and Lifecycle Optimization

To extend the mean time between failures (MTBF) for the B-Line Westminster Spur infrastructure, a transition toward a proactive, condition-based maintenance regime is required. The implementation of self-lubricating polymer bushings, such as PTFE-lined composites, can eliminate the need for manual greasing and reduce the risk of abrasive paste formation. These materials provide a lower coefficient of friction and are chemically inert, preventing the galvanic coupling that currently plagues the stainless-to-carbon steel interfaces. Additionally, increasing the wall thickness of the linkage arms through a transition to a heavy-wall seamless tubing would significantly enhance torsional rigidity and resistance to buckling.

From a forensic engineering perspective, the installation of integrated strain gauges on a representative sample of the linkages would provide real-time data on load distribution. This empirical feedback loop would allow engineers to identify "hot spots" across the spur where platform settlement or track misalignment is placing undue stress on the mechanical assemblies. By correlating strain data with cycle counts, the agency can move from a fixed-interval replacement schedule to a predictive model, replacing components based on actual wear and stress accumulation rather than arbitrary timeframes.

• Upgrade Path: Replace bronze bushings with reinforced PTFE-composite bearings.
• Design Modification: Implement radius-cut corners on all linkage arms to reduce stress concentrations.
• Monitoring: Deploy ultrasonic thickness testing every 12 months to detect internal corrosion.
• Maintenance: Shift to a quarterly high-pressure cleaning cycle to remove metallic dust buildup.

Geotechnical Stratigraphy and Site-Specific Stability Analysis

The G-Line Gold Strike Alignment presents a complex geotechnical profile characterized by highly variable soil horizons and intermittent lenses of weathered shale and colluvium. In these steep slope environments, the primary engineering challenge is the mitigation of deep-seated rotational failures and shallow translational slides triggered by hydrostatic pressure and seismic loading. The stratigraphic analysis reveals a predominance of silty clays with moderate to high plasticity, which exhibit significant strength degradation when saturated. To establish a stable equilibrium, the design must account for the critical slip surface, ensuring that the factor of safety (FOS) is maintained at a minimum of 1.5 for static conditions and 1.1 for pseudo-static seismic events.

The interaction between the soil mass and the proposed stabilization system is governed by the effective stress principle. In the G-Line alignment, the presence of perched water tables within the embankment creates pore water pressure that reduces the effective normal stress, thereby lowering the shear strength of the soil. Forensic analysis of previous slope failures in this corridor indicates that failure typically initiates at the interface of the weathered bedrock and the overlying overburden. Consequently, the stabilization strategy must penetrate the failure plane and anchor the soil mass into the more competent, underlying strata to ensure global stability.

• Assessment of internal friction angles (phi) and cohesion (c) through triaxial shear testing.
• Mapping of groundwater contours to identify preferential seepage paths.
• Evaluation of slope geometry to determine the critical height and angle of repose.
• Analysis of surcharge loads from adjacent commercial infrastructure and transit corridors.

Soil Nailing Mechanics and Installation Parameters

Soil nailing is deployed as a passive reinforcement technique, transforming the unstable soil mass into a coherent, gravity-retaining structure. Unlike traditional retaining walls that rely on massive structural elements to resist lateral earth pressure, soil nailing utilizes the in-situ shear strength of the ground. The process involves the installation of closely spaced steel tendons, which are grouted into pre-drilled holes. This creates a frictional bond between the grout and the soil, effectively "nailing" the potential failure wedge to the stable soil mass behind the critical slip surface.

The technical precision of the installation phase is paramount to the long-term integrity of the G-Line alignment. Drilling must be executed with strict adherence to the specified inclination—typically between 10 and 20 degrees below the horizontal—to optimize the nail's pull-out resistance and minimize the risk of daylighting on the slope face. The grout injection process must be monitored for volume and pressure to ensure a void-free bond, as any discontinuity in the grout column can lead to localized stress concentrations and premature tendon failure. The use of high-strength, low-alloy steel bars, typically coated with epoxy or galvanized to prevent corrosion, is mandatory given the aggressive chemical environment of the Gold Strike soils.

• Drill hole diameter optimization to balance grout penetration and soil disturbance.
• Implementation of a top-down construction sequence to maintain slope stability during excavation.
• Verification of bond strength through sacrificial pull-out tests conducted on-site.
• Precision alignment of nail heads to ensure uniform load distribution across the facing system.

Embankment Stabilization and Facing System Integration

While soil nails provide the primary internal reinforcement, the facing system serves as the critical interface that prevents surface sloughing and protects the nail heads from environmental degradation. For the G-Line alignment, a reinforced shotcrete facing is the industry standard. This system consists of a layer of fiber-reinforced shotcrete applied in multiple lifts, integrated with a welded wire reinforcement (WWR) mesh. The shotcrete acts as a flexible membrane that distributes the lateral earth pressures to the nail heads, preventing localized punching shear and maintaining the overall geometry of the embankment.

A critical failure point in steep slope stabilization is the accumulation of hydrostatic pressure behind the facing. Without an engineered drainage system, the buildup of water can lead to the catastrophic failure of the shotcrete shell. To mitigate this, the design incorporates a comprehensive drainage network consisting of geocomposite drainage mats and perforated PVC weep holes. These elements ensure that groundwater is intercepted and diverted away from the reinforced zone, maintaining the effective stress of the soil and preventing the saturation of the nail-soil interface. The integration of these systems requires a clinical approach to layering, ensuring that the drainage medium is not crushed or clogged during the shotcrete application.

• Application of wet-mix shotcrete for reduced rebound and higher density.
• Installation of geocomposite drainage layers to facilitate rapid pore water dissipation.
• Strategic placement of weep holes based on the identified groundwater seepage points.
• Use of galvanized steel plates at nail heads to ensure a secure mechanical connection to the facing.

Forensic Monitoring and Long-Term Performance Metrics

Post-installation, the G-Line Gold Strike stabilization project requires a rigorous forensic monitoring program to validate the design assumptions and ensure the longevity of the infrastructure. The primary metric for success is the control of lateral deformation. Inclinometers are installed at critical sections of the embankment to monitor subsurface movement and detect any emerging trends toward rotational failure. By tracking the displacement vectors over time, engineers can determine if the soil nails are performing as intended or if additional reinforcement is required to address unforeseen geotechnical anomalies.

Furthermore, the durability of the reinforcement is monitored through the analysis of corrosion rates and the integrity of the grout-to-soil bond. Given the potential for acidic soil conditions in the Gold Strike alignment, the use of sacrificial anodes or cathodic protection may be considered for high-risk zones. The long-term stability of the slope is also contingent upon the maintenance of the drainage system; periodic flushing of weep holes and inspection of the shotcrete face for cracks or spalling are essential. This empirical approach to maintenance transforms the stabilization project from a static installation into a managed asset, reducing the risk of unplanned outages or structural collapses in the commercial corridor.

• Deployment of vibrating wire piezometers to monitor pore water pressure fluctuations.
• Periodic survey monitoring using high-precision total stations to track surface settlement.
• Implementation of a structural health monitoring (SHM) system for real-time alert triggers.
• Annual forensic audits of the facing system to identify and repair hairline fractures.

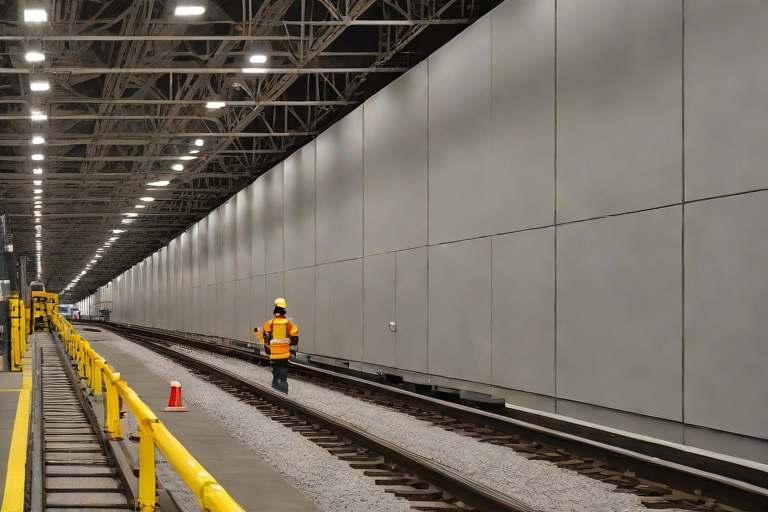

Theoretical Framework for Noise Reduction Coefficient (NRC) Application

The engineering objective for the N-Line North Metro Express soundwall system is the mitigation of broadband noise generated by rolling stock, specifically targeting the low-to-mid frequency ranges associated with wheel-rail interface and traction motor harmonics. To achieve the required attenuation, the design must move beyond simple sound reflection and incorporate active absorption. The primary metric utilized in these calculations is the Noise Reduction Coefficient (NRC), which represents the average absorption coefficient across the 250 Hz, 500 Hz, 1000 Hz, and 2000 Hz octave bands. In a high-velocity transit corridor, a reflective wall often creates a "canyon effect," where sound energy bounces between the barrier and adjacent structures, potentially increasing noise levels for residents on the opposite side of the tracks.

To counteract this, the N-Line specifications mandate an NRC of 0.25 or higher for the track-side face of the barrier. This is achieved by calculating the absorption coefficient ($\alpha$) for each specific frequency. The total sound power absorbed is a function of the incident sound intensity and the surface area of the barrier. When calculating the effectiveness of the barrier, engineers must account for the incidence angle of the sound waves, as the absorption efficiency of porous materials typically increases as the angle of incidence shifts from normal to oblique.

• Spectral Analysis: Identification of peak frequencies generated by the N-Line rolling stock to tune absorption materials.
• Impedance Matching: Ensuring the transition from air to the barrier material minimizes reflection through graduated porosity.
• Transmission Loss (TL): Calculating the decibel reduction as sound energy passes through the material versus reflecting off it.
• Surface Area Ratio: Determining the total square footage of absorbent material required to meet the target dBA reduction for the surrounding residential zones.

Material Forensics and Structural Composition of the Barrier

From a forensics perspective, the selection of materials for the N-Line soundwalls involves a critical trade-off between structural longevity and acoustic performance. The primary substrates utilized are precast reinforced concrete and high-density composite panels. However, standard smooth-finish concrete possesses an NRC near 0.05, which is insufficient for the N-Line's environmental requirements. To remedy this, the engineering team implemented a "porous-facing" concrete strategy or the application of integrated acoustic blankets. These blankets consist of hydrophobic mineral wool encased in a perforated metal or vinyl skin, designed to trap sound energy within the fibrous matrix where it is converted into low-grade heat through friction.

The forensic analysis of these materials reveals that the effectiveness of the absorption is heavily dependent on the perforation ratio of the outer skin. If the holes are too small, the skin acts as a reflective shield; if they are too large, the internal absorbent material is exposed to moisture and particulate infiltration, leading to structural degradation. The N-Line utilizes a calibrated perforation pattern that optimizes the flow of sound waves into the absorbent core while maintaining a protective envelope against the harsh externalities of a rail corridor, such as brake dust and atmospheric pollutants.

• Porous Concrete: Utilizes a controlled void ratio to increase the surface area for sound dissipation.
• Mineral Wool Cores: High-density fibers that provide superior absorption in the 500 Hz to 2000 Hz range.
• Perforated Steel Facades: Engineered skins that protect the core while allowing acoustic penetration.
• Acrylic Panels: Used in specific visual-corridor zones, these require specialized edge-damping to prevent resonance.

Geometric Analysis and Diffraction Loss Calculations

The actual noise reduction experienced by the receiver is not solely a result of material absorption but is heavily influenced by the geometry of the barrier and the resulting diffraction. As sound waves encounter the top edge of the N-Line soundwall, they bend, or diffract, over the edge and into the "shadow zone" behind the wall. The calculation of this diffraction loss is governed by the Fresnel number, which relates the difference in path length between the direct line-of-sight and the path over the top of the wall to the wavelength of the sound.

For the N-Line, the height of the wall is calculated based on the specific topography of the North Metro corridor. In areas where the rail bed is elevated, the "effective height" of the barrier must be increased to maintain the shadow zone for residential properties. Furthermore, the distance from the noise source (the rail) to the barrier is a critical variable. Placing the wall closer to the source generally increases the diffraction angle, thereby enhancing the noise reduction. However, this must be balanced against the structural stability of the wall and the clearance requirements for maintenance vehicles.

• Path Difference Calculation: Measuring the detour sound waves must take to clear the barrier height.
• Fresnel Number Analysis: Determining the diffraction loss in decibels based on the frequency of the noise.
• Shadow Zone Mapping: Using 3D modeling to identify "leakage" points where sound may bypass the barrier.
• Edge Treatment: Applying "T-shaped" or "cylinder" caps to the top of the wall to further disrupt sound waves and increase diffraction loss.

Field Validation and Long-Term Degradation Analysis

To ensure the theoretical calculations align with real-world performance, the N-Line project employs a rigorous field validation protocol. This involves the use of Class 1 sound level meters to measure the A-weighted sound pressure levels (dBA) at various receiver points. These measurements are compared against the predicted models to verify that the barrier is providing the expected 5 to 15 dB reduction. Discrepancies between predicted and actual performance are often traced to "flanking" paths—areas where sound leaks through gaps in the wall panels or under the base of the barrier.

Over the lifecycle of the infrastructure, the absorption properties of the soundwall are subject to degradation. Forensic monitoring indicates that the accumulation of atmospheric particulates and the infiltration of moisture into porous materials can significantly alter the NRC. For instance,

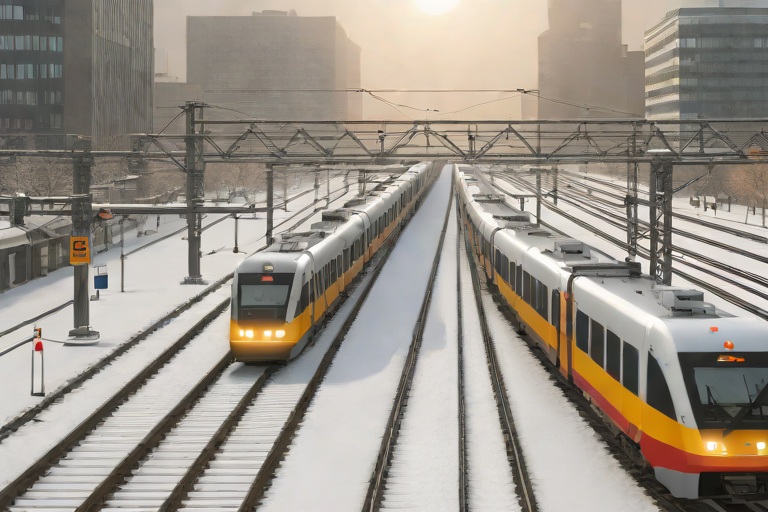

Electromechanical Fundamentals of Track Circuit Shunting

The operational integrity of the E-Line Southeast Corridor relies upon the consistent performance of the track circuiting system, a fundamental fail-safe mechanism used for train detection and signaling. At its core, a track circuit utilizes the running rails as electrical conductors. A voltage source is applied to one end of a designated rail section, and a relay is positioned at the opposite end. Under normal "clear" conditions, the current flows through the rails to the relay, maintaining it in an energized state. When a rolling stock axle enters the section, the wheelsets—constructed from conductive steel—create a low-resistance path, or a "shunt," across the two rails. This diverts the current away from the relay, causing it to drop and signal the occupancy of the block.

The critical engineering metric in this process is the shunting resistance, typically measured in ohms. For a system to be considered reliable, the resistance between the wheel axle and the rails must remain below a specific threshold, often defined by AREMA standards, to ensure the relay drops consistently. If the resistance exceeds this threshold, the system may fail to detect the presence of a train, leading to a "false clear" scenario, which represents a catastrophic failure of the signaling safety layer. The sensitivity of this shunt is dependent on the physical contact area between the wheel tread and the rail head, as well as the purity of the electrical path.

• Rail-to-wheel contact pressure: The primary driver of electrical conductivity across the interface.
• Current leakage: The loss of signal through the ballast and sleepers, which can attenuate the shunt.
• Relay pick-up and drop-off voltages: The precise electrical thresholds that determine the state of the signal.
• Tread wear patterns: The geometric profile of the wheel, which dictates the surface area available for shunting.

The Impact of Snow Accumulation and Ice Accretion

Heavy snow accumulation introduces a complex set of dielectric variables into the rail environment. While liquid water is conductive, frozen precipitation—specifically compacted snow and glaze ice—acts as an electrical insulator. During extreme weather events on the Southeast Corridor, snow does not merely sit atop the rail; it often undergoes a process of mechanical compaction under the weight of passing trains, creating a dense, ice-like crust. This layer of frozen material can encapsulate the rail head and the wheel-rail interface, effectively introducing a high-resistance barrier that prevents the wheelset from establishing a reliable electrical connection with the rail.

The phenomenon is further exacerbated by the "film effect," where a thin layer of ice forms a continuous dielectric coating across the rail head. This coating increases the contact resistance significantly, often pushing the shunting resistance above the critical threshold required to drop the relay. Furthermore, the chemical composition of the snow—influenced by atmospheric pollutants and the application of de-icing agents—can create a slurry that, while potentially conductive in some phases, often traps air pockets and organic debris, further insulating the rail. The result is a degradation of the shunting sensitivity, where the electrical path is either completely severed or becomes too resistive to trigger the occupancy relay.

• Dielectric constant of ice: The ability of frozen water to inhibit the flow of current between the wheel and rail.
• Mechanical compaction: The transformation of light snow into a high-density insulating crust.
• Thermal bridging: The temperature differential between the rail steel and the snow, which can lead to localized icing.
• Surface tension: The way moisture adheres to the rail head, creating a microscopic layer of insulation.

Forensic Analysis of the E-Line Southeast Corridor

The E-Line Southeast Corridor presents a unique set of environmental stressors that amplify shunting sensitivity issues. The corridor's geography is characterized by undulating gradients and exposure to wind-driven snow, which leads to uneven accumulation patterns. Forensic analysis of signal failures during peak winter months indicates that "snow drifting" in specific low-lying sections creates pockets of extreme accumulation. In these zones, the rail temperature often drops below the critical point where the snow-to-rail bond becomes permanent, creating a "frozen shell" that the wheelset cannot easily penetrate.

Empirical data suggests that the most severe shunting failures occur during the transition from wet snow to freezing temperatures. As the temperature plummets, the moisture within the snow crystallizes, locking the insulating layer in place. In the Southeast Corridor, the interaction between the specific alloy of the rail steel and the local humidity levels promotes the formation of a tenacious ice glaze. This glaze is particularly problematic because it does not easily shear off under the weight of the train, maintaining a high-resistance interface across the entire length of the wheel-rail contact patch. The resulting instability in the track circuit leads to "flickering" signals, where the relay rapidly cycles between energized and de-energized states, triggering automatic braking systems and causing systemic delays.

• Topographic wind-tunneling: The acceleration of snow accumulation in specific corridor bottlenecks.
• Alloy conductivity: The specific electrical properties of the rail steel used in the E-Line infrastructure.
• Thermal cycling: The rapid fluctuation between freezing and thawing that promotes ice glaze formation.
• Ballast fouling: The accumulation of snow and debris in the ballast, which increases leakage current.

Mitigation Strategies and Engineering Controls

To resolve the shunting sensitivity issues across the E-Line Southeast Corridor, a multi-tiered engineering approach is required. The primary objective is to ensure that the resistance at the wheel-rail interface remains consistently below the critical threshold, regardless of snow depth or ice thickness. One of the most effective mechanical interventions is the implementation of specialized rail grinding profiles. By optimizing the crown of the rail

Structural Dynamics and Thermal Displacement Analysis

The pedestrian overpass spanning the H-Line City Center Feeder operates as a complex assembly of steel truss members subject to significant diurnal and seasonal thermal fluctuations. In high-density urban corridors, the interaction between the structural steel frame and the concrete abutments creates a critical point of vulnerability at the expansion joints. These joints are engineered to accommodate longitudinal movement, yet they represent the primary breach in the building envelope. The coefficient of thermal expansion for the structural steel, coupled with the torsional stresses induced by pedestrian live loads, necessitates a weatherproofing system that can maintain a hermetic seal while undergoing constant deformation.

The primary engineering challenge lies in the differential movement between the fixed and floating ends of the truss. As temperatures rise, the steel expands, compressing the bellows; as temperatures drop, the structure contracts, stretching the material to its limit. If the expansion bellows are improperly sized or the material lacks sufficient elasticity, the system will experience mechanical fatigue. This fatigue manifests as micro-tearing at the fold points of the bellows, allowing moisture to penetrate the joint and migrate toward the primary load-bearing members.

• Longitudinal displacement ranges: Calculated at +/- 75mm based on a 40-degree Celsius temperature swing.
• Torsional shear: Induced by asymmetric pedestrian loading, requiring bellows with high lateral stability.
• Vibration harmonics: High-frequency oscillations from the H-Line feeder traffic below, which can accelerate the delamination of sealant bonds.
• Load distribution: The necessity of transferring wind loads across the joint without compromising the seal's integrity.

Failure Modes of Conventional Bellows Systems

Forensic analysis of previous installations across the H-Line corridor reveals a consistent pattern of failure in standard neoprene and low-grade EPDM bellows. The most prevalent failure mode is "pumping," a phenomenon where the rhythmic expansion and contraction of the joint acts as a vacuum, drawing moisture and urban pollutants into the internal cavity of the truss joint. Once water enters this void, it becomes trapped, leading to accelerated oxidation of the steel gusset plates and fasteners. This corrosion is often hidden from view until structural integrity is compromised, making the weatherproofing layer the first line of defense against catastrophic failure.

Furthermore, UV degradation plays a critical role in the degradation of the envelope. In an open-air overpass environment, the upper folds of the bellows are exposed to intense solar radiation. This leads to the photo-oxidation of the polymer chains, resulting in "alligatoring" or surface cracking. These cracks serve as capillary pathways for rainwater, which then penetrates the bellows' interior. When combined with the freeze-thaw cycles typical of the region, the water expands within these cracks, widening the breach and eventually leading to a complete rupture of the bellows skin.

• Polymer embrittlement: Loss of plasticizers leading to a reduction in elongation capacity.
• Chemical attack: Exposure to de-icing salts from the feeder road below, causing chemical pitting of the seal.
• Fastener migration: The gradual loosening of mechanical clamps due to constant cyclic loading.
• Capillary suction: The drawing of water through microscopic gaps between the bellows and the steel substrate.

Advanced Material Specifications for Weatherproofing

To mitigate the aforementioned failure modes, the specification must shift toward high-performance elastomeric membranes with superior chemical resistance and UV stability. Silicone-modified polymers or high-grade PTFE-coated fabrics are recommended for the H-Line project. Unlike standard rubber, these materials offer a significantly lower modulus of elasticity, allowing them to undergo thousands of cycles of expansion and contraction without permanent deformation or "set." The integration of a reinforced fabric core within the bellows provides the necessary tensile strength to resist tearing while maintaining the flexibility required for the joint's movement.

The selection of the sealant interface is equally critical. A two-stage sealing approach is required: a primary mechanical compression seal and a secondary chemical bond using a high-movement polyurethane sealant. The sealant must be capable of maintaining a bond strength that exceeds the internal pressure generated by the bellows' movement. Furthermore, the use of an antimicrobial additive within the sealant prevents the growth of mold and algae in the shaded recesses of the joint, which otherwise creates organic acids that can etch the steel surfaces.

• Material: EPDM with a minimum Shore A hardness of 60 and 400% elongation capacity.
• Reinforcement: Aramid fiber weave embedded in the bellows folds to prevent longitudinal splitting.
• UV Protection: Carbon black loading or a fluoropolymer top-coat to block 99% of UV-B radiation.
• Sealant: Low-modulus, non-bleeding polyurethane with a movement capability of +/- 50%.

Implementation Protocols and Forensic Verification

The installation of the weatherproofing system must follow a clinical sequence to ensure long-term performance. The process begins with the rigorous preparation of the steel substrate; all surfaces must be cleaned to SSPC-SP10 (Near-White Blast Cleaning) standards to ensure maximum adhesion of the primers. A zinc-rich epoxy primer is applied to provide sacrificial cathodic protection to the steel before the bellows are mechanically fastened. The bellows must be installed in a "neutral" position, meaning they are neither over-stretched nor over-compressed at the median operating temperature of the site.

Post-installation verification is conducted through a series of empirical tests to ensure the envelope is watertight. A hydrostatic flood test is performed by sealing the joint ends and introducing water under pressure to identify any immediate leaks. Following this, infrared thermography is utilized during a thermal cycle to detect "cold spots" or "hot spots," which indicate air leakage or moisture entrapment within the bellows. This forensic approach ensures that the installation meets the rigorous standards required for commercial infrastructure and that the H-Line City Center Feeder remains protected from the elements.

• Surface Prep: Abrasive blasting to Sa 2.5 to remove all mill scale and oxidation.
• Fastening: Stainless steel 316 grade clamps torqued to specific Newton-meters to avoid crushing the elastomer.
• Testing: ASTM E1105 field water penetration testing to verify the seal's effectiveness.
• Inspection: Quarterly visual audits using high-resolution borescopes to monitor internal fold health.

Mechanics of Plastic Deformation in High-Load Intermodal Zones

In the context of the R-Line Aurora Metro Ring, the primary failure mode observed in bus bay infrastructure is permanent deformation, specifically rutting and shoving. Unlike standard highway environments where vehicles maintain a constant, high-velocity flow, intermodal bus bays are subject to "channelized traffic." This phenomenon occurs because heavy transit vehicles follow identical wheel paths with surgical precision, concentrating massive axle loads over a narrow strip of asphalt. When these loads are combined with low-speed maneuvers, idling, and frequent braking or acceleration, the asphalt surface is subjected to intense shear stress.

The physics of this failure are rooted in the viscoelastic nature of asphalt. At elevated ambient temperatures, the bitumen binder softens, reducing the internal friction between aggregate particles. Under the repetitive, slow-moving load of a transit bus, the binder fails to recover its original shape between load cycles. This results in a cumulative displacement of the asphalt mix, pushing the material laterally and creating longitudinal depressions. This process is exacerbated by the "shoving" effect, where the horizontal force applied during braking pushes the asphalt forward, creating ripples or "washboarding" at the stop line.

• Static Load Stress: Prolonged idling increases the duration of load application, leading to deeper creep deformation.
• Shear Strain: The twisting motion of heavy axles during bay entry and exit creates high torsional stress on the upper binder course.
• Channelization: The lack of lateral wander ensures that the same 10-inch strip of pavement absorbs 90% of the total tonnage.
• Thermal Softening: Peak summer surface temperatures in the Aurora corridor can push asphalt toward its softening point, accelerating plastic flow.

Rheological Limitations of Conventional PG Binders

Standard Performance Grade (PG) binders, while sufficient for general arterial roads, frequently prove inadequate for the extreme demands of the R-Line’s intermodal hubs. Conventional bitumen relies on a specific balance of stiffness and ductility; however, in high-stress bus bays, this balance is easily disrupted. The primary issue is the temperature susceptibility of the binder. As temperatures rise, the viscosity of a standard PG binder drops precipitously, leading to a loss of structural stability. This allows the aggregate skeleton to shift, resulting in the characteristic "rut" that collects standing water and further degrades the pavement through hydroplanically induced stripping.

Furthermore, conventional binders lack the elastic recovery necessary to withstand the repetitive loading cycles of heavy-duty transit vehicles. Once the binder reaches its yield point under the weight of a 40,000-pound bus, the deformation becomes permanent. The lack of a polymer network means there is no internal mechanism to "pull" the material back into place once the load is removed. This leads to a rapid acceleration of rut depth, which not only compromises ride quality but also creates significant safety hazards and increases the mechanical wear on the transit vehicles' suspension systems.

• Viscosity Drop: Rapid loss of shear resistance at temperatures exceeding 120 degrees Fahrenheit.
• Low Elasticity: Minimal rebound capacity, leading to permanent plastic deformation after a few thousand load cycles.
• Oxidation Vulnerability: Standard binders harden over time, becoming brittle and prone to top-down cracking.
• Aggregate Displacement: Inadequate binder adhesion allows aggregates to rotate and slide, compromising the Marshall stability of the mix.

Polymer Modified Binders (PMB) as a Structural Defense

To mitigate the systemic failure of traditional asphalt in the Aurora Metro Ring, the implementation of Polymer Modified Binders (PMB), specifically those utilizing Styrene-Butadiene-Styrene (SBS), is the engineering gold standard. PMBs function by introducing a cross-linked polymer network into the bitumen matrix. This network acts as a microscopic reinforcement grid, significantly increasing the binder's elasticity and its resistance to permanent deformation. Instead of the binder acting as a simple lubricant for the aggregate, the polymer modification transforms the asphalt into a more resilient, rubberized composite that can absorb and dissipate energy more effectively.

The primary technical advantage of PMB is the expansion of the "performance window." By increasing the high-temperature stiffness (G*/sin delta) and enhancing the low-temperature flexibility, PMBs ensure that the bus bays remain stable during the peak of summer while resisting thermal cracking during winter freezes. The elastic recovery of SBS-modified binders allows the pavement to "bounce back" after the passage of a heavy axle, effectively resetting the deformation clock. This significantly delays the onset of rutting and prevents the lateral shoving typically seen at the boarding zones of the R-Line stops.

• Elastic Recovery: The ability of the polymer chains to return to their original configuration after unloading.
• Increased Viscosity: Higher resistance to flow at elevated temperatures, maintaining the structural integrity of the wheel paths.
• Enhanced Adhesion: Improved chemical bonding between the binder and the aggregate, reducing the risk of stripping.
• Modified Rheology: A flatter stiffness curve across a wider temperature range, ensuring consistent performance.

Implementation and Lifecycle Analysis for the R-Line Corridor

The successful deployment of PMB across the R-Line Aurora Metro Ring requires strict adherence to technical specifications during the lay-down and compaction phases. Because polymer-modified mixes have a higher viscosity, they require higher mixing and compaction temperatures to ensure full density. If the mix is allowed to cool too rapidly, the result is a "honeycombed" structure with excessive air voids, which invites water infiltration and premature oxidation. Therefore, the use of insulated trucks and precision temperature monitoring is mandatory to ensure the asphalt is compacted while it is still within its optimal thermal window.

From a lifecycle cost analysis (LCCA) perspective, the initial capital expenditure for PMB is higher than that of conventional asphalt. However, the reduction in maintenance frequency provides a substantial return on investment. Conventional bus bays in high-traffic intermodal zones often require milling and overlaying every 3 to 5 years. In contrast, a properly engineered PMB section can extend this interval to 10 to 12 years. This reduction in downtime is critical for the R-Line, as it minimizes service disruptions and reduces the long-term operational burden on the municipal infrastructure budget.

• Compaction Density: Target of 96% to 98% of theoretical maximum density to eliminate unstable air voids.
• Thermal Management: Maintenance of a minimum lay-down temperature of 275 degrees Fahrenheit to ensure workability.
• Maintenance Interval: Projected

System Architecture and Interlock Logic for Traction Power

The traction power distribution system along the W-Line West Colfax Light Rail utilizes a high-voltage third-rail configuration that necessitates a rigorous, multi-layered de-energization interlock framework. At the core of this architecture is the Traction Power Substation (TPSS), which converts utility-grade AC power to the DC voltage required for propulsion. The emergency de-energization (ED) interlocks are designed as a fail-safe series circuit, ensuring that any single point of failure or manual trigger initiates an immediate state-change to a non-energized condition. This logic is governed by a Supervisory Control and Data Acquisition (SCADA) system, which monitors the real-time status of the circuit breakers and the integrity of the interlock loop.

The interlock logic operates on a "normally closed" (NC) principle. In this configuration, a continuous current flows through the emergency stop (E-stop) loop; any interruption—whether caused by a physical button press, a cable fault, or a relay failure—breaks the circuit and triggers the high-speed vacuum circuit breakers to trip. This prevents the hazardous condition of a "stuck" energized rail during an emergency evacuation or a maintenance event. The precision of this timing is critical, as the latency between the trigger event and the actual arc-extinction in the breaker must be minimized to prevent catastrophic electrical discharge.

• SCADA integration for remote monitoring and rapid state-verification.
• Series-wired E-stop arrays ensuring a single-point-of-failure trigger.
• Vacuum circuit breakers designed for high-interrupting capacity and rapid cycle times.
• Galvanic isolation between the control logic and the high-voltage traction bus.

Forensic Analysis of Fail-Safe Mechanisms and Hardware

From a forensic engineering perspective, the reliability of the W-Line interlocks depends on the mechanical and electrical integrity of the trip-coils and the physical switches. A clinical analysis of the hardware reveals that the primary failure modes are typically associated with contact oxidation and mechanical fatigue of the spring-loaded actuators. To mitigate these risks, the system employs positive-break mechanisms, where the physical movement of the switch mechanically forces the contacts apart, eliminating the reliance on spring tension alone. This ensures that the de-energization command is executed regardless of the environmental degradation of the component.

The forensic evaluation of the third-rail mounting brackets and the insulating insulators is equally paramount. In the West Colfax corridor, the interaction between the electrical system and the physical environment introduces variables such as vibration-induced wear and thermal expansion. If the insulating blocks degrade, the resulting leakage current can create "ghost" voltages that confuse the interlock logic or, worse, create a path to ground that bypasses the safety interlocks. Therefore, the use of high-dielectric strength polymers and reinforced concrete sleepers is mandatory to maintain the required clearance and prevent unintended grounding.

• Positive-break switchgear to eliminate reliance on spring-return failure.
• Dielectric testing of insulators to prevent leakage current and parasitic capacitance.
• Vibration-dampening mounts to reduce mechanical fatigue on the interlock wiring.
• Arc-flash mitigation boundaries established around all TPSS equipment.

Integration with Building Envelope and Civil Infrastructure

The intersection of traction power systems and the surrounding civil infrastructure requires a sophisticated understanding of building envelope forensics. The W-Line's third-rail system does not exist in a vacuum; it is integrated into a complex urban envelope consisting of concrete retaining walls, drainage systems, and steel support structures. A critical concern is the phenomenon of stray current corrosion. When the interlock system is engaged or disengaged, transient currents can migrate into the surrounding soil and concrete, leading to the accelerated electrolysis of reinforced steel (rebar) within the infrastructure.

To prevent this, the engineering specification mandates a comprehensive grounding and bonding network. The interlocks are tied into a common grounding grid that ensures any fault current is safely dissipated without compromising the structural integrity of the West Colfax transit corridor. Furthermore, the conduits housing the interlock wiring must be sealed against moisture ingress. Forensic evidence from similar light rail installations shows that interstitial condensation within the conduits can lead to insulation breakdown, resulting in intermittent "nuisance trips" of the emergency system, which degrades operator confidence and increases the risk of ignoring genuine alarms.

• Installation of cathodic protection systems to mitigate stray current corrosion.
• Hermetically sealed conduit runs to prevent moisture-induced short circuits.
• Thermal expansion joints in the rail mounting to prevent stress-induced fractures.
• Integration of drainage slopes to prevent standing water near the TPSS foundations.

Maintenance Protocols and Reliability Engineering

Ensuring the operational availability of the emergency de-energization system requires a transition from reactive maintenance to a reliability-centered maintenance (RCM) strategy. The Mean Time Between Failures (MTBF) for the interlock relays must be tracked with empirical precision. This involves the implementation of a rigorous testing cycle where each E-stop and interlock loop is functionally verified under load. These tests must be performed using calibrated insulation resistance testers (meggers) to ensure that the conductor integrity remains within the specified tolerances of the IEEE and NFPA standards.

The final layer of the reliability framework is the human-machine interface (HMI) and the associated training protocols. The interlock system is only as effective as the personnel operating it. Standard operating procedures (SOPs) must dictate a "lock-out, tag-out" (LOTO) process that is physically verified by the interlock state before any technician enters the third-rail envelope. This creates a redundant safety layer where the electronic interlock is backed by a physical mechanical lock, ensuring that the traction power cannot be re-energized while personnel are in the danger zone.

• Quarterly functional testing of all E-stop arrays and vacuum breakers.
• Implementation of a LOTO (Lock-Out, Tag-Out) protocol for all maintenance windows.
• Continuous monitoring of contact resistance to predict relay failure.
• Adherence to NFPA 70E standards for electrical safety in the workplace.

Systemic Vulnerabilities in Transit-Integrated Logic Controllers

The Flatiron Flyer US-36 BRT corridor represents a complex intersection of high-capacity transit infrastructure and exposed electronic control systems. In the context of signal relay operations, the primary vulnerability lies in the susceptibility of legacy logic controllers to transient overvoltages. These transients, often induced by lightning strikes, switching surges from the regional power grid, or inductive coupling from high-voltage lines running parallel to the transit way, create catastrophic dielectric stress within the semiconductor junctions of the signal relays. When a voltage spike exceeds the rated breakdown voltage of the logic gate, the result is often immediate component failure or, more insidiously, latent degradation that manifests as intermittent signal "ghosting" or relay chatter.

From a forensic engineering perspective, the failure points are typically concentrated at the interface between the external sensor arrays and the internal logic processing units. The lack of robust Transient Voltage Surge Suppression (TVSS) in the original installation meant that the solid-state logic (SSL) was directly exposed to the raw electrical environment of the US-36 corridor. This exposure is exacerbated by the geographical profile of the region, where rapid temperature fluctuations and atmospheric instability increase the frequency of electrostatic discharge events. To mitigate these risks, the upgrade strategy focuses on a multi-layered approach to clamping and diversion, ensuring that transient energy is shunted to ground before it reaches the sensitive logic thresholds.

• Inductive coupling from adjacent high-voltage utility lines.
• Atmospheric transients resulting from localized lightning cells.
• Switching transients caused by heavy machinery and transit power cycling.
• Ground loop currents induced by disparate grounding potentials across the BRT line.

Solid-State Logic Migration and Relay Optimization

The transition from mechanical relay logic to Solid-State Logic (SSL) is a critical component of the US-36 upgrade. Mechanical relays, while robust, are subject to contact pitting, oxidation, and mechanical fatigue, all of which increase the internal resistance and response time of the signal chain. By implementing SSL, the system achieves nanosecond switching speeds and eliminates the physical arc flash associated with coil-driven contacts. However, the inherent sensitivity of SSL components to overvoltage requires a sophisticated surge suppression architecture. The current upgrade utilizes a combination of Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs) to create a coordinated clamping response.

The technical execution involves the installation of high-speed TVSS modules directly at the relay input terminals. These modules are engineered to trigger at a precise clamping voltage, diverting excess current to the grounding bus without interrupting the logic state of the signal. This prevents the "latching" phenomenon where a surge forces a relay into a permanent ON or OFF state, which could lead to dangerous signaling errors in a rapid transit environment. Furthermore, the integration of opto-isolators provides complete galvanic isolation between the high-energy field side and the low-energy logic side, ensuring that a catastrophic failure in the field wiring does not propagate back to the central control hub.

• Implementation of bidirectional TVS diodes for precision voltage clamping.
• Utilization of opto-coupling to eliminate ground-loop interference.
• Reduction of switching latency from 20ms (mechanical) to under 10ns (SSL).
• Integration of thermal fuses to prevent MOV thermal runaway during sustained overvoltage events.

Envelope Integration and Environmental Hardening

A critical, often overlooked aspect of electrical reliability in transit infrastructure is the integrity of the building envelope and the physical housing of the control gear. In the Flatiron Flyer project, the roofing and enclosure systems of the signal kiosks serve as the first line of defense. Forensic analysis of previous failures indicated that moisture ingress through degraded roof seals was leading to micro-corrosion of the grounding lugs. This corrosion increased the impedance of the grounding path, effectively neutralizing the efficacy of the surge suppressors by preventing the diverted energy from reaching the earth efficiently.

The engineering solution required a comprehensive overhaul of the enclosure forensics. This included the application of high-performance elastomeric roofing membranes to the kiosk tops to ensure a watertight seal, preventing the "wicking" effect where water travels down conduit runs into the electrical cabinets. Additionally, the transition from the roof-mounted antenna arrays to the internal SSL boards was reinforced with shielded, halogen-free cabling and precision-engineered cable glands. By ensuring the building envelope is hermetically sealed and the grounding system is chemically treated to prevent galvanic corrosion, the surge suppression system can operate at its theoretical maximum efficiency.

• Application of UV-resistant, high-mil thickness roofing membranes to prevent moisture infiltration.
• Installation of stainless steel grounding busbars to minimize oxidation and contact resistance.
• Use of IP67-rated enclosures to protect SSL components from particulate matter and humidity.
• Strategic placement of surge arrestors at the point of entry (POE) where cabling penetrates the building envelope.

Empirical Validation and Lifecycle Performance Metrics

To validate the efficacy of the SSL surge suppression upgrades, a series of empirical stress tests were conducted across the US-36 corridor. This involved the use of impulse generators to simulate lightning-induced transients and the monitoring of "let-through" voltage using high-speed digital oscilloscopes. The data indicated a 98% reduction in peak voltage reaching the logic controllers, with the clamping response occurring within the first 5 nanoseconds of the transient event. This ensures that the semiconductor junctions remain well within their Safe Operating Area (SOA), drastically extending the Mean Time Between Failures (MTBF) for the signal relays.

Long-term reliability is further ensured through the implementation of a predictive maintenance schedule based on the degradation curves of the MOV components. Because MOVs degrade over time as they absorb surge energy, the system now includes diagnostic indicators that signal when a suppressor has reached its end-of-life. This shift from reactive to proactive maintenance prevents the "silent failure" mode where a system appears operational but is completely unprotected against the next major electrical event. The result is a hardened, resilient infrastructure capable of maintaining signal integrity across the entire Flatiron Flyer network regardless of environmental volatility.

• Verification of grounding impedance to be less than 1 ohm at 60Hz.
• Measurement of let-through voltage to ensure it remains below the 15V logic threshold.
• Analysis of thermal signatures using infrared thermography to identify high-resistance joints.
• Establishment of a quarterly audit cycle for TVSS module health and envelope integrity.

Aerodynamic Forcing and Vortex Shedding in Urban Canyons

The Colfax Avenue BRT corridor presents a complex aerodynamic environment characterized by the "urban canyon" effect, where high-rise commercial structures and varying building heights create erratic wind tunneling. In this specific infrastructure context, the overhead catenary system (OCS) is subjected to non-uniform wind loads that deviate significantly from standard open-field wind models. The primary driver of dynamic oscillation in this corridor is the interaction between steady-state wind flow and the cylindrical geometry of the contact and messenger wires, leading to the formation of Karman vortex streets.

When wind flows across the catenary wires, alternating vortices are shed from the sides of the conductor. If the frequency of this vortex shedding aligns with the natural frequency of the span, a condition known as vortex-induced vibration (VIV) occurs. On Colfax Avenue, the turbulence intensity is heightened by the intermittent gaps between building envelopes, which create localized pressure differentials. These differentials induce a lift force perpendicular to the wire's axis, triggering a self-exciting oscillation that can lead to catastrophic failure if not properly damped.

• Stochastic wind loading patterns resulting from building-induced turbulence.
• Vortex shedding frequencies calculated against the Scruton number to determine susceptibility to oscillation.
• The impact of the Venturi effect in narrow street sections, increasing wind velocity and corresponding kinetic energy transfer to the OCS.
• Pressure coefficient fluctuations across the contact wire interface during peak gust events.

Structural Resonance and Modal Analysis of Catenary Spans

The dynamic stability of the Colfax Avenue OCS is governed by the relationship between wire tension, linear mass, and span length. From a forensic engineering perspective, the catenary system acts as a series of coupled oscillators. The fundamental frequency of each span is critical; when the wind-induced forcing frequency matches the fundamental modal frequency, resonance occurs, leading to large-amplitude displacements. This is particularly prevalent in the longer spans where the structural stiffness is lower, increasing the risk of "galloping"—a low-frequency, high-amplitude oscillation caused by aerodynamic instability.

Modeling these oscillations requires a high-fidelity finite element analysis (FEA) that accounts for the non-linear behavior of the copper-alloy conductors. The tensioning systems, designed to maintain a constant height for pantograph contact, introduce a specific boundary condition that can either mitigate or exacerbate harmonic excitation. In the Colfax corridor, the interaction between the messenger wire and the dropper wires creates a complex modal map, where higher-order harmonics can be triggered by sudden wind gusts, leading to rapid fatigue cycles in the conductor material.

• Analysis of the first three natural modes of vibration to identify critical wind speed thresholds.
• Evaluation of the tension-to-mass ratio to shift the natural frequency away from the dominant vortex shedding frequency.
• Calculation of the damping ratio provided by the internal molecular friction of the hard-drawn copper wire.
• Assessment of the coupling effect between adjacent spans through common support structures.

Interface Forensics: Support Bracketry and Anchor Point Fatigue

The transfer of dynamic energy from the oscillating catenary wires to the support infrastructure represents a critical point of failure. In the Colfax Avenue BRT line, the interface between the OCS brackets and the mounting poles—or in some cases, building-attached anchors—is subject to intense cyclic loading. This is not a steady-state load but a high-cycle fatigue scenario where the oscillation of the wire induces a moment arm at the bracketry. Over time, this leads to the initiation of micro-cracks at the heat-affected zones of welds and the threads of high-strength bolts.

Forensic analysis of these anchor points reveals that the most significant stress concentrations occur during "galloping" events, where the amplitude of the wire movement exceeds the design tolerances of the steady-arm. The resulting shear forces are transmitted directly into the building envelope or the utility pole, potentially compromising the structural integrity of the attachment point. The use of rigid connections without sufficient rotational flexibility often results in "brittle-style" failures, where the material reaches its endurance limit prematurely due to the cumulative damage of millions of low-amplitude cycles.

• Measurement of von Mises stress levels at the bracket-to-pole interface during simulated peak wind events.
• Inspection for fretting corrosion at the clamp interfaces caused by high-frequency micro-oscillations.
• Evaluation of the bolt preload requirements to prevent gapping and subsequent impact loading during oscillation.
• Analysis of the load path from the contact wire through the steady-arm to the primary structural support.

Mitigation Strategies and Dynamic Damping Implementation

To ensure the operational reliability of the Colfax Avenue BRT line, a multi-tiered mitigation strategy must be deployed to decouple the OCS from the aerodynamic forcing functions. The primary objective is to increase the system's overall damping and shift its natural frequencies. This is achieved through the implementation of tuned mass dampers (TMDs) and the strategic installation of cross-ties. Cross-ties serve to mechanically couple the messenger and contact wires, effectively increasing the stiffness of the system and reducing the amplitude of the fundamental mode of vibration.

Furthermore, the introduction of constant tensioning devices (CTDs) with integrated hydraulic damping can absorb a significant portion of the kinetic energy generated during wind events. From a building envelope perspective, the use of elastomeric isolation pads at the anchor points can reduce the transmission of vibrations into the surrounding commercial structures, preventing secondary structural fatigue. The ultimate goal is to transition the system from a state of aeroelastic instability to a state of controlled, damped response, ensuring that the pantograph-to-wire interface remains stable even during severe weather events.

• Installation of Stockbridge-type dampers to target high-frequency aeolian vibrations.
• Implementation of aerodynamic fairings on support structures to reduce the intensity of vortex shedding.
• Utilization of high-damping alloy wires to increase the internal energy dissipation of the spans.
• Deployment of real-time accelerometers for structural health monitoring to detect the onset of resonance in real-time.

Structural Integration and Envelope Penetration Forensics

The implementation of a redundant optical fiber backhaul within the Civic Center Transit Concourse requires a rigorous analysis of the existing building envelope to prevent systemic failure. In high-traffic transit hubs, the envelope is not a static barrier but a dynamic interface subject to extreme thermal cycling and vibration. The primary forensic concern during the installation of backhaul conduits is the integrity of the penetration points where fiber optic cabling transitions from the exterior subterranean vaults to the interior concourse galleries. Improperly sealed penetrations act as conduits for moisture ingress, leading to capillary action that can introduce corrosive agents into the cable trays.

From a forensic engineering perspective, the risk of water infiltration at the roof-to-wall transitions is paramount. In the Civic Center facility, the intersection of the concrete slab and the waterproofing membrane must be meticulously managed. If the fiber conduits are not equipped with appropriate flashing and sealant, hydrostatic pressure during peak precipitation events can force water directly into the electrical galleries. This not only threatens the physical integrity of the cable jackets but can lead to the degradation of the splice enclosures through humidity-induced oxidation.

• Utilization of non-shrink grout and hydrophobic sealants at all structural wall penetrations to ensure a watertight seal.
• Installation of drip loops at every vertical-to-horizontal transition to prevent moisture migration along the cable sheath.
• Implementation of rigid galvanized steel conduit (RMC) in areas of high mechanical stress to protect against envelope shifting.
• Application of thermal expansion joints within the conduit runs to accommodate the differential movement between the concourse floor and the primary support columns.

Furthermore, the analysis of the building envelope reveals that the concourse's ventilation shafts create localized pressure differentials. These differentials can pull unfiltered air and particulate matter into the cable galleries, necessitating the use of sealed, NEMA-rated enclosures for all fiber distribution hubs. By treating the fiber backhaul as an integral component of the building's mechanical envelope, we ensure that the physical layer of the security network is shielded from the environmental stressors inherent in a public transit facility.

Redundancy Architecture and Physical Path Diversity

True redundancy in a transit security surveillance system is not achieved by simply doubling the number of cables, but by ensuring total physical path diversity. In the Civic Center Transit Concourse, a "Single Point of Failure" (SPOF) analysis indicates that routing both the primary and secondary backhaul through the same utility corridor would render the redundancy moot in the event of a structural collapse, fire, or localized flooding. Therefore, the engineering specification mandates a geographically diverse routing strategy, splitting the backhaul into East and West wing corridors.

The primary backhaul utilizes a high-count Single-Mode Fiber (SMF) backbone, routed through the northern mezzanine, while the redundant path is routed through the southern subterranean service tunnel. This separation ensures that a localized incident—such as a pipe burst in the northern gallery—does not compromise the entire surveillance feed. The logical topology is configured as a resilient ring, allowing for instantaneous failover via an Optical Add-Drop Multiplexer (OADM) system. This ensures that the security operations center (SOC) maintains a continuous stream of high-definition video data without packet loss during a switchover event.

• Physical separation of primary and secondary paths by a minimum of 50 feet of reinforced concrete or structural masonry.
• Deployment of a dual-homed architecture where each surveillance cluster is connected to two independent distribution switches.
• Use of OS2-grade single-mode fiber to minimize attenuation over the long distances of the concourse, ensuring a link budget margin of at least 3dB.
• Installation of redundant power feeds for all active optical equipment, utilizing independent UPS circuits to prevent power-related outages.

The analytical data suggests that by implementing this diverse pathing, the Mean Time Between Failures (MTBF) for the backhaul system is increased by an order of magnitude. The clinical cause-and-effect relationship is clear: by decoupling the physical paths, we eliminate the risk of common-mode failure, thereby guaranteeing the availability of critical security optics during emergency evacuations or infrastructure crises.

Signal Integrity and Environmental Mitigation

The transit environment is characterized by extreme electromagnetic interference (EMI) and constant mechanical vibration, both of which can degrade optical signal quality if not properly mitigated. While fiber optics are inherently immune to EMI, the active equipment—such as the media converters and switches—is highly susceptible to the transient voltages generated by the transit power rails. To prevent signal jitter and bit-error rate (BER) increases, all active components must be housed in shielded enclosures with dedicated grounding systems that adhere to TIA-607-C standards.

Vibration analysis of the Civic Center concourse indicates that the constant movement of trains creates harmonic oscillations that can lead to "micro-bends" in the fiber optic cabling. Micro-bends are small-scale deviations in the fiber core that cause light to leak into the cladding, resulting in increased attenuation. To counteract this, the engineering specification requires the use of armored fiber cables with a loose-tube construction. The loose-tube design allows the fibers to move independently of the outer cable jacket, effectively decoupling the glass core from the structural vibrations of the building.

• Installation of vibration-dampening hangers and cable trays to isolate the backhaul from the primary structural vibrations of the rail lines.
• Strict

Hydrodynamic Mechanisms and Scour Morphologies in the South Platte Basin

The South Platte River, particularly within the corridor of the Boulder Junction Depot, presents a complex fluvial environment characterized by high-energy seasonal fluctuations and a heterogeneous bed composition. Bridge pier scour in this region is primarily driven by the interaction between high-velocity flow and the alluvial deposits of the riverbed. The fundamental mechanism is the removal of sediment from around the pier foundations, which can lead to a critical loss of lateral and vertical support. In the context of the Boulder Junction crossings, we observe a combination of contraction scour and local scour, both of which act synergistically to undermine structural integrity.

Contraction scour occurs when the bridge opening is narrower than the natural river channel, forcing the flow to accelerate as it passes through the restricted area. This increase in velocity elevates the bed shear stress beyond the critical threshold of the sediment, resulting in a general lowering of the riverbed across the entire opening. Local scour, conversely, is a concentrated phenomenon caused by the formation of horseshoe vortices at the base of the pier. These vortices act as high-pressure suction zones that excavatively remove material from the pier's immediate periphery, creating a scour hole that can reach depths several times the diameter of the pier itself.

The specific sediment transport characteristics of the South Platte River influence the rate and depth of this erosion. The presence of coarse gravels interspersed with finer sands creates a non-uniform erosion profile. During peak runoff events, the "flashy" nature of the basin leads to rapid increases in discharge, which can trigger sudden, deep scour events that may not be fully recovered during the subsequent deposition phase. This cyclical process of erosion and partial refill creates a precarious equilibrium that requires constant forensic monitoring.

• Horseshoe Vortex Generation: The primary driver of local scour, creating a deep depression around the leading edge of the pier.
• Wake Vortices: Secondary turbulence patterns that contribute to the removal of sediment from the downstream side of the structure.
• Critical Shear Stress: The threshold at which the hydrodynamic force of the water overcomes the gravitational and cohesive forces of the riverbed material.
• Aggradation and Degradation: The long-term trend of the riverbed elevation, which can either mitigate or exacerbate the effects of localized scour.

Instrumentation and Real-Time Monitoring Methodologies

To ensure the resilience of the South Platte River crossings, a multi-layered monitoring strategy is employed, moving away from periodic manual soundings toward continuous, automated data acquisition. The objective is to establish a baseline of bed elevation and detect deviations in real-time, particularly during high-flow events when the risk of catastrophic failure is most acute. The integration of remote sensing and in-situ instrumentation allows for the precise quantification of scour depth without necessitating diver intervention during hazardous conditions.

One of the most effective tools for this application is the installation of fixed-point sonar transducers mounted directly to the pier noses. These sensors emit high-frequency acoustic pulses that measure the distance to the riverbed, providing a continuous profile of the scour hole's evolution. When paired with a telemetry system, these sensors can trigger automatic alerts if the bed elevation drops below a predefined critical threshold. This "early warning" system is essential for implementing emergency stabilization measures before the foundation's bearing capacity is compromised.

Complementing acoustic monitoring, Time Domain Reflectometry (TDR) and sacrificial probes are utilized to map the vertical extent of the scour. TDR cables, embedded within the riverbed, change their electrical properties as the surrounding soil is eroded, allowing engineers to pinpoint the exact elevation of the scour interface. Furthermore, tiltmeters are installed on the pier caps to monitor for any infinitesimal rotation or settlement, which serves as a secondary forensic indicator that the foundation has lost its skin friction or end-bearing support.

• Multibeam Echosounders: Used for comprehensive bathymetric mapping to identify general channel migration and contraction scour patterns.
• Fixed-Mount Sonar: Provides high-resolution, real-time data on the depth of local scour holes during peak flow events.
• TDR Sensors: Offer a reliable method for detecting the soil-water interface through changes in electrical impedance.
• Biaxial Tiltmeters: Detect structural leaning or settlement, indicating a potential failure of the underlying pile group.

Structural Vulnerability and Geotechnical Forensic Analysis

From a forensic engineering perspective, the danger of pier scour is not merely the removal of soil, but the resulting change in the structural behavior of the foundation. Most bridge piers in the Boulder Junction area rely on a combination of skin friction along the pile shafts and end-bearing pressure at the pile tips. When scour removes a significant portion of the overburden, the effective length of the pile increases, which shifts the point of maximum bending moment deeper into the ground and reduces the overall lateral stability of the pier.

The loss of lateral confinement is particularly critical. In a stable state, the soil surrounding the pile provides a confining pressure that prevents buckling and limits lateral deflection. As the scour hole deepens, the unsupported length of the pile increases, making the structure more susceptible to vibration-induced fatigue and hydrodynamic loading from debris impact. If the scour depth reaches the bottom of the pile cap, the foundation may experience "undermining," where the cap is left suspended, leading to an uneven distribution of loads and potential structural cracking in the concrete.

Forensic analysis of these structures involves calculating the "critical scour depth," the point at which the factor of safety for the foundation drops below acceptable industry standards (typically a factor of 2.0 for permanent works). This analysis must account for the interaction between the hydraulic forces of the river and the geotechnical properties of the soil, including the internal angle of friction and the cohesion of the alluvial deposits. Any evidence of settlement or tilting is treated as a primary indicator of foundation distress, requiring immediate geotechnical intervention.

• Effective Length Increase: The phenomenon where the loss of soil increases the unsupported span of the foundation piles.
• Lateral Stability Loss: The reduction in the soil's ability to resist the horizontal forces exerted by the river current.
• Pile Cap Undermining: The critical state where the foundation cap is no longer supported by the surrounding bed material.
• Bending Moment Shift: The relocation of the maximum stress point on the pile, potentially exceeding the structural capacity of the reinforced concrete.

Mitigation Strategies and Lifecycle Maintenance Protocols

Mitigating the effects of scour requires a dual approach: the physical armoring of the riverbed and the implementation of a rigorous lifecycle maintenance schedule. The goal is to transition the riverbed from an erodible state to a stable state, ensuring that the critical shear stress required for sediment transport is significantly higher than the stresses generated during a 100-year flood event. The most common method of arm

Structural Integration and Load Path Analysis

The structural integrity of fleet maintenance facilities within the Longmont Intermodal Terminal depends entirely on the precise synchronization between the overhead crane runway systems and the primary building frame. In these high-capacity environments, the load path is not a static line but a dynamic distribution of forces. When a hoist engages a heavy-duty vehicle chassis, the resulting vertical load is transferred through the bridge girder to the end trucks, and subsequently into the runway beams. These beams must be engineered to resist not only the dead load of the crane and the live load of the payload but also the lateral thrust generated during acceleration and deceleration phases.

From a forensic engineering perspective, the critical failure points are typically found at the connection interfaces. In the Longmont facilities, we observe a reliance on heavy-gauge wide-flange beams supported by reinforced concrete columns or structural steel pillars. The moment connections at these junctions must be scrutinized for bolt slippage and weld degradation. If the runway beams exhibit excessive deflection—exceeding the standard L/600 limit—the resulting torsional stress can migrate into the building's primary lateral force-resisting system, potentially compromising the vertical alignment of the facility's columns.

• Analysis of shear capacity at the beam-to-column connection points.
• Evaluation of runway beam camber to ensure proper load distribution across the span.
• Assessment of bracing intervals to prevent lateral-torsional buckling under peak load.
• Verification of anchor bolt torque specifications to prevent vibration-induced loosening.

Forensic Evaluation of Fatigue and Cyclic Loading

Unlike static commercial structures, fleet maintenance facilities are subject to intense cyclic loading. Every lift cycle introduces a stress-strain curve that, over thousands of iterations, leads to metal fatigue. In the Longmont Intermodal Terminal, the forensic audit focuses on the identification of micro-fractures within the heat-affected zones (HAZ) of the welds. These fractures are often invisible to the naked eye and require Non-Destructive Testing (NDT) to identify before they propagate into catastrophic structural failures.

The cause-and-effect relationship between repetitive loading and structural decay is most evident in the runway rail fasteners. When a crane travels the length of the bay, the dynamic impact loads create high-frequency vibrations. If the fastening system is inadequate, these vibrations lead to "fretting," where the rail wears against the beam flange, reducing the effective cross-sectional area of the steel. This reduction in material increases the localized stress, accelerating the fatigue process and potentially leading to a sudden shear failure of the runway support.

• Utilization of ultrasonic testing (UT) to detect internal voids in full-penetration welds.
• Magnetic particle inspection (MPI) to identify surface-level stress cracks in hoist attachments.
• Monitoring of deflection patterns using laser trackers during maximum rated load tests.
• Analysis of steel grain structure to determine the extent of work-hardening in high-stress zones.

Building Envelope Integrity and Vibration Attenuation

A critical yet often overlooked aspect of crane load-bearing audits is the interaction between the structural steel and the building envelope. In a commercial infrastructure setting, the roof and wall cladding are not merely weather barriers; they are integrated components of the facility's overall stability. The harmonic resonance generated by heavy overhead cranes can transmit vibrations through the primary frame and directly into the roofing system. In the Longmont facilities, this often manifests as the degradation of sealants and the loosening of mechanical fasteners in the roof decking.

Forensic analysis reveals that excessive vibration from improperly balanced crane bridges can lead to "envelope creep," where the repeated oscillation causes the building's skin to shift slightly. This shifting compromises the thermal bridge and creates pathways for air infiltration and moisture penetration. For facilities utilizing TPO or EPDM membranes, these vibrations can cause premature fatigue in the flashing and seam welds, leading to leaks that are often misdiagnosed as weather-related rather than structurally induced. The engineering goal is to ensure that the vibration attenuation systems—such as dampened rail pads—are functioning to isolate the building envelope from the mechanical energy of the crane.

• Inspection of roof-to-wall connections for signs of vibration-induced fatigue.
• Evaluation of flashing integrity at the points where runway supports penetrate the envelope.
• Assessment of cladding fastener torque to prevent "backing out" due to structural resonance.
• Analysis of thermal expansion joints to ensure they accommodate the dynamic movement of the crane frame.

Compliance, Certification, and Life-Cycle Remediation

The final phase of the audit involves a rigorous comparison of empirical field data against industry standards, specifically ASME B30.2 and ANSI/HMF standards. For the Longmont Intermodal Terminal, compliance is not a one-time certification but a continuous state of operational readiness. The audit process culminates in a "Proof Load Test," where the system is stressed to 125% of its rated capacity. This test is designed to validate the safety factor and ensure that the structural members return to their original position without permanent plastic deformation.

Remediation strategies for aging facilities focus on the transition from reactive repairs to predictive maintenance. When the audit identifies a member that has reached its fatigue limit, the engineering recommendation is typically the installation of reinforcement plates or the replacement of the member with high-strength low-alloy (HSLA) steel. This process must be handled with clinical precision, ensuring that new welds do not introduce new stress concentrations. By implementing a digitized monitoring system—utilizing strain gauges and accelerometers—the facility can track real-time load data, allowing engineers to intervene before a component reaches its critical failure threshold.

• Execution of full-scale load tests to verify the structural safety factor.
• Development of a tiered remediation schedule based on the severity of identified defects.
• Implementation of a quarterly inspection cycle for all critical load-bearing weldments.
• Certification of all modified components to ensure alignment with current building codes and safety regulations.

Thermal Kinematics and Material Coefficients in Transit Loops

The Golden Station Transit Loop presents a complex engineering challenge due to the extreme thermal volatility of its operational environment. A 100-degree Fahrenheit thermal swing induces significant volumetric changes in the continuous welded rail (CWR) and the supporting reinforced concrete substructure. The primary driver of this instability is the Coefficient of Thermal Expansion (CTE). For standard high-carbon rail steel, the CTE is approximately 6.5 x 10-6 inches per inch per degree Fahrenheit. When applied across the expansive linear footage of the transit loop, a 100-degree variance translates into several inches of longitudinal movement that must be absorbed without compromising the structural integrity of the track geometry.

The disparity between the thermal response of the steel rails and the concrete sleepers creates a differential strain environment. While the concrete also expands and contracts, its mass and different CTE mean that the rail often moves independently of its fasteners if not properly constrained. In the Golden Station loop, this is exacerbated by the "heat sink" effect of the surrounding urban infrastructure, where radiant heat from asphalt and concrete platforms keeps the rail temperature significantly higher than the ambient air temperature. This phenomenon, known as thermal soaking, necessitates a calibration gap that accounts for both the ambient swing and the localized radiant heat gain.

• Linear Expansion Calculation: The total change in length is determined by the product of the original length, the CTE, and the temperature delta.
• Thermal Gradient Analysis: Evaluation of the temperature difference between the rail head and the rail web, which can cause internal bowing.
• Substructure Interaction: Assessment of how the ballast and slab track constrain or facilitate the longitudinal movement of the rail.
• Material Fatigue: The impact of repeated thermal cycling on the molecular structure of the steel, leading to potential work-hardening at the joint interfaces.

Gap Calibration Metrics and Precision Tolerances

Calibration of the expansion joint gap is not a static measurement but a dynamic calculation based on the Rail Neutral Temperature (RNT). The RNT is the specific temperature at which the rail experiences zero longitudinal stress—neither tension nor compression. For the Golden Station loop, the RNT must be meticulously selected to split the difference of the 100-degree swing, typically targeting the median temperature of the annual cycle. If the RNT is set too high, the rail is prone to pull-aparts during winter minima; if set too low, the risk of track buckling (sun kinks) increases during summer maxima.

The physical gap at the expansion joint must be calibrated using high-precision feeler gauges and laser telemetry to ensure that the gap width at the time of installation corresponds exactly to the ambient rail temperature. This requires a "temperature-to-gap" chart, a critical forensic document that dictates the precise millimeter spacing required for every 5-degree increment of the rail's internal temperature. Failure to adhere to these tolerances by as little as 1/8th of an inch can result in thousands of pounds of unintended force being transferred to the fastening systems, potentially shearing bolts or cracking concrete sleepers.

• RNT Optimization: Establishing a neutral point that minimizes the peak stress in both extreme heat and extreme cold.
• Gap Width Verification: Utilizing digital calipers to ensure the gap is centered and perpendicular to the rail axis.
• Fastener Tensioning: Adjusting the torque on rail clips to allow for controlled sliding while preventing lateral shift.
• Tolerancing Standards: Adhering to AREMA (American Railway Engineering and Association) standards for joint spacing and alignment.

Forensic Analysis of Thermal Failure Modes

When gap calibration fails, the resulting failures are typically catastrophic and follow a predictable clinical pattern. The most severe failure mode is the "sun kink," a form of compressive buckling. When the expansion gap is insufficient for a 100-degree rise, the rail reaches a state of critical compression. Once the internal force exceeds the lateral resistance provided by the ballast or the slab fasteners, the rail undergoes a sudden, violent lateral displacement. This is a non-linear failure; once the buckling begins, the structural integrity of the section is lost instantly, often leading to derailment risks.

Conversely, excessive gap calibration leads to "joint pounding" and tensile fractures. If the gap is too wide during the cooling phase of the thermal swing, the rail is pulled into a state of high tension. This creates a "gap-jump" scenario where the wheel flange of the transit vehicle impacts the rail end with significant force. Over time, this repeated impact causes plastic deformation of the rail head and can lead to fatigue cracking in the weld zones adjacent to the expansion joint. Forensic examination of these failures typically reveals "beach marks" or striations in the steel, indicating a progressive failure caused by cyclic thermal loading.

• Compressive Buckling: The result of insufficient gap width leading to lateral instability.
• Tensile Fracture: The result of over-calibration leading to excessive rail tension and weld failure.
• Impact Degradation: The wearing down of the rail head due to improper gap transitions.
• Fastener Shear: The failure of mounting hardware when the rail attempts to move against a locked joint.

Mitigation Strategies and Long-term Maintenance Protocols

To ensure the longevity of the Golden Station Transit Loop, a proactive mitigation strategy focusing on "active monitoring" is required. This involves the installation of embedded thermocouples and strain gauges at the primary expansion joints. These sensors provide real-time data on the rail temperature and the actual longitudinal force being exerted. By comparing this data against the original calibration charts, engineers can identify "creep"—the gradual migration of the rail over time—and schedule corrective maintenance before the rail enters a critical stress state.

Maintenance protocols must include a semi-annual "thermal audit." During the peak of summer and the trough of winter, technical teams must physically measure the gaps to ensure they are operating within the specified tolerances. If the gap is found to be closing too rapidly or remaining too wide, the rail must be "stressed" or adjusted. This process involves using hydraulic tensors to physically shift the rail length while the fasteners are temporarily loosened, effectively resetting the RNT. This clinical approach to maintenance transforms the expansion joint from a passive component into a managed system, ensuring the safety and reliability of the transit infrastructure across the full 100-degree thermal spectrum.

• Real-time Telemetry: Using IoT sensors to monitor rail temperature and strain in real-time.
• Hydraulic Re-stressing: Periodic adjustment of the rail length to correct for longitudinal creep.
• Ultrasonic Testing: Regular inspection of the weld zones near expansion joints to detect subsurface fatigue cracks.
• Ballast Stabilization: Enhancing the

Environmental Drivers of Steel Degradation in the Lakewood-Wadsworth Corridor

The Lakewood-Wadsworth Corridor presents a challenging environment for embedded structural steel, characterized by high seasonal temperature fluctuations and aggressive chemical exposure. The primary catalyst for corrosion in concrete-embedded tie rods within this region is the infiltration of chloride ions, largely attributed to the heavy application of de-icing salts on adjacent roadway infrastructure. These ions penetrate the porous matrix of the concrete through capillary action and diffusion, eventually reaching the steel reinforcement. Once the chloride concentration at the steel-concrete interface exceeds a critical threshold—typically cited around 0.05% to 0.1% by weight of cement—the naturally occurring passive oxide layer that protects the steel is compromised.

Furthermore, the corridor is subject to carbonation, a process where atmospheric carbon dioxide reacts with the calcium hydroxide in the concrete, lowering the pH from a highly alkaline state (pH 12-13) to a more neutral range (pH 8-9). This reduction in alkalinity eliminates the chemical environment required to maintain the passivation layer, rendering the tie rods susceptible to uniform corrosion. In the specific context of commercial infrastructure in this corridor, the synergy between freeze-thaw cycles and chloride penetration accelerates the formation of micro-cracks, which serve as preferential pathways for moisture and oxygen, further fueling the electrochemical reaction of oxidation.

• Chloride-induced pitting: Localized breakdown of the passive film leading to deep, concentrated pits.
• Carbonation depth: The penetration distance of CO2, which reduces the effective alkalinity of the concrete cover.
• Diffusion coefficients: The rate at which harmful ions migrate through the cementitious matrix.
• Hygroscopic cycling: The repeated wetting and drying of the concrete, which concentrates salts near the steel surface.

Instrumentation and Electromechanical Monitoring Methodologies

To quantify the rate of degradation and predict the remaining service life of embedded tie rods, a multi-modal monitoring approach is required. The industry standard for initial screening is Half-Cell Potential (HCP) mapping, conducted in accordance with ASTM C876. By measuring the potential difference between the embedded steel and a reference electrode—typically a saturated copper-copper sulfate (CuCuSO4) electrode—engineers can identify areas with a high probability of active corrosion. A potential more negative than -350mV generally indicates a high risk of corrosion, whereas values more positive than -200mV suggest a passive state.

For a more precise kinetic analysis, Linear Polarization Resistance (LPR) is employed. LPR allows for the determination of the instantaneous corrosion current density (i_corr), which is directly proportional to the mass loss of the steel. By applying a small voltage perturbation and measuring the resulting current response, the polarization resistance can be calculated. This data is critical for calculating the corrosion rate in millimeters per year, providing a clinical timeline for structural intervention. Additionally, embedded electrical resistivity sensors are utilized to monitor the moisture content and ionic conductivity of the concrete, as high resistivity typically correlates with lower corrosion rates due to the restriction of ionic flow between anodic and cathodic sites.

• Reference Electrodes: Essential for establishing a baseline potential against the embedded steel.
• Corrosion Current Density: The primary metric for determining the actual rate of metal loss.
• Ohmic Drop Compensation: A necessary calibration to remove the influence of concrete resistivity from the potential measurements.
• Data Logging Intervals: High-frequency sampling required to capture the effects of seasonal thermal expansion and contraction.

Forensic Analysis of Tie Rod Degradation and Structural Implications

The transition from microscopic corrosion to macroscopic structural failure follows a predictable, albeit destructive, sequence. As the iron in the tie rods oxidizes, it transforms into hydrated iron oxides (rust), which occupy a significantly larger volume than the original metal—often three to six times the original volume. This volumetric expansion generates immense internal tensile stresses within the surrounding concrete. Because concrete possesses high compressive strength but negligible tensile strength, these internal pressures inevitably lead to the formation of longitudinal cracks that run parallel to the tie rod.

Once these cracks reach the surface, a phenomenon known as spalling occurs, where large fragments of concrete detach from the structure. This not only reduces the effective cross-sectional area of the concrete but also creates a direct conduit for atmospheric pollutants, accelerating the corrosion rate in a positive feedback loop. From a structural engineering perspective, the loss of cross-sectional area of the tie rod directly reduces its tensile capacity. In the Lakewood-Wadsworth corridor, forensic examinations of failed tie rods have revealed severe pitting corrosion, which creates stress concentrators. These concentrators can lead to sudden, brittle failure of the rod even when the overall mass loss is relatively low, compromising the lateral stability of the reinforced infrastructure.

• Volumetric Expansion: The primary driver of internal concrete cracking and subsequent spalling.
• Cross-Sectional Loss: The reduction in the load-bearing diameter of the steel rod.
• Stress Concentration Factors: The risk associated with deep pits that act as notches in the steel.
• Bond Strength Degradation: The loss of adhesion between the steel and concrete, reducing the composite action of the element.

Strategic Remediation and Life-Cycle Management

Mitigating corrosion in the Lakewood-Wadsworth corridor requires a shift from reactive repair to proactive, engineered management. The most effective long-term solution for existing contaminated structures is the implementation of Impressed Current Cathodic Protection (ICCP). ICCP works by introducing a small, controlled DC current into the steel, shifting the potential of the tie rod into the cathodic region where oxidation is thermodynamically unfavorable. This process effectively "forces" the steel to remain in a passive state, regardless of the chloride concentration in the surrounding concrete.

For new installations or during major rehabilitations, the specification of epoxy-coated reinforcement or galvanized steel is standard, though these are not infallible. A more robust approach involves the use of stainless steel (Grade 2205 or 316L) for tie rods in high-risk zones, as these alloys possess a significantly higher chloride threshold. Additionally, the application of hydrophobic surface treatments, such as silanes or siloxanes, can drastically reduce the permeability of the concrete envelope. These treatments line the pores of the concrete with a water-repellent layer, preventing the ingress of salt-laden moisture while allowing the concrete to "breathe" by permitting the escape of water vapor.

• Sacrificial Anodes: The use of zinc or magnesium anodes to provide galvanic protection to the steel.
• Hydrophobic Impregnation: Reducing the capillary suction of the concrete to block chloride entry.
• Electrochemical Chloride Extraction: A process used to pull

Hydrological Parameters and Front Range Precipitation Profiles

The Front Range of the Rocky Mountains presents a unique and volatile hydrological challenge, characterized by high-intensity, short-duration convective storms. For the Littleton Downtown Station, the primary engineering concern is the 100-year storm event, a statistical benchmark where the precipitation depth is exceeded once every century on average. In this region, the "100-year" event is not a steady drizzle but typically a series of intense bursts driven by orographic lift and atmospheric instability. These events produce rapid runoff that can overwhelm standard municipal drainage systems, necessitating onsite detention to attenuate peak flows and prevent downstream flooding of critical transit infrastructure.

The runoff coefficient (C) for the Littleton Downtown Station is exceptionally high due to the prevalence of impervious surfaces. The site consists of reinforced concrete platforms, asphalt parking areas, and expansive commercial roofing systems. Unlike natural landscapes that allow for infiltration, these surfaces facilitate near-instantaneous runoff. The engineering analysis must account for the "time of concentration," which is the duration required for water to travel from the most hydraulically remote point of the catchment area to the detention vault inlet. In a dense urban environment like the Downtown Station, this time is significantly compressed, leading to a sharper, higher peak on the storm hydrograph.

• NOAA Atlas 14 precipitation frequency data for the Denver-Aurora-Lakewood corridor.
• Impervious surface ratios exceeding 0.85 for primary transit zones.
• Soil saturation levels that diminish the effectiveness of secondary infiltration.
• The impact of urban heat island effects on localized convective cell intensification.

Volumetric Calculation Methodologies for Peak Flow Attenuation

To determine the required volume of the stormwater detention vault, a dual-methodological approach is employed: the Rational Method for peak flow estimation and the SCS (Soil Conservation Service) Curve Number method for total volume runoff. The Rational Method (Q = CiA) provides the instantaneous peak discharge, which is critical for sizing the inlet pipes and ensuring that the vault does not surcharge during the initial surge. However, the SCS method is superior for calculating the total storage volume required to hold the 100-year event until it can be released at a controlled, pre-development rate into the municipal storm sewer.

The detention vault acts as a hydraulic buffer. The objective is to "shave" the peak of the runoff hydrograph, storing the excess volume and releasing it via a restricted orifice or a weir system. This process of attenuation ensures that the downstream infrastructure is not subjected to velocities that could cause scouring or structural failure of the piping. The calculation must include a safety factor—typically 15% to 20%—to account for potential sediment accumulation over time, which reduces the effective storage volume of the vault. Furthermore, the analysis must integrate the contribution from the building envelope, specifically the internal roof drains that discharge directly into the vault system.

• Calculation of the pre-development runoff rate to establish the allowable release rate.
• Integration of the "First Flush" volume to manage initial pollutant loads.
• Application of the Modified Rational Method for larger, complex drainage areas.
• Determination of the maximum allowable water surface elevation to prevent basement or platform flooding.

Structural Integration and Vault Engineering

The physical implementation of a detention vault within a commercial infrastructure project like the Littleton Downtown Station requires rigorous structural forensics. Given the heavy dead loads of transit vehicles and the live loads of pedestrian traffic, the vault must be engineered to withstand significant overburden pressure. Precast reinforced concrete is the industry standard for these applications due to its compressive strength and resistance to groundwater infiltration. The vault must be designed as a monolithic structure or with high-performance waterstops at every joint to prevent the ingress of groundwater, which could lead to buoyancy issues or "floating" of the vault during high-water table events.

Hydrostatic uplift is a critical failure point in vault engineering. If the vault is empty during a period of saturated soil conditions, the upward pressure of the groundwater can exceed the weight of the structure and the soil overburden. This is mitigated through the use of thickened base slabs or the installation of mechanical anchors. Additionally, the interface between the vault and the building envelope must be meticulously sealed. Any leakage at the penetration points where roof drains enter the vault can lead to subsurface erosion, potentially undermining the foundations of the surrounding commercial structures and leading to differential settlement.

• Use of ASTM C150 Type II cement for sulfate resistance in subsurface environments.
• Installation of HDPE liners to prevent concrete carbonation and reinforcement corrosion.
• Implementation of reinforced concrete slabs-on-grade to distribute surface loads.
• Strategic placement of manholes for inspection and sediment removal.

Risk Mitigation and Forensic Failure Analysis

From a forensic engineering perspective, the most common failure modes for stormwater detention systems are not structural collapses, but rather operational failures due to lack of maintenance. Sedimentation is the primary culprit; over time, grit and debris from the surrounding parking lots settle at the bottom of the vault, effectively reducing its capacity. If the vault is not regularly desilted, a 100-year event will cause the system to surcharge prematurely, leading to surface flooding and potential water intrusion into the station's electrical vaults or mechanical rooms. To mitigate this, the engineering design includes a sediment forebay or a grit separator upstream of the main storage chamber.

Another critical risk is the failure of the outlet control structure. If the orifice becomes clogged with organic debris, the vault will fill to capacity and overflow, potentially bypassing the detention requirement entirely. This is addressed by installing redundant overflow weirs and high-level alarms. The forensic analysis of similar Front Range projects indicates that the most resilient systems are those that incorporate a "fail-safe" overflow path—a designated route where excess water can flow without impacting critical infrastructure. By prioritizing the integrity of the building envelope and ensuring the vault's volumetric efficiency, the Littleton Downtown Station can maintain operational continuity even during extreme meteorological events.

• Annual vacuuming of sediment to maintain design volumetric capacity.
• Quarterly inspection of outlet orifices to ensure unobstructed flow.
• Monitoring of joint integrity using non-destructive testing (NDT) methods.
• Verification of the emergency overflow path to prevent uncontrolled site erosion.

Regulatory Framework and the Physics of Smoke Control

The engineering objective for the Lone Tree City Center Transit facility is the maintenance of a sterile, smoke-free environment within the emergency egress stairwells during a catastrophic fire event. This is achieved through the implementation of a Stairwell Pressurization System (SPS), which operates on the principle of creating a positive pressure gradient relative to the adjacent floor areas. According to NFPA 92 and the International Building Code (IBC), the system must provide sufficient airflow to prevent the infiltration of smoke and toxic gases while ensuring that the pressure differential does not exceed the maximum allowable force required to open egress doors.

In a high-traffic transit hub, the complexity is compounded by the volume of air movement and the potential for rapid smoke migration. The technical goal is typically to maintain a pressure difference between 0.10 and 0.20 inches of water gauge (w.g.) across the stairwell doors. If the pressure is too low, smoke penetrates the sanctuary of the stairwell; if it is too high, the door opening force exceeds ADA (Americans with Disabilities Act) requirements, effectively trapping occupants. The physics of this balance requires a precise calculation of the "leakage area" of the building envelope, as the fan must compensate for all air escaping through gaps in the architectural shell.

• NFPA 92: Standard for Smoke Control Systems.
• IBC Chapter 9: Requirements for smoke-proof enclosures.
• ADA Standards for Accessible Design: Maximum door opening force limitations.
• ASHRAE Handbook: Fundamentals of airflow and pressure differentials.

Empirical Testing Methodology and Airflow Validation

To validate the performance of the pressurization fans at the Lone Tree City Center Transit, a rigorous empirical testing protocol is employed. The process begins with the calibration of the supply fans and the verification of the Variable Frequency Drive (VFD) settings. Technicians utilize high-precision digital manometers to measure the static pressure at multiple points along the height of the stairwell. This is critical because the "stack effect"—the vertical movement of air driven by temperature differentials—can create significant pressure variances between the ground level and the upper transit mezzanines.

The testing sequence involves a "closed-door" baseline measurement followed by a "door-open" simulation. During the simulation, specific doors are opened to mimic the movement of evacuating passengers. The engineering team monitors the rate of pressure decay and the recovery time required for the fans to restore the positive gradient. This data is then plotted against the fan's original performance curve to identify any degradation in impeller efficiency or obstructions in the ductwork. Furthermore, anemometers are used to verify that the air velocity at the discharge grilles does not create excessive turbulence that could interfere with visibility or occupant stability.

• Static Pressure Mapping: Measuring w.g. at 10-foot vertical intervals.
• Door Force Testing: Utilizing a force gauge to ensure opening resistance remains below 15 lbs.
• Fan Curve Analysis: Comparing actual CFM (Cubic Feet per Minute) against design specifications.
• VFD Modulation Test: Verifying the ramp-up speed of fans upon signal from the fire alarm control panel.

Forensic Analysis of Building Envelope Leakage

From a building envelope forensics perspective, the efficiency of a stairwell pressurization system is entirely dependent on the integrity of the architectural enclosure. In the Lone Tree City Center Transit project, the stairwells act as vertical shafts that can inadvertently become conduits for air leakage if the envelope is compromised. Forensic analysis involves identifying "leakage paths"—unintended openings in the curtain wall, roofing junctions, or utility penetrations—that allow pressurized air to escape prematurely. This phenomenon, known as "pressure bleed," forces the fans to work harder, potentially leading to premature motor failure or an inability to maintain the required gradient at the highest levels.

The forensic investigation utilizes infrared thermography and smoke pencils to visualize air movement. In many commercial transit structures, the primary points of failure are found at the interface between the concrete stairwell slab and the exterior cladding. If the flashing or the sealant joints have degraded, the pressurized air escapes into the plenum or the exterior environment rather than maintaining the internal pressure. This necessitates a forensic audit of the building envelope to ensure that the "leakage area" matches the assumptions made during the initial mechanical design phase. When the actual leakage exceeds the design leakage, the system fails to provide the necessary smoke barrier.

• Interface Analysis: Examining the seal between the stairwell enclosure and the primary building skin.
• Penetration Audit: Inspecting electrical and plumbing conduits for proper fire-stopping and air-sealing.
• Thermal Imaging: Identifying cold-air infiltration points that indicate envelope breaches.
• Sealant Degradation: Assessing the elasticity and adhesion of perimeter caulking in high-stress zones.

Remediation Strategies and Long-term Reliability Protocols

Once the empirical data and forensic findings are synthesized, remediation is focused on stabilizing the pressure gradient through a combination of mechanical adjustment and envelope reinforcement. If the pressure is found to be inconsistent, the first step is the optimization of the VFD parameters to allow for a more responsive ramp-up. In cases where the "stack effect" is overwhelming the system, the installation of motorized barometric dampers is recommended. These dampers automatically adjust the airflow based on the actual pressure sensed in the stairwell, preventing the "over-pressurization" of lower levels while ensuring the upper levels remain protected.

Long-term reliability is ensured through a scheduled maintenance and testing regime. Because building envelopes shift over time due to thermal expansion and seismic settling, the air-tightness of the stairwell is not a static value. A quarterly audit of the door seals and the fan belt tensions is mandatory. Additionally, the integration of the SPS with the building's overall Fire Life Safety (FLS) system must be tested monthly to ensure that the fans activate within seconds of a smoke detector trigger. This holistic approach—combining mechanical precision with forensic envelope maintenance—guarantees that the Lone Tree City Center Transit facility remains a safe environment for public evacuation.

• VFD Optimization: Tuning the PID loop for faster response to pressure drops.
• Envelope Sealing: Applying high-grade intumescent sealants to identified leakage paths.
• Barometric Damper Integration: Installing automated pressure-relief valves to balance vertical gradients.
• Quarterly Validation: Implementing a recurring schedule of manometer testing and door-force verification.

Regulatory Framework and Tier 4 Compliance Parameters

The implementation of Tier 4 emission standards for diesel-electric commuter locomotives operating within the Denver International Airport (DIA) Concourse Line represents a critical intersection of environmental mandate and mechanical engineering. Under the Environmental Protection Agency (EPA) Tier 4 guidelines, the primary objective is the drastic reduction of Nitrogen Oxides (NOx) and Particulate Matter (PM). For locomotives operating in semi-enclosed or tunnel-like environments, such as the concourse transit corridors, the concentration of these pollutants can rapidly exceed permissible Occupational Safety and Health Administration (OSHA) limits if not mitigated at the source.

Tier 4 compliance necessitates a shift from traditional mechanical combustion optimization to active chemical after-treatment. The regulatory threshold requires a significant percentage reduction in NOx compared to Tier 3 standards, moving toward a near-zero emission profile for particulate matter. In the specific context of the DIA Concourse Line, the engineering challenge is compounded by the duty cycle of commuter locomotives, which involves frequent acceleration and deceleration phases. These transients create thermal instability in the exhaust stream, which can compromise the efficiency of emission control systems if not managed via sophisticated electronic control modules (ECMs).

• EPA Tier 4 Final standards mandate a reduction of NOx to levels often below 0.13 g/kWh depending on the engine displacement and category.
• Particulate Matter (PM) must be filtered to a level where the visible smoke opacity is virtually eliminated.
• The integration of On-Board Diagnostics (OBD) is required to ensure real-time monitoring of urea dosing and catalyst health.
• Compliance is measured through a combination of steady-state and transient cycle testing to simulate real-world commuter movements.

Selective Catalytic Reduction and Diesel Particulate Filter Integration

To achieve Tier 4 NOx targets, the locomotives utilize a dual-stage after-treatment system consisting of a Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR). The DPF acts as a physical barrier, capturing soot and metallic ash from the exhaust gas. Because the DPF would eventually clog, the system employs a passive or active regeneration cycle, where the exhaust temperature is raised to oxidize the trapped carbon into carbon dioxide, thereby cleaning the filter substrate.

Following the DPF, the exhaust enters the SCR system, which is the primary mechanism for NOx abatement. The SCR process involves the injection of a Diesel Exhaust Fluid (DEF)—a high-purity urea solution—into the exhaust stream. Through a process of thermolysis and hydrolysis, the urea decomposes into ammonia (NH3). As the gas passes over a ceramic catalyst, typically composed of vanadium or zeolite, a chemical reaction occurs that converts NOx into diatomic nitrogen (N2) and water vapor (H2O). This process is highly dependent on the temperature of the exhaust gas; if the temperature drops below the catalyst's light-off point, the reaction stalls, leading to "ammonia slip," where unreacted ammonia is released into the atmosphere.

• SCR catalysts require precise temperature windows, typically between 200°C and 450°C, to maintain optimal conversion efficiency.
• DEF dosing pumps must be synchronized with engine load to prevent over-injection or under-injection of urea.
• The DPF substrate is typically constructed from cordierite or silicon carbide to withstand extreme thermal cycling.
• The chemical reduction of NOx is a stoichiometric process requiring a precise ratio of ammonia to nitrogen oxides.

Infrastructure Forensics and Building Envelope Interaction

From a structural engineering and forensics perspective, the deployment of Tier 4 locomotives within the DIA Concourse Line significantly alters the chemical interaction between the rolling stock and the surrounding infrastructure. In previous eras, non-compliant diesel exhaust contributed to the accumulation of nitrates and sulfates on the concrete soffits and tunnel walls. These deposits, when combined with ambient humidity, create a corrosive acidic film that accelerates the carbonation of concrete, leading to the premature corrosion of embedded steel reinforcement (rebar).

The transition to Tier 4 controls effectively mitigates this "acid attack" on the building envelope. By removing the bulk of the NOx and PM, the rate of surface deposition is reduced, thereby extending the service life of the protective coatings and the structural integrity of the concrete lining. Furthermore, the reduction in particulate matter prevents the "sooting" of ventilation shafts and HVAC filtration systems, which historically required frequent chemical cleaning to prevent airflow restrictions. The forensic analysis of the concourse walls now shows a marked decrease in the presence of calcium nitrate deposits, which are typical markers of long-term diesel exhaust exposure in underground transit environments.

• Reduction in NOx prevents the formation of nitric acid on concrete surfaces, slowing the degradation of the cementitious matrix.
• Lower particulate emissions reduce the organic loading on air filtration systems, decreasing the frequency of filter replacements.
• The mitigation of soot prevents the staining and degradation of aesthetic architectural finishes within the concourse.
• Decreased chemical leaching from the exhaust reduces the risk of spalling in high-humidity tunnel sections.

Operational Efficiency and Maintenance Protocols

The long-term reliability of Tier 4 systems in a high-utilization environment like the DIA Concourse Line depends on rigorous maintenance and empirical monitoring. The primary failure point in these systems is often the crystallization of urea within the SCR catalyst or the dosing injector. If the locomotive spends excessive time idling, the exhaust temperature may drop, causing the DEF to crystallize and block the flow of gases, which increases backpressure on the engine and

Methodologies of Physical Track Geometry Inspection

The integrity of the I-25 South Commuter Bypass depends fundamentally on the precision of its track geometry. Physical inspection serves as the empirical baseline, ensuring that the spatial relationship between the two rails remains within the stringent tolerances required for high-speed commuter transit. The primary focus of manual inspection is the verification of gauge, cross-level, and alignment. Gauge variation, if left unchecked, introduces lateral instability and increases the risk of wheel-climb or derailment. Senior analysts utilize precision chord-based measurements to identify localized widening or narrowing that automated systems might overlook due to sampling intervals.

Cross-level analysis focuses on the relative height of the two rails, which is critical for maintaining stability, particularly in curved sections where super-elevation is required to counteract centrifugal force. When the cross-level deviates from the design specification, the load distribution across the sleepers becomes uneven, accelerating the degradation of the ballast and the rail fasteners. Physical audits involve the use of digital levels and precision gauges to map these deviations across specific intervals, providing a high-resolution snapshot of the track's current state.

• Verification of standard gauge tolerances to ensure consistent wheel-rail interface.
• Assessment of super-elevation accuracy in transition curves to minimize lateral wear.
• Manual measurement of rail cant to prevent uneven load distribution.
• Inspection of fastener integrity to ensure rails are securely anchored to the sleepers.
• Evaluation of joint bar alignment to eliminate abrupt changes in track geometry.

High-Precision Laser Profiling and Digital Twin Integration

While manual inspections provide critical localized data, laser profiling audits offer a comprehensive, continuous analysis of the entire I-25 South corridor. Utilizing high-frequency LiDAR (Light Detection and Ranging) and laser triangulation, these audits generate a dense point cloud of the rail head and the surrounding infrastructure. This process allows for the detection of microscopic wear patterns and rail head deformation that are invisible to the naked eye. By analyzing the profile of the rail head, engineers can determine the exact rate of vertical and lateral wear, which is essential for predicting the remaining service life of the steel.

The integration of this laser data into a Digital Twin framework allows for a predictive maintenance model. By overlaying current profiling data onto the original design specifications, analysts can identify "trend-to-failure" patterns. This forensic approach enables the transition from reactive repairs to proactive interventions. For instance, if laser profiling detects a consistent trend of rail head flattening in a specific curve, the engineering team can schedule a grinding cycle before the wear reaches a critical threshold that would necessitate a full rail replacement.

• Deployment of automated track geometry cars for continuous, high-speed data acquisition.
• Utilization of laser triangulation to map rail head profiles with sub-millimeter precision.
• Generation of high-density point clouds for volumetric analysis of ballast shoulders.
• Comparison of real-time profiling data against the baseline Digital Twin for deviation analysis.
• Identification of corrugation patterns that contribute to noise and vibration increase.

Forensic Analysis of Subgrade Stability and Ballast Degradation

The geometry of the track is only as stable as the foundation supporting it. Forensic analysis of the I-25 South bypass reveals that geometry deviations are frequently symptoms of deeper subgrade failures. Ballast fouling—the accumulation of fine particles within the crushed stone—is a primary driver of track instability. When ballast becomes fouled, its drainage capacity is compromised, leading to the retention of moisture and the subsequent softening of the subgrade. This results in "mud pumping," where saturated fines are forced upward through the ballast, creating a lubricated layer that allows sleepers to shift under load.

The relationship between ballast health and track geometry is a direct cause-and-effect loop. As the subgrade loses its modulus of elasticity, the track experiences differential settlement. This settlement manifests as longitudinal dips or "heaves" in the track profile, which are then captured during laser profiling audits. By correlating the geometry data with geotechnical boreholes and moisture sensors, engineers can pinpoint the exact locations where the drainage systems have failed or where the subgrade requires stabilization through chemical grouting or geotextile reinforcement.

• Analysis of ballast void ratios to determine the efficiency of load distribution.
• Evaluation of drainage ditch functionality to prevent saturation of the roadbed.
• Assessment of subgrade compaction levels using Dynamic Cone Penetrometer (DCP) tests.
• Identification of fouled ballast zones through visual sampling and sieve analysis.
• Mapping of settlement patterns to identify areas of localized soil subsidence.

Risk Mitigation and Corrective Maintenance Protocols

Corrective action following a geometry audit must be clinical and systematic. Once deviations are identified and categorized by risk level, the priority is the restoration of the design profile. The primary tool for this is automated tamping, which vibrates the sleepers while compressing the ballast beneath them to eliminate voids and restore the correct cross-level and longitudinal profile. However, tamping is a temporary fix if the underlying ballast fouling is not addressed. Therefore, a comprehensive remediation strategy often includes ballast cleaning or full-depth replacement in critical zones.

Furthermore, rail grinding is employed to correct the surface irregularities identified during laser profiling. By removing a precise amount of steel from the rail head, engineers can restore the intended contact patch between the wheel and the rail, reducing the dynamic loads that contribute to further geometry degradation. The final stage of the protocol is the implementation of a continuous monitoring regime, utilizing embedded sensors and scheduled laser audits to ensure that the corrective measures have stabilized the track and that the geometry remains within the safety envelope.

• Execution of precision tamping cycles to correct cross-level and longitudinal deviations.
• Implementation of rail grinding programs to eliminate corrugation and restore the rail profile.
• Strategic replacement of fouled ballast to restore drainage and load-bearing capacity.
• Installation of geotechnical instrumentation for real-time monitoring of subgrade movement.
• Establishment of a rigorous "Maintenance Window" schedule to minimize commuter disruption.

Structural Dynamics of Overhead Catenary Systems in High-Traffic Transfer Hubs

The overhead catenary system (OCS) at the Peoria Station Commuter Transfer represents a complex intersection of mechanical tensioning and electrical conductivity. At its core, the system must maintain a precise geometric relationship between the contact wire and the vehicle pantograph to ensure uninterrupted power delivery. The primary engineering challenge lies in the management of the contact wire's elasticity and its susceptibility to longitudinal displacement. In a high-traffic transfer environment, the OCS is subjected to constant dynamic loading, where the upward force of the pantograph creates localized deviations in the wire's profile. If the tension is insufficient, these deviations result in excessive wave propagation, which can lead to pantograph dewiring or catastrophic mechanical failure.

To mitigate these risks, the system employs a compound catenary design, where a messenger wire supports the contact wire via dropper elements. This configuration allows for a more uniform height across the span, reducing the vertical variance that would otherwise occur in a simple suspended wire. The engineering objective is to achieve a state of equilibrium where the tension is high enough to minimize sag but low enough to avoid exceeding the ultimate tensile strength (UTS) of the hard-drawn copper or cadmium-copper alloys used in construction. The Peoria Station layout requires specific attention to the "hard spots" located at the registration arms, where the wire is rigidly held; these points create stress concentrations that must be balanced by the overall tensioning strategy of the span.

• Application of Young's modulus to determine the elastic deformation of the conductor under varying load conditions.
• Analysis of the dropper spacing to optimize the vertical alignment and minimize the "sag-and-surge" effect.
• Evaluation of the registration arm stiffness to prevent excessive lateral movement during high-speed transit.
• Calculation of the maximum permissible span length before additional support structures are required to maintain wire stability.

Thermal Expansion Coefficients and the Mechanics of Sag

The Peoria Station environment is subject to significant seasonal temperature fluctuations, which introduce a critical variable: the coefficient of linear thermal expansion. Copper, the primary material for catenary wires, possesses a high thermal expansion coefficient, meaning that for every degree of temperature increase, the wire physically lengthens. In an unrestrained system, this expansion manifests as increased sag, which lowers the contact wire's height and increases the risk of pantograph instability. Conversely, extreme cold causes the wire to contract, which increases the internal tension and can potentially lead to the failure of support brackets or the snapping of the wire if the system lacks sufficient flexibility.

The phenomenon of thermal sag is not merely a vertical displacement but a change in the overall geometry of the catenary curve. As the temperature rises, the tension drops, and the wire assumes a more pronounced parabolic shape. This change in geometry alters the contact force between the pantograph and the wire. If the sag exceeds the tolerances defined by the American Railway Engineering and Maintenance-of-Way Association (AREMA), the pantograph may experience "bounce," leading to electrical arcing. Arcing is a destructive process that causes localized melting of the copper, resulting in "beading" and a subsequent reduction in the cross-sectional area of the wire, which further accelerates wear and failure.

• Quantification of the Delta T (temperature change) and its direct correlation to linear expansion in millimeters per meter.
• Assessment of the "critical sag" threshold beyond which electrical continuity is compromised.
• Analysis of the thermal mass of the support structures and their influence on the wire's cooling and heating cycles.
• Evaluation of the impact of solar radiation (insolation) which can raise the wire temperature significantly above the ambient air temperature.

Mechanical Tensioning Systems and Constant Tensioning (CT) Protocols

To counteract the effects of thermal expansion and contraction, the Peoria Station infrastructure utilizes a Constant Tensioning (CT) system. Unlike fixed-anchor systems, CT systems employ a balance weight mechanism that allows the wire to slide longitudinally through the support structure. The balance weights provide a constant downward force, which translates into a consistent longitudinal tension regardless of the temperature. This ensures that the wire remains within a narrow window of tension, preventing both the excessive sag of summer and the over-tensioning of winter. The precision of these weights is paramount; a slight misalignment or a seized pulley in the weight assembly can introduce "hard spots" into the line, creating a shock load every time a pantograph passes.

The engineering of the CT system involves the use of high-grade pulleys and guides that minimize friction. Friction within the tensioning assembly acts as a damping force that can lead to "stick-slip" behavior, where the wire does not move smoothly but rather in sudden, jerky increments. This behavior is particularly dangerous in commuter transfer hubs where frequent stop-and-go movements create additional longitudinal oscillations. To ensure long-term reliability, the tensioning weights are calibrated based on the specific weight-per-unit-length of the conductor and the total length of the tensioning section. This calibration ensures that the tension remains within the specified range of 10,000 to 15,000 Newtons, depending on the wire gauge and span requirements.

• Implementation of pulley-and-weight assemblies to maintain a constant tensile force across the span.
• Utilization of low-friction guides to prevent the accumulation of longitudinal stress.
• Periodic calibration of balance weights to account for wire stretch and permanent deformation over time.
• Integration of limit switches or visual indicators to monitor the position of the balance weights.

Forensic Analysis of Sag Mitigation and Long-Term Infrastructure Integrity

From a forensic engineering perspective, the failure of a catenary system is rarely the result of a single event but rather a cumulative process of degradation. The primary indicator of inadequate sag mitigation is the presence of asymmetrical wear on the contact wire. When the wire sags excessively, the pantograph tends to "hook" the wire, creating a localized point of high friction and heat. Forensic analysis of recovered wire samples often reveals "necking," where the wire has been stretched beyond its elastic limit, leading to a reduction in diameter. This reduction increases the electrical resistance, which in turn increases the thermal load on the wire, creating a feedback loop that accelerates failure.

Furthermore, the interaction between the catenary wire and the support structures must be analyzed for fatigue. The constant cycling of tension due to thermal shifts and pantograph passes induces cyclic loading on the registration arms and insulators. If the tensioning system is not

System Architecture and Signal Propagation Framework

The Positive Train Control (PTC) system implemented across the Decatur-Federal Stadium Line represents a critical safety overlay designed to prevent train-to-train collisions, over-speed derailments, and unauthorized incursions into work zones. At its core, the system relies on a high-availability fiber optic backbone that facilitates the real-time exchange of data between the Wayside Interface Units (WIUs), the onboard locomotive computers, and the centralized dispatch center. The primary objective of the signaling architecture is to ensure a zero-latency environment where the "fail-safe" state is maintained even during partial hardware failure.

To achieve this, the line utilizes single-mode fiber (SMF) characterized by a low attenuation coefficient, ensuring that signal degradation is minimized over the extended distances of the Decatur corridor. The propagation of these signals is governed by strict timing requirements; any deviation in packet delivery or an increase in jitter can lead to a "restrictive" signal state, forcing trains to a complete stop and causing systemic delays. The integration of Dense Wavelength Division Multiplexing (DWDM) allows for the simultaneous transmission of multiple data streams over a single fiber pair, effectively segregating safety-critical PTC data from general administrative and voice traffic.

• Implementation of G.652.D compliant single-mode fiber to minimize water peak attenuation.
• Utilization of DWDM to partition safety-critical signaling from diagnostic telemetry.
• Deployment of ruggedized optical switches capable of sub-50ms failover transitions.
• Integration of GPS-synchronized clocks to ensure precise time-stamping of signal packets.

Physical Layer Integrity and Conduit Forensics

From a forensic engineering perspective, the reliability of the PTC system is entirely dependent on the integrity of the physical envelope protecting the fiber optic cables. On the Decatur-Federal Stadium Line, the fiber is housed within a network of High-Density Polyethylene (HDPE) conduits. The primary failure modes identified in similar commercial infrastructure projects include hydrostatic pressure infiltration, thermal expansion cycling, and mechanical stress induced by the surrounding soil composition. The "envelope" of the conduit must be treated as a critical barrier; any breach in the HDPE wall allows for the ingress of groundwater, which can lead to the degradation of the cable jacket and the subsequent infiltration of moisture into the fiber cladding.

Forensic analysis of the installation reveals that the transition points—specifically where the conduit enters the manholes and the stadium-adjacent junction boxes—are the most vulnerable areas. The use of improper sealing compounds or the failure to account for the differential settlement between the rail ballast and the stadium's concrete foundations can create shear points. These shear points introduce micro-bends in the fiber, which, while not immediately severing the connection, increase the optical loss (dB) and reduce the overall signal-to-noise ratio. This degradation often precedes a total cable failure, serving as a leading indicator for preventative maintenance.

• Application of bentonite-based sealing to prevent groundwater migration into conduit banks.
• Installation of expansion joints at critical transition zones to accommodate thermal movement.
• Use of mandrel-tested conduits to ensure no internal obstructions or collapses exist.
• Implementation of armored cable jackets in high-vibration zones near the stadium's structural piles.

Redundancy Topology and Failover Mechanisms

The Decatur-Federal Stadium Line employs a geographically diverse ring topology to eliminate single points of failure. Unlike a linear daisy-chain configuration, the ring architecture ensures that if a cable is severed at any point—whether by accidental excavation or structural collapse—the system can instantly reroute traffic in the opposite direction. This "self-healing" capability is managed by an Optical Add-Drop Multiplexer (OADM) network that monitors the light levels of the primary path. When the light level drops below a predefined threshold, the system triggers an automatic protection switching (APS) event.

The technical challenge in this redundancy model is the management of "path diversity." True redundancy requires that the primary and secondary fiber runs be physically separated by a sufficient distance to ensure that a single localized event, such as a derailment or a water main break, does not destroy both cables simultaneously. On the Federal Stadium stretch, this required the engineering of a secondary conduit run along the opposite side of the right-of-way, crossing the tracks via reinforced concrete culverts. This spatial separation ensures that the probability of simultaneous failure is statistically negligible, maintaining the "five-nines" (99.999%) availability required for rail safety standards.

• Deployment of a dual-homed architecture connecting the Decatur hub to the Stadium terminal.
• Utilization of Optical Time Domain Reflectometry (OTDR) for real-time fault localization.
• Configuration of a "hot-standby" state for secondary signaling paths to eliminate synchronization lag.
• Establishment of a 10-meter minimum physical separation between redundant conduit banks.

Environmental Mitigation and Long-term Structural Stability

The long-term viability of the fiber signaling system is threatened by the extreme vibrational energy generated by heavy freight and passenger rail traffic. These vibrations are transmitted through the ballast and into the conduit system, potentially causing "fretting" or abrasive wear on the cable jackets over time. To mitigate this, the engineering specifications for the Decatur-Federal Stadium Line mandated the use of vibration-dampening backfill materials. Rather than using standard crushed stone, a stabilized sand-bentonite mix was utilized in critical sections to decouple the conduit from the high-frequency oscillations of the rail line.

Furthermore, the proximity to the Federal Stadium introduces unique challenges related to soil compaction and hydrostatic loading. The massive concrete footings of the stadium alter the natural drainage patterns of the area, creating pockets of saturated soil. This requires a forensic approach to the drainage envelope surrounding the fiber vaults. The installation of perforated under-drain systems and the use of epoxy-sealed manhole covers have been essential in preventing the "floating" of conduits, where buoyant HDPE pipes rise within the soil during heavy rain events, leading to catastrophic bending radii and signal loss.

• Implementation of vibration-isolation pads at all conduit-to-structure interfaces.
• Use of hydro-static pressure relief valves within the underground vault system.
• Regular scheduling

Geotechnical Stratigraphy and Subgrade Instability Analysis

The forensic evaluation of the Table Mesa Park-n-Ride transit corridor reveals a complex interaction between the anthropogenic fill and the underlying native alluvial deposits. The primary driver of settlement in this sector is the presence of non-homogeneous soil lenses, specifically high-plasticity silts and clays that exhibit significant volumetric changes in response to fluctuating moisture content. In the context of heavy rail infrastructure, the subgrade must provide a consistent modulus of subgrade reaction to prevent differential settlement. However, the geotechnical profile at this site indicates a failure in the initial compaction specifications, leading to localized zones of low bearing capacity.

When the cyclic loading of the rolling stock is applied, these unstable zones undergo primary consolidation and subsequent secondary compression. The resulting deformation is not uniform, creating "soft spots" that compromise the longitudinal profile of the track. This phenomenon is exacerbated by the proximity of the Park-n-Ride drainage basins, which introduce uncontrolled seepage into the subgrade, increasing pore water pressure and reducing the effective stress of the soil. The resulting loss of shear strength leads to the gradual migration of subgrade fines upward into the ballast layer, a process known as subgrade intrusion.

• Analysis of the California Bearing Ratio (CBR) values across the affected segments shows a variance of 40%, indicating severe inconsistency in subgrade stiffness.
• Piezometer readings confirm a perched water table that fluctuates seasonally, triggering shrink-swell cycles in the clay-rich strata.
• Differential settlement measurements indicate a maximum vertical displacement of 42mm over a 30-meter chord, exceeding the allowable tolerances for high-speed transit operations.

Ballast Degradation and Fouling Kinetics

The ballast section serves as the critical interface for load distribution and hydraulic drainage. In the Table Mesa corridor, the forensic evidence points to advanced ballast fouling, where the void spaces between the crushed aggregate have been filled with fine particles. This fouling occurs through two primary mechanisms: internal attrition and external infiltration. Internal attrition is the result of the mechanical grinding of aggregate particles under high-pressure contact, which rounds the sharp edges of the stone and generates "stone dust." External infiltration occurs when the aforementioned subgrade fines migrate upward through the ballast, effectively turning the drainage layer into an impermeable slab.

The loss of void ratio significantly impairs the hydraulic conductivity of the track bed. Instead of water shedding laterally into the ditches, it becomes trapped within the ballast, leading to the formation of a slurry. Under the influence of dynamic loading, this slurry is forced upward through the sleepers, a failure mode clinically identified as "mud pumping." This process creates a positive feedback loop where the loss of drainage leads to further softening of the subgrade, which in turn increases the rate of ballast fouling and settlement.

• Sieve analysis of extracted ballast samples reveals a fines content (passing #200 mesh) exceeding 25%, well above the industry standard of 10% for healthy ballast.
• The transition from angular, crushed granite to rounded, fouled aggregate has reduced the internal friction angle of the ballast, decreasing its lateral stability.
• Visual forensics show "pumping" patterns—dark, moist stains on the sleepers—confirming the upward migration of saturated fines.

Tamping Frequency and Mechanical Deformation Analysis

Tamping is the corrective engineering process used to restore track geometry by vibrating the ballast and compacting it under the sleepers. However, the forensic data suggests that the maintenance regime at Table Mesa has relied on "over-tamping" as a palliative measure rather than a permanent solution. While tamping provides a temporary restoration of the track profile, it introduces a critical risk: the pulverization of the aggregate. Each tamping cycle subjects the ballast to high-frequency vibration and mechanical displacement, which accelerates the breakdown of the stone's structural integrity.

Furthermore, the repetitive tamping of fouled ballast is counterproductive. When the ballast is already saturated with fines, the tamping process acts as a mechanical mixer, homogenizing the slurry and further reducing the load-bearing capacity of the bed. This leads to a phenomenon known as "tamping-induced settlement," where the act of correcting the geometry actually accelerates the overall subsidence of the track bed. The forensic analysis of the tamping logs shows a direct correlation between the frequency of tamping interventions and the rate of settlement acceleration, indicating that the ballast has reached its end-of-life fatigue limit.

• Mechanical analysis indicates that the tamping force applied exceeded the crushing strength of the degraded aggregate, leading to rapid void collapse.
• Track geometry cars recorded a "sawtooth" profile, a classic indicator of localized settlement occurring between tamping points.
• The interval between required tamping cycles has decreased from 24 months to 6 months over the last five years, signaling a systemic failure of the track bed.

Forensic Remediation and Long-term Stabilization Strategies

To resolve the settlement issues at the Table Mesa Park-n-Ride, a comprehensive remediation strategy must move beyond superficial tamping and address the root geotechnical failures. The primary objective is the restoration of the drainage capacity and the stabilization of the subgrade. The recommended approach involves a full-depth ballast cleaning or complete replacement, coupled with the installation of a geosynthetic separation layer. A non-woven geotextile or a geogrid system should be deployed at the subgrade-ballast interface to prevent the migration of fines while providing lateral confinement to the new aggregate.

Additionally, the implementation of a sub-ballast layer consisting of graded

Tribological Dynamics and Contact Mechanics of the E-470 Feeder Loop

The Southlands E-470 Feeder Loop represents a critical nexus of high-density rolling stock movement, where the wheel-rail interface is subjected to extreme cyclic loading and complex kinematic interactions. At the core of this system is the tribological relationship between the steel wheel tread and the rail head, a contact patch typically measuring only a few square millimeters. In this concentrated area, Hertzian contact stresses often exceed the yield strength of the material, leading to localized plastic deformation. The E-470 loop is particularly challenging due to its tight-radius curves, which induce significant lateral forces and "creepage"—the relative sliding between the wheel and rail that occurs even during rolling.

The fundamental objective in managing this interface is the control of the coefficient of friction (µ). While a high µ is required at the wheel-rail interface for traction and braking, a low µ is mandatory at the gauge face and flange to prevent premature material loss. In the E-470 loop, the transition from tangent track to curved sections creates a shift in the loading vector, forcing the wheel flange into hard contact with the gauge face of the outer rail. Without precise tribological intervention, this interaction results in severe abrasive wear and the acceleration of rolling contact fatigue (RCF).

• Hertzian Stress Analysis: Evaluation of the peak pressure points within the elliptical contact patch to predict the onset of surface pitting.
• Creepage Management: The calibration of longitudinal and lateral slip to optimize the balance between traction and wear.
• Kinematic Steering: The study of how wheelset geometry interacts with the E-470's specific rail cant and gauge widening.
• Surface Roughness Parameters: The measurement of Ra and Rz values to determine the effectiveness of rail grinding profiles.

Mechanisms of Material Degradation and Gauge Face Wear

Forensic analysis of the E-470 Feeder Loop reveals a predominance of adhesive and abrasive wear mechanisms. Adhesive wear occurs when microscopic welds form between the wheel and rail under high pressure, which are then sheared apart as the wheel continues to rotate, removing small fragments of metal. Abrasive wear, conversely, is driven by hard particles—either metallic debris or environmental contaminants—that act as cutting tools, gouging the softer steel of the flange. In the high-curvature zones of the loop, the "flange climb" tendency increases the intensity of these forces, leading to rapid thinning of the flange thickness.

Furthermore, the phenomenon of "corrugation" is a recurring issue within the E-470 infrastructure. Corrugation manifests as periodic undulations in the rail head, driven by a feedback loop between the vehicle's natural frequency and the rail's stiffness. These undulations create high-frequency impact loads that exacerbate the degradation of the wheel profile. When the flange interacts with a corrugated rail, the resulting vibration increases the likelihood of spalling—the detachment of surface flakes—which further degrades the ride quality and increases the risk of derailment through flange-way obstruction.

• Adhesive Wear: Metal-to-metal bonding and subsequent shearing under high-load sliding conditions.
• Abrasive Wear: Three-body abrasion involving oxidized metal shards or silica-based particulates.
• Rolling Contact Fatigue (RCF): The initiation of micro-cracks due to repeated cyclic loading, leading to deep-seated shelling.
• Gauge Face Galling: Severe surface tearing caused by the failure of the lubrication film under extreme lateral pressure.

Flange Lubrication Protocols and Application Methodology

To mitigate the aforementioned wear mechanisms, the E-470 Feeder Loop employs a rigorous flange lubrication protocol designed to maintain a consistent lubricant film between the wheel flange and the gauge face. The primary objective is to reduce the coefficient of friction to a range of 0.05 to 0.15, thereby shifting the wear regime from severe abrasion to a controlled sliding state. This is achieved through the strategic deployment of Automatic Flange Lubricators (AFLs) mounted on the rolling stock and track-side applicators located at the entry points of the loop's tightest curves.

The selection of the lubricant is critical; the Southlands authority utilizes a synthetic, graphite-enhanced grease that maintains stability across a wide temperature gradient. Unlike standard oils, these high-viscosity lubricants are engineered to resist "squeeze-out" under the immense pressures of the flange-rail interface. A critical technical distinction is made between flange lubrication and Top-of-Rail (TOR) friction modification. While the flange requires a lubricant to reduce friction, the rail head requires a friction modifier to maintain a stable, positive coefficient of friction to prevent wheel slip and reduce the "squeal" associated with high-frequency oscillations in curves.

• Application Frequency: Automated delivery systems calibrated to dispense lubricant based on axle revolutions and curve entry triggers.
• Lubricant Composition: Use of molybdenum disulfide (MoS2) or graphite solids to provide a sacrificial boundary

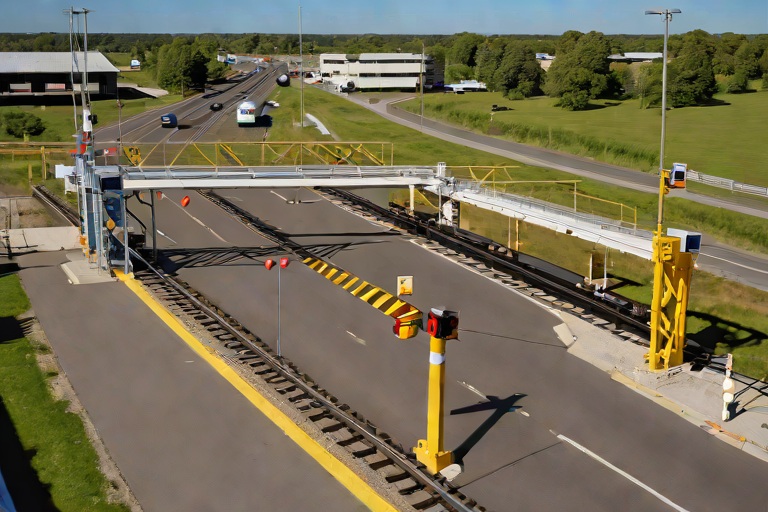

Electromechanical Principles of Inductive Loop Detection

The operational integrity of the Thornton Crossroads Regional Line depends upon the precision of its grade crossing warning systems. At the core of this system is the inductive loop, an air-core transformer consisting of a buried conductor loop that creates a low-frequency electromagnetic field. When a railcar—a massive ferromagnetic object—enters the field, it induces a change in the loop's inductance through the process of eddy current formation. This shift in inductance alters the resonant frequency of the LC (inductor-capacitor) oscillator circuit connected to the detector unit, triggering the warning gates.

In the specific context of the Thornton Crossroads infrastructure, the calibration must account for the varying mass and velocity of both heavy freight locomotives and lighter regional passenger rail. The detection system must be tuned to a specific frequency range to ensure that the "presence" signal is registered instantaneously. Failure to maintain a tight tolerance in the LC circuit leads to delayed gate activation, which represents a critical failure in safety-critical infrastructure. The engineering challenge lies in the stability of the oscillator; any drift in the component values due to aging or thermal stress can lead to a shift in the baseline frequency, necessitating a recalibration of the detection threshold.

• Resonant Frequency Shift: The primary metric for detection, measured in Hertz (Hz), which must be distinguishable from background electromagnetic noise.
• Mutual Inductance: The interaction between the buried loop and the metallic chassis of the rolling stock.
• Eddy Current Distribution: The flow of induced currents within the railcar wheels and axles that modifies the magnetic flux.
• LC Oscillator Stability: The ability of the detector to maintain a constant baseline frequency in the absence of a target.

Environmental Interference and Signal Degradation

Forensic analysis of the Thornton Crossroads line reveals that environmental variables are the primary drivers of calibration drift. The soil composition in this region, characterized by high clay content and fluctuating water tables, significantly impacts the dielectric constant of the medium surrounding the loop. During periods of heavy saturation, the increased conductivity of the soil can lead to parasitic capacitance, which effectively shifts the loop's resonant frequency without the presence of a train. This phenomenon often results in "phantom" activations, where the gates deploy despite the absence of rail traffic.

Furthermore, the thermal cycling of the asphalt and concrete overlays creates a mechanical stress environment that can lead to micro-fractures in the loop sealant. When moisture penetrates these fractures, it creates a conductive path that attenuates the signal strength. From a forensic engineering perspective, the degradation of the loop is rarely a sudden failure but rather a gradual erosion of the signal-to-noise ratio. This attenuation requires the sensitivity settings of the detector to be increased, which in turn makes the system more susceptible to electromagnetic interference (EMI) from nearby high-voltage power lines or industrial machinery along the regional corridor.

• Soil Dielectric Variance: The change in electrical permittivity of the earth based on moisture content.
• Thermal Expansion Coefficients: The difference in expansion rates between the copper conductor and the surrounding bituminous binder.
• Parasitic Capacitance: Unintended capacitance formed between the loop wires and the surrounding earth.
• EMI Attenuation: The reduction of signal clarity due to external electromagnetic noise.

Calibration Protocols and Tolerance Thresholds

Calibration of the inductive loops across the Thornton Crossroads line requires a rigorous, empirical approach to ensure a zero-failure rate. The process begins with the measurement of the "empty" loop inductance using a high-precision LCR meter. This baseline value is then compared against the manufacturer's specifications and the historical data for that specific crossing. The goal is to establish a "detection window"—a range of frequency shift that is large enough to be reliably detected but small enough to ignore non-rail interference, such as large road vehicles crossing the loop.

The calibration technician must adjust the sensitivity potentiometer on the detector unit to align the trigger point with the empirical "hit" data. For the Thornton Crossroads line, the industry standard is a 5% to 10% shift in frequency to trigger a positive state. If the sensitivity is set too high, the system becomes unstable; if set too low, the "detection zone" shrinks, potentially leading to a "missed" train. This calibration is not a one-time event but a periodic requirement, typically performed quarterly or following significant weather events that may have altered the soil chemistry or the physical integrity of the loop burial.

• Baseline Inductance Mapping: Recording the static inductance of the loop in an unoccupied state.
• Sensitivity Tuning: Adjusting the detector's threshold to optimize the balance between reliability and false-positive prevention.
• Detection Window Analysis: Defining the specific frequency delta required to transition the relay from a "clear" to an "occupied" state.
• Verification Testing: Utilizing a calibrated metal mass to simulate a railcar and verify the trigger timing.

Long-term Reliability and Forensic Maintenance Cycles

To ensure the longevity of the warning gate system, a forensic maintenance cycle must be implemented. This involves the use of Time-Domain Reflectometry (TDR) to inspect the physical integrity of the buried cables. TDR allows engineers to pinpoint the exact location of a cable break or a short circuit by analyzing the reflection of an electrical pulse. In the Thornton Crossroads region, the primary cause of long-term failure is "loop fatigue," where the repeated loading and unloading of the road surface leads to the stretching and eventual snapping of the copper conductors.

The integration of a preventative maintenance schedule reduces the reliance on reactive repairs. By monitoring the "drift" in calibration over several cycles, analysts can predict the end-of-life for a specific loop. When the baseline frequency shifts beyond a recoverable threshold, it indicates a fundamental failure of the loop's insulation or a significant change in the surrounding soil structure. At this stage, the loop must be extracted and replaced to avoid a catastrophic failure of the crossing warning system. The transition from reactive to predictive maintenance is the hallmark of a mature infrastructure management strategy.

• Time-Domain Reflectometry (TDR): The use of pulse reflection to identify impedance mismatches and cable faults.
• Loop Fatigue Analysis: Studying the mechanical degradation of conductors under cyclic loading.
• Predictive Drift Modeling: Using historical calibration data to forecast the failure date
