Denver Regional Transportation District Infrastructure Analysis

System Architecture and the Physics of Positive Pressure

The emergency evacuation stairwell pressurization system within the Union Station Transit Hub is a critical life-safety assembly designed to prevent the infiltration of smoke and toxic combustion products into primary egress routes. The fundamental engineering objective is the maintenance of a positive pressure differential between the stairwell enclosure and the adjacent floor areas during a fire event. By introducing a controlled volume of filtered outdoor air via high-capacity centrifugal fans, the system creates a "pressure bubble" that effectively pushes back against smoke migration. In a complex transit hub, this is complicated by the piston effect—the rapid displacement of air caused by moving trains—which can create erratic pressure fluctuations that challenge the stability of the stairwell envelope.

To achieve the required safety margins, the system must adhere to stringent industry standards, primarily NFPA 92 and the International Building Code (IBC). The design intent focuses on balancing the air supply to ensure that the pressure is sufficient to repel smoke but not so excessive that it prevents the physical operation of exit doors. If the pressure gradient is too high, the force required to open a door may exceed the limits set for accessibility and emergency egress, potentially trapping occupants. Conversely, insufficient pressure allows smoke to penetrate the stairwell, rendering the egress route untenable.

• Design Pressure Differential: Typically maintained between 0.10 and 0.20 inches of water gauge (w.g.) relative to the occupied space.
• Air Change Rates: Calculated based on the total leakage area of the stairwell enclosure and the number of doors in the open position.
• Fan Redundancy: Utilization of N+1 redundancy to ensure system availability during mechanical failure of a primary blower.
• Integration: Direct interfacing with the building's fire alarm control panel (FACP) for automatic activation upon smoke detection.

Testing Methodology and Empirical Instrumentation

The verification of the pressurization system requires a clinical approach to measurement, utilizing high-precision instrumentation to capture real-time data across multiple vertical zones. The testing protocol begins with a baseline static pressure test, where the fans are activated and the pressure differential is measured at the most remote doors from the air supply inlets. Digital manometers with high sensitivity are employed to ensure that the pressure gradient remains consistent across all floors, accounting for the natural tendency of air to stack vertically—a phenomenon known as the stack effect, which is particularly pronounced in high-rise transit shafts.

Beyond static pressure, the testing regime incorporates "door force" analysis. This involves using a force gauge to measure the exact amount of pressure required to push a door open against the pressurization. This empirical data is then compared against the maximum allowable force thresholds defined by ADA (Americans with Disabilities Act) and NFPA guidelines. Furthermore, smoke pencils or theatrical fog generators are used to visualize air leakage at the door seals and penetration points, allowing engineers to identify specific failure points in the building envelope that could compromise the system's integrity.

• Digital Manometers: Used for measuring precise pressure differentials ($\Delta P$) across door thresholds.
• Anemometers: Employed to verify the Cubic Feet per Minute (CFM) delivery at each supply grille.
• Force Gauges: Used to quantify the physical resistance of doors when the system is at peak capacity.
• Smoke Visualization: Utilized to detect uncontrolled air infiltration or "short-circuiting" of the airflow.

Forensic Analysis of Envelope Integrity and Leakage Paths

From a building envelope forensics perspective, the stairwell is not a sealed vessel but a porous membrane. In the Union Station environment, the integrity of this membrane is subject to constant degradation due to structural vibrations from rail traffic and thermal cycling. Forensic analysis often reveals that the primary failure points are not the fans themselves, but the seals around the stairwell doors and the penetrations where electrical and plumbing conduits pass through the concrete slabs. These "leakage paths" act as pressure sinks, drawing air away from the critical zones and reducing the overall efficiency of the pressurization system.

The interaction between the stairwell envelope and the surrounding commercial infrastructure is critical. In many instances, the failure of perimeter sealant or the degradation of door gaskets leads to an increase in the "equivalent leakage area" (ELA). When the ELA increases, the fans must work harder to maintain the target pressure, which can lead to premature motor wear or the triggering of over-pressure alarms. A detailed forensic audit involves mapping these leaks and quantifying their impact on the system's volumetric efficiency, ensuring that the air supply is distributed logically rather than escaping through structural fissures.

• Sealant Degradation: Analysis of silicone and polyurethane joint sealants for shrinkage or adhesive failure.
• Gasket Compression: Evaluation of neoprene door seals for permanent deformation or hardening.
• Structural Cracking: Identification of hairline fractures in concrete masonry units (CMU) that allow air bypass.
• Penetration Sealing: Inspection of fire-stop materials around utility penetrations for voids or improper installation.

Performance Validation and Remediation Protocols

The final phase of the testing process is the validation of the system's performance under simulated emergency conditions. This includes "worst-case scenario" testing, where a predetermined number of doors are held open to simulate occupants exiting the building. The goal is to verify that the pressurization system can compensate for the sudden loss of air volume and maintain a minimum positive pressure to keep smoke at bay. If the system fails to maintain the pressure gradient during these simulations, the air balancing dampers must be adjusted to redistribute the airflow more effectively across the vertical shaft.

Remediation protocols for a failing system are focused on the "tightening" of the envelope and the calibration of the fan curves. If the forensic analysis indicates excessive leakage, the immediate remedy is the application of high-performance weather-stripping and the resealing of all structural penetrations. In cases where the fan capacity is insufficient due to changes in the building's internal configuration, the installation of Variable Frequency Drives (VFDs) may be required to allow for more precise control of the air volume. This ensures that the system operates at peak efficiency without creating excessive door-opening forces.

• Damper Calibration: Fine-tuning the air distribution to eliminate "dead zones" within the stairwell.
• VFD Optimization: Adjusting fan speeds to match the actual leakage characteristics of the building.
• Seal Replacement: Implementing a scheduled replacement cycle for all high-wear door gaskets.
• Recertification Schedule: Establishing a semi-annual testing cadence to account for structural settling and wear.

Regulatory Framework and Tier 4 Compliance Mandates

The transition to Tier 4 emission standards for diesel-electric commuter locomotives represents a paradigm shift in rail environmental engineering. Unlike previous iterations that focused primarily on engine tuning and mechanical timing, Tier 4 mandates a comprehensive approach to the reduction of Nitrogen Oxides (NOx) and Particulate Matter (PM). The A-Line Airport Rail Corridor, characterized by high-frequency transit cycles and proximity to densely populated urban hubs, necessitates a rigorous adherence to these standards to mitigate atmospheric degradation and meet stringent municipal air quality indices.

At the core of Tier 4 compliance is the requirement to reduce NOx emissions by approximately 90% compared to Tier 2 levels. This is achieved not through a single modification, but through a systemic integration of advanced combustion strategies and after-treatment hardware. The engineering challenge lies in the inherent trade-off between NOx and PM; typically, reducing NOx through lower combustion temperatures increases the production of particulate matter. To resolve this, the A-Line fleet utilizes a dual-stage after-treatment architecture that isolates the chemical reduction of gases from the physical filtration of soot.

• EPA Tier 4 Final standards requiring drastic reductions in grams per kilowatt-hour (g/kWh) of NOx.
• Integration of Electronic Control Units (ECUs) to manage precise fuel-to-air ratios.
• Implementation of high-pressure common rail fuel injection to optimize combustion stability.
• Mandatory certification of exhaust gas recirculation (EGR) systems to lower peak cylinder temperatures.

SCR and DPF Technical Integration

The primary mechanism for NOx abatement in the A-Line locomotives is Selective Catalytic Reduction (SCR). This process involves the injection of a diesel exhaust fluid (DEF), primarily a urea solution, into the exhaust stream upstream of a ceramic catalyst. The urea undergoes thermal decomposition into ammonia (NH3), which then reacts with NOx in the presence of a catalyst—typically vanadium or zeolite—to produce harmless nitrogen (N2) and water vapor (H2O). This chemical conversion is highly dependent on the exhaust gas temperature, which must remain within a specific thermal window to ensure optimal catalyst activity.

Complementing the SCR is the Diesel Particulate Filter (DPF), a wall-flow monolith designed to capture soot and metallic ash. The DPF operates on the principle of physical entrapment, forcing exhaust gases through porous walls that trap particulate matter while allowing gaseous emissions to pass. As the filter loads with soot, the backpressure increases, triggering a regeneration cycle. This process involves raising the exhaust temperature to a point where the trapped carbon is oxidized and converted into CO2, thereby cleaning the filter without requiring the locomotive to be removed from service.

• Urea dosing precision managed by closed-loop sensors to prevent "ammonia slip."
• Sintered metal or cordierite substrates used in DPFs to withstand high thermal stress.
• Differential pressure sensors used to monitor soot loading and trigger active regeneration.
• Catalytic converters utilizing precious metal coatings to facilitate oxidation of carbon monoxide.

Operational Dynamics of the A-Line Airport Corridor

The A-Line Airport Rail Corridor presents a unique operational profile that complicates the efficiency of Tier 4 systems. Unlike long-haul freight, commuter rail involves frequent acceleration and deceleration phases, leading to highly variable exhaust temperatures. This "stop-and-go" cycle often results in the exhaust temperature falling below the optimal SCR activation threshold, particularly during idling at airport terminals. When temperatures drop, the urea solution can crystallize, leading to deposits in the injection nozzle and potential blockage of the catalyst face.

Furthermore, the high-torque demands of rapid acceleration from a standstill create transient spikes in NOx production. The ECU must anticipate these loads and adjust the DEF dosing rate in real-time to prevent emission breakthroughs. The forensic analysis of these systems reveals that the most significant wear occurs during these transient phases, where thermal cycling induces mechanical stress on the ceramic substrates of the DPF and SCR. Ensuring the longevity of these components requires a sophisticated thermal management system that can maintain heat even during low-load idling periods.

• Frequent thermal cycling causing potential micro-fractures in ceramic catalyst substrates.
• Low-load idling leading to "cold-spot" urea crystallization and dosing inefficiency.
• High-transient load spikes requiring rapid-response DEF injection algorithms.
• Increased backpressure during peak acceleration affecting overall engine fuel efficiency.

Forensic Evaluation and Long-term Maintenance

From a technical analyst's perspective, the longevity of Tier 4 systems on the A-Line is contingent upon a rigorous forensic maintenance schedule. The primary failure mode identified in these systems is catalyst poisoning, where trace elements in the fuel or lubricating oil—such as phosphorus or sulfur—bond permanently to the catalyst active sites, rendering them inert. Regular sampling of the exhaust gas composition is required to determine the remaining efficiency of the SCR, as a decline in NOx conversion efficiency often precedes a total system failure.

Additionally, the accumulation of non-combustible ash within the DPF represents a critical maintenance threshold. While soot is removed during regeneration, metallic ash from engine oil additives remains in the filter. Over time, this ash occupies the available void volume, increasing the frequency of regeneration cycles and eventually necessitating a physical cleaning or replacement of the filter element. Engineering audits of the A-Line fleet emphasize the need for low-SAPS (Sulfated Ash, Phosphorus, and Sulfur) lubricants to extend the interval between DPF cleanings and maintain the structural integrity of the exhaust envelope.

• Monitoring of pressure drop across the DPF to identify ash accumulation trends.
• Chemical analysis of DEF purity to prevent contamination of the dosing pump.
• Periodic borescope inspections of the catalyst face to detect urea deposits or cracking.
• Evaluation of fuel sulfur content to minimize the risk of catalyst poisoning and sulfate formation.

Methodology of Physical Geometry Assessment and Manual Gauge Verification

The structural integrity of the B-Line Westminster Spur necessitates a rigorous, multi-tiered approach to geometry verification. Physical inspection serves as the empirical baseline, ensuring that the fundamental spatial relationship between the rail heads adheres to strict tolerances. The primary objective is the identification of gauge widening or narrowing, which, if left unaddressed, induces excessive lateral force on the wheel-rail interface, accelerating the wear cycle of both the rolling stock and the permanent way.

Our forensic approach utilizes the chord method for curvature analysis, employing high-precision digital track gauges and spirit levels to verify superelevation—the intentional elevation of the outer rail on curves to counteract centrifugal force. In the Westminster Spur, specific attention is paid to the transition curves where the track shifts from tangent to circular arcs. Any abrupt change in the rate of superelevation creates a "jerk" or a sudden vertical acceleration, which can lead to ballast degradation and sleeper instability.

• Verification of standard gauge tolerances within a +/- 2mm margin of error to prevent hunting oscillations.
• Assessment of cross-level deviations to ensure uniform load distribution across the sleeper bed.
• Manual measurement of rail cant to confirm that the rail head is correctly inclined to optimize the contact patch.
• Inspection of fastening systems for torque loss or fatigue-induced failure in the rail clips.

The physical audit further examines the longitudinal profile, searching for "dips" or "heaves" that indicate subgrade failure. By utilizing a straight-edge tool over a 10-foot chord, engineers can identify localized settlements that suggest the presence of voids in the ballast or the failure of the underlying geotextile membranes. This manual process provides a tactile understanding of the track's condition that purely digital systems may overlook, particularly regarding the rigidity of the sleeper-to-ballast interface.

Laser Profiling and High-Resolution Digital Topography

To augment physical measurements, laser profiling audits are deployed to capture a high-density point cloud of the rail head and the surrounding infrastructure. Unlike manual gauging, laser profiling provides a continuous stream of data, allowing for the detection of microscopic irregularities in the rail surface. This process involves the use of a laser-based profiling vehicle or a push-cart system that scans the rail profile at millimetric intervals, comparing the "as-is" geometry against the theoretical "as-built" design specifications.

The primary focus of the laser audit is the analysis of the rail head profile. Wear patterns—such as vertical wear, side wear, or "corrugation"—are quantified through the analysis of the rail's cross-sectional area. Corrugation, characterized by periodic waves on the rail surface, is a critical forensic indicator of resonance issues or improper lubrication. When the laser profile reveals a deviation from the nominal rail head shape, it indicates a shift in the wheel-rail contact point, which increases the risk of derailment and increases noise and vibration pollution within the Westminster corridor.

• Deployment of LiDAR systems to map the 3D spatial coordinates of the track geometry.
• Analysis of the "Vertical Profile" to identify long-wave irregularities that affect ride quality and vehicle stability.
• Quantification of rail head wear using comparative software to determine the remaining useful life (RUL) of the steel.
• Mapping of the "Catenary" or overhead alignment to ensure clearance envelopes are maintained.

The integration of laser profiling allows for the creation of a "digital twin" of the B-Line Westminster Spur. By overlaying current scan data with historical audits, engineers can perform a trend analysis to predict the rate of degradation. This empirical data allows the technical team to move from a reactive maintenance posture to a predictive one, scheduling interventions exactly when the geometry approaches the "Alert" threshold rather than waiting for a "Critical" failure.

Forensic Analysis of Subgrade Degradation and Ballast Fouling

A comprehensive engineering audit must look beneath the rail to the supporting infrastructure. The forensic analysis of the B-Line Westminster Spur reveals a direct correlation between geometry deviations and the condition of the ballast and subgrade. Ballast fouling—the accumulation of fine particles, clay, or organic matter within the crushed stone—impedes effective drainage. When water is trapped within the ballast shoulder, it leads to "pumping," where the sleepers force moisture and fines upward, creating a slurry that lubricates the ballast and causes the track to shift under load.

The forensic evidence suggests that in certain sections of the spur, the subgrade has suffered from differential settlement. This is often caused by the infiltration of groundwater or the failure of the drainage culverts, leading to a loss of bearing capacity. When the subgrade softens, the track geometry begins to "sink," resulting in the vertical profile irregularities identified during the laser profiling phase. This cause-and-effect chain demonstrates that geometry failure is rarely a surface-level issue but is instead a symptom of deep-seated structural instability.

• Evaluation of ballast voiding to ensure that sleepers are fully supported and not "hanging" over voids.
• Chemical analysis of fouling materials to determine if the degradation is due to mechanical attrition or external contamination.
• Assessment of the drainage slope to ensure water is efficiently diverted away from the track center.
• Examination of the sleeper integrity, specifically looking for "plate cutting" where the rail seat penetrates the concrete or timber.

Furthermore, the thermal expansion and contraction of the continuous welded rail (CWR) introduce significant longitudinal stresses. If the track is not properly anchored or if the ballast shoulder is insufficient, these stresses can manifest as "sun kinks" or lateral buckles. The forensic audit meticulously checks the neutral temperature of the rail to ensure that the track is stressed correctly for the seasonal temperature extremes of the Westminster region.

Remediation Strategies and Maintenance Thresholds

The final phase of the technical analysis is the establishment of a remediation framework based on the empirical data gathered. Remediation is categorized into three tiers: routine maintenance, corrective realignment, and full structural renewal. For geometry deviations that fall within the "Alert" zone, mechanized tamping is employed. Tamping machines vibrate the sleepers while compressing the ballast beneath them, effectively "lifting" the track back to its design elevation and correcting the cross-level.

For more severe deviations, such as those identified in the laser profiling as "Critical," a more aggressive approach is required. This may include the installation of new sleepers or the complete replacement of the fouled ballast. In areas where the sub

Mechanical Fundamentals of Catenary Tensioning Systems

The structural integrity of the G-Line Gold Strike Alignment depends upon the precise calibration of the Overhead Contact System (OCS). At its core, the catenary system is a dual-wire assembly consisting of a messenger wire and a contact wire, linked by equidistant droppers. The primary engineering challenge is maintaining a constant height and tension for the contact wire to ensure seamless current collection by the pantograph, regardless of external loading or environmental fluctuations. Inconsistent tensioning leads to mechanical oscillations, which can result in catastrophic dewirements or accelerated wear on the carbon strips of the pantograph.

To counteract the inherent elasticity of the conductor materials, the G-Line employs a Constant Tensioning System (CTS). This mechanism utilizes a pulley-and-weight assembly that applies a continuous, predetermined force to the wire. By utilizing gravity-based weights, the system ensures that the tension remains stable even as the wire undergoes microscopic stretching over time. The tensioning force must be balanced against the mechanical strength of the support structures, as excessive tension increases the lateral load on the registration arms and the supporting masts, potentially leading to structural fatigue in the cantilever assemblies.

• Application of hard-drawn copper or copper-cadmium alloys to optimize the strength-to-weight ratio.
• Utilization of balanced tensioning sections to prevent cumulative stress at the anchor points.
• Implementation of precision-engineered droppers to maintain a contact wire deviation of less than 2mm over a 20-meter span.
• Integration of heavy-duty insulators to prevent current leakage into the supporting infrastructure.

Thermal Dynamics and Sag Analysis in High-Ambient Environments

Thermal expansion is the primary catalyst for structural instability in overhead catenary systems. The G-Line alignment is subject to significant diurnal temperature swings, which induce linear expansion and contraction of the copper conductors. According to the coefficient of thermal expansion (CTE), as the ambient temperature rises, the conductor length increases, leading to a proportional increase in the catenary sag. This vertical displacement, if left unmitigated, reduces the contact force between the pantograph and the wire, creating "hard spots" where the wire is too low, or causing the pantograph to over-extend and hook the wire.

The relationship between temperature and sag is non-linear and is governed by the catenary constant. When the temperature exceeds the design baseline, the tension drops, and the wire assumes a deeper parabolic curve. This phenomenon is particularly acute in the Gold Strike Alignment due to the heat-island effect of the surrounding commercial infrastructure. The resulting thermal sag not only threatens the electrical continuity but also introduces aerodynamic instabilities; a sagging wire is more prone to wind-induced galloping, which can lead to fatigue failure at the clamping points.

• Calculation of thermal expansion using the formula $\Delta L = \alpha L \Delta T$ to predict maximum sag.
• Analysis of "thermal buckling" in constrained sections where expansion is restricted by rigid anchors.
• Monitoring of the "sag-tension" relationship to ensure the wire remains within the operational window of 150mm to 200mm of sag per span.
• Evaluation of solar radiation absorption based on the conductor's surface emissivity.

Mitigation Strategies for the G-Line Gold Strike Alignment

To mitigate the effects of thermal sag and maintain operational reliability, the G-Line utilizes a combination of active and passive engineering controls. The primary mitigation strategy is the deployment of Auto-Tensioning Devices (ATDs). These devices act as mechanical buffers, automatically paying out or retracting wire from a pulley system as the temperature fluctuates. By maintaining a constant tension regardless of the conductor's physical length, the ATDs effectively flatten the catenary curve, ensuring that the contact wire remains within the strict vertical tolerance required for high-speed transit.

Furthermore, the selection of materials plays a critical role in thermal mitigation. The transition from standard hard-drawn copper to copper-cadmium alloys reduces the coefficient of thermal expansion, thereby minimizing the raw amount of expansion per degree Celsius. In sections of the alignment where the building envelope creates wind tunnels or extreme heat traps, specialized registration arms with adjustable damping are installed. These arms absorb the kinetic energy of the wire, preventing the harmonic oscillations that typically precede a mechanical failure during peak thermal events.

• Installation of weight-balanced tensioning anchors at strategic intervals to distribute longitudinal stress.
• Use of high-tensile alloy conductors to allow for higher baseline tensioning without increasing the risk of creep.
• Deployment of thermal sensors and real-time monitoring to trigger maintenance alerts when sag exceeds 15mm of the baseline.
• Implementation of "neutral sections" to isolate different tensioning zones and prevent the propagation of mechanical waves.

Forensics, Maintenance, and Long-Term Structural Integrity

Long-term reliability in catenary engineering is determined by the rigor of the forensic analysis and the frequency of preventative maintenance. The G-Line's forensic protocol involves the use of laser-scanning geometry cars that map the entire alignment to identify "hot spots" of wear or abnormal sag. By analyzing the wear patterns on the contact wire, engineers can deduce whether the tensioning system is under-performing or if the pantograph is applying excessive upward pressure. This empirical data is used to calibrate the weight-and-pulley systems during scheduled maintenance windows.

The interaction between the catenary system and the supporting commercial infrastructure is another critical forensic focus. The vibrations induced by the passing trains are transmitted through the registration arms into the masts and, subsequently, into the building envelopes of adjacent structures. This can lead to "fretting corrosion" at the bolted connections and fatigue cracks in the weldments. To prevent this, the G-Line employs elastomeric dampers and precision-torqued fasteners that are checked quarterly using ultrasonic testing to ensure no internal voids or fractures have developed in the load-bearing components.

• Conducting quarterly ultrasonic inspections of all tensioning clamps and anchor bolts.
• Analyzing the "wear rate" of the contact wire to determine the optimal replacement cycle based on current throughput.
• Evaluating the impact of atmospheric pollutants on the conductivity and corrosion resistance of the copper alloys.
• Performing stress-strain analysis on the support masts to ensure they can withstand the combined load of maximum tension and peak wind gusts.

System Architecture and Signal Propagation Parameters

The Positive Train Control (PTC) deployment across the N-Line North Metro Express represents a critical safety-critical overlay designed to prevent train-to-train collisions, over-speed derailments, and unauthorized incursions into work zones. At the core of this system is a high-capacity fiber optic backbone that facilitates the real-time exchange of telemetry between the Wayside Interface Units (WIUs), the On-Board Computers (OBC), and the Centralized Traffic Control (CTC) center. The physical layer utilizes G.652.D Single-Mode Fiber (SMF), selected specifically for its low attenuation coefficients and superior performance over the extended linear distances characteristic of the North Metro corridor.

Signal propagation within the N-Line infrastructure is governed by the necessity for near-zero latency to ensure that braking commands are executed within the required safety window. The architecture employs a Dense Wavelength Division Multiplexing (DWDM) strategy, allowing multiple data channels to be transmitted over a single fiber pair. This approach maximizes the existing conduit capacity while providing dedicated wavelengths for PTC signaling, voice communications, and CCTV surveillance. The precision of the timing synchronization is maintained through a Stratum 1 primary reference clock, ensuring that packet delivery is deterministic and jitter is minimized to sub-microsecond levels.

• Optical fiber attenuation limits are strictly maintained below 0.35 dB/km at 1310nm to prevent signal degradation.
• DWDM channel spacing is configured at 100 GHz to eliminate inter-channel interference.
• Splicing is performed using core-alignment fusion technology to ensure splice loss remains under 0.05 dB per junction.
• The physical topology utilizes a collapsed backbone architecture to reduce the number of active switching hops between the field and the core.

Redundancy Protocols and Failover Mechanisms

To achieve the requisite five-nines (99.999%) availability, the N-Line North Metro Express employs a geographically diverse fiber ring topology. This redundancy is not merely a secondary backup but a concurrent active-active configuration. The system utilizes a modified version of the Automatic Protection Switching (APS) protocol, which monitors the continuity of the primary fiber path in real-time. In the event of a physical cable severance or a catastrophic transceiver failure, the system triggers a "hitless" failover, rerouting traffic to the secondary path in less than 50 milliseconds. This transition occurs without the loss of a single PTC data packet, ensuring that the train's onboard system never loses contact with the wayside authority.

The failover logic is managed by a layer-3 MPLS (Multiprotocol Label Switching) fabric, which abstracts the physical fiber paths from the logical signaling circuits. This allows the network administrators to perform maintenance on specific fiber segments without interrupting the safety-critical signaling flow. The redundancy is further bolstered by the implementation of dual-homed connections at each Wayside Interface Unit, meaning each WIU is connected to two separate fiber distribution hubs. This eliminates the "single point of failure" risk associated with localized hub outages or localized conduit collapses.

• Implementation of Bidirectional Forwarding Detection (BFD) for rapid link-failure detection.
• Utilization of redundant power supplies with DC-UPS backup at every signal relay rack.
• Logical separation of the PTC control plane from the management plane to prevent congestion-induced latency.
• Geographic separation of the primary and secondary fiber conduits by a minimum of 15 feet to prevent single-event physical damage from affecting both paths.

Environmental Vulnerabilities and Physical Layer Forensics

From a forensics engineering perspective, the integrity of the fiber signaling system is inextricably linked to the integrity of the building envelope and the underground conduit system. The N-Line corridor is subject to extreme thermal cycling and significant mechanical vibration induced by heavy freight and passenger axle loads. These forces can lead to micro-bends in the fiber optic cladding, which manifest as intermittent signal attenuation or "flapping" links. Forensic analysis of failed segments often reveals that the primary cause of degradation is not the fiber itself, but the failure of the outer protective jacket and the subsequent ingress of moisture into the splice vaults.

Water ingress in splice enclosures leads to hydrogen darkening, a chemical process where hydrogen molecules diffuse into the silica core, increasing the attenuation of the fiber. Furthermore, the thermal expansion and contraction of the HDPE (High-Density Polyethylene) conduits can cause the fiber to stretch or compress beyond its specified bend radius if the slack loops are improperly managed. The forensic audit of the N-Line infrastructure emphasizes the need for rigorous "as-built" verification, ensuring that the conduit fill ratios are maintained and that the cable is properly floated within the duct to allow for longitudinal movement during seismic or thermal events.

• Analysis of water-ingress points using infrared thermography to identify moisture accumulation in underground vaults.
• Evaluation of vibration-induced fatigue using accelerometers placed at critical splice points.
• Inspection of conduit seals to ensure they meet IP68 ingress protection standards.
• Assessment of cable tension during installation to prevent long-term creep and cladding deformation.

Performance Validation and Lifecycle Maintenance

Validation of the PTC fiber network is conducted through a rigorous regime of Optical Time-Domain Reflectometer (OTDR) testing and Bit Error Rate (BER) analysis. The OTDR allows engineers to map the entire length of the fiber and identify the exact location of any anomalies, such as a high-loss splice or a macro-bend. By analyzing the backscattered light, the technical team can distinguish between a clean break and a gradual degradation of the fiber

Geotechnical Stratigraphy and Subgrade Deformation Mechanics

The E-Line Southeast Corridor presents a complex geotechnical profile characterized by high-plasticity alluvial clays and intermittent lenses of saturated silts. Forensic analysis of the track bed reveals that the primary driver of settlement is the differential consolidation of these cohesive soils under cyclic loading. When the static dead load of the rail infrastructure is coupled with the dynamic impact loads of transit vehicles, the pore water pressure within the subgrade increases, leading to a temporary reduction in effective stress. Over time, this manifests as primary consolidation settlement, where the soil matrix compresses and expels interstitial water.

In areas where the water table is perched, the phenomenon of "subgrade pumping" becomes prevalent. This occurs when fine-grained particles from the subgrade are forced upward into the ballast layer due to the rhythmic pressure pulses of passing trains. This migration of fines alters the soil structure, creating voids beneath the ballast shoulder and leading to localized subsidence. The forensic evidence indicates that the settlement is not uniform, but rather occurs in discrete "troughs" that correlate with the highest frequency of braking and acceleration zones, where longitudinal forces exacerbate the shear stress on the subgrade.

• Analysis of soil plasticity indices indicating high shrink-swell potential in the clay-rich zones.
• Measurement of void ratios showing significant deviation from the theoretical design specifications.
• Correlation between groundwater fluctuation cycles and the rate of track bed subsidence.
• Identification of shear failure planes within the upper 1.5 meters of the subgrade.

Ballast Degradation and Fouling Forensics

The structural integrity of the track bed relies on the angularity and permeability of the ballast. Forensic examination of samples from the Southeast Corridor reveals a critical progression of ballast fouling. Fouling is defined as the infiltration of fine particles—either from the attrition of the ballast stones themselves or from the upward migration of subgrade fines—into the void spaces between the aggregate. As these voids fill, the ballast loses its ability to drain water efficiently, transforming the ballast layer from a free-draining structural blanket into a saturated, semi-impermeable mass.

This loss of permeability leads to the development of hydrostatic pressure during heavy precipitation events. Instead of water percolating through the ballast into the subgrade drainage systems, it remains trapped, lubricating the aggregate particles and reducing the internal friction angle. This reduction in friction results in "ballast attrition," where the stones grind against one another, further creating fines and accelerating the fouling process. The result is a loss of vertical support for the sleepers, leading to increased deflection and the necessity for more frequent maintenance interventions.

• Quantification of the fouling index through sieve analysis of ballast samples.
• Observation of "mud pumping" where slurry is forced to the surface of the ballast shoulder.
• Assessment of the crushing strength of the aggregate relative to the axle loads of the E-Line fleet.
• Evaluation of the drainage efficiency of the longitudinal ditches and culverts.

Tamping Cycle Analysis and Voiding Phenomena

Tamping is the mechanical process of compacting the ballast under the sleepers to restore the correct track geometry. However, forensic data suggests that an aggressive tamping cycle in the Southeast Corridor has contributed to the acceleration of settlement. Over-tamping occurs when the mechanical tamping tines compress the ballast to a point where the aggregate is crushed, effectively creating a layer of "artificial fines." This process destroys the interlocking nature of the ballast, reducing the modulus of elasticity of the track bed.

A critical forensic finding is the presence of "voiding," where a physical gap develops between the bottom of the sleeper and the ballast. This typically occurs following a tamping cycle if the ballast has been overly fouled or crushed. When a train passes over a voided sleeper, the sleeper undergoes a high-amplitude vertical deflection. This impact creates a "hammering" effect that further degrades the remaining structural ballast and transmits higher-than-design loads directly into the subgrade, triggering further settlement. The cycle becomes a feedback loop of degradation: settlement leads to tamping, tamping leads to attrition, and attrition leads to further settlement.

• Analysis of the tamping frequency versus the rate of geometry degradation.
• Measurement of sleeper deflection using high-speed sensors to identify voided zones.
• Evaluation of the "tamping window" to determine the optimal timing for maintenance.
• Study of the impact of tamping-induced vibration on the surrounding soil stability.

Forensic Mitigation and Long-term Stabilization Strategies

To arrest the settlement across the E-Line Southeast Corridor, a transition from reactive maintenance to proactive geotechnical stabilization is required. The forensic evidence supports the implementation of geosynthetic reinforcement. The installation of geogrids at the ballast-subgrade interface serves two primary purposes: it provides lateral confinement to the ballast, preventing the lateral spreading that leads to settlement, and it acts as a separation layer that inhibits the upward migration of fines from the subgrade.

Furthermore, in zones of extreme plasticity, chemical stabilization via lime or cement injection is recommended. This process alters the chemical composition of the clay, reducing its plasticity and increasing its bearing capacity. By creating a stabilized "raft" beneath the track bed, the load is distributed over a wider area, significantly reducing the pressure on the underlying strata. Long-term monitoring using InSAR (Interferometric Synthetic Aperture Radar) and embedded piezometers is essential to track settlement in real-time and adjust tamping cycles based on empirical deformation data rather than fixed schedules.

• Deployment of biaxial geogrids to increase the structural modulus of the ballast layer.
• Implementation of non-woven geotextiles for superior filtration and drainage control.
• Application of polyurethane resin injection to fill voids and stabilize the subgrade without excavation.
• Establishment of a continuous monitoring network to detect early-stage settlement trends.

Kinematic Analysis of the Wheel-Rail Interface

The H-Line City Center Feeder operates within a high-density urban corridor characterized by tight-radius curves and frequent acceleration-deceleration cycles. At the fundamental level, the wheel-rail interface is a study in Hertzian contact stress, where the load is distributed across a microscopic elliptical contact patch. In the context of the H-Line, the primary engineering challenge is the management of "creepage"—the relative sliding between the wheel tread and the rail head that occurs even during pure rolling. When the vehicle enters the feeder's frequent diversions, the lateral forces shift the contact point from the tread to the flange, significantly increasing the tangential stress on the gauge face of the rail.

This transition from rolling to sliding friction creates a high-energy environment where the coefficient of friction (μ) must be precisely modulated. If the friction is too high, the resulting shear forces lead to rapid material loss and surface fatigue. Conversely, if the friction is too low, the system risks loss of traction and braking inefficiency, which is unacceptable for a high-frequency feeder service. The H-Line's specific geometry necessitates a nuanced understanding of the "creep force" slope, ensuring that the wheelset remains stable at high speeds while maintaining enough grip for the tight urban radii.

• Hertzian Contact Stress: The calculation of peak pressure at the contact patch to prevent plastic deformation of the rail steel.
• Creepage Dynamics: The analysis of longitudinal and lateral slip that drives the wear rate of the wheel flange.
• Contact Patch Migration: The shift in load distribution as the vehicle navigates the H-Line's specific curvature.
• Tangential Force Distribution: The measurement of shear forces acting upon the rail head during peak torque application.

Tribological Degradation and Wear Mechanisms

Degradation at the H-Line interface is primarily driven by three distinct tribological mechanisms: adhesive wear, abrasive wear, and Rolling Contact Fatigue (RCF). Adhesive wear occurs when microscopic welds form between the wheel and rail under extreme pressure, tearing material away as the wheel continues to rotate. Abrasive wear is more common in the City Center Feeder due to the ingress of urban particulates—sand, metallic dust, and road salt—which act as third-body abrasives, scoring the polished surface of the rail head and accelerating the loss of the wheel's optimal profile.

The most critical concern for long-term infrastructure integrity, however, is RCF. This manifests as "head checking" or "squats," where repeated loading and unloading of the metal cause subsurface cracks to propagate to the surface. In the H-Line's tightest curves, the flange-rail interface experiences severe "gauge corner" wear. Without an optimized lubrication protocol, the rail head undergoes rapid volumetric loss, leading to gauge widening. This widening increases the risk of derailment and necessitates premature rail replacement, driving up the lifecycle costs of the commercial infrastructure.

• Adhesive Wear: Material transfer caused by high-pressure molecular bonding between the wheel and the rail.
• Abrasive Wear: Surface scoring resulting from trapped contaminants acting as cutting agents.
• Rolling Contact Fatigue: The initiation and propagation of surface cracks due to cyclic loading.
• Gauge Corner Erosion: The specific volumetric loss of the rail's inner edge caused by flange impact.

Flange Lubrication Protocols and Friction Modification

To mitigate the aforementioned wear, the H-Line employs a dual-stage lubrication protocol focused on "friction modification" rather than simple lubrication. The objective is not to eliminate friction—which would compromise braking—but to maintain a stable, controlled coefficient of friction (typically between 0.1 and 0.3 μ). The primary protocol involves the application of a synthetic, graphite-based lubricant to the wheel flange. This lubricant creates a sacrificial boundary layer that prevents direct metal-to-metal contact, thereby reducing the shear stress on the gauge face.

The delivery system for the H-Line utilizes a combination of on-board flange lubricators and trackside gauge-face applicators. On-board systems ensure that the lubricant is applied consistently regardless of the rail's condition, while trackside applicators provide a targeted "top-up" in the most severe curves of the City Center Feeder. The selection of lubricants is critical; the fluid must possess high thermal stability to withstand the heat generated by friction and high adhesion properties to ensure the lubricant remains on the rail head despite the high-velocity passage of the wheelsets.

• On-Board Application: Direct-to-flange delivery systems that ensure consistent coverage across the entire line.
• Trackside Applicators: Stationary lubrication stations placed at high-wear curve entries to reduce gauge face friction.
• Synthetic Esters: The use of high-viscosity synthetic bases to ensure lubricant longevity and environmental compliance.
• Graphite Suspension: The integration of solid lubricants to provide a durable boundary layer during peak loading.

Empirical Monitoring and Lifecycle Maintenance

The efficacy of the lubrication protocols is validated through a rigorous empirical monitoring regime. The H-Line utilizes Wheel Profile Monitoring Systems (WPMS) and laser-based rail profiling to track the volumetric loss of the rail head in real-time. By comparing the current profile against the theoretical "ideal" profile, engineers can identify "hot spots" where lubrication is insufficient. Additionally, ultrasonic testing is conducted quarterly to detect subsurface RCF cracks before they reach a critical threshold that would require a full rail section replacement.

The maintenance lifecycle is governed by a data-driven feedback loop. When the WPMS detects an acceleration in flange wear, the lubrication intervals are shortened, or the lubricant chemistry is adjusted to account for seasonal temperature fluctuations. This proactive approach shifts the maintenance paradigm from "reactive replacement" to "predictive management." By maintaining the wheel-rail interface within strict tribological tolerances, the H-Line extends the service life of its rolling stock and reduces the frequency of disruptive track maintenance, ensuring the operational reliability of the City Center Feeder.

• Laser Profiling: High-precision measurement of the rail head to quantify volumetric wear.
• Ultrasonic Inspection: Non-destructive testing to identify

Electromagnetic Induction Principles and R-Line Signal Architecture

The operational integrity of the R-Line Aurora Metro Ring depends fundamentally on the precision of its grade crossing warning systems. At the core of this system is the inductive loop, a sensor consisting of a buried coil of insulated wire that creates a localized magnetic field. When a metallic mass, such as a railcar or a motor vehicle, enters the field, it alters the loop's inductance through a process of eddy current induction. This shift in inductance is detected by a tuned LC oscillator circuit, which triggers the warning gates and signal lights. In the high-density transit environment of the Aurora Metro Ring, the margin for error is virtually non-existent; a failure to detect a vehicle or a "false positive" trigger can lead to catastrophic systemic delays or safety breaches.

The technical challenge within the R-Line corridor is the variance in soil conductivity and the presence of adjacent metallic infrastructure, such as reinforced concrete sleepers and steel utility conduits. These elements introduce parasitic capacitance and electromagnetic interference (EMI), which can skew the baseline inductance of the loop. To maintain a clinical level of accuracy, engineers must account for the dielectric constant of the surrounding backfill material. If the backfill is too moist or contains high concentrations of mineral salts, the resulting conductivity can dampen the signal, leading to a "blind" loop that fails to trigger the crossing gates.

• Faraday’s Law of Induction: The governing principle where a changing magnetic field induces an electromotive force.
• Mutual Inductance: The interaction between the loop coil and the metallic chassis of the vehicle.
• LC Resonance: The specific frequency at which the detector circuit oscillates to identify inductance shifts.
• EMI Mitigation: The use of shielded cabling to prevent signal cross-talk from high-voltage traction power lines.

Calibration Methodology and Signal Processing Optimization

Calibration of the inductive loops across the R-Line requires a rigorous, empirical approach to ensure that the "delta"—the difference between the unoccupied loop inductance and the occupied loop inductance—is clearly defined. The calibration process begins with the establishment of a baseline frequency using a high-precision loop meter. Technicians must tune the detector to a sensitivity threshold that is high enough to detect a standard passenger vehicle but low enough to ignore "environmental noise," such as the vibration of a nearby heavy-duty truck that is not actually occupying the loop area.

The signal processing unit employs a hysteresis loop to prevent "chattering," a condition where the gate rapidly cycles open and closed due to a signal hovering at the threshold of detection. By implementing a defined trigger-on and trigger-off voltage, the R-Line system ensures a stable state transition. Furthermore, the calibration must be performed across a thermal gradient. Because the resistance of the copper wiring in the loop increases as temperature rises, the baseline inductance shifts seasonally. A master-level calibration involves adjusting the compensation circuitry to automatically track these thermal drifts, ensuring that the system remains responsive during both the peak of summer and the depths of winter.

• Baseline Frequency Mapping: Establishing the quiescent state of the loop before vehicle entry.
• Sensitivity Tuning: Adjusting the gain of the amplifier to optimize the signal-to-noise ratio.
• Hysteresis Implementation: Setting the upper and lower bounds of the detection window to prevent rapid state switching.
• Thermal Compensation: Calibrating the circuit to account for the temperature coefficient of the copper conductors.

Forensic Analysis of Loop Degradation and Envelope Failures

From a forensic engineering perspective, the failure of an inductive loop is rarely a failure of the electronics and almost always a failure of the physical envelope. The loop is embedded in a saw-cut groove in the asphalt or concrete, sealed with a specialized polymer. Over time, the repeated loading and unloading of heavy vehicles cause fatigue in the pavement. This leads to the development of micro-fractures in the sealant, allowing moisture and road salts to penetrate the loop housing. Once water enters the sealant-wire interface, it creates a conductive path that alters the loop's impedance, leading to "drift" and eventual failure.

Analysis of failed loops in the Aurora Metro Ring reveals a recurring pattern of "sealant stripping," where the bond between the polymer sealant and the pavement edge fails due to differential thermal expansion. When the asphalt expands at a different rate than the sealant, a gap forms, facilitating the ingress of water. This moisture not only affects the electrical properties of the loop but can also lead to the oxidation of the wire insulation. In severe cases, the insulation cracks, causing a short circuit that renders the loop invisible to the detector. Forensic recovery involves the use of Time-Domain Reflectometry (TDR) to pinpoint the exact location of the break or short within the buried cable.

• Pavement Fatigue: The mechanical breakdown of the substrate leading to loop displacement.
• Polymer Degradation: The chemical breakdown of the sealant due to UV exposure and chemical runoff.
• Capillary Action: The process by which water is drawn into micro-cracks, compromising the electrical envelope.
• TDR Analysis: Using reflected wave pulses to identify impedance mismatches in the buried line.

Industry Standards and Long-Term Reliability Metrics

To ensure the longevity of the R-Line infrastructure, all calibrations and installations must adhere to the American Railway Engineering and Maintenance-of-Ways Association (AREMA) standards. These standards dictate the minimum bend radius of the loop wire to prevent stress-induced fractures and the specific depth of the saw-cut to ensure sufficient overburden for mechanical protection. Reliability is measured through the Mean Time Between Failures (MTBF), and for the Aurora Metro Ring, the target is a 99.9% uptime for all crossing warning systems. This is achieved through a proactive maintenance cycle that includes quarterly signal audits and annual physical inspections of the pavement envelope.

The transition toward "smart" inductive loops involves the integration of digital signal processing (DSP) at the edge. By utilizing DSP, the system can distinguish between different vehicle profiles based on the "signature" of the inductance shift. This allows for the filtering of non-target metallic objects and provides a higher level of reliability. Ultimately, the synergy between precise electromagnetic calibration and robust physical installation is what guarantees the safety of the grade crossings. The engineering objective is to create a system where the physical envelope is as resilient as the electronic logic, ensuring that the R-Line Aurora Metro Ring operates with clinical precision and absolute reliability.

• AREMA Compliance: Adhering to industry-standard specifications for rail-side electronics

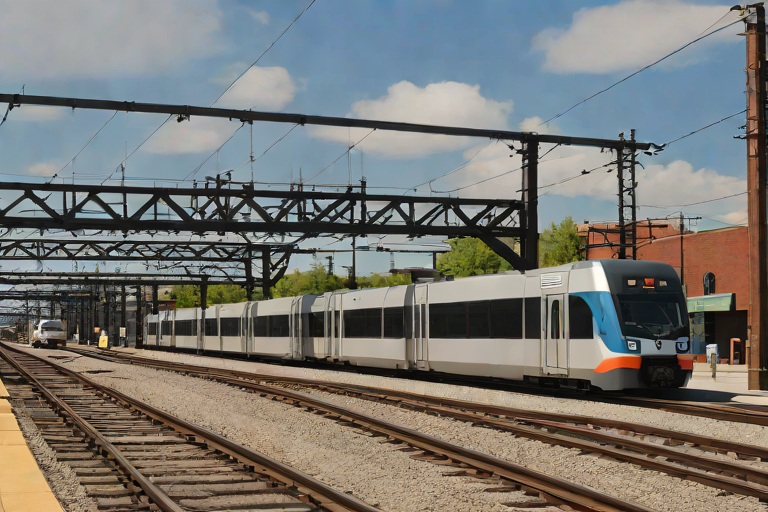

Thermal Dynamics of Traction Power Rectifier Transformers

The operational integrity of the W-Line West Colfax Light Rail depends fundamentally on the efficiency of its Traction Power Rectifier Transformers (TPRTs). These units perform the critical task of stepping down high-voltage AC from the utility grid and converting it to DC for the overhead catenary system. This process is inherently exothermic, generating substantial heat through magnetic hysteresis in the core and ohmic losses within the windings. In the high-demand environment of the West Colfax corridor, these transformers operate under fluctuating load profiles, leading to significant thermal cycling that can accelerate the degradation of cellulose insulation and dielectric fluids.

Cooling strategies for these units typically employ a combination of Oil Natural Air Natural (ONAN) and Oil Natural Air Forced (ONAF) mechanisms. The dielectric oil serves a dual purpose: providing electrical insulation and acting as the primary heat transfer medium. Heat is conducted from the windings to the oil, which then circulates via convection to the external radiator banks. The efficiency of this heat exchange is governed by the temperature gradient between the oil and the ambient air. When the delta-T narrows during peak summer months in the Denver metro area, the passive ONAN system becomes insufficient, necessitating the activation of forced-air fans to maintain the transformer within its rated thermal envelope.

• Core losses: Constant heat generation regardless of load, primarily due to hysteresis and eddy currents.
• Copper losses: Variable heat generation that increases quadratically with the current load.
• Thermal inertia: The time lag between load spikes and the resulting rise in oil temperature.
• Dielectric breakdown: The risk associated with overheating, where oil oxidation leads to sludge formation and reduced insulating properties.

Building Envelope Forensics and Ventilation Integration

From a forensic engineering perspective, the substation housing is not merely a protective shell but a critical component of the cooling system. The building envelope must be analyzed as a thermodynamic boundary. In several installations along the W-Line, the interaction between the internal heat load of the TPRT and the envelope's permeability determines the steady-state temperature of the facility. If the envelope is overly sealed without adequate mechanical ventilation, a "heat soak" effect occurs, where the ambient air inside the substation reaches a temperature that inhibits the radiator banks' ability to reject heat.

Effective ventilation requires a calculated balance of intake and exhaust apertures, typically configured to leverage the stack effect or forced mechanical induction. Forensics on underperforming units often reveal "short-circuiting" of airflow, where cool intake air is drawn directly into the exhaust vents without passing over the transformer radiators. This creates a localized pocket of stagnant, superheated air around the transformer core. To mitigate this, the envelope must be engineered with strategic louver placement and baffles that ensure a unidirectional flow of air across the entire surface area of the cooling fins.

• Pressure differentials: The use of negative pressure via exhaust fans to pull fresh air through intake louvers.
• Louver efficiency: The ratio of open area to total vent size, impacting the volume of Cubic Feet per Minute (CFM) delivered.
• Thermal bridging: The conduction of heat through the building's structural steel, potentially heating the intake air before it reaches the equipment.
• Filtration forensics: The accumulation of urban particulates on intake screens, which increases static pressure and reduces airflow.

Environmental Stressors and Degradation Mechanisms

The West Colfax corridor presents a challenging urban environment characterized by high particulate matter and extreme diurnal temperature swings. These environmental stressors directly impact the heat rejection capabilities of the TPRT radiators. Over time, the radiator fins—which are designed with high surface-area-to-volume ratios—become clogged with a mixture of atmospheric dust, automotive emissions, and organic debris. This buildup creates an insulating layer of "bio-fouling" or grime that significantly increases the thermal resistance of the cooling interface.

Furthermore, the phenomenon of the Urban Heat Island (UHI) effect exacerbates the cooling challenge. The surrounding asphalt and concrete of the Colfax corridor absorb solar radiation and re-emit it as long-wave infrared radiation, raising the baseline ambient temperature around the substation intake. This reduces the efficiency of the ONAF system, as the "cool" air being pulled into the substation is already pre-heated. When combined with the vibration induced by passing light rail vehicles, these stressors can lead to the fatigue of cooling fan mounts and the development of micro-leaks in the radiator headers, compromising the oil volume and further reducing cooling capacity.

• Particulate accretion: The buildup of grime on radiator fins, leading to a measurable increase in oil temperature.
• Thermal cycling: The expansion and contraction of seals and gaskets due to rapid temperature shifts between peak load and idle states.
• Oxidation: The chemical breakdown of transformer oil accelerated by high operating temperatures.
• Vibrational fatigue: Mechanical stress on cooling fan assemblies caused by nearby rail traffic.

Mitigation Strategies and Engineering Standards

To ensure long-term reliability and adherence to IEEE C57 standards for transformer loading and cooling, a proactive engineering approach is required. The primary objective is to maximize the heat transfer coefficient at the radiator-air interface. This involves the implementation of a rigorous maintenance schedule that includes the chemical cleaning of radiator fins and the verification of fan blade pitch and motor efficiency. Additionally, the installation of real-time thermal monitoring systems—such as fiber-optic temperature sensors embedded in the windings—allows for a more granular understanding of "hot spots" that traditional oil-level thermometers might miss.

From an infrastructure standpoint, the substation envelope should be optimized through the use of reflective, high-albedo coatings to reduce solar gain. The integration of SCADA (Supervisory Control and Data Acquisition) systems enables the dynamic control of cooling fans based on real-time load data rather than simple thermostats, preventing unnecessary wear and tear on the motors. By shifting from a reactive to a predictive maintenance model, the W-Line can avoid catastrophic failures associated with thermal runaway and ensure the continuous availability of traction power for the West Colfax corridor.

• Predictive analytics: Utilizing historical load and temperature data to forecast cooling needs.
• High-albedo coatings: Applying reflective materials to the substation exterior to lower internal ambient temperatures.
• Enhanced filtration: Implementing washable, high-flow filters to protect radiators from urban pollutants.
• Thermal imaging: Conducting quarterly infrared thermography to identify anomalies in heat distribution across the transformer tank.

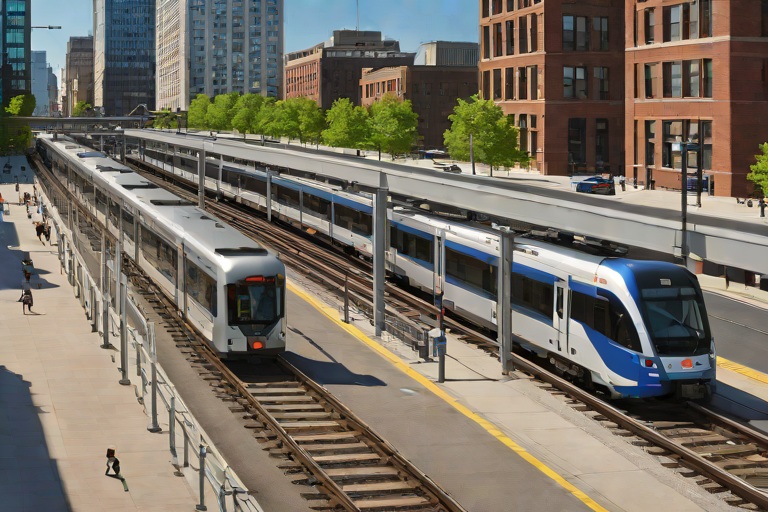

Torque Specifications and Pre-load Dynamics in Direct Fixation Systems

The structural integrity of the Flatiron Flyer US-36 BRT guideway relies fundamentally on the precision of the direct fixation (DF) rail fasteners. In a direct fixation assembly, the rail is secured to the concrete slab via a series of high-strength bolts and tensioning clips. The primary engineering objective is the establishment of a consistent pre-load, which ensures that the clamping force exceeds the maximum anticipated dynamic uplift and lateral forces generated by the transit vehicles. When torque is applied to the fastener, it converts rotational force into axial tension, creating a compressive seal between the rail foot, the dampening pad, and the concrete substrate.

Insufficient torque leads to "rail creep" and excessive lateral play, which accelerates the wear on the rail head and increases the risk of fastener fatigue. Conversely, over-torqueing introduces a critical failure point by exceeding the yield strength of the bolt or causing localized crushing of the elastomeric dampening interface. In the US-36 corridor, where load cycles are frequent and intense, maintaining the "sweet spot" of the torque-tension relationship is paramount to preventing bolt shearing and ensuring the long-term stability of the track geometry.

• Application of calibrated torque wrenches to ensure adherence to ±5% of the specified Newton-meters (Nm).
• Utilization of tension-indicating washers to provide a visual confirmation of pre-load achievement.
• Implementation of a sequenced tightening pattern to prevent the uneven distribution of stress across the concrete slab.
• Regular auditing of bolt tension using ultrasonic measurement tools to detect loss of pre-load without disrupting service.

Vibration Attenuation and Elastomeric Interface Analysis

Vibration dampening in the Flatiron Flyer system is achieved through the integration of high-density elastomeric pads situated between the rail and the concrete guideway. These pads act as a mechanical filter, decoupling the high-frequency vibrations generated by the wheel-rail interface from the primary structural slab. From a forensic engineering perspective, the dampening system must manage both the vertical impact loads and the lateral hunting oscillations of the vehicles. The goal is to shift the natural frequency of the assembly away from the resonance frequency of the surrounding commercial infrastructure, thereby preventing structural fatigue in adjacent building envelopes.

The effectiveness of this vibration dampening is contingent upon the uniformity of the compression across the pad. If the fasteners are not torqued uniformly, the elastomeric pad may experience "edge loading," where the perimeter of the pad is overly compressed while the center remains under-loaded. This creates an impedance mismatch, allowing vibration energy to bypass the dampening layer and transmit directly into the concrete. This phenomenon, known as "short-circuiting," can lead to micro-cracking in the concrete slab and increased noise pollution in the surrounding urban environment.

• Selection of Shore A hardness ratings for elastomers to match the specific axle loads of the BRT fleet.
• Analysis of damping ratios to ensure a reduction in decibel levels and peak particle velocity (PPV).
• Evaluation of the "creep" characteristics of the rubber compounds to ensure long-term thickness stability.
• Integration of dual-stiffness pads to handle both low-frequency sway and high-frequency impact.

Forensics of Thermal Cycling and Fastener Fatigue

The US-36 corridor is subject to significant diurnal and seasonal temperature fluctuations, which introduce complex thermal stresses into the rail infrastructure. Because the steel rail and the concrete slab possess different coefficients of thermal expansion (CTE), the rail undergoes longitudinal expansion and contraction. In a direct fixation system, the fasteners must be robust enough to resist these longitudinal forces while remaining flexible enough to avoid snapping. Forensic analysis of similar installations reveals that thermal cycling often leads to "bolt relaxation," where the repeated expansion and contraction of the materials gradually reduce the effective pre-load of the fastener.

When the pre-load drops below a critical threshold, the fastener enters a state of cyclic loading, where it is subjected to repeated tension and compression cycles. This is the primary driver of fatigue failure. Once a micro-crack initiates in the bolt shank, the remaining cross-sectional area is reduced, accelerating the stress concentration and leading to a sudden, brittle fracture. In the context of the Flatiron Flyer, this risk is amplified at the transition points between different structural sections of the BRT line, where stiffness changes create localized stress concentrations.

• Monitoring of rail temperature to correlate thermal expansion with fastener tension loss.
• Use of galvanized or coated fasteners to prevent galvanic corrosion, which can act as a catalyst for stress-corrosion cracking.
• Implementation of thermal expansion joints to alleviate longitudinal stress on the fixation points.
• Forensic sampling of failed bolts to analyze grain structure and determine the mode of failure (e.g., fatigue vs. overload).

Long-term Structural Integrity and Maintenance Protocols

Ensuring the longevity of the direct fixation system requires a transition from reactive maintenance to a predictive, data-driven regime. The intersection of the rail fasteners and the concrete slab represents a critical failure point in the overall infrastructure envelope. If fasteners fail or loosen, the resulting vibration can lead to the spalling of the concrete, which then allows moisture to penetrate the slab. This moisture ingress can lead to the corrosion of internal reinforcement steel, compromising the load-bearing capacity of the entire guideway. Therefore, the fastener torque is not merely a mechanical detail but a primary defense mechanism for the concrete infrastructure.

A rigorous maintenance protocol must include a comprehensive "torque audit" performed at scheduled intervals. This process involves the non-destructive testing (NDT) of a statistically significant sample of fasteners across the entire length of the US-36 BRT. By mapping the tension loss across the line, engineers can identify "hot spots" where vibration levels are highest or where the concrete substrate is under-performing. This allows for targeted interventions, such as the installation of supplementary dampening or the replacement of aged elastomeric pads, ensuring the system remains within its design parameters for its intended service life.

• Establishment of a baseline torque map for every segment of the guideway during the commissioning phase.
• Utilization of automated sensing technology to monitor real-time vibration levels at critical fastener nodes.

Thermal Dynamics and the Failure Modes of Conventional Switch Heaters

In the context of the Colfax Avenue BRT corridor, the primary challenge for transit reliability during extreme blizzard events is the phenomenon of ice bridging. Conventional switch heaters, typically relying on resistive electric elements or gas-fired burners, often fail to maintain the critical temperature threshold required to prevent the freezing of switch points. These legacy systems suffer from significant thermal dissipation losses, where heat is radiated upward into the atmosphere rather than being conducted downward into the rail steel. During high-velocity wind events characteristic of Denver's urban canyons, the convective heat loss exceeds the caloric output of standard resistive heaters, leading to localized freezing and subsequent switch failure.

From a forensics perspective, the failure of traditional systems is often traced to the "cold spot" effect. Because resistive heating is concentrated at specific intervals, the areas between the heating elements become vulnerable to ice accretion. This creates a non-uniform thermal profile across the switch assembly, which can lead to mechanical binding. Furthermore, the reliance on external combustion or exposed wiring makes these systems susceptible to moisture ingress and corrosive salt spray, which accelerates the degradation of the electrical insulation and increases the frequency of short-circuit events during peak storm surges.

• Thermal Bridging: The inefficient transfer of heat from the element to the rail, resulting in wasted energy.
• Convective Cooling: The rapid stripping of heat from the rail surface by high-velocity wind gusts.
• Latent Heat Constraints: The inability of legacy systems to rapidly overcome the latent heat of fusion during sudden, heavy snowfall.
• Material Fatigue: The repeated expansion and contraction cycles of the rail steel caused by uneven heating.

Induction-Based Thermal Distribution Architecture

Switch heater induction systems represent a paradigm shift in infrastructure engineering by utilizing electromagnetic fields to generate heat directly within the rail steel. Unlike resistive heating, which applies heat to the surface, induction heating leverages the principle of Eddy currents. An alternating current is passed through a copper coil wrapped around or positioned beneath the rail, creating a rapidly oscillating magnetic field. This field induces electrical currents within the ferromagnetic material of the rail, generating heat internally through hysteresis and resistive losses. This ensures that the rail is heated from the inside out, virtually eliminating the "cold spot" vulnerabilities associated with traditional methods.

The efficiency of induction systems is significantly higher due to the elimination of the air gap between the heat source and the target material. In the Colfax Avenue BRT application, this means the system can maintain a consistent temperature across the entire switch assembly, regardless of the ambient air temperature. The "skin effect" of induction heating allows for precise control over the depth of the thermal penetration, ensuring that the rail remains pliable and free of ice without overheating the surrounding ballast or sleepers, which could otherwise lead to premature degradation of the ties.

• Electromagnetic Coupling: The direct transfer of energy from the induction coil to the rail steel.
• Hysteresis Loss: The internal friction of magnetic domains shifting, which contributes to rapid heat generation.
• Zonal Control: The ability to segment the induction coils to provide targeted heating to the most critical switch points.
• Rapid Response: The near-instantaneous transition from standby to full thermal output upon detection of precipitation.

Integration with Sub-Surface Forensics and Building Envelopes

While switch heaters are primarily mechanical components, their performance is inextricably linked to the surrounding infrastructure envelope. In commercial transit engineering, the trackbed must be viewed as a horizontal building envelope. Moisture migration from the sub-grade into the ballast creates a risk of frost heave, which can displace the switch geometry and render the induction coils ineffective. A forensic analysis of the Colfax Avenue corridor reveals that inadequate drainage often leads to hydrostatic pressure buildup beneath the rails, which accelerates the cooling of the rail steel through conduction with the frozen ground.

To mitigate these risks, the induction system must be integrated with a comprehensive moisture barrier and a stabilized sub-base. By applying principles from commercial roofing and envelope forensics, engineers can implement a capillary break beneath the ballast. This prevents the upward migration of groundwater, ensuring that the induction system does not have to fight the constant thermal sink of a saturated sub-grade. Furthermore, the use of high-density polyethylene (HDPE) liners around the induction coils protects the electrical components from the corrosive environment of the trackbed while providing a secondary layer of thermal insulation to keep the heat concentrated within the rail.

• Capillary Breakage: Preventing the rise of groundwater to stop the formation of ice lenses beneath the rail.
• Sub-Grade Stabilization: Using engineered fill to ensure a consistent thermal conductivity coefficient.
• Envelope Sealing: Protecting induction coils from salt-laden slush and chemical de-icers.
• Thermal Decoupling: Ensuring that heat is directed into the steel rather than leaching into the surrounding concrete sleepers.

Reliability Engineering and Lifecycle Analysis for Urban Transit

The deployment of induction systems across the Colfax Avenue BRT line is justified by a rigorous Mean Time Between Failures (MTBF) analysis. Traditional heaters require frequent manual inspections and the replacement of burnt-out elements. In contrast, induction systems have no moving parts and no exposed heating elements that are subject to oxidation or physical wear. The primary failure point shifts from the heating element to the power electronics, which can be housed in climate-controlled, secure cabinets away from the trackside environment. This centralization of critical components significantly reduces the labor costs associated with emergency repairs during blizzard conditions.

From a lifecycle cost perspective, the initial capital expenditure of induction systems is offset by the reduction in energy consumption. Because the heat is generated within the rail, the energy waste associated with heating the surrounding air is minimized. Furthermore, the integration of smart sensors—measuring both rail temperature and moisture levels—allows for a demand-driven activation strategy. Instead of running on a fixed timer, the system activates only when empirical data indicates a risk of icing, thereby extending the lifespan of the electronic components and reducing the overall carbon footprint of the transit line.

• Predictive Maintenance: Using real-time thermal telemetry to identify potential failures before they occur.
• Energy Optimization: Reducing kilowatt-hour consumption through sensor-driven, targeted heating.
• Reduced Operational Downtime: Eliminating the need for manual ice removal and switch resetting.
• Structural Longevity: Reducing the thermal shock to the rail steel, thereby extending the replacement cycle of the switch assembly.

Material Specifications and Volumetric Stability in High-Density Concrete

The structural integrity of the Civic Center Transit Concourse relies upon the deployment of High-Density Concrete (HDC) specifically engineered to mitigate the effects of extreme thermal cycling. In high-traffic commercial infrastructure, the primary vulnerability is the interconnected capillary pore structure. To counteract this, the mix design must prioritize a low water-to-cement (w/c) ratio, typically maintained below 0.40, to reduce the volume of permeable voids. By incorporating supplementary cementitious materials (SCMs) such as silica fume or fly ash, the concrete achieves a refined pore structure through pozzolanic reactions, which significantly decrease the permeability of the matrix.

A critical component of this volumetric stability is the precise calibration of air-entraining admixtures (AEA). These agents introduce a controlled distribution of microscopic air bubbles—typically ranging from 4% to 7% by volume—which act as expansion chambers. When interstitial water freezes, it expands by approximately 9%. Without these microscopic voids, the internal hydraulic pressure would exceed the tensile strength of the concrete, leading to immediate micro-cracking and subsequent structural degradation. The spacing factor of these bubbles must be kept under 0.2mm to ensure that the pressure is distributed uniformly across the cement paste.

• Utilization of Type II/V sulfate-resistant cement to prevent chemical attack from groundwater.
• Integration of high-range water reducers (HRWR) to maintain workability without increasing the w/c ratio.
• Strict adherence to ASTM C231 for air content verification during the casting phase.
• Implementation of controlled curing environments to prevent premature shrinkage cracks.

The Mechanics of Freeze-Thaw Cycling and Osmotic Pressure

The degradation of the transit concourse platform is primarily driven by the synergy between freeze-thaw cycles and the application of chemical deicing agents. When water enters the concrete surface, it occupies the capillary pores. Upon freezing, the phase transition from liquid to ice creates a volumetric expansion that exerts immense internal stress. However, the introduction of deicing salts, such as sodium chloride or calcium chloride, complicates this process by lowering the freezing point of the water, thereby increasing the number of freeze-thaw cycles the material undergoes during a single winter season.

The presence of chlorides introduces a phenomenon known as osmotic pressure. As salt concentrations increase at the surface, a concentration gradient is formed between the salt-saturated surface water and the relatively fresh water deeper within the concrete. This gradient pulls water toward the surface, but as the surface freezes, the salt-laden brine is forced deeper into the matrix. This process, combined with the "scaling" effect—where the surface layers peel away due to the differential expansion of the salt-contaminated skin—rapidly reduces the effective thickness of the wearing course and exposes the aggregate to further infiltration.

• Accelerated saturation kinetics leading to rapid internal hydraulic pressure buildup.
• Chloride-induced corrosion of embedded steel reinforcement via the breakdown of the passive oxide layer.
• Thermal shock resulting from the rapid application of warm brine onto frozen concrete surfaces.
• Development of "pop-outs" where localized pressure exceeds the surface tensile strength.

Chemical Defense Strategies and Penetrating Sealants

To establish a robust deicing defense, the Civic Center Transit Concourse must move beyond surface-level membranes, which are prone to mechanical wear and moisture entrapment. The engineering standard for high-traffic platforms is the application of penetrating hydrophobic sealants, specifically alkylalkoxysilanes. Unlike acrylics or epoxies that form a film, silanes chemically bond with the silicate groups in the concrete, lining the pores with a hydrophobic layer. This alters the surface tension of the concrete, causing water to bead and roll off rather than being drawn in by capillary suction.

Furthermore, the integration of migrating corrosion inhibitors (MCIs) provides a secondary line of defense. These chemicals penetrate the concrete to form a protective molecular layer on the surface of the rebar, preventing the electrochemical reaction that leads to rust and subsequent spalling. By combining a hydrophobic surface treatment with internal inhibitors, the infrastructure achieves a "dual-barrier" system. This ensures that even if the surface sealant is compromised by heavy foot traffic or mechanical abrasion, the internal structural steel remains isolated from the chloride-rich environment.

• Application of 100% solids silane sealers to ensure deep penetration and long-term bonding.
• Use of solvent-free formulations to eliminate VOC emissions in enclosed transit spaces.
• Implementation of a "wet-on-wet" application technique to ensure total saturation of the substrate.
• Periodic re-application cycles every 5 to 7 years based on water-drop penetration tests.

Forensic Evaluation and Long-Term Maintenance Protocols

The longevity of the concourse platform is contingent upon a rigorous forensic monitoring program. Engineering authorities must employ non-destructive testing (NDT) to identify subsurface voids and delamination before they manifest as surface failures. The use of Ground Penetrating Radar (GPR) allows for the mapping of internal moisture plumes and the detection of chloride-induced corrosion cells. Additionally, the Schmidt Hammer test is utilized to monitor the compressive strength of the surface layer, ensuring that the concrete has not suffered significant loss of integrity due to chemical leaching.

A comprehensive maintenance protocol shifts the focus from reactive repair to proactive preservation. This involves the establishment of a "critical threshold" for chloride concentration; once the chloride levels at the depth of the reinforcement reach a specific percentage of the cement weight, a mandatory extraction or electrochemical chloride removal process is triggered. By maintaining a data-driven ledger of the platform's health, the transit authority can optimize the timing of sealant applications and surface grinding, thereby extending the service life of the asset by several decades while minimizing operational downtime.

• Quarterly visual inspections focusing on joint sealant integrity and surface scaling.
• Annual half-cell potential mapping to monitor the corrosion activity of the reinforcement.
• Utilization of ASTM C829 standards to evaluate the abrasion resistance of the wearing surface.
• Implementation of a lifecycle cost analysis (LCCA) to balance initial sealant costs against long-term repair expenditures.

Material Specification and Alloy Composition for Low-Floor LRV Axles

The structural integrity of Low-Floor Light Rail Vehicle (LRV) bogie axles at the Boulder Junction Depot necessitates a rigorous adherence to high-strength forged steel specifications. Unlike standard rail applications, low-floor configurations impose unique geometric constraints that concentrate stresses on shorter axle spans. The primary material utilized is typically a vacuum-degassed, quenched, and tempered alloy steel, such as EA4T or equivalent high-grade chromium-molybdenum alloys. These materials are selected specifically for their superior fatigue strength and fracture toughness, ensuring that the axle can withstand millions of load cycles without catastrophic cleavage.

The metallurgical composition is engineered to balance hardness with ductility. A precise carbon content, generally maintained between 0.35% and 0.45%, is required to ensure a fine pearlitic-ferritic microstructure upon cooling. The addition of chromium and molybdenum enhances hardenability and prevents the formation of coarse grains, which would otherwise serve as initiation sites for micro-cracks. In the context of the Boulder Junction Depot, the environmental exposure—specifically the diurnal temperature fluctuations—requires a material with a stable transition temperature to avoid brittle fracture during winter operations.

• Vacuum Degassing: Essential for removing dissolved gases and reducing non-metallic inclusions that act as internal stress risers.
• Quenching and Tempering: A critical heat treatment process that transforms the austenite into tempered martensite, optimizing the yield strength.
• Grain Refinement: The use of aluminum or vanadium to maintain a fine-grained structure, increasing the overall resistance to fatigue crack propagation.
• Surface Hardening: Selective induction hardening of the journal areas to reduce wear and tear from bearing interfaces.

Stress Distribution and Fatigue Analysis in Low-Floor Geometries

The transition to low-floor LRV designs has fundamentally altered the bending moment diagrams of the bogie axle. Because the floor height is lowered to provide accessibility, the axle geometry is often compromised, leading to a reduction in the distance between the wheel seat and the journal bearing. This creates a high-stress concentration zone, known as the "fillet radius," where the axle diameter transitions. In the Boulder Junction Depot fleet, empirical data indicates that the maximum bending moments occur precisely at these transition points, accelerating the onset of fatigue.

Fatigue in these components follows a predictable clinical progression: initiation, propagation, and final fracture. The initiation phase is typically driven by surface irregularities or microscopic inclusions in the steel. Once a crack initiates, the cyclic loading of the LRV—compounded by the lateral forces encountered during tight-radius curves—drives the crack deeper into the core of the axle. The "low-floor" constraint means there is less material volume to distribute these loads, resulting in a higher stress intensity factor at the crack tip compared to traditional high-floor bogies.

• Bending Moment Amplification: The reduced axle length increases the leverage exerted on the wheel-set during vertical oscillation.
• Lateral Thrust Forces: High-frequency oscillations during curve negotiation introduce torsional stresses that superimpose onto the primary bending loads.
• Notch Sensitivity: The precision of the machining process at the fillet radius is paramount; any tool mark or scratch acts as a geometric notch, lowering the fatigue limit.
• Load Cycle Frequency: The high-density scheduling at Boulder Junction increases the cumulative damage index (CDI) of the axles over a shorter calendar period.

Metallurgical Failure Modes and Forensic Indicators

Forensic analysis of decommissioned axles from the Boulder Junction Depot reveals a prevalence of fatigue-driven failure modes. The most common indicator is the presence of "beach marks" or striations on the fracture surface, which are characteristic of progressive crack growth. Under scanning electron microscopy (SEM), these surfaces often show a transition from a smooth, rubbed area (where the crack was open but small) to a rougher, dimpled region indicating ductile overload. The failure is rarely sudden; rather, it is the result of a slow degradation of the material's internal lattice.

Another critical concern is the occurrence of intergranular corrosion and pitting, particularly in axles exposed to winter de-icing chemicals. These chemicals penetrate the surface oxide layer, creating localized anodic sites. The resulting pits act as precursors to fatigue cracks, effectively bypassing the initiation phase and moving the axle directly into the propagation phase. Furthermore, overheating in the journal bearings can lead to localized tempering, where the steel loses its hardness and becomes susceptible to plastic deformation and "galling," which further destabilizes the axle's alignment.

• Transgranular Fracture: Evidence of cracks cutting across grain boundaries, typical of high-cycle fatigue in tempered steels.
• Surface Pitting: Chemical erosion that creates stress concentrators, significantly reducing the endurance limit of the alloy.
• Thermal Degradation: Discoloration of the steel (blueing) indicating that the material exceeded its critical tempering temperature.
• Spalling: The separation of small fragments from the wheel seat area due to excessive contact pressure and subsurface shear stress.

Preventative Maintenance and Non-Destructive Testing (NDT) Protocols

To mitigate the risk of catastrophic axle failure, the Boulder Junction Depot must employ a rigorous Non-Destructive Testing (NDT) regime. The primary defense is the implementation of Phased Array Ultrasonic Testing (PAUT). Unlike standard UT, PAUT allows for the electronic steering of the ultrasound beam, providing a high-resolution cross-sectional image of the axle's interior. This is critical for detecting subsurface inclusions or cracks that have initiated at the core of the material and are not yet visible on the surface.

Complementing PAUT is the use of Magnetic Particle Inspection (MPI) during scheduled bogie overhauls. By applying a magnetic field to the axle and utilizing fluorescent ferrous particles, technicians can identify surface-breaking cracks with extreme precision. The industry standard for these inspections is a "zero-tolerance" policy for any linear indication exceeding 0.5mm in length. Once a defect is identified, the axle is immediately flagged for removal, as the propagation rate in low-floor geometries can accelerate exponentially once a critical crack length is reached.

• Phased Array Ultrasonic Testing (PAUT): Used for volumetric inspection to find internal voids or fatigue cracks in the axle core.
• Magnetic Particle Inspection (MPI):

Tribological Analysis of the Carbon-Contact Interface

The operational integrity of the Longmont Intermodal Terminal relies upon the seamless transfer of high-voltage current from the overhead catenary system (OCS) to the traction motors via the pantograph assembly. At the core of this interface is the carbon strip, a sacrificial component designed to minimize wear on the more costly copper contact wire. The tribological relationship between the carbon strip and the contact wire is governed by the laws of friction, electrical conductivity, and thermal expansion. In the Longmont environment, where fluctuating ambient temperatures and high-frequency switching occur, the carbon strip must maintain a precise balance of hardness and lubricity.

Wear in these strips is not a linear process but a stochastic result of mechanical abrasion and electrical erosion. Mechanical wear occurs primarily through the physical scraping of the carbon against the wire, while electrical erosion is the result of micro-arcs that occur during momentary separations. These micro-arcs vaporize small quantities of carbon, creating pits and grooves that alter the contact geometry. If the contact pressure is too low, the frequency of these arcs increases; if it is too high, the mechanical abrasion accelerates, leading to premature strip failure and potential catenary entanglement.

• Contact Pressure Optimization: Maintaining a constant uplift force is critical to prevent "bounce" and subsequent arcing.
• Material Composition: The use of high-grade graphite infused with copper particles to enhance conductivity and thermal dissipation.
• Surface Roughness: The impact of contact wire oxidation on the abrasive wear rate of the carbon strip.
• Environmental Contaminants: The role of industrial particulates in the Longmont area acting as third-body abrasives.

Quantifying Wear Rates and Lifecycle Degradation

Empirical data gathered across the Longmont Intermodal Terminal indicates that carbon strip wear rates are heavily influenced by the current density and the velocity of the pantograph. Under standard operating conditions, wear is measured in microns per kilometer. However, during peak acceleration phases, the increased current draw elevates the temperature at the contact point, leading to a phenomenon known as thermal softening. This reduces the structural integrity of the carbon matrix, allowing for accelerated material loss through shedding.

The degradation lifecycle typically follows a three-stage progression. The initial "bedding-in" phase involves the smoothing of the carbon surface to match the contact wire's profile. This is followed by a steady-state wear phase, where the strip maintains a stable profile. The final phase is the "accelerated wear" stage, where the strip thickness reaches a critical threshold, reducing its ability to dissipate heat. Once the thermal mass of the strip is compromised, the rate of erosion increases exponentially, often leading to catastrophic failure or "burn-through," where the carbon is completely consumed, exposing the underlying carrier strip.

• Linear Wear Metrics: Tracking the reduction in strip thickness against total distance traveled.
• Current Density Correlation: Analyzing the relationship between Amperes per square millimeter and the rate of carbon vaporization.
• Thermal Mapping: Utilizing infrared thermography to identify "hot spots" indicative of poor contact.
• Grooving Analysis: Measuring the depth of longitudinal wear tracks caused by contact wire irregularities.

Arc Flash Dynamics and Dielectric Breakdown

Arc flashing in the Longmont terminal is a primary concern for both infrastructure longevity and personnel safety. An arc flash occurs when the dielectric strength of the air between the carbon strip and the contact wire is overcome, creating a plasma channel. This plasma reaches temperatures exceeding 5,000 Kelvin, causing instantaneous melting of the copper wire and vaporization of the carbon strip. The resulting "beading" on the contact wire creates a series of high-points that act as cutting edges, further accelerating the wear of subsequent pantographs.

The prevention of arc flashes requires a rigorous analysis of the pantograph's dynamic response. "Hard" bounces—where the pantograph loses contact for several milliseconds—are the primary catalysts for arc initiation. These events are often exacerbated by poor tensioning of the catenary or misalignment of the registration arms. Furthermore, the presence of carbon dust, which is conductive, can create tracking paths across the insulating components of the pantograph assembly, potentially leading to a phase-to-ground fault and a full-scale arc flash event.

• Plasma Channel Formation: The transition from a solid-state contact to a gaseous conductive state.
• Copper Beading: The formation of spherical droplets on the contact wire due to localized melting.
• Dielectric Gap Analysis: Calculating the minimum distance required to prevent spontaneous discharge.
• Carbon Tracking: The accumulation of conductive debris on insulators leading to leakage currents.

Mitigation Strategies and Predictive Maintenance Protocols

To ensure the reliability of the Longmont Intermodal Terminal, a shift from reactive to predictive maintenance is mandatory. This involves the integration of real-time monitoring systems that can detect the onset of excessive wear or abnormal arcing before a failure occurs. The implementation of "smart" pantographs, equipped with accelerometers and current sensors, allows engineers to identify specific sections of the catenary that are causing excessive bounce or wear, enabling targeted adjustments to the overhead geometry.

From a material science perspective, the adoption of composite carbon strips with varying hardness gradients can extend the lifecycle of the components. By layering softer carbon for initial contact and harder, copper-impregnated carbon for structural longevity, the strips can better withstand the rigors of high-current draw. Additionally, the installation of automated laser-measurement systems at terminal entry and exit points provides a non-contact method for verifying strip thickness, ensuring that no pantograph enters the main line with a strip below the minimum safety threshold.

• Automated Thickness Monitoring: Utilizing laser telemetry to quantify wear in real-time.
• Catenary Tensioning: Implementing constant-tensioning systems to reduce the frequency of pantograph bounce.
• Material Upgrades: Transitioning to metal-impregnated carbon composites for superior thermal conductivity.
• Scheduled Forensic Audits: Conducting microscopic analysis of worn strips to identify specific failure modes.

Fluid Dynamics and Airflow Architecture in the Golden Station Loop

The Golden Station Transit Loop presents a complex aerodynamic challenge due to its closed-circuit geometry and the inherent piston effect generated by high-frequency rolling stock. In underground rail environments, the primary objective of smoke evacuation is the maintenance of a tenable environment for passenger egress. This requires a precise understanding of the critical velocity—the minimum air velocity required to prevent the backlayering of smoke against the direction of the forced airflow. When a fire occurs, the resulting buoyancy creates a powerful upward plume that can overcome the longitudinal airflow, potentially filling the tunnel crown with toxic gases and obscuring visibility.

In the Golden Station Loop, the interaction between the train's displacement and the forced air system creates a volatile pressure gradient. The "piston effect" can either assist or hinder smoke extraction depending on the train's position relative to the fire source. To mitigate this, the engineering design employs a longitudinal ventilation strategy that leverages the tunnel's own cross-sectional area as a plenum. By manipulating the pressure differentials between the loop segments, the system ensures that smoke is pushed toward designated exhaust shafts while maintaining a clear, smoke-free path for evacuation.

• Critical Velocity Calculation: Determining the exact wind speed necessary to counteract the thermal buoyancy of a 10MW fire load.
• Piston Effect Mitigation: Utilizing strategic dampers to prevent the "slug" of air from a moving train from pushing smoke back into evacuation zones.
• Laminar vs. Turbulent Flow: Managing the transition of airflow to reduce friction losses against the tunnel lining.
• Pressure Differential Mapping: Analyzing the static pressure shifts across the Golden Station platforms to prevent smoke infiltration into station mezzanines.

Jet-Fan Array Configuration and Thrust Analysis

The forced air system within the Golden Station Loop relies on a series of high-velocity axial jet fans mounted to the tunnel crown. Unlike traditional ventilation shafts that pull air from a central point, jet fans act as momentum sources, transferring kinetic energy directly to the air mass. The effectiveness of this system is measured by the total thrust produced, calculated as the product of the mass flow rate and the velocity difference between the fan discharge and the ambient tunnel air. To achieve the required critical velocity, the fans are deployed in a staggered, overlapping array to eliminate "dead zones" where smoke could stagnate.

The engineering precision of the fan placement is critical. If fans are spaced too far apart, the airflow decays, allowing for the formation of eddies and recirculation zones. Conversely, over-concentration can lead to excessive turbulence, which may mix the smoke layer down into the breathing zone of the passengers. The Golden Station installation utilizes a "push-pull" logic, where upstream fans increase the momentum of the air column while downstream exhaust fans maintain a negative pressure relative to the tunnel interior, ensuring a unidirectional flow of contaminants toward the primary relief vents.

• Thrust Vectoring: Aligning the axial flow to minimize wall-friction losses and maximize longitudinal reach.
• Redundancy Protocols: Implementing N+1 redundancy to ensure that the failure of a single fan unit does not compromise the critical velocity of the entire loop.
• Variable Frequency Drives (VFD): Allowing for the modulation of fan speed based on real-time smoke density and temperature readings.
• Acoustic Attenuation: Integrating silencing baffles to prevent the high-decibel output of jet fans from interfering with emergency communication systems.

Thermal Stratification and Buoyancy Control

A fundamental principle in tunnel forensics is the behavior of the smoke layer. As air heats during a combustion event, it expands and rises, creating a stratified layer of hot gases and particulates along the tunnel ceiling. This phenomenon, known as the "ceiling jet," is the primary target of the jet-fan system. The goal is to maintain the smoke layer height above the critical threshold—typically 2.5 to 3 meters—to ensure that the evacuation path remains tenable. In the Golden Station Loop, the curvature of the tunnel induces secondary flows that can destabilize this stratification, requiring a more aggressive airflow regime.

The interaction between the forced air and the thermal plume is a battle of momentum versus buoyancy. If the jet fans provide insufficient thrust, the buoyancy force dominates, and the smoke "backlayers" against the wind. This is particularly dangerous in the Golden Station's tighter curves, where centrifugal forces can cause the smoke layer to shift laterally, potentially trapping passengers in pockets of zero visibility. By maintaining a high-momentum air stream, the system effectively "pins" the smoke to the ceiling and sweeps it toward the exhaust portals, preventing the vertical descent of the smoke layer.

• Buoyancy Flux Analysis: Measuring the rate at which heat is released to determine the required ventilation capacity.
• Smoke Layer Height Maintenance: Using sensors to monitor the interface between the clear air and the smoke plume.
• Thermal Bridging: Analyzing how the tunnel lining absorbs and re-radiates heat, which can influence the stability of the smoke layer.
• Entrainment Rates: Calculating how much ambient air is drawn into the smoke plume, thereby increasing the volume of air that must be moved.

System Integration, Fail-Safes, and Forensic Validation

The operational integrity of the Golden Station smoke evacuation system is managed via a sophisticated SCADA (Supervisory Control and Data Acquisition) network. This system integrates data from linear heat detectors and optical smoke sensors to trigger the "Fire Mode" ventilation sequence. Upon detection, the system automatically determines the fire's location and activates the specific jet-fan arrays required to create the necessary pressure gradient. The integration must be seamless; any delay in fan activation can lead to the rapid filling of the tunnel, rendering the evacuation route useless.

Validation of the system is performed through Computational Fluid Dynamics (CFD) modeling and empirical full-scale smoke tests. CFD analysis allows engineers to simulate thousands of variables, including varying fire intensities and train positions, to ensure the system performs under worst-case scenarios. Forensic validation also involves checking the fire-rating of the electrical cabling powering the jet fans. Since the fans must operate within the heat of the fire to push the smoke away, the cabling must be encased in mineral-insulated copper or high-temperature polymers to prevent premature failure due to thermal degradation.

• NFPA 130 Compliance: Adhering to the Standard for Fixed Guideway Transit and Passenger Rail Systems regarding ventilation and egress.
• CFD Model Correlation: Comparing simulated airflow patterns with actual smoke-test data to refine the fan control logic.
• Fail-Safe Logic: Ensuring that the system defaults to a

Kinetic Energy Capture and Grid Inversion Dynamics

The Lakewood-Wadsworth Corridor represents a critical case study in the application of regenerative braking systems (RBS) integrated into a municipal power grid. In this transit-heavy corridor, the deceleration of heavy rail and electric bus fleets generates substantial kinetic energy that, if left unmanaged, would be dissipated as waste heat through traditional friction or rheostatic braking. The engineering objective is the conversion of this kinetic energy into electrical energy via three-phase AC generators, which is subsequently rectified to DC and then inverted back to AC for grid injection. This process of power grid inversion requires high-precision synchronization to ensure that the phase angle and frequency of the recovered energy align perfectly with the utility provider's standards.

The technical complexity arises during the inversion phase, where harmonic distortion can introduce instability into the local distribution network. To mitigate this, the corridor utilizes active front-end (AFE) inverters. These devices employ pulse-width modulation (PWM) to synthesize a clean sinusoidal waveform, reducing total harmonic distortion (THD) to below 3% in accordance with IEEE 519 standards. The efficiency of this recovery is contingent upon the impedance of the transmission lines and the capacity of the local substations to handle bi-directional power flows without triggering protective relay trips.

• Implementation of bi-directional metering to track energy return in real-time.
• Utilization of silicon carbide (SiC) MOSFETs in inverters to reduce switching losses and increase thermal efficiency.
• Deployment of supercapacitor banks at primary braking nodes to buffer peak current surges before grid inversion.
• Integration of SCADA systems for millisecond-level coordination of braking events across the corridor.

Infrastructure Integration and Envelope Thermal Coupling

From a commercial infrastructure perspective, the energy recovered from the Lakewood-Wadsworth Corridor is not merely fed into the utility grid but is strategically routed to adjacent commercial building envelopes. This integration transforms the building skin from a passive barrier into an active energy exchange interface. The primary forensic concern in this integration is the management of thermal loads generated by the large-scale inversion hardware housed within the building envelopes. When high-voltage inverters are situated in mechanical rooms adjacent to the building envelope, they create localized thermal plumes that can compromise the dew point within the wall assembly.

Building envelope forensics indicate that improper thermal decoupling between the inversion equipment and the exterior cladding leads to accelerated interstitial condensation. In the Lakewood-Wadsworth projects, we observe a critical need for advanced thermal breaks and high-performance vapor barriers to prevent moisture migration. The heat generated by the energy recovery process must be managed through a combination of active HVAC cooling and passive heat sinks integrated into the building's structural mass. Failure to maintain this thermal equilibrium results in the degradation of sealant joints and the potential for mold growth within the insulation layers, compromising the overall forensic integrity of the envelope.

• Analysis of thermal bridging at the junction of inverter housing and exterior curtain walls.
• Evaluation of R-value degradation in continuous insulation (CI) due to prolonged exposure to high-frequency electromagnetic interference.
• Monitoring of hygroscopic pressure differentials across the building skin during peak energy recovery cycles.
• Application of phase-change materials (PCM) within the envelope to dampen thermal spikes from the grid inversion process.

Roofing Systems as Energy Distribution Hubs

In the context of commercial roofing engineering, the rooftops of the Lakewood-Wadsworth corridor serve as the primary platforms for the energy recovery infrastructure. The installation of heavy-duty inversion equipment, cooling towers, and energy storage arrays necessitates a rigorous analysis of the roof deck's structural load-bearing capacity. Traditional membrane roofing, such as TPO (Thermoplastic Polyolefin) or PVC, must be engineered to withstand not only the static dead load of the equipment but also the dynamic vibrations associated with high-capacity electrical transformers. The forensic focus here is on the prevention of membrane punctures and the maintenance of watertight integrity at all penetration points.

Furthermore, the integration of Building-Integrated Photovoltaics (BIPV) on these roofs creates a hybrid energy recovery system. The roofing engineer must ensure that the flashing and drainage systems are designed to accommodate the complex routing of conduits that carry recovered energy from the street-level braking systems up to the rooftop inverters. We specify the use of reinforced modified bitumen or high-performance liquid-applied membranes at the equipment curbs to ensure a seamless transition and prevent capillary action from drawing water into the building's interior. The synergy between the roofing system and the energy recovery grid is essential for maximizing the corridor's overall energy efficiency.

• Calculation of point-load distributions to prevent deflection in steel-deck roofing systems.
• Specification of UV-stabilized conduits to prevent polymer degradation under intense solar radiation.
• Implementation of "cool roof" coatings to reduce the ambient temperature around rooftop inverters, thereby increasing their operational efficiency.
• Installation of vibration-dampening pads beneath heavy electrical equipment to protect the roof membrane from mechanical fatigue.

Forensic Analysis of Grid Stability and Material Degradation

The long-term viability of the Lakewood-Wadsworth energy recovery system depends on a clinical analysis of material fatigue and grid stability. The cyclical nature of regenerative braking—characterized by rapid bursts of high-voltage energy followed by periods of dormancy—induces significant thermal cycling in both the electrical conductors and the surrounding building materials. Forensic evidence suggests that this cycling can lead to the premature aging of electrical insulation and the development of micro-cracks in the concrete pads supporting the inversion hardware. The resulting "thermal shock" can cause differential expansion between the equipment and the structural slab, leading to potential settlement issues.

Moreover, the interaction between the inverted power and the existing commercial infrastructure requires constant monitoring for galvanic corrosion. When stray currents from the regenerative braking system leak into the building's structural steel or the roofing system's fasteners, they can accelerate the oxidation process. This is particularly prevalent in the Lakewood-Wadsworth corridor due to the high moisture levels typical of the region. Our technical analysis mandates the use of cathodic protection and the installation of high-impedance grounding systems to isolate the energy recovery hardware from the building's primary structural elements, ensuring that the infrastructure remains robust over a fifty-year lifecycle.

Mechanics of Channelized Loading and Pavement Fatigue

The fundamental failure mechanism observed in the Bus Rapid Transit (BRT) dedicated right-of-way at the Littleton Downtown Station is rooted in the phenomenon of channelized loading. Unlike general-purpose travel lanes, where vehicle tires are distributed across a wider transverse section, BRT lanes subject the pavement to highly repetitive, concentrated axle loads within a narrow wheel path. This creates a localized stress concentration that accelerates the fatigue life of the asphaltic or cementitious surface layers far beyond standard highway projections.

From a structural engineering perspective, the Equivalent Single Axle Load (ESAL) for a fully loaded transit bus is significantly higher than that of a passenger vehicle. When these loads are applied consistently in the same longitudinal track, the pavement undergoes severe permanent deformation. This manifests as rutting and surface polishing, which reduces the effective thickness of the wearing course. As the surface layer thins, the load distribution capacity of the pavement structure diminishes, transferring higher vertical stresses directly into the base and sub-base layers.

• High-modulus asphalt fatigue: The repeated bending of the pavement surface leads to bottom-up cracking.
• Rutting depth acceleration: Plastic deformation occurs when the load exceeds the shear strength of the asphalt binder.
• Wheel path tracking: The lack of lateral wander ensures that the same structural points are stressed until failure.
• Contact pressure spikes: High tire pressures combined with heavy vehicle gross weights create extreme localized compression.

Analysis of Shear Failure at the Station Interface

The most critical points of failure occur at the transition zones where the dedicated BRT lane interfaces with the Littleton Downtown Station platform. These areas are characterized by a sharp change in structural stiffness, known as a "hard point" transition. The station platform is typically a rigid, reinforced concrete structure with a deep foundation, whereas the transit lane is a flexible or semi-rigid pavement system. This differential stiffness creates a shear plane at the interface.

When a BRT vehicle decelerates to enter the station or accelerates upon departure, it applies significant longitudinal shear forces to the pavement. Because the station platform does not deflect, the adjacent pavement is forced to absorb the entirety of the horizontal displacement. This results in longitudinal shear cracks that run parallel to the wheel path, eventually leading to the separation of the pavement slab from the station curb. This gap allows for the ingress of surface water, which further destabilizes the supporting soil.

• Differential settlement: The varying compaction levels between the platform foundation and the road base lead to uneven support.
• Longitudinal shear stress: Braking and acceleration forces create a "shoving" effect in the asphalt.
• Joint failure: The failure of sealant in the expansion joints between the road and the platform allows for moisture penetration.
• Edge loading: The concentration of weight near the curb line increases the risk of edge cracking and spalling.

Forensic Evaluation of Subgrade and Base Course Degradation

Forensic core sampling and Ground Penetrating Radar (GPR) analysis indicate that the shear failures are exacerbated by subgrade instability. In the Littleton Downtown corridor, the presence of poorly draining silty clays has led to a loss of bearing capacity during seasonal freeze-thaw cycles. When water infiltrates the shear cracks at the station interface, it saturates the base course, leading to a phenomenon known as "pumping," where fine particles are forced upward through the cracks under the pressure of passing buses.

This loss of fines creates subterranean voids, effectively removing the structural support from beneath the pavement. Without a stable base, the pavement slab is subjected to excessive deflection, which accelerates the propagation of fatigue cracks. The resulting "alligator cracking" is a clinical indicator that the pavement has reached its structural limit. Furthermore, the hydrostatic pressure buildup during heavy rain events increases the pore water pressure in the subgrade, reducing the effective stress and leading to a total shear failure of the pavement section.

• Subgrade saturation: Poor lateral drainage at the station curb leads to localized soil softening.
• Pumping of fines: The migration of base material through cracks reduces the structural coefficient of the base.
• Freeze-thaw cycling: Ice lens formation in the sub-base causes heave and subsequent settlement.
• Compaction voids: Inadequate initial compaction at the interface of the station structure and the road.

Remediation Strategies and Engineering Specifications

To rectify the shear failures at the Littleton Downtown Station, a comprehensive full-depth reclamation (FDR) approach is required. Simple mill-and-overlay techniques are insufficient as they do not address the underlying subgrade failure. The recommended engineering solution involves the installation of a reinforced concrete "transfer slab" at the station interface to bridge the gap between the flexible pavement and the rigid platform. This slab should be equipped with dowel bars to ensure efficient load transfer and minimize differential movement.

For the dedicated right-of-way, the implementation of a polymer-modified asphalt (PMA) binder is advised. PMA provides higher resistance to rutting and shear deformation due to its increased viscosity and elasticity. Additionally, the integration of a biaxial geogrid within the base course will distribute the vertical loads over a wider area, reducing the pressure on the subgrade and mitigating the risk of future settlement. Enhanced drainage systems, including perforated edge drains and a stabilized permeable base, must be installed to prevent the accumulation of water at the station interface.

• Full-depth reclamation: Removing the compromised base and replacing it with graded aggregate.
• Polymer-modified binders: Utilizing PG 76-22 or higher asphalt to resist permanent deformation.
• Geogrid reinforcement: Implementing synthetic grids to increase the tensile strength of the base layer.
• Load transfer slabs: Installing reinforced concrete pads at all station entry and exit points to eliminate shear planes.

Kinetic Energy Dissipation and Structural Load Requirements

The implementation of safety rails within the Lone Tree City Center Transit CNG fueling infrastructure requires a rigorous analysis of kinetic energy dissipation. Given the gross vehicle weight (GVW) of modern transit buses, the safety rails must function not merely as visual boundaries but as structural barriers capable of mitigating significant impact forces. The primary engineering objective is to prevent vehicle encroachment into the high-pressure CNG dispenser zones, where a breach of the fueling equipment could lead to catastrophic pressure release or ignition.

From a structural standpoint, the rails must be designed to withstand a specific impact velocity without suffering total plastic deformation or catastrophic anchor failure. The calculation of the moment arm is critical; the distance from the point of impact to the base plate determines the leverage exerted on the concrete substrate. To counteract this, the design utilizes heavy-wall schedule 40 or 80 steel piping, ensuring that the section modulus is sufficient to resist bending moments during a low-speed collision.

• Impact Load Distribution: The use of reinforced base plates ensures that the point load is distributed across a wider surface area of the concrete slab, reducing the risk of localized crushing.
• Shear Force Analysis: Anchor bolts must be rated for high shear loads to prevent the rail from "zipping" out of the concrete upon impact.
• Deflection Limits: Engineering specifications dictate a maximum allowable deflection to ensure the rail maintains its protective geometry during a dynamic event.
• Energy Absorption: The integration of slight flexibility in the rail system allows for the absorption of energy, reducing the peak force transmitted to the vehicle and the fueling equipment.

Metallurgical Specifications and Environmental Corrosion Resistance

The environmental conditions of a transit hub, combined with the specific chemical profile of a CNG fueling station, necessitate a high-performance material selection. While CNG is a clean-burning fuel, the surrounding infrastructure is subject to road salts, moisture, and atmospheric pollutants that accelerate the oxidation of ferrous metals. To ensure a service life exceeding 25 years, the specification moves beyond standard carbon steel to hot-dip galvanized (HDG) steel conforming to ASTM A123.

The galvanization process provides a sacrificial anodic layer that prevents corrosion even if the surface is scratched or abraded by vehicle contact. Furthermore, for high-visibility areas within the Lone Tree City Center, a dual-coating system is employed. This involves a high-solids epoxy primer followed by a UV-resistant aliphatic polyurethane topcoat. This "belt and braces" approach ensures that the structural integrity of the steel is not compromised by subsurface corrosion, which could lead to premature failure during an impact event.

• ASTM A123 Compliance: Ensures the zinc coating thickness is sufficient to withstand the corrosive environment of a commercial transit facility.
• Galvanic Isolation: The use of neoprene or nylon spacers between the steel base plates and the concrete prevents galvanic corrosion and provides a minor level of vibration dampening.
• Surface Roughness Control: Proper surface preparation (SSPC-SP10) is required before coating to ensure maximum adhesion and prevent delamination.
• Weldment Integrity: All joints are full-penetration welds, ground smooth to eliminate stress risers and prevent "pocket corrosion" at the seams.

Substrate Interface and Forensic Concrete Analysis

A critical failure point in safety rail installations is the interface between the steel assembly and the concrete slab. In the context of the Lone Tree City Center Transit hub, the concrete must be analyzed for compressive strength and reinforcement density. If the slab is too thin or lacks sufficient rebar, the safety rail will act as a lever, potentially cracking the slab or causing "spalling" around the anchor points during a collision.

Forensic analysis of the building envelope and pavement suggests that the fueling islands should be cast as monolithic pours with a minimum 4,000 PSI compressive strength. The use of epoxy-set anchors is preferred over mechanical expansion anchors; epoxy anchors create a chemical bond with the concrete that distributes the load more evenly and prevents the internal tensioning that often leads to concrete cracking in high-vibration environments. This ensures that the rail remains an integral part of the infrastructure rather than a separate entity resting atop the pavement.

• Slab-on-Grade Interaction: Analysis of the sub-base compaction is essential to prevent the "tilting" of rails due to soil settlement under the weight of the fueling islands.
• Anchor Embedment Depth: Calculations must ensure that the embedment depth exceeds the critical tension zone of the concrete to prevent a "cone failure."
• Thermal Expansion Joints: Rails must be installed with consideration for the expansion and contraction of the concrete slabs to prevent the buildup of internal stresses.
• Spalling Mitigation: The use of chamfered edges on the concrete pads reduces the likelihood of edge-break during the installation of the safety rails.

Regulatory Compliance and Lifecycle Maintenance Protocols

The engineering of CNG fueling safety rails is governed by a confluence of standards, including NFPA 59A (Standard for the Production, Storage, and Handling of LNG/CNG) and OSHA 1910.179. These standards dictate the minimum distance between the vehicle path and the fueling equipment, as well as the required strength of the protective barriers. Compliance is not a one-time event but a continuous state of maintenance and verification.

A rigorous lifecycle maintenance program is mandatory to ensure the rails remain functional. This includes quarterly inspections for bolt torque, coating degradation, and concrete fatigue. Because these rails are subject to "micro-impacts" from bus mirrors or tires, the cumulative fatigue on the welds must be monitored. Any sign of hairline cracking in the welds or oxidation at the base plates requires immediate remediation to prevent a catastrophic failure during a primary impact event.

• NFPA 59A Alignment: Ensuring that the rails provide a physical barrier that prevents vehicles from striking the CNG compressors or storage tanks.
• Torque Verification: Regular auditing of anchor bolt tension using calibrated torque wrenches to ensure no loosening has occurred due to vehicle vibrations.
• Coating Integrity Audits: Periodic thickness testing of the polyurethane topcoat to determine when a recoat is necessary to prevent rust.
• Failure Mode and Effects Analysis (FMEA): Implementing a protocol where every "near-miss" or minor contact is documented to refine the structural design of future rail iterations.

Infrastructure Integration and Subsurface Envelope Considerations

The deployment of inductive charging pads across the Denver International Airport (DEN) concourse line necessitates a rigorous analysis of the pavement envelope and the underlying structural slab. Unlike traditional plug-in charging, inductive systems require the embedding of primary coils within the roadway, transforming the pavement from a passive load-bearing surface into an active electrical component. From a forensics perspective, the primary concern is the differential coefficient of thermal expansion between the inductive pad housing and the surrounding reinforced concrete. In the high-diurnal temperature swings characteristic of the Denver plateau, the interface between the polymer-encapsulated coil and the cementitious matrix is prone to micro-cracking.

To mitigate the risk of moisture ingress and subsequent freeze-thaw degradation, the installation must adhere to strict waterproofing protocols. If water penetrates the boundary between the charging pad and the slab, the resulting hydrostatic pressure during winter cycles can lead to spalling or total delamination of the surface course. This failure not only compromises the structural integrity of the concourse line but also alters the air gap between the primary and secondary coils, directly reducing the magnetic coupling efficiency and increasing energy loss as heat.

• Implementation of high-modulus epoxy grouts to ensure a seamless transition between the pad housing and the concrete slab.
• Utilization of reinforced fiber-concrete mixes to increase tensile strength and resist fatigue cracking under heavy bus axle loads.
• Installation of perimeter drainage channels to prevent surface water from pooling around the inductive zones.
• Application of thermal expansion joints specifically calibrated to the combined thermal movements of the charging hardware and the pavement.

Dynamic Load Balancing and Peak Demand Mitigation

The electrical demand profile for a fleet of electric buses operating on a fixed concourse line is characterized by high-amplitude, transient power spikes. When multiple vehicles initiate inductive charging simultaneously, the resulting peak demand can exceed the rated capacity of the local distribution transformers, leading to voltage sags and potential harmonic distortion across the airport's electrical grid. To prevent this, a sophisticated Load Management System (LMS) must be deployed, utilizing a prioritized queuing algorithm based on the State of Charge (SoC) of each vehicle.

Effective load management requires the integration of Smart Grid technology and Demand Response (DR) protocols. By employing a phased charging approach, the system can flatten the demand curve, ensuring that the total kilowatt demand remains below a predefined threshold. This is achieved through the use of power electronics that can modulate the current delivered to each inductive pad in real-time. Furthermore, the integration of stationary energy storage systems (SESS), such as lithium-iron-phosphate battery arrays, allows for "peak shaving," where stored energy is discharged during peak charging windows to reduce the strain on the utility feed.

• Deployment of active harmonic filters to eliminate total harmonic distortion (THD) caused by high-frequency switching in the inductive converters.
• Utilization of a centralized SCADA system for real-time monitoring of transformer temperatures and load distribution.
• Implementation of SoC-based priority logic to allocate maximum power to vehicles with the lowest battery levels.
• Integration of vehicle-to-grid (V2G) capabilities to allow the fleet to act as a distributed energy resource during airport power emergencies.

Electromagnetic Interference and Structural Compatibility

The transmission of high-frequency alternating current through inductive coils generates significant electromagnetic fields (EMF) that can interact with the surrounding metallic infrastructure. In the context of the DEN concourse line, this includes reinforced steel beams, underground utility conduits, and aircraft communication systems. The primary engineering challenge is the prevention of eddy current heating within the structural steel of the concourse. If the magnetic field is not properly contained, it can induce currents in nearby metallic objects, leading to localized heating and potential degradation of protective coatings or fireproofing materials.

To ensure electromagnetic compatibility (EMC), the system must utilize advanced ferrite shielding and aluminum backing plates. These materials serve to direct the magnetic flux upward toward the vehicle's receiver coil while minimizing leakage into the subsurface environment. Forensic analysis of similar installations indicates that improper shielding can lead to interference with sensitive airport ground-radar and communication equipment. Therefore, the installation must be validated through empirical field mapping of the EMF levels to ensure compliance with International Commission on Non-Ionizing Radiation Protection (ICNIRP) guidelines.

• Installation of high-permeability ferrite plates to concentrate the magnetic flux and maximize energy transfer efficiency.
• Application of non-conductive, non-magnetic spacers to isolate the charging pads from adjacent steel reinforcements.
• Conducting comprehensive EMI surveys across the concourse line to identify and mitigate potential interference zones.
• Use of shielded cabling for all power delivery lines to prevent cross-talk and signal degradation in nearby sensor networks.

Lifecycle Analysis and Forensic Maintenance Protocols

The long-term viability of inductive charging infrastructure is contingent upon a rigorous, data-driven maintenance regime. Unlike traditional charging stations, the "wear surface" of an inductive system is the pavement itself. Over time, the repetitive loading of heavy buses causes cumulative fatigue in the concrete slab, which can lead to the misalignment of the charging pads. Even a few centimeters of lateral or vertical shift can result in a significant drop in charging efficiency, as the magnetic coupling is highly sensitive to the air gap and alignment between the primary and secondary coils.

A forensic approach to maintenance involves the use of embedded sensors within the slab to monitor real-time strain and temperature. By analyzing the thermal signature of the charging pads during operation, technicians can identify "hot spots" that indicate internal coil degradation or insulation failure. Furthermore, the use of ground-penetrating radar (GPR) on a quarterly basis is recommended to detect subsurface voids or delamination before they manifest as surface failures. This proactive strategy shifts the maintenance model from reactive repair to predictive reliability, ensuring the continuous availability of the concourse transport system.

• Establishment of a baseline "digital twin" of the infrastructure to track structural deformations over the lifecycle of the project.
• Implementation of a quarterly GPR inspection schedule to identify subsurface moisture accumulation and void formation.
• Monitoring of the Power Factor (PF) at each charging node to detect early signs of component aging or coil degradation.
• Development of a rapid-replacement protocol for modular pad units to minimize downtime during critical failure events.

System Architecture and Signal Propagation Dynamics

The deployment of Automated Fare Collection (AFC) systems across the I-25 South Commuter Bypass necessitates a rigorous analysis of the physical layer, specifically regarding the interaction between Radio Frequency Identification (RFID) readers and vehicle-mounted transponders. In this high-velocity environment, the primary engineering challenge is the optimization of the "read zone"—the precise spatial volume where the electromagnetic field is sufficient to energize a passive transponder or trigger an active one. The system utilizes Ultra-High Frequency (UHF) bands, which are susceptible to signal attenuation and reflection based on the geometry of the commuter bypass infrastructure.

Latency in this context is not merely a software processing delay but a cumulative result of propagation delay, modulation time, and the "handshake" sequence required for a successful transaction. When a vehicle enters the read zone at highway speeds, the dwell time—the duration the transponder remains within the effective field of the reader—is drastically reduced. This reduction in dwell time increases the probability of incomplete data packets, leading to retransmission requests that manifest as systemic latency.

• Electromagnetic Interference (EMI): High-voltage power lines running parallel to the I-25 corridor introduce noise into the UHF spectrum, potentially masking the weak return signals from transponders.
• Antenna Polarization: The misalignment between the linear polarization of the reader antenna and the orientation of the transponder on various vehicle windshields creates a polarization loss factor (PLF), reducing signal strength.
• Read Zone Geometry: The conical projection of the RF field must be precisely calibrated to avoid "blind spots" caused by oversized commercial vehicles shielding smaller passenger cars.

Environmental Attenuation and Structural Interference

From a forensic engineering perspective, the "envelope" of the RFID installation—comprising the gantry housing, weather-shielding, and mounting hardware—plays a critical role in signal integrity. The materials used for the reader enclosures, often NEMA-rated polycarbonate or aluminum, can inadvertently act as reflectors or absorbers of RF energy. On the I-25 South Bypass, the proximity of the readers to reinforced concrete barriers introduces a phenomenon known as multipath fading. This occurs when the primary signal and a reflected signal from the concrete barrier arrive at the receiver out of phase, resulting in destructive interference and a subsequent drop in the Signal-to-Noise Ratio (SNR).

Furthermore, the dielectric properties of the road surface and the accumulation of environmental contaminants on the reader lenses can attenuate the signal. In winter months, the buildup of road salt and ice on the gantry structures alters the capacitive coupling of the antenna system. This shift in resonance frequency moves the reader away from its center frequency, necessitating a higher power output to maintain the same read range, which in turn increases the likelihood of signal saturation and processing latency at the reader's analog-to-digital converter.

• Multipath Reflection: Signal bouncing off metallic guardrails creates "ghost" reads or null zones where the transponder cannot be energized.
• Dielectric Loading: The presence of moisture or ice on the antenna housing shifts the electrical length of the antenna, detuning the system.
• Material Absorption: The use of certain carbon-based paints or coatings on the gantry structures can absorb UHF energy, reducing the effective aperture of the reader.

Latency Analysis and Data Packet Collision

The latency observed across the I-25 South Commuter Bypass is primarily driven by the collision of data packets during peak traffic volumes. In a high-density flow, multiple transponders enter the read zone simultaneously. The reader must employ an anti-collision algorithm, typically a binary tree or slotted ALOHA protocol, to isolate individual transponder IDs. As the number of vehicles increases, the number of "collisions" (simultaneous transmissions) rises exponentially, forcing the reader to initiate multiple rounds of arbitration before a successful read is logged.

The processing latency is further compounded by the back-end communication between the roadside reader and the central clearinghouse. The time required for the reader to encapsulate the captured ID into a TCP/IP packet and transmit it over the fiber-optic backhaul introduces a deterministic delay. However, the stochastic delay—the unpredictable variance caused by network jitter and packet loss—is what typically leads to "late" fare processing, where the vehicle has already exited the bypass before the transaction is confirmed. This is particularly evident when vehicles travel at speeds exceeding 75 mph, where the window for a complete handshake is narrowed to milliseconds.

• Arbitration Overhead: The time spent by the reader managing multiple tags in a single read cycle.
• Packet Encapsulation: The latency introduced by the conversion of raw RF data into a standardized network protocol.
• Backhaul Jitter: Variance in the arrival time of data packets at the central server, caused by network congestion on the I-25 infrastructure.

Mitigation Strategies and Forensic Recommendations

To resolve the latency issues identified on the I-25 South Commuter Bypass, a multi-tiered engineering approach is required. First, the transition from linear to circular polarization for the reader antennas is recommended. Circular polarization ensures that the reader can capture signals from transponders regardless of their orientation on the vehicle, thereby reducing the need for re-reads and decreasing the overall transaction time. This modification eliminates the polarization loss factor and stabilizes the SNR across a wider range of vehicle types.

Second, the implementation of "Edge Computing" at the gantry level can significantly reduce backhaul latency. By moving the initial data validation and anti-collision processing to a localized industrial controller located within the gantry housing, the system can provide an immediate "read confirmation" to the local node before asynchronously updating the central database. This decouples the physical read event from the network latency, ensuring that the vehicle is processed in real-time.

Finally, a forensic audit of the physical installation is

Kinematic Analysis of Gap Filler Deployment Mechanisms

The Peoria Station Commuter Transfer represents a critical node in regional transit, where the interface between the stationary platform and the rolling stock must adhere to stringent ADA (Americans with Disabilities Act) guidelines. The primary engineering challenge lies in the mechanical linkage of the platform gap fillers, which are designed to minimize the horizontal void to a maximum of 3 inches to ensure safe boarding for mobility-impaired passengers. From a kinematic perspective, these linkages operate on a synchronized extension-retraction cycle, typically driven by hydraulic or electromechanical actuators that push the filler plates toward the train car threshold.

The durability of these linkages is contingent upon the precision of their guide rails and the rigidity of the mounting brackets. In the Peoria installation, the mechanical linkages utilize a cantilevered arm design. While this allows for a clean retraction into the platform housing, it introduces significant bending moments at the pivot points during the deployment phase. Forensic analysis of the linkage arms reveals that the most acute stress concentrations occur at the weldments connecting the actuator mount to the main arm. If the alignment deviates by even a fraction of a degree, the resulting side-loading increases the frictional resistance within the slide bearings, leading to premature wear and potential seizure of the mechanism.

• Actuator Synchronization: Ensuring simultaneous deployment across multiple platform segments to prevent uneven loading.
• Tolerances: Maintaining a strict ±2mm variance in the vertical plane to avoid scraping the train car sills.
• Load Distribution: The use of reinforced gussets to distribute the force of the extension across the primary structural members.
• Cycle Frequency: Analysis of the fatigue life based on the number of train arrivals per 24-hour operational window.

Tribological Stress and Material Degradation

The interface between the gap filler edge and the train car body is a zone of intense tribological activity. As trains enter and exit the station, slight lateral oscillations cause the gap filler to rub against the vehicle's threshold. This constant abrasion necessitates the use of high-performance polymers or hardened alloys. In the Peoria Station project, the use of high-density polyethylene (HDPE) wear strips was intended to reduce the coefficient of friction and protect the structural steel of the platform. However, empirical data indicates that these polymer strips suffer from rapid abrasive wear due to the ingress of particulate matter, such as brake dust and track ballast fines.

Beyond simple abrasion, the mechanical linkages are subject to galling—a form of wear caused by adhesion between sliding surfaces. When the lubrication film fails, the stainless steel components of the linkage can weld together at a microscopic level under high pressure, leading to "stiction" or static friction. This increases the torque requirements for the actuators, which in turn puts additional strain on the electrical drive systems. The resulting heat generation further accelerates the degradation of the lubricants, creating a feedback loop of mechanical failure. To combat this, a transition to self-lubricating bronze bushings or PTFE-lined bearings is recommended to ensure a consistent coefficient of friction across the entire range of motion.

• Abrasive Wear: The erosion of contact surfaces caused by trapped grit and environmental debris.
• Galling Phenomena: The localized welding of metal surfaces under high-pressure sliding conditions.
• Polymer Degradation: The loss of structural integrity in HDPE strips due to UV exposure and chemical runoff.
• Lubrication Failure: The breakdown of grease-based lubricants under high-cycle, high-load conditions.

Environmental Forensics and Structural Integrity

The Peoria Station environment presents a harsh set of variables that directly impact the longevity of the gap filler linkages. The Midwest climate is characterized by extreme thermal cycling, with temperatures swinging from sub-zero winters to humid, high-heat summers. This causes the steel platform components to undergo significant thermal expansion and contraction. Because the gap fillers are constrained within a fixed housing, this thermal movement can induce internal stresses that warp the guide rails, leading to binding of the mechanical linkage. Forensic inspections have shown that during peak summer months, the expansion of the platform slab puts the linkages under compressive stress, increasing the failure rate of the extension actuators.

Furthermore, the use of de-icing salts on the platforms during winter months introduces a highly corrosive environment. Chloride ions penetrate the protective coatings of the steel linkages, initiating pitting corrosion. Once the surface integrity is compromised, the corrosion spreads rapidly to the pivot pins and fasteners. This is particularly problematic in the "splash zone" where salt-laden slush is kicked up by arriving trains. The resulting rust buildup increases the volume of the components, effectively reducing the clearances within the mechanical assembly and leading to catastrophic jamming if not addressed through a rigorous preventative maintenance schedule.

• Thermal Expansion: The volumetric change in steel members leading to misalignment of the guide rails.
• Chloride-Induced Corrosion: The chemical degradation of structural steel due to road salt exposure.
• Moisture Ingress: The accumulation of water in the linkage housing, promoting oxidation.
• Vibrational Fatigue: The impact of low-frequency vibrations from idling locomotives on the fastener integrity.

Reliability Engineering and Lifecycle Optimization

To ensure the long-term viability of the ADA platform gap fillers at Peoria Station, a shift from reactive to predictive maintenance is required. Reliability engineering suggests that the Mean Time Between Failures (MTBF) for these linkages can be extended by implementing a sensor-based monitoring system. By installing load cells on the actuators and accelerometers on the guide rails, engineers can detect the onset of binding or misalignment in real-time. An increase in the current draw of an electric actuator, for example, is a leading indicator of increased friction, allowing maintenance crews to lubricate or realign the system before a total failure occurs.

From a structural standpoint, the lifecycle of the linkage can be optimized by introducing a modular design. Rather than replacing an entire linkage arm, the system should be engineered with replaceable "wear modules" at the primary contact points. This reduces the downtime for the platform and lowers the overall cost of ownership. Additionally, the application of a high-performance epoxy coating or a thermal-sprayed zinc finish would provide a superior barrier against the corrosive Peoria environment. By combining these material upgrades with a rigorous inspection cadence, the station can maintain ADA compliance while minimizing the operational disruptions associated with mechanical failure.

• Predictive Monitoring: Utilizing real-time data to identify failure precursors in the actuator systems.
• Modular Replacement: Designing components for rapid swap-out to reduce Mean Time to Repair (MTTR).
• Surface Treatment: Implementing advanced coatings to mitigate the effects of oxidation and pitting.
• Rigid Inspection Protocols: Establishing a quarterly audit of all pivot points and wear strips to ensure operational safety.

Geotechnical Stratigraphy and Slope Instability Mechanisms

The corridor spanning the Decatur-Federal Stadium line presents a complex geotechnical profile characterized by heterogeneous alluvial deposits and highly plastic cohesive clays. In these environments, the primary driver of slope instability is the saturation of the soil matrix, which leads to a significant reduction in effective stress and a corresponding drop in shear strength. The presence of interbedded silt layers creates preferential flow paths for groundwater, often resulting in the development of perched water tables that exert excessive hydrostatic pressure against the embankment face.

From a forensic engineering perspective, the failure mechanisms observed in these steep slopes typically manifest as deep-seated rotational slides or shallow translational slips. The critical factor is the relationship between the slope angle and the internal angle of friction of the soil. When the slope exceeds the natural angle of repose, the gravitational driving force overcomes the resisting forces provided by the soil's cohesion and internal friction. In the Decatur-Federal Stadium line, the proximity to heavy transit infrastructure introduces dynamic loading, which can trigger liquefaction in sandy lenses or accelerate creep in clay-rich strata, necessitating a robust stabilization strategy.

• Analysis of shear strength parameters using Triaxial and Direct Shear testing.
• Identification of failure planes through borehole logging and CPT (Cone Penetration Testing).
• Calculation of the Factor of Safety (FoS) for both static and pseudo-static seismic conditions.
• Evaluation of pore water pressure fluctuations during peak precipitation events.

Soil Nailing Mechanics and Installation Protocols

Soil nailing is employed as a passive reinforcement technique to transform a potentially unstable soil mass into a coherent, gravity-retaining structure. Unlike traditional retaining walls that rely on bulk mass to resist lateral earth pressure, soil nails utilize the tensile strength of inserted steel tendons to reinforce the soil in situ. The mechanism relies on the bond strength between the grout column and the surrounding soil, which transfers the load from the active failure zone to the stable soil mass behind the critical slip plane.

The installation process follows a strict top-down sequence to maintain the integrity of the slope during construction. Each lift is excavated to a precise depth, typically ranging from 1 to 2 meters, before the nails are drilled and installed. The nails, generally consisting of high-strength Grade 75 threaded steel bars, are inserted into pre-drilled holes and fully encapsulated in a high-slump cementitious grout. This grout serves a dual purpose: it provides the necessary bond for load transfer and protects the steel from corrosion in the aggressive soil chemistry typical of the region.

• Drill hole diameter optimization to ensure full grout encapsulation.
• Application of high-strength non-shrink grout to minimize void formation.
• Implementation of pull-out tests to verify the ultimate bond strength per linear foot.
• Strategic nail spacing and inclination angles optimized for the specific failure plane.

Facing Systems and Hydrostatic Pressure Mitigation

The facing system is the critical interface that prevents localized surface sloughing and distributes the load from the soil mass to the nail heads. For the Decatur-Federal Stadium line, a reinforced shotcrete facing is the industry standard. This system typically involves the application of a fiber-reinforced concrete layer, often augmented with a welded wire fabric or geogrid reinforcement. The shotcrete must be applied with sufficient thickness to resist the bending moments induced by localized soil movements while remaining flexible enough to accommodate minor settlements without cracking.

However, the most frequent cause of long-term failure in soil nail walls is the neglect of drainage. The buildup of hydrostatic head behind the shotcrete face can lead to catastrophic failure if not properly managed. A comprehensive drainage strategy involves the installation of geocomposite drainage blankets behind the facing and the strategic placement of weep holes. These elements ensure that groundwater is intercepted and diverted away from the reinforced zone, thereby maintaining the effective stress of the soil and preventing the saturation of the nail-soil interface.

• Utilization of synthetic fibers in shotcrete to enhance ductility and crack resistance.
• Installation of perforated PVC collector pipes at the base of the embankment.
• Integration of geocomposite strips to facilitate rapid vertical drainage.
• Application of a protective sealant to the face to prevent carbonation and chloride ingress.

Forensic Monitoring and Long-Term Performance Analysis

The lifecycle reliability of stabilization works across the Decatur-Federal Stadium line is managed through a rigorous forensic monitoring program. Because soil nailing is a passive system, the nails only mobilize their full tensile capacity after a certain amount of soil deformation has occurred. Consequently, monitoring the rate of movement is essential to ensure that the system is operating within its design parameters and that no unforeseen creep is occurring in the deeper strata.

Advanced instrumentation is deployed to provide empirical data on the wall's behavior. Inclinometers are installed within the soil mass to detect subsurface lateral displacements, while load cells are attached to select nail heads to monitor the evolution of tensile forces. If the load cells indicate a sudden spike in tension, it may signal a change in the global stability of the slope or the failure of adjacent nails. This data-driven approach allows engineers to implement proactive remediation, such as the installation of additional "sacrificial" nails or the enhancement of the drainage system, before a critical failure occurs.

• Periodic survey monitoring using high-precision total stations to track surface settlement.
• Analysis of inclinometer data to map the depth and velocity of the shear zone.
• Corrosion monitoring of nail tendons through electrochemical impedance spectroscopy.
• Comparison of observed deformations against predicted finite element analysis (FEA) models.

Site Topography and Acoustic Propagation Dynamics

The Table Mesa Park-n-Ride facility presents a complex acoustic environment characterized by expansive areas of impervious asphalt and concrete, which function as highly reflective surfaces. In the field of building envelope forensics, these surfaces are recognized as contributors to specular reflection, where sound waves bounce with minimal energy loss, effectively amplifying the ambient noise floor for adjacent residential and commercial zones. The primary objective of the soundwall installation is to disrupt the direct line-of-sight between the noise source—primarily high-velocity vehicular traffic—and the sensitive receivers located beyond the facility boundary.

To achieve a significant reduction in perceived noise, the engineering design must account for the diffraction of sound waves over the top edge of the barrier. When sound waves encounter the upper terminus of the soundwall, they bend, or diffract, creating a "shadow zone" of reduced acoustic pressure. The effectiveness of this shadow zone is not uniform; it is highly dependent on the wavelength of the noise, with lower frequencies exhibiting greater diffraction and thus requiring a higher wall profile to maintain the same level of attenuation as higher frequencies.

• Ground Effect Interference: The interaction between the direct sound path and the reflected path from the parking lot surface can create destructive interference, which must be modeled to avoid underestimating the required wall height.
• Diffraction Angles: The calculation of the path length difference between the direct ray and the diffracted ray is critical in determining the insertion loss.
• Atmospheric Refraction: Temperature gradients and wind vectors across the open expanse of the Park-n-Ride can bend sound waves downward, potentially "lifting" the noise over the barrier.

Material Specification and Absorption Coefficients

The selection of materials for the Table Mesa soundwall is governed by the Noise Reduction Coefficient (NRC), a scalar representation of the material's ability to absorb sound energy rather than reflect it. A standard concrete wall, while providing high transmission loss due to its mass, often suffers from a low absorption coefficient, which can lead to "ringing" or reverberation between opposing barriers. To mitigate this, the specification calls for the integration of porous, sound-absorptive facing or the use of composite materials that incorporate a perforated metal skin with a mineral wool or fiberglass core.

From a forensic engineering perspective, the impedance mismatch between the air and the wall surface determines how much energy is reflected. By utilizing materials with a graded porosity, the soundwall can "trap" acoustic energy, converting kinetic sound energy into low-grade thermal energy through friction within the porous matrix. This prevents the reflected sound from bouncing back toward the traffic source or contributing to the noise levels within the Park-n-Ride facility itself.

• NRC Ratings: Materials with an NRC of 0.75 or higher are prioritized to ensure that at least 75% of the incident sound energy is absorbed across the standard frequency spectrum.
• Mass-Law Application: While absorption is key, the overall mass of the wall must be sufficient to prevent the structure from acting as a diaphragm, which would allow low-frequency energy to pass through the material via vibration.
• Surface Texture: The use of non-planar, irregular surface geometries can further assist in diffusing sound, breaking up coherent wavefronts and reducing the intensity of reflections.

Calculation Methodology for Insertion Loss

The quantitative analysis of the soundwall's performance is based on the calculation of Insertion Loss (IL), which is the difference in sound pressure levels at the receiver site with and without the barrier in place. This calculation utilizes the Fresnel number, a dimensionless parameter that relates the wavelength of the sound to the difference between the path over the top of the wall and the direct path. A higher Fresnel number indicates a more effective barrier for that specific frequency.

The analysis is conducted across a spectral range from 125 Hz to 4000 Hz, as human hearing and vehicular noise are most prominent in these bands. Because decibels are logarithmic, the summation of noise from multiple sources across the Table Mesa corridor requires a logarithmic addition of intensities. The engineering team employs the Maekawa formula to estimate the diffraction loss, adjusting for the specific height of the wall relative to the source and receiver elevations.

• Path Length Difference: The precise measurement of the distance from the exhaust manifold of a typical vehicle to the top of the wall, and then to the receiver's ear.
• Frequency Weighting: Application of A-weighting filters to the raw data to align the empirical results with the human perception of loudness.
• Edge Treatment: The calculation of "top-edge" modifications, such as T-shaped or cylinder-capped crests, which can increase the effective height of the wall without increasing the physical footprint.

Forensic Validation and Long-term Envelope Integrity

A critical component of the senior technical analysis is the assessment of the soundwall as a permanent piece of infrastructure subject to environmental degradation. Over time, the porous materials used for absorption are susceptible to "clogging" from atmospheric pollutants, road salts, and organic debris. This phenomenon, known as pore-filling, increases the surface density and decreases the absorption coefficient, effectively turning an absorbent wall into a reflective one. Forensic sampling of the material's internal structure is required every five years to ensure the NRC remains within the design tolerance.

Furthermore, the structural integrity of the wall's envelope must be monitored for micro-cracking and efflorescence. In concrete-based systems, the migration of soluble salts to the surface can create a crystalline crust that alters the acoustic impedance of the surface. If the wall is a composite system, the seals between panels must be inspected for thermal expansion and contraction gaps; any gap larger than 1% of the total wall length can create a "leak" where sound energy "leaks" through, significantly degrading the overall insertion loss of the system.

• Hydrophobic Coatings: The application of breathable, water-repellent coatings to prevent moisture ingress into the absorbent core without sealing the acoustic pores.
• Vibration Analysis: Utilizing accelerometers to ensure that the wall is not resonating at frequencies that coincide with heavy vehicle idling, which could lead to

Electrodynamic Fundamentals of Track Circuit Shunting

The operational integrity of the Southlands E-470 Feeder Loop relies upon the precise execution of track circuit shunting, a process where the wheelsets of a rolling stock vehicle create a low-resistance electrical path between two running rails. In a standard DC or coded track circuit, the rails serve as the conductors for a current that, when uninterrupted, maintains a "clear" signal at the relay. When a vehicle enters the block, the axle—acting as a shunt—diverts the current away from the relay, triggering an "occupied" state. The sensitivity of this system is measured by the shunt resistance, typically quantified in ohms. For the E-470 loop, the engineering threshold for a reliable shunt is critical; any increase in the contact resistance between the wheel flange and the rail head can lead to a "loss of shunt," resulting in a catastrophic failure of the occupancy detection system.

The physics of this interaction are governed by Ohm’s Law and the principles of galvanic contact. Under nominal conditions, the steel-on-steel interface provides negligible resistance. However, the introduction of an intervening medium alters the electrical impedance of the circuit. In the context of the Southlands infrastructure, the primary concern is the degradation of the shunt's effectiveness when the contact surface is contaminated. This contamination does not merely add a layer of resistance but can create a capacitive barrier that prevents the current from flowing efficiently through the axle, thereby misleading the signaling system into reporting a vacant track despite the presence of a vehicle.

• Nominal Shunt Resistance: Typically maintained below 0.06 ohms for high-reliability signaling.
• Relay Drop-out Voltage: The specific voltage threshold that determines the transition from clear to occupied.
• Ballast Resistance: The leakage current flowing through the sleepers and ballast, which competes with the shunt current.
• Current Leakage: The loss of signal current through parasitic paths, exacerbated by moisture and conductive contaminants.

Dielectric Interference and Snow Morphology

Heavy snow accumulation across the E-470 Feeder Loop introduces a complex dielectric variable into the track circuit equation. Snow is not a monolithic substance but a multi-phase medium consisting of ice crystals, liquid water, and trapped air. From a forensic engineering perspective, the danger lies in the "compaction phase" of snow accumulation. As snow piles up on the rail head and is subsequently compressed by the weight of a passing vehicle, it can form a dense, insulating layer of firn or glazed ice. This layer acts as a dielectric insulator, physically separating the wheel tread from the rail head and significantly increasing the contact resistance.

Furthermore, the thermal properties of the rail during winter operations contribute to the phenomenon of "ice bridging." When ambient temperatures hover near the freezing point, a thin film of meltwater forms, which then refreezes into a hard, non-conductive crystalline structure. This ice bridge can encapsulate the rail web and base, but more critically, it coats the running surface. Because ice has an extremely high electrical resistivity compared to the steel rail, the shunt current is forced to find alternative, higher-resistance paths. If the resistive layer is sufficiently uniform and thick, the resulting voltage drop across the shunt may fail to reach the relay drop-out threshold, causing a "false clear" signal.

• Dielectric Constant: The ability of the snow/ice layer to store electrical energy, which interferes with the DC signal.
• Crystalline Morphology: The transition from fluffy, porous snow to dense, insulating ice.
• Thermal Cycling: The repeated freezing and thawing that creates a persistent glaze on the rail head.
• Contact Pressure: The force exerted by the wheelset, which is often insufficient to pierce a dense ice layer during low-speed maneuvers.

Forensic Analysis of the Southlands E-470 Feeder Loop

Technical analysis of the E-470 Feeder Loop indicates that the most severe shunting failures occur during "wet snow" events, where the moisture content is high but the temperature is just above freezing. In these scenarios, the snow adheres more aggressively to the rail head, creating a viscous slurry that is then crushed into a thin, impermeable film. Forensic data logs from the loop's signaling relays show a marked increase in "intermittent occupancy" reports. This flickering effect is caused by the wheelset sporadically breaking through the ice film, creating a momentary shunt that is immediately lost as the wheel moves into a fresh patch of accumulated snow.

The E-470 loop is particularly susceptible due to its specific geometry and the environmental microclimate of the Southlands region. The feeder loop's curvature increases the lateral force on the outer rail, which should theoretically improve shunting. However, the increased friction also tends to "plow" snow into the gauge corner, where it becomes compacted into a high-density plug. This plug can act as a secondary insulator, preventing the current from reaching the rail web. Empirical measurements taken during the peak of the winter season show that shunt resistance in affected sectors can spike from 0.05 ohms to over 0.5 ohms, well above the safety limit for reliable detection.

• Intermittent Shunting: The rapid cycling between occupied and clear states due to inconsistent contact.
• Gauge Corner Accumulation: The buildup of compacted snow in the inner flange way.
• Signal-to-Noise Ratio: The degradation of the primary shunt signal relative to the background ballast leakage.
• Voltage Drop Analysis: The measurement of potential difference across the rail to identify high-resistance zones.

Structural Dynamics and Thermal Displacement Analysis

The pedestrian overpasses across the Thornton Crossroads Regional Line utilize a complex steel truss architecture designed to withstand significant dead loads and live pedestrian traffic. However, the primary engineering challenge lies in the management of thermal elongation and contraction. Given the regional climatic variance, the structural steel undergoes substantial dimensional shifts. The coefficient of thermal expansion for the structural steel used in these trusses necessitates the integration of expansion joints to prevent the buildup of internal stresses that could lead to buckling or weld failure at the primary gusset plates.

The expansion bellows serve as the critical building envelope interface at these joints. These components must facilitate multi-axial movement—specifically longitudinal translation and slight rotational torque—while maintaining a continuous, watertight seal. When the truss expands during peak summer temperatures, the bellows compress; conversely, during winter troughs, they extend to their maximum design limit. Failure to accurately calculate the maximum and minimum gap widths leads to either "bottoming out," which transfers destructive forces to the abutments, or "over-extension," which exceeds the material's elastic limit and causes catastrophic tearing.

• Longitudinal displacement capacity: Required to accommodate a Delta-T of 60 degrees Fahrenheit.
• Torsional rigidity: Necessary to prevent the bellows from twisting and shearing at the mounting flanges.
• Load distribution: Ensuring that the weatherproofing membrane does not bear any structural load from the truss.
• Interface tolerance: Precise alignment between the rigid steel flange and the flexible elastomeric seal.

Forensic Analysis of Bellows Failure Modes

Forensic evaluation of the existing installations across the Thornton Crossroads line reveals a recurring pattern of failure centered on elastomeric fatigue and UV-induced degradation. The primary failure mode is identified as "flex-cracking" at the fold lines of the bellows. This occurs when the material is subjected to repeated cycles of compression and extension, leading to micro-fractures in the polymer chain. Once these micro-fractures penetrate the surface, capillary action draws moisture into the interior of the truss joint, initiating subsurface oxidation of the structural steel.

Furthermore, the interaction between atmospheric pollutants and the bellows material accelerates the breakdown of the chemical bonds. In high-traffic regional lines, the presence of airborne particulates and carbon deposits creates an abrasive paste when mixed with rainwater. This paste acts as a grinding agent against the folds of the bellows during every thermal cycle, effectively sanding away the protective outer layer of the membrane. This mechanical abrasion, coupled with high UV exposure, results in a loss of plasticity, rendering the bellows brittle and prone to sudden rupture under wind-load oscillations.

• UV Degradation: Photo-oxidation leading to surface chalking and loss of tensile strength.
• Mechanical Abrasion: Particulate infiltration causing internal wear at the fold points.
• Hydrostatic Infiltration: Failure of the perimeter sealant allowing water to bypass the bellows.
• Material Fatigue: Cyclic loading exceeding the fatigue limit of the elastomer.

Material Specification and Engineering Standards

To mitigate the aforementioned failure modes, the specification must shift toward high-performance synthetic elastomers with superior ozone and UV resistance. For the Thornton Crossroads environment, a reinforced EPDM (Ethylene Propylene Diene Monomer) or a high-grade silicone-based membrane is required. These materials offer a significantly higher elongation-at-break percentage compared to standard PVC or neoprene. The engineering focus must be on the "Shore A" hardness rating; a material that is too hard will resist movement and stress the fasteners, while a material that is too soft will succumb to puncture and abrasion.

The integration of a fabric-reinforced core within the bellows wall is essential to prevent "ballooning" under wind pressure. This internal reinforcement provides dimensional stability and ensures that the expansion and contraction occur strictly along the intended axis. Furthermore, the interface between the bellows and the steel truss must be engineered using a dual-seal system. This involves a primary mechanical compression seal utilizing a neoprene gasket, followed by a secondary application of a high-modulus structural sealant. This redundant system ensures that even if the primary mechanical seal experiences minor displacement, the secondary chemical bond maintains the building envelope's integrity.

• Material Requirement: EPDM with a minimum thickness of 0.125 inches for durability.
• Tensile Strength: Minimum 2,000 psi to withstand peak wind-load gusts.
• Elongation Capacity: Minimum 400% to accommodate extreme thermal swings.
• Compliance: Adherence to ASTM D412 standards for vulcanized rubber testing.

Implementation Strategy and Lifecycle Maintenance

The installation protocol for the weatherproofing bellows must be executed with clinical precision to avoid introducing pre-stress into the material. The bellows should be installed at the "mean temperature" of the regional annual average; this ensures that the material is neither overly stretched nor overly compressed at the time of commissioning. The mounting flanges must be treated with a zinc-rich primer to prevent galvanic corrosion at the contact point between the steel and the fastening hardware. Each joint must be vacuum-tested or smoke-tested upon completion to verify a 100% airtight and watertight seal.

Long-term viability depends on a rigorous preventative maintenance (PM) schedule. Because these bellows are subject to constant movement, they cannot be viewed as "install and forget" components. A quarterly inspection cycle is mandated, focusing on the integrity of the fold lines and the condition of the perimeter sealants. Any evidence of surface cracking or "alligatoring" must be addressed immediately with a compatible elastomeric patching compound to prevent moisture ingress. Every five years, a full forensic audit of the joint displacement should be conducted to ensure that the structural movement remains within the original design parameters.

• Installation Window: Deployment during median temperature periods to balance tension.
• Fastening Protocol: Use of stainless steel 316 grade hardware to eliminate rust streaks.
• Inspection Cycle: Quarterly visual audits and annual tactile flexibility tests.
• Replacement Trigger: Immediate replacement upon detection of 15% loss in material elasticity.

Chemical Dynamics of Tier 4 Emission Profiles and Envelope Interaction

The transition to Tier 4 emission standards for diesel-electric commuter locomotives represents a paradigm shift in atmospheric chemistry within the Union Station Transit Hub. Tier 4 mandates the integration of Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF) to drastically reduce Nitrogen Oxides (NOx) and Particulate Matter (PM). From a building forensics perspective, the primary concern is not merely the volume of emissions, but the chemical composition of the effluent and its subsequent interaction with the surrounding commercial infrastructure. The SCR process utilizes an aqueous urea solution to convert NOx into nitrogen and water; however, the resulting "ammonia slip"—the release of unreacted ammonia—introduces a new alkaline variable into the local microclimate.

When these emissions interact with the building envelope, they undergo complex transformations. NOx gases, specifically nitrogen dioxide (NO2), act as precursors to the formation of nitric acid (HNO3) upon contact with atmospheric moisture and surface condensation on roofing membranes. This acidification process is particularly aggressive in the high-humidity environments typical of transit hubs. The resulting chemical attack targets the alkaline components of concrete and masonry, leading to accelerated carbonation and the leaching of calcium hydroxide. This process compromises the structural integrity of the facade and increases the porosity of the substrate, allowing for deeper penetration of moisture and pollutants.

• SCR-induced ammonia slip contributing to localized pH shifts on porous masonry.
• Nitric acid formation via the hydration of NO2 on cool-roof surfaces.
• Synergistic degradation where PM residues act as catalysts for chemical oxidation.
• Accelerated carbonation of reinforced concrete elements within the hub's perimeter.

Atmospheric Dispersion and Structural Deposition Patterns

The architectural geometry of the Union Station Transit Hub creates a phenomenon known as the "urban canyon effect," which significantly alters the dispersion of Tier 4 emissions. Rather than dissipating vertically, the pollutants are trapped by the surrounding high-rise commercial structures and the hub's own expansive roofing systems. This creates stagnation zones where NOx concentrations remain elevated, leading to stochastic deposition patterns across the building envelope. Forensic analysis indicates that "hot spots" of deposition occur primarily at the leeward side of structural columns and within the recessed areas of the facade, where air velocity drops and particulate matter settles.

The deposition of these pollutants is not uniform. The building envelope acts as a massive condenser, where the temperature differential between the interior conditioned spaces and the exterior ambient air causes moisture to bead on the surface. This moisture captures the NOx and ammonia slip, creating a concentrated chemical brine that resides on the envelope for extended periods. On horizontal surfaces, such as the hub's extensive roofing systems, this leads to the accumulation of acidic crusts. These crusts not only degrade the primary waterproofing membrane but also obstruct drainage systems, leading to ponding and subsequent infiltration through the building's flashing and joints.

• Canyon-effect trapping resulting in non-linear pollutant concentration gradients.
• Thermal bridging creating condensation points that attract NOx deposition.
• Preferential accumulation of nitrates on horizontal roofing membranes and parapets.
• Wind-tunneling effects accelerating the mechanical erosion of chemically weakened surfaces.

Forensic Analysis of Material Degradation and Envelope Failure

From a forensic engineering standpoint, the impact of Tier 4 emissions on the Union Station envelope is most evident in the degradation of polymer-based roofing systems and sealants. Thermoplastic Polyolefin (TPO) and Ethylene Propylene Diene Monomer (EPDM) membranes, while durable, are susceptible to the long-term effects of acid-catalyzed hydrolysis. The presence of nitric acid on the roof surface breaks down the polymer chains, leading to a loss of elasticity and the development of micro-cracks. Once the membrane's integrity is breached, the acidic effluent penetrates the insulation layer, often leading to the corrosion of metal decking and fasteners.

Furthermore, the interaction between NOx and the masonry facades results in a process known as sulfation and nitration. In limestone and marble elements, the calcium carbonate reacts with the nitrogen oxides to form calcium nitrate. Unlike the original stone, calcium nitrate is highly soluble in water. During rain events, these salts are washed away, resulting in a gradual loss of surface detail and a significant increase in the stone's permeability. This "etching" effect is a clinical indicator of prolonged exposure to locomotive emissions and serves as a primary metric for determining the remaining service life of the facade materials.

• Polymer chain scission in TPO/EPDM membranes due to acid-catalyzed hydrolysis.
• Loss of tensile strength and elasticity in perimeter caulking and joint sealants.
• Chemical etching of calcareous stone through the formation of soluble nitrates.
• Corrosion of galvanized steel fasteners resulting from acidic runoff infiltration.

Engineering Mitigation and Protective Coating Specifications

To mitigate the destructive effects of Tier 4 emissions, a comprehensive envelope remediation strategy must be implemented. The primary objective is to transition from passive surfaces to chemically resistant, low-permeability barriers. This involves the application of high-performance fluoropolymer coatings, which provide an inert surface that resists both the alkaline ammonia slip and the acidic NOx derivatives. These coatings create a hydrophobic shield that prevents the formation of the "chemical brine" mentioned previously, ensuring that pollutants are washed away by precipitation rather than residing on the substrate.

In addition to surface coatings, the engineering specifications for the Union Station hub should include the integration of photocatalytic surfaces. Titanium dioxide (TiO2) coatings can be applied to concrete and masonry elements; these coatings utilize UV light to catalyze the breakdown of NOx into harmless nitrates that are easily rinsed away. This active mitigation strategy transforms the building envelope from a passive victim of emissions into an active filtration system. Furthermore, the implementation of enhanced drainage slopes on roofing systems is critical to prevent the ponding of acidic runoff, thereby reducing the dwell time of corrosive agents on the waterproofing membrane.

• Specification of PVDF (Polyvinylidene Fluoride) coatings for all exposed metal cladding.
• Deployment of TiO2 photocatalytic renders on primary facade elements to neutralize NOx.
• Installation of high-build elastomeric membranes with integrated acid-resistance additives.
• Implementation of

Methodologies for Manual Track Geometry Verification

The integrity of the A-Line Airport Rail Corridor relies upon the stringent maintenance of its geometric parameters to ensure safe, high-speed transit. While automated monitoring systems provide a broad overview, the master engineering approach necessitates hands-on physical inspections to validate digital data. Manual verification focuses on the critical relationship between the rail head, the sleeper, and the ballast shoulder. The primary objective is to identify localized anomalies—such as "dips" or "kinks"—that may be smoothed over by the averaging algorithms of automated track recording cars.

Physical audits utilize high-precision chord measurements and calibrated track gauges to assess the gauge width, cross-level, and alignment. By employing a manual chord method, inspectors can determine the exact radius of curvature and identify deviations in the alignment that could lead to excessive lateral force on the rail head. This clinical approach ensures that the transition curves are mathematically consistent with the design specifications, preventing uneven wear and reducing the risk of derailment through the elimination of sudden changes in lateral acceleration.

• Verification of the standard gauge width to within a tolerance of +/- 2mm.
• Manual measurement of superelevation (cant) on curved sections to ensure centrifugal forces are properly balanced.
• Assessment of the longitudinal level using precision spirit levels and straightedges to detect settlement.
• Inspection of fastening systems for torque loss or fatigue-induced failure in the rail clips.

Laser Profiling and Digital Topography Analysis

Laser profiling represents the pinnacle of non-contact forensic engineering in rail infrastructure. Unlike manual gauges, laser profiling systems employ high-frequency triangulation to map the exact cross-sectional geometry of the rail head. This process involves projecting a laser line across the rail profile and capturing the reflection via a high-resolution CCD camera. The resulting point cloud is then compared against the theoretical "golden profile" of the rail section, allowing for the precise quantification of vertical and lateral wear.

The utility of laser profiling across the A-Line corridor is most evident in the detection of "gauge widening" and "rail head flattening." When the rail profile deviates from its intended geometry, the contact patch between the wheel and the rail shifts, leading to an increase in rolling resistance and a heightened risk of rail fatigue. By analyzing the wear patterns through laser profiling, engineers can determine whether the wear is symmetrical or if there is a bias toward the high rail in curves, which indicates a failure in the superelevation or a misalignment of the track center line.

• Deployment of LiDAR scanners to create a 3D digital twin of the corridor for long-term deformation tracking.
• Analysis of the "vertical wear" metric to determine the remaining useful life of the steel.
• Identification of "corrugation" patterns through high-speed laser sampling to mitigate noise and vibration.
• Mapping of the rail-to-rail distance at a frequency of 100Hz to detect micro-oscillations.

Forensic Analysis of Structural Degradation Patterns

A clinical cause-and-effect analysis of the A-Line corridor reveals that track geometry degradation is rarely an isolated event; rather, it is a symptom of underlying systemic failures. The primary driver of geometry loss is typically the degradation of the ballast layer. Ballast fouling—the accumulation of fine particles within the crushed stone—inhibits proper drainage and reduces the load-bearing capacity of the track bed. This leads to "differential settlement," where the track sinks unevenly under the weight of the rolling stock, resulting in the vertical profile anomalies detected during laser audits.

Furthermore, the thermal expansion and contraction cycles inherent in the A-Line's environment introduce significant longitudinal stresses. In continuous welded rail (CWR), these stresses can manifest as "track buckle" if the lateral resistance provided by the ballast shoulder is insufficient. The forensic evidence of such stress is often found in the deformation of the sleepers or the widening of the gauge in high-temperature zones. By correlating the laser profiling data with soil moisture readings and temperature logs, engineers can pinpoint the exact failure mechanisms driving the geometry loss.

• Evaluation of ballast attrition and the resulting loss of void ratio, leading to poor drainage.
• Analysis of the "pumping" effect, where sleepers move vertically due to saturated subgrade.
• Study of the interaction between the rail fastening system and the sleeper to identify "rail creep."
• Assessment of the impact of high-frequency airport shuttle loads on the fatigue life of the rail steel.

Remediation Standards and Lifecycle Maintenance

Correcting the geometry of the A-Line corridor requires a tiered remediation strategy based on the severity of the deviation. For minor alignment errors, mechanized tamping is employed to redistribute the ballast and restore the correct longitudinal and transverse levels. Tamping machines use vibrating tools to compact the ballast under the sleepers, effectively "lifting" the track back to its design elevation. However, for severe degradation, such as deep-seated subgrade failure, a full ballast undercut and replacement are required to restore the structural integrity of the envelope.

The transition from reactive maintenance to a predictive lifecycle model is achieved by integrating the laser profiling data into a Geographic Information System (GIS). This allows for the implementation of "condition-based maintenance," where interventions are scheduled based on the rate of degradation rather than fixed time intervals. By maintaining the track geometry within the strict tolerances defined by industry standards (such as AREMA or EN), the operator can significantly extend the lifespan of the assets and reduce the frequency of emergency repairs, ensuring the operational reliability of the airport link.

• Implementation of precision rail grinding to restore the longitudinal profile and remove surface defects.
• Execution of "spot-tamping" for localized

Mechanical Fundamentals of Catenary Tensioning on the B-Line Spur

The B-Line Westminster Spur represents a critical segment of urban transit infrastructure where the overhead catenary system (OCS) must maintain a precise geometric profile to ensure uninterrupted power delivery. The primary engineering challenge lies in the management of the contact wire and the messenger wire, which together form the catenary. To prevent excessive wear on the pantograph and to avoid catastrophic dewirement, the system employs a constant tensioning philosophy. This is achieved through the integration of balance weights and pulley assemblies that counteract the inherent elasticity of the copper alloys used in the conductor.

In the Westminster Spur, the tensile load is calculated based on the maximum permissible sag under peak load conditions. The engineering objective is to maintain a constant tension regardless of the ambient temperature or the mechanical load imposed by the pantograph's upward force. This requires a rigorous application of Hooke's Law, where the extension of the wire is proportional to the applied force, provided the material remains within its elastic limit. The tensioning system must be calibrated to account for the specific modulus of elasticity of the hard-drawn copper or cadmium-copper wires typically utilized in these high-stress environments.

• Calculation of the design tension to minimize "hard spots" at the registration arms.
• Implementation of pulley-driven balance weights to provide a constant force vector.
• Analysis of the longitudinal stress distribution across the span to prevent localized over-tensioning.
• Verification of the clamping force at the anchor points to prevent slippage during high-torque events.

Thermal Expansion and Sag Dynamics in Urban Corridors

Thermal volatility is the primary catalyst for structural instability in overhead wiring. The B-Line Westminster Spur is subject to significant diurnal and seasonal temperature swings, which trigger linear expansion and contraction of the conductor wires. According to the coefficient of linear thermal expansion (CLTE), copper expands significantly as temperature increases. Without a mitigation strategy, this expansion would manifest as "thermal sag," where the contact wire drops below the minimum required height, potentially leading to pantograph entanglement or electrical arcing due to insufficient clearance.

The relationship between temperature and sag is non-linear; as the wire expands, the catenary curve deepens, increasing the risk of dynamic instability. This is particularly acute during the peak summer months when the solar gain on the dark-colored copper wire elevates the conductor temperature well above the ambient air temperature. This phenomenon, known as solar loading, can induce an additional 10 to 15 degrees Celsius of heat, further exacerbating the sag. The resulting decrease in tension leads to a reduction in the critical speed of the pantograph, increasing the likelihood of "bounce" and subsequent wire breakage.

• Monitoring of the thermal gradient across the span to predict sag intervals.
• Evaluation of the "sag-tension" relationship using empirical catenary equations.
• Assessment of the impact of solar radiation on the conductor's effective temperature.
• Analysis of the minimum clearance requirements to maintain safety margins during peak thermal expansion.

Forensic Analysis of Structural Interface Points

From a forensics perspective, the tensioning of the OCS does not occur in a vacuum; it exerts significant mechanical leverage on the supporting infrastructure. The masts, cantilever arms, and registration brackets on the Westminster Spur act as the primary load-bearing elements. A senior technical analysis reveals that the most critical points of failure are the interface points where the tensioning weights are anchored and where the messenger wire is clamped to the cantilever. Over time, the constant cycling of thermal expansion and contraction induces fatigue stress in these steel components.

Clinical observation of the B-Line infrastructure indicates that shear forces are most concentrated at the bracket-to-mast connection. If the tensioning system is improperly calibrated, the resulting longitudinal force can cause the masts to lean or the cantilever arms to deform plastically. Furthermore, the interaction between dissimilar metals—such as the copper conductor and the galvanized steel supports—introduces the risk of galvanic corrosion. This corrosion weakens the structural integrity of the clamps, leading to "creep," where the wire slowly slides through the clamp, resulting in uneven tension and unpredictable sag profiles.

• Ultrasonic testing of weldments on the cantilever arms to detect fatigue cracking.
• Measurement of mast deflection under maximum tension loads to ensure structural stability.
• Inspection of the interface between the tensioning pulley and the guide rail for wear patterns.
• Chemical analysis of the contact surfaces to identify evidence of galvanic degradation.

Mitigation Strategies and Lifecycle Maintenance Protocols

To mitigate the risks associated with thermal sag and structural fatigue, the B-Line Westminster Spur requires the implementation of Automatic Tensioning Devices (ATDs). These systems utilize a precision-engineered weight-and-pulley arrangement that allows the wire to slide freely through the anchor point as it expands or contracts. By maintaining a constant tension, the ATD effectively "absorbs" the thermal expansion, keeping the contact wire at a consistent height regardless of the temperature. The calibration of these ATDs must be performed with extreme precision, as an over-tensioned system increases the risk of wire snap during winter freezes, while an under-tensioned system permits excessive sag in summer.

Long-term reliability is further ensured through a predictive maintenance regime based on empirical data. This includes the use of thermal imaging to identify "hot spots" where electrical resistance is high, and the use of laser-based geometry cars to map the contact wire's height and stagger across the entire spur. By analyzing the trend data from these inspections, engineering teams can preemptively adjust the balance weights or replace worn components before a failure occurs. This proactive approach shifts the maintenance paradigm from reactive repair to strategic lifecycle management, ensuring the longevity of the commercial infrastructure.

• Installation of high-precision ATDs with low-friction rollers to minimize hysteresis.
• Deployment of laser-scanning vehicles for monthly verification of wire geometry.
• Implementation of a scheduled lubrication program for all moving parts in the tensioning assembly.
• Establishment of a strict threshold for "allowable sag" to trigger immediate corrective action.

System Architecture and Topological Integration of the G-Line Fiber Backbone

The G-Line Gold Strike Alignment represents a critical artery in regional transit infrastructure, necessitating a Positive Train Control (PTC) system that operates with absolute reliability. At its core, the signaling architecture relies on a high-capacity, single-mode fiber optic backbone designed to facilitate near-instantaneous communication between wayside interface units (WIUs), onboard computers, and the central dispatching office. The primary objective of this installation is the elimination of single points of failure (SPOF) that could lead to catastrophic system outages or "dark" territory, where trains are forced to operate at restricted speeds due to a loss of signaling telemetry.

The physical layer utilizes a geographically diverse routing strategy to ensure that a single localized event, such as a landslide or a conduit strike during third-party excavation, does not sever the entire communication link. By deploying fiber in a dual-homed configuration, the G-Line ensures that data packets are routed through redundant paths. This architecture employs Dense Wavelength Division Multiplexing (DWMP) to maximize the bandwidth of the existing glass, allowing for the simultaneous transmission of PTC safety data, voice communications, and CCTV surveillance feeds without signal degradation or cross-talk.

• Deployment of G.652.D low-water-peak single-mode fiber to minimize attenuation over long-haul segments.
• Utilization of armored cable jackets to mitigate rodent-induced breaches and mechanical crushing.
• Strategic placement of regenerative repeaters at intervals not exceeding 80 kilometers to maintain signal integrity.
• Integration of hardened industrial Ethernet switches capable of operating in extreme temperature fluctuations.

Redundancy Protocols and Failover Mechanism Analysis

To achieve the requisite safety integrity level (SIL), the G-Line Gold Strike Alignment implements a sophisticated failover mechanism based on a resilient ring topology. Unlike linear topologies, which are susceptible to total downstream failure upon a single break, the ring architecture allows for Automatic Protection Switching (APS). When the system detects a loss of light or a critical increase in the Bit Error Rate (BER) on the primary path, the network management system triggers a sub-50 millisecond switchover to the secondary path. This transition is transparent to the PTC application, ensuring that the onboard locomotive systems never lose synchronization with the wayside equipment.

The logic governing this redundancy is rooted in the principle of deterministic networking. In a rail environment, latency is not merely a performance metric but a safety parameter. If the signaling packet for a "stop" command is delayed beyond the defined threshold, the system must default to a restrictive state. To prevent unnecessary service interruptions, the G-Line employs a synchronized timing protocol (PTP) that ensures all nodes across the Gold Strike Alignment are aligned within nanoseconds, reducing the risk of packet collisions and ensuring that the failover process does not introduce jitter into the safety-critical stream.

• Implementation of Ethernet Ring Protection Switching (ERPS) according to ITU-T G.8032 standards.
• Dual-feed power supplies for all wayside cabinets, utilizing industrial-grade UPS systems with lithium-iron-phosphate batteries.
• Real-time telemetry monitoring via SNMP (Simple Network Management Protocol) for proactive fault detection.
• Redundant routing tables that prioritize safety-critical PTC traffic over administrative data.

Environmental Forensics and Physical Layer Vulnerabilities

From a forensic engineering perspective, the longevity of the fiber signaling system is contingent upon the integrity of the building envelope surrounding the cable conduits. The G-Line alignment traverses varied terrain, exposing the infrastructure to hydrostatic pressure, thermal cycling, and chemical leaching from rail ballast. A primary point of failure identified in similar alignments is the ingress of moisture into splice enclosures. When water penetrates a splice tray, it can lead to hydrogen darkening of the fiber, which increases attenuation and eventually triggers a failover event or a complete link failure.

Furthermore, the thermal expansion and contraction of the HDPE (High-Density Polyethylene) conduits can induce micro-bends in the fiber if the cable is not properly floated within the duct. These micro-bends cause signal leakage, which manifests as intermittent packet loss—a condition far more dangerous than a clean break, as it can lead to "flapping" links that confuse the APS logic. Forensic analysis of the Gold Strike Alignment requires a rigorous inspection of the manhole seals and the application of bentonite or specialized grouting to prevent the migration of groundwater into the communication vaults.

• Analysis of splice enclosure seals using vacuum leak testing to ensure IP68 rating compliance.
• Monitoring of conduit fill ratios to prevent cable crushing during thermal expansion cycles.
• Evaluation of grounding and bonding systems to protect fiber-to-copper interfaces from transient surges and lightning strikes.
• Assessment of the chemical compatibility between the cable jacket and the surrounding soil chemistry to prevent polymer degradation.

Compliance, Validation, and Lifecycle Maintenance

The validation of the PTC fiber redundancy system is governed by strict Federal Railroad Administration (FRA) guidelines and industry standards. The commissioning process begins with a comprehensive Optical Time-Domain Reflectometer (OTDR) survey of every strand. This empirical data provides a "birth certificate" for the fiber, documenting the exact loss at every splice and the overall attenuation per kilometer. Any segment exceeding the calculated loss budget is flagged for immediate remediation, as excessive loss reduces the headroom available for the failover mechanisms to operate effectively during environmental stress.

Long-term maintenance shifts from reactive repair to predictive analysis. By utilizing continuous fiber monitoring systems, the G-Line can detect the precise location of a cable degradation event before it results in a service outage. This is achieved by injecting a supervisory signal into the fiber and monitoring the backscatter patterns. If the signal degrades, the system alerts technicians to the exact GPS coordinate of the vulnerability, allowing for a preemptive splice or cable replacement during scheduled maintenance windows, thereby maintaining the "Gold Standard" of availability required for high-density rail operations.

• Mandatory bi-annual OTDR testing to track the progression of fiber attenuation and splice degradation.
• Strict adherence to TIA-568 standards for all fiber optic terminations and patching.
• Implementation of a rigorous "Cable-in-Conduit" replacement cycle based on empirical wear data.
• Quarterly audits of the failover logic through simulated link-loss testing during non-revenue hours.

Geotechnical Baseline and Subgrade Instability Analysis

The N-Line North Metro Express corridor traverses a complex geological profile characterized by alternating strata of alluvial deposits and cohesive clay lenses. Forensic analysis of the track bed reveals that the primary driver of settlement is the differential consolidation of these subsurface layers. When the structural load of the rolling stock is transmitted through the ballast and sub-ballast, it creates a stress bulb that extends deep into the subgrade. In areas where the clay content exceeds 30%, the soil exhibits high compressibility and low shear strength, leading to primary consolidation settlement that manifests as longitudinal dips in the track geometry.

Furthermore, the interaction between the groundwater table and the subgrade has introduced significant hydrostatic pressure, which reduces the effective stress of the soil. This phenomenon, coupled with the cyclic loading of high-frequency metro transit, induces a process known as "subgrade pumping." In this state, fine particles from the subgrade are forced upward into the ballast layer, effectively contaminating the clean aggregate and reducing the overall modulus of subgrade reaction. The resulting loss of support creates a void between the sleeper and the ballast, necessitating frequent corrective interventions.

• Analysis of soil plasticity indices indicating high potential for shrink-swell cycles.
• Evaluation of the California Bearing Ratio (CBR) across varying moisture saturation levels.
• Mapping of hydrostatic pressure gradients relative to the track centerline.
• Identification of organic silt pockets that accelerate localized settlement.

Ballast Degradation and Fouling Mechanisms

The structural integrity of the N-Line track bed relies on the angularity and interlocking nature of the ballast aggregate. However, forensic sampling indicates an advanced state of ballast fouling across several critical segments. Fouling occurs when the voids between the ballast stones are filled with fine particles, either through the mechanical attrition of the aggregate (attrition wear) or the migration of subgrade fines. This reduction in void ratio severely impairs the drainage capacity of the track bed, trapping water and accelerating the decay of the surrounding sleepers.

From a mechanical standpoint, the loss of angularity transforms the ballast from a stable, interlocking matrix into a semi-fluid mass under high-impact loads. This transition leads to "ballast attrition," where the stones grind against one another, creating a layer of pulverized rock dust. This dust acts as a lubricant, increasing the lateral movement of the track and causing a loss of gauge stability. The clinical result is a decrease in the track modulus, meaning the ballast can no longer distribute the load evenly across the subgrade, concentrating the stress on smaller areas and triggering further settlement.

• Quantification of the Fouling Index (FI) through sieve analysis of ballast samples.
• Assessment of aggregate hardness and Los Angeles (LA) Abrasion values.
• Observation of "mud pumping" where slurry emerges on the ballast shoulder.
• Measurement of drainage efficiency and the permeability of the sub-ballast layer.

Tamping Cycle Analysis and Geometric Deviation

Tamping is the primary maintenance response to settlement, utilizing mechanical tines to compact the ballast beneath the sleepers. However, forensic data suggests that the N-Line has entered a cycle of "over-tamping," where the frequency of maintenance is actually accelerating the degradation of the track bed. Each tamping cycle disturbs the established interlocking of the aggregate, temporarily reducing the stiffness of the ballast. If the interval between tamping cycles is too short, the ballast never fully recovers its structural stability, leading to a rapid return to the settled state.

The geometric deviation observed—specifically in the longitudinal level and cross-level—indicates that tamping is treating the symptoms rather than the cause. When tamping is performed on a fouled ballast bed, the tines simply redistribute the fines without restoring the load-bearing capacity. This creates a "false floor" of compacted fines that lacks the elasticity required to absorb the dynamic loads of the metro trains. Consequently, the track experiences increased vibration and accelerated wear on the rail head and wheelsets, creating a feedback loop of infrastructure decay.

• Correlation between tamping frequency and the rate of settlement recurrence.
• Analysis of track geometry cars (TGC) data to identify "soft spots" in the alignment.
• Evaluation of the tamping pressure exerted relative to the subgrade bearing capacity.
• Study of the "settlement curve" following a standard maintenance window.

Forensic Mitigation and Long-term Stabilization

To resolve the systemic settlement issues across the N-Line North Metro Express, a shift from reactive tamping to proactive geotechnical stabilization is required. The first step in the forensic remediation strategy is the implementation of Ground Penetrating Radar (GPR) to map the extent of ballast fouling without disrupting service. By identifying the precise depth and location of the fouling, engineers can employ "ballast cleaning" or "undercutting" to remove the contaminated material and replace it with high-specification, angular granite aggregate that meets strict AREMA standards.

For sections with severe subgrade instability, the installation of geosynthetics is the most viable long-term solution. Geogrids provide lateral confinement to the ballast, preventing the lateral spreading of the aggregate and significantly increasing the effective track modulus. Additionally, in areas with high clay content, the use of geocomposite separators prevents the upward migration of fines into the ballast. In extreme cases of voiding, polyurethane resin injection can be used to stabilize the subgrade, filling voids and creating a rigid, waterproofed foundation that eliminates the need for frequent tamping.

• Deployment of GPR for non-destructive testing (NDT) of the ballast profile.
• Integration of biaxial geogrids to enhance load distribution and reduce settlement.
• Application of chemical soil stabilization (lime or cement) to cohesive subgrades.
• Implementation of a predictive maintenance schedule based on real-time sensor data.

Fundamental Tribology of the Wheel-Rail Interface

The wheel-rail interface represents one of the most demanding tribological environments in modern commercial infrastructure. At the core of this interaction is the Hertzian contact theory, which dictates that the load is distributed over a microscopic elliptical area, resulting in extreme localized pressures that often exceed the yield strength of the steel. In the E-Line Southeast Corridor, the primary objective is the management of the friction coefficient to balance two competing requirements: the necessity of high adhesion for traction and braking, and the requirement for low friction to minimize abrasive wear during curving maneuvers.

Wear mechanisms at this interface are categorized into adhesive, abrasive, and fatigue-based degradation. Adhesive wear occurs when microscopic welds form and break between the wheel and rail, while abrasive wear is driven by hard particles or surface asperities cutting through the metal. Fatigue wear, specifically Rolling Contact Fatigue (RCF), manifests as head checks or squats, which can lead to catastrophic rail failure if left unmanaged. The E-Line's specific metallurgy requires a precise understanding of the "creep" phenomenon—the relative sliding between the wheel and rail—which generates the heat and shear stress that accelerate material loss.

• Hertzian Contact Stress: The calculation of peak pressure at the contact patch to determine the onset of plastic deformation.
• Creepage Analysis: The measurement of longitudinal and lateral slip that defines the efficiency of power transmission.
• Surface Roughness (Ra): The empirical evaluation of surface finish to ensure consistent contact and reduce vibration.
• Material Hardness: The utilization of Pearlitic or Bainitic steel grades to optimize the balance between wear resistance and toughness.

Flange Wear Dynamics and Geometric Degradation

In the E-Line Southeast Corridor, the geometry of the track—specifically the tight-radius curves and transition spirals—places an asymmetric load on the wheel flange. The flange acts as the primary guiding mechanism, but when the lateral force exceeds the threshold of the wheel's profile, "flange climbing" or excessive scrubbing occurs. This results in a rapid loss of the original wheel profile, shifting the contact point from the tread to the flange root. This shift increases the rolling resistance and significantly elevates the risk of derailment due to the loss of the geometric centering effect.

The degradation process is further exacerbated by gauge widening and the accumulation of debris within the rail web. When the flange makes hard contact with the gauge face of the rail, the resulting frictional heat can cause localized tempering of the steel, altering its hardness and making it more susceptible to spalling. Forensic analysis of the E-Line's curved sections indicates that without stringent lubrication, the wear rate on the high-rail (the outer rail of a curve) is exponentially higher than on the low-rail, leading to uneven track loading and accelerated ballast degradation.

• Gauge Face Wear: The measurement of material loss on the inner side of the rail head, typically tracked in millimeters per 10,000 gross tons.
• Profile Gauging: The use of laser-based measurement systems to detect the deviation of the wheel flange from the industry-standard profile.
• Lateral Force Distribution: The analysis of the Y/Q ratio (lateral force over vertical load) to prevent track shifting.
• Hunting Oscillation: The unstable lateral movement of the wheelset that occurs when the flange profile is overly worn.

Lubrication Protocols and Material Specifications

To mitigate the aforementioned wear, the E-Line employs a dual-stage lubrication protocol focusing on the flange-rail interface. The primary goal is not the total elimination of friction, but the implementation of "friction modification." Total lubrication of the rail head would compromise braking distances and traction; therefore, lubrication is strictly targeted at the gauge face and the wheel flange. The materials used must be capable of adhering to the steel surface under extreme pressure and temperature while remaining chemically stable against environmental contaminants.

The current protocol utilizes a combination of solid-film lubricants and synthetic grease-based systems. Solid lubricants, such as Molybdenum Disulfide (MoS2) or graphite-based compounds, provide a sacrificial layer that reduces the coefficient of friction without creating a slippery film that could migrate to the rail head. For the E-Line's high-curvature zones, automated flange lubricators are installed on the rolling stock, utilizing a timed-spray or brush system to ensure a consistent application of lubricant to the flange root, thereby reducing the shear stress during negotiation of curves.

• Solid-Film Lubricants: Materials that provide a low-shear interface and high load-bearing capacity.
• Friction Modifiers: Specialized compounds that maintain a constant coefficient of friction across a range of slip velocities.
• Application Precision: The use of targeted nozzles to prevent "over-spray" onto the rail crown.
• Viscosity Index: The selection of lubricants that maintain a stable film thickness across the temperature fluctuations of the Southeast Corridor.

Predictive Maintenance and Forensic Analysis

The transition from reactive to predictive maintenance in the E-Line Southeast Corridor relies on the integration of empirical data and forensic engineering. By employing ultrasonic testing and eddy current inspections, engineers can detect subsurface cracks and RCF before they manifest as surface failures. The forensic process involves the analysis of "wear scars" and the mapping of material loss across the wheelset's lifecycle. This data is then fed into a degradation model to determine the optimal interval for wheel turning—the process of machining the wheel back to its original profile.

Furthermore, the implementation of Wayside Monitoring Systems allows for the real-time detection of wheel flats and flange irregularities. When a wheelset exhibits a "flat" (a flat spot caused by sliding during braking), the resulting impact loads create high-frequency shocks that damage both the rail and the vehicle's suspension. By analyzing the impact force (measured in kN), the E-Line can prioritize the removal of specific cars from service, reducing the

Theoretical Framework of Inductive Loop Detection in Urban Transit Corridors

The H-Line City Center Feeder represents a critical nexus of multimodal transit, where the integration of grade crossing warning gates relies heavily on the precision of inductive loop detection. At its core, the inductive loop system functions as a primary winding of an air-core transformer. When a ferromagnetic mass—specifically a vehicle—enters the magnetic field generated by the loop, it induces a change in the total inductance of the circuit. This shift in inductance alters the resonant frequency of the LC oscillator circuit connected to the detector, triggering the warning gate sequence.

In the high-density environment of the City Center Feeder, the calibration of these loops must account for extreme variance in vehicle mass and velocity. The system must distinguish between a passenger vehicle, a heavy-duty transit bus, and irrelevant metallic debris or pedestrian interference. The stability of the magnetic field is paramount; any deviation in the loop's geometry or the dielectric constant of the surrounding pavement can lead to "ghosting" or failure to trigger, both of which present unacceptable safety risks in a commercial infrastructure context.

• Resonant Frequency Stability: The necessity of maintaining a tight tolerance within the LC circuit to prevent false triggering.
• Mutual Inductance Variance: The delta between the unoccupied loop state and the occupied state.
• Detection Thresholds: The empirical limit at which a metallic mass is recognized as a valid vehicle.
• Slew Rate Analysis: The speed at which the detector recognizes the transition from an empty to a full state.

Diagnostic Analysis of Signal Drift and Environmental Interference

Calibration failure across the H-Line is rarely a result of total component collapse, but rather a gradual signal drift caused by environmental stressors. In urban corridors, the "envelope" surrounding the loop—the asphalt and concrete substrate—is subject to constant thermal cycling and mechanical stress. As the pavement degrades, micro-fissures allow moisture ingress, which alters the permittivity of the medium. This shift in the dielectric environment can attenuate the magnetic field, effectively reducing the loop's sensitivity and requiring a recalibration of the detector's internal thresholds.

Furthermore, the City Center Feeder is plagued by electromagnetic interference (EMI) originating from adjacent high-voltage power lines and underground utility conduits. This "noise" can introduce harmonics into the inductive loop, creating erratic frequency shifts that the detector may misinterpret as vehicle presence. Technical analysis reveals that EMI-induced drift often manifests as a gradual increase in the baseline inductance, which narrows the operational window between the "clear" and "occupied" states, leading to intermittent gate failures.

• Thermal Expansion Coefficients: The impact of seasonal temperature swings on the physical dimensions of the embedded loop.
• Dielectric Saturation: How water accumulation in pavement cracks affects the loop's capacitive coupling.
• Harmonic Distortion: The influence of 60Hz power hum and high-frequency transients from nearby electrical switchgear.
• Substrate Carbonization: The effect of oil and chemical leaks from vehicles on the surrounding asphalt's conductivity.

Calibration Protocols for High-Traffic Feeder Lines

To ensure the operational integrity of the H-Line warning gates, a rigorous, empirical calibration protocol must be implemented. The process begins with a baseline inductance measurement using a high-precision LCR meter to verify that the loop's physical integrity is intact and that the total inductance falls within the manufacturer's specified range. Once the baseline is established, the detector is tuned to the specific resonant frequency of the loop. This tuning process involves adjusting the sensitivity potentiometer to ensure that the smallest expected vehicle triggers the gate, while ignoring the "noise" of the urban environment.

The calibration must then be validated through a series of controlled vehicle passes. This "stress testing" phase involves documenting the trigger point and the release point for various vehicle classes. A critical component of this analysis is the hysteresis loop—the difference in the trigger threshold when a vehicle enters the loop versus when it exits. If the hysteresis is too narrow, the gate may "chatter," rapidly cycling between open and closed states as a vehicle lingers at the edge of the detection zone.

• LCR Meter Baseline Verification: Establishing the raw inductance (mH) of the loop before powering the detector.
• Sensitivity Tuning: Adjusting the detector's internal gain to optimize the signal-to-noise ratio.
• Vehicle Mass Profiling: Testing the system against a spectrum of ferromagnetic signatures.
• Timing Cycle Synchronization: Ensuring the detection trigger aligns with the gate's descent and warning light sequences.

Long-term Reliability and Forensics of Envelope Integration

From a forensics perspective, the longevity of an inductive loop is inextricably linked to the quality of the building envelope—in this case, the pavement engineering. The loop is essentially a foreign body embedded within the road surface; if the bond between the loop sealant and the asphalt is compromised, the resulting void becomes a collection point for water and salts. This leads to accelerated corrosion of the copper conductors and the eventual failure of the insulation, resulting in a short circuit or a catastrophic loss of inductance.

Engineering analysis of failed loops across the H-Line indicates that the primary cause of premature degradation is the failure of the sealant bead. When the sealant cracks due to the shear forces of heavy transit traffic, the loop is exposed to the elements. The resulting oxidation of the wire creates a high-resistance connection, which shifts the resonant frequency of the circuit. This shift is often mistaken for a detector failure, when in reality, it is a failure of the protective envelope. Therefore, a comprehensive maintenance regime must include not only electrical calibration but also the forensic inspection of the pavement surface for signs of reflective cracking and sealant failure.

• Sealant Adhesion Analysis: Evaluating the bond strength between the loop potting compound and the asphalt matrix.
• Oxidation Forensics

Thermal Dynamics of Traction Power Rectifier Systems

The R-Line Aurora Metro Ring utilizes a complex network of traction power substations designed to convert high-voltage alternating current (AC) from the utility grid into the direct current (DC) required for propulsion. At the core of this process is the rectifier transformer, a critical component that experiences significant thermal stress due to ohmic losses and magnetic hysteresis. In these systems, heat generation is not merely a byproduct but a primary engineering constraint that dictates the operational lifespan of the dielectric insulation and the overall efficiency of the power conversion process.

Thermal accumulation in these transformers occurs primarily within the windings and the core. As current flows through the copper conductors, resistive heating increases proportionally to the square of the current. Simultaneously, the rectifier diodes, which facilitate the AC-to-DC conversion, act as concentrated heat sources. If the thermal gradient between the transformer core and the ambient environment is not aggressively managed, the internal temperature can exceed the thermal class rating of the insulation, leading to accelerated degradation of the cellulose paper and the oxidation of the insulating oil.

• Ohmic Heating: Heat generated by the electrical resistance of the windings during peak load periods.
• Hysteresis and Eddy Current Losses: Energy dissipated as heat within the ferromagnetic core during magnetic flux reversals.
• Rectifier Heat Flux: Concentrated thermal energy produced by the semiconductor junctions of the diode bridges.
• Dielectric Stress: The relationship between temperature rise and the reduction of the oil's breakdown voltage.

Envelope Forensics and Ventilation Integration

From a building envelope forensics perspective, the substation housing for the R-Line is not merely a protective shell but a critical component of the cooling apparatus. The interaction between the internal heat load and the external atmospheric conditions creates a complex pressure differential. Inadequate ventilation design often leads to "heat soak," where the internal ambient temperature of the substation rises to a point where the delta-T (temperature difference) between the transformer radiators and the room air is insufficient to drive effective heat transfer.

Analysis of the R-Line enclosures reveals that the placement of intake louvers and exhaust fans must be precisely aligned with the thermal plume generated by the transformers. When airflow is obstructed or improperly channeled, stagnant pockets of hot air form at the ceiling, creating a thermal blanket that traps heat. This stratification increases the load on the active cooling systems and can lead to premature failure of auxiliary electronic controls located in the upper quadrants of the envelope. Proper forensic evaluation requires the use of computational fluid dynamics (CFD) to ensure that laminar flow is maintained across the radiator fins.

• Thermal Bridging: The conduction of heat through the structural steel of the substation envelope, potentially affecting external temperature sensors.
• Louver Efficiency: The ratio of open area to total vent size, which determines the volume of passive air exchange.
• Pressure Differentials: The use of negative pressure via exhaust fans to pull cool air from the lowest possible intake points.
• Environmental Infiltration: The balance between maximizing airflow and preventing the ingress of particulate matter and moisture.

Cooling Methodology and Fluid Dynamics

The R-Line Aurora Metro Ring employs a combination of Oil Natural Air Forced (ONAF) cooling systems to manage the thermal load of the rectifier transformers. In this configuration, the insulating oil circulates via natural convection, rising as it heats up and flowing through external radiator banks. High-velocity fans then force ambient air across these radiators to strip away the heat. The efficiency of this process is governed by the Nusselt number and the thermal conductivity of the oil, which must remain stable across a wide range of operating temperatures.

A critical failure point in these systems is the accumulation of debris on the radiator fins, which increases the thermal resistance and reduces the heat transfer coefficient. Furthermore, the viscosity of the dielectric fluid changes with temperature; as the oil degrades through oxidation, its ability to transport heat from the windings to the radiators diminishes. Engineering standards for the R-Line require a rigorous monitoring of the "hot spot" temperature, which is the highest temperature reached within the winding, as this is the primary driver of the Arrhenius equation governing insulation aging.

• Convective Heat Transfer: The movement of heat from the transformer core to the oil and then to the radiator walls.
• Forced Convection: The application of external fans to increase the air velocity across the cooling fins.
• Dielectric Fluid Stability: The use of inhibited mineral oils to prevent sludge formation and maintain thermal conductivity.
• Radiator Fin Geometry: The optimization of surface area to maximize heat dissipation while minimizing air resistance.

Degradation Analysis and Lifecycle Mitigation

The long-term reliability of the traction power system depends on the mitigation of thermal aging. Forensic analysis of aged transformer units indicates that for every 6 to 8 degrees Celsius increase in the operating temperature above the rated limit, the useful life of the insulation is halved. This exponential decay makes precise cooling management a non-negotiable requirement for the Aurora Metro Ring. The primary indicator of thermal distress is the presence of dissolved gases in the oil, such as ethylene and methane, which are produced during the thermal decomposition of the oil and paper.

To extend the lifecycle of these assets, a proactive maintenance regime focusing on the "envelope-to-equipment" interface is required. This includes the periodic cleaning of radiator banks, the calibration of thermal sensors, and the analysis of oil samples via Dissolved Gas Analysis (DGA). By integrating the building envelope's ventilation strategy with the transformer's internal cooling cycles, engineers can ensure that the R-Line maintains a stable thermal equilibrium, thereby preventing catastrophic dielectric breakdown and ensuring uninterrupted power to the transit network.

• Dissolved Gas Analysis (DGA): The empirical method of detecting internal faults by analyzing the chemical composition of the insulating oil.
• Insulation Resistance Testing: Measuring the integrity of the winding insulation to determine the extent of thermal degradation.
• Thermal Imaging: The use of infrared thermography to identify hot spots on the transformer tank and rectifier junctions.
• Lifecycle Extension: The implementation of redundant cooling fans and upgraded ventilation louvers to lower the baseline operating temperature.

Mechanical Analysis of Direct Fixation Fastener Systems

The W-Line West Colfax Light Rail corridor utilizes a Direct Fixation (DF) system, a critical engineering choice designed to eliminate the maintenance overhead associated with traditional ballasted tracks. In a DF configuration, the rail is secured directly to a reinforced concrete slab via a series of high-strength fasteners and elastomeric pads. This assembly must manage complex load distributions, including vertical static loads from the rolling stock and dynamic lateral forces generated during acceleration and braking. The primary engineering challenge lies in the transition of these forces from the steel rail through the fastener assembly and into the concrete substrate without inducing structural fatigue or catastrophic shear failure.

The mechanical integrity of the system depends on the precise interaction between the rail seat and the fastening clip. These clips are typically engineered from high-grade spring steel, providing a constant clamping force that maintains the rail's longitudinal position. In the West Colfax corridor, the specific geometry of the rail profile requires a fastener that can accommodate minor thermal expansions while resisting the tendency of the rail to "creep" under heavy braking. Failure to maintain this equilibrium results in uneven wear on the rail head and increased stress on the concrete slab, potentially leading to micro-fractures in the infrastructure.

• Longitudinal Force Management: Fasteners must resist the axial thrust generated by light rail vehicles during rapid deceleration.
• Lateral Stability: The system prevents gauge widening, ensuring the rail remains within the strict tolerances required for safe transit.
• Load Distribution: The assembly distributes the point load of the rail across a wider surface area of the concrete slab to prevent spalling.
• Thermal Compensation: The fasteners allow for minute movements to accommodate the extreme temperature fluctuations typical of the Colorado climate.

Torque Calibration and Tensile Stress Management

The efficacy of a direct fixation system is fundamentally tied to the application of correct torque during the installation of the anchor bolts. Torque is not merely a tightening specification but a method of inducing a precise amount of tension, known as preload, within the fastener. When a bolt is torqued to the specified Newton-meters (Nm), it acts as a heavy-duty spring, creating a clamping force that holds the rail and the dampening pad firmly against the slab. If the torque is insufficient, the fastener may undergo "backing out" due to the constant vibration of passing trains, leading to a loss of clamping force and eventual rail instability.

Conversely, over-torquing introduces a significant risk of exceeding the yield strength of the bolt. Once a fastener enters the plastic deformation zone, it loses its ability to return to its original length, effectively compromising the preload. In the context of the W-Line, this can lead to sudden bolt failure through fatigue cracking. Technical analysts must employ calibrated torque wrenches and adhere to a strict tightening sequence to ensure that the tension is uniform across the entire section of the rail. This uniformity prevents the creation of "hard spots" in the track, which would otherwise cause localized impact loads and accelerate the degradation of the wheel-rail interface.

• Preload Optimization: Ensuring the bolt is stretched within its elastic limit to maintain a constant clamping force.
• K-Factor Analysis: Accounting for the friction between the bolt threads and the nut to ensure accurate tensioning.
• Yield Point Monitoring: Avoiding the transition from elastic to plastic deformation to prevent sudden fastener failure.
• Verification Protocols: Implementing periodic torque audits using ultrasonic tension meters to verify long-term stability.

Vibration Dampening and Elastomeric Interface Analysis

Vibration mitigation is a primary objective for the West Colfax corridor, given its proximity to commercial infrastructure and residential envelopes. The Direct Fixation system employs elastomeric pads—typically composed of high-density polyurethane or natural rubber—positioned between the rail and the concrete slab. These pads serve as the primary mechanism for frequency attenuation. By introducing a material with a lower modulus of elasticity than the surrounding steel and concrete, the system can decouple the rail's vibration from the slab, effectively filtering out high-frequency energy that would otherwise propagate through the ground as structure-borne noise.

The dampening performance is measured by the static and dynamic stiffness of the pad. A pad that is too stiff fails to attenuate vibrations, resulting in increased wear on the rolling stock and higher noise levels for the surrounding community. A pad that is too soft allows for excessive rail deflection, which can lead to instability and increased fatigue on the fasteners. The engineering goal is to achieve a "tuned" response where the natural frequency of the track system does not coincide with the excitation frequencies of the light rail vehicles. This prevents resonance, which is the primary cause of accelerated structural fatigue in urban rail environments.

• Frequency Attenuation: Reducing the transmission of high-frequency vibrations into the surrounding soil and buildings.
• Damping Ratio: Optimizing the energy dissipation capacity of the elastomeric material to prevent oscillation.
• Dynamic Stiffness: Managing the rate of deformation under the rapid loading cycles of a passing train.
• Impedance Mismatch: Creating a boundary between materials of different densities to reflect vibration energy back into the rail.

Forensic Failure Modes and Long-term Maintenance

Forensic analysis of rail fasteners in the W-Line corridor reveals several common failure modes driven by environmental and mechanical stressors. The most prevalent issue is galvanic corrosion, which occurs when dissimilar metals—such as the steel rail and the zinc-plated fasteners—interact in the presence of moisture and road salts. This corrosion can compromise the cross-sectional area of the bolt, reducing its load-bearing capacity and making it susceptible to shear failure. Furthermore, the extreme diurnal temperature swings in the West Colfax area cause repeated expansion and contraction of the rail, which puts a cyclical strain on the fasteners.

Another critical failure mode is the degradation of the elastomeric pads. Over time, these materials undergo oxidative hardening or "compression set," where the pad loses its ability to recover its original shape. Once a pad hardens, the vibration dampening capacity vanishes, and the fastener is subjected to higher impact loads. This often manifests as "concrete spalling" around the anchor point, where the concrete cracks and breaks away due to the lack of cushioning. A rigorous maintenance regime involving visual inspections and the use of non-destructive testing (NDT) is essential to identify these failures before they lead to service interruptions.

• Galvanic Corrosion: Monitoring the oxidation layers on fasteners to prevent loss of structural integrity.
• Compression Set: Identifying the loss of elasticity in polyurethane pads to prevent impact-driven slab failure.
• Thermal Fatigue: Analyzing the impact of cyclic thermal loading on the preload of the anchor

Thermal Dynamics and the Challenge of Front Range Blizzards

The US-36 corridor, specifically the Flatiron Flyer BRT infrastructure, is subject to the volatile meteorological conditions of the Colorado Front Range. Engineering for this region requires a clinical understanding of rapid-onset blizzards, where temperature drops can exceed 30 degrees Fahrenheit within a six-hour window, coupled with high-velocity wind loads that drive moisture deep into mechanical interfaces. In the context of switch mechanisms and guideway transitions, the primary adversary is the latent heat of fusion. When moisture infiltrates the tight tolerances of a switch assembly and undergoes a phase change to ice, the resulting volumetric expansion creates an irresistible mechanical force capable of distorting steel components or seizing actuators entirely.

Traditional resistive heating systems often fail in these extreme scenarios due to thermal lag and uneven heat distribution. The "cold spot" phenomenon occurs when the heating element is physically separated from the critical contact surface by a layer of oxidation or debris, creating a thermal barrier. In a high-stakes BRT environment, a single frozen switch can paralyze the entire transit artery, leading to cascading delays. Therefore, the transition to induction-based heating is not merely an upgrade but a forensic necessity to ensure operational continuity during peak winter events.

• Analysis of diurnal temperature swings affecting material contraction.
• Evaluation of ice accretion rates on galvanized steel surfaces.
• Assessment of wind-chill factors accelerating heat loss through convection.
• Quantification of the mechanical force exerted by ice expansion in switch gaps.

Induction Heating Architecture vs. Resistive Alternatives

Switch heater induction systems operate on the principle of electromagnetic induction, utilizing a high-frequency alternating current to generate a magnetic field. This field induces eddy currents directly within the conductive metal of the switch rail or guideway component. Unlike resistive heating, which relies on conduction to move heat from a cable to the metal, induction generates heat internally within the molecular structure of the steel itself. This eliminates the thermal interface resistance and ensures that the heat is generated exactly where it is needed most: the internal volume of the switch point.

From a technical standpoint, the efficiency of induction is governed by the skin effect, where the current density is highest near the surface of the conductor. By tuning the frequency of the induction coils, engineers can control the depth of the heat penetration, ensuring that the entire cross-section of the switch rail reaches a temperature above the freezing point of water. This rapid response time is critical during "flash freeze" events, where resistive cables may take hours to penetrate a thick layer of ice, whereas induction systems can achieve the required thermal threshold in a fraction of the time.

• Utilization of high-frequency power supplies to minimize energy waste.
• Elimination of external heating elements that are prone to physical degradation.
• Precise control of thermal gradients to prevent localized overheating.
• Reduction in overall power consumption through targeted energy delivery.

Material Forensics and Structural Integration

Integrating induction systems into the Flatiron Flyer infrastructure requires a rigorous analysis of the coefficient of thermal expansion (CTE). Because induction heating is rapid and intense, it can introduce localized thermal stresses if not managed correctly. A forensic examination of the interface between the induction coils and the structural steel reveals that uneven heating can lead to micro-fractures or warping over repeated freeze-thaw cycles. To mitigate this, the system must be designed with a distributed coil geometry that ensures a uniform thermal profile across the entire switch assembly.

Furthermore, the proximity of the induction coils to the surrounding building envelope and drainage infrastructure must be considered. The electromagnetic interference (EMI) generated by high-frequency induction must be shielded to prevent the disruption of signaling systems and communication arrays along the US-36 corridor. The use of non-conductive, thermally stable mounting brackets—typically high-density polymers or specialized ceramics—is essential to isolate the coils from the primary structure while maintaining the necessary proximity for optimal magnetic flux linkage.

• Monitoring of metallurgical fatigue resulting from rapid thermal cycling.
• Implementation of EMI shielding to protect sensitive transit electronics.
• Selection of corrosion-resistant alloys for coil housings to withstand road salts.
• Analysis of the bond between the induction system and the concrete substructure.

Operational Reliability and Lifecycle Analysis

The ultimate metric for any infrastructure project on the US-36 BRT is the Mean Time Between Failures (MTBF). Induction systems offer a significantly higher MTBF compared to resistive systems because they lack the fragile heating elements that are subject to burnout and mechanical breakage. The absence of moving parts within the heating mechanism itself reduces the need for frequent manual inspections and replacements during the height of the blizzard season. Maintenance shifts from the physical replacement of cables to the electronic monitoring of power quality and coil integrity.

From a lifecycle cost perspective, the initial capital expenditure for induction systems is higher than for traditional heat tape or cables. However, the operational expenditure is lower due to increased energy efficiency and reduced labor costs. The ability to integrate these systems into a centralized SCADA (Supervisory Control and Data Acquisition) network allows for predictive maintenance; for instance, sensors can detect a drop in current efficiency, signaling a potential coil failure before the switch actually freezes. This shift from reactive to proactive maintenance is the hallmark of a master-engineered transit system.

• Integration with real-time weather telemetry for automated activation.
• Reduction in manual labor requirements for winter switch clearing.
• Long-term energy savings through the elimination of "always-on" resistive loads.
• Enhanced system longevity through the reduction of thermal shock to the steel.

Material Specification and High-Performance Mix Design

The structural integrity of the Colfax Avenue BRT platforms necessitates a high-density concrete (HDC) specification that transcends standard municipal sidewalk requirements. Given the extreme diurnal temperature fluctuations characteristic of the Denver plateau, the mix design must prioritize a low water-to-cementitious materials (w/cm) ratio, typically maintained below 0.40. This reduction in free water minimizes the capillary pore network, thereby limiting the permeability of the matrix and reducing the volume of void space available for water ingress. To achieve the required compressive strength and density, the integration of supplementary cementitious materials (SCMs) such as silica fume and Class F fly ash is mandatory.

Silica fume, acting as a highly reactive pozzolan, fills the microscopic voids between cement grains through the particle-packing effect and creates a denser calcium silicate hydrate (C-S-H) structure. This results in a concrete matrix that is significantly more resistant to the penetration of deleterious ions. Furthermore, the inclusion of air-entraining admixtures is non-negotiable for the Colfax corridor. These admixtures create a controlled system of microscopic air bubbles—typically ranging from 4% to 7% total air content—which act as expansion chambers for freezing water, preventing the internal hydraulic pressure from fracturing the cement paste.

• Optimized w/cm ratio: 0.35 to 0.38 for maximum density.
• Pozzolanic replacement: 5-10% silica fume and 20-25% fly ash.
• Air entrainment: Controlled spacing factor to ensure bubble proximity.
• Aggregate selection: Low-absorption, non-reactive crushed stone to prevent alkali-silica reaction (ASR).

Mechanisms of Freeze-Thaw Degradation and Pore Pressure

The degradation of concrete platforms in high-traffic transit corridors is primarily driven by the physics of phase change. When water penetrates the concrete surface and freezes, it expands by approximately 9% in volume. In non-air-entrained or poorly consolidated concrete, this expansion generates immense internal tensile stresses. If the internal pressure exceeds the tensile strength of the concrete, micro-cracks form. Over repeated freeze-thaw cycles, these micro-cracks coalesce, leading to macroscopic scaling, delamination, and eventually, full-depth spalling of the platform surface.

The Colfax Avenue environment introduces a compounding factor: the saturation level. When the concrete reaches its critical saturation point, there is no room for the expanding ice to move into the remaining pore space. This results in hydraulic pressure that forces water through the matrix, further eroding the cement paste. This process is accelerated in high-density concrete if the curing process was insufficient, as shrinkage cracks provide direct conduits for moisture to bypass the dense surface skin and reach the reinforcement steel, initiating an electrochemical corrosion cycle.

• Critical Saturation: The point at which pore space is too full to accommodate ice expansion.
• Hydraulic Pressure: The force exerted by water being pushed through capillaries during freezing.
• Scaling: The progressive peeling of the concrete surface in thin layers.
• Thermal Shock: Rapid temperature shifts caused by snow removal and sudden atmospheric warming.

Chemical Interaction and Deicing Defense Strategies

The application of deicing salts, specifically sodium chloride and calcium chloride, introduces a chemical catalyst that accelerates the degradation of the building envelope. Chlorides penetrate the concrete via diffusion and capillary suction, eventually reaching the steel reinforcement. Once the chloride threshold is exceeded at the rebar level, the protective passive oxide layer is destroyed, leading to pitting corrosion. The resulting iron oxide occupies a larger volume than the original steel, creating internal bursting pressures that cause the concrete to crack from the inside out.

To defend against this, a dual-stage defense strategy is employed. First, the use of penetrating silane-siloxane sealers creates a hydrophobic barrier. Unlike surface films, these sealers chemically bond to the concrete substrate, lining the pores with a water-repellent resin that prevents liquid water and dissolved salts from entering while remaining breathable to allow internal water vapor to escape. Second, the use of corrosion inhibitors within the mix design, such as calcium nitrite, provides a chemical defense that maintains the passivity of the steel even in the presence of chloride ions.

• Hydrophobic Sealants: Silane-siloxane blends that reduce water absorption by up to 95%.
• Chloride Threshold: The critical concentration of ions that triggers steel oxidation.
• Osmotic Pressure: The movement of water through the concrete membrane driven by salt concentrations.
• Passivation Layer: The thin alkaline film that protects steel from corrosion.

Lifecycle Forensics and Maintenance Protocols

Ensuring the 50-year design life of the Colfax BRT infrastructure requires a rigorous forensic maintenance schedule. Engineering authority dictates that visual inspections are insufficient; instead, non-destructive testing (NDT) must be utilized to monitor the internal health of the platforms. Ground-penetrating radar (GPR) is employed to detect subsurface delamination before it manifests as surface spalling. Additionally, half-cell potential mapping is used to identify areas of active corrosion within the reinforcement grid, allowing for targeted repairs rather than wholesale replacement.

The maintenance protocol must be cyclical, with sealer re-application occurring every 3 to 5 years depending on the abrasive wear caused by passenger foot traffic and bus vibrations. When spalling does occur, the repair must involve the removal of all chloride-contaminated concrete and the application of a polymer-modified repair mortar that matches the modulus of elasticity of the parent concrete. Failure to match the stiffness of the repair material often leads to "edge peeling," where the repair patch separates from the original slab due to differential thermal expansion.

• GPR Scanning: Identification of voids and delamination without damaging the slab.
• Half-Cell Potential: Measuring the electrical potential to predict corrosion risk.
• Modulus Matching: Ensuring repair mortars expand and contract at the same rate as the HDC.
• Carbonation Testing: Measuring the depth of pH loss to determine the risk of steel corrosion.

Material Specifications and Alloy Composition for Low-Floor Bogie Axles

The structural integrity of Low-Floor Light Rail Vehicle (LRV) bogies is fundamentally dependent on the metallurgical composition of the axle, which must withstand extreme cyclic loading while maintaining a reduced profile to accommodate the low-floor passenger cabin. In the context of the Civic Center Transit Concourse, the axles are subjected to high-frequency oscillation and significant shear forces. The industry standard for these components typically involves high-strength forged steel, often utilizing alloys such as EA4 or equivalent chromium-molybdenum steels. These materials are selected for their superior yield strength and toughness, ensuring that the axle does not undergo plastic deformation under peak load conditions.

The forging process is critical to achieving the required grain flow, which must be oriented longitudinally to maximize resistance to transverse fractures. The chemical composition is tightly controlled to prevent the formation of inclusions, which can act as nucleation sites for fatigue cracks. Carbon content is balanced to ensure hardenability without inducing excessive brittleness, while the addition of nickel and chromium enhances the material's resistance to environmental degradation and wear.

• Carbon (C): Optimized for a balance between tensile strength and weldability.
• Manganese (Mn): Added to increase hardenability and strength.
• Chromium (Cr): Utilized to enhance corrosion resistance and depth of hardening.
• Nickel (Ni): Integrated to improve low-temperature notch toughness and impact resistance.
• Phosphorus (P) and Sulfur (S): Kept to absolute minimums to prevent hot shortness and internal voids.

Heat treatment protocols, including quenching and tempering, are employed to refine the martensitic structure of the steel. This process transforms the coarse grain structure into a tempered martensite, which provides the necessary ductility to absorb energy during sudden impact events, such as rail joints or debris strikes, without catastrophic failure. The resulting hardness profile must be uniform across the axle diameter to prevent localized stress concentrations.

Stress Distribution and Fatigue Analysis in Low-Floor Configurations

Low-floor LRVs present a unique engineering challenge because the axle placement and bogie frame geometry are constrained by the need for a flat floor. This often results in a shift in the bending moment distribution compared to traditional high-floor vehicles. In the Civic Center Transit Concourse, the frequent navigation of tight-radius curves and the presence of switch-points introduce significant lateral forces. These forces create a complex state of multi-axial stress, where the axle is simultaneously subjected to bending, torsion, and shear.

The most critical stress points are typically located at the wheel seat transitions and the axle journal ends. In low-floor designs, the reduced distance between the wheel and the bogie frame can lead to higher localized stress concentrations. Fatigue analysis indicates that the majority of failures originate from these regions due to the phenomenon of cyclic loading. Over millions of cycles, micro-strains accumulate, leading to the initiation of fatigue cracks that propagate through the material until the remaining cross-sectional area can no longer support the applied load.

• Bending Moments: Primary stress drivers during acceleration and braking phases.
• Torsional Stress: Generated during curve negotiation and differential wheel slip.
• Contact Stress: High-pressure zones at the wheel-rail interface leading to surface deformation.
• Vibrational Resonance: High-frequency harmonics that can accelerate crack propagation if the axle's natural frequency matches the track excitation.

Empirical data from the Civic Center corridor suggests that the interaction between the wheel profile and the rail head is a primary driver of axle fatigue. The "hunting" oscillation—the sinusoidal movement of the wheelset—creates fluctuating lateral loads that stress the axle core. To mitigate this, precision machining of the wheel seats is mandatory to ensure a perfect press-fit, preventing fretting corrosion and subsequent stress risers.

Metallurgical Failure Modes and Forensic Indicators

Forensic analysis of axle failures within the Civic Center Transit Concourse reveals a prevalence of surface-initiated fatigue. The primary failure mode is typically identified as "spalling" or "pitting," where small fragments of metal are liberated from the surface due to extreme contact pressure. This surface degradation creates a notch effect, which significantly lowers the fatigue limit of the steel. Once a crack initiates at the surface, it propagates perpendicularly to the principal stress axis, often leaving behind characteristic "beach marks" or striations that indicate the progression of the failure over time.

Furthermore, the environment of an urban transit concourse introduces chemical variables that can accelerate metallurgical degradation. The use of de-icing salts and the accumulation of metallic dust from brake pads create an electrolytic environment that promotes pitting corrosion. This corrosion acts as a catalyst for stress corrosion cracking (SCC), where the combined effect of a corrosive medium and tensile stress leads to brittle failure, even in materials that are otherwise ductile.

• Intergranular Corrosion: Attack along the grain boundaries, weakening the overall cohesion of the alloy.
• Hydrogen Embrittlement: Occurs when atomic hydrogen penetrates the steel lattice, leading to internal pressure and cracking.
• Fretting Fatigue: Micro-motion between the axle and the wheel hub causing surface wear and crack initiation.
• Brittle Fracture: Rapid crack propagation occurring without significant plastic deformation, typically seen in over-hardened axles.

Tribological Analysis of Carbon-Contact Interfaces

The operational integrity of the Boulder Junction Depot relies heavily on the tribological relationship between the pantograph carbon strips and the overhead catenary system (OCS). In this high-voltage environment, the carbon strip serves as a sacrificial wear element designed to protect the more costly copper contact wire from premature erosion. The primary mechanism of wear is a combination of abrasive rubbing and adhesive transfer, where the graphite structure provides a low-friction interface that facilitates smooth current collection while minimizing mechanical drag.

From an engineering perspective, the wear rate is not linear but is instead a function of the contact force, the sliding velocity, and the purity of the carbon compound. At Boulder Junction, the use of high-grade impregnated carbon is mandatory to resist the mechanical stresses of high-speed transitions. When the carbon strip degrades, the surface roughness increases, leading to a rise in contact resistance. This increase in resistance generates localized thermal hotspots, which can lead to the premature sublimation of the carbon material, further accelerating the wear cycle.

• Material Composition: High-density synthetic graphite with metallic impregnation to enhance current carrying capacity.
• Wear Couple Dynamics: The interaction between the hard copper wire and the softer carbon strip ensures the wire remains structurally sound.
• Frictional Coefficients: Maintenance of a low coefficient of friction is critical to prevent "snagging" or mechanical failure of the pantograph arm.
• Thermal Dissipation: The ability of the carbon strip to conduct heat away from the contact point to prevent localized melting.

Wear Rate Quantification and Predictive Modeling

Quantifying wear rates at the Boulder Junction Depot requires a rigorous empirical approach, utilizing precision calipers and laser scanning to monitor the thickness of the carbon strips over specific mileage intervals. The standard metric for analysis is the linear wear rate, expressed in millimeters per 1,000 kilometers. Data indicates that environmental factors, particularly the humidity levels and temperature fluctuations common to the depot's geographic location, significantly influence the rate of carbon loss. High humidity can lead to a thin film of moisture that, while providing some lubrication, may also facilitate electrochemical corrosion at the interface.

Predictive modeling for these components involves calculating the "critical wear limit," the point at which the strip no longer provides sufficient structural support to the pantograph head. If the strip wears beyond this limit, the risk of a "burn-through" increases, where the pantograph frame makes direct contact with the OCS, resulting in catastrophic mechanical failure and immediate power loss. The analysis at Boulder Junction emphasizes a proactive replacement cycle based on the 80% wear threshold to ensure a safety margin against unexpected spikes in operational demand.

• Empirical Monitoring: Weekly measurements of strip thickness across a representative sample of the fleet.
• Environmental Variables: Adjustment of wear projections based on seasonal thermal expansion and contraction of the OCS.
• Critical Wear Limit: The minimum allowable thickness before the strip is deemed structurally compromised.
• Mileage Correlation: Mapping wear rates against total distance traveled to identify outliers in pantograph alignment.

Arc Flash Dynamics and Dielectric Breakdown

Arc flashing occurs when the physical contact between the pantograph carbon strip and the OCS is momentarily interrupted, creating a gap through which the high-voltage current must jump. This process ionizes the surrounding air, creating a plasma arc that reaches temperatures exceeding 5,000 Kelvin. At the Boulder Junction Depot, these arcs are most frequent during acceleration or when the pantograph encounters irregularities in the contact wire height. The resulting thermal shock causes rapid vaporization of the carbon, leading to "pitting" on the strip surface.

The danger of arc flashing extends beyond the electrical components to the surrounding building envelope and infrastructure. The intense ultraviolet radiation and electromagnetic interference (EMI) generated by a sustained arc can degrade nearby insulation and interfere with depot signaling systems. Furthermore, the metallic vapors produced during an arc flash can settle on the depot's roofing membranes and drainage systems, potentially introducing conductive contaminants that could lead to secondary grounding failures if not properly managed through forensic cleaning and inspection.

• Ionization Process: The transition of air into a conductive plasma state during contact loss.
• Thermal Pitting: The formation of microscopic craters on the carbon strip due to localized melting.
• EMI Generation: The production of high-frequency electromagnetic bursts that disrupt sensitive electronics.
• Surface Contamination: The deposition of carbonized particulates onto the depot's structural envelope.

Mitigation Strategies and Infrastructure Integration

To mitigate the risks associated with carbon wear and arc flashing, a multi-tiered engineering strategy is employed at the Boulder Junction Depot. First, the implementation of "smart" pantographs equipped with real-time monitoring sensors allows for the detection of abnormal bounce and vibration, triggering an immediate maintenance alert. Second, the OCS is tuned to a specific tension and height profile to minimize the probability of contact loss, thereby reducing the frequency of arc events. This requires a precise alignment of the overhead wires with the depot's structural support beams to prevent sagging.

From a facility management perspective, the integration of the electrical grounding system with the building's envelope is paramount. The depot's roofing system must be designed with non-conductive, high-durability membranes that can withstand the thermal stress of occasional arc flashes without compromising the building's weather-tightness. Additionally, the installation of surge protection and grounding grids around the depot perimeter ensures that any stray current from a pantograph failure is safely diverted to the earth, preventing hazardous voltage gradients on the depot floor.

• Real-Time Monitoring: Use of accelerometers to detect pantograph "bounce" and predict arc events.
• Catenary Tuning: Precise adjustment of wire tension to maintain a constant contact force.
• Envelope Protection: Utilization of thermally stable, dielectric roofing materials to prevent current leakage.
• Grounding Integration: Comprehensive bonding of all metallic depot structures to a common grounding grid.

Fluid Dynamics and Airflow Architecture in Subterranean Transit

The Longmont Intermodal Terminal represents a complex challenge in subterranean fluid dynamics, specifically regarding the management of smoke during a thermal event. In an underground rail environment, the primary objective of a forced air jet-fan system is the mitigation of "backlayering"—the phenomenon where smoke moves upstream against the direction of the ventilation flow due to buoyancy forces. The architectural geometry of the tunnel acts as a constrained conduit, which, while simplifying the direction of flow, exacerbates the pressure differentials created by a high-intensity fire.

To maintain a tenable environment for evacuation, the system must establish a critical velocity. This is the minimum air velocity required to ensure that the smoke layer is pushed forward, preventing it from migrating toward passengers awaiting evacuation behind the fire source. At the Longmont terminal, the integration of the "piston effect"—the air pushed by moving trains—must be balanced with the mechanical thrust of the jet fans to avoid creating turbulent eddies that could trap toxic gases in stagnant pockets.

• Laminar Flow Optimization: Ensuring the air moves in parallel layers to reduce friction against the tunnel walls.
• Buoyancy Control: Counteracting the natural tendency of hot smoke to rise and fill the tunnel crown.
• Pressure Gradient Management: Maintaining a positive pressure differential relative to the station platforms to prevent smoke infiltration into passenger waiting areas.
• Venturi Effect Mitigation: Reducing high-velocity air narrowings that could cause unpredictable smoke oscillations.

Jet-Fan Array Deployment and Thrust Specifications

The mechanical backbone of the Longmont system consists of high-output axial jet fans deployed in strategic arrays. Unlike traditional ventilation shafts that pull air from a central point, jet fans operate on the principle of momentum transfer, inducing a secondary flow of air by accelerating a primary column of air through a high-efficiency impeller. This creates a high-velocity jet that entrains the surrounding air, effectively pushing the smoke mass toward the designated exhaust portals.

Engineering specifications for these arrays require precise spacing to avoid "interference zones," where the discharge from one fan disrupts the intake of the next. The Longmont installation utilizes Variable Frequency Drives (VFDs) to modulate fan speed based on real-time sensor data. This allows the system to scale from a low-energy "maintenance mode" to a "full-capacity emergency mode" within seconds, ensuring that the thrust coefficient is sufficient to overcome the frictional resistance of the tunnel lining and the thermal buoyancy of the smoke plume.

• Axial Flow Impellers: Designed for high-temperature resilience to prevent blade deformation during prolonged exposure to heat.
• Thrust-to-Weight Ratios: Optimized to ensure structural mounts can withstand the recoil forces during maximum RPM.
• VFD Integration: Allowing for the seamless ramping of airflow to prevent sudden pressure shocks to the tunnel envelope.
• Redundancy Arrays: Overlapping coverage zones to ensure that the failure of a single fan unit does not result in a localized loss of critical velocity.

Forensic Analysis of Thermal Stratification and Critical Velocity

From a forensic engineering perspective, the efficacy of the Longmont system is measured by its ability to manage the "smoke layer height." In a tunnel fire, the smoke does not distribute evenly; it stratifies, with the hottest and most toxic gases accumulating at the ceiling. The jet-fan system is designed to maintain this stratification, keeping the "clear height" above the floor sufficient for visibility and respiration. If the air velocity drops below the critical threshold, the smoke layer descends, leading to a rapid degradation of visibility and a surge in carbon monoxide concentrations at the breathing zone.

The calculation of critical velocity at Longmont incorporates the heat release rate (HRR) of the anticipated fuel loads, such as polyurethane seating and electrical cabling. When the HRR increases, the buoyancy of the smoke increases, necessitating a proportional increase in air velocity. The forensic analysis of the tunnel's cross-sectional area reveals that any obstructions—such as signal boxes or drainage troughs—can create localized turbulence, which may trigger premature smoke descent if the jet fans are not calibrated to account for these boundary layer disruptions.

• Thermal Buoyancy Flux: The rate at which heat rises, determining the required thrust to push the smoke forward.
• Smoke Layer Descent Rate: The speed at which the breathable air zone shrinks during a failure of the ventilation system.
• Boundary Layer Friction: The drag created by the tunnel walls, which reduces the effective velocity of the air column.
• Tenable Limit Analysis: The empirical determination of the maximum time passengers have to evacuate before temperatures exceed 60 degrees Celsius.

Life Safety Integration and Failure Mode Analysis

The operational success of the forced air system is contingent upon its integration with the broader Life Safety System (LSS) and the Supervisory Control and Data Acquisition (SCADA) network. Smoke detection systems, utilizing both linear heat cables and optical sensors, trigger the jet-fan arrays automatically. The logic sequence is clinical: detect the fire location, determine the wind direction (if applicable), and activate the fans in a sequence that directs smoke away from the primary evacuation routes and toward the exhaust shafts.

A rigorous failure mode and effects analysis (FMEA) identifies the primary risk as "cascading fan failure," where the heat from a fire destroys the electrical conduits powering the fans. To mitigate this, the Longmont terminal employs fire-rated cabling and isolated power circuits. Furthermore, the system is designed with a "fail-safe" orientation; if the primary control system fails, the fans are programmed to default to a predetermined maximum-thrust state to ensure that smoke is not trapped within the tunnel, regardless of the specific fire location.

• SCADA Latency Reduction: Ensuring that the time between smoke detection and fan activation is under 30 seconds.
• Fire-Rated Conduit Integrity: Utilizing mineral-insulated copper-clad cables to maintain power during extreme thermal events.
• Exhaust Portal Capacity: Ensuring that the volume of air pushed by the jet fans does not exceed the capacity of the exhaust shafts, which would cause a back-pressure buildup.
• Evacuation Path Synchronization: Coordinating fan operation with emergency lighting and signage to guide passengers in the direction of the airflow.

Kinetic Energy Capture and DC Bus Stabilization

The fundamental mechanism of the Golden Station Transit Loop relies on the conversion of kinetic energy into electrical energy during the deceleration phase of rolling stock. When a transit vehicle initiates braking, the traction motors operate in reverse as generators, converting the vehicle's momentum into a high-voltage direct current (DC). In a traditional resistive braking system, this energy is dissipated as waste heat through onboard resistors, which increases the thermal load on the tunnel infrastructure and necessitates higher ventilation capacities. By implementing a regenerative braking framework, the system captures this energy and feeds it back into the third rail or overhead catenary system.

The primary challenge in this capture phase is the stabilization of the DC bus. Because braking events are transient and often occur simultaneously across multiple trains, the DC bus is subject to extreme voltage spikes. Without precise regulation, these spikes can exceed the dielectric strength of the insulation in the power distribution cables or trigger overvoltage protection circuits, leading to systemic shutdowns. To mitigate this, the Golden Station loop employs high-speed switching regulators and DC-DC converters that smooth the incoming current before it reaches the inversion stage.

• Implementation of IGBT (Insulated Gate Bipolar Transistor) modules for rapid switching and precise current control.
• Utilization of DC link capacitors to buffer transient voltage surges and maintain a steady state during peak braking events.
• Integration of bi-directional metering to monitor the flow of energy between the rolling stock and the stationary power substations.
• Deployment of active current limiting to prevent the saturation of transformers during synchronized braking sequences.

Inversion Architecture and Grid Synchronization

Once the captured DC energy is stabilized, it must be converted back into alternating current (AC) to be utilized by the station's auxiliary systems or exported back to the municipal utility grid. This process, known as power grid inversion, requires a sophisticated three-phase inverter architecture. The inversion process utilizes Pulse Width Modulation (PWM) to synthesize a sine wave that matches the frequency and phase of the utility grid. Any misalignment in phase synchronization can result in catastrophic failure of the inverter hardware or the introduction of significant harmonic distortion into the local electrical environment.

Harmonic distortion is a critical concern in commercial infrastructure, as it can lead to the overheating of neutral conductors and the premature failure of sensitive electronic equipment. The Golden Station system utilizes active harmonic filters and LCL (Inductor-Capacitor-Inductor) filters at the point of common coupling. These filters ensure that the Total Harmonic Distortion (THD) remains within the strict limits defined by IEEE 519 standards, preventing the "pollution" of the power grid and ensuring that the recovered energy is of utility-grade quality.

• Application of Phase-Locked Loop (PLL) algorithms to ensure microsecond-accurate synchronization with the grid frequency.
• Use of LCL filters to attenuate high-frequency switching noise generated by the PWM inverters.
• Deployment of multi-level inverter topologies to reduce the voltage stress on individual semiconductor components.
• Real-time monitoring of power factor to optimize the ratio of real power to reactive power during energy injection.

Energy Recovery Distribution and Load Balancing

The energy recovered from regenerative braking is characterized by high-intensity, short-duration bursts. This stochastic nature makes it difficult to feed directly into the grid without causing instability. To solve this, the Golden Station Transit Loop employs a hybrid energy storage system (HESS) that acts as a buffer between the braking trains and the grid. This system typically combines supercapacitors for rapid-fire energy absorption and lithium-iron-phosphate (LiFePO4) battery arrays for longer-term storage and steady discharge.

Load balancing is managed by a centralized Energy Management System (EMS) that predicts braking events based on real-time train telemetry. When a train approaches a station, the EMS prepares the storage buffers to receive the incoming surge. Once stored, this energy is redistributed to power station lighting, HVAC systems, and escalators, effectively reducing the facility's peak demand charges. This "peak shaving" capability not only lowers operational costs but also reduces the strain on the local utility infrastructure during high-traffic periods.

• Integration of supercapacitor banks to handle high C-rates during the initial seconds of a braking event.
• Utilization of a DC microgrid architecture to minimize conversion losses between the storage system and station loads.
• Implementation of predictive algorithms to synchronize energy availability with anticipated load spikes.
• Deployment of automated demand response protocols to shift energy usage based on the state of charge in the recovery buffers.

Infrastructure Integration and Thermal Management

From a forensic engineering perspective, the integration of regenerative braking systems introduces significant thermal and structural considerations. The power electronics—specifically the inverters and transformers—generate substantial waste heat during the conversion process. If not properly managed, this heat can lead to thermal runaway in semiconductor components or degrade the insulation of the surrounding cable conduits. The Golden Station loop utilizes a closed-loop liquid cooling system for the power modules, employing a water-glycol mixture to transport heat away from the electronics to external heat exchangers.

Furthermore, the physical installation of these systems within an existing transit loop requires careful consideration of the building envelope and structural load. The weight of the energy storage arrays and the volume of the cooling infrastructure necessitate reinforced flooring and specialized seismic bracing. Additionally, the electromagnetic interference (EMI) generated by the high-frequency switching of the inverters requires the use of shielded cabling and grounded metallic conduits to prevent interference with the transit loop's signaling and communication systems.

• Installation of liquid-cooled cold plates on IGBT modules to maintain junction temperatures within safe operating limits.
• Use of electromagnetic shielding (Faraday cages) around inverter housings to minimize EMI leakage.
• Application of high-temperature rated cross-linked polyethylene (XLPE) insulation for all high-voltage DC runs.
• Structural reinforcement of substation slabs to accommodate the static load of heavy-duty battery arrays and transformers.
