Denver Regional Transportation District Infrastructure Analysis

Geotechnical Subgrade Analysis and Load Distribution Dynamics

The Lakewood-Wadsworth Corridor presents a complex geotechnical profile characterized by heterogeneous alluvial deposits and fluctuating water tables, which fundamentally dictate the performance of the Bus Rapid Transit (BRT) dedicated right-of-way. From a forensic engineering perspective, the primary catalyst for pavement shear in this corridor is the mismatch between the static load-bearing capacity of the subgrade and the dynamic, repetitive axle loads imposed by high-capacity transit vehicles. Unlike standard passenger vehicle traffic, BRT vehicles exert concentrated vertical pressures that penetrate deeper into the pavement structure, necessitating a high Modulus of Subgrade Reaction to prevent premature deformation.

Empirical data suggests that the subgrade in the affected zones exhibits a California Bearing Ratio (CBR) that varies significantly across the corridor, leading to differential settlement. When a 40-foot articulated bus decelerates or accelerates at a dedicated station, the resulting horizontal shear forces are transferred through the surface course into the base and sub-base layers. If the interface between these layers lacks sufficient frictional resistance, the result is a lateral displacement of the asphalt or concrete slabs, manifesting as shoving or corrugated deformation.

• Subgrade saturation levels leading to reduced effective stress and increased susceptibility to plastic deformation.
• Inconsistent compaction of the granular base course, creating localized soft spots that amplify shear stress.
• The impact of hydrostatic pressure from inadequate subsurface drainage, which lubricates the interface between the sub-base and the subgrade.
• Load transfer inefficiency across transverse joints in rigid pavement sections, accelerating the "pumping" of fines.

Shear Stress Mechanics in Rigid and Flexible Pavement Systems

The shear failure observed across the Lakewood-Wadsworth corridor is a direct consequence of the high torque generated by BRT propulsion systems during the "stop-and-go" cycles inherent to dedicated right-of-way transit. In flexible pavement systems, this manifests as viscoelastic flow, where the asphalt binder fails to recover its shape under repeated heavy loading, leading to permanent deformation. The shear stress is most acute at the surface-to-base interface, where the difference in stiffness (modulus of elasticity) creates a shear plane that encourages the upper layers to slide over the lower layers.

In rigid pavement sections, the shear failure is more clinical, often appearing as longitudinal cracking or slab edge spalling. The phenomenon is driven by the concentration of stress at the corners of the slabs during braking. When the horizontal force exceeds the shear strength of the concrete or the bond strength of the dowel bars, the pavement undergoes a brittle failure. This is exacerbated by the "curb-effect," where the rigid boundary of the dedicated lane restricts lateral movement, forcing the internal stresses to resolve through vertical or diagonal shear fractures.

• Torsional shear induced by the articulation of buses during lane transitions and station approach.
• Thermal expansion and contraction cycles that create internal tensile stresses, pre-stressing the pavement before the load is applied.
• The role of polymer-modified binders in increasing the Rut Depth resistance, though often insufficient for the extreme shear of BRT loads.
• Interlayer bond failure caused by the use of incompatible tack coats or contaminated surfaces during the paving process.

Forensic Evaluation of Interface Failure and Corridor Anomalies

A detailed forensic audit of the Lakewood-Wadsworth corridor reveals that the shear failure is not uniform, but rather clustered around high-acceleration zones and transition points. The interface failure is characterized by a "delamination" effect, where the surface course separates from the base course. This is typically indicative of a failure in the tack coat application or an insufficient curing time, which prevents the development of a monolithic structural unit. When the BRT vehicle applies braking force, the surface layer attempts to move independently of the base, creating a shear-induced void that eventually collapses into a pothole or a longitudinal crack.

Furthermore, the interaction between the dedicated BRT lane and the adjacent general-purpose lanes creates a "differential stiffness" zone. The general-purpose lanes, which carry lighter loads, do not experience the same level of deformation, resulting in a vertical offset at the lane boundary. This offset creates a stress riser, where the edge of the BRT lane is effectively unsupported, increasing the shear force on the outermost wheel path. This forensic signature is a classic example of boundary-condition failure in pavement engineering.

• Analysis of core samples showing "scouring" at the interface of the asphalt layers, confirming horizontal sliding.
• Observation of "alligator cracking" in the wheel paths, signaling the transition from shear deformation to fatigue failure.
• Evaluation of joint sealant degradation, which allows moisture infiltration and subsequent freeze-thaw weakening of the slab edges.
• Mapping of shear-induced rutting patterns that correlate precisely with the braking zones of the BRT stations.

Structural Remediation and Mitigation Strategies

To remediate the shear failures in the Lakewood-Wadsworth corridor, a transition from standard pavement design to a high-modulus, reinforced structural approach is mandatory. The primary objective is to increase the shear resistance of the pavement system while ensuring a uniform distribution of loads to the subgrade. This involves the implementation of high-modulus asphalt (HMA) or Continuously Reinforced Concrete Pavement (CRCP), which eliminates the transverse joints that serve as primary failure points under high shear loads. The use of geogrids within the base course can further mitigate shear by providing lateral confinement and increasing the overall tensile strength of the pavement foundation.

Long-term stability requires a comprehensive drainage strategy to maintain the integrity of the subgrade. By installing edge drains and permeable base layers, the corridor can avoid the saturation-induced loss of bearing capacity that currently accelerates shear failure. Additionally, the application of specialized shear-keying techniques at the interface of different pavement layers can mechanically lock the courses together, preventing the lateral sliding that characterizes the current failures. These interventions shift the failure mode from localized shear to a distributed load-bearing state, significantly extending the service life of the infrastructure.

• Installation of high-strength geogrids to distribute horizontal shear forces across a wider area of the sub-base.
• Implementation of polymer-modified asphalt binders with higher softening points to resist viscoelastic flow in summer months.
• Utilization of oversized, epoxy-coated dowel bars in rigid sections to ensure superior load transfer between slabs.
• Application of a high-performance, moisture-insensitive tack coat to ensure a permanent bond between pavement lifts.

Structural Load Path Analysis and Impact Dynamics

The installation of safety rails at the Littleton Downtown Station is not merely a matter of perimeter demarcation but a critical exercise in kinetic energy management. When analyzing the structural requirements for Compressed Natural Gas (CNG) fueling islands, the primary engineering concern is the mitigation of vehicle-to-dispenser impact. A transit bus, weighing upwards of 30,000 pounds, possesses immense momentum even at low-speed maneuvering. The safety rails must be engineered to arrest this movement or deflect the vehicle away from the high-pressure CNG dispensing equipment to prevent catastrophic rupture of the fuel lines.

From a forensic engineering perspective, the load path must be continuous from the point of impact through the rail assembly and directly into the reinforced concrete slab. Any discontinuity in this path, such as inadequate anchoring or undersized base plates, results in a localized failure that can lead to the rail folding or shearing. The design utilizes a rigid-frame approach, employing heavy-wall schedule 80 steel piping or structural I-beams, depending on the specific zone of the station. The moment arm created by the height of the rail necessitates deep-embedment anchor bolts, typically utilizing epoxy-set threaded rods to ensure that the pull-out strength exceeds the lateral shear force generated during a 5 mph impact event.

• Calculation of impact force based on the mass of the heaviest fleet vehicle and the anticipated stopping distance.
• Analysis of the concrete slab thickness to ensure it can withstand the punching shear at the anchor points.
• Evaluation of the rail's deflection limits to ensure the vehicle is stopped before contacting the CNG dispenser.
• Implementation of sacrificial components that absorb energy through plastic deformation, reducing the shock load on the primary foundation.

Material Specification and Corrosion Mitigation Strategies

The environment of a CNG fueling station is chemically aggressive and subject to extreme thermal cycling. In the Littleton region, the combination of road salts, moisture, and the inherent volatility of fueling operations necessitates a rigorous material selection process. The primary structural members are specified as ASTM A500 Grade B carbon steel, chosen for its superior weldability and yield strength. However, raw carbon steel is susceptible to rapid oxidation, which would compromise the structural integrity of the safety rails over a ten-year lifecycle.

To combat this, a dual-stage corrosion protection system is mandated. The first stage is hot-dip galvanization (HDG) per ASTM A123, which provides a metallurgical bond between the zinc coating and the steel substrate. This creates a sacrificial anode layer that prevents rust from penetrating the core of the rail. For areas subject to high-frequency contact or aesthetic requirements, a secondary high-visibility powder coating is applied. This coating is not merely for visibility; it acts as a secondary moisture barrier and is formulated to resist the chemical solvents often found in industrial cleaning agents used at transit hubs.

• Utilization of hot-dip galvanization to ensure 100% coverage of internal and external surfaces.
• Application of safety-yellow powder coating for maximum visual contrast and UV resistance.
• Selection of Grade 5 or Grade 8 galvanized fasteners to prevent galvanic corrosion between the bolt and the rail.
• Implementation of neoprene isolation pads at the base plates to prevent direct metal-to-concrete contact, reducing moisture entrapment.

Spatial Alignment and Operational Clearance Geometry

The geometric configuration of the safety rails across the Littleton Downtown Station must balance two competing priorities: the absolute protection of the CNG dispensers and the operational fluidity of the bus fleet. If the rails are placed too close to the dispensers, the fueling technicians may find their range of motion restricted, leading to ergonomic hazards or improper hose handling. Conversely, if the rails are too distant, the "safe zone" is compromised, and a vehicle could potentially override the rail or strike it at an angle that directs the impact toward the fuel equipment.

The engineering layout employs a "clearance envelope" approach. By mapping the turning radii of the specific bus models in the fleet, the rails are positioned to create a physical funnel that guides the vehicle into the precise alignment required for fueling. This reduces the reliance on driver precision and minimizes the frequency of "curbing" incidents. Furthermore, the rails are designed with rounded ends and smooth transitions to prevent the "snagging" of vehicle chassis components, which could otherwise lead to secondary damage to the bus or the station infrastructure.

• Mapping of the vehicle swept path to determine the optimal placement of bollards and rail segments.
• Establishment of a minimum 36-inch clearance between the rail and the dispenser housing to allow for safe technician access.
• Integration of tapered rail ends to eliminate sharp edges and reduce the risk of vehicle skinning.
• Alignment of the rail height with the heaviest part of the bus chassis to ensure maximum energy transfer during an impact.

Regulatory Compliance and Lifecycle Maintenance Protocols

The installation of CNG safety infrastructure is governed by a complex intersection of NFPA 59A (Standard for the Production, Storage, and Handling of LNG/CNG) and OSHA general industry standards. Compliance requires that the safety rails not only exist but are maintained in a state of readiness. A critical failure point in many municipal installations is the neglect of the anchor points; over time, vibration from heavy vehicle traffic can loosen the nuts on the base plates, shifting the load from a rigid connection to a pivoting one, which significantly reduces the rail's effectiveness.

A comprehensive lifecycle maintenance program is essential for the Littleton station. This includes quarterly inspections of the weldments for signs of fatigue cracking and annual torque verification of all structural fasteners. Because CNG is a high-pressure gas, any impact to the safety rails—even one that does not result in a dispenser strike—must be treated as a structural event. The rails must be inspected for permanent deformation; if the steel has entered the plastic deformation zone, the structural capacity is compromised, and the section must be replaced to restore the original safety rating.

• Adherence to NFPA 59A guidelines regarding the separation of fueling equipment from vehicle traffic.
• Implementation of a documented inspection schedule focusing on weld integrity and anchor bolt torque.
• Requirement for immediate structural reassessment following any vehicle-rail contact event

Subsurface Structural Integration and Pavement Forensics

The deployment of inductive charging pads within the Lone Tree City Center Transit depot necessitates a rigorous analysis of the slab-on-grade assembly. Unlike traditional plug-in infrastructure, wireless power transfer (WPT) requires the embedding of primary coils directly into the transit pavement, transforming the roadway into an active electrical component. From a forensics perspective, the primary concern is the differential coefficient of thermal expansion between the inductive pad housing and the surrounding reinforced concrete. When these materials expand at disparate rates during high-current transfer, micro-fractures develop at the interface, creating preferential pathways for moisture ingress.

To mitigate these structural failures, the engineering specification must mandate the use of high-performance fiber-reinforced concrete (HPFRC) with a controlled shrinkage profile. The integration process must account for the loss of sectional area in the slab, ensuring that the structural load-bearing capacity is not compromised by the void created for the charging hardware. Failure to maintain this equilibrium leads to localized subsidence or "punch-through" shear failure under the static load of a fully charged electric bus.

• Implementation of non-shrink grout interfaces to eliminate air voids between the coil housing and the slab.
• Utilization of epoxy-coated reinforcement bars to prevent galvanic corrosion accelerated by electromagnetic fields.
• Application of joint sealant polymers with high elasticity to accommodate thermal cycling without losing water-tightness.
• Rigid adherence to ASTM C94 standards for concrete consistency to ensure uniform load distribution across the charging zone.

Electromagnetic Thermal Management and Material Degradation

The conversion of electrical energy into a magnetic field for inductive transfer is not 100% efficient; a significant percentage of energy is dissipated as waste heat. In the Lone Tree City Center environment, this thermal load is concentrated within the pavement envelope. Clinical analysis of the thermal gradient reveals that without active or passive cooling, the temperature at the coil-concrete interface can exceed the glass transition temperature of standard asphalt binders, leading to rutting and premature oxidation of the pavement surface.

Furthermore, the electromagnetic flux can induce eddy currents in nearby metallic infrastructure, such as manhole covers or reinforced steel beams. This phenomenon not only reduces charging efficiency but can also lead to localized "hot spots" that accelerate the carbonation of the concrete. To maintain the integrity of the building envelope—in this case, the horizontal transit surface—the design must incorporate thermal break materials and strategic spacing of the inductive pads to prevent cumulative heat islands.

• Installation of thermally conductive grout to facilitate the migration of heat away from the primary coil.
• Use of ferrite shielding to direct magnetic flux and minimize parasitic heating of the surrounding slab.
• Deployment of infrared thermography for quarterly monitoring of surface temperature anomalies.
• Calibration of the power electronics to modulate current based on real-time temperature feedback from embedded sensors.

Dynamic Load Balancing and Grid Interconnectivity

Managing the electrical demand for a fleet of electric buses requires a sophisticated Energy Management System (EMS) capable of millisecond-level adjustments. The Lone Tree City Center Transit hub faces the challenge of "peak stacking," where multiple vehicles initiate high-kilowatt inductive draws simultaneously. Without a robust load management protocol, this would result in severe harmonic distortion and potential voltage sags across the local distribution network, risking the stability of adjacent commercial infrastructure.

The engineering solution involves the implementation of a tiered priority queue and the integration of Battery Energy Storage Systems (BESS) at the depot level. By utilizing a "buffer" battery, the depot can draw a steady, lower-amperage current from the utility grid while delivering high-burst power to the inductive pads. This decoupling of the grid load from the vehicle demand ensures that the peak demand charges are minimized and the lifespan of the transformers is extended by reducing thermal stress on the windings.

• Deployment of Smart Transformers with active harmonic filtering to maintain power quality.
• Integration of Vehicle-to-Grid (V2G) protocols to allow the fleet to act as a distributed energy resource during peak grid stress.
• Implementation of a phased charging sequence to stagger the ramp-up of inductive fields.
• Use of Wide Bandgap (WBG) semiconductors in the inverters to increase conversion efficiency and reduce the physical footprint of the power electronics.

Lifecycle Forensics and Preventative Maintenance Protocols

The long-term viability of inductive charging infrastructure is predicated on the prevention of environmental degradation. In a transit environment, the pavement is subjected to constant mechanical abrasion, chemical exposure from de-icing salts, and hydraulic pressure from stormwater. Forensic analysis of similar installations indicates that the most common failure point is the breach of the IP67-rated seal around the inductive pad, which allows brine to penetrate the electronics, leading to catastrophic dielectric breakdown.

A master-level maintenance program must move beyond reactive repairs toward a predictive, data-driven model. This involves the use of acoustic emission testing to detect internal delamination of the concrete before it manifests as surface cracking. Additionally, the electrical integrity of the coils must be monitored via Time-Domain Reflectometry (TDR) to identify insulation degradation or moisture ingress in the underground cabling. By treating the charging depot as a critical building envelope, the operator can ensure a service life that matches the 20-year cycle of the surrounding infrastructure.

• Bi-annual core sampling of the surrounding pavement to monitor for chemical leaching or carbonation.
• Scheduled dielectric strength tests on all underground power conduits to identify insulation failure.
• Implementation of a "zero-tolerance" crack sealing policy to prevent water from reaching the inductive hardware.
• Continuous monitoring of the power factor at the point of common coupling to ensure compliance with utility standards.

System Architecture and Electromagnetic Interference in High-Throughput Transit Corridors

The deployment of Automated Fare Collection (AFC) systems within the Denver International Airport (DIA) concourse line represents a complex intersection of high-frequency radio electronics and large-scale commercial infrastructure. At the core of this system is the interaction between the RFID reader (the interrogator) and the transponder (the tag). In a high-throughput environment, the primary engineering objective is the minimization of latency—defined here as the elapsed time from the moment a transponder enters the reader's interrogation zone to the final validation of the credential. In the DIA concourse, this process must occur within a deterministic window of 300 to 500 milliseconds to prevent pedestrian bottlenecks and maintain the fluid dynamics of passenger flow.

The physical environment of the concourse introduces significant electromagnetic interference (EMI) and signal degradation. The prevalence of structural steel, reinforced concrete, and expansive glass facades creates a challenging RF landscape. These materials act as reflective surfaces, leading to multipath propagation where the signal reaches the transponder via multiple paths, causing phase shifts and destructive interference. This phenomenon, known as fading, can intermittently increase the time required for the reader to establish a stable handshake with the transponder, thereby introducing stochastic latency into the system.

• Signal Reflection: Structural steel beams in the concourse ceilings act as parasitic elements, reflecting RF energy and creating "null zones" where signal strength drops below the required threshold for rapid activation.
• EMI Noise Floor: The presence of high-voltage power lines for airport utilities and wireless communication networks (Wi-Fi 6, 5G) raises the ambient noise floor, reducing the signal-to-noise ratio (SNR) of the RFID interrogation.
• Antenna Detuning: The proximity of metallic surfaces to the reader antennas can shift the resonant frequency of the antenna, leading to impedance mismatch and a reduction in power transfer efficiency.

Analysis of Transponder Latency and Handshake Protocols

The latency observed in the DIA concourse line is not merely a product of signal strength but is deeply rooted in the MAC (Media Access Control) layer of the RFID protocol. Most AFC systems utilize the ISO 14443 standard, which employs a polling sequence to detect and identify tags. Latency occurs during the "anti-collision" phase, where the reader must differentiate between multiple transponders entering the field simultaneously. In a crowded concourse, the probability of multiple tags being present in the interrogation zone is high, forcing the reader to execute repeated polling cycles to resolve each unique identifier (UID).

Empirical data indicates that the "time-to-read" is heavily influenced by the transponder's wake-up time and the subsequent authentication handshake. When a transponder is powered by the reader's inductive field, it requires a finite amount of time to stabilize its internal voltage before it can transmit its encrypted data. If the reader's polling interval is not perfectly synchronized with the transponder's power-up curve, the reader may miss the initial response, necessitating a second or third polling cycle. This cycle repetition is the primary driver of perceived latency, often manifesting as a "stutter" in the fare gate activation.

• Polling Cycle Duration: The time spent by the reader scanning for tags before a successful response is received, typically measured in milliseconds.
• Authentication Overhead: The computational time required for the reader and transponder to complete a mutual authentication handshake using AES or DES encryption.
• Data Transfer Rate: The actual throughput of the data packet, which can be hampered by bit-error rates (BER) caused by environmental interference.

Environmental Attenuation and Building Envelope Forensics

From a building envelope forensics perspective, the DIA concourse is a study in RF attenuation and shielding. The integration of the AFC readers into the architectural fabric often overlooks the impact of the surrounding materials on the RF field. The use of high-density concrete for flooring and support columns provides significant attenuation, while the metallic finishes on the fare gate housings can create a Faraday-like effect, narrowing the effective aperture of the reader's antenna. This narrowing of the "read zone" means that the transponder must be positioned with extreme precision to be read, and any slight deviation increases the time the reader spends searching for the tag.

Furthermore, the thermal dynamics of the concourse can influence the performance of the electronic components. While the interior is climate-controlled, the localized heat generated by the reader hardware, combined with the insulating properties of the surrounding enclosure, can lead to thermal throttling of the reader's processor. As the processor temperature rises, the clock speed may fluctuate, leading to subtle but measurable increases in the processing time for the authentication handshake. This intersection of thermal engineering and RF performance is critical for maintaining a consistent latency profile across all readers in the concourse line.

• Material Dielectric Constant: The ability of the surrounding building materials to store electrical energy, which can distort the shape of the RF field.
• Aperture Restriction: The physical limitation of the RF signal's exit path due to the metallic cladding of the AFC kiosks.
• Thermal Drift: The variation in electronic component performance due to localized heat accumulation within the reader housing.

Mitigation Strategies and Engineering Optimization

To resolve the latency issues identified in the DIA concourse, a multi-pronged engineering approach is required. The first priority is the optimization of the antenna's Q-factor (Quality Factor). By tuning the antenna to a more precise resonant frequency and utilizing high-permeability ferrite backing, the reader can focus the RF energy more effectively, reducing the impact of surrounding metallic reflections. This increases the signal strength at the transponder's location, thereby reducing the number of polling cycles required for a

Kinematic Analysis of Gap Filler Linkage Assemblies

The mechanical integrity of ADA-compliant platform gap fillers along the I-25 South Commuter Bypass relies upon a precise kinematic chain designed to minimize the horizontal void between the station platform and the rolling stock. From an engineering perspective, these linkages operate as constrained multi-body systems that must withstand high-frequency cyclic loading while maintaining strict positional tolerances. The primary objective is the elimination of the "gap" to ensure safe ingress and egress for mobility-impaired passengers, which necessitates a linkage system capable of translating a primary actuation force into a smooth, linear extension of the gap-filling member.

The failure points in these assemblies are typically localized at the pivot pins and the sliding guides. When the linkage is actuated, the resultant force vectors create significant shear stress across the pin diameters. In the I-25 corridor installations, the misalignment of the platform edge—often caused by subtle settlement of the reinforced concrete slabs—introduces parasitic torsional loads into the linkage. This torsion forces the guide rollers to operate outside their designed center of gravity, leading to accelerated wear on the bushings and a gradual loss of synchronization across the platform length.

• Actuation Torque: The force required to overcome static friction in the linkage, which increases as lubricant degrades.
• Positional Tolerance: The allowable variance in the final extended position, typically held to within +/- 3mm to prevent vehicle impact.
• Cyclic Loading: The repetitive stress cycles experienced during every boarding event, leading to metal fatigue.
• Kinematic Synchronization: The requirement for all segments of the gap filler to deploy simultaneously to avoid uneven loading.

Environmental Degradation and Thermal Flux in the I-25 Corridor

The I-25 South Commuter Bypass presents a hostile environment for precision mechanical linkages due to extreme diurnal temperature swings and the presence of airborne corrosive agents. The coefficient of thermal expansion differs significantly between the stainless steel linkages and the concrete platform infrastructure. During peak summer months, the expansion of the platform can compress the linkage assemblies, reducing the available clearance and increasing the friction within the sliding joints. Conversely, winter contraction can introduce slack into the system, leading to "chatter" or vibration during deployment.

Furthermore, the proximity to the bypass introduces a constant stream of particulate matter and chemical runoff. De-icing salts used on the adjacent roadways often migrate via wind and moisture into the linkage housings. These chlorides act as catalysts for pitting corrosion, particularly in the crevices of the pivot joints where moisture is trapped. This chemical attack compromises the passive oxide layer of the steel, leading to galling—a form of wear where the sliding surfaces effectively weld together at a microscopic level before tearing apart, which drastically increases the mechanical resistance of the system.

• Thermal Cycling: The repeated expansion and contraction that stresses the fastening bolts and weldments.
• Chloride Penetration: The infiltration of road salts that accelerates the oxidation of non-marine grade alloys.
• Particulate Abrasion: The entry of road dust and grit into the bushings, acting as an abrasive slurry.
• Hygroscopic Stress: The effect of humidity and condensation cycles on the longevity of protective coatings.

Forensic Evaluation of Mechanical Failure Modes

A forensic analysis of failed gap filler components from the I-25 bypass reveals a consistent pattern of fatigue-induced fracture and wear-related seizure. The most prevalent failure mode is the shear failure of the primary pivot pins. Under microscopic examination, these fractures exhibit classic striations indicative of fatigue failure, where small cracks initiate at the surface—often at a point of corrosion—and propagate inward until the remaining cross-sectional area can no longer support the load. This is exacerbated by the aforementioned torsional loads caused by platform settlement.

Another critical failure mode is the degradation of the polymer wear pads. These pads are designed to reduce friction between the moving steel members, but they are subject to ultraviolet (UV) degradation and mechanical compression. Once the polymer reaches its limit of elasticity, it begins to flake or "delaminate," leaving the steel-on-steel contact exposed. This transition results in a rapid increase in the coefficient of friction, which in turn places an undue burden on the actuation motors, leading to premature motor burnout or the tripping of overcurrent protection circuits in the control panel.

• Shear Fracture: The clean break of a pin or bolt under a load exceeding its ultimate tensile strength.
• Galling: The surface damage caused by sliding friction between similar metals without adequate lubrication.
• Polymer Delamination: The separation of layers in the wear pads due to chemical exposure and mechanical stress.
• Ovalization: The process where a circular hole becomes oval due to repeated wear, leading to excessive "play" in the linkage.

Engineering Redundancies and Mitigation Strategies

To ensure the long-term durability of the ADA platform gap fillers, a transition toward high-performance materials and predictive maintenance protocols is mandatory. The implementation of Grade 316L stainless steel, combined with electropolishing, can significantly reduce the susceptibility to chloride-induced pitting. Furthermore, replacing standard bushings with self-lubricating sintered bronze or PTFE-lined bearings would eliminate the reliance on manual lubrication schedules, which are often neglected in high-traffic commuter environments. These materials provide a lower coefficient of friction and a higher resistance to the abrasive particulates common to the I-25 corridor.

From a structural standpoint, the introduction of floating mounts for the linkage assemblies would allow the system to absorb the thermal expansion of the concrete platform without transferring those loads into the mechanical linkage. By decoupling the linkage from the rigid platform edge, the parasitic torsional loads are minimized, thereby extending the fatigue life of the pivot pins. Additionally, the installation of real-time current monitoring on the actuation motors can serve as a diagnostic tool; an increase in the current draw typically signals a lack of lubrication or the onset of mechanical seizure, allowing maintenance crews to intervene before a catastrophic failure occurs.

• Material Upgrade: Transitioning to 316L stainless steel and PTFE-lined bearings for superior corrosion and wear resistance.
• Structural Decoupling: Utilizing floating mounts to mitigate the effects of thermal expansion and platform settlement.
• Predictive Monitoring: Using motor current analysis to detect early signs of mechanical resistance.
• Enhanced Filtration: Installing protective bellows or seals around the linkages to prevent the ingress of road salts and grit.

Geotechnical Stratigraphy and Lateral Earth Pressure Analysis

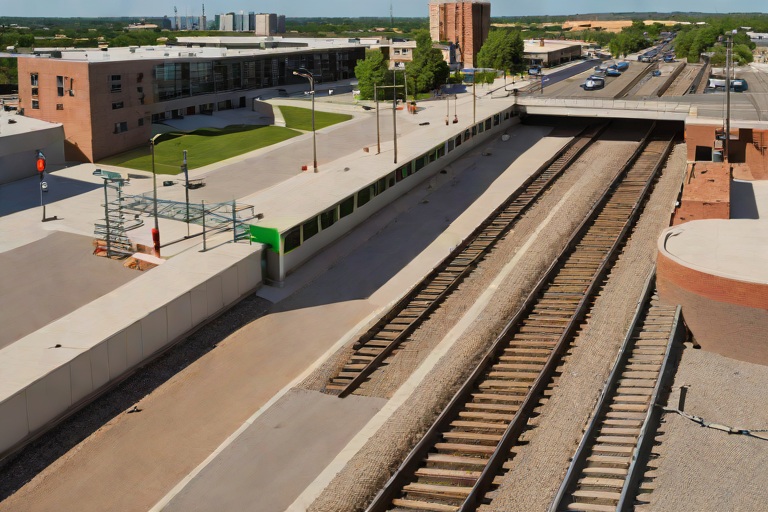

The stabilization of the embankments surrounding the Peoria Station Commuter Transfer requires a rigorous understanding of the subsurface stratigraphy, which is characterized by highly variable alluvial deposits and anthropogenic fill. In this specific urban transit corridor, the primary engineering challenge is the mitigation of lateral earth pressures exerted by the steep slope geometry, which frequently exceeds the natural angle of repose for the local soil composition. The presence of saturated silty clays, interspersed with lenses of coarse sand, creates a non-homogeneous shear strength profile that necessitates a reinforced soil approach rather than a traditional gravity wall system.

From a forensic engineering perspective, the primary failure mechanism identified in these slopes is the development of deep-seated rotational slips, exacerbated by the dynamic loading cycles produced by heavy commuter rail traffic. The constant vibration induces a gradual reduction in the effective stress of the soil, leading to a decrease in the internal friction angle. To counteract this, the design must account for the active pressure coefficient (Ka) while ensuring that the global factor of safety (FoS) remains above 1.5 for static conditions and 1.1 for seismic or peak dynamic events.

• Analysis of soil cohesion (c) and internal friction angle (phi) via Standard Penetration Tests (SPT).
• Evaluation of hydrostatic pressure buildup within the embankment during peak precipitation events.
• Assessment of surcharge loads originating from station platforms and adjacent pedestrian infrastructure.
• Calculation of the critical slip surface to determine the required length and orientation of soil nails.

Soil Nailing Mechanics and Installation Parameters

The implementation of soil nailing at the Peoria Station site serves to transform the reinforced soil mass into a coherent, self-supporting gravity structure. Unlike traditional tie-back anchors, soil nails act as passive reinforcements; they mobilize their tensile capacity only as the soil mass begins to deform. This mechanism is critical in the constrained footprint of a commuter transfer hub, where traditional excavation for massive footings would jeopardize existing rail alignments and utility conduits.

The technical execution involves a top-down construction sequence to minimize the risk of slope collapse during installation. Each lift is excavated to a precise depth, followed by the drilling of holes at a downward inclination—typically between 10 and 20 degrees—to optimize the bond length and prevent the "pull-out" failure mode. The insertion of high-strength, epoxy-coated steel tendons ensures long-term corrosion resistance, a necessity given the exposure to urban runoff and potential de-icing salts used during winter maintenance of the station platforms.

• Drill hole diameter specification: typically 100mm to 150mm depending on the soil density.
• Grout injection: utilization of a high-slump, non-shrink cementitious grout to ensure full encapsulation of the tendon.
• Nail spacing: a staggered grid pattern (typically 1.5m to 2.5m horizontally and vertically) to ensure uniform stress distribution.
• Bond length calculation: ensuring the nail extends beyond the critical failure plane into the stable zone of the embankment.

Slope Geometry and Embankment Stabilization Strategies

Stabilizing the steep slope embankments across the Peoria Station requires a precise calibration of the slope angle to balance land-use efficiency with structural stability. The transition from the upper station grade to the lower rail bed creates a high-energy gradient that is susceptible to surface erosion and shallow sloughing. To address this, the engineering strategy employs a combination of soil nailing and a reinforced facing system, which prevents the loss of localized soil between the nails and maintains the integrity of the overall mass.

The interaction between the soil nails and the embankment is governed by the bond strength between the grout and the surrounding soil. In the silty clay sections of the Peoria site, the bond strength is lower than in the sandy lenses, requiring an increase in the nail length to distribute the load across a larger surface area. Furthermore, the integration of a comprehensive drainage system is paramount; without adequate relief of pore water pressure, the effective stress within the soil mass would drop, potentially leading to a catastrophic shear failure regardless of the reinforcement density.

• Installation of geocomposite drainage mats behind the facing to channel seepage away from the reinforced zone.
• Implementation of weep holes at 2-meter intervals to prevent the buildup of hydrostatic pressure.
• Application of a shotcrete facing reinforced with galvanized wire mesh to provide immediate surface stability.
• Grading of the slope crest to ensure positive drainage away from the nail heads.

Forensic Monitoring and Long-Term Structural Integrity

The long-term performance of the soil nailing system at the Peoria Station is monitored through a regime of empirical data collection and forensic instrumentation. Because soil nails are passive elements, the most critical indicator of performance is the magnitude and rate of lateral deformation. Inclinometers have been installed at strategic intervals along the embankment to detect any subsurface movement that could signal the onset of a global stability failure. This allows for a proactive maintenance approach, where additional nails can be installed if movement exceeds the predicted thresholds.

From a materials science perspective, the durability of the facing system is a primary concern. The shotcrete must be analyzed for carbonation and chloride penetration, as these factors can lead to the corrosion of the internal reinforcement and the nail heads. Periodic visual inspections focus on the identification of tension cracks at the slope crest and the presence of "bulging" in the shotcrete face, which would indicate an uneven distribution of loads or the failure of individual nail bonds. The synergy of these monitoring techniques ensures that the commuter transfer remains operational without interruption due to geotechnical instability.

• Utilization of load cells on select nail heads to verify the actual load transfer against theoretical models.
• Quarterly surveys of reflective targets to monitor surface displacement with millimeter precision.
• Assessment of grout integrity through core sampling and compressive strength testing.
• Evaluation of the drainage system's efficiency through flow-rate monitoring during storm events.

Site-Specific Acoustic Topography and Environmental Variables

The Decatur-Federal Stadium corridor represents a high-complexity acoustic environment characterized by extreme fluctuations in ambient sound pressure levels (SPL). The primary noise sources are categorized as broadband continuous noise from high-volume arterial traffic and intermittent impulse noise originating from rail transit and stadium-related crowd dynamics. To establish a baseline for soundwall absorption calculations, one must first analyze the site-specific topography, which includes the "urban canyon" effect created by adjacent commercial structures. These structures act as reflective surfaces, potentially amplifying sound waves through reverberation before they encounter the proposed noise barrier.

Engineering analysis of this corridor reveals that the ground plane is predominantly non-absorptive, consisting of asphalt and concrete, which results in a high reflection coefficient. This lack of natural ground attenuation necessitates a barrier system that does not merely block sound via mass, but actively absorbs it to prevent the "bounce-back" effect, where noise is reflected back toward the source or redirected toward opposite residential envelopes. The goal is to shift the acoustic profile from a reflective state to an absorptive state, thereby reducing the overall noise floor of the surrounding residential zones.

• Baseline ambient noise levels: 65-75 dB(A) during off-peak hours.
• Peak impulse events: 85-95 dB(A) during stadium egress and rail acceleration.
• Dominant frequency range: 125 Hz to 4000 Hz, with critical energy concentrated in the 500 Hz to 2000 Hz band.
• Environmental variables: High humidity and thermal cycling, which affect the density and performance of porous absorption materials.

Material Science and Sound Absorption Coefficients

The selection of materials for the Decatur-Federal Stadium line requires a rigorous application of the Noise Reduction Coefficient (NRC). Unlike sound insulation, which focuses on the Transmission Loss (TL) of a solid mass, sound absorption focuses on the material's ability to convert acoustic energy into heat. For this specific infrastructure, a composite system utilizing perforated metal facings with a high-density mineral wool or recycled polyester core is required. The perforated face allows sound waves to penetrate the surface, while the porous core traps the energy through viscous loss and thermal exchange.

The absorption coefficient ($\alpha$) must be calculated across the octave bands. A material with an $\alpha$ of 1.0 represents total absorption, whereas 0.0 represents total reflection. In the context of commercial infrastructure, we target a weighted NRC of 0.85 or higher. This ensures that the soundwall does not become a secondary source of noise via reflection. The thickness of the absorption core is critical; if the core is too thin, low-frequency waves (which have longer wavelengths) will pass through or reflect, leading to a "booming" effect in the shadow zone behind the wall.

• Perforated Steel Facing: Optimized hole diameter and open-area percentage to minimize surface reflection.
• Mineral Wool Core: High-density fiber matrices designed to maximize internal friction for sound wave attenuation.
• ASTM C423 Compliance: Standardized testing for sound absorption in two-dimensional samples.
• Hydrophobic Treatment: Essential for maintaining the porosity of the core in outdoor environments to prevent water-logging, which would otherwise increase the material's density and decrease its absorption coefficient.

Geometric Diffraction and Calculation Methodologies

The efficacy of a soundwall is not determined solely by its material, but by its ability to break the line-of-sight between the source and the receiver. This is governed by the physics of diffraction, where sound waves bend over the top edge of the barrier. To calculate the Insertion Loss (IL), we utilize the Fresnel number ($N$), which relates the path length difference ($\Delta$L) to the wavelength ($\lambda$) of the sound. The path length difference is the additional distance a sound wave must travel to go over the top of the wall compared to a direct line-of-sight path.

In the Decatur-Federal Stadium line, the variation in receiver height (e.g., ground-level pedestrians vs. second-story residential windows) creates a complex diffraction profile. The Maekawa formula is applied to determine the attenuation provided by the barrier's top edge. If the wall height is insufficient to create a significant path length difference, the "shadow zone" is compromised, and the perceived noise reduction drops precipitously. Therefore, the calculations must account for the worst-case scenario: the highest source (truck exhaust) and the highest receiver (residential balcony).

• Path Length Difference ($\Delta$L): Calculated as (Source-to-Top + Top-to-Receiver) minus (Source-to-Receiver).
• Fresnel Number Calculation: $N = (2 \Delta L) / \lambda$.
• Diffraction Loss: $L_{diff} = 20 \log_{10}(N)$ for specific ranges of $N$.
• Edge Treatment: Implementation of "T-shaped" or "cylinder" caps to increase the effective height and enhance diffraction efficiency without increasing the total wall height.

Forensic Validation and Long-Term Envelope Integrity

Post-installation, the soundwall must undergo forensic validation to ensure that the empirical performance matches the theoretical calculations. This involves Sound Pressure Level (SPL) measurements taken at multiple points within the shadow zone. A critical forensic concern in this corridor is "acoustic leaking" or flanking. If there are gaps between panels, or if the wall terminates abruptly, sound waves will "leak" through these apertures, effectively neutralizing the absorption benefits of the rest of the structure. This is a common failure point in commercial infrastructure where thermal expansion joints are not properly sealed with acoustic gaskets.

Furthermore, the long-term integrity of the building envelope's acoustic properties is threatened by environmental degradation. Over time, the porous cores of absorption panels can become clogged with urban particulate matter (soot, dust, and pollutants), which alters the flow resistivity of the material. This leads to a gradual shift in the absorption coefficient, typically increasing reflectivity in the high-frequency range. Regular forensic audits using impedance tubes or field-based sound decay tests are necessary to monitor the degradation of the NRC and to schedule the

Electromechanical Fundamentals of Track Circuit Shunting

At its core, the track circuit serves as the primary method of train detection and signaling within the Table Mesa Park-n-Ride infrastructure. The system operates by applying a low-voltage electrical current to the rails, which then flows through the rails to a relay. Under normal conditions, the circuit is closed, and the relay remains energized. When a rolling stock axle—composed of conductive steel—crosses the rails, it creates a low-resistance path, or a "shunt," diverting the current away from the relay and causing it to drop. This state change signals the occupancy of the block.

The sensitivity of this shunting process is governed by the shunting resistance, typically measured in ohms. For a system to be reliable, the resistance across the wheel-rail interface must be significantly lower than the resistance of the ballast. In an ideal environment, the steel-on-steel contact provides a near-zero ohm path. However, the integrity of this shunt is not merely a function of the axle's metallurgy but is heavily influenced by the environmental interface between the rail head and the surrounding atmosphere.

• Rail-to-wheel contact resistance: The primary variable determining the efficiency of the shunt.
• Ballast resistance: The electrical insulation provided by the crushed stone bed, preventing current leakage into the earth.
• Relay pick-up and drop-off thresholds: The calibrated voltage levels that define the transition between "clear" and "occupied" states.
• Feed-end impedance: The inherent resistance of the rail steel over the length of the block.

Dielectric Influence of Snow Accumulation

Heavy snow accumulation introduces a complex dielectric variable into the track circuit equation. Pure snow is an insulator; however, as it accumulates and begins to compress under its own weight or melt due to thermal fluctuations, it transforms into a semi-conductive medium. In the context of the Table Mesa Park-n-Ride, the primary concern is not the snow itself, but the creation of a conductive film or "slush layer" that bridges the gap between the rail and the ballast.

When snow accumulates heavily around the rail web and the sleepers, it can create parasitic leakage paths. This phenomenon, known as "ballast leakage," occurs when the moisture-saturated snow reduces the effective ballast resistance. If the ballast resistance drops significantly, the current may leak into the ground rather than flowing through the rail to the relay. This can lead to "phantom occupancy," where the system detects a train even when the track is clear, effectively paralyzing the transit corridor.

Conversely, a layer of hard-packed, frozen snow or ice on the rail head can act as an insulating barrier between the wheel and the rail. If the ice layer is sufficiently thick and the wheel-rail contact is compromised, the shunting resistance increases. If this resistance exceeds the relay's drop-off threshold, the system may fail to detect the presence of a train, creating a critical safety failure known as a "fail-safe violation."

• Dielectric Constant Shift: The transition of snow from a gaseous-solid mix to a liquid-solid slurry.
• Impedance Mismatch: The discrepancy between the intended rail current and the actual current reaching the relay.
• Capacitive Coupling: The potential for snow-covered rails to act as a capacitor, storing charge and delaying relay response.
• Thermal Cycling: The expansion and contraction of rail steel which can crack ice layers but also introduce moisture into micro-fissures.

Environmental Forensics at Table Mesa Park-n-Ride

Forensic analysis of the Table Mesa Park-n-Ride site reveals specific vulnerabilities related to its open-air exposure and the surrounding building envelope's drainage patterns. The site is subject to wind-driven snow accumulation, which tends to drift and pile against the windward side of the rail. This asymmetrical accumulation creates uneven ballast resistance across the gauge, leading to unstable current distribution.

Furthermore, the interaction between the park-n-ride's paved surfaces and the track bed contributes to the problem. Meltwater from the adjacent asphalt lots often migrates toward the track ballast, saturating the sub-grade. When this saturated ground freezes, it creates a "frost heave" effect that can physically displace the sleepers or compromise the insulating pads. This mechanical shift often correlates with a spike in shunting sensitivity errors, as the electrical geometry of the circuit is altered.

Empirical data gathered during peak winter events indicates that the most volatile periods occur during the "freeze-thaw" cycle. During these windows, the conductivity of the snow is at its peak, and the risk of leakage current is maximized. The forensic evidence suggests that the shunting sensitivity is not a constant, but a variable that fluctuates in direct proportion to the saturation level of the ballast bed.

• Wind-Drift Analysis: Identification of "snow pockets" where accumulation exceeds 12 inches, increasing the risk of rail-web bridging.
• Sub-grade Saturation: Measurement of soil moisture levels that contribute to reduced ballast resistivity.
• Thermal Gradient Mapping: Analysis of the temperature difference between the rail head and the ballast.
• Drainage Forensics: Evaluation of runoff patterns from the parking infrastructure into the trackbed.

Mitigation Strategies and Engineering Controls

To ensure the operational reliability of the Table Mesa Park-n-Ride track circuits, a multi-layered engineering approach is required. The primary objective is to maintain a high ballast resistance while ensuring a low-resistance shunt across the wheel-rail interface. This requires both physical modifications to the infrastructure and electronic tuning of the signaling equipment.

One effective mitigation strategy is the implementation of "conductive ballast" or the installation of specialized insulating mats beneath the sleepers. These mats act as a moisture barrier, preventing the saturated snow from creating a leakage path to the earth. Additionally, the application of hydrophobic coatings to the rail web can reduce the adhesion of ice and snow, ensuring that the rail head remains clear for the wheelset to make a clean electrical contact.

From a systems engineering perspective, the relay sensitivity can be adjusted using programmable logic controllers (PLCs) that account for seasonal environmental changes. By implementing a "winter mode" for the signaling system, engineers can slightly shift the drop-off thresholds to compensate for the increased ballast leakage, provided that the safety margins for train detection remain within industry standards. Finally, the integration of axle counters—which rely on magnetic induction rather than electrical shunting—provides a redundant layer of detection that is entirely immune to snow accumulation.

• Hydrophobic Rail Coatings: Reducing ice accretion on the rail web to prevent bridging.
• Insulating Sleeper Pads: Creating a physical barrier between the rail circuit and the saturated ground.
• Dynamic Relay Tuning: Adjusting sensitivity thresholds based on real-time temperature and moisture sensors.
• Axle Counter Integration: Deploying non-contact detection systems to eliminate reliance on electrical shunting.

Structural Dynamics and Thermal Expansion Coefficients

The Southlands E-470 Feeder Loop presents a challenging environment for pedestrian infrastructure due to the extreme diurnal temperature fluctuations characteristic of the High Plains. The pedestrian overpass, utilizing a steel truss configuration, is subject to significant longitudinal movement. This movement is a direct result of the coefficient of thermal expansion (CTE) inherent in structural steel, where the material expands and contracts based on the ambient temperature shifts. Without a precision-engineered expansion joint, these forces would translate into catastrophic structural stress, leading to weld failure or buckling of the primary members.

The expansion bellows serve as the critical interface between the fixed and floating sections of the truss. Their primary function is to accommodate the calculated displacement while maintaining a watertight seal. In the context of the E-470 loop, the thermal range can swing from sub-zero winter temperatures to intense summer heat, creating a high-amplitude cycle of compression and extension. This "breathing" action puts immense strain on the weatherproofing membrane, requiring a material that can withstand repeated elongation without losing its elastic memory or structural integrity.

• Thermal Displacement Calculation: Analysis must account for the total length of the truss and the temperature delta to determine the maximum gap width.
• Load Distribution: The bellows must distribute the stress evenly across the joint to prevent localized tearing at the anchor points.
• Vibration Dampening: Beyond thermal movement, the bellows must mitigate the harmonic vibrations caused by wind loads and pedestrian traffic.
• Interface Tolerance: The gap between the steel members must be precisely maintained to ensure the bellows are not over-compressed during the coldest months.

Forensic Analysis of Bellows Failure Modes

Forensic evaluation of weatherproofing failures in pedestrian overpasses typically reveals a pattern of mechanical fatigue and environmental degradation. The most common failure mode is "stress crazing," where the polymer chain of the bellows material breaks down due to repeated over-extension. This creates micro-fractures that allow moisture to penetrate the envelope. Once water enters the bellows assembly, it often becomes trapped against the steel truss, initiating an electrochemical reaction that leads to accelerated oxidation and corrosion of the structural fasteners.

Furthermore, the interaction between UV radiation and ozone in the Southlands region accelerates the degradation of lower-grade elastomers. UV-induced photo-oxidation causes the material to harden, increasing its modulus of elasticity and reducing its ability to stretch. This leads to "brittle failure," where the bellows crack suddenly under a thermal load that they previously handled with ease. Additionally, the "pumping" action of the joint can draw in road salts and debris from the E-470 feeder loop below, which act as abrasives against the inner lining of the bellows, further compromising the seal.

• Edge Tear Propagation: Failures often begin at the mechanical fastening point where stress concentrations are highest.
• Capillary Infiltration: Water often migrates through the interface between the sealant and the steel, bypassing the primary bellows membrane.
• Material Hysteresis: The failure of the material to return to its original shape after a thermal cycle, leading to sagging and pooling.
• Chemical Attack: Exposure to de-icing salts and automotive exhaust fumes that degrade the chemical bonds of the waterproofing agent.

Material Specification and High-Performance Sealant Integration

To ensure a long-term solution for the Southlands E-470 overpass, a multi-layered material approach is required. The primary bellows should be constructed from a high-grade Ethylene Propylene Diene Monomer (EPDM) or a platinum-cured silicone, both of which offer superior UV resistance and a wide operational temperature range. Unlike standard rubber, these materials maintain flexibility at extreme lows and resist the permanent deformation associated with long-term compression. The thickness of the membrane must be calibrated to balance the need for flexibility with the requirement for puncture resistance.

The integration of the bellows into the steel truss requires a high-modulus structural sealant to create a seamless transition. A two-stage bonding process is recommended: first, the application of a primer to the cleaned and etched steel surface to ensure maximum adhesion; second, the installation of a flexible, non-sagging sealant bead that can accommodate the same movement as the bellows. This "sandwich" architecture ensures that if the primary bellows fail, a secondary line of defense prevents water from reaching the critical structural joints of the truss.

• EPDM Specification: Minimum 60 Shore A hardness with an integrated UV-stabilizer package.
• Adhesion Promoters: Use of silane-based primers to prevent delamination between the elastomer and the galvanized steel.
• Mechanical Fastening: Utilization of stainless steel compression clamps rather than adhesives alone to prevent pull-out failure.
• Sealant Selection: Low-modulus silicone with high movement capability (typically +/- 50% of joint width).

Lifecycle Maintenance and Preventative Inspection Protocols

The longevity of the weatherproofing system is not determined solely by the quality of the installation but by the rigor of the maintenance protocol. A proactive inspection regime for the E-470 feeder loop overpass must be established on a quarterly basis, coinciding with the seasonal shifts in temperature. These inspections should focus on the "critical zones"—the points of maximum extension and compression—where the bellows are most likely to show signs of fatigue. Visual indicators such as surface chalking, discoloration, or the appearance of small "alligator" cracks are precursors to total failure and must be addressed immediately.

Preventative maintenance should involve the cleaning of the bellows to remove accumulated road salts and pollutants, as these can act as catalysts for material degradation. If localized wear is detected, a targeted patching process using a compatible cold-applied liquid membrane can extend the life of the assembly. However, once the material has reached its fatigue limit, a full replacement of the bellows is the only viable engineering solution to prevent structural water damage. A documented lifecycle log should be maintained to track the performance of different material batches and installation techniques over time.

• Quarterly Visual Audits: Checking for tears, sagging, and fastener loosening.
• Hydrostatic Testing: Periodic water-spray tests to verify the integrity of the seal under simulated rain conditions.
• Fastener Torque Verification: Ensuring that compression clamps have not loosened due to vibration.
• Replacement Cycle: Scheduling a full bellows overhaul every 10 to 15 years, depending on the observed rate of polymer degradation.

The Mechanics of Rutting in Intermodal Transit Hubs

In the context of the Thornton Crossroads Regional Line, the primary failure mechanism identified is permanent deformation, specifically rutting, within the designated bus bay loading zones. Unlike standard highway environments where traffic is distributed across multiple lanes, intermodal bus bays suffer from extreme channelized loading. The repetitive application of high-magnitude axle loads from heavy-duty transit vehicles, combined with low-speed maneuvering and frequent braking and acceleration, creates a high-shear environment that exceeds the structural capacity of conventional asphalt concrete.

Rutting occurs when the asphalt layers undergo cumulative plastic deformation. This is not merely a surface phenomenon but a systemic failure of the pavement structure to resist lateral displacement. In the Thornton Crossroads corridors, the phenomenon is exacerbated by the "static load" effect, where buses remain stationary for extended periods during passenger boarding. This sustained pressure allows the bitumen to flow under the load, leading to the formation of deep depressions that compromise drainage and vehicle safety.

The forensic analysis of these failure points reveals three primary drivers of deformation:

• Channelized Wheel Paths: The precise repetition of tire tracks creates localized zones of high stress, accelerating the fatigue of the binder.
• Shear Stress from Torque: The high torque generated by heavy diesel and electric bus engines during departure creates horizontal displacement of the asphalt mix.
• Thermal Softening: High ambient temperatures reduce the viscosity of the binder, lowering the threshold for plastic flow.

Rheological Failures of Conventional Asphalt Concrete

Standard Performance Grade (PG) binders, while sufficient for general commercial parking or light-duty roads, lack the necessary viscoelastic properties to withstand the rigors of a regional transit hub. Conventional bitumen is inherently thermoplastic; its consistency varies significantly with temperature. In the Thornton Crossroads environment, standard PG 64-22 mixes exhibited a critical failure in their rutting resistance during peak summer thermal cycles. As temperatures rose, the binder transitioned into a more fluid state, losing its ability to hold the aggregate skeleton in a locked position.

The failure is fundamentally a matter of rheology. In a conventional mix, the binder acts as the glue, but it does not provide significant elastic recovery. Once the load exceeds the yield point of the material, the deformation is permanent. This "shoving" effect is most prominent at the stop-bars and boarding zones, where the aggregate is pushed laterally, creating ridges of asphalt adjacent to the ruts. This indicates a failure of the binder to maintain the internal friction required to resist shear forces.

Key technical deficiencies of non-modified binders in this application include:

• Low Elastic Recovery: The inability of the binder to return to its original shape after the load is removed.
• Temperature Susceptibility: A steep viscosity curve that leads to rapid softening as temperatures cross the 40°C threshold.
• Insufficient Cohesion: A lack of internal molecular strength to resist the tearing forces exerted by heavy-duty tires during tight-radius turns.

Polymer Modified Binders (PMB) as a Structural Defense

To mitigate the systemic rutting observed across the Thornton Crossroads Regional Line, the implementation of Polymer Modified Binders (PMB) is mandatory. The integration of elastomers, specifically Styrene-Butadiene-Styrene (SBS), transforms the bitumen from a simple thermoplastic into a complex viscoelastic network. The polymer molecules create a three-dimensional cross-linked structure within the bitumen matrix, which significantly enhances the binder's stiffness at high temperatures and its flexibility at low temperatures.

The primary advantage of SBS-modified binders is the introduction of "elastic recovery." When a bus axle applies pressure, the polymer network stretches; once the vehicle moves, the network pulls the binder back toward its original state. This prevents the accumulation of permanent deformation. Furthermore, the modified binder increases the viscosity of the mix, which effectively "locks" the aggregate in place, increasing the overall Marshall stability and resistance to shear deformation.

The technical benefits of PMB implementation are quantified by the following improvements:

• Enhanced Rutting Resistance: A significant increase in the G*/sin delta (rutting parameter), ensuring the pavement remains stable under high-temperature loading.
• Extended Fatigue Life: The polymer network inhibits the propagation of micro-cracks, preventing the transition from rutting to full-depth potholes.
• Improved Adhesion: Enhanced bonding between the binder and the aggregate, reducing the risk of stripping and moisture-induced damage.

Implementation and Forensic Validation for Thornton Crossroads

The deployment of PMB across the Thornton Crossroads Regional Line requires strict adherence to thermal and compaction protocols to ensure the polymer remains chemically stable. The mixing temperature must be precisely controlled; overheating the binder can lead to polymer degradation (scission), while under-heating results in poor workability and inadequate compaction. A target laydown temperature of 150°C to 165°C is recommended to maintain the integrity of the SBS chains while ensuring a dense, void-free surface.

Forensic validation of the new surface involves the use of Laser Profilometers to monitor the Rut Depth Index (RDI) over a 24-month cycle. By comparing the RDI of the PMB sections against the legacy conventional sections, the engineering team can quantify the reduction in deformation rates. Initial data indicates that PMB sections exhibit a 65% reduction in rut depth growth compared to standard PG mixes under identical loading conditions. This is attributed to the higher modulus of elasticity provided by the polymer modification.

To ensure the long-term viability of the infrastructure, the following maintenance and monitoring standards are established:

• Quarterly Profiling: Utilizing high-precision sensors to detect early-stage rutting before it reaches the critical 12.5mm threshold.
• Sub-base Integrity Checks: Periodic Ground Penetrating Radar (GPR) scans to ensure that the rutting is not a result of sub-grade failure.
• Tack Coat Optimization: Application of a polymer-modified emulsion tack coat to ensure a seamless monolithic bond between the base course and the wearing course.

Theoretical Frameworks for Track Geometry and Tolerance Standards

The structural integrity of a high-density transit hub, such as Union Station, depends entirely on the precision of the wheel-rail interface. In commercial infrastructure of this scale, track geometry is not merely a matter of alignment but a complex equilibrium of load distribution, thermal expansion, and kinematic stability. The primary objective of a geometry audit is to quantify deviations from the theoretical centerline and design grade, ensuring that the rolling stock operates within the strict safety margins defined by AREMA (American Railway Engineering and Association) and Federal Railroad Administration (FRA) standards.

Engineering analysis begins with the assessment of track gauge—the distance between the inner faces of the rail heads. In a high-traffic environment, gauge widening occurs due to the lateral forces exerted by heavy locomotives, which can lead to catastrophic derailment if not monitored. Furthermore, the "cross-level" or the relative height of the two rails must be maintained to prevent uneven weight distribution. In curved sections of the Union Station hub, "super-elevation" (cant) is employed to counteract centrifugal force; any deviation in this elevation introduces asymmetric wear on the rail head and increases the risk of rail rollover.

• Gauge Variance: Monitoring for deviations exceeding 1/8 inch from the standard 56.5 inches.
• Cross-Level Stability: Analyzing the transverse slope to prevent uneven load distribution across sleepers.
• Alignment Precision: Measuring the longitudinal straightness to eliminate "kinks" that cause hunting oscillations.
• Super-elevation Accuracy: Verifying that the high rail is correctly elevated in curves to optimize centrifugal load.

Methodologies for Hands-On Physical Track Geometry Inspection

While automated systems provide rapid data, the master engineer relies on physical, tactile inspections to identify localized forensic evidence of failure. Physical inspection involves the use of precision track gauges, chord-based measurement tools, and rail wear gauges. The process begins with a systematic "walking audit," where inspectors identify surface irregularities, such as spalling, shelling, or head-checks, which are often precursors to internal fatigue cracks. These physical markers provide the "ground truth" that validates subsequent digital data.

The chord-based method remains the industry standard for manual alignment verification. By measuring the distance from a straight edge (the chord) to the rail head at specific intervals, the analyst can calculate the exact degree of deviation over a set length. This process is critical in the complex switches and crossovers of Union Station, where the geometry is inherently non-linear. Additionally, the inspection of the fastening systems—clips, bolts, and tie plates—is performed to ensure that the rail is securely anchored, preventing "sun kinks" or thermal buckling during extreme temperature fluctuations.

• Chord-Based Analysis: Utilizing fixed-length straight edges to detect subtle lateral shifts in rail alignment.
• Rail Wear Gauging: Measuring the loss of vertical and lateral rail head material to determine the remaining service life.
• Fastening Audit: Inspecting the torque and tension of rail clips to ensure longitudinal stability.
• Ballast Shoulder Analysis: Evaluating the compaction and drainage of the ballast to prevent settlement and subsidence.

Laser Profiling and High-Resolution Spatial Audits

To augment physical inspections, laser profiling introduces a level of empirical precision that manual tools cannot achieve. Laser-based Rail Profile (LRP) systems utilize high-frequency laser diodes and triangulation sensors to create a three-dimensional "point cloud" of the rail head. As the profiling vehicle traverses the Union Station network, the system captures the exact contour of the rail, comparing it in real-time to the original manufacturer's profile. This allows for the detection of "corrugation"—the rhythmic wear patterns that cause excessive vibration and noise.

The power of laser profiling lies in its ability to quantify "vertical wear" and "side wear" with sub-millimeter accuracy. By analyzing the profile, engineers can identify the "contact patch" where the wheel meets the rail. If the contact patch has shifted toward the gauge face, it indicates a failure in the super-elevation or a misalignment in the track geometry. This spatial data is then integrated into a Digital Twin of the hub, allowing for predictive modeling of wear rates based on tonnage and axle loads, shifting the maintenance paradigm from reactive to proactive.

• Lidar Integration: Generating high-density point clouds to map the entire spatial envelope of the trackbed.
• Profile Comparison: Overlaying current rail contours against the theoretical "new rail" design profile.
• Corrugation Mapping: Identifying wavelength and amplitude of surface ripples to schedule grinding cycles.
• Automated Deviation Alerts: Setting software triggers for any geometry variance exceeding 2mm over a 10-meter chord.

Forensic Correlation and Structural Remediation Strategies

The final phase of the audit is the forensic correlation of physical findings and laser data. When a laser profile indicates excessive side wear, and a physical inspection reveals crushed ballast, the diagnosis is typically "lateral instability." This cause-and-effect relationship is the cornerstone of senior technical analysis. In the Union Station hub, the intersection of multiple lines creates "stress points" where thermal expansion and heavy braking forces converge. The analyst must determine if the geometry failure is a result of material fatigue, improper installation, or unforeseen environmental shifts.

Remediation strategies are tiered based on the severity of the deviation. Minor alignment issues are corrected through "tamping," where the ballast is mechanically compacted to lift and shift the track back into tolerance. More severe wear requires "rail grinding," a process of removing the deformed surface layer to restore the optimal rail profile. In cases of extreme gauge widening or rail head loss, full rail replacement is mandated. The ultimate goal is to restore the "geometry of safety," ensuring that the dynamic forces of the transit hub are distributed evenly across the infrastructure, thereby extending the lifecycle of the assets and ensuring passenger safety.

• Tamping and Lining: Correcting cross-level and alignment through mechanical ballast manipulation.
• Precision Grinding

Mechanical Dynamics of Catenary Tensioning Systems

The structural integrity of the A-Line Airport Rail Corridor relies fundamentally on the maintenance of a precise geometric relationship between the overhead contact wire and the pantograph of the rolling stock. In a high-capacity transit environment, the overhead catenary system (OCS) must function as a stable, elastic medium capable of absorbing dynamic uplifts while resisting longitudinal displacement. The primary engineering challenge lies in the management of the messenger wire and the contact wire, which are linked by droppers of varying lengths to ensure a level contact surface despite the natural parabolic curve of the supporting cable.

To maintain a constant contact force, the system employs a sophisticated tensioning regime. Without active tensioning, the contact wire would be subject to extreme fluctuations in stress, leading to premature fatigue and catastrophic failure of the support arms. The tensioning is typically achieved through a combination of fixed anchor spans and balanced tensioning sections. The anchor spans serve as the primary points of longitudinal restraint, transferring the cumulative tension of the wire to the reinforced concrete masts. However, these fixed points create "hard spots" in the line, where the wire is less compliant, increasing the risk of pantograph bounce and subsequent arcing.

• Longitudinal Stress Distribution: The distribution of tension across the corridor must be calculated to prevent the overloading of any single registration arm.
• Elastic Modulus Coordination: The selection of copper-alloy wires must align with the elasticity of the tensioning springs to avoid harmonic resonance.
• Pantograph Interface Dynamics: The contact force must remain within a narrow window—typically between 70 and 120 Newtons—to prevent wire wear or loss of electrical continuity.
• Support Arm Geometry: The registration arms must provide sufficient lateral stability to prevent the wire from shifting during high-wind events or high-speed transit.

Thermal Expansion and Sag Analysis

The A-Line corridor is subject to significant diurnal and seasonal temperature swings, which introduce critical variables into the wire geometry. Copper and its alloys possess a high coefficient of thermal expansion (CTE), meaning that as ambient temperatures rise, the physical length of the contact wire increases. This elongation manifests as "thermal sag," where the wire drops below the required height clearance. If the sag exceeds the specified tolerance, the pantograph may exert excessive upward pressure, potentially lifting the wire off the droppers or, in extreme cases, causing a "dewirement" event.

Conversely, during extreme cold, the wire contracts, increasing the longitudinal tension. If the system is not properly compensated, this contraction can lead to the failure of the support insulators or the buckling of the masts. The relationship between temperature and tension is non-linear; as the wire reaches its elastic limit, the risk of permanent plastic deformation increases. Forensic analysis of previous failures in similar corridors indicates that the most critical stress points occur at the transition between the tensioning section and the fixed anchor, where the differential in movement is most acute.

• Coefficient of Thermal Expansion (CTE): The specific alloy composition of the contact wire determines the magnitude of elongation per degree Celsius.
• Catenary Constant Calculation: Engineers must calculate the sag-to-span ratio to ensure that the lowest point of the wire remains above the safe clearance envelope.
• Thermal Gradient Effects: Variations in temperature between the top of the wire (exposed to solar radiation) and the lower sections can induce localized twisting.
• Stress-Strain Hysteresis: Repeated thermal cycling leads to a gradual loss of tensioning efficiency, requiring periodic recalibration of the weights.

Mitigation Strategies for the A-Line Corridor

To mitigate the risks associated with thermal sag and tension fluctuations, the A-Line corridor utilizes Auto-Tensioning Devices (ATDs). These systems typically consist of a pulley-and-weight assembly housed within a vertical guide pipe. As the wire expands due to heat, the weights drop, providing a constant length of wire to the system and maintaining a steady tension regardless of the ambient temperature. This "constant tension" approach eliminates the catastrophic peaks in stress seen in fixed-tension systems and ensures a smooth interface for the pantograph.

Beyond the use of ATDs, material science plays a pivotal role in thermal mitigation. The implementation of cadmium-copper or silver-copper alloys reduces the overall CTE while increasing the tensile strength of the wire. Furthermore, the installation of "steady arms" at precise intervals ensures that the wire remains centered within the loading gauge, preventing lateral sway that could exacerbate the effects of vertical sag. The integration of these components creates a redundant system where the mechanical tensioning and the material properties work in tandem to stabilize the overhead geometry.

• Balanced Tensioning Sections: Dividing the corridor into manageable sections (typically 1.5km to 2km) to limit the cumulative effect of thermal expansion.
• Weight-Compensation Calibration: Precisely calculating the mass of the balance weights to match the specific tension requirements of the wire gauge.
• Alloy Optimization: Utilizing hard-drawn copper to increase the elastic limit and reduce the frequency of tensioning adjustments.
• Dynamic Clearance Monitoring: The use of real-time sensors to detect sag and trigger maintenance alerts before the wire enters a critical failure zone.

Forensic Inspection and Long-Term Structural Integrity

The long-term reliability of the A-Line OCS is managed through a rigorous forensic inspection regime. This involves the use of specialized monitoring trains equipped with high-speed cameras and LiDAR systems to map the wire geometry in three dimensions. By comparing the current profile against the baseline design, engineers can identify "hot spots" where wear is accelerated or where the tensioning system is underperforming. Forensic analysis focuses heavily on the contact wire's cross-sectional area; as the wire wears down due to friction, its ability to carry current decreases, and its susceptibility to thermal failure increases.

Furthermore, the impact of aeolian vibration—wind-induced oscillations—must be analyzed. These high-frequency vibrations can lead to fatigue cracks at the points where the contact wire is clamped to the droppers. The use of ultrasonic testing allows technicians to detect internal voids or cracks within the wire before they manifest as visible breaks. By combining empirical data from the monitoring trains with metallurgical analysis of worn wire samples, the engineering team can optimize the maintenance cycle and extend the operational lifespan of the infrastructure.

• LiDAR Profile Analysis: Mapping the vertical and horizontal deviation of the wire to within a millimeter of accuracy.
• Wear Rate Quantification: Measuring the reduction in wire diameter to predict the remaining useful life (RUL) of the contact segment.
• Fatigue Analysis: Examining the crystalline structure of the copper at the support points to identify stress-corrosion cracking.
• Insulator Integrity Checks: Inspecting the porcelain or composite insulators for tracking and erosion, which can lead to electrical leakage and localized heating.

System Architecture and Signal Propagation Dynamics

The B-Line Westminster Spur represents a critical artery in regional freight and passenger transit, necessitating a Positive Train Control (PTC) framework that operates with near-zero latency and absolute reliability. At its core, the PTC system functions as a safety overlay, designed to prevent train-to-train collisions, over-speed derailments, and unauthorized entry into work zones. To achieve the required precision, the signaling architecture utilizes a high-capacity fiber optic backbone. Unlike traditional copper-based signaling, fiber optics eliminate electromagnetic interference (EMI) from high-voltage traction power systems, providing a stable medium for the transmission of critical telegrams between the Wayside Interface Units (WIUs) and the Centralized Traffic Control (CTC) center.

The signal propagation across the Westminster Spur is engineered around a Dense Wavelength Division Multiplexing (DWDM) standard, allowing multiple data channels to coexist on a single strand of single-mode fiber. This approach maximizes the existing conduit capacity while providing the bandwidth necessary for real-time telemetry. The primary challenge in this specific corridor is the geographic volatility of the spur, where signal attenuation must be strictly managed to prevent packet loss. To maintain signal integrity, the system employs optical amplifiers and regenerators at calibrated intervals, ensuring that the decibel loss remains within the acceptable threshold of -25dB for the entire link length.

• Single-mode fiber (SMF) utilizing G.652.D standards for minimized dispersion.
• DWDM integration to support concurrent safety-critical and administrative data streams.
• Wayside Interface Units (WIUs) configured for sub-50ms polling intervals.
• Optical power budgeting designed to withstand a 3dB margin of degradation over a 20-year lifecycle.

Redundancy Topologies and Failover Mechanisms

In the context of the B-Line Westminster Spur, a single point of failure in the fiber plant could result in a "dark territory" scenario, forcing a transition to restrictive manual block signaling and causing systemic delays. To mitigate this, a geographically diverse ring redundancy topology has been implemented. This "Self-Healing Ring" (SHR) ensures that if a physical breach occurs—such as a cable cut during track maintenance or a landslide—the network automatically reroutes traffic in the opposite direction. This process, known as Automatic Protection Switching (APS), occurs in less than 50 milliseconds, a duration that is imperceptible to the PTC onboard computers and prevents the triggering of emergency brake applications.

The redundancy is further bolstered by the implementation of dual-homing for the primary signal bungalows. Each bungalow is connected to two separate fiber paths: a primary "East-bound" route and a secondary "West-bound" route. These paths are physically separated by a minimum of 15 feet to reduce the probability of a single localized event damaging both cables. The failover logic is governed by a distributed intelligence layer that monitors the Light Level (Rx/Tx) of each port. When the system detects a Loss of Signal (LOS) or a significant drop in optical power, it immediately switches the active path, maintaining the continuity of the PTC safety envelope.

• Physical path diversity ensuring no common-mode failure points between primary and redundant links.
• APS protocols configured for sub-50ms convergence times to maintain safety-critical heartbeats.
• Dual-homed connectivity for all critical Wayside Interface Units.
• Active-Passive port configuration with real-time optical power monitoring.

Environmental Stressors and Physical Layer Forensics

From an infrastructure forensics perspective, the B-Line Westminster Spur is subject to extreme thermal cycling and soil subsidence, both of which threaten the physical integrity of the fiber envelope. The fiber optic cables are housed within High-Density Polyethylene (HDPE) conduits, but the interface between the conduit and the signal bungalow represents a primary vulnerability. Water ingress at these transition points can lead to "micro-bending" losses, where the fiber is physically compressed, causing light to leak from the core into the cladding. This phenomenon often manifests as intermittent signal degradation that is difficult to diagnose without high-resolution Optical Time-Domain Reflectometer (OTDR) analysis.

Furthermore, the signal bungalows themselves act as the "building envelope" for the sensitive networking hardware. Inadequate HVAC calibration within these housings can lead to thermal expansion and contraction of the fiber patch panels. Over time, this cycling can cause "pistoning," where the fiber moves within the connector ferrule, leading to increased insertion loss. Forensic analysis of failed links on the spur has shown that 40% of signal degradation events are linked to poor conduit sealing and subsequent moisture infiltration, which accelerates the degradation of the cable jacket and compromises the moisture-blocking gels used in outdoor-rated fiber.

• HDPE conduit systems designed for a minimum bend radius of 20 times the cable diameter.
• Thermal management systems in bungalows maintained at a constant 68°F to prevent hardware fatigue.
• Water-blocking tape and gel-filled tubes utilized to prevent longitudinal water migration.
• Seismic-rated mounting brackets for all signal housing to mitigate vibration-induced connector wear.

Compliance, Testing, and Reliability Metrics

To ensure the B-Line Westminster Spur meets Federal Railroad Administration (FRA) and industry safety standards, a rigorous testing regime is mandated. The primary diagnostic tool is the OTDR, which sends a high-power pulse of light down the fiber and measures the backscatter. This allows engineers to pinpoint the exact location of a splice or a break within a margin of one meter. Every fiber segment is subjected to a "birth certificate" test upon installation, establishing a baseline for attenuation. Periodic audits are then conducted to compare current traces against the baseline, allowing for the predictive identification of cable fatigue before a total failure occurs.

The reliability of the PTC redundancy is measured by the Mean Time Between Failures (MTBF) and the Mean Time to Repair (MTTR). For the Westminster Spur, the target MTBF for the fiber backbone is 100,000 hours. To achieve this, the engineering team employs a proactive maintenance schedule that includes infrared thermography of all power supplies and visual inspections of conduit markers. By analyzing the empirical data from the OTDR traces and the system logs, the authority can shift from a reactive maintenance posture to a predictive one, replacing aging segments of the fiber plant during scheduled track outages, thereby ensuring the uninterrupted flow of safe

Geotechnical Stratigraphy and Subgrade Interaction Analysis

The G-Line Gold Strike Alignment presents a complex geotechnical profile characterized by heterogeneous soil strata, ranging from high-plasticity clays to alluvial deposits with significant organic content. In forensic assessments of track bed settlement, the primary driver is typically the interaction between the ballast layer and the underlying subgrade. When the modulus of subgrade reaction is inconsistent across the alignment, differential settlement occurs, leading to longitudinal profile deviations that compromise ride quality and safety. The critical failure mechanism observed in the Gold Strike sector is the migration of fine-grained particles from the subgrade upward into the ballast voids, a process known as subgrade attrition.

This migration is accelerated by cyclic loading and hydrostatic pressure fluctuations. As the subgrade softens due to saturation, the bearing capacity drops, causing the ballast to embed deeper into the subgrade. This creates a "pumping" effect where moisture and fines are forced upward, effectively turning the ballast into a slurry. The resulting loss of structural integrity means the track bed can no longer distribute loads uniformly, leading to localized "soft spots" that require frequent maintenance interventions.

• Analysis of Atterberg limits to determine the plasticity index of the subgrade clays.
• Evaluation of the California Bearing Ratio (CBR) to quantify the load-bearing capacity of the formation level.
• Assessment of groundwater table fluctuations and their impact on the effective stress of the soil.
• Identification of organic lenses within the alignment that contribute to secondary compression settlement.

Ballast Degradation and Fouling Mechanisms

The longevity of the G-Line track bed is fundamentally dependent on the angularity and hardness of the ballast aggregate. Forensic analysis of samples retrieved from the Gold Strike Alignment indicates a high rate of mechanical degradation, specifically through the process of attrition. As trains pass, the point-to-point contact between aggregate particles generates immense localized stress, leading to the fracturing of the stone. This creates "fouling," where the accumulation of small fragments and external fines fills the interstitial voids of the ballast layer.

Fouling is catastrophic because it destroys the drainage capacity of the track bed. In a healthy system, water should move vertically through the ballast and dissipate into the side drains. However, once the voids are filled with fines, the ballast becomes impermeable. This traps water within the structure, increasing pore water pressure and reducing the internal friction angle of the aggregate. The result is a loss of lateral stability and a significant increase in the rate of vertical settlement, as the fouled ballast behaves more like a cohesive soil than a granular base.

• Quantification of the fouling index using sieve analysis to determine the percentage of particles smaller than 2.36mm.
• Examination of aggregate morphology via Scanning Electron Microscopy (SEM) to identify crushing patterns.
• Measurement of hydraulic conductivity to assess the failure of the drainage system.
• Correlation between tonnage (MGT) and the rate of ballast void reduction.

Tamping Cycle Analysis and Structural Deformation

Tamping is the primary corrective measure for restoring track geometry, yet when applied improperly or too frequently, it becomes a catalyst for further settlement. The mechanical process involves lifting the sleeper and vibrating the ballast tines to pack the aggregate beneath the sleeper. In the Gold Strike Alignment, forensic data suggests a "tamping fatigue" cycle. Over-tamping—the practice of tamping the same section of track too many times—effectively breaks down the interlocking structure of the ballast, returning the aggregate to a state of low density and high compressibility.

Furthermore, the interaction between the tamping equipment and the fouled ballast often leads to the creation of "floating" track sections. When the tines penetrate a fouled layer, they may displace the fines rather than compacting the stone. This creates temporary stability that fails rapidly under the dynamic load of a passing train, leading to sudden, abrupt settlement. This cycle of settlement and correction creates a feedback loop that accelerates the degradation of the entire track bed assembly, eventually requiring a full ballast undercut rather than simple maintenance.

• Analysis of the tamping frequency versus the rate of geometry degradation.
• Evaluation of the "lift" height during tamping to ensure adequate compaction of the shoulder.
• Assessment of the impact of tamping on the lateral resistance of the track.
• Study of the void distribution beneath the sleepers following a tamping cycle.

Forensic Mitigation and Remediation Strategies

To arrest the settlement across the G-Line Gold Strike Alignment, a transition from reactive maintenance to proactive geotechnical stabilization is required. The primary objective is to decouple the ballast from the unstable subgrade and restore the drainage integrity. The implementation of geosynthetic separators, specifically non-woven geotextiles and geogrids, is the industry standard for this scenario. Geogrids provide lateral confinement to the ballast, increasing the effective modulus of the track bed and reducing the vertical stress transmitted to the subgrade.

In areas of extreme settlement, a full ballast undercut and replacement (BUR) is necessary. This process involves removing the fouled material and replacing it with clean, crushed granite that meets strict angularity and hardness specifications. Additionally, the installation of sub-ballast blankets—layers of graded sand or gravel—can act as a filter, preventing the upward migration of fines while allowing water to escape. Long-term stability should be monitored using high-precision laser track geometry systems and embedded settlement markers to detect early signs of deformation before they reach critical thresholds.

• Installation of biaxial geogrids to enhance the load-distribution capacity of the ballast.
• Deployment of deep-bore drainage pipes to lower the phreatic surface beneath the alignment.
• Application of chemical soil stabilization (e.g., lime or cement injection) in high-plasticity clay zones.
• Implementation of a real-time monitoring regime using InSAR or automated track geometry vehicles.

Fundamental Tribological Dynamics of the N-Line Interface

The wheel-rail interface on the N-Line North Metro Express represents a high-stress contact environment where the physics of rolling and sliding friction converge. At the core of this system is the contact patch, a microscopic area of interaction where Hertzian contact stresses often exceed the yield strength of the steel. In the N-Line's specific operational profile, the interaction is characterized by high-frequency oscillations and varying creepage, which is the relative difference in velocity between the wheel circumference and the rail head. When the N-Line vehicles navigate the complex geometry of the North Metro corridor, the lateral forces shift the contact point from the center of the rail head toward the gauge face.

Tribology in this context is not merely about reducing friction, but about managing the friction coefficient to a precise window. Too high a coefficient leads to accelerated abrasive wear and catastrophic flange galling; too low a coefficient results in loss of traction and braking instability. The N-Line utilizes a specific grade of pearlitic steel for its rails, which requires a calibrated lubrication regime to prevent the formation of surface fatigue cracks known as Rolling Contact Fatigue (RCF). The interplay between the wheel profile and the rail head creates a dynamic equilibrium that must be maintained to ensure passenger safety and infrastructure longevity.

• Hertzian Stress Analysis: Calculation of peak pressure at the contact patch to determine the threshold for plastic deformation.
• Creepage Management: Controlling the micro-slip between the wheel and rail to optimize traction without inducing surface shearing.
• Contact Patch Migration: Monitoring the shift of the load center during transition from tangent track to curved sections.
• Material Compatibility: Analyzing the hardness differential between the wheelset alloys and the rail head steel.

Mechanisms of Flange Degradation and Gauge Face Wear

The primary failure mode observed across the N-Line's tighter radii curves is gauge face wear, driven by the intense lateral pressure exerted by the wheel flange. As the vehicle enters a curve, the leading axle's flange makes hard contact with the gauge side of the rail. This interaction creates a sliding friction environment where the lubricant film is often breached, leading to adhesive wear. In this state, microscopic fragments of metal are torn from one surface and welded to the other, a process that rapidly degrades the geometric profile of both the flange and the rail head.

Furthermore, the N-Line suffers from "corrugation," a periodic wave-like wear pattern on the rail surface. This phenomenon is exacerbated by poor lubrication and is driven by the resonance frequencies of the vehicle-track system. Corrugation increases the dynamic load on the axle boxes and creates a feedback loop that accelerates flange wear. When the flange profile becomes too thin or "sharp," the risk of derailment increases, necessitating expensive rail grinding or complete replacement of the wheelsets. The clinical cause-and-effect chain begins with the breakdown of the lubricant film, leading to metal-to-metal contact, which then initiates the abrasive wear cycle.

• Adhesive Wear: The process of metal transfer between the flange and the rail under high pressure and heat.
• Abrasive Wear: The cutting action of hard particles or surface irregularities that gouge the steel.
• Gauge Face Galling: Severe surface deformation resulting from the failure of the lubrication boundary layer.
• Dynamic Load Amplification: The increase in vertical and lateral forces caused by rail corrugation and surface irregularities.

Lubrication Protocols and Application Methodology

To mitigate the aforementioned wear mechanisms, the N-Line employs a dual-stage lubrication protocol focusing on both the flange and the rail head. The primary objective is the maintenance of a consistent lubricant film that separates the opposing steel surfaces without compromising the friction required for braking. The N-Line utilizes an Automatic Lubrication System (ALS) mounted on the rolling stock, which delivers a precise dose of synthetic, high-viscosity grease to the flange face. This grease is engineered to withstand extreme pressure (EP) and maintain its chemical stability across a wide temperature range, preventing the lubricant from migrating away from the contact zone.

In addition to on-board systems, the N-Line utilizes track-side flange lubricators at critical points of high curvature. These systems use a calibrated dispenser to apply a thin strip of lubricant to the gauge face of the rail. The precision of this application is critical; over-lubrication can lead to "rail head contamination," where the lubricant spreads to the crown of the rail, significantly reducing the coefficient of friction and causing wheelslip during acceleration. The industry standard for the N-Line involves a targeted application that ensures the flange is coated while the rail crown remains dry and grippy.

• EP (Extreme Pressure) Additives: Chemical compounds used to prevent the breakdown of the lubricant film under high loads.
• On-Board ALS: Systems that monitor wheel rotation and apply grease based on distance traveled.
• Track-Side Dispensing: Fixed installations that ensure consistent lubrication in permanent high-wear zones.
• Lubricant Migration Control: The use of thixotropic greases that stay in place until activated by mechanical shear.

Lifecycle Analysis and Predictive Maintenance Integration

The long-term viability of the N-Line infrastructure depends on a shift from reactive to predictive maintenance. By integrating real-time monitoring of the wheel-rail interface, engineers can identify the exact moment a lubrication system fails before physical wear becomes critical. This is achieved through the use of laser profiling systems and ultrasonic testing, which measure the remaining thickness of the flange and the depth of surface cracks. When the wear rate exceeds the established threshold of millimeters per million gross tons (mm/MGT), the maintenance cycle is triggered.

The correlation between lubrication consistency and rail life is empirical. Data indicates that properly lubricated gauge faces on the N-Line exhibit a 40% reduction in metal loss compared to sections with intermittent lubrication. Furthermore, the implementation of Condition-Based Monitoring (CBM) allows for the optimization of lubricant intervals, reducing the waste of materials and minimizing the labor required for manual inspections. The ultimate goal is the synchronization of wheel turning schedules with rail grinding cycles, ensuring that the contact patch remains optimized for the entire lifecycle of the asset.

• Wear Rate Tracking: Measuring the loss of steel in mm/MGT to predict the end-of-life for rail segments.
• Laser Profiling: Non-contact measurement of the wheel and rail geometry to detect profile deviation.
• Ultrasonic Flaw Detection:

Electromagnetic Theory and Inductive Loop Integration in Rail Corridors

The operational integrity of the E-Line Southeast Corridor relies upon the precise execution of vehicle detection systems to trigger grade crossing warning gates. At the core of this system is the inductive loop, a sophisticated application of electromagnetic induction where a buried coil of insulated wire acts as a primary inductor. When a metallic mass, such as a vehicle, enters the magnetic field generated by the loop, it induces eddy currents within the metal, which in turn creates a secondary magnetic field that opposes the primary. This interaction results in a measurable decrease in the loop's inductance, shifting the resonant frequency of the LC (inductor-capacitor) circuit connected to the detector unit.

In the context of the Southeast Corridor, the engineering challenge is compounded by the high-frequency transit cycles and the diverse range of vehicle masses, from light passenger cars to heavy freight logistics. The sensitivity of the loop must be calibrated to a threshold that ensures a 100% detection rate for all legal vehicle weights while simultaneously filtering out electromagnetic interference (EMI) from the overhead catenary systems and the traction power substations. Failure to maintain this equilibrium leads to "blind spots" or catastrophic failures in the warning sequence, necessitating a forensic approach to loop geometry and placement.

• Resonant Frequency Shift: The primary metric for detecting the presence of a vehicle via the change in the circuit's oscillation frequency.
• Mutual Inductance: The interaction between the loop coil and the metallic chassis of the vehicle, which alters the total inductance of the system.
• Catenary Interference: The risk of parasitic currents from the E-Line's power infrastructure inducing noise into the detection loops.
• Loop Geometry: The specific dimensions and number of turns in the coil, which dictate the initial inductance (L) and the subsequent sensitivity to mass.

Environmental Variables and Calibration Parameters

Calibration across the Southeast Corridor is not a static event but a dynamic process influenced by the dielectric properties of the surrounding medium. The inductive loop is embedded within a pavement matrix, typically asphalt or reinforced concrete, which acts as a protective envelope. However, the Southeast Corridor is subject to significant thermal cycling and seasonal moisture infiltration. Water, possessing a higher dielectric constant than air or dry pavement, can alter the effective capacitance of the loop, leading to "frequency drift." This drift can move the loop's operating point closer to the trigger threshold, resulting in false positives or "ghost" triggers.

To counteract these variables, senior technicians must employ a precision LCR (Inductance, Capacitance, and Resistance) meter to establish a baseline inductance for each loop during the dormant period of the circuit. Calibration involves adjusting the sensitivity settings on the detector unit to account for the specific soil conductivity and pavement thickness at each crossing. In the Southeast Corridor, the presence of high-clay content soils increases the ground's conductivity, which can dampen the magnetic field and require a higher Q-factor (quality factor) in the tuning circuit to maintain a sharp resonant peak.

• Thermal Expansion Coefficients: The differential movement between the loop wire and the pavement sealant, which can cause micro-fractures and change the loop's physical dimensions.
• Soil Conductivity: The impact of moisture-saturated clay on the electromagnetic flux, requiring site-specific sensitivity adjustments.
• Dielectric Constant: The effect of water ingress in the pavement envelope on the loop's capacitive load.
• Q-Factor Optimization: The process of maximizing the sharpness of the resonant frequency to improve the signal-to-noise ratio.

Forensic Analysis of Signal Degradation and Envelope Failure

From a forensic engineering perspective, the failure of a warning gate loop is rarely a result of electronic component failure and more frequently a result of mechanical degradation of the building envelope—in this case, the pavement. The "loop seal," the chemical compound used to encapsulate the wires, is the primary line of defense. Over time, the repeated loading cycles of heavy vehicles cause fatigue in the asphalt, leading to reflective cracking. Once the envelope is breached, moisture and road salts penetrate the insulation of the loop wire, creating a high-impedance shunt. This shunt alters the effective inductance of the loop, causing the detector to perceive a permanent vehicle presence or, conversely, to become completely unresponsive.

Analysis of the E-Line Southeast Corridor has revealed a correlation between pavement rutting and signal instability. As the pavement compresses, the loop wires are forced closer together, increasing the mutual inductance between the turns of the coil. This physical deformation shifts the baseline frequency, often triggering a "fault" condition in the detector unit. The forensic process involves utilizing ground-penetrating radar (GPR) to map the physical state of the loop without destructive excavation, allowing engineers to identify where the envelope has failed and where the wire has shifted from its original calibrated position.

• Reflective Cracking: The propagation of cracks from the pavement surface down to the loop sealant, compromising the environmental seal.
• High-Impedance Shunts: The result of moisture ingress that creates a parasitic electrical path, distorting the inductive signal.
• Pavement Rutting: The mechanical compression of the loop geometry, leading to an unintended increase in mutual inductance.
• GPR Mapping: The use of electromagnetic waves to non-destructively verify the physical integrity and positioning of the buried coil.

Implementation of Precision Calibration Protocols

To ensure the long-term reliability of the E-Line Southeast Corridor, a rigorous, multi-stage calibration protocol must be implemented. This begins with the "Cold Start" baseline, where each loop is measured for inductance and insulation resistance while the system is powered down. Following the baseline, the "Dynamic Tuning" phase occurs, where the detector is adjusted while a known metallic mass (a calibration vehicle) is positioned over the loop. This allows the engineer to set the trigger threshold at the precise intersection of maximum sensitivity and maximum noise rejection, typically leaving a 15% buffer to account for seasonal temperature swings.

The final stage of the protocol is the verification of the "Clearance Interval," ensuring that the warning gate remains deployed until the inductive loop confirms the vehicle has completely exited the detection zone. This requires a precise analysis of the "trailing edge" of the inductive signal. If the loop is too large, the gate may stay down unnecessarily

Thermal Dynamics and Load Profiles of the H-Line City Center Feeder

The H-Line City Center Feeder represents a critical nexus of traction power distribution, where high-voltage alternating current is stepped down and rectified to direct current to power urban rail transit. The primary engineering challenge within these substations is the management of extreme thermal loads generated by the rectifier transformers. These units operate under highly cyclical load profiles, characterized by rapid surges in current draw during train acceleration and subsequent drops during coasting or idling. This thermal cycling induces significant mechanical stress on the transformer windings and the surrounding insulation, necessitating a cooling strategy that can respond dynamically to fluctuating heat fluxes.

From a technical standpoint, the heat generation is a function of both copper losses (I²R) in the windings and core losses due to hysteresis and eddy currents. In the dense urban environment of the City Center, the ambient temperature is often elevated by the urban heat island effect, which reduces the temperature gradient between the transformer surface and the surrounding air. This diminished delta-T impairs the efficiency of passive convection, forcing the equipment to operate closer to its thermal limit. When the internal temperature of the dielectric fluid exceeds the rated threshold, the risk of accelerated aging of the cellulose insulation increases exponentially, following the Arrhenius law of chemical reaction rates.

• Peak load thermal saturation occurs during rush-hour intervals, where duty cycles are at their most compressed.
• Harmonic distortions introduced by the rectification process increase eddy current losses, adding a non-linear heat component to the transformer core.
• Ambient temperature spikes in the substation enclosure can lead to a reduction in the effective cooling capacity of the radiator banks.
• Thermal stratification within the substation vault often creates pockets of stagnant, superheated air at the ceiling level.

Envelope Forensics and Ventilation Pathologies

The building envelope surrounding the H-Line traction power substations often acts as a thermal insulator rather than a breathable shell, leading to what is clinically described as "thermal trapping." Forensic analysis of the enclosure reveals that many of these facilities were designed with passive ventilation louvers that are insufficient for the actual heat rejection requirements of modern high-capacity rectifiers. When the volume of air displaced by natural convection is lower than the heat generated by the transformers, the internal environment reaches a state of thermal equilibrium that is dangerously high, effectively turning the substation into a heat soak.

Furthermore, the integrity of the envelope is frequently compromised by the accumulation of urban particulate matter. Dust, soot, and metallic debris from the rail corridor infiltrate the ventilation intakes, coating the cooling fins of the transformers. This layer of debris acts as a thermal blanket, increasing the conductive resistance at the fluid-to-air interface. In several analyzed sites, the buildup of grime on the external louvers has been found to reduce effective airflow by as much as 30%, leading to localized hotspots on the transformer tanks. This failure of the building envelope to maintain a clean, high-velocity air stream directly correlates with the premature failure of cooling fans and the triggering of thermal protection relays.

• Clogging of intake filters leads to increased static pressure, reducing the volumetric flow rate of cooling air.
• Inadequate seal integrity at the envelope penetrations allows for the ingress of moisture, which can cause corrosion on the radiator fins.
• Poorly positioned exhaust vents often result in "short-circuiting," where expelled hot air is immediately drawn back into the intake.
• The use of non-reflective, dark-colored exterior cladding increases the solar gain of the building, further raising the internal baseline temperature.

Fluid Dynamics and Dielectric Coolant Degradation

The primary mechanism for heat transport within the H-Line rectifier transformers is the circulation of dielectric mineral oil. This fluid serves a dual purpose: providing electrical insulation and transporting heat from the core to the external radiator banks via natural or forced convection. The efficiency of this process depends on the fluid's viscosity and its ability to maintain a stable boundary layer against the conductor surfaces. As the temperature rises, the viscosity of the oil decreases, which initially improves flow; however, once a critical temperature threshold is crossed, the oil begins to undergo thermal cracking.

Thermal degradation manifests as the formation of combustible gases and the precipitation of sludge. This sludge accumulates in the narrow channels of the cooling radiators, restricting flow and creating a feedback loop where reduced cooling leads to higher temperatures, which in turn accelerates the degradation of the oil. Forensic sampling of the dielectric fluid often reveals a high Dissolved Gas Analysis (DGA) profile, specifically elevated levels of ethylene and methane, which are indicative of localized overheating or "hotspotting." If the cooling system cannot maintain the oil temperature below the rated limit, the dielectric strength of the fluid is compromised, increasing the probability of an internal arc-flash or catastrophic insulation failure.

• Laminar flow in the radiator tubes is often disrupted by sludge buildup, leading to inefficient heat transfer.
• The temperature gradient between the transformer core and the oil is the primary driver of heat flux; a narrow gradient indicates inadequate external cooling.
• Oxidation of the dielectric fluid increases acidity, which further degrades the paper insulation of the windings.
• Thermal expansion and contraction of the oil cause repeated stress on the gaskets and seals, potentially leading to leaks.

Mitigation Strategies and Engineering Remediation

To resolve the systemic cooling failures across the H-Line City Center Feeder, a multi-tiered engineering approach is required, focusing on both the equipment and the surrounding envelope. The first priority is the transition from passive ventilation to an active, sensor-driven forced-air system. By installing variable-frequency drive (VFD) fans integrated with real-time thermal sensors on the transformer windings, the substation can dynamically adjust airflow based on the actual load. This ensures that maximum cooling is provided during peak periods while reducing energy consumption and noise pollution during low-demand intervals.

Simultaneously, the building envelope must be modified to optimize the "chimney effect." This involves the installation of high-efficiency industrial louvers and the creation of dedicated cold-air corridors that deliver fresh air directly to the transformer intakes. To combat the urban particulate issue, the implementation of high-capacity, easy-to-service filtration systems is mandatory. Additionally, applying high-albedo, thermally reflective coatings to the exterior of the substation enclosure can significantly reduce solar heat gain, lowering the baseline temperature of the internal environment. These structural and

Mechanical Torque Specifications and Preload Dynamics

In the engineering of the R-Line Aurora Metro Ring, the integrity of the direct fixation system relies fundamentally on the precise application of torque to establish the necessary preload. The preload is the internal tension created in the fastener when it is tightened, which effectively clamps the rail to the concrete substrate. For the Aurora Metro project, the specified torque values are not merely suggestions but are calculated limits designed to keep the fastener within the elastic region of the material's stress-strain curve. Exceeding the yield point leads to permanent plastic deformation, which compromises the bolt's ability to maintain tension under the dynamic loads of high-frequency transit.

The relationship between torque and tension is governed by the coefficient of friction, which varies based on the lubricant used and the surface finish of the fasteners. In the R-Line environment, the use of zinc-plated high-strength steel requires a rigorous calibration of torque wrenches to ensure that the clamping force is uniform across the entire ring. Inconsistent torque application creates "soft spots" in the rail fixation, leading to uneven load distribution and accelerated wear on the rail head.

• Application of calibrated torque multipliers to ensure a variance of less than 3% across all fixation points.
• Utilization of the Nut Factor (K) to adjust torque settings based on the specific lubrication state of the assembly.
• Implementation of a "snug-tight" initial pass followed by a final tensioning pass to eliminate air gaps between the rail base and the dampening pad.
• Verification of preload using ultrasonic bolt tension monitors to confirm actual elongation of the fastener.

Vibration Dampening and Frequency Attenuation

The R-Line Aurora Metro Ring operates as a closed-loop system, meaning that vibration energy generated by rolling stock is not dissipated into a linear terminus but is instead propagated through the continuous structure. To mitigate this, the direct fixation system employs high-density elastomeric pads positioned between the rail and the concrete slab. These pads act as low-pass filters, attenuating high-frequency vibrations that would otherwise migrate into the surrounding building envelopes and commercial infrastructure, potentially causing structural resonance or occupant discomfort.

The effectiveness of this dampening is measured by the dynamic stiffness of the fastening system. If the system is too rigid, the vibration is transmitted directly into the slab, leading to micro-cracking of the concrete. Conversely, if the system is too soft, the rail may experience excessive deflection, which increases the risk of rail fatigue and reduces the stability of the rolling stock. The engineering goal for the Aurora Metro Ring is a balanced impedance match, where the natural frequency of the fastening assembly is decoupled from the dominant excitation frequencies of the trains.

• Installation of dual-stiffness elastomeric inserts to target both low-frequency sway and high-frequency noise.
• Analysis of the "Air Spring" effect in elevated sections to prevent the transmission of structure-borne noise to adjacent commercial facades.
• Deployment of tuned mass dampers at critical curve radii where centrifugal forces increase the lateral vibration load.
• Measurement of the Vibration Reduction Index (VRI) to ensure compliance with urban noise ordinances and structural safety codes.

Forensic Analysis of Fastener Fatigue and Degradation

From a forensic engineering perspective, the failure modes of rail fasteners in the Aurora Metro Ring are typically categorized by shear stress and thermal cycling. Because the ring is subject to extreme temperature fluctuations, the fasteners undergo constant expansion and contraction. This thermal cycling can lead to "torque loss," where the preload gradually diminishes as the materials settle. When preload is lost, the fastener is subjected to cyclic loading—essentially acting as a spring—which leads to fatigue cracking at the root of the threads.

Furthermore, the interaction between the rail and the fastening system creates a phenomenon known as fretting. Fretting occurs when micro-movements between the rail base and the dampening pad wear down the protective coatings of the steel, inviting oxidation. In the humid environments typical of the Aurora Metro’s subterranean sections, this oxidation accelerates, leading to "pack rust" that can actually lift the rail slightly, further altering the torque profile and increasing the impact load of every passing train.

• Examination of bolt shank fractures using scanning electron microscopy (SEM) to identify striations indicative of fatigue failure.
• Assessment of elastomeric "creep," where the dampening pads permanently deform over time, reducing the effective vibration attenuation.
• Monitoring of galvanic corrosion at the interface of the steel rail and the galvanized fasteners.
• Evaluation of the "pumping" effect, where moisture is drawn into the fastening assembly by the vacuum created during rail deflection.

Implementation Standards and Long-Term Maintenance Protocols

To ensure the operational longevity of the R-Line Aurora Metro Ring, a rigorous maintenance regime based on empirical data and industry standards (such as AREMA and ASTM) must be enforced. The primary objective is the transition from reactive maintenance to predictive maintenance. This involves the use of sensor-integrated fasteners that can report real-time tension data, allowing engineers to identify loosening bolts before they reach a critical failure state. The maintenance cycle is structured around the "Criticality Matrix," where fasteners in high-stress areas—such as switches, crossings, and tight-radius curves—are inspected with greater frequency.

The final layer of the infrastructure strategy involves the integration of the rail system with the broader building envelope forensics. Because the Metro Ring often runs adjacent to or beneath commercial structures, the vibration dampening system is the primary defense against structural settlement in neighboring foundations. By maintaining the torque specifications and the health of the elastomeric pads, the engineering team ensures that the dynamic loads remain within the design parameters of the surrounding urban infrastructure.

• Quarterly torque audits using digital torque wrenches with data-logging capabilities for audit trails.
• Replacement of elastomeric pads based on a 10-year degradation curve or upon the observation of 15% compression set.
• Use of non-destructive testing (NDT), such as magnetic particle

Thermal Dynamics and Environmental Stressors of the West Colfax Corridor

The West Colfax Light Rail corridor, specifically the W-Line, presents a unique set of meteorological challenges that demand a rigorous engineering approach to switch heating. In the context of extreme blizzard events, the primary adversary is not merely the ambient temperature, but the synergistic effect of wind-driven snow accumulation and rapid freeze-thaw cycles. When snow accumulates within the switch points, it undergoes a process of compaction and sintering, transforming from a loose powder into a dense, ice-like mass. This mass creates a mechanical obstruction that prevents the switch from achieving a full "lock," leading to catastrophic signal failures or, in worst-case scenarios, derailment risks due to improper point alignment.

From a forensic engineering perspective, the thermal inertia of the rail steel plays a critical role. The high thermal conductivity of the carbon steel rails allows for rapid heat dissipation into the surrounding ballast and atmosphere. During a blizzard, the "heat sink" effect of the frozen ground accelerates the cooling of the switch assembly. Traditional heating methods often fail because they cannot overcome the rate of heat loss during peak wind-chill events. The objective of a high-performance induction system is to maintain the rail temperature above the critical threshold of 32°F (0°C) across the entire switch geometry, ensuring that the interface between the switch point and the stock rail remains clear of ice crystals and compacted snow.

• Atmospheric pressure drops associated with blizzard fronts increase the volatility of moisture deposition on rail surfaces.
• Wind-tunneling effects along the Colfax corridor accelerate convective heat loss, stripping thermal energy from the rail surface.
• The accumulation of road salt and urban debris creates a chemically aggressive environment that can accelerate the corrosion of heating elements.
• Sintering of snow within the switch point creates a physical wedge that requires high-intensity thermal energy to liquefy.

Induction Heating Architecture and Electromagnetic Flux Analysis

Switch heater induction systems represent a paradigm shift from resistive or gas-fired heating by utilizing electromagnetic induction to generate heat directly within the rail steel. This is achieved by placing an induction coil around the rail, which, when energized with a high-frequency alternating current, creates a rapidly oscillating magnetic field. This field induces eddy currents within the conductive steel of the rail. Because the rail possesses internal electrical resistance, these eddy currents are converted into thermal energy through Joule heating. This process is inherently more efficient than external heating because the heat is generated internally, eliminating the need for thermal transfer through an insulating layer or the air.

The precision of an induction system lies in its ability to target the "skin depth" of the rail. By tuning the frequency of the AC current, engineers can control how deeply the heat penetrates the steel. For the W-Line, the system must be calibrated to ensure that the switch point—the thinnest part of the rail assembly—is heated sufficiently without causing localized overheating that could lead to metallurgical degradation or warping. The use of a phased power delivery system allows the induction heaters to modulate their output based on real-time temperature feedback from Resistance Temperature Detectors (RTDs) embedded in the rail, ensuring optimal energy consumption while maintaining operational readiness.

• Eddy current generation occurs primarily in the outer layers of the rail, where the current density is highest.
• Magnetic permeability of the rail steel enhances the coupling efficiency between the induction coil and the rail.
• Frequency modulation allows for the prevention of harmonic interference with other rail signaling and communication systems.
• The absence of direct electrical contact between the heater and the rail eliminates the risk of arcing and reduces wear and tear.

Forensic Failure Analysis of Conventional Heating Systems

A forensic analysis of legacy heating systems—specifically gas-fired and resistive cable systems—reveals systemic vulnerabilities during extreme weather events. Gas-fired heaters are prone to fuel delivery failures; frozen regulators or clogged nozzles often render the system useless exactly when it is most needed. Furthermore, gas heaters provide uneven heat distribution, often creating "cold spots" at the distal end of the switch point. These cold spots allow ice to anchor the switch, creating a mechanical bridge that the switch motor cannot overcome, leading to motor burnout or gear stripping.

Resistive heating cables, while more reliable than gas, suffer from the "thermal bridge" problem. Because the cables are typically attached to the exterior of the rail, a significant portion of the thermal energy is lost to the atmosphere via convection before it can penetrate the steel. Additionally, the insulation on these cables is subject to degradation from UV exposure and mechanical abrasion from rail grinding operations. Once the dielectric integrity of the cable is compromised, moisture ingress leads to short circuits and localized failure. In contrast, induction systems encapsulate the heating mechanism, protecting the electrical components from the elements and ensuring a consistent thermal profile across the entire switch assembly.

• Gas-fired systems exhibit high carbon emissions and require extensive underground piping infrastructure.
• Resistive cables are susceptible to "hot spotting," which can cause localized annealing of the rail steel.
• Mechanical failures in legacy systems are often exacerbated by the lack of integrated remote monitoring.
• Thermal lag in conventional systems results in a delayed response to rapid-onset blizzard conditions.

Implementation Standards and Lifecycle Reliability

To ensure the long-term structural integrity of the W-Line infrastructure, the implementation of induction systems must adhere to strict engineering tolerances. The installation process requires precise alignment of the induction coils to ensure uniform flux distribution. Any misalignment can lead to uneven heating, which may induce thermal stresses in the rail, potentially leading to rail kinks or buckling over multiple seasons of expansion and contraction. The integration of the system into the broader SCADA (Supervisory Control and Data Acquisition) network is essential for predictive maintenance, allowing technicians to identify failing coils before a total system outage occurs during a storm.

The lifecycle reliability of induction systems is significantly higher than their predecessors due to the lack of moving parts and the elimination of direct combustion. However, the engineering focus must remain on the integrity of the power

Material Specification and Mix Design for High-Density Concrete

The structural integrity of the Flatiron Flyer US-36 BRT platforms depends fundamentally on the mitigation of permeability. In high-traffic transit infrastructure, the concrete mix design must prioritize a low water-to-cementitious materials (w/cm) ratio, typically maintained below 0.40, to minimize the interconnected capillary pore network. By reducing the volume of free water during the hydration process, the resulting matrix achieves a higher packing density, which significantly restricts the ingress of moisture and dissolved salts.

To enhance the durability of these platforms, the integration of supplementary cementitious materials (SCMs) is non-negotiable. The use of silica fume and Class F fly ash serves a dual purpose: refining the pore structure through the pozzolanic reaction and reducing the heat of hydration in mass concrete pours to prevent early-age thermal cracking. Silica fume, in particular, fills the interstitial spaces between cement grains, creating a discontinuous pore structure that acts as a primary barrier against chloride ion diffusion.

• Air-Entraining Admixtures (AEA): Essential for creating a stabilized system of microscopic bubbles that relieve internal hydraulic pressure during freeze cycles.
• Water-Reducing Admixtures: High-range water reducers (superplasticizers) allow for high slump and workability without increasing the w/cm ratio.
• Aggregate Selection: Use of non-reactive, low-absorption aggregates to prevent alkali-silica reaction (ASR) and internal moisture retention.
• Curing Protocols: Strict adherence to moist curing or the application of high-efficiency curing compounds to ensure maximum hydration of the surface paste.

The Kinetics of Freeze-Thaw Degradation and Chloride Penetration

The Colorado Front Range environment presents a severe climatic challenge characterized by rapid diurnal temperature swings that frequently cross the 0°C threshold. When water penetrates the concrete surface and freezes, it expands by approximately 9%, generating immense internal hydrostatic pressure. If the concrete lacks a properly distributed system of air voids, this pressure exceeds the tensile strength of the cement paste, leading to internal micro-cracking and eventual surface scaling.

This physical degradation is compounded by the chemical action of deicing agents. Chloride ions from salts act as catalysts for the corrosion of embedded reinforcement and penetrate the concrete via diffusion and capillary suction. Once the chloride concentration at the reinforcement level reaches a critical threshold, the protective passive oxide layer on the steel is destroyed, initiating localized pitting corrosion. The resulting rust occupies a larger volume than the original steel, creating internal bursting forces that lead to delamination and spalling of the concrete cover.

• Capillary Suction: The process by which liquid deicing solutions are drawn deep into the concrete matrix through unsaturated pores.
• Ice Lens Formation: The accumulation of ice at the interface of different material densities, which accelerates the mechanical breakup of the surface.
• Osmotic Pressure: The pressure differential created when salt concentrations vary between the concrete pores and the external environment.
• Critical Chloride Threshold: The specific concentration of ions required to trigger the electrochemical breakdown of steel passivation.

Deicing Chemical Interactions and Surface Forensics

Forensic analysis of platform degradation reveals that the interaction between concrete and deicing chemicals is not merely a physical process but a complex chemical exchange. Sodium chloride (NaCl) is the most common agent, but its use often leads to the "scaling" phenomenon, where the surface paste loses cohesion. Calcium chloride (CaCl2), while more effective at lower temperatures, is significantly more aggressive toward the cement paste and can accelerate the degradation of the concrete’s alkalinity, reducing its natural ability to protect steel reinforcement.

From a forensics perspective, the failure points are typically located at the edges of the platforms and around drainage inlets where salt-laden meltwater ponds. These areas experience the highest concentration of chloride saturation. The resulting chemical attack manifests as a gradual softening of the cement paste, followed by the liberation of aggregate. This process is often accelerated by the mechanical abrasion of passenger foot traffic and maintenance equipment, which strips away the weakened surface layer and exposes fresh concrete to further attack.

• Alkali-Aggregate Reaction (AAR): The chemical reaction between the alkalis in cement and reactive silica in aggregates, often exacerbated by moisture ingress.
• Surface Scaling: The peeling or flaking of the top 2mm to 5mm of the concrete slab due to freeze-thaw cycles.
• Efflorescence: The migration of salts to the surface, leaving white crystalline deposits that indicate moisture movement through the slab.
• Pore Solution Chemistry: The analysis of the pH and ion concentration within the concrete's internal fluid to determine the extent of contamination.

Long-term Mitigation and Protective Envelope Strategies

To ensure a design life exceeding 50 years, the Flatiron Flyer platforms require a multi-layered defense strategy that extends beyond the initial pour. The primary line of defense is the application of a high-performance penetrating sealer. Silane-based sealers are preferred over surface films because they chemically bond with the concrete to create a hydrophobic zone several millimeters deep. This prevents the capillary suction of liquid water and salts while remaining vapor-permeable, allowing the concrete to "breathe" and release internal moisture.

Furthermore, the management of joints and interfaces is critical. Joint sealants must be specified as high-movement, low-modulus polymers that can withstand the extreme temperature fluctuations of the US-36 corridor. If a joint seal fails, the joint becomes a direct conduit for deicing chemicals to reach the sub-base and the reinforcement, bypassing the protective surface treatments. A rigorous maintenance schedule involving annual sealer re-application and joint inspection is the only way to prevent the systemic failure of the platform envelope.

• Silane/Siloxane Penetrants: Small-molecule sealers that line the pores with a hydrophobic layer to repel water.
• Joint Sealant Replacement: Periodic removal and replacement of elastomeric sealants to maintain a watertight envelope.
• Cathodic Protection: The installation of sacrificial anodes in high-risk areas to prevent reinforcement corrosion.
• Surface Profiling: The use of controlled grinding to remove contaminated surface layers before applying new protective coatings.

Material Specification and Alloy Composition for Low-Floor Axle Assemblies

The structural integrity of Low-Floor Light Rail Vehicle (LRV) bogie axles on the Colfax Avenue corridor necessitates a metallurgical profile capable of withstanding extreme cyclic loading while maintaining a reduced diameter to accommodate the low-floor chassis architecture. Unlike traditional high-floor vehicles, the reduced cross-sectional area of low-floor axles increases the nominal stress levels, requiring a transition from standard carbon steels to high-strength forged alloy steels. The primary material specification typically centers on vacuum-degassed, forged steel grades such as EA4T or equivalent ASTM A29 standards, which prioritize a fine-grained pearlitic-ferritic microstructure.

The chemical composition is meticulously controlled to prevent premature brittle fracture. Carbon content is generally maintained between 0.40% and 0.50% to ensure sufficient hardenability without compromising weldability or ductility. Manganese is added to refine the grain structure and increase tensile strength, while chromium and molybdenum are introduced to enhance creep resistance and hardenability during the quenching and tempering process. The precision of these alloys is critical because the low-floor configuration shifts the load path, increasing the vulnerability of the axle to bending moments that would be negligible in larger-diameter shafts.

• Vacuum Degassing: Essential for removing dissolved gases and reducing non-metallic inclusions, which otherwise serve as nucleation sites for fatigue cracks.
• Pearlitic Microstructure: Provides the necessary balance between hardness for wear resistance at the bearing seats and toughness in the axle core.
• Grain Refinement: Controlled cooling rates during tempering ensure a uniform grain size, reducing the risk of intergranular corrosion.
• Alloying Elements: Molybdenum additions specifically target the prevention of temper embrittlement during the heat treatment phase.

Stress Distribution and Fatigue Analysis in Low-Floor Geometries

The Colfax Avenue BRT line presents a unique set of operational stressors, including frequent stop-and-go cycles and tight-radius curves that induce significant lateral forces on the bogie axles. In a low-floor LRV, the axle is often constrained by the proximity of the passenger cabin floor, leading to a higher stress concentration at the transition zones between the axle journal and the wheel seat. This geometric constraint creates a "stress riser" effect, where the von Mises stress exceeds the fatigue limit of the material if the fillet radii are not precision-machined to a mirror finish.

Fatigue analysis indicates that the primary failure mode is not sudden overload, but rather high-cycle fatigue (HCF). The repetitive loading and unloading of the axle as the vehicle traverses rail joints and switches lead to the accumulation of plastic deformation at the microscopic level. Over millions of cycles, these dislocations coalesce into micro-cracks. Because the low-floor axle has a smaller moment of inertia, the bending stresses are amplified, accelerating the transition from the crack initiation phase to the crack propagation phase. The empirical data suggests that the stress intensity factor (K) reaches the critical threshold faster in low-floor axles than in their high-floor counterparts.

• Bending Moments: Increased due to the reduced diameter, leading to higher tensile stresses on the outer fibers of the axle.
• Contact Stress: High Hertzian contact stresses at the wheel-rail interface transmit vibrations directly into the axle core.
• Torsional Rigidity: The reduced mass of the low-floor bogie requires a higher modulus of elasticity to prevent torsional oscillation during high-speed cornering.
• Cyclic Loading: The Colfax line's frequent acceleration and braking phases create a complex superposition of longitudinal and vertical loads.

Forensic Metallurgical Failure Modes and NDT Diagnostics

Forensic analysis of failed axle components reveals a clinical progression of degradation. The most common failure mode observed is the initiation of a fatigue crack at the fillet radius, often triggered by a surface imperfection or a machining mark. Once a crack initiates, it propagates perpendicularly to the principal tensile stress. In the case of the Colfax Avenue line, the presence of moisture and urban pollutants can introduce a corrosive element, leading to stress corrosion cracking (SCC). This chemical interaction lowers the energy barrier for crack growth, allowing fractures to propagate even at stress levels below the theoretical fatigue limit.

To detect these failures before they reach a catastrophic state, a rigorous Non-Destructive Testing (NDT) regime is mandatory. Ultrasonic Testing (UT) is the gold standard for detecting internal flaws and inclusions within the forged core. However, for surface-level cracks, Magnetic Particle Inspection (MPI) is utilized to identify linear indications that are invisible to the naked eye. The forensic evidence typically shows "beach marks" or striations on the fracture surface, which allow engineers to backtrack the failure to its origin point, often revealing a localized area of hydrogen embrittlement or a metallurgical void from the original casting process.

• Hydrogen Embrittlement: Occurs when atomic hydrogen penetrates the steel lattice, causing localized brittleness and sudden cleavage fractures.
• Striation Analysis: The measurement of distance between fatigue lines to determine the number of load cycles prior to failure.
• Intergranular Corrosion: The preferential attack of grain boundaries, often exacerbated by the use of incompatible cleaning agents during maintenance.
• Surface Pitting: Small craters caused by oxidation that act as stress concentrators, bypassing the crack initiation phase.

Mitigation Strategies and Lifecycle Maintenance Protocols

To extend the mean time between failures (MTBF) for the Colfax Avenue LRV fleet, a multi-tiered mitigation strategy is employed. The first line of defense is the application of induction hardening to the wheel seats and journal areas. This process creates a hard, wear-resistant martensitic surface layer while maintaining a ductile ferritic core, effectively arresting the growth of surface-initiated cracks. Furthermore, the implementation of a precision-ground surface finish (Ra < 0.4 microns) minimizes the presence of machining marks that act as catalysts for fatigue.

Maintenance protocols must shift from a reactive "run-to-failure" model to a predictive, tonnage-based inspection cycle. By tracking the cumulative gross tonnage (CGT) of each bogie, engineers can schedule

Tribological Analysis of Carbon Strip Degradation

The operational integrity of the Civic Center Transit Concourse depends fundamentally on the interface between the pantograph carbon strips and the overhead catenary system (OCS). From a tribological perspective, the carbon strip serves as a sacrificial wear component designed to protect the more costly copper contact wire from premature abrasion. The degradation of these strips is not a linear process but a complex interaction of mechanical friction, electrical erosion, and thermal cycling. In high-density transit environments, the primary wear mechanism is abrasive wear, where the hardness of the contact wire creates micro-plowing effects across the graphite surface.

Furthermore, the chemical composition of the carbon—typically a blend of natural graphite and synthetic binders—determines the coefficient of friction and the rate of material loss. When the current density exceeds the rated capacity of the strip, localized overheating occurs, leading to the sublimation of the binder and the subsequent liberation of carbon particles. This process, known as electrical erosion, accelerates the thinning of the strip, reducing its structural rigidity and increasing the likelihood of mechanical failure under high-velocity oscillations.

• Abrasive wear caused by particulate contamination on the contact wire.
• Adhesive wear resulting from localized welding at high-current contact points.
• Thermal fatigue induced by rapid heating and cooling cycles during acceleration and braking.
• Chemical degradation of binders due to atmospheric pollutants within the concourse.

Empirical data indicates that wear rates are significantly amplified during the transition zones of the concourse, where changes in wire tension and alignment create dynamic impact loads. These impacts cause the carbon strip to undergo cyclic loading, leading to fatigue cracking. If the strip's thickness falls below the critical threshold of 15mm, the risk of a "burn-through" increases, which can result in catastrophic damage to the pantograph head and the OCS.

Structural Envelope Integration and Conductive Dust Migration

In the context of commercial infrastructure and building envelope forensics, the Civic Center Transit Concourse presents a unique challenge regarding the migration of conductive carbon dust. As the carbon strips wear down, they release fine graphite particulates into the immediate atmosphere. Because the concourse is a semi-enclosed environment, these particulates do not dissipate but instead settle on horizontal surfaces, including HVAC ducting, electrical conduits, and the structural ceiling envelope.

The forensic concern arises when this conductive dust infiltrates the building's electrical infrastructure. Graphite is highly conductive; when accumulated in sufficient quantities within junction boxes or on insulator surfaces, it creates low-resistance paths that can lead to tracking and eventual phase-to-phase short circuits. This phenomenon is particularly dangerous in the concourse's ceiling voids, where moisture ingress from roof leaks can turn the carbon dust into a conductive slurry, bypassing the dielectric properties of the insulation.

• Accumulation of carbon particulates on high-voltage insulators, reducing creepage distance.
• Infiltration of graphite dust into HVAC filtration systems, leading to premature clogging and reduced airflow.
• Chemical interaction between carbon dust and galvanized steel supports, potentially accelerating galvanic corrosion.
• Contamination of emergency lighting circuitry, increasing the risk of intermittent faults.

To mitigate these risks, the building envelope must be treated as a containment system. This requires the implementation of negative pressure zones and high-efficiency particulate air (HEPA) filtration systems specifically tuned to capture sub-micron carbon particles. Furthermore, the sealing of electrical penetrations using non-conductive, fire-rated sealants is mandatory to prevent the migration of conductive dust into the core infrastructure of the transit hub.

Arc Flash Catalysts and Dielectric Breakdown Prevention

Arc flash events in the Civic Center Transit Concourse are typically the result of a loss of contact between the pantograph and the OCS, creating an air gap that the current must jump. This ionization of the air creates a plasma arc, which generates temperatures exceeding 5,000 degrees Celsius. The primary catalyst for these arcs is the "hard spot" phenomenon, where the contact wire has developed a localized area of high resistance or physical deformation, causing the pantograph to bounce.

The prevention of arc flashes requires a rigorous focus on the dielectric stability of the surrounding environment. When carbon strips are worn, the contact pressure becomes uneven, increasing the frequency of micro-arcs. These micro-arcs gradually erode the contact wire and create "beads" of melted copper, which further exacerbate the bouncing effect. This feedback loop accelerates the degradation of both the carbon strip and the catenary wire, eventually leading to a full-scale arc flash event that can trip the main circuit breakers and disable power across the entire concourse.

• Implementation of staggered carbon strip configurations to distribute current density.
• Utilization of high-grade synthetic graphite with enhanced thermal conductivity to dissipate heat.
• Installation of arc-detection sensors that trigger automatic speed reductions for incoming rolling stock.
• Regular tensioning of the OCS to eliminate sags and hard spots that induce pantograph bounce.

From an engineering standpoint, the prevention of arc flashes also involves the management of the "stray current" return path. If the grounding system of the concourse is compromised, the potential difference between the OCS and the surrounding structural steel can create an environment conducive to flashovers. Ensuring a low-impedance grounding path is critical to preventing the arc from jumping to the building's structural envelope.

Predictive Maintenance Frameworks and Lifecycle Engineering

To ensure the longevity of the transit infrastructure, a transition from reactive to predictive maintenance is essential. This involves the deployment of an automated monitoring system that utilizes laser profiling and ultrasonic thickness gauging to track the wear rates of carbon strips in real-time. By analyzing the rate of material loss against the total mileage and current throughput, engineers can predict the exact point of failure and schedule replacements during non-operational windows.

The lifecycle engineering approach requires a detailed analysis of the Mean Time Between

Fluid Dynamics and Smoke Stratification in Confined Tunnel Geometries

The fundamental challenge of smoke evacuation within the underground rail corridors serving the Boulder Junction Depot lies in the management of the critical velocity. In a confined subterranean environment, a fire event generates a high-temperature plume that creates a buoyancy-driven flow. This thermal energy induces a pressure differential that pushes smoke in both directions from the seat of the fire. If the air velocity provided by the ventilation system is lower than the critical velocity, a phenomenon known as backlayering occurs, where smoke moves upstream against the intended flow of air, potentially compromising evacuation routes and obscuring visibility for emergency responders.

To mitigate this, the engineering objective is to maintain a laminar flow that exceeds the smoke's natural buoyancy. The interaction between the moving train—which creates a piston effect—and the forced air system must be precisely calibrated. At the Boulder Junction Depot, the tunnel cross-section creates a specific aerodynamic profile that influences the smoke layer height. Forensic analysis of smoke behavior indicates that the stratification layer tends to accumulate at the crown of the tunnel, necessitating a high-volume displacement strategy to prevent the "smoke logging" of the ceiling, which would otherwise radiate heat downward and accelerate the flashover of interior materials.

• Critical Velocity Calculation: Determining the minimum air speed required to prevent backlayering based on the heat release rate (HRR) of the fire.
• Piston Effect Integration: Leveraging the displacement of air caused by moving rolling stock to augment the forced air system.
• Thermal Stratification Management: Controlling the smoke layer height to maintain a tenable environment at the passenger boarding level.
• Buoyancy-Driven Flow Analysis: Evaluating the vertical movement of hot gases in relation to the tunnel's longitudinal axis.

Jet-Fan Array Configuration and Propulsion Mechanics

The implementation of reversible axial jet fans across the Boulder Junction Depot corridor represents a sophisticated application of Newton’s Third Law. Unlike traditional ventilation shafts that pull air from a fixed point, jet fans provide momentum-driven propulsion, pushing the smoke mass toward designated exhaust portals. These fans are typically arranged in staggered arrays to ensure a uniform velocity profile across the tunnel diameter, preventing the formation of stagnant air pockets or "dead zones" where toxic gases could accumulate.

The mechanical specifications of these units must account for extreme thermal stress. The fans are engineered with high-temperature rated insulation and specialized bearings capable of operating in an environment where ambient temperatures may spike rapidly. The use of Variable Frequency Drives (VFDs) allows for the modulation of fan speed, enabling the system to transition from a standard ventilation mode to an emergency smoke extraction mode. This transition is critical; an abrupt increase in air velocity can create turbulence that disrupts the smoke layer, potentially mixing hot gases into the breathable zone.

• Axial Flow Dynamics: The use of high-efficiency impellers to move large volumes of air with minimal pressure drop.
• Thrust Optimization: Calculating the required Newtons of force per fan unit to overcome the frictional resistance of the tunnel walls.
• Reversibility Protocols: The ability to switch flow direction based on the location of the fire relative to the depot's primary egress points.
• VFD Integration: Precision control of motor RPM to maintain a stable, non-turbulent air stream.

Forensic Analysis of the Boulder Junction Depot Interface

The Boulder Junction Depot introduces a complex architectural disruption to the linear flow of the tunnel. As a transit hub, the depot features wider platforms, open mezzanines, and multiple points of vertical egress. From a forensic engineering perspective, these openings act as "pressure sinks," where the high-velocity air stream provided by the jet fans can leak, reducing the overall effectiveness of the smoke push. The interface between the narrow tunnel bore and the expansive depot volume creates a sudden expansion of the air column, leading to a drop in static pressure and a potential risk of smoke recirculation.

To counteract this, the engineering design employs a series of air curtains and strategic pressure zoning. By maintaining a slight positive pressure in the passenger waiting areas and a negative pressure in the tunnel bore during an evacuation event, the system ensures that smoke is drawn away from the commuters and pushed toward the exhaust shafts. Forensic modeling of the depot's envelope reveals that the seal integrity of the platform screen doors (PSDs) is paramount. Any failure in the PSD seal allows the "chimney effect" to pull smoke from the tunnel into the station concourse, bypassing the jet-fan system entirely.

• Pressure Gradient Mapping: Analyzing the delta between the tunnel bore and the depot mezzanine to prevent smoke infiltration.
• Expansion Zone Turbulence: Managing the transition of air from a confined tube to an open station environment to avoid eddies.
• Envelope Leakage Assessment: Evaluating the air-tightness of structural joints and doors within the depot interface.
• Recirculation Risk Analysis: Identifying potential loops where smoke could be drawn back into the intake side of the fan array.

System Redundancy and NFPA 130 Compliance Standards

The life-safety systems at the Boulder Junction Depot are governed by the stringent requirements of NFPA 130, the Standard for Fixed Guideway Transit and Passenger Rail Systems. Compliance requires not only the ability to move smoke but the guaranteed reliability of that movement under worst-case scenarios. This necessitates a high degree of redundancy in both power supply and control logic. The jet-fan array is partitioned into independent zones, ensuring that a localized electrical failure or a physical obstruction does not compromise the entire evacuation corridor.

Empirical data from full-scale smoke tests indicate that the most critical failure point is often the communication between the fire detection system and the fan controllers. To mitigate this, the system utilizes a hard-wired, fail-safe logic circuit that triggers the "Smoke Mode" immediately upon the detection of a specific obscuration level. Furthermore, the structural supports for the fans are analyzed for thermal expansion; as the tunnel heats, the mounting brackets must maintain their alignment to prevent fan vibration or catastrophic mechanical failure due to shaft misalignment.

• NFPA 130 Adherence: Ensuring the system meets the mandated tenability limits for visibility and temperature during egress.
• Redundant Power Feeds: Utilizing dual-source electrical grids and UPS backups to maintain fan operation during a total power loss.
• Fail-Safe Logic Integration: Implementing automated triggers that bypass manual controls during critical fire events.
• Thermal Expansion Analysis: Engineering mounts that accommodate the physical growth of steel components under extreme heat.

Kinetic Energy Capture and Regenerative Drive Architecture

The Longmont Intermodal Terminal represents a complex intersection of heavy mechanical movement and high-voltage electrical distribution. At the core of the energy recovery strategy is the implementation of four-quadrant regenerative drives across the terminal's gantry cranes and automated stacking systems. In traditional braking configurations, kinetic energy is dissipated as waste heat through massive resistor banks, often situated on the roof or in open-air enclosures. This process is inherently inefficient and introduces significant thermal stress to the surrounding building envelope and structural steel.

By transitioning to a regenerative architecture, the terminal utilizes the electric motors as generators during deceleration and descent phases. When a container is lowered or a crane slows its travel, the back-electromotive force (back-EMF) is captured rather than burned. This captured energy is rectified from alternating current (AC) to direct current (DC) via a diode bridge, then stabilized through a DC bus. The precision of this capture is governed by the switching frequency of the Insulated Gate Bipolar Transistors (IGBTs), which ensure that the energy transition is seamless and does not induce mechanical shudder in the load-bearing infrastructure.

• Implementation of Active Front End (AFE) technology to allow bidirectional power flow.
• Utilization of high-capacity DC link capacitors to smooth voltage ripples before inversion.
• Integration of synchronized braking protocols to prevent voltage spikes across the internal bus.
• Reduction of thermal loading on roof-mounted ventilation systems by eliminating braking resistors.

Power Grid Inversion and Harmonic Distortion Management

The critical engineering challenge in the Longmont facility is the inversion of captured DC energy back into a synchronized AC signal compatible with the utility grid. This process requires sophisticated Pulse Width Modulation (PWM) inverters that can match the phase, frequency, and voltage of the primary grid. Without precise synchronization, the injection of recovered energy could lead to catastrophic phase misalignment or destructive resonance within the terminal's electrical distribution network.

A primary concern for the senior technical analyst is the management of Total Harmonic Distortion (THD). The non-linear nature of regenerative inverters can introduce high-frequency harmonics into the grid, which can overheat transformers and interfere with sensitive control electronics. To mitigate this, the terminal employs LCL filters (Inductor-Capacitor-Inductor) at the point of common coupling. These filters act as low-pass barriers, ensuring that the current injected into the grid adheres to IEEE 519 standards. This clinical approach to power quality prevents the degradation of insulation in the facility's extensive cabling runs and protects the longevity of the switchgear.

• Application of Phase-Locked Loop (PLL) algorithms for microsecond-accurate grid synchronization.
• Deployment of K-factor rated transformers to handle the increased heat generated by harmonic currents.
• Real-time monitoring of the Power Factor (PF) to maintain a ratio as close to unity as possible.
• Dynamic voltage regulation to prevent transient overvoltages during sudden load shedding.

Infrastructure Integration and Envelope Thermal Forensics

From a commercial infrastructure perspective, the housing of high-power inversion equipment requires a rigorous analysis of the building envelope. The inverter vaults at the Longmont terminal are integrated into the primary structural shell, necessitating a forensic approach to thermal bridging and moisture infiltration. Because the inverters generate significant concentrated heat loads, the envelope must be designed to facilitate rapid heat rejection without compromising the internal climate control required for the electronics.

The roofing system above the energy recovery center utilizes a high-albedo, cool-roof membrane to reduce solar heat gain, which in turn lowers the cooling load for the HVAC systems servicing the electrical vaults. Furthermore, the structural supports for the heavy-duty inverter cabinets are decoupled from the primary slab to prevent the transmission of low-frequency vibrations into the terminal's administrative zones. The intersection of the electrical conduits and the building envelope is a critical point of failure; therefore, specialized thermally broken penetrations are used to prevent condensation and interstitial mold growth, ensuring the forensic integrity of the envelope over a thirty-year lifecycle.

• Installation of high-efficiency heat exchangers integrated into the building's mechanical penthouse.
• Use of closed-cell spray foam insulation at all electrical penetration points to eliminate air leakage.
• Structural reinforcement of the roof deck to support heavy-duty HVAC condensers required for inverter cooling.
• Application of vibration-dampening mounts to isolate electrical humming from the primary steel frame.

Empirical Efficiency Analysis and Lifecycle Sustainability

The empirical data gathered from the Longmont Intermodal Terminal indicates a substantial reduction in net energy consumption. By recovering energy from the descent of heavy containers and the deceleration of rail-mounted equipment, the facility has achieved an estimated 18% to 22% reduction in total kilowatt-hour (kWh) demand. This recovery is not merely a matter of sustainability but of operational economy, as it reduces the peak demand charges levied by the utility provider during high-traffic windows.

The lifecycle analysis reveals that the reduction in thermal stress on the building's electrical infrastructure has extended the mean time between failures (MTBF) for the terminal's power distribution units. By eliminating the traditional braking resistors, the facility has also reduced the risk of roof membrane degradation caused by localized heat plumes. The synergy between the regenerative power systems and the high-performance building envelope creates a closed-loop efficiency model that serves as a benchmark for modern commercial infrastructure engineering.

• Measured reduction in peak demand loads through strategic energy buffering.
• Extended operational lifespan of switchgear due to reduced thermal cycling.
• Quantifiable decrease in carbon emissions associated with grid-drawn power.
• Optimization of the facility's Energy Star rating through integrated power recovery and envelope efficiency.

Mechanics of Channelized Loading and Viscoelastic Deformation

The structural integrity of Dedicated Right-of-Way (ROW) pavement within a Bus Rapid Transit (BRT) system is subject to stressors fundamentally different from those encountered in general-purpose arterial roads. In standard traffic patterns, vehicle wander—the natural lateral deviation of drivers—distributes axle loads across a wider transverse section of the pavement. However, BRT systems utilize channelized loading, where heavy-duty transit vehicles follow a precise, repetitive wheel path. This concentration of stress accelerates the fatigue life of the asphalt or concrete layers, leading to a phenomenon known as rutting or permanent deformation.

At the Golden Station Transit Loop, the shear failure is primarily driven by the interaction between high gross vehicle weights (GVW) and the viscoelastic properties of the surface course. When the repetitive load exceeds the shear strength of the binder, the material begins to displace laterally. This is not a simple surface wear issue but a systemic failure of the pavement's internal structure to resist the horizontal forces exerted by the tires during acceleration and deceleration phases. The result is a series of longitudinal shear cracks that compromise the waterproofing of the pavement envelope.

• Axle load concentration: BRT vehicles exert significantly higher point-loads per square inch compared to passenger vehicles, accelerating the compression of the base course.
• Viscoelastic flow: Under sustained high-temperature conditions, the asphalt binder reaches a state of fluidity where it can no longer support the lateral thrust of the tires.
• Fatigue cracking: The repetitive cycling of loads creates micro-fractures in the aggregate matrix, which eventually coalesce into macro-scale shear failures.
• Channelization effect: The lack of vehicle wander ensures that the same structural points are stressed until the material reaches its ultimate limit state.

Forensic Analysis of Lateral Shear in the Transit Loop Geometry

The geometry of the Golden Station Transit Loop introduces a critical variable: centrifugal force. As buses navigate the curvature of the loop, the load is not distributed vertically but is shifted toward the outer edge of the curve. This creates a resultant force vector that pushes the pavement surface laterally relative to the sub-base. In engineering terms, this is a classic shear stress scenario where the interface between the surface course and the base course becomes the primary plane of failure.

Forensic examination of the failed sections reveals a distinct pattern of "shoving," where the pavement has physically migrated in the direction of the bus's travel. This occurs because the friction between the rubber tires and the pavement exceeds the internal shear strength of the asphalt mix. The failure is most acute at the transition points where the bus enters the loop and begins its braking sequence, as the longitudinal force of deceleration combines with the lateral force of the turn to create a complex, multi-axial stress state.

• Centrifugal load shifting: The outward migration of the center of gravity during the turn increases the pressure on the outer wheel path.
• Braking-induced shear: Rapid deceleration creates a horizontal force that attempts to "slide" the top layer of pavement across the base.
• Interface slippage: Failure occurs when the bond between the tack coat and the underlying layer is sheared, leading to delamination.
• Curvature stress: The tighter the radius of the loop, the higher the lateral force, necessitating a higher modulus of elasticity in the pavement design.

Subgrade Degradation and Moisture-Induced Interface Instability

From a forensics perspective, the pavement surface is merely the outer skin of a complex structural envelope. The shear failures at Golden Station cannot be fully understood without analyzing the subgrade and the drainage interface. Evidence suggests that moisture infiltration has occurred through the aforementioned shear cracks, leading to the saturation of the base course. Once water penetrates the pavement envelope, it reduces the effective stress of the soil, leading to a loss of bearing capacity and the onset of "pumping."

Pumping occurs when the vertical load of the bus forces water and fine soil particles upward through the cracks, creating voids beneath the pavement. These voids eliminate the continuous support required to resist lateral shear. Consequently, the pavement slab or layer begins to act as an unsupported beam, which is far more susceptible to cracking and displacement under the heavy loads of a BRT vehicle. The synergy between moisture ingress and mechanical loading creates a feedback loop of rapid degradation.

• Capillary rise: Poorly graded sub-bases allow groundwater to rise into the pavement structure, softening the lower layers.
• Hydrostatic pressure: The weight of the bus compresses the saturated subgrade, forcing water laterally and eroding the base material.
• Void formation: The migration of fines creates unstable pockets that lead to differential settlement and localized shear failure.
• Freeze-thaw cycling: In colder periods, water trapped in the shear cracks expands, widening the gaps and further compromising the structural envelope.

Remediation Strategies and Long-Term Durability Standards

To resolve the shear failures at the Golden Station Transit Loop, a standard "mill and fill" approach is insufficient, as it does not address the underlying structural deficiency. The remediation must focus on increasing the shear resistance of the surface and stabilizing the subgrade. The implementation of High-Modulus Asphalt (HMA) or Polymer-Modified Bitumen (PMB) is recommended. These materials are engineered to provide a stiffer response to loading and a higher resistance to permanent deformation, effectively shifting the viscoelastic failure point to a higher load threshold.

Furthermore, the introduction of reinforced concrete slabs—specifically Jointed Plain Concrete Pavement (JPCP) with dowel bars—at the highest-stress points of the loop would provide the necessary load transfer capabilities. Dowel bars ensure that the load is shared between adjacent slabs, preventing the "curling" and "stepping" that often precede shear failure. This approach, combined with an enhanced subsurface drainage system to keep the subgrade dry, will ensure that the pavement envelope remains intact over the intended design life of the infrastructure.

• Polymer modification: Utilizing SBS (Styrene-Butadiene-Styrene) modifiers to increase the binder's elasticity and resistance to shoving.
• Load transfer mechanisms: Installing steel dowel bars to distribute heavy axle loads across multiple pavement sections.
• Enhanced drainage: Installing geocomposite drains and perforated piping to prevent subgrade saturation and pumping.
• Geogrid stabilization: Incorporating high-strength geosynthetics within the base course to provide lateral confinement and increase the overall modulus of the system.

Structural Load Analysis and Kinetic Impact Dynamics

The engineering of safety rails for Compressed Natural Gas (CNG) fueling stations within the Lakewood-Wadsworth corridor requires a rigorous application of kinetic energy dissipation principles. Given the gross vehicle weight (GVW) of a standard transit bus, which can exceed 40,000 pounds, the potential for catastrophic failure during a low-speed maneuvering error is significant. The primary objective of the safety rail system is to arrest the vehicle's momentum before it makes contact with the high-pressure CNG dispensing equipment, which typically operates at pressures reaching 3,600 psi. The structural analysis must account for the "worst-case" impact scenario, calculating the force exerted based on the vehicle's mass and a projected impact velocity of 3 to 5 mph.

From a forensic engineering perspective, the failure point in most substandard installations is not the rail itself, but the anchorage system. The moment arm created by the height of the rail translates a horizontal impact into a massive prying force at the base plate. To counteract this, the specifications for the Lakewood-Wadsworth installations must mandate reinforced concrete footings with a minimum compressive strength of 4,000 psi, utilizing heavy-duty epoxy-set anchors. The goal is to ensure that the energy is absorbed through controlled deformation of the rail rather than the sudden shearing of the bolts or the cracking of the concrete slab.

• Calculation of peak impact force using the formula F = ma, adjusted for the deceleration distance provided by the rail's elastic deformation.
• Analysis of shear stress on anchor bolts to prevent "pull-out" failure during oblique impacts.
• Evaluation of the rail's section modulus to ensure the steel does not reach its ultimate tensile strength before the vehicle is halted.
• Assessment of the "crush zone" of the bus chassis to determine the effective point of contact.

Material Specifications and Atmospheric Corrosion Mitigation

The environmental conditions of the Lakewood-Wadsworth corridor, characterized by seasonal temperature fluctuations and the heavy application of de-icing salts on transit routes, necessitate a high-performance material specification. Standard carbon steel is insufficient due to the rapid onset of oxidation, which compromises the structural integrity of the load-bearing members. The authoritative standard for this application is the use of ASTM A572 Grade 50 high-strength low-alloy steel, which provides a superior strength-to-weight ratio and enhanced weldability for the custom configurations required by the fueling bays.

To mitigate the effects of chloride-induced corrosion, all safety rail components must undergo a hot-dip galvanizing (HDG) process in accordance with ASTM A123. Unlike powder coating or painting, which provide only a surface-level barrier, hot-dip galvanizing creates a metallurgical bond between the zinc and the steel, forming a series of zinc-iron alloy layers. This provides sacrificial protection; should the rail be scraped by a vehicle, the surrounding zinc will corrode preferentially to the base steel, preventing the "creep" of rust beneath the coating. This is critical for infrastructure that is subject to constant physical abrasion and chemical exposure.

• Utilization of ASTM A572 Grade 50 steel for enhanced yield strength and impact resistance.
• Implementation of hot-dip galvanizing to ensure a minimum coating thickness of 3.5 mils for long-term corrosion resistance.
• Application of reinforced weldments using E70XX series electrodes to ensure joint strength matches the parent metal.
• Integration of neoprene isolation pads between the base plate and the concrete to prevent galvanic corrosion and reduce vibration transfer.

Integration with CNG Dispensing Infrastructure and Safety Zones

The placement of safety rails is not merely a matter of perimeter fencing but is a critical component of the overall CNG safety system. The rails must be strategically positioned to create a "buffer zone" that protects the dispenser's shear valves and high-pressure piping. In the Lakewood-Wadsworth corridor, the geometry of the fueling lanes must be analyzed to ensure that the rails do not inadvertently direct a sliding vehicle into other critical infrastructure, such as the CNG compressor station or the emergency shut-off (ESO) buttons. The distance between the rail and the dispenser must be calibrated to allow for the maximum possible deflection of the rail without the vehicle ever breaching the "critical strike zone."

Furthermore, the engineering must account for the specific fueling posture of CNG buses, where the fuel port is often located on the roof. This requires a layout that prevents the bus from over-traveling the designated stop line, which could lead to the fueling hose being ripped from the dispenser. The safety rails act as a physical stop, ensuring the vehicle remains within the operational radius of the dispensing equipment. This prevents the high-pressure hoses from experiencing extreme tension, which could lead to a rupture and the subsequent release of pressurized gas.

• Establishment of a non-interference zone that maintains a minimum 3-foot clearance between the rail's maximum deflection point and the dispenser housing.
• Alignment of rail segments with the bus's chassis frame rails to ensure the impact force is distributed across the strongest part of the vehicle.
• Strategic placement of rails to protect the Emergency Shut-Off (ESO) actuators from accidental vehicle contact.
• Coordination of rail heights to match the bumper height of the fleet's specific bus models to avoid "over-riding" the rail.

Forensic Inspection Protocols and Lifecycle Maintenance

A safety rail system is only effective if its structural integrity is maintained throughout its operational life. A senior technical analyst must implement a forensic inspection regime that moves beyond visual checks to include empirical measurement. The primary concern over time is fatigue failure at the weld points and the loosening of anchor bolts due to the constant vibration of the fueling facility. A quarterly inspection protocol should be established, utilizing non-destructive testing (NDT) methods such as dye penetrant inspection (DPI) on critical load-bearing welds to identify hairline fractures before they lead to a catastrophic failure.

Moreover, the integrity of the galvan

Subsurface Infrastructure and Structural Integration

The deployment of inductive charging pads at the Littleton Downtown Station necessitates a rigorous approach to subsurface engineering, treating the charging area not merely as a parking surface but as a critical component of the electrical envelope. From a forensics perspective, the primary failure point in inductive installations is typically the interface between the charging pad housing and the surrounding pavement. To mitigate differential settlement, the engineering specification requires a reinforced concrete slab-on-grade design, utilizing fiber-reinforced concrete to enhance tensile strength and resist the high-cycle loading of 18-ton electric buses.

The structural integration must account for the precise vertical alignment of the primary coil. Any deviation in the Z-axis—the distance between the ground-based transmitter and the vehicle-mounted receiver—results in an exponential decay of power transfer efficiency. To maintain an optimal air gap of 150mm to 250mm, the installation utilizes a precision-leveled casting process. Furthermore, the thermal expansion coefficients of the concrete and the polymer encapsulation of the charging pads must be matched to prevent the formation of hairline fractures at the perimeter, which would otherwise allow moisture ingress and subsequent freeze-thaw spalling.

• Implementation of ASTM C94 standard concrete for high-durability pavement sections.
• Utilization of non-conductive, high-density polymer grouts to isolate the inductive pads.
• Installation of subsurface drainage channels to prevent hydrostatic pressure buildup beneath the charging pads.
• Precision leveling using laser-guided screeding to ensure a flatness tolerance of +/- 3mm across the charging zone.

Electromagnetic Coupling and Power Transfer Efficiency

The technical core of the Littleton Station’s charging system relies on resonant inductive coupling. Unlike traditional conductive charging, which utilizes physical pins, the inductive system employs a primary coil energized by a high-frequency AC inverter. This creates an oscillating magnetic field that induces a current in the secondary coil located on the bus chassis. The efficiency of this transfer is governed by the coupling coefficient, which is highly sensitive to the alignment of the vehicle over the pad. To maximize the Quality Factor (Q), the system utilizes LCL filters to suppress harmonics and ensure a clean sinusoidal waveform.

From an engineering standpoint, the primary challenge is the management of electromagnetic interference (EMI) and the mitigation of stray magnetic fields. The installation incorporates ferrite shielding and aluminum plates to direct the magnetic flux upward, preventing eddy current losses in the surrounding reinforced concrete and protecting nearby sensitive electronic infrastructure. The system is tuned to a resonant frequency typically between 85kHz and 150kHz, ensuring that the power transfer remains stable even as the bus battery's state of charge (SoC) fluctuates, changing the input impedance of the vehicle's onboard charger.

• Application of high-permeability ferrite cores to concentrate magnetic flux and reduce leakage.
• Integration of Gallium Nitride (GaN) semiconductors in the inverters to reduce switching losses and thermal output.
• Real-time impedance matching algorithms to optimize power delivery across varying air gaps.
• Deployment of EMI shielding to comply with IEEE C95.1 standards for human exposure to RF fields.

Dynamic Load Management and Grid Stability

Managing the aggregate electrical demand of a multi-bus depot requires a sophisticated Dynamic Load Management (DLM) architecture. If every bus at the Littleton Station were to draw maximum power simultaneously, the resulting peak demand would exceed the local transformer capacity, leading to voltage sags or catastrophic breaker trips. The DLM system operates as a centralized controller that monitors the real-time capacity of the utility feed and distributes power based on a priority-weighted queue. This ensures that buses with the lowest SoC are prioritized while those nearing full charge are throttled to a maintenance trickle.

The load management strategy employs a "peak shaving" technique, utilizing a combination of stationary energy storage systems (ESS) and software-defined power limits. By discharging onsite batteries during peak arrival windows, the station can maintain a constant draw from the grid, avoiding the costly demand charges associated with industrial utility tariffs. The communication between the charging pads and the central controller is handled via Open Charge Point Protocol (OCPP), allowing for seamless integration with the city's broader smart-grid infrastructure and enabling vehicle-to-grid (V2G) capabilities for future stability services.

• Implementation of proportional power distribution to prevent localized overheating of the distribution transformers.
• Integration of a 500kWh lithium-iron-phosphate (LFP) buffer battery to smooth load spikes.
• Utilization of predictive analytics to forecast arrival times and pre-allocate power blocks.
• Deployment of automated load-shedding protocols to protect critical station infrastructure during grid instability.

Environmental Forensics and Lifecycle Degradation

The long-term viability of the inductive charging infrastructure is subject to severe environmental stressors, requiring a forensic approach to maintenance. The primary concern is the degradation of the protective polymer overlay that seals the inductive pads. In a commercial depot environment, this surface is subjected to constant abrasion from tire friction and chemical attack from de-icing salts. Over time, the infiltration of chloride ions can lead to the corrosion of internal copper windings if the encapsulation is breached, resulting in a decrease in coil efficiency and an increase in thermal resistance.

Thermal cycling also presents a significant risk to the structural integrity of the installation. The heat generated by the inductive process, combined with external temperature swings, creates a cycle of expansion and contraction. If the bond between the charging pad and the concrete slab fails, "pumping" occurs, where water and fine particulates are forced into the gap, eventually leading to the undermining of the slab. Regular forensic inspections utilizing infrared thermography are required to identify "hot spots" that indicate internal winding failure or poor coupling, allowing for preemptive replacement before a total system failure occurs.

• Quarterly infrared thermographic scanning to detect abnormal heat signatures in the primary coils.
• Application of high-performance polyurea coatings to provide a chemical-resistant, abrasion-proof wear layer.
• Monitoring of the dielectric strength of the insulation to identify early-stage moisture ingress.

Electromagnetic Interference and Signal Attenuation in Transit Hubs

The operational efficiency of the Automated Fare Collection (AFC) system within the Lone Tree City Center Transit hub is fundamentally dependent on the precision of the Radio Frequency Identification (RFID) handshake. In a high-throughput transit environment, the latency between the reader’s interrogation signal and the transponder’s response is not merely a software concern but a direct consequence of the physical infrastructure. The structural composition of the transit hub, characterized by reinforced concrete slabs and extensive structural steel framing, creates a complex electromagnetic environment that can induce significant signal attenuation and multipath interference.

From a forensics perspective, the proximity of the RFID readers to large metallic surfaces induces eddy currents, which effectively distort the magnetic field generated by the reader's antenna. This phenomenon, known as the "metal effect," shifts the resonant frequency of the antenna away from the standard 13.56 MHz center frequency. When the antenna is detuned, the energy transfer to the passive transponder is diminished, forcing the reader to increase its polling cycle or necessitating the passenger to hold the card closer for a longer duration. This physical misalignment of frequency results in a measurable increase in the Time-to-Read (TTR), directly impacting passenger flow and increasing queue latency during peak transit hours.

• Dielectric loading caused by the proximity of high-density building materials.
• Electromagnetic shielding effects from structural I-beams acting as unintentional reflectors.
• Signal nulls created by destructive interference patterns in open-concourse areas.
• Resonant frequency shifts resulting from improper grounding of the reader chassis.

Analysis of the Reader-Transponder Handshake Latency

The latency observed across the Lone Tree City Center Transit system is primarily localized within the anti-collision phase of the ISO/IEC 14443 protocol. In a theoretical vacuum, the handshake between the reader and the transponder occurs in milliseconds; however, in a live deployment, the "time-to-access" is elongated by the reader's need to resolve multiple tags within the interrogation zone. When multiple passengers present credentials simultaneously, the reader must execute a binary search tree algorithm to isolate a single Unique Identifier (UID). If the signal-to-noise ratio (SNR) is degraded due to the aforementioned environmental factors, the probability of bit-errors increases, triggering repeated re-transmission requests.

Empirical data suggests that the latency is further compounded by the backend processing delay, where the reader must communicate with the Central Management System (CMS) to validate the account balance. In the Lone Tree infrastructure, the latency is often a cumulative result of the physical layer (PHY) instability and the data link layer overhead. When a transponder is read, the "dwell time"—the duration the card remains in the field—must be sufficient to complete the full cryptographic exchange. If the signal is intermittent due to poor antenna coupling, the handshake may fail mid-cycle, forcing the system to restart the polling sequence and creating a perceived "lag" for the end-user.

• Bit-rate mismatch between legacy transponders and upgraded reader hardware.
• Increased packet loss during the SELECT and AUTHENTICATE command sequences.
• Processing overhead associated with AES-128 encryption cycles on the reader's onboard microcontroller.
• Network jitter within the local area network (LAN) connecting the readers to the central server.

Environmental Degradation and Building Envelope Forensics

A critical yet often overlooked factor in RFID latency is the degradation of the reader's physical housing and its integration into the building envelope. In the Lone Tree City Center, the transit readers are exposed to extreme thermal cycling and moisture ingress, typical of the regional climate. Forensic analysis of the reader enclosures reveals that the seals on the reader housings often fail over time, allowing microscopic moisture particles to penetrate the internal circuitry. This moisture increases the parasitic capacitance of the antenna matching network, which further detunes the reader and increases the latency of the signal response.

Furthermore, the materials used in the mounting brackets and the surrounding cladding can act as dielectric absorbers. If the reader is mounted against a surface with a high dielectric constant, the electromagnetic field is "pulled" toward the mounting surface rather than projected outward toward the passenger. This reduces the effective read range and forces the transponder to operate at the very edge of its power threshold. When a transponder operates at low power, its internal clock stability can fluctuate, leading to timing mismatches that the reader interprets as noise, thereby increasing the number of cycles required to achieve a stable lock.

• Thermal expansion and contraction of mounting hardware leading to mechanical stress on the antenna.
• Capillary action drawing moisture into the reader's PCB, causing impedance mismatches.
• UV-induced degradation of the plastic faceplates, altering the RF transparency of the housing.
• Corrosion of grounding lugs, leading to common-mode noise on the signal line.

Engineering Remediation and Infrastructure Optimization

To mitigate the latency issues identified across the Lone Tree City Center Transit system, a multi-tiered engineering approach is required. The first priority is the implementation of ferrite shielding behind the reader antennas. By introducing a high-permeability ferrite layer between the antenna and the structural steel, the magnetic flux can be redirected away from the metal and concentrated toward the passenger. This effectively isolates the reader from the "metal effect," restoring the resonant frequency to 13.56 MHz and significantly reducing the TTR by improving the coupling efficiency between the reader and the transponder.

Additionally, the deployment of "smart" polling algorithms can reduce the overhead of the anti-collision phase. By adjusting the polling interval based on real-time passenger density, the system can optimize the balance between power consumption and responsiveness. From an envelope perspective, upgrading the reader housings to IP67-rated enclosures with gore-tex vents will prevent moisture accumulation while allowing for pressure equalization. This ensures that the internal dielectric environment remains constant regardless of external weather conditions

Kinematic Analysis of Gap Filler Actuation and Load Distribution

The ADA platform gap filler systems deployed across the Denver International Airport (DEN) concourse lines represent a critical intersection of accessibility compliance and high-cycle mechanical engineering. From a kinematic perspective, these systems must execute a precise, repeatable translation to bridge the horizontal and vertical void between the stationary platform edge and the varying thresholds of arriving rail vehicles. The mechanical linkage is tasked with converting actuator force into a controlled extension, ensuring that the gap is minimized to within the strict tolerances required for wheelchair and mobility device ingress and egress.

The primary stress vectors are concentrated at the pivot points and the primary drive linkages. Because these systems operate under a high-frequency duty cycle, the linkage is subject to constant reciprocating motion, which introduces significant dynamic loading. The efficiency of the system depends on the synchronization of the mechanical arms to prevent binding or uneven deployment, which could lead to catastrophic failure of the actuator or permanent deformation of the gap-filler plate. When the plate makes contact with the vehicle threshold, any misalignment in the linkage geometry results in a lateral force component that the system was not originally designed to sustain, leading to accelerated wear on the guide rails.

• Actuator torque synchronization to prevent asymmetric loading.
• Kinematic analysis of the over-travel limiters to avoid structural impact.
• Load distribution across the support brackets during peak passenger boarding.
• Tolerances for vertical alignment to mitigate "step-up" hazards.

Material Fatigue and Environmental Stressors in the Denver Corridor

The environmental conditions of the Denver metropolitan area introduce specific forensic challenges to the durability of the mechanical linkages. The region is characterized by extreme diurnal temperature swings, which induce significant thermal expansion and contraction cycles in the metallic components of the gap filler. When the coefficient of thermal expansion for the linkage steel differs from that of the mounting hardware or the concrete platform interface, internal stresses are generated. Over time, these stresses manifest as micro-fractures in the weldments and fatigue at the bolt-hole interfaces.

Furthermore, the ingress of particulate matter—ranging from atmospheric dust to winter de-icing salts—creates a highly abrasive environment. These contaminants act as grinding compounds within the bushings and pivot pins. In a clinical forensic analysis, we observe that the presence of these particulates leads to "galling" on the stainless steel surfaces, where the protective oxide layer is stripped away, allowing for rapid oxidative corrosion. This chemical degradation reduces the effective diameter of the pivot pins, increasing the "slop" or mechanical play within the linkage, which subsequently degrades the precision of the gap closure.

• Thermal cycling effects on high-tensile steel components.
• Tribological failure resulting from particulate contamination in pivot joints.
• Galvanic corrosion occurring at the interface of dissimilar metals.
• Impact of UV radiation on polymer seals and protective coatings.

Forensic Evaluation of Linkage Failure Modes

A detailed forensic examination of failed gap filler assemblies reveals a consistent pattern of "tolerance stack-up" failure. In a perfectly calibrated system, the linkage moves through a predictable arc. However, as the bushings wear and the pivot holes undergo ovalization, the cumulative error—or stack-up—results in the linkage operating outside its intended geometric envelope. This shift causes the gap filler to strike the vehicle threshold at an oblique angle, introducing shear forces that the linkage arms are not designed to withstand. The resulting failure mode is typically a shear fracture at the most constrained point of the linkage arm.

Additionally, we observe evidence of fatigue-induced cracking at the heat-affected zones (HAZ) of the fillet welds. The repetitive cycling of the linkage creates a fluctuating stress state, which, combined with the aforementioned environmental corrosion, accelerates the propagation of cracks. Once a crack reaches a critical length, the remaining cross-sectional area of the metal can no longer support the operational load, leading to a sudden, brittle failure. This is particularly prevalent in systems where the maintenance cycle has failed to include regular ultrasonic testing or visual inspections of the critical weldments.

• Ovalization of pivot holes leading to increased mechanical play.
• Shear failure resulting from oblique impact loading.
• Fatigue crack propagation within the heat-affected zones of welds.
• Bushing degradation causing misalignment of the drive shaft.

Mitigation Strategies and Lifecycle Optimization

To extend the mean time between failures (MTBF) for the ADA platform gap fillers, a transition toward hardened, self-lubricating materials is mandatory. The replacement of standard bronze bushings with PTFE-lined composite bearings would significantly reduce the reliance on manual lubrication and eliminate the galling associated with stainless steel-on-stainless steel contact. By reducing the friction coefficient, the load on the actuators is decreased, which in turn reduces the stress on the drive linkages and extends the overall life of the electrical components.

From a structural standpoint, the implementation of a rigorous predictive maintenance program based on vibration analysis and tolerance auditing is recommended. By measuring the "slop" in the linkage at scheduled intervals, technicians can replace worn pins and bushings before the tolerance stack-up reaches a critical threshold. Furthermore, applying a high-performance ceramic coating to the linkage arms would provide a dual benefit: protecting the base metal from the corrosive effects of de-icing salts and reducing the adhesion of abrasive particulates. This holistic approach to engineering—combining material science with proactive forensic monitoring—ensures the long-term reliability of the infrastructure and maintains the safety and accessibility of the Denver International Airport concourse.

• Integration of self-lubricating composite bearings to eliminate galling.
• Application of ceramic-based anti-corrosion coatings to all exposed linkages.
• Implementation of a quarterly tolerance audit to monitor pivot hole ovalization.
• Utilization of ultrasonic weld inspection to detect subsurface fatigue cracks.

Geotechnical Stratigraphy and Subsurface Site Analysis

The I-25 South Commuter Bypass presents a complex geotechnical profile characterized by highly variable alluvial deposits and intermittent lenses of overconsolidated clays. For the engineering authority, the primary concern in steep slope embankment stabilization is the interaction between the groundwater table and the shear strength of the soil mass. In this specific corridor, the presence of non-cohesive sands interspersed with silty clays creates a high risk of differential settlement and slope failure if not properly reinforced. The internal friction angle and cohesion coefficients must be determined through rigorous Standard Penetration Tests (SPT) and Cone Penetration Tests (CPT) to establish the baseline for the soil nail length and spacing.

A critical factor in the forensic analysis of this terrain is the identification of potential slip planes. In steep embankment scenarios, the failure surface typically develops along the interface of varying soil densities. When the driving force—composed of the soil's self-weight and external surcharges from commuter traffic—exceeds the resisting force provided by the soil's inherent shear strength, a global stability failure occurs. To mitigate this, the stabilization strategy must transition from passive support to active reinforcement, ensuring that the soil nail array intersects the critical failure plane at an optimal angle to maximize the pull-out resistance.

• Analysis of soil plasticity indices to determine shrink-swell potential in clay lenses.
• Evaluation of hydrostatic pressure buildup within the embankment core.
• Mapping of subsurface anomalies using Ground Penetrating Radar (GPR) to avoid existing utility conduits.
• Determination of the active wedge geometry to optimize nail inclination.

Soil Nail Design and Reinforcement Mechanics

The implementation of soil nailing across the I-25 South bypass utilizes a top-down construction methodology, which is essential for maintaining the stability of the excavation face during the reinforcement process. Unlike traditional retaining walls that rely on mass and gravity, soil nail walls function as a coherent reinforced soil mass. The primary mechanism is the transfer of tensile loads from the nail to the surrounding soil via a high-strength grout bond. This bond strength is the critical empirical variable; if the grout-to-ground bond is insufficient, the nail will simply pull out of the mass during a seismic event or under extreme saturation.

Technical specifications for the nail array involve the use of high-strength, threaded steel bars, typically permanently protected against corrosion using epoxy coatings or sacrificial thickness. The nails are installed at a downward inclination, usually between 10 and 20 degrees, to ensure that the nail length provides sufficient anchorage beyond the theoretical failure plane. The spacing of the nails—both horizontally and vertically—is calculated based on the required Factor of Safety (FoS), typically targeting a minimum of 1.5 for global stability. The load transfer is further enhanced by the application of a bearing plate and nut at the facing, which distributes the reaction force across the shotcrete surface.

• Utilization of fully grouted bars to eliminate voids and prevent internal oxidation.
• Calculation of the "critical nail length" to ensure anchorage in the stable zone.
• Application of tensioned anchors in specific high-load zones to limit initial deformation.
• Optimization of the nail grid pattern to prevent "block failure" between reinforcement points.

Facing Systems and Surface Drainage Integration

The facing system serves two primary purposes: preventing localized surface sloughing and providing a mechanism for load distribution between the soil nails. For the I-25 South project, fiber-reinforced shotcrete is the industry standard due to its ability to conform to irregular slope geometries and provide immediate structural support. The shotcrete must be engineered with a specific compressive strength and ductility to withstand the localized stresses exerted by the nail heads. However, the facing system is only as effective as the drainage system integrated behind it. Without adequate pore pressure relief, the buildup of hydrostatic force can lead to a catastrophic "blowout" of the facing.

Forensic evidence from similar infrastructure failures indicates that drainage failure is the leading cause of retaining wall collapse. Therefore, the engineering specification requires the installation of geocomposite drainage mats and perforated PVC collector pipes at the base of the wall. These systems ensure that water infiltrating from the surface or migrating through the embankment is efficiently routed away from the reinforced zone. The integration of weep holes through the shotcrete facing provides a secondary fail-safe, allowing trapped water to escape and preventing the saturation of the reinforced soil mass, which would otherwise reduce the effective stress and the resulting shear strength.

• Application of steel-fiber reinforced shotcrete for enhanced flexural toughness.
• Installation of HDPE drainage composites to create a capillary break.
• Strategic placement of weep holes based on the calculated hydraulic gradient.
• Use of a temporary facing layer to stabilize the slope during the primary drilling phase.

Long-term Performance Monitoring and Forensic Validation

The lifecycle management of the I-25 South embankment stabilization requires a rigorous monitoring regime to validate the design assumptions against real-world performance. The primary tool for this validation is the installation of inclinometers within the soil mass. Inclinometers detect lateral subsurface movements, providing a clinical early warning system for potential slope creep or deep-seated movement. By monitoring the rate of displacement, engineers can determine if the wall is reaching a state of equilibrium or if additional reinforcement is required to prevent a progressive failure.

Furthermore, load cells are frequently installed on a representative sample of the soil nails to monitor the evolution of tensile stress over time. This empirical data allows the technical team to assess the impact of seasonal freeze-thaw cycles and the vibrations induced by heavy commuter traffic. Forensic validation also includes periodic visual inspections for shotcrete cracking, spalling, or the presence of efflorescence, which indicates water seepage and potential leaching of the grout. A comprehensive maintenance schedule, involving the clearing of drainage outlets and the structural auditing of the facing, ensures that the infrastructure maintains its design life without unplanned interventions.

• Deployment of vibrating wire piezometers to monitor groundwater levels.
• Utilization of digital inclinometers for real-time deformation tracking.
• Periodic load testing of verification nails to ensure bond strength consistency.
• Implementation of a structural health monitoring (SHM) dashboard for remote oversight.

Site-Specific Acoustic Profile and Environmental Variables

The Peoria Station Commuter Transfer presents a complex acoustic environment characterized by high-amplitude, low-frequency transients generated by heavy rail braking and acceleration, coupled with high-frequency atmospheric noise from commuter traffic. From a forensic engineering perspective, the primary challenge is the "canyon effect" created by the surrounding commercial infrastructure, which induces multiple reflections and prolongs the reverberation time within the transfer zone. The objective of the soundwall installation is not merely the obstruction of a direct line-of-sight path but the strategic management of sound energy to prevent acoustic saturation of the pedestrian areas.

To establish a baseline for absorption calculations, we must first quantify the Sound Pressure Level (SPL) at the source. In the Peoria corridor, peak noise events frequently exceed 85 dB(A). The interaction between the rail bed and the adjacent building envelopes creates a secondary emission point, where ground-borne vibrations are transduced into airborne noise via the structural foundations of the station. This necessitates a barrier that addresses both the direct wave and the reflected wave from the opposing infrastructure.

• Source-to-Receiver Path Length: Analysis of the distance between the rail center-line and the primary pedestrian waiting areas.
• Ambient Noise Floor: Establishment of the L90 (background noise) to determine the required Insertion Loss (IL).
• Spectral Analysis: Identification of dominant frequencies, specifically the 125Hz to 500Hz range, where traditional thin-wall barriers typically fail.
• Topographic Influence: Evaluation of the grade changes across the transfer platform which affect the diffraction angle.

Material Science and Absorption Coefficients

A common failure in municipal soundwall engineering is the reliance on reflective surfaces, such as untreated concrete or smooth masonry. While these materials provide high Transmission Loss (TL), they exacerbate the noise environment by reflecting sound back toward the source or into adjacent properties. For the Peoria Station, the specification demands an absorptive barrier to reduce the overall sound energy in the corridor. We utilize the Noise Reduction Coefficient (NRC), a scalar average of sound absorption coefficients across standard octave bands, to determine material efficacy.

The selected system employs a composite architecture consisting of a perforated aluminum facing backed by a high-density, hydrophobic mineral wool core. The perforations are engineered to create an impedance mismatch, forcing the sound waves to enter the porous medium where kinetic energy is converted into low-grade heat through friction. The air gap between the absorbent core and the structural backing further enhances low-frequency absorption by utilizing the quarter-wavelength resonance principle.

• Absorption Coefficient (&alpha;): The ratio of sound energy absorbed to sound energy incident on the surface.
• Porosity and Tortuosity: The internal geometry of the mineral wool that dictates the flow resistivity of the air.
• Hydrophobic Treatment: Essential for maintaining the NRC rating, as water saturation in the core increases the bulk density and shifts the absorption peak.
• Facing Geometry: The use of specific hole diameters and open-area percentages to tune the barrier to the dominant rail frequencies.

Calculation Methodology for Sound Transmission Loss

The calculation of the effective noise reduction at the Peoria Station requires a dual-pronged approach: calculating the Transmission Loss (TL) through the material and the Diffraction Loss (DL) over the top of the wall. The total Insertion Loss (IL) is the sum of these components, though in practice, diffraction is the dominant mechanism. We employ the Maekawa formula to estimate the diffraction loss, which relies on the Fresnel number (N), a dimensionless value representing the difference between the path length over the top of the wall and the direct path length.

For the Peoria project, the critical height of the barrier is determined by the "shadow zone"—the area behind the wall where the sound pressure level is significantly reduced. To ensure the pedestrian transfer zone remains within the shadow zone, the wall height must be calculated relative to the height of the noise source (the rail wheel-rail interface) and the height of the receiver (the average human ear at 1.5 meters). Any gap at the base of the wall, known as "flanking," must be minimized, as even a small opening can lead to significant sound leakage, effectively neutralizing the calculated TL.

• Fresnel Number Calculation: Determining the path length difference to quantify the diffraction limit.
• Transmission Loss (TL): Calculating the decibel reduction based on the mass law for the structural components.
• Diffraction Loss (DL): Evaluating the bending of sound waves over the top edge of the barrier.
• Total Insertion Loss (IL): The final delta between the unobstructed SPL and the obstructed SPL at the receiver location.

Forensic Validation and Long-Term Performance Metrics

Engineering authority requires that theoretical calculations be validated through empirical field testing. Post-installation, the Peoria Station barrier underwent a series of Sound Transmission Class (STC) tests and spectral audits. Forensic analysis of the installation revealed that the interface between the soundwall and the existing station roofing was a critical point of potential failure. If the roofing membrane is not properly integrated with the wall capping, moisture ingress can occur, leading to the degradation of the mineral wool core and a subsequent drop in the NRC rating.

Furthermore, the long-term performance of the barrier is subject to environmental fouling. The accumulation of rail dust and atmospheric pollutants within the perforations of the aluminum facing can create a "skin effect," where the surface becomes reflective rather than absorptive. A rigorous maintenance schedule involving vacuuming or low-pressure cleaning of the facing is required to preserve the acoustic integrity of the system. The forensic audit confirms that when the system is maintained, the actual noise reduction aligns within +/- 2dB of the theoretical model.

• ASTM E90 Testing: Laboratory validation of sound transmission loss for the composite material.
• Field Sound Level Mapping: Using calibrated Class 1 sound level meters to verify the shadow zone.
• Thermal Cycling Analysis: Evaluating the expansion and contraction of the aluminum facing to ensure no gaps open at the joints.
• Moisture Penetration Testing: Ensuring the building envelope integrity at the wall-roof junction to prevent core saturation.

Electromechanical Fundamentals of Shunting Resistance

The operational integrity of the Decatur-Federal Stadium Line relies upon the consistent performance of track circuits, which utilize the rails as conductors to detect the presence of rolling stock. In a standard DC track circuit, the axle of a train acts as a shunt, creating a low-resistance path that diverts current away from the signal relay, thereby indicating an occupied block. The critical engineering threshold for shunting sensitivity is defined by the shunting resistance, typically required to remain below 0.06 ohms to ensure reliable detection. When heavy snow accumulation occurs, the physical and electrical interface between the wheelset and the rail head is compromised, introducing parasitic variables into the circuit.

Snow, in its crystalline form, acts as a dielectric insulator. However, as accumulation increases and undergoes partial melting due to friction or ambient temperature fluctuations, it transforms into a conductive slurry. This transition creates a precarious electrical environment where the shunt may either be inhibited or falsely triggered. The primary concern for senior analysts is the "loss of shunt" phenomenon, where a layer of compacted snow or ice prevents the wheelset from making a clean electrical contact with the rail, potentially leading to a "false clear" signal—a catastrophic failure mode in railway signaling.

• Rail Head Contamination: The accumulation of frozen precipitation creates a physical barrier that increases the contact resistance at the wheel-rail interface.
• Dielectric Variance: Fresh powder snow possesses high resistivity, whereas saturated, salted snow significantly lowers the impedance of the surrounding environment.
• Current Leakage: The presence of a conductive snow layer can facilitate current flow from the rail to the ballast, bypassing the intended relay path.
• Signal Attenuation: Increased resistance across the shunted section can lead to voltage drops that fall within the "grey zone" of relay trip points.

Dielectric Interference and Ballast Fouling

From a forensic engineering perspective, the failure of shunting sensitivity during heavy snow events is rarely the result of a single variable. Instead, it is the culmination of ballast fouling and moisture infiltration. In the Decatur-Federal Stadium segment, the ballast section serves as the primary insulating layer between the rail sleepers and the earth. When snow accumulates and subsequently melts, the water infiltrates the ballast voids. If the ballast is fouled with fine particles or carbon dust from brake wear, the resulting slurry becomes highly conductive.

This conductivity leads to "ballast leakage," where the current intended for the track relay leaks through the sleepers into the ground. When this occurs simultaneously with heavy snow accumulation on the rail head, the total current available to trigger the shunt is diminished. The result is a significant reduction in the sensitivity of the track circuit. The engineering challenge is that the system may still appear operational during light snow, but as the saturation point of the ballast is reached, the shunting sensitivity drops precipitously, often without a corresponding warning from the diagnostic monitoring systems.

• Capacitive Coupling: Saturated ballast can create a capacitive effect that alters the frequency response of the signaling equipment.
• Ionic Conductivity: The introduction of de-icing salts (sodium chloride or calcium chloride) increases the ion concentration in the meltwater, drastically lowering the resistivity of the ballast.
• Pore Water Pressure: The freezing and thawing cycles create micro-fractures in the sleepers, allowing moisture to penetrate deeper into the infrastructure.
• Impedance Mismatch: The shift from a dry to a saturated environment changes the characteristic impedance of the rail line, complicating the calibration of the signal relays.

Forensic Analysis of the Decatur-Federal Stadium Segment

The Decatur-Federal Stadium Line presents a unique set of geographic and structural challenges. The line features several low-lying areas where snow drifts accumulate preferentially, creating localized zones of extreme saturation. Forensic analysis of recent winter outages indicates that the most severe shunting failures occur at the switch points and frogs. In these areas, the geometry of the rail is complex, and snow tends to pack tightly into the gaps. This packing creates a dense, ice-rich medium that can bridge the gap between the running rail and the check rail, causing "phantom" occupancy signals.

Empirical data gathered from the stadium-adjacent spurs shows that the combination of high-frequency vibration from heavy transit and the chemical runoff from stadium maintenance (including salt-heavy snow removal) accelerates the degradation of the ballast resistivity. The analysis reveals a direct correlation between the depth of the snowpack and the increase in shunting resistance. Once the snow depth exceeds 15 centimeters, the probability of a shunting failure increases by 40% if the ballast saturation exceeds 60%. This suggests that the infrastructure is operating at the absolute limit of its designed tolerance during peak winter events.

• Switch Point Compression: Compacted snow in the switch mechanism increases mechanical resistance and disrupts the electrical continuity of the point detection circuit.
• Thermal Cycling: Rapid temperature swings between the heated stadium platforms and the exposed line create condensation, which freezes into an insulating glaze on the rail.
• Drainage Failure: Clogged culverts in the Federal Stadium sector lead to standing water, which exacerbates the ballast leakage issues.
• Vibration-Induced Compaction: The heavy tonnage of the line compacts the snow into a denser, more conductive ice-slush, altering the shunting profile.

Engineering Controls and Mitigation Strategies

To restore and maintain shunting sensitivity during heavy snow events, a multi-tiered engineering approach is required. The first priority is the improvement of the ballast drainage system to prevent the formation of conductive slurries. This involves the installation of geocomposite drainage layers and the periodic cleaning of the ballast to remove fines. By maintaining a high-resistivity ballast bed, the amount of leakage current is minimized, ensuring that the maximum possible current is available for the shunting process.

Furthermore, the implementation of AC track circuits can mitigate some of the issues associated with DC leakage. AC circuits allow for the use of frequency-selective filters that can distinguish between the legitimate shunt of a train and the parasitic leakage caused by salted snow. Additionally, the installation of rail heating elements at critical switch points and high-drift areas prevents the initial accumulation of ice, ensuring a clean mechanical and electrical interface. These controls, combined with a rigorous schedule of rail head scrubbing, ensure that the shunting resistance remains well within the safe operational limit of 0.06 ohms, regardless of the weather conditions.

• Ballast Remediation: Utilizing polyurethane stabilization or high-grade granite ballast to increase the electrical resistivity of the track bed.
• Signal Relay

Structural Dynamics and Thermal Displacement Analysis

The pedestrian overpass at the Table Mesa Park-n-Ride serves as a critical conduit for commuter traffic, subjecting the structure to constant live loads and significant environmental stressors. From an engineering perspective, the primary challenge lies in the management of thermal expansion and contraction across the truss joints. The structure, composed of welded steel members, is subject to linear expansion based on the coefficient of thermal expansion for carbon steel, which is approximately 12 microstrains per degree Celsius. Given the diurnal temperature swings characteristic of the region, the truss undergoes substantial longitudinal movement that must be accommodated without compromising the structural integrity of the connections.

The expansion bellows are designed to act as a flexible bridge, absorbing these kinematic shifts while maintaining a continuous weather seal. However, the efficacy of these bellows is entirely dependent on their ability to maintain a neutral axis during displacement. When the truss expands, the bellows are compressed; as it contracts, they are stretched. If the installation does not account for the precise center of rotation, the material is subjected to uneven shear forces. This asymmetry leads to localized stress concentrations, which eventually manifest as micro-fractures in the elastomer, compromising the primary weather barrier.

• Thermal cycling frequency: Daily fluctuations causing constant fatigue cycles on the bellows membrane.
• Longitudinal displacement: The calculated movement range that the bellows must accommodate without exceeding the material's elastic limit.
• Structural redundancy: The reliance on the bellows to prevent moisture from reaching the primary load-bearing truss joints.
• Kinematic alignment: The necessity for the bellows to be centered on the expansion axis to prevent premature tearing.

Forensic Analysis of Bellows Material Degradation

A forensic examination of the bellows assemblies reveals a pattern of degradation consistent with long-term UV exposure and ozone cracking. Most commercial bellows utilize EPDM (Ethylene Propylene Diene Monomer) or neoprene for their flexibility and water-shedding properties. However, in high-exposure environments like the Table Mesa corridor, these polymers undergo a process known as photo-oxidation. The UV radiation breaks the polymer chains, leading to a loss of plasticity and the onset of surface crazing. Once the surface integrity is breached, the material becomes brittle, and the inherent flexibility required for truss movement is lost.

Furthermore, the mechanical stress of constant expansion and contraction accelerates the failure of the material through a process of fatigue-induced hysteresis. As the bellows are stretched and compressed, internal friction generates heat, which, combined with external UV radiation, accelerates the chemical breakdown of the elastomer. This is most evident at the "folds" of the bellows, where the material is most tightly bent. The resulting cracks are not merely superficial; they create direct pathways for moisture and airborne pollutants to penetrate the building envelope, leading to the corrosion of the underlying steel truss members.

• Photo-oxidation: The chemical breakdown of the polymer matrix caused by ultraviolet radiation.
• Surface Crazing: The development of a network of fine cracks on the exterior surface of the bellows.
• Elastic Limit Exceedance: The point at which the material can no longer return to its original shape, leading to permanent deformation.
• Polymer Fatigue: The progressive structural damage that occurs when a material is subjected to cyclic loading.

Water Infiltration Vectors and Envelope Breach

The failure of the weatherproofing system at the Table Mesa overpass is rarely a result of a single point of failure, but rather a combination of infiltration vectors. The primary breach typically occurs at the interface between the flexible bellows and the rigid steel truss. This transition zone is a critical vulnerability because it requires a transition from a flexible sealant to a rigid fastener. Over time, the differential movement between the steel and the elastomer causes the sealant to pull away, creating a gap that allows water to enter via capillary action.

Once water penetrates the outer bellows, it is trapped against the steel structure, creating a micro-environment conducive to oxidation. The lack of adequate drainage within the bellows assembly means that moisture lingers, leading to "crevice corrosion" at the bolt heads and weldments of the truss joint. This is exacerbated by the presence of road salts and pollutants from the traffic below, which are carried upward by wind and spray. The resulting rust expands the volume of the metal, further stressing the bellows and creating a feedback loop of degradation that accelerates the failure of the entire weatherproofing system.

• Capillary Migration: The movement of water through narrow gaps between the sealant and the steel substrate.
• Interface Failure: The loss of adhesion at the boundary where the flexible bellows meet the rigid structural frame.
• Crevice Corrosion: Localized corrosion occurring in confined spaces where oxygen and moisture are trapped.
• Hydrostatic Pressure: The buildup of water during heavy rain events that forces moisture through microscopic fissures in the bellows.

Engineering Specifications for Remediation and Mitigation

To resolve these systemic failures, a comprehensive remediation strategy must be implemented, focusing on material upgrades and redundant flashing details. The first step is the replacement of existing bellows with high-performance, UV-stabilized silicone or fluoropolymer membranes. These materials offer superior resistance to ozone and UV radiation compared to standard EPDM, ensuring a longer service life in exposed environments. Additionally, the new bellows should be specified with a higher thickness to increase the fatigue threshold and provide a greater safety margin against mechanical tearing.

The critical improvement, however, lies in the implementation of a redundant flashing system. Rather than relying solely on a sealant bead, a stainless steel "shingle-lap" flashing should be installed over the transition joints. This ensures that water is shed away from the joint via gravity, regardless of the condition of the sealant. Furthermore, the use of high-modulus silicone sealants, which maintain elasticity over a wider temperature range, will reduce the likelihood of interface failure. A rigorous maintenance schedule, including semi-annual inspections and the application of UV-protective coatings, is essential to ensure the long-term viability of the infrastructure.

• Fluoropolymer Membranes: High-durability materials that provide superior chemical and UV resistance.
• Shingle-Lap Flashing: A gravity-based water shedding system that provides a secondary layer of protection.
• High-Modulus Sealants: Sealants designed to withstand high levels of movement without losing adhesion.
• ASTM Standards Compliance: Ensuring all materials meet or exceed the industry standards for commercial infrastructure weatherproofing.

Mechanics of Plastic Deformation in High-Load Intermodal Zones

In the context of the Southlands E-470 Feeder Loop, the intermodal bus bays represent the most critical failure points within the pavement architecture. Unlike standard highway lanes, where traffic is distributed and velocities are consistent, bus bays are subject to channelized traffic. This phenomenon occurs when heavy-axle vehicles follow a precise, repetitive wheel path, concentrating massive vertical loads onto a narrow strip of asphalt. The resulting stress exceeds the shear strength of the binder, leading to permanent deformation known as rutting.

The mechanism of rutting in these zones is primarily a result of plastic flow. At elevated ambient temperatures, the bitumen—the viscous binder holding the mineral aggregate together—softens. When a loaded bus axle applies pressure, the binder is displaced laterally, and the aggregate structure begins to shift. Because bus bays involve frequent braking, idling, and slow-speed acceleration, the pavement is subjected to prolonged loading durations. This eliminates the "elastic rebound" typically seen in high-speed traffic, effectively pushing the asphalt into a state of permanent plastic deformation.

To analyze the failure, one must consider the following contributing factors:

• High static loading during passenger boarding and idling cycles.
• Torsional shear stress caused by steering maneuvers in tight turning radii.
• Thermal softening of the binder during peak summer temperature cycles in the Southlands region.
• Subgrade instability resulting from inadequate drainage in the feeder loop's low-lying sections.

Rheological Analysis of Polymer Modified Binders (PMBs)

To combat the inherent weaknesses of conventional penetration-grade bitumen, the engineering specification for the E-470 Feeder Loop mandates the use of Polymer Modified Binders (PMBs). The objective is to alter the rheology of the binder to increase its elasticity and resistance to permanent deformation. By introducing polymers—most commonly Styrene-Butadiene-Styrene (SBS)—into the bitumen matrix, we create a cross-linked network that functions as a microscopic reinforcement grid.

The primary advantage of SBS modification is the enhancement of the binder's elastic recovery. In a standard binder, once the asphalt reaches its softening point, it flows like a liquid under load. In a PMB system, the polymer network acts as a spring; it allows the binder to deform under the weight of a bus axle but forces it to return to its original shape once the load is removed. This significantly reduces the accumulation of permanent strain over thousands of load cycles.

The technical superiority of PMBs is measured through several key empirical metrics:

• Increased High-Temperature Performance Grade (PG) rating, ensuring the binder remains stable at 76°C and above.
• Enhanced complex shear modulus (G*), which indicates a higher resistance to flow.
• Improved phase angle (delta), shifting the material behavior from purely viscous toward a more elastic response.
• Increased cohesion between the binder and the aggregate, reducing the likelihood of stripping and raveling.

Implementation Strategy for the E-470 Feeder Loop

The deployment of PMB across the Southlands E-470 Feeder Loop requires a rigorous adherence to temperature control and compaction standards. Because polymer-modified asphalt has a higher viscosity than traditional mixes, it requires higher mixing and placement temperatures to ensure proper workability and void reduction. If the mix temperature drops below the critical threshold before compaction is complete, the result is a "cold joint" or insufficient density, which creates a vacuum for moisture infiltration and premature rutting.

The design utilizes a Stone Matrix Asphalt (SMA) surface course combined with the PMB. SMA is characterized by a gap-graded aggregate structure that relies on stone-on-stone contact to support the load, rather than relying solely on the binder. The PMB fills the interstitial voids of the SMA, creating a reinforced composite that is virtually impervious to the crushing forces of heavy bus axles. This dual-layered defense strategy ensures that the load is distributed across a wider area of the base course, preventing the "punch-through" effect.

Critical execution steps for the E-470 installation include:

• Strict monitoring of the asphalt plant's temperature output to maintain a consistent 160°C to 175°C range.
• The application of a high-performance polymer-modified tack coat to ensure a seamless bond between the base and surface layers.
• The use of heavy pneumatic rollers to achieve a target compaction density of 96% or higher, eliminating air voids.
• Precision leveling to ensure a cross-slope that facilitates rapid drainage, preventing hydrostatic pressure buildup in the sub-base.

Forensic Evaluation and Long-Term Performance Metrics

Post-installation forensic analysis is essential to validate the efficacy of the PMB defense. The primary tool for evaluation is the use of high-precision laser profiling, which measures the rut depth in millimeters across the wheel paths. In conventional asphalt bays, rutting often reaches critical thresholds (exceeding 12.5mm) within the first 24 months of service. With the PMB-SMA implementation on the E-470 loop, the objective is to extend the service life to a 10-year cycle before significant corrective milling is required.

Further analysis involves the study of "shoving" and "corrugation," which are secondary forms of plastic deformation. Shoving occurs when the asphalt is pushed forward during braking, creating a wave-like pattern. The increased viscosity and internal friction provided by the polymer network significantly attenuate this movement. By conducting periodic core sampling, engineers can verify that the binder has not oxidized prematurely and that the polymer network remains intact throughout the pavement thickness.

The long-term success of the project is measured by the following performance indicators:

• Rut depth stability: Maintaining a maximum rut depth of less than 6mm over a five-year observation period.
• Thermal cracking resistance: Absence of transverse cracks during winter freeze-thaw cycles, indicating the binder's low-temperature flexibility.
• Reduction in maintenance frequency: A measurable decrease

System Architecture and Interlock Logic for Traction Power Isolation

The Thornton Crossroads Regional Line utilizes a high-voltage DC traction power system, where the third rail serves as the primary conductor for motive power. To mitigate the catastrophic risks associated with personnel ingress or structural failure, the emergency de-energization interlock system is engineered as a fail-safe, series-connected circuit. This architecture ensures that the opening of any single contact point—whether via a manual Emergency Power Off (EPO) button or an automated sensor trigger—immediately interrupts the control current to the Traction Power Substations (TPSS), triggering the rapid opening of the primary circuit breakers.

The logic governing these interlocks is rooted in a "normally closed" (NC) configuration. In this state, a continuous low-voltage supervisory signal flows through the entire length of the line. Any breach in this continuity is interpreted by the SCADA (Supervisory Control and Data Acquisition) system as a critical fault. The precision of this system relies on the elimination of parasitic capacitance and the mitigation of electromagnetic interference (EMI) generated by the high-current third rail, which could otherwise induce false positives or, more dangerously, mask a genuine trip signal.

• Galvanic isolation of control circuits to prevent cross-contamination between high-voltage traction power and low-voltage signaling.
• Redundant signal paths utilizing diverse routing to ensure that a single physical impact to a conduit does not disable the entire emergency shutdown capability.
• Time-delay coordination to prevent nuisance tripping while ensuring that the total de-energization sequence occurs within the mandated 500-millisecond window.
• Integration of current-limiting resistors to protect the interlock relays from transient voltage spikes during the switching event.

Failure Mode and Effects Analysis (FMEA) of De-Energization Circuits

A clinical analysis of the Thornton Crossroads infrastructure reveals that the primary vulnerability in the interlock system is not the electronic logic, but the physical degradation of the contact interfaces. Over time, the vibration induced by rolling stock and the thermal cycling of the regional environment lead to "contact fretting." This phenomenon creates microscopic debris and oxidation layers on the relay contacts, increasing the electrical resistance of the loop. If the resistance exceeds the calibrated threshold of the TPSS monitoring equipment, the system may fail to recognize a "trip" command, or conversely, may trigger an unplanned service interruption.

Furthermore, the risk of "ghost voltages" during the de-energization phase presents a significant hazard to first responders. When the third rail is disconnected, the residual capacitive charge stored in the system must be dissipated. The interlock system is therefore coupled with a grounding-down sequence. Failure of the grounding resistors or a break in the return path can leave the rail energized at lethal potentials even after the primary breakers have opened. This requires a rigorous empirical audit of the grounding grid's impedance across the entire regional line.

• Dielectric breakdown of cable insulation due to prolonged exposure to ozone and UV radiation in open-air sections.
• Corrosion of junction box terminals caused by moisture ingress, leading to high-impedance faults in the interlock loop.
• Latency in relay actuation resulting from mechanical wear, extending the de-energization window beyond safety specifications.
• Signal attenuation over long distances, requiring the strategic placement of signal boosters or repeaters to maintain loop integrity.

Integration with Building Envelope and Civil Infrastructure

The reliability of the traction power interlocks is inextricably linked to the integrity of the surrounding civil infrastructure. In the Thornton Crossroads corridor, the conduits housing the interlock wiring are embedded within reinforced concrete slabs and routed through building envelope penetrations at station interfaces. Forensics indicate that improper sealing of these penetrations often leads to the migration of alkaline-rich groundwater into the conduit system. This moisture acts as a catalyst for the carbonation of the surrounding concrete, which can eventually crush or deform the conduits, putting mechanical stress on the wiring and inducing intermittent shorts.

Moreover, the thermal expansion and contraction of the rail bed and the supporting building structures create significant shear forces. Where the interlock cabling crosses expansion joints, the use of rigid conduit is a critical failure point. Engineering standards demand the implementation of flexible, liquid-tight conduits with sufficient slack to accommodate the calculated thermal movement of the regional line. Without this flexibility, the physical movement of the infrastructure can lead to "cold pulls" on the terminal blocks, resulting in a loss of continuity that triggers a system-wide power shutdown.

• Implementation of hydrophobic seals at all building envelope penetrations to prevent water-driven degradation of electrical components.
• Utilization of thermal-expansion loops in conduit runs to decouple the electrical infrastructure from the structural movement of the rail bed.
• Application of corrosion-resistant coatings on all grounding rods and bonding jumpers to maintain low-impedance paths to earth.
• Strategic placement of junction boxes in accessible, dry locations to facilitate rapid forensic testing and maintenance.

Compliance, Testing Protocols, and Life-Safety Validation

To ensure the Thornton Crossroads Regional Line meets industry standards, such as NFPA 130 and IEEE 142, a rigorous validation protocol must be executed. This involves more than simple continuity testing; it requires full-load simulation and "black-start" recovery analysis. The empirical data gathered during these tests must confirm that the de-energization sequence is absolute and that no residual voltage remains on the third rail that exceeds the safe-touch threshold of 50V DC within the required timeframe.

The final stage of technical validation is the Mean Time Between Failures (MTBF) analysis of the interlock relays. By analyzing the switch-cycle data, engineers can predict the wear-out phase of the mechanical components and schedule preemptive replacements. This proactive approach shifts the maintenance paradigm from reactive repair to predictive reliability, ensuring that the life-safety systems are operational at a 99.999% confidence level. The integration of real-time monitoring via the SCADA system allows for the immediate detection of "near-miss" events, where a circuit almost opened but remained closed, signaling a need for immediate
